BASIC PLAYBACK REMOTE CONTROL
Preparations
Basic Playback
Pause/Step Playback
Stop Playback
Previous and Next
Fast forward and Fast reverse
Slow
PBC
MENU
A-B REPEAT
REPEAT
ZOOM
OSD
SUBTITLE
SEARCH
PROGRAM
AUDIO
RANDOM
VOLUME and MUTE
ANGLE
TFT-M
Safety Precautions

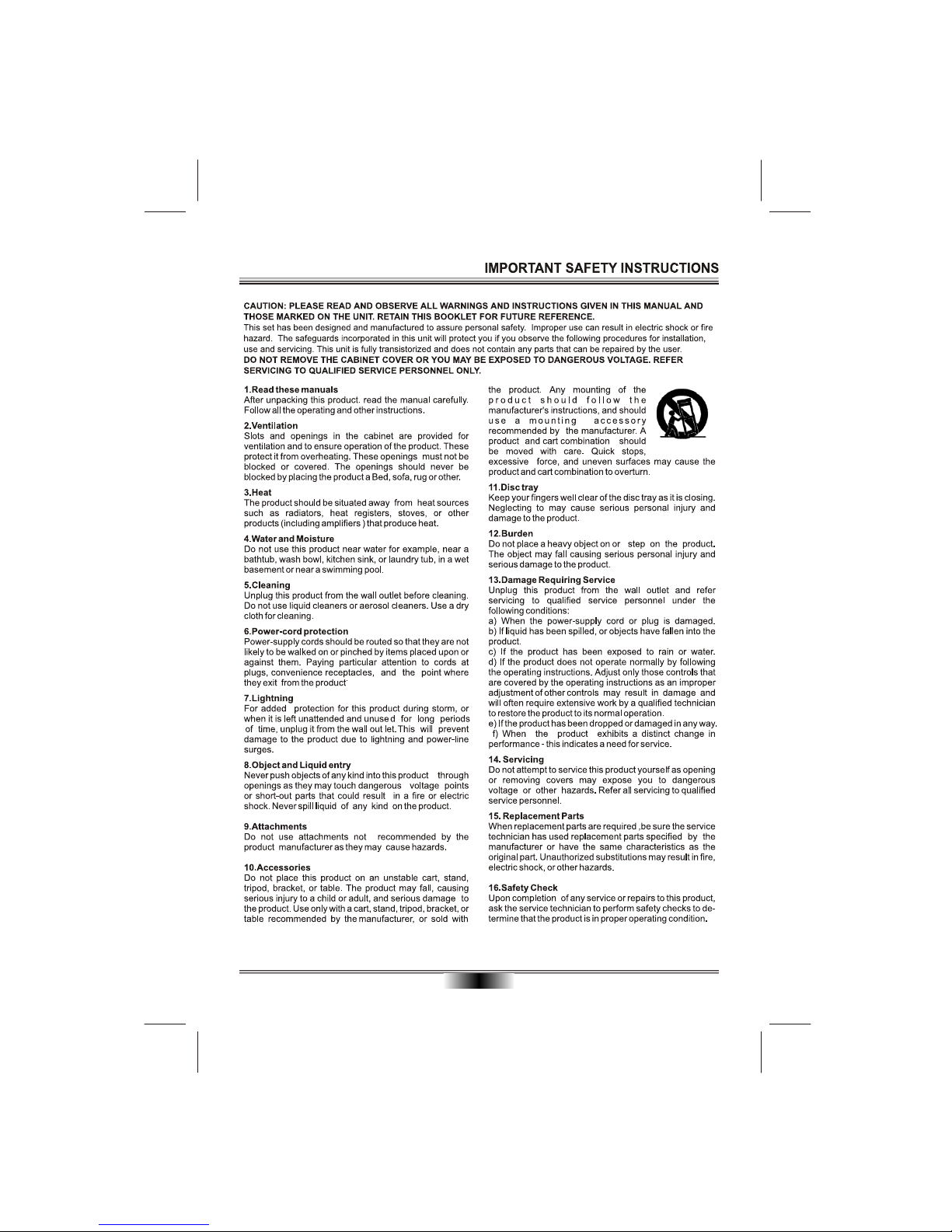

Important Safety Instructions
Notice
Disc Protection
Battery
Playable Discs
Accessories
Lithium
Basic connection
Remote control
Panel
BEFORE USE
Advanced Playback
CONTROL and CONNECTION
TITLE 13

SAFETY PRECAUTIONS
01
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replace the direct plug in power supply or a separable, cord-connected power
supply, the replacement must be exact duplicate, or one recommended by the manu-
facturer.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
This Digital Video Disc player employs a laser System.
Use of controls, adjustments or the performance of procedures other than those
specified may result herein hazardous radiation exposure. To prevent direct expo-
sure to laser beam, do not try to open the enclosure. Visible laser radiation when
open and interlocks defeated.
DO NOT STARE INTO BEAM.

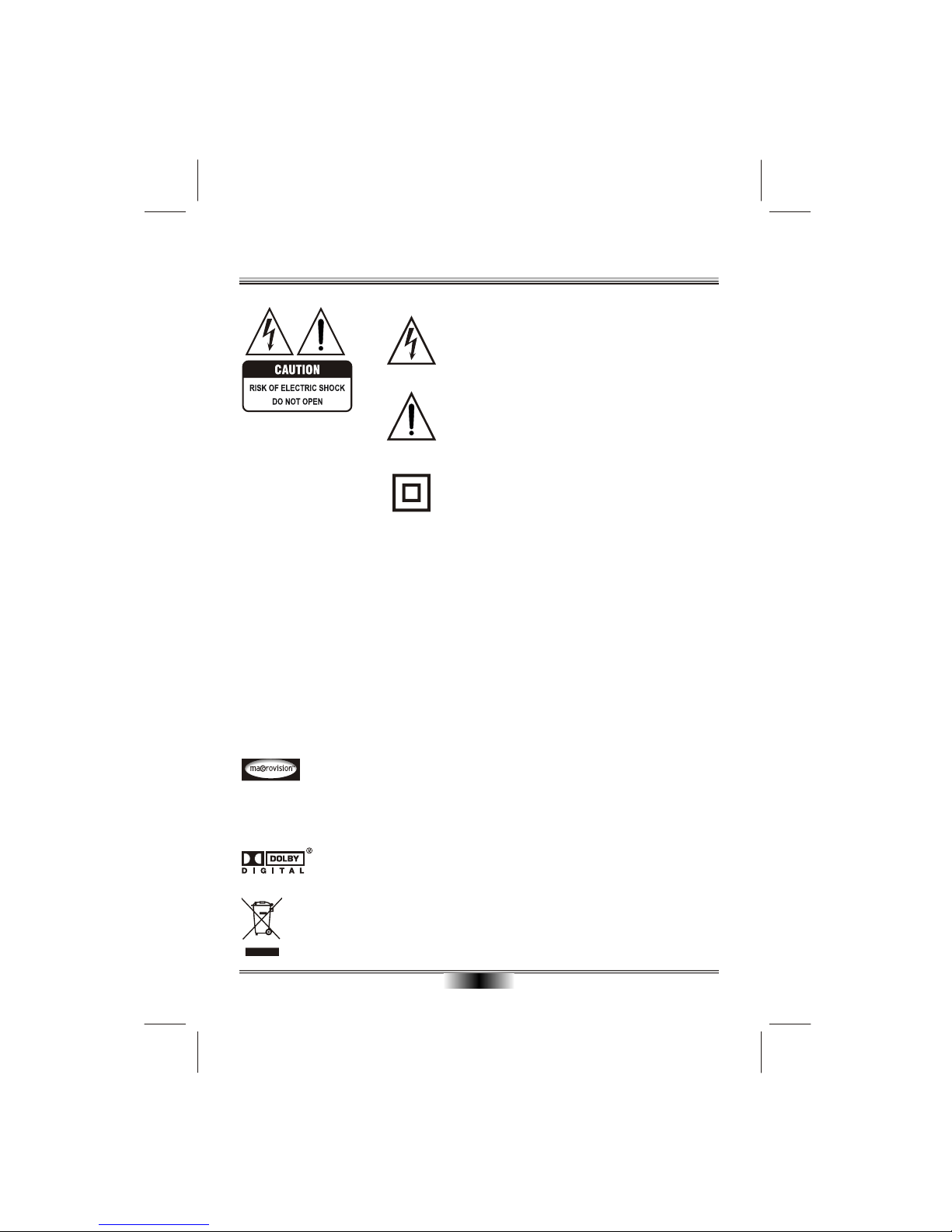

The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The symbol for CLASS II (Double Insulation).
WARNING:
CAUTION:
Manufactured under license from Dolby Laboratories. " Dolby " and the double-D
symbol are trademarks of Dolby Laboratories. Confidential unpublished works.
Copyright 1992-1997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection technology that is protected by
method claims of certain U. S. Patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Waste bin

02

Notes on discs
Do not play discs that are damaged or warped, including discs with cracks, scratches or parts missing discs
with burns; poor quality discs.
Route all cords so that they do not interfere with driving or with entering or exiting the
car
Run the cords so tat they do not wrap around the steering wheel, brake pedal etc. or around your feet. Secure
all the cords together
Use the product at the proper volume setting
Driving while you are unable to hear sounds around you or from outside the car car can cause accidents.
Do not touch the color TFT LCD screen
Do not place any heavy objects on the product
Never put any heavy objects on the product. Doing so may cause damage to product.
Do not damage the cords.
Broken wires and short circuits can cause electrical shock or fire. Run the cords so that they do not get tangled
in moving parts. Do not damage, tighten up, twist or work on the cords. Do not place the cords near heat
sources or put heavy objects on the cords.
Do not play discs in the wrong format
For instance, if you add the ".cda" extension to a file that is not formatted as a CD file, a loud noise may be
heard through the speakers. possibly damaging them and hurting your eardrums.
Do not swing from the product or pull it
This may cause an accident. injury and/or malfunction. Be particularly careful that children follow this rule.
03

04

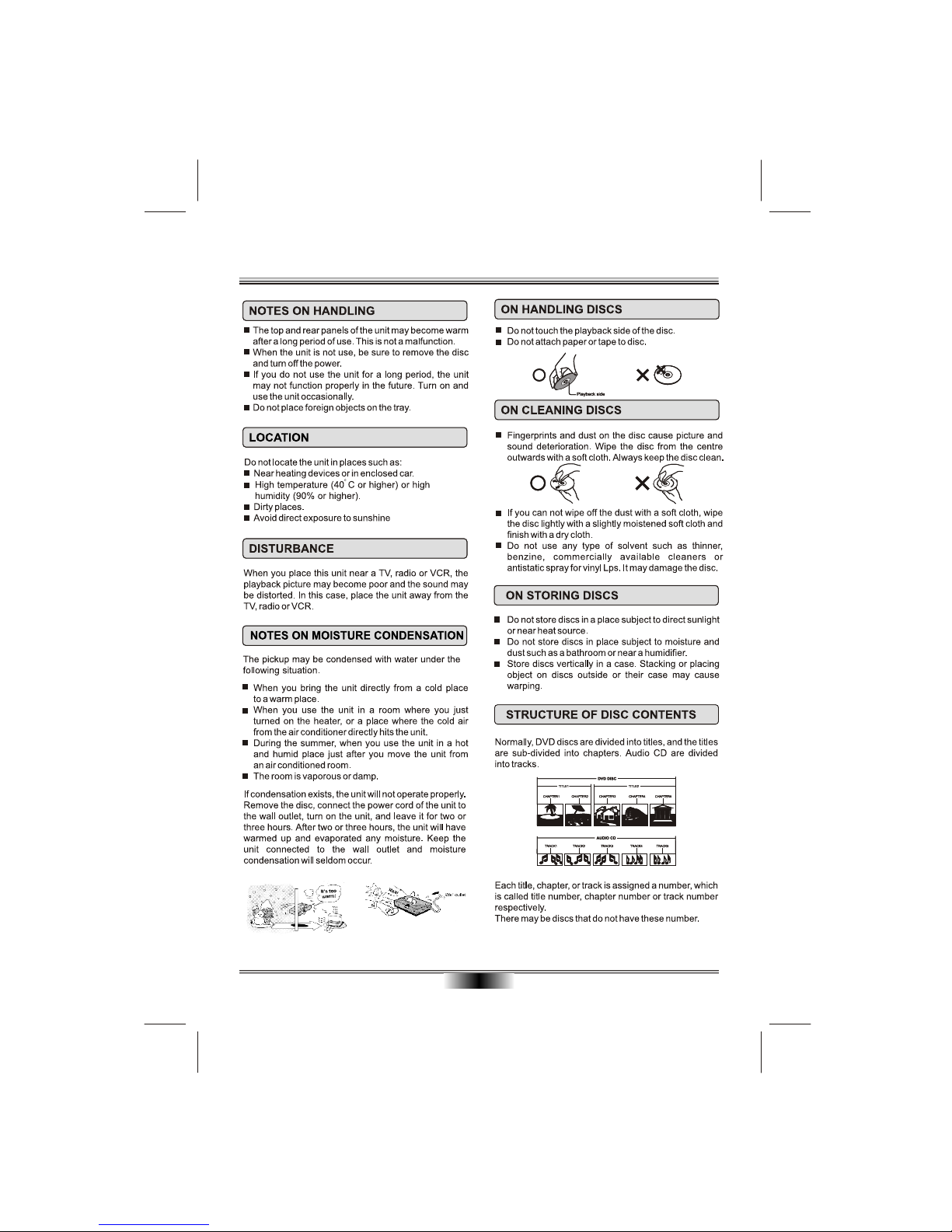

NOTICES and DISC PROTECTION
The pickup may be condensed with water under the
following situation.

05

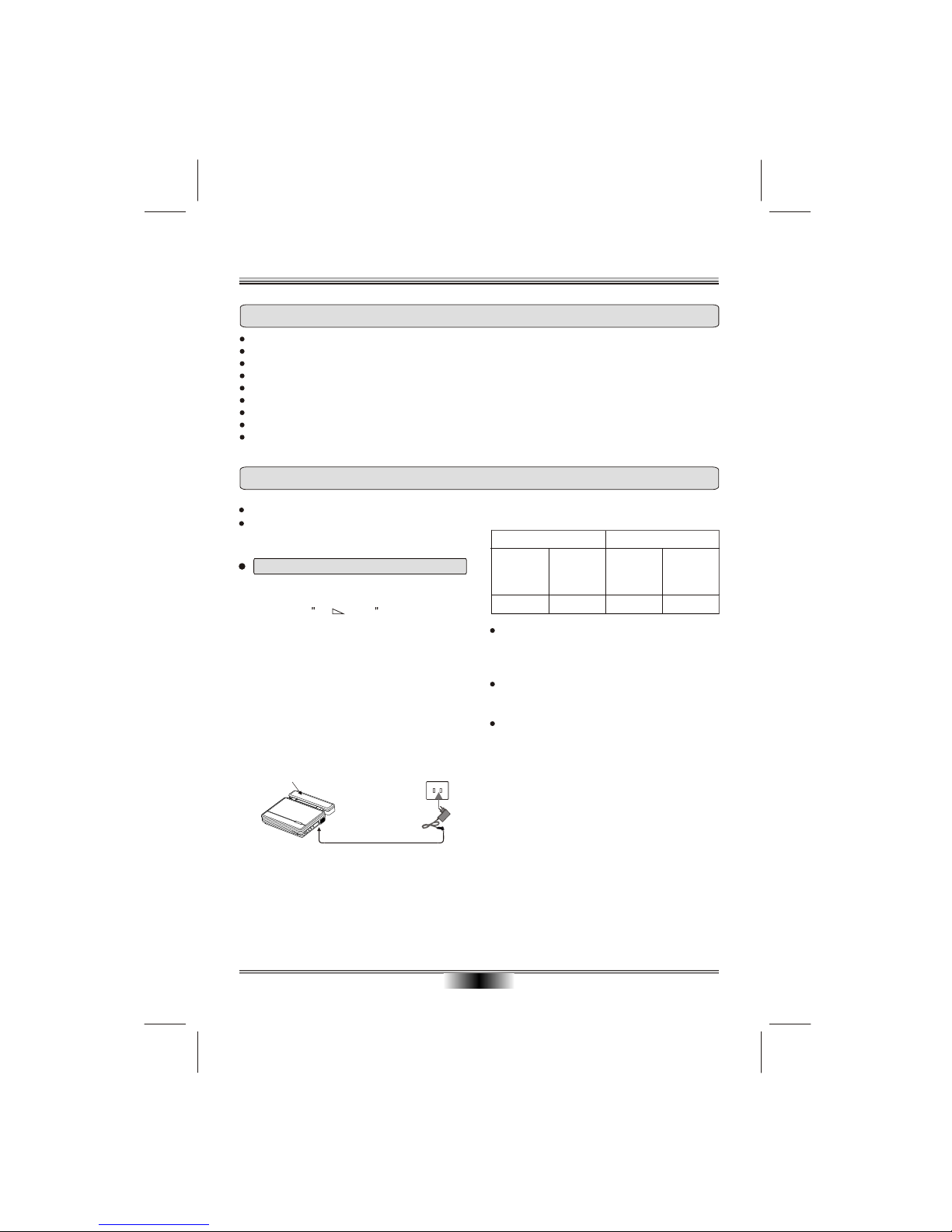

LITHIUM BATTERY
Lithium battery connections

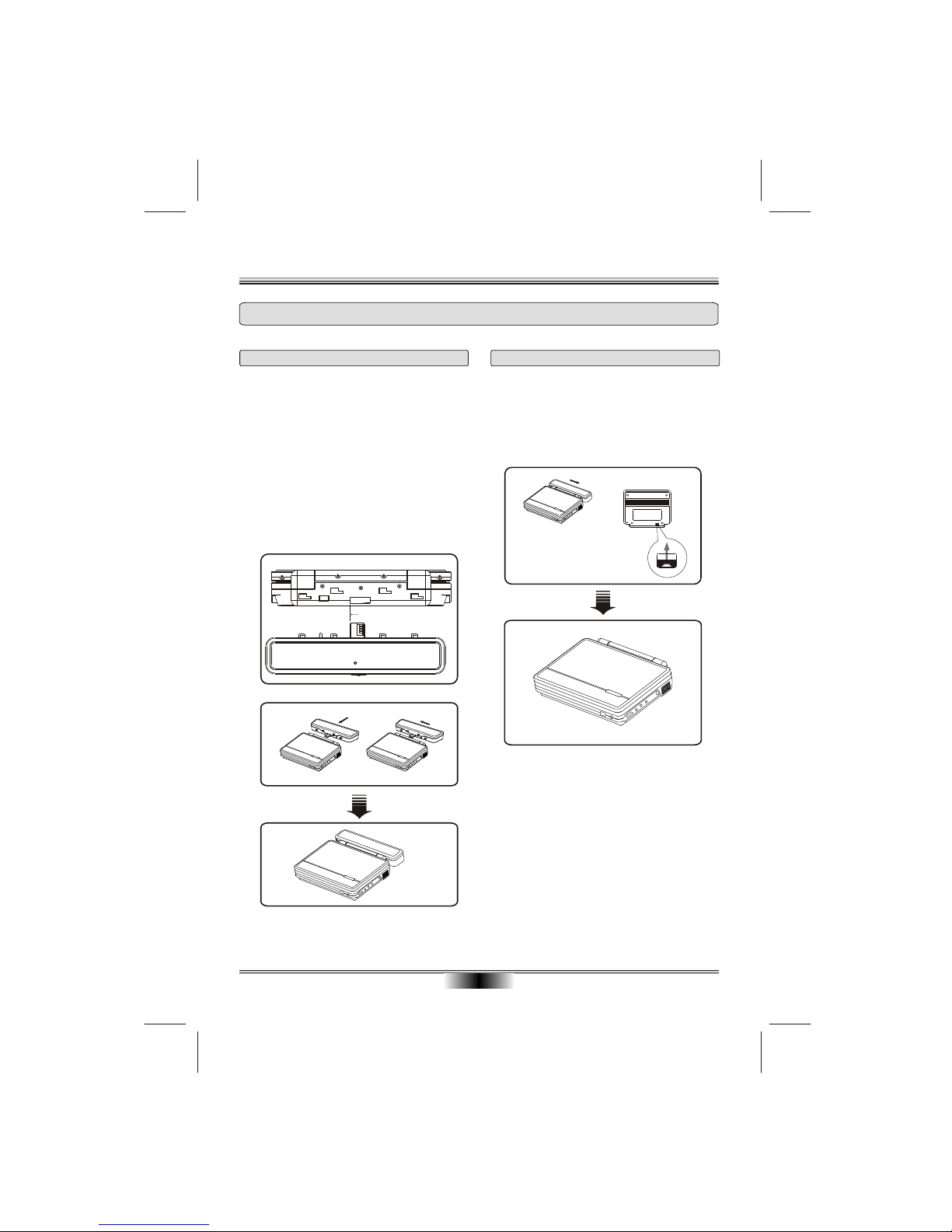

Attaching Battery
Charge the battery pack before using it for the first time.
Refer to the following steps for attaching the battery:
1. Make sure the player is off and the AC or car adapter
is disconnected.
2. Place the player on a soft.
3. With one hand on the player to prevent it from
moving, match the hooks of the battery pack into the
holes on the bottom of the unit.
4. Combine the battery pack to push toward left until
you can hear the click sound.
Make sure the power is turned OFF and the AC or car
adapter is disconnected before detaching the battery.
To separate the battery pack, pull the switch which is
locate bottom the unit and from the
main unit.
push toward right
Detaching Battery
Portable DVD Back:
Battery front:
Flush left here
Note: Follow below illustrations to match the hooks
of the battery pack along the left side of the holes on
the bottom of the unit, in case of damages to the unit
due to any improper mounting.

Please charge the battery with the unit.
Never use this battery in other devices except this unit.
Never use or keep the battery in a space has static, neither charge the battery in such area.
Never use the unit outdoors in rainy or snowy day. The battery doesn't have waterproof function.
Keep the dirt, liquid or other foreign thing stick on the power supply connector of battery.
Never touch the power supply connector of battery with metallic things.
Never change, disassemble, heat or throw batteries into a fire.
O
Never store the battery in a place which temperature is over 60 C.
Be sure to conform the related law or regulation in your country before discard the battery.
Lithium battery
Charge the battery before use it for the first time.
The unit can charge the battery during disc playback. Charging time/ playback time.
The time showed in above sheet also depends
on the operation situation.
When the unit won't be used in a long time.
Remove the battery (The unit consume little energy
even in turn off situation. This may over discharge
the battery and cause a damage to it.
Please recharge the battery again when you want
to use it.
Usage of batteryLithium
Charging time Playback time
When use TFT
LCD Screen
When not use
TFT LCD screen
About 4 hoursAbout 2.5 hours
About 20 hours About 4 hours
When unit
working
When unit
not working
06
LITHIUM BATTERY
Lithium battery
When TFT display the picture dark and dark,
please change the battery or insert adapt for
charge. Then turn right VOLUME button and the
unit will working.
1. Mount the battery properly
2.Turn on the Vol PW OFF button that main unit.
3.When the battery is being charged, the Battery
indicator is illuminated red.
4.If recharging is complete, charge indicator
changes to green colour.
5.When the battery is working, the battery
indicator is off.
When enjoying CD or not using TFT screen, close
the screen to save battery energy.
Play with batteryLithium

07

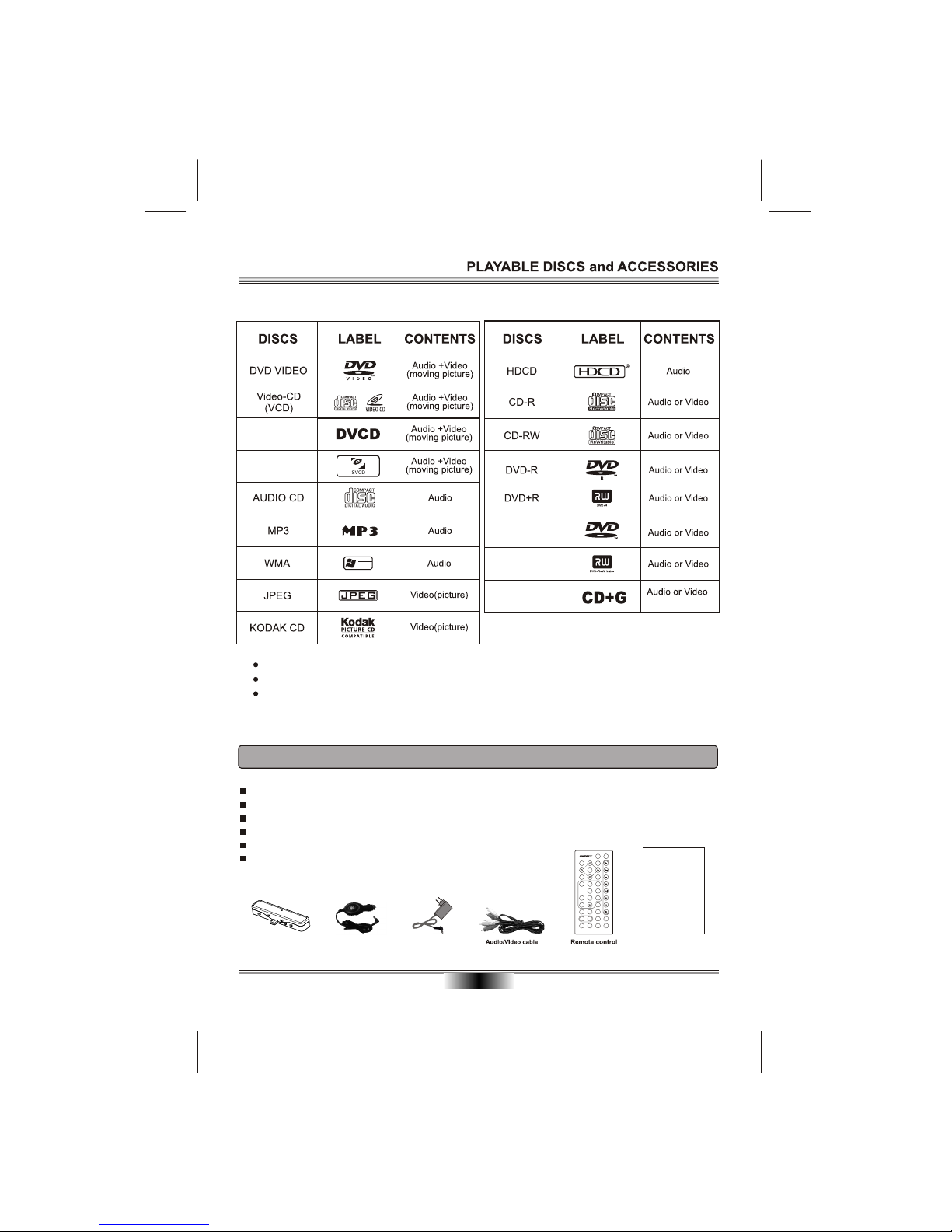

The following discs can be playback:
ACCESSORIES
Audio/Video cable ....................
Remote control ........................
Owner's manual .......................
Adapter .....................................
Lithium battery..........................
Car charger...............................
1
1
1
1
1
1
Discs than those listed above can not be played.
Non-standardized discs, even if they may be labeled as above can not be played.
The performance of recorded disc is depend on the method and quality of disc-burning. In some cases,
the disc may not be played.
TM
Designed for
TM
Windows
Media
DVD-RW
DVD+RW
RW
DVCD
SVCD
CD+G
Owner's manual
OWNER'S MANUAL
Lithium battery Adapter
Car charger
AUDIO
456
789
0SEARCH
REPEATA-BRPT
PORTABLEDVD PLAYER
VOL
-
VOL
+
RANDOM
MUTE
SUBTITLE
ZOOM
MENU
ANGLE
OSD
TFT-M
ENTER
1 2 3
PROG
TITLE
PBC
SETUP

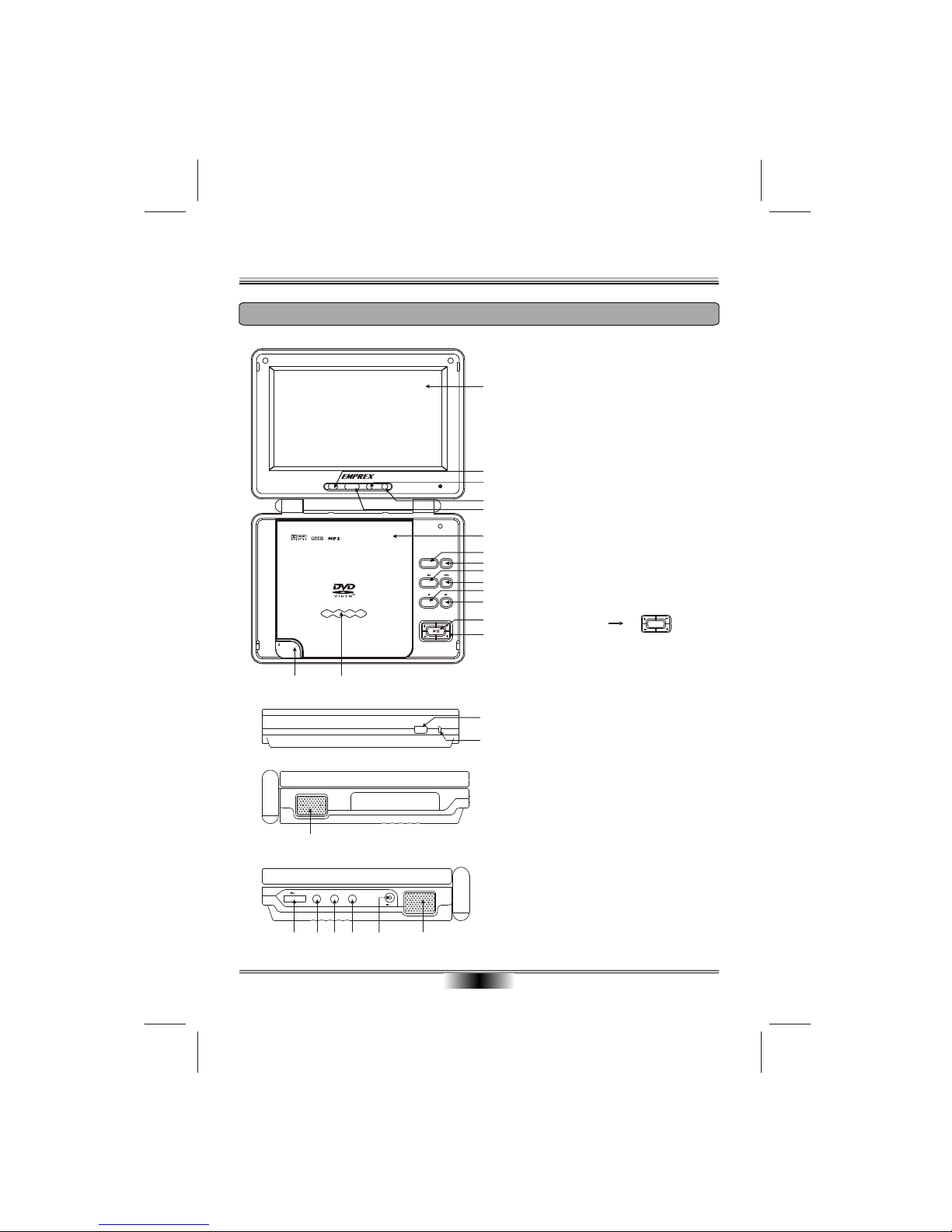

1. TFT SCREEN
2. 4:3/16:9(Multi-aspect ratio suit to
different TFT screen size)
3. DOWN(CURSOR)
4. UP(CURSOR)
5. MENU(TFT Screen menu)
6. DISC LID
7. SETUP
8. TITLE
9. PREVIOUS
10. NEXT
11. STOP
12. SLOW
13. PLAY/PAUSE
14. CURSOR
15. OPEN
16. DISC LENS
PANEL
08
PANEL
DVD/VCD/CD /CD-R/CD-RW/HDCD/JPEG PLAYER/MP3
OPEN
MENU UP
DOWN
4:3/16:9
SETUP TITLE
PHONE AUDIO OUT VIDEO OUT
DC 9VIN
20 21 22 23 24 19
VOL
PW OFF
20. VOLUME CONTROL
(POWER SWITCH)
21. PHONE
22. AUDIO OUT
23. VIDEO OUT
24. DC IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
17. REMOTE CONTROL SENSOR
18. POWER INDICATOR
19
19. LOUDSPEAKERS
Left
Right
Up
Down

The TFT screen will adjust by this button , for
example: Color, Bright, Contrast etc. (you can use
UP or DOWN to adjust)
MENU(in TFT screen)
4:3/16:9(in TFT screen)
Multi-aspect ratio suit to different TFT screen size.
09
PANEL
TITLE
According to some DVD discs, Press this button to
display the title menu, you can press digits to select
the chapters preferred.
Previous and Next
During playing, press PREV key can back to start
of this chapter, then each press this key will skip a
chapter still the start of the disc.
Each press of NEXT during playing will skip
the current chapter and play the next one.
key
1. Press STOP button to go to stop mode, the TFT
screen will show the start logo. As some disc the
unit can recall the location where stopped, such
as DVDs and audio Cds.
2. Press PLAY button to playback to resume play-
back from the location where playback is stopped
or from the beginning of the disc.
3. Press STOP twice to stop completely.
Stop playback
Press PLAY button to resume normal playback;
Note: This function is invalid for CD and MP3.
Slow
Press to play a disc in slow forward and slow
reverse. Each time the button is pressed, the
slow motion speed changes.
1. Press first time to pause playback (still mode).
2. Press twice to resume normal playback.
Play/Pause playback(in panel)
Function

PHONE AUDIOOUT VIDEOOUT
DC 9V IN
VOL
PWOFF
10

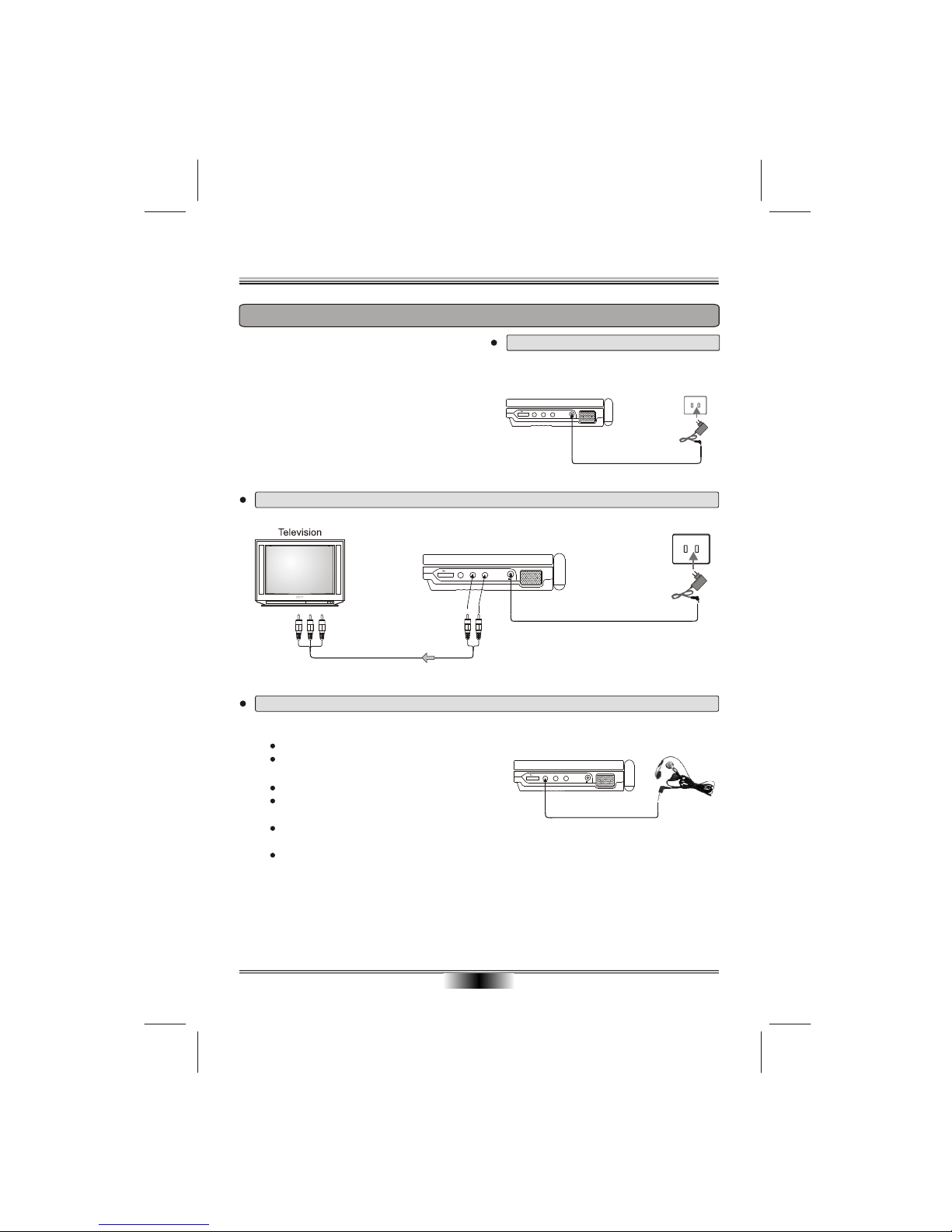

BASIC CONNECTION
BASIC CONNECTION
Connection of the power supply to unit
Plug the power plug of the adapter(DC 9V) into
the DC-in power jack of the unit.
Connecting to a TV with Audio/Video cable
Black
Red WhiteYellow Yellow
To video input(yellow)
To audio input (red, white)
Connect to earphone
You can avoid disturbing others when enjoying the pleasure this unit brought to you
Note: Never set the volume of your earphone too high.
The aorist suggests it is better not continually
enjoy it in a long time.
If there is a tingle, please lower the volume.
If you want to power off the unit, please turn
the volume off.
Be careful or stop to use if there has any potential
danger.
Even your earphone is design in open style, which can let you hear the surrounding sound, never
set the volume too high or you can hear the surrounding sound, clearly.
Note: For enhance TV's quality of audio, please
to lowest when you nonuse
in unit.
For decrease power and protract natural life, please
cover TFT screen when nonuse TFT screen in unit
such as playing CD or using TV etc.
turn
volume control loud-
speakers
PHONE AUDIO OUT VIDEO OUT
DC 9V IN
VOL
PW OFF
PHONE AUDIOOUT VIDEO OUT
DC 9V IN
VOL
PWOFF

REMOTE CONTROL
REMOTE CONTROL
11
unit
1. SETUP
2. CURSOR
3. PROGRAM
4. DIGITS AND 10+ BUTTONS
5. A-B REPEAT
6. REPEAT
7. VOLUME+/-(Volume Control)
8. MUTE
9. RANDOM
10. PBC
11. TFT-M
12. PLAY
13. TITLE
14. PAUSE/STEP
Function
15. ENTER
16. STOP
17. OSD
18. PREVIOUS
19. NEXT
20. FAST REVERSE
21. FAST FORWARD
22.SEARCH
23. SLOW
24. MENU
25. ANGLE
26. SUBTITLE
27. ZOOM
28. AUDIO
3
Function
OSD
TFT-M
ENTER
SETUP
AUDIO
1 2 3
456
789
0SEARCH
REPEATA-BRPT
PORTABLEDVD PLAYER
PROG
VOL
-
VOL
+
RANDOM
MUTE
TITLE
SUBTITLE
ZOOM
MENU
ANGLE
PBC
OSD
TFT-M
ENTER
SETUP
AUDIO
1 2 3
456
789
0SEARCH
REPEATA-B RPT
PORTABLE DVD PLAYER
PROG
VOL
-
VOL
+
RANDOM
MUTE
TITLE
SUBTITLE
ZOOM
MENU
ANGLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
PBC

BASIC PLAYBACK( )REMOTE CONTROL
12
Preparations
Prepare the power supply and open the outer cover.
1. Turn left the volume, the unit will turn on and TFT
screen will display the start logo.
When you want to turn off, please press turn
volume off. If a disc is already in the tray, it wil tray,
it will begin to play once the power is on.
2. Press OPEN to open the disc tray, place a disc
on the disc tray.
Do not place a disc which is unplayable in this
unit.
3. Use disc lid to close the disc tray, the playback
will automatically start.
Some disc maybe can not playback auto-
matically, you can press PLAY button to start
playback.
4. Some disc maybe start playback with a menu,
use the cursor button on the remote controller to
select menu options and press PLAY button to
start, or press digits to select a menu options directly.
5. Adjust the volume.
Basic playback
Previous and Next
During playing, press PREV key can back to start
of this chapter, then each press this key will skip a
chapter still the start of the disc.
Each press of NEXT during playing will skip
the current chapter and play the next one.
key
Fast forward and Fast reverse
1. Press F.FWD to fast forward through the disc.
Each time the F.FWD button is pressed, the
fast forward motion speed changes.
2. Press ENTER to resume normal playback.
3. Press F.REV to fast reverse through the disc.
Each time the F.REV button is pressed, the
fast reverse motion speed changes.
4. Press PLAY button to resume normal playback.
NOTES:
2. When choose the power supply as the battery,
the battery icon in the LCD screen will twinkling if
the voltage of the battery is lower than protection
point. Please charge the battery or choose DC
power supply immediately.
1. " " may appear on the TFT screen during
operation.
A " " means that the operation is not permitted
by the unit or the disc.
1. Press PAUSE/STEP first time to pause play-
back (still mode). The sound will be muted during
still mode.
2. Press PAUSE/STEP continuous to single step
forward to the next frame in the video.
3. Press PLAY button to resume normal playback.
Pause/Step playback
1. Press STOP button to go to stop mode, the TFT
screen will show the start logo. As some disc the
unit can recall the location where stopped, such
as DVDs and audio Cds.
2. Press PLAY button to playback to resume play-
back from the location where playback is stopped
or from the beginning of the disc.
3. Press STOP twice to stop completely.
Stop playback
Press PLAY button to resume normal playback;
Note: This function is invalid for CD and MP3.
Slow
Press to play a disc in slow forward and slow
reverse. Each time the button is pressed, the
slow motion speed changes.

Press to zoom in on the incoming AV
signal and to cycle through all the levels.
You can use the cursor buttons to move around the
image. This will display the parts of the image that do
not appear on-screen when the image is zoomed in.
Press the ZOOM button repeatedly to return to normal
viewing.
this button
ZOOM
ADVANCED PLAYBACK
13
IMPORTANT NOTE:
THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO DVD DISCS. IF OTHER DISC FORMATS ARE
PLAYED, SCREEN DISPLAY AND OPERATIONS MAY BE DIFFERENT.
A-B REPEAT
During playback , when you reach the start of the
segment you want to repeat, press the A-B REPEAT
button(Ponit A), press the A-B REPEAT button again
at the end of the segment(Ponit B), the player will
automatically return to point A and start to repeat
playback of the selected segment(A-B).
press A-B REPEAT button to resume normal playback.
Press this button to display Main menu. Select tracks
according to your preference.
MENU
Press this button and the screen will display some
information about disc, such as : " Title Elapsed " ,
" Title Remain ", " Chapter Elapsed ", " Chapter
Remain " and " Display Off ".
OSD (On Screen Display)
Press this button and the screen will display "SUBTI-
TLE 01/XX XXXXX", "01" indicates the ordinal
number of this language; "XX" indicates total number
of language; "XXXXXX" indicates the language of
country. (the number of language depends on disc).
SUBTITLE
SEARCH
Press this button the screen will display "T: XX/XX
C: XX/XX", "TITLE XX/XX TIME 00 : 00 : 00" and
CHAPTER XX/XX TIME 00 : 00 : 00.
you can use LEFT / RIGHT cursor button to select
item and press digitals what you wanted, Then press
ENTER button to confirm.
REPEAT
Follow this operation :
first Chapter
twice Title
third All
the fourth pressed will cancel repeat.
The PBC allows the user to play Video CDs interac-
tively. If PBC is ON, the user can use the digits buttons
to select track only in the menu, if PBC is OFF, the
user can select the track directly.
PBC
TITLE
According to some DVD discs, Press this button to
display the title menu, you can press digits to select
the chapters preferred.

ADVANCED PLAYBACK
14
PROGRAM
Press this button and the screen will display info
window , press digits button to input the program
number what you want, when finished, move the
cursor to select the " Start " logo, at this time the unit
will start program playback and the screen will display
"Program" logo.
If you want to cancel this function, press "STOP "
and then press "ENTER" .
AUDIO
Press this button on remote control to change the
mode of audio.
For example: Audio 1/2: AC 3 2 CH English
Audio 1/2:AC 3 2 CH Chinese
Note: When press this button continuously, you must
above 3 seconds interval. Press " VOL+ " at the right of VOLUME to increase
volume, " VOL- " to decrease to volume . Press the
MUTE button to temporarily cancel the audio signal
at any time and will display Mute ( no voice ) , the
second press to resume normal audio.
VOLUME and MUTE
If the video on the DVD was recorded with multiple
angles, you have the option to change the camera
angle of the scene you are watching.
Press ANGLE button during playing back that will
display the angle mark on screen.
Note: the angle function will not work if your disc does
not contain the multiple angles.
ANGLE
RANDOM
Press the button to random mode, the unit will play by
random.

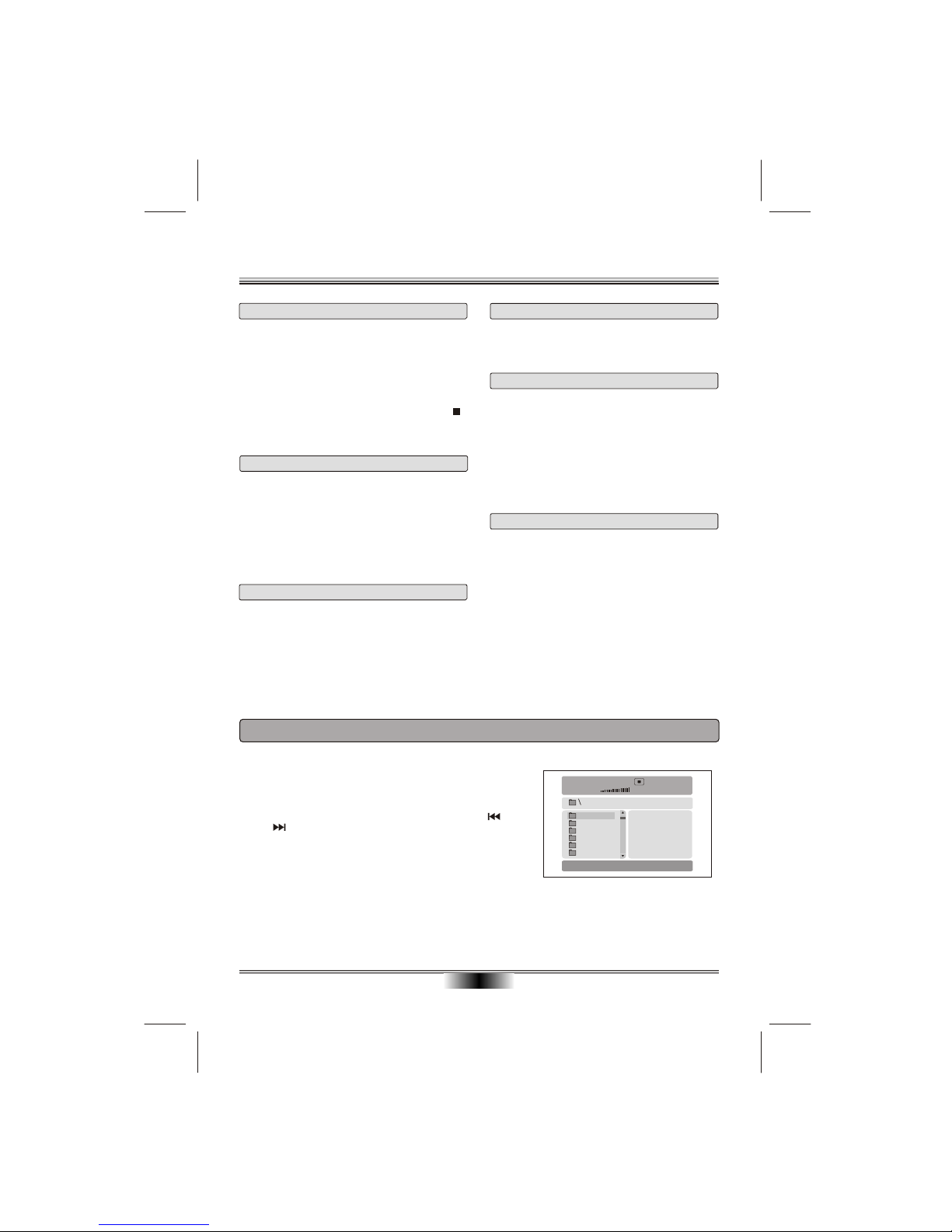

MP3 PLAYBACK
When playing MP3 disc, a navigation menu will be displayed automatically if the
disc is loaded in succession.
In the menu, use UP or DOWN button in the cursors to choose folder, then
press " ENTER " button to confirm. In the folder, use UP or DOWN button in the
cursors to select the file, then press "ENTER " to play this file. In this page,
Use LEFT button in the cursors can return previous menu, press PREV
or NEXT can goto theprevious ornext page.
MP3_01
MP3_02
MP3_03
MP3_04
MP3_05
MP3_06
00:00 00:00
001/010
The TFT screen will adjust by this button , for
example: Display mode, color, bright, contrast etc.
TFT-M

SPECIAL FUNCTION PLAYBACK
15
Kodak Picture CD Playback
Playback (Normal)
When a Kodak Picture CD is inserted on the unit, an automatic slide show is launched. Each picture in the
Kodak Picture CD will be displayed consecutively in a slide-show fashion. some slide-show transition modes
are provided, use PROG button to select. Customer can set transition effects for each picture.
To display an image indefinitely, press PAUSE button. To view the next or previous picture, press NEXT
or PREV button. To resume the slideshow, press ENTER button.
Image Rotation
There are four modes to rotate a picture: "Invert", "Mirror", Left", and "Right". These operations are allowed
only when a picture is being displayed normally and will be cancelled automatically when a new picture is
displayed. The arrow key is used to select the different rotation modes:
Up - Invert/Normal Left - Turn left
Down - Mirror/Normal Right - Turn right
Zoom
The ZOOM button is used to turn on or off this function. When this mode is on, any picture will be displayed at
the last ratio selected by the user. A message on the screen will indicate the current zoom ratio.
If zoom mode is on, F.FWD and F.REV button are used to control the ratio of zoom in/out.
Notes: During zoom function, slide-show transition and image rotation are disabled. To cancel the zoom
function press ZOOM button again to resume the slide-show.
Digest
The STOP button is used to display thumbnail size pictures. After it is enabled, some scaled-down thumbnail
pictures will be displayed on the screen. The NEXT and PREV button can be used to display the next
/ prev pictures in the Kodak Picture CD.
You can select any of the displayed thumbnails by using the Arrow Keys and press ENTER button.
If you desire to display an image indefinitely, press PAUSE button. To view the next or previous picture press
NEXT or PREV button. To resume the slide show press ENTER button.
IMPORTANT NOTE: Quality of pictures displayed on the screen is highly dependent on the viewing device.
JPEG DISC PLAYBACK
When playing JPEG disc, a navigation menu will be displayed automatically if the disc is loaded in succession.
In the menu, use UP or DOWN in the cursor to select a file,then press "ENTER", the file will be play with
aslide-show. press PREV or NEXT to select the previous or the next picture. Press PAUSE to pause
the current picture for enjoying, when press ENTER, it will return to normal playing. Press ZOOM to start
zoom function. When ZOOM is on, press PREV or NEXT to switch among pictures; press F.REV and
F.FWD to select different enlargement ratio, press CURSOR key can move the enlargement picture.

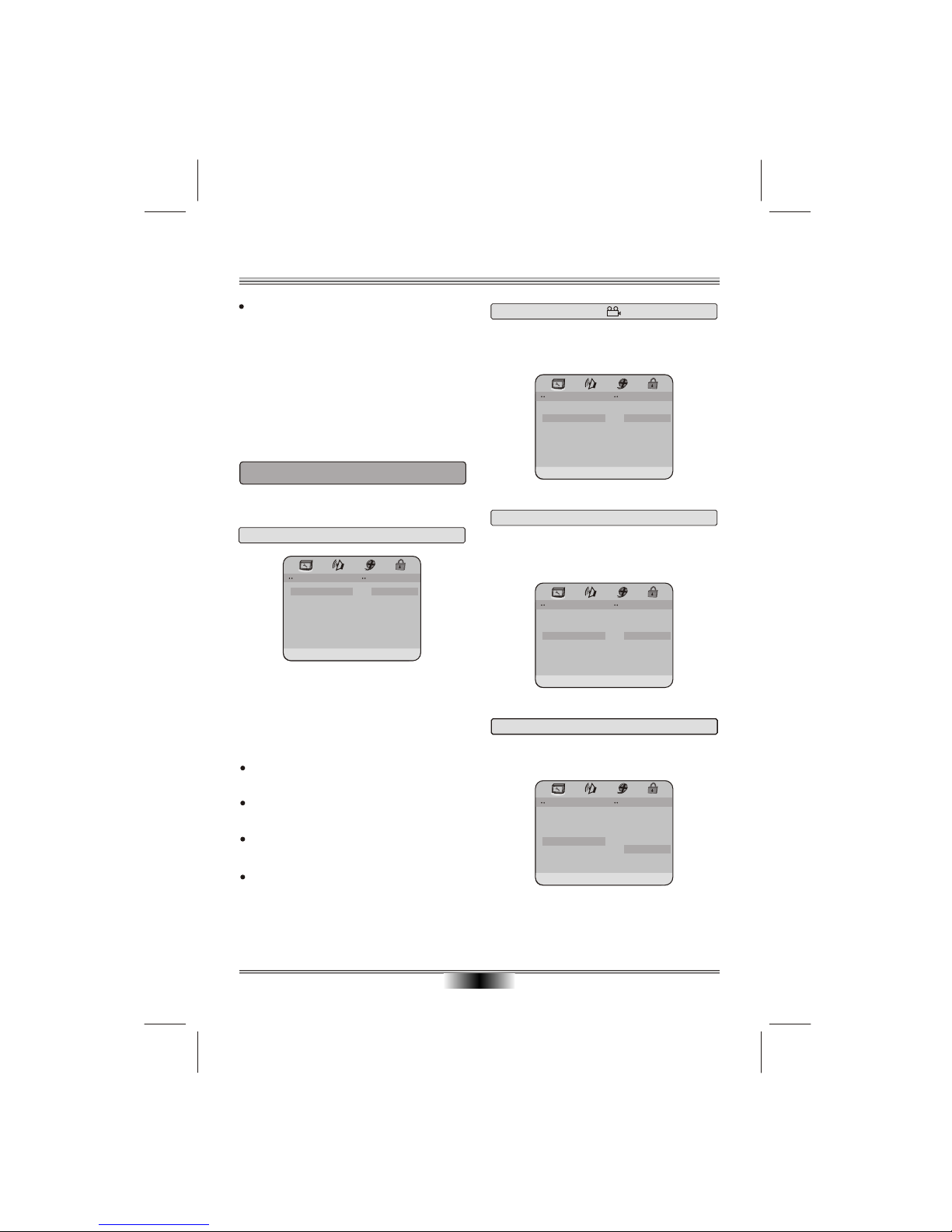

SYSTEM SETUP
16
When you press SETUP button on the remote
control, the setup menu will be displayed. It include
General Setting , Audio Setup , Video Setup,
Preference Setup, Password Setup and Exit Setup
menu.
1.Within the setup menu, you can use UP, DOWN,
LEFT and RIGHT buttons on the remote control
to move the cursor, and then press the
ENTER button to make your selection. Press
LEFT can return the previous menu.
2.To exit setup menu, you can select the exit
setup menu or press SETUP button.
1. GENERAL SETUP PAGE
The TV Display which select the different ratio of
display format and the screen of TV, There are
various types of display on screen for different
matches between Disc and TV (Please see page 20:
Multi-image ratio mode)
Note:
No matter which display format is selected, a
picture recorded in standard 4:3 format always
displays in the 4:3 aspect ratio.
The display format of DVD titles may vary; please
refer to the information that accompanies your
specific DVD title.
If the DVD title is recorded in 16:9 wide display
format while the TV is a standard 4:3 screen,
horizontal compression of the image will result.
Some DVD titles may be recorded in special
formats. In such cases, the DVD titles will always
appear on the screen in their original format,
regardless of which TV display format you select.
Setup TV screen format, video type and all DVD
functions.
ANGLE MARK: Users can select a particular camera
angle when playing a DVD which offers multiple
angles.
1.1 TV DISPLAY
1.2 ANGLE MARK
1.3 OSD LANGUAGE
On Screen Display (OSD) Language: Users can
select the whole setup menu and on-screen display
language.
1.4 CAPTIONS
CAPTIONS: For hearing-impaired people. the picture
can be displayed with recorded explanatory captions.
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Captions
PS
On
ENG
Off
On
On
Off
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Set OSD Language
PS
On
ENG
Off
On
English
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Turn Angle Mark Off
PS
On
ENG
Off
On
On
Off
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Set TV Display Mode
PS
On
ENG
Off
On
Normal/PS
Normal/LB
Wide

SYSTEM SETUP
17

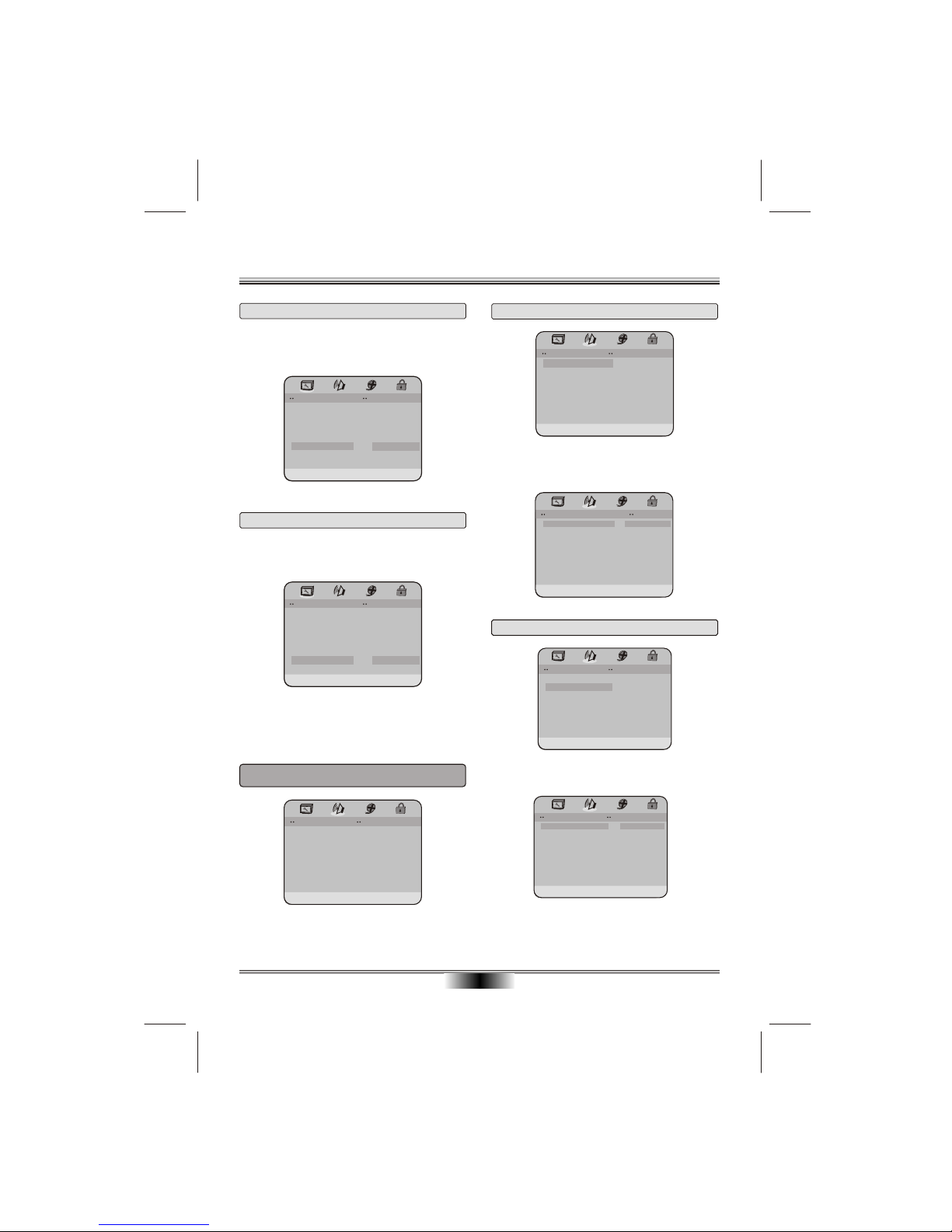

1.6 LAST MEMORY
1.5 SCREEN SAVER
SCREEN SAVER: If the screen saver is on,then there
will be an animated picture on the screen whenever
the DVD player is idle for a certain time.
2. AUDIO SETUP PAGE
2.1.1 Downmix
DOWNMIX MODE: sets front speakers to LT/RT
Stereo.
DEFAULT: Resets to all the manufacturer's original
settings for this DVD player Press ENTER button to
perform the reset.
2.1 SPEAKER SETUP PAGE
Note: The preference setting is active only when
no disc, stop or open the disc tray.
2.2 HDCD SETUP PAGE
2.2.1 FILTER
FILTER: Sets the ratio of filter.
Please choose the sampling frequences of digital
filter, the higher the sampling frequences are, the
clearer the audio quality is. When default setting is
off, it will display "CD" by reading HDCD, for HDCD
playback, please choose 1X or 2X
HDCD Setup Page
Filter Off
1X
2X
Filter
Off
Audio Setup Page
Go To HDCD Setup
Speaker Setup
HDCD
Analog Audio Setup Page
Downmix LT/RT LT/RT
Stereo
Set Downmix Mode
Audio Setup Page
Go to Speaker Setup Page
Speaker Setup
HDCD
Audio Setup Page
Go To Audio Setup Page
Speaker Setup
HDCD
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Load Factory Setting
PS
On
ENG
Off
On
Reset
General Setup Page
TV Display
Angle Mark
OSD Lang
Captions
Screen Saver
Default
Screen Saver
PS
On
ENG
Off
On On
Off

SYSTEM SETUP
18
3. VIDEO SETUP PAGE
3.1 VIDEO QUALITY SETUP PAGE
3.1.1 SHARPNESS
SHARPNESS: Sets the sharpness level of video
output.
3.1.2 BRlGHTNESS
BRIGHTNESS: Sets the brightness level of video
output.
Press right button the TV will display a vale.
Press LEFT/RIGHT button to adjust, then press
button to confirm and return upon menu.ENTER
3.1.3 CONTRAST
CONTRAST: Sets the contrast level of Video output.
3.1.4 HUE
HUE: Sets the hue value of the Video.
3.1.5 SATURATION
SATURATION: sets the saturation of the video.
Press right button the TV will display a vale.
Press LEFT/RIGHT button to adjust, then press
button to confirm and return upon menu.ENTER
Press right button the TV will display a vale.
Press LEFT/RIGHT button to adjust, then press
button to confirm and return upon menu.ENTER
Press right button the TV will display a vale.
Press LEFT/RIGHT button to adjust, then press
button to confirm and return upon menu.ENTER
Video Quality Setup
Sharpness
Brightness
Contrast
Hue
Saturation
MID
00
00
00
00
Saturation
Video Quality Setup
Sharpness
Brightness
Contrast
Hue
Saturation
MID
00
00
00
00
Hue
Video Quality Setup
Sharpness
Brightness
Contrast
Hue
Saturation
MID
00
00
00
00
Contrast
Video Quality Setup
Sharpness
Brightness
Contrast
Hue
Saturation
MID
00
00
00
00
Brightness
Video Quality Setup
Sharpness
Brightness
Contrast
Hue
Saturation
MID
00
00
00
00
High
Medium
Low
Sharpness
Video Setup Page
Quality
Go To Video Quality Setup Page
