Encore E9 User manual

E9 OP REV. A1 1
E 9
PROFESSIONAL 2-WAY LCD REMOTE CAR STARTER & ALARM
SYSTEM
With
Built in Temperature & Voltage Sensor
And Two-way Serial Port Data Link
OPERATION MANUAL
Please register your product at www.encoreautomotivesystems.com
THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

E9 OP REV.A1 2
LCD REMOTE CONTROL TRANSCEIVER:
A. BATTERY CHANGING:
Depending on the usage, the remote batteries should be changed at least once a year in the one way
remote and once every 4-5 months for the two-way remote.
The 1-way remote, (E-9s) is powered by a pair of 3V, CR2016 batteries. These batteries are available
at most locations batteries are sold and can be replaced by the user.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual indication of battery charge.
When the battery reaches a low charge level that requires changing, the remote control will generate a
single notification chirp, and the Battery Level indicator will flash continuously. If the battery voltage is
LOW, the range of the remote will be reduced by 50% to conserve battery life. The two way remote
requires 2, 3 Volt CR2032 batteries. The operation lives of these batteries are affected by many factors
including, temperature, usage, back-light ON time and programmable “in range status settings”. Do not
allow these batteries to corrode or become wet for any extended period of time.
B. STANDARD LCD ICON CONFIGURATIONS:

E9 OP REV.A1 3
The lock icon will be displayed when
the door locked and the system is
armed.
The unlock icon will be displayed
when the door unlock and the
system is Disarmed.
Sensor Bypass
Sensor 1 bypass under Arm mode
Hidden Alarm Mode
The security system arm with
hidden alarm function (silent
alarm)
Hood Trigger
Hood is illegally opened (Zone 1)
Trunk Trigger
Trunk is illegally opened (Zone
2)
Door Open Warning
Doors are illegally opened (Zone 3)
Sensor Trigger
Trigger on Sensor 1 (Zone 4)
Ignition Trigger
Ignition switch is illegally turned on
(Zone 5)
System trigger
Remote Transmission
You are transmitting the signal to
control unit
In – Range Indicator
You are within the range of the
remote control.
Anti Car-Jack Mode
Activate the anti car-jacking mode
Icon flash under check mode
Engine Cranking
Your vehicle engine Cranking by
remote control
Engine Running
Your vehicle's engine is running
Timer Control Start
Engine start automatically every 2 or
3 hours. Daily Start
Engine start automatically at the
same time next day
Temperature Start
Engine start automatically when reach
programmed temperature.
Turbo Timer
Turbo timer was set up
Manual Gear
Engine Start Memorizing for the car
with manual gear was set up
Activate Channel 3 (Trunk
Release).
CH 5 Activate Channel 5
Activate Channel 4
12:00 Time Monitor CH 6 Activate Channel 6
Parking Meter
Reminder when time is up for parking 12:00
Alarm Clock
You have set morning call
alarm

E9 OP REV.A1 4
Melody Mode
Remote Control alert user through
melody sound
Low Battery
You have to charge the battery
of remote control.
Valet Mode
Remote start and alarm functions shall
be temporarily on hold.
Vibration Mode
Remote Control vibrates when
the system is triggered
Count Down Timer
Reminder when time is up for
parking
OPERATION:
C: REMOTE TRANSMITTER OPERATION:
Transmitter
Button System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds. Press Trunk
button to stop panic function
Car Locator Press when in armed mode
-Arm and Delete The 2 Stage Shock
Sensor Press twice within 3 seconds. Pass will
appear on the remote
- Arm System and Hidden Alarm
Function Press within 3 seconds and Hold
button
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking Mode Ignition in "on" position press and hold for 2
seconds
Unlock Doors & Disarm System
-Two Steps Door Unlock & Disarm
System(optional) Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
-Passive Arming By-pass While the system Disarmed.
Activate or Turn Off The Remote Start Press button once or - Press Twice if
set to start safety mode
+Channel # 4 Timer Output (4) Optional
+ Channel # 5 Timer Output (5) Optional
+Channel # 6 Timer Output (6) Optional
+ Switching code For 2nd Car
Operation. For regular remote transmitter
DCHIRP INDICATORS: PARKING LIGHT:

E9 OP REV.A1 5
Chirp Function
Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
ALARM OPERATING CONDITION:
Siren / Horn Parking Light LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking Turns on for 30
-second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter
Disable Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12 Flashes Locking
E. ACTIVE ARMING – LOCK & ARM:
1.Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The vehicle’s
doors will lock upon arming if interfaced with the security system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time. This will arm or
disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the vehicles
parking lights only.
SENSOR BY-PASS:
The sensor bypass feature is programmed to activate for one arming cycle only. The security system
will return to normal operation during the next arming cycle.
Sensor By-Pass : Press the button two times within 5 seconds will arm the security system and
by-pass the shock sensor.
HIDDEN ALARM FUNCTION: Silent Alarm
Press the button first; within 3 seconds press the button to activate the hidden alarm function.
The security system will arm and with “Hidden Alarm Function” The siren / horn will be silenced even if
the sensor is triggered in the armed mode. Alarm indication will only appear on the LCD Transmitter.
F. PASSIVE ARMING (Programmable)
Active arming / disarming is controlled by your security system via the remote transmitter. This security system is
equipped with an optional Passive Arming feature which allows the security system to arm 30 seconds after the last
door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door /
hood / trunk, the security system LED will stop flashing. It will begin flashing again once all vehicle entrances are
closed.

E9 OP REV.A1 6
3. After the 30-second time has elapsed, the security system will automatically “ARM”. The siren will chirp [1] time
and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the button twice, the system will
respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporary state for as long
as you wish. To exit passive by-pass, press the transmitter or buttons and the system will return to normal
status.
G. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice indicating that the security system is now
disarmed. The vehicle’s doors will unlock and the dome light will turn on for 30 seconds upon disarming. (Note:
Power door locks and dome light must be installed with the security system.)
TAMPER DISARMING: If the alarm is triggered, upon disarm the system’s siren will chirp 4 times, and the parking
lights will flash 3 times telling you the alarm has been triggered during the last armed state.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this feature will turn the parking lights “ON”
for 30 seconds and for 10 seconds upon the lock signal. (Programmable)
TWO STEPS DOOR UNLOCK (Optional): This feature will independently unlock the driver’s door only when
disarming the security system. Pushing the button a second time within 3 seconds will unlock the other doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in 60 seconds
after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before the 60 seconds
timer has elapsed.
H. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1.Enter the vehicle and turn the ignition switch to the 'ON’ position.
2.(Alarm will sound.)
3.Within 10 seconds push and release the valet switch. The alarm will stop sounding and enter the
disarm mode. You can now start and operate the vehicle normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Unlike valet switch that can easily be found and defeated, this security system allows the consumer to
program a password pin code offering a higher level of security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen first digit code by pressing and releasing the Valet Switch.
(When finished above procedures, system's siren will stop alarming, lights will stop flashing, but the
vehicle can’t be started.)
3. Within 15 seconds of the last digit code enter (the 1st code), then turn the Ignition Switch “OFF” and
then “ON”.
4. Within 15 seconds, enter your chosen second digit code by pressing and releasing the Valet Switch.
5. Turn the ignition switch “OFF” position. 4 Chirps from siren/horn and 3 flashes from the parking light
indicate the system has disarmed.

E9 OP REV.A1 7
Note: You must override the alarm within 60 seconds. If not, the system will automatically re-arm.
EXAMPLE: To Override the System with the Password Code 83,
1.Enter the vehicle and turn the ignition switch to the 'ON’ position.
(Alarm will sound.)
2.Within 5 seconds, Press and Release the Valet Switch 8 times, (When finished the system's siren will
stop alarming, lights stop flashing, but the vehicle cannot be started or driven away.)
3.Within 15 seconds of entering the last digit code enter (the 1st code), turn the Ignition Switch “Off” and
then “ON”.
4.Within 15 seconds, Press and Release the Valet Switch 3 times.
5.Turn the Ignition Switch to the “Off” position. 4 Chirps form siren/horn and 3 flashes from the parking
lights will indicate the system has disarmed.
I. VALET MODE:
VALET MODE: (System is in Disarm Mode)
The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your transmitter
to parking attendants or garage mechanics. When the system is in valet mode, all alarm functions and remote start
functions are bypassed, however, the remote panic feature and remote door locks will remain operational. To use
the valet mode, the system must first be disarmed either by using your remote transmitter, or by operating the
Manual Override sequence.
Get into/out valet mode using the ignition key.
Enter Valet Mode:
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns ON solid. The LED will remain on
as long as the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'ON'.
b). Push and hold valet switch for 2 seconds, The LED will turn off indicate the system are exiting the
valet mode.
J. CAR LOCATOR
Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The
parking light will flash 12 times, for you to easily locate your car.
K. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case of emergency.
1. Press and hold the button for 3 second. The alarm will immediately sound.
2. During panic mode, the normal function of this transmitter button will be disabled. The transmitter and
buttons can be used to lock and unlock the door (if the option is installed), however once the button
is pressed, the vehicle’s starter disable device, (where installed) will be disengaged allowing the vehicle to
start.
3. To stop the alarm, press the trunk button on the remote control
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
L. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
Light impact will trigger the warn-away signal.
Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning on the ignition
key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn,
parking lights, and dome light will turn on alerting of an intrusion for 30 seconds. Then it will stop and
automatic reset and re-arm. If the any one of the sensors or detectors is still active, the alarm system
will sound a maximum of 3 times of 30 seconds cycles.

E9 OP REV.A1 8
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It prevents annoying
repetitive trigger sequences due to faulty door pin switches or environmental conditions such as
thunder, jackhammers airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each time, the same
sensor or switch has triggered the alarm; the “Noise Abatement Circuit” will interpret this pattern of
triggers as a false alarm. After the third trigger, the “Noise Abatement Circuit” ignores, or bypasses,
that sensor or switch until a different sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is triggered by an open
door for Three full cycles, the doors will be bypassed until the trigger ceases.
M. ANTI CAR- JACKING (Programmable)
Warning: If you don't need the carjacking function in this alarm system, be sure to set carjacking
feature “OFF”. This systems default setting is “OFF” for all carjacking modes.
ACTIVE ANTI CAR JACKING:
1.When the Ignition is ON press Fbutton four times while “ANTI CAR JACK” is flashing in the text
area, then press button to activate Anti Car-Jacking mode or
Under ignition ON, press and hold the and buttons at the same time for 2 seconds. The
parking lights will turn on for 1.5 seconds to indicate the system has entered the anti car-jacking
mode.
2. Once the system in anti car-jacking mode, the system will be triggered when any door is opened
and closed while the ignition is “ON”.
PASSIVE ANTI CAR- JACKING: (Programmable)
It will operate as noted below:
1. Turn the ignition switch to the “ON” position and the system will arm.
2. Once the system is armed, if you are forced from the vehicle, the system will trigger when the door is
opened and closed while the ignition is “ON”.
TRIGGERING THE ANTI CAR -JACKING MODE:
A). 50 seconds after the system has been triggered. The siren will start chirping for 15 seconds.
B). During this 15 second period of chirping, you will be alerted to push the valet switch once to turn off
the car-jacking feature. If not, it will enter a second timer for carjacking.
C). 65 seconds after the system has been triggered, the siren will start sounding and the parking lights
will start flashing.
D). 90 seconds after the system has been triggered,
1. The siren will sound and the parking lights will flash, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power is exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop
and the system disarmed
Note: If you use password pin code to double protect the vehicle security, you will need to use it to
completely disarm the system.
N. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only)
Press and hold Fbutton of LCD remote until 3 beeps sound , release and re-press Fbutton again, the
LCD remote will show “ALARM “ icon flash on text area (see advanced users mode), then press
button to activate system trigger check.

E9 OP REV.A1 9
Note: If the system has no response then you are out of range.
O. SYSTEM’S STATUS CHECK (For two-way transceiver operation only)
Press Fbutton of LCD remote until 3 beeps sound , the LCD remote will show “STATUS “ icon
flashing in the text area (see advanced users mode), then press button to activate system status
check.
It responds with one melody sound and all vehicles’ status records will immediately displayed on the
LCD screen.
Note: If it has no response then you are out of range.
P. DRIVER PAGING / LOST & FOUND (For two-way transceiver operation only)
This feature is useful the event that someone wants to page the driver of the parked vehicle or
someone cannot find his LCD remote transceiver.
Under the ignition switch “OFF” condition, press and hold the valet switch for 2 seconds to page the
driver, one chirp sound shall be emitted from the vehicle and the paging melody sound continues
sounding from the Remote LCD transceiver.
Q. DOME LIGHT CONVENIENCE SUPERVISION (Optional Feature)
The alarm has a unique feature that will turn on your vehicle dome light as follows:
1.Upon disarming, the interior light will remain on for 30 seconds.
2.If the vehicle is intruded, the interior light will flash for the same duration as the siren.
Note: Turning on the ignition switch or arming the alarm will turn off the dome light.
R. IGNITION CONTROL DOOR LOCK/UNLOCK. (Programmable Feature)
If the vehicles door locks have been interfaced to the security system, the system will automatically lock the
vehicle's doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
(Default setting is “OFF”)
S. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for two seconds to remotely control the trunk release.
T. CHANNEL 4.5.6 TIMER CONTROL OUTPUT.
CHANNEL 4 TIMER CONTROL OUTPUT.
Press the transmitter and buttons at the same time to active Channel 4 function. or
Press and hold Fbutton of LCD remote until 2 beeps sound , release and re-press Fbutton the LCD
remote will show “CH 4” icon flash, then press button to activate channel 4 function.
Channel 4 is user-programmable timer output. You may program the built-in timer to send a ground signal for any
time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight,
power window or sunroof. (Factory defaults setting at momentary output.)
CHANNEL 5 TIMER CONTROL OUTPUT.
Press the transmitter and buttons at the same time to active Channel 5 function. or
Press and hold Fbutton of LCD remote until 2 beeps sound , release and re-press Fbutton the LCD
remote will show “CH 5” icon flash, then press button to activate channel 5 function.
Channel 5 is user-programmable timer output. You may program the built-in timer to send a ground signal for any
time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight,
power window or sunroof. (Factory defaults setting at momentary output.)
CHANNEL 6 TIMER CONTROL OUTPUT.
Press the transmitter and buttons at the same time to active Channel 5 function. or

E9 OP REV.A1 10
Press and hold Fbutton of LCD remote until 2 beeps sound , release and re-press Fbutton the LCD
remote will show “CH 6” icon flash, then press button to activate channel 6 function.
Channel 6 is user-programmable timer output. You may program the built-in timer to send a ground signal for any
time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight,
power window or sunroof. (Factory defaults setting at momentary output.)

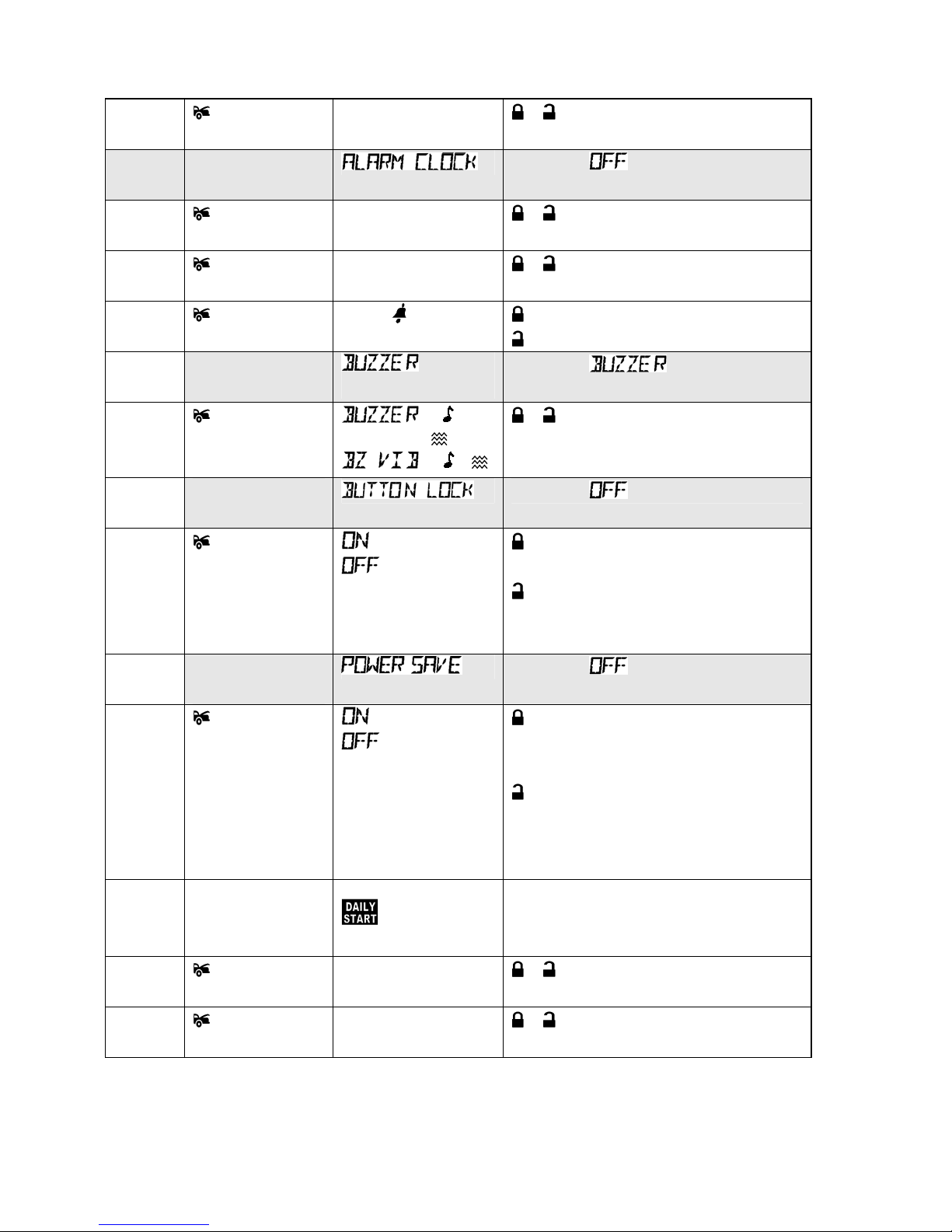

U. POWER SAVER MODE (Default OFF) * See advanced user mode
Under Menu mode press button while “POWER SAVE” icon flash, press button Power save ON,
while the power save mode, the LCD remote transceiver use “0” current to save the battery power. Press
button Power save OFF
Exit: Press any button of the LCD remote transmitter to exit “Power Save Mode”.
V. POWER ON MEMORY:
This security system is equipped with circuitry that will allow the unit to remember its alarm state if the
power is lost and then reconnected.
W. SECOND VEHICLE SECURITY OPERATION:
Your 4-button remote transmitter can be utilized to control a second vehicles security system, To program the
remote control transmitter to a second vehicle, follow the instructions for Transmitter programming.
* For the standard 1 way Transmitter by press button +is shift button.
Standard Transmitter
1. Prior to pushing any button on the transmitter. Press button +first on the transmitter.
2. Once button +is pressed the LED on the transmitter will illuminate for 3 seconds to indicate the
second transmitter pin code has built-in.
3. While the LED is illuminated, press any button on the remote control transmitter to control a second vehicle
security system.
For LCD transceiver – 2nd car operation : * See advanced user mode
a. Press and hold Fbutton of LCD remote for 1 second until 2 beeps sound and then release the F
button.
b. The text will flash on the LCD screen, press button to enter the menu.
c. Press or button to move up or down in the menu, find CAR SELECT on the menu.
d. Press button to select the option you would like to adjust CAR 1 or CAR 2 for further operation.
Caution: If the LCD transmitter does not function. Please insure it is set to operate car #1
X. Clear the Flash Icon and Melody Sound: The Transmitter will reset the flashing icons the
next time the Ignition is cycled to the ON position.
Y. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen will alert the user
through a melody sound and a flashing trigger icon. Press any button on the LCD remote transmitter to stop
melody sound only.
Z. Vibration / Melody Mode: (see advanced users menu for more info)
Press and hold the Fbutton until 2 beeps are heard. You will see the word .Press the trunk button
to scroll through the menu. Scroll to the word “ Vibrate”. When you see the word “Buzzer
Vibrate”, press the trunk button once to enter programming. Press the button to change the setting.
(Buzzer, BZ VIB, Vibrate). Once a setting is chosen. Press the button to confirm.
WARNINGS:
A
s with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.

E9 OP REV.A1 11
1.Keep the transmitter out of children’s reach.
2.Do not leave anyone in the vehicle while running on remote control.
3.Alert servicing personnel that the vehicle can be started automatically.
4.Do not start the vehicle by remote while it’s in an enclosed area or garage.
5.Always apply the parking brake and lock the vehicle as you exit the vehicle.
6.The vehicle windows must be rolled up.
7.Should the unit malfunction, disconnect the fuse until the problem is
corrected.
8.The use and operations of this system is the sole responsibility of the
operator.
9.Some areas may have local ordinances that prohibit leaving a vehicle
running on public streets.
10.It is not safe to remote start the vehicle if the vehicle is parked on a steep
incline.
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will activate to indicate the remote start received the signal.
3. The engine will start in approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking lights will turn on and the climate
controls will activate and adjust the vehicle’s interior temperature to your preset setting. (While the
vehicle is running, the “minutes” digit on the LCD screen will flash and the will indicate countdown timer
based on the 5, 10, 20 or 30 minute run time set up by your installation center.)
5. The vehicle will run for a programmable 5 to 30 minute cycle before shutting down. (When the unit
shuts off the countdown timer will turn off and the transmitter will play a melody.)
NOTE: The Remote Start Unit will not start the vehicle if any one of the following conditions
exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle is switched to the “OFF” position. (If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”.
SAFE START (Child safety mode)
Factory default is set to press the button once on the transmitter to start the vehicle. You can program this
feature to eliminate an accidental remote start:
1. The user presses the transmitter buttons twice within 3 seconds to start the vehicle. or
NOTE: Contact your installing dealer to activate this feature.
B. OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE START:
To operate the vehicle while the engine is running from the remote start,
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down.

E9 OP REV.A1 12
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed from the ignition. This feature is
useful for occasions when you wish to exit and lock the vehicle for short periods of time, but would like to leave the
motor running and the climate control on.
1. Before turning off the engine, press the button once on the transmitter and the LED indicator will flash 3
times to confirm enter.
2. Turn the ignition key to OFF position. (The engine will stay running.)
3. The engine will run until the pre-programmed time elapsed or shutdown input is received.
D. TURBO CHARGE MODE:
Turbo charger mode keeps the engine running after arriving at your destination for a programmable period of 1, 3
or 5 minutes, This allows the vehicle’s engine time to conveniently cool down the turbo after you have left the
vehicle.
To activate:
1. While the engine is running, pull up the hand brake and place the transmission gear in the park position.
2. Before turning off the engine, press and release and buttons at the same time.
-- The LED will flash indicating the remote start has entered the turbo charger mode appear on LCD
remote.
3. Take the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
NOTE: This feature only applies to vehicles with Turbo Charged Engines.
E. TIMER START:
This unit can be programmed to start and run the engine every 3 hours or punctually at the same time next morning,
the engine will run for the programmed running time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, never start and run the vehicle in on
enclosed space as a garage or carport. Please be sure you fully understand this feature before use.
Enter timer start:
1. Ignition ON => OFF within 15 seconds Press button first, within 3 seconds press button.
2. 3 Hours Timer Start: The parking light will flash (3) times / icon appear. The siren or horn chirps (3) times.
The vehicle is now programmed to start every 3 hours.
Daily Timer Start:The feature is very useful for the driver who wants to run the vehicle punctually at the
same time next morning. Before set-up of the “Daily Timer Start”, you should set you time for engine start.( see
Timer Setting / Timer set-up for “Daily Timer Start, in Advanced users Mode) Please insure that you fully
understand this feature before programming the timer start mode.
Enter : Ignition ON => OFF, within 15 sec.
1. Press and hold “ F “ button until 3 beeps (you are enter table 3 feature option),
2. Press and release “ F “ button 4 times see flash on LCD display,
3. then press button to activate Daily Start.
Cancel timer start:
1. Turn the ignition on. The LED and parking light will flash (4) times. The horn chirps (4) times. or
2. Press the button twice to remote start the vehicle.
F. TEMPERATURE CHECK
With the built in temperature sensor you can monitor, Through the LCD screen, the present indoor temperature of
the passenger compartment of your vehicle.

E9 OP REV.A1 13
Press and hold the transmitter “F”button first until 3 chirps are heard. Then press the F Button three more
times so that TEMP appears on the remote. Within 3 seconds press button; the in-door temperature will be
shown on the LCD screen. This reading may be higher than actual ambient temperature due to the greenhouse
effect and is relative only to the inside vehicle temperature.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button once on the remote transmitter under the remote start mode.
2. Move the optional remote start enable toggle switch to OFF position. (If installed)
3. Press the brake pedal
The vehicle will shut down and turn off the parking light to indicate the engine has stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will not start or will shut
down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. The parking (hand) brake is released (For Turbo Timer Mode)
4. Engine is over-revved. {“Tachometer checking type” only}
5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
6. Press button on the remote transmitter under remote start mode.
7. The system trigger.
8. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from being
remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To
disable the remote start, move the optional remote start enable toggle switch to the OFF position.
ADVANCED USER’S MODE:
LCD REMOTE TRANSCEIVER OPERATION:
Enter: Press and hold FButton until beep sound respond from LCD transceiver indicate into
table 1 – 5 as below.
Exit: Press the , or button to exit this mode.

E9 OP REV.A1 14
Table 1: ONE beep to confirm (Press & hold “ F “ button until 1 Beep is heard)
FButton LCD Display Button
Press once Backlight turns on for 5 seconds
Press twice within 5
seconds PASS and PASS icon flashing Press button to arm the alarm and bypass the sensor 1.
Press three times
within 5 seconds HIDDEN ALARM and
icon flashing
Press button to arm system
and with Hidden Alarm Function.
Press four times within
5 seconds ANTI CAR- JACK and
icon flashing
Ignition in "on" position press and
hold button for 2 seconds to
activate anti carjacking functions.
Table 2: TWO beeps to confirm (Press & hold “ F “ button until 2 Beeps is heard)
FButton LCD display Button
Press and hold the F
Button for 2 second
until 2 beeps sounded
MENU flashing Press button to enter the
menu mode
Press one more time
within 5 seconds CH 4 flashing Press button to activate channel 4 function
Press twice within 5
seconds CH 5 flashing Press button to activate channel 5 function
Press three time within
5 seconds CH 6 flashing Press button to activate channel 6 function
Table 3:THREE beeps to confirm(Press & hold “F” button until THREE Beeps are
heard)
FButton LCD display Button
Press and hold the F
Button for 3 second
until 3 beeps sounded
STATUS and
icon flashing Press button to check the
Vehicle Status.
Press ONE more time
within 5 seconds ALARM and
icon flashing Press button to check the
system trigger condition.
Press TWO more times
within 5 seconds Voltage and
Check icon flashing Press button to check the
Vehicle Battery condition.
Press THREE more
times within 5 seconds TEMP and
icon flashing Press button to check the
Interior Temperature of the
vehicle
Press Six more times
within 5 seconds Start timer and
icon flashing
Press button to activate
or cancel daily start.
Table 4: FOUR beeps to confirm (Press & hold “F” button until 4 beeps are heard)

E9 OP REV.A1 15
FButton LCD display Button
Press and hold the F
Button for 4 second
until 4 beeps sounded
DEMO mode Press button to activate
Backlight will be ON until
DEMO operation end.
Table 5: Do-Re-Mi sounds to confirm
FButton LCD display Button
Press and hold the F
Button for 6 second
until Do-Re-Mi
sounded
DEFLT flashing Press & hold button for 2
seconds to back to default
setting and 1 chip for confirm
D. PROGRAMMING LCD REMOTE (Transmitter Manual mode):
Selecting and Adjusting Menu options:
• Press and hold Fbutton for 1 second until 2 beeps sound, then release the Fbutton.
• The text will flash on the LCD screen, press button to enter the menu.
• Press button to move up in the menu or button to move down in the menu.
• Press button to select the option you would like to adjust.
• Press button to increase the value, to activate or deactivate a function or to toggle through
the selection.
• Press button to decrease the value, to activate or deactivate a function or to toggle
•through the selection.
• Press button to move to the next sub-option or go back to the main menu.
•EXIT: Press button to exit the menu mode.
Trans
mode Menu Option LCD display Functions
1 Parking Menu PARK METER Default is
- Parking hours 0:30
0 is flashing , - Adjusts parking hour
(value from 0 to 2).
- Parking
minutes 0:30
30 is flashing
, - Adjusts parking minute
(value from 0 to 59).
- Toggle
Parking
countdown
+ or
- Enables parking countdown.
There is a beep 5 min. before the
Parking countdown reaches 0.
- Disables parking countdown.
2 Second Vehicle
Operation Menu Default is CAR 1
- Car Select CAR 1 or
CAR 2
-CAR 1 operation.
- CAR 2 operation.
3 Clock Menu Default is
- Clock hours
12:00AM
12 is flashing , - Adjusts clock hour from 0 to 12

E9 OP REV.A1 16
- Clock minutes
12:00AM
00 is flashing , - Adjusts clock minute from 0 to 59
4 Alarm Clock
Menu
Default is
- Alarm hours
12:00AM
12 is flashing , - Adjusts alarm clock hour from 0
to 12
- Alarm
minutes 12:00AM
00 is flashing
, - Adjusts alarm clock minute from
0 to 59
- Toggle alarm
ON + or
OFF - Enable alarm clock or
- Disable alarm clock
5 Confirmation
Menu
VIBRTE Default is
- Toggle BZ
VIB
+ or
VIBRTE + or
+ +
, - Buzzer or Vibration
6 Button Lock
Menu
Default is
- Toggle button
lock
- button lock / Disable the transmission
function temporarily
- button unlock / Enable the
transmission
Function.
7 Power Save
Menu
Default is
- Toggle power
save
- While the power save mode, the LCD
remote transceiver uses “0” current
to save the battery power.
- Power save OFF
Exit: Press any button of the LCD
remote transmitter to exit the
“Power Save Mode”.
8 Daily Start Timer
Setting
Daily Start Time Adjust Only (ex. 7:30AM)
- Daily Start
Hour
7:30AM
7 is flashing , - Adjusts clock hour from 0 to 12
- Daily Start
Minute
7:30AM
30 is flashing , - Adjusts clock minute from 0 to 59
To Exit: Do not push any buttons for 15 seconds

E9 OP REV.A1 17
ENCORE LIMITED LIFETIME WARRANTY PROVISIONS
( U.S. ,Continental U.S. and Canada Only)
1. Encore Automotive Systems LLC. WARRANTS that this new unit has been thoroughly inspected
and tested at the factory prior to delivery. Your Encore equipment is guaranteed for “life” to the
original purchaser/user of the equipment and the original vehicle in which it was installed by an
authorized installer under the following conditions: If the product proves defective (according to
Encore’s testing) within the first year, the defective unit may be exchanged or repaired free of charge.
“Proof of Purchase” (dated sales receipt) must accompany all warranty returns; otherwise, your
return will be rejected and sent back. After one (1) year, the purchaser should ship the unit prepaid
to Encore with a money order in the amount of $30.00 to cover shipping and handling charges.
Note: The product needs to be registered online at time of installation. To register this product go to,
www.encoresautomotivesystems.com .
2. Exclusion to the Limited Lifetime Warranty Provision: All two-way LCD and two-way OLED remote
transceivers are excluded from the Limited Lifetime Warranty noted in paragraph no.1. All two-way
LCD and two-way OLED remote transceivers are guaranteed to the original purchaser for a period of
one year from date of purchase. If the product proves to be defective within the first year, the
defective unit may be exchanged or repaired free of charge. All other provisions stated on this card
apply.
3. This WARRANTY will be considered void if the equipment has been misused, neglected, improperly
serviced or installed, altered, dropped or damaged by water, contrary to the Encore OPERATIONS
MANUAL. Or, if used with accessories not approved by Encore, which may have contributed to the
defect. See note below regarding product installation**.
4. The purchaser’s remedies under this WARRANTY shall be limited to the repair or replacement of
electronic components only. THE FOLLOWING IS NOT COVERED: Damages or deterioration
to cases, batteries, covers and cabinets; the cost of repairs, replacement and labor of which shall be
borne by the purchaser even if occurring during the WARRANTY period.
5. Any equipment or parts which are claimed to be defective under this WARRANTY must be sent to
the Encore Service center with “proof of purchase” at the purchaser’s expense prior to such return, a
Return Authorization Number needs to be obtained. Encore will return the equipment, charges
prepaid. Warranty Service can be provided through the dealer where the equipment is originally
purchased.
6. Any unexpired WARRANTY shall be applicable to equipment and parts in the possession of the
original purchaser only.
7. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
8. Encore shall not be liable, under the foregoing WARRANTIES or otherwise, for: Any personal injury
or property damage of any kind to the purchaser or property, its employees or agents or anyone else
whomsoever resulting directly or indirectly from the use or presence of the equipment or parts;
Consequential damages of any kind; any inability of the purchaser to use the equipment.

E9 OP REV.A1 18
**IMPORTANT NOTE: Any damages resulting from an installation performed by anyone
other than a professional installation technician authorized by Encore will void the
product’s Limited Lifetime Warranty.
It is the purchaser’s responsibility to register this product for any future warranty
service.
Warning: Some batteries may contain Perchlorate
What is Perchlorate? Perchlorate is both a naturally occurring and manmade contaminant increasingly found in groundwater,
surface water and soil. Most perchlorate manufactured in the U.S. is used as an ingredient in solid fuel for rockets and missiles. In
addition, perchlorate-based chemicals are also used in the construction of highway safety flares, fireworks, pyrotechnics, explosives,
common batteries, and automobile restraint systems. Perchlorate contamination has been reported in at least 20 states.
Perchlorate greatly impacts human health by interfering with iodide uptake into the thyroid gland. In adults, the thyroid gland helps
regulate the metabolism by releasing hormones, while in children; the thyroid helps in proper development. Perchlorate is becoming
a serious threat to human health and water resources.“Perchlorate Material – Special handling may apply.”For more
information, go to http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Encore Automotive Systems, LLC. All rights reserved
.
For More information, Please go to www.encoreautomotivesystems.com. For customer
service, please call us toll free @ (855) GO-ENCORE 855.463.6267, 8:00-5:00 PST.
Email us at [e-mail]
Thanks for your purchase!
