Eneo GLS-2301H User manual

1
Installation and Operating Manual
Network 1-Channel Video/Audio Server,
MJPEG, H.264, Ethernet
GLS-2301H

2
Contents
1. Safety Instructions / Maintenance.......................................................................................................................3
2. Product Features ................................................................................................................................................4
2.1 Product Introduction .................................................................................................................................4
2.2 General Description ..................................................................................................................................4
3. Description of the Front/Rear View......................................................................................................................5
3.1 Front Panel ...............................................................................................................................................5
3.2 Rear Panel................................................................................................................................................6
3.3 ALARM I/O PIN Configuration ....................................................................................................................7
3.4 The USB Function.....................................................................................................................................8
3.5 PoE (Power over Ethernet) ........................................................................................................................9
4. Installation........................................................................................................................................................10
4.1 Updating System Software .....................................................................................................................10
4.2 Video Server SD Card Troubleshooting ...................................................................................................11
5. Network Configuration......................................................................................................................................12
5.1 Cable Connections..................................................................................................................................12
5.1.1 Connect to a Computer ..........................................................................................................12
5.1.2 Connect to a LAN Switch (INTRANET)....................................................................................13
5.1.3 Connect to a PoE Switch ........................................................................................................13
5.2 Configure your Video Server Network Settings ........................................................................................14
5.2.1 Enable DHCP Function .............................................................................................................14
5.2.2 Set IP Address ........................................................................................................................14
5.3 TCP/IP Communication Software ........................................................................................................15
5.4 TCP/IP Installation................................................................................................................................16
5.5 TCP/IP Configuration Setting ...............................................................................................................17
5.6 Connection Testing...............................................................................................................................18
6. Operating Instructions for Image Software and Network ...................................................................................20
6.1 Microsoft Internet Explorer......................................................................................................................21
6.1.1 Connecting the Video Server.....................................................................................................21
6.1.2 Change Image Setting ..............................................................................................................23
6.1.3 Change the Network Setting .....................................................................................................25
6.1.4 Change the System Setting.......................................................................................................34
6.1.5 Change the Application Setting .................................................................................................42
6.1.6 View the SD Card filrs...............................................................................................................49
6.1.7 Control the Speed Dome...........................................................................................................50
6.1.8 PPPoE & DDNS .........................................................................................................................51
7. Advanced Operation .........................................................................................................................................52
8. Specifications...................................................................................................................................................55
9. Function of Client PC ........................................................................................................................................57
APPENDIX 1 – Register as a DDNS Member ..............................................................................................................58
APPENDIX 2 – PoE Installation Method......................................................................................................................62
APPENDIX 3 – FAQ....................................................................................................................................................65

3
1. Safety Instructions / Maintenance
• Read these safety instructions and the operation manual first before you install and commission the unit.
• Keep the manual in a safe place for later reference.
• The system may only be commissioned and maintained by personnel authorized to do this and it must only be
carried out in accordance with relevant standards and guidelines.
• Never cover the ventilation slots to avoid overheating.
• Never insert metal objects or any other items into the vents. This may permanently damage the unit.
• Protect your unit from contamination with water and humidity to prevent it from permanent damage.
Never switch the unit on when it gets wet.
Have it checked at an authorized service center in this case.
• Never operate the units outside of the specifications as this may prevent their functioning.
• Do not operate the unit beyond their specified temperature, humidity or power ratings. Operate the unit only at a
temperature range of 0°C to +50°C and at a humidity of max. 80%.
• The unit should be protected against excessive heat, dust, damp and vibration.
• Do not place any heavy objects on the unit.
• To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself.
• Pay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or
damage and no moisture can get in.
• Contact your local dealer in case of malfunction.
• The connection cable should only be changed by Videor E. Hartig GmbH.
• The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the housing.
• Installation, maintenance and repair have to be carried out only by authorized service centers.
Before opening the cover disconnect the unit from mains input.
• Only use original parts and original accessories from Videor E. Hartig GmbH.
• Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface.
In case the dirt is hard to remove, use a mild detergent and wipe gently.
NOTE: This is a class A digital device.
This digital device can cause harmful interference in a residential area; in this case the user may be
required to take appropriate corrective action at his/her own expense.
www.videor.com
⇒
Montage- und Betriebsanleitung
Installation and Operating Instructions
Mode d’emploi
Instrucciones de manejo

4
2. Product Features
2.1 Product Introduction
This video server is an ideal user-friendly device which brings digital benefits to your analog surveillance cameras.
The tiny and compact body design can be easily installed in all kinds of analog cameras for network surveillance.
The video server adapts Texas Instrument’s (TI’s) newest digital media processor - the Da Vinci DM 355 for efficient
image operation, while also offering simultaneous dual-codec (H.264 / MJPEG) video compressions with the highest
resolution, Full D1, at 30/25 frames per second in the NTSC/PAL systems, respectively. In addition, users based on
different bandwidths can choose multi-profile MJPEG video streaming at different resolutions.
The video server provides stable, reliable and convenient network surveillance. It safely downloads automatic video
Codec and other components, and lets you set up the control settings very easily. It provides UPnP features as well.
Its USB interface is for basic network setting and updating. The SD card slot supports alarm and event recording
and updating. Furthermore, this encoder board comes with the Power over Ethernet (PoE) function, and its RS-485
interface can be connected with all kinds of Pelco-D PTZ cameras.
We have launched this dual-codec video server for the more advanced digital surveillance solutions demanded by
our clients. We believe this unit is the right answer to your Network surveillance problems. You will find it practical,
precise and indispensable.
2.2 General Description
• 1-channel Video/Audio Server for LAN/WAN/Internet
• Simultaneous Video Streaming (H.264 & MJPEG)
• Image Frame Rate: up to 25 ips. (720x576 Px.)
• RS-485 Telemetry Control Interface
• Alarm Input/Outputs
• Motion Detection
• Integrated Web Server: 10Base-T/100Base-TX
• Viewer for Monitoring, Recording and Configuration
• Pre and Post Event Recording (in Client PC)
• SD Socket for Local Video Storage by SD Cards
• E-Mail Notification in Case of an Alarm
• Basic Setting via USB Interface and Network
• Power Input via Power over Ethernet and 12VDC/24VAC
FACTORY DEFAULT • IP Address: 192.168.1.168
• Password: 9999

5
3. Description of the Front/Rear View
3.1 Front Panel
1. Act indicator
Indicates the network status of the unit. The green light indicates the network is activating.
2. 10/100M indicator
The green light indicates the network data are transmitting.
3. Reset button
Recover to factory default.
4. SD CARD Slot
This is used for system software updating and archiving / accessing critical images
5. Status indicator
If this LED light is on, it means the SD card is recording or the device is updating.
6. 5pin MINI B Port
The user can use a USB device cable to connect the Video Server to the USB port on the PC.

6

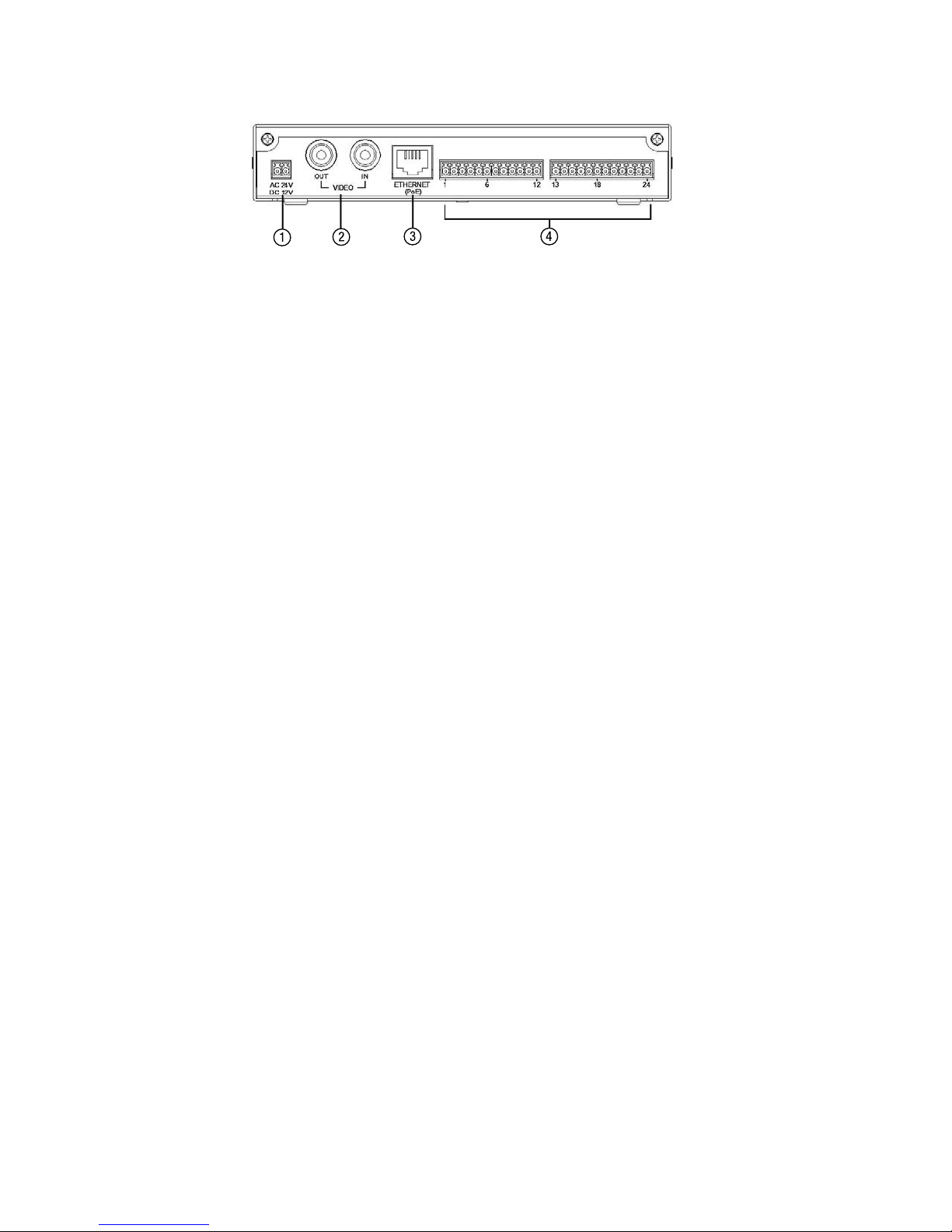

3.2 Rear Panel
1. DC jack
The inlet connects to an external power supply. Connect with the 12 VDC/24VAC TUV-approved Power Supply;
or connect with the UL Listed Class 2 Power Supply or ITE power supply marked ’LPS’ or its equivalent.
2. Video in connector
The BNC connector is used to connect to the video output from the camera. 1 camera can be connected to the
connector.
Video out connector
This BNC connector provides a video signal to the main monitor.
3. ETHERNET (PoE) Connector
This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks. PoE (Power over Ethernet) function:
Provides power to the device via the same cable as used for the network connection.
NOTE: Please refer to the APPENDIX – PoE Installation Method for more details.
4. ALARM I/O
This is an 24-PIN connector including the alarm input x 6, alarm-out x6, GND x 6, RS-485+-(2 pins), audio input
and audio output items for connecting with external devices.

7
3.3 ALARM I/O PIN Configuration
1. RS-485 pin: D+
2. RS-485 pin: D–
3. GND1: Ground Contact
4. ALARM RESET (INPUT): This pin connects to an alarm-clear device for clearing an alarm ( 5V
0V(Active) ).
5. GND2: Ground Contact
6. ALARM IN 1 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
7. ALARM IN 2 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
8. ALARM IN 3 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
9. ALARM IN 4 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
10. ALARM IN 5 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
11. ALARM IN 6 (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open
or Normally Closed ( 5V
0V(Active) ).
12. GND3: Ground Contact
13. AUDIO IN Connector: The connector is used to connect the audio output from a camera or other devices.
14. AUDIO OUT Connector: The connector provides the unit’s audio signal to a speaker or stereo.
15. GND4: Ground Contact
16. ALARM OUT 1 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights ( 5V
0V(Active) ).
17. ALARM OUT 2 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights (5V
0V(Active) ).
18. ALARM OUT 3 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights ( 5V
0V(Active) ).
19. ALARM OUT 4 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights ( 5V
0V(Active) ).
20. ALARM OUT 5 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights ( 5V
0V(Active) ).
21. ALARM OUT 6 (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or
lights ( 5V
0V(Active) ).
22. GND5: Ground Contact
23. DC-OUT: DC-12V 350mA max.
24. GND6: Ground Contact

8
3.4 The USB Function
By connecting the video server board with a PC via the USB connector, the video server board can provide different
functions.
1. Insert an SD card: As a card reader
Insert an SD card into the Video Server, then connect to the PC. You might transfer files between the SD card
and the PC. Once you’ve connected your Video Server to your computer, the Windows system will detect the
connection and ask you what you want to do with your SD card.
In another words, if the user connects the Video Server with an SD card and the PC via the USB connector, the
Video Server can be used as a normal card reader.

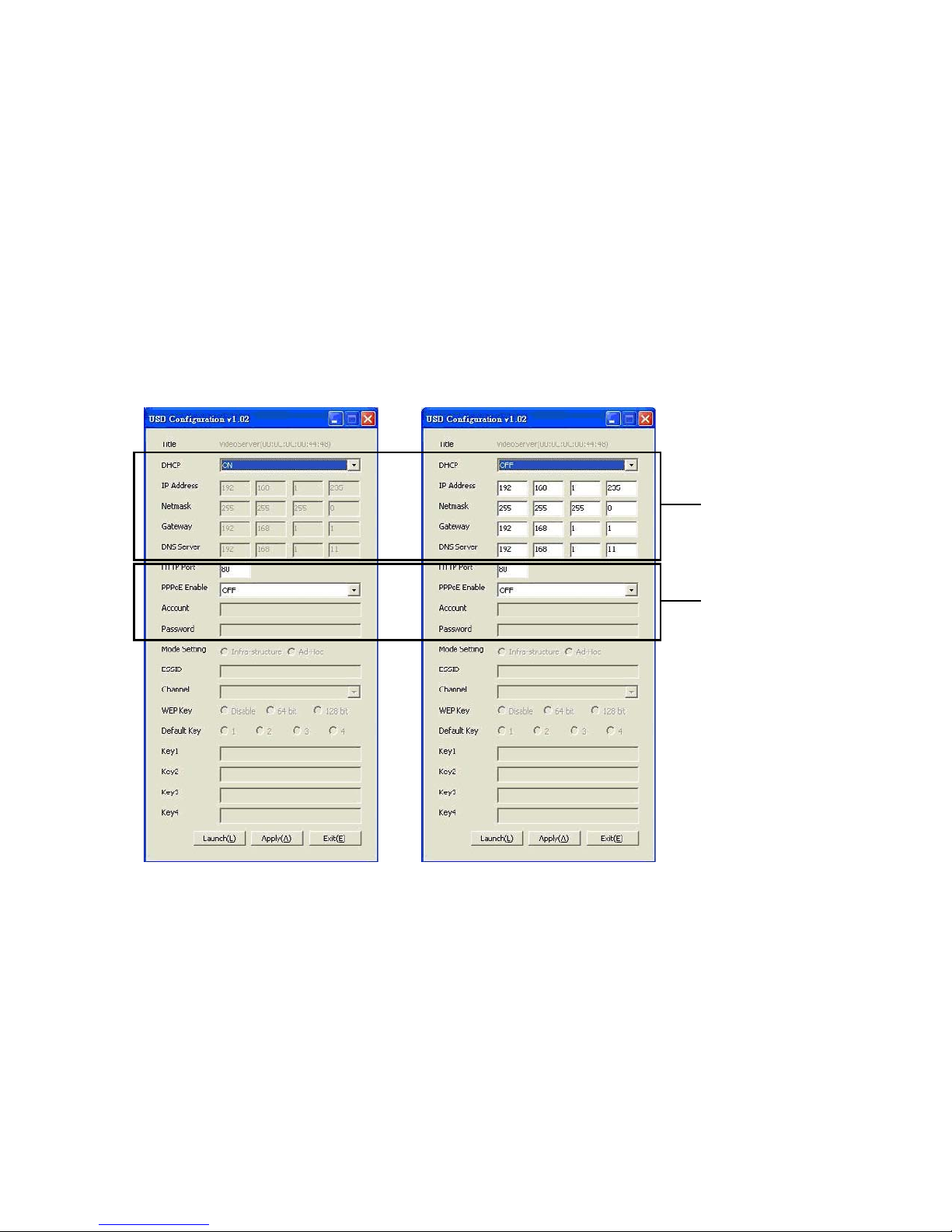

2. As a configuring tool:
By connecting the Video Server with a PC via the USB connector, you can set the Network and PPPoE functions
of the Video Server directly by your PC.
Network
Setting
PPPoE
Setting
DHCP ON DHCP OFF
NOTE: You can click the ”Launch” button to link to the home page of the Video Server.
WARNING: After changing the settings, please click the „Apply” button. All of the options will be effective
after removing the USB connector.

9
3.5 PoE (Power over Ethernet)
These technologies will enable the development of new networked appliances, by providing power as well as data
over existing Ethernet cables.

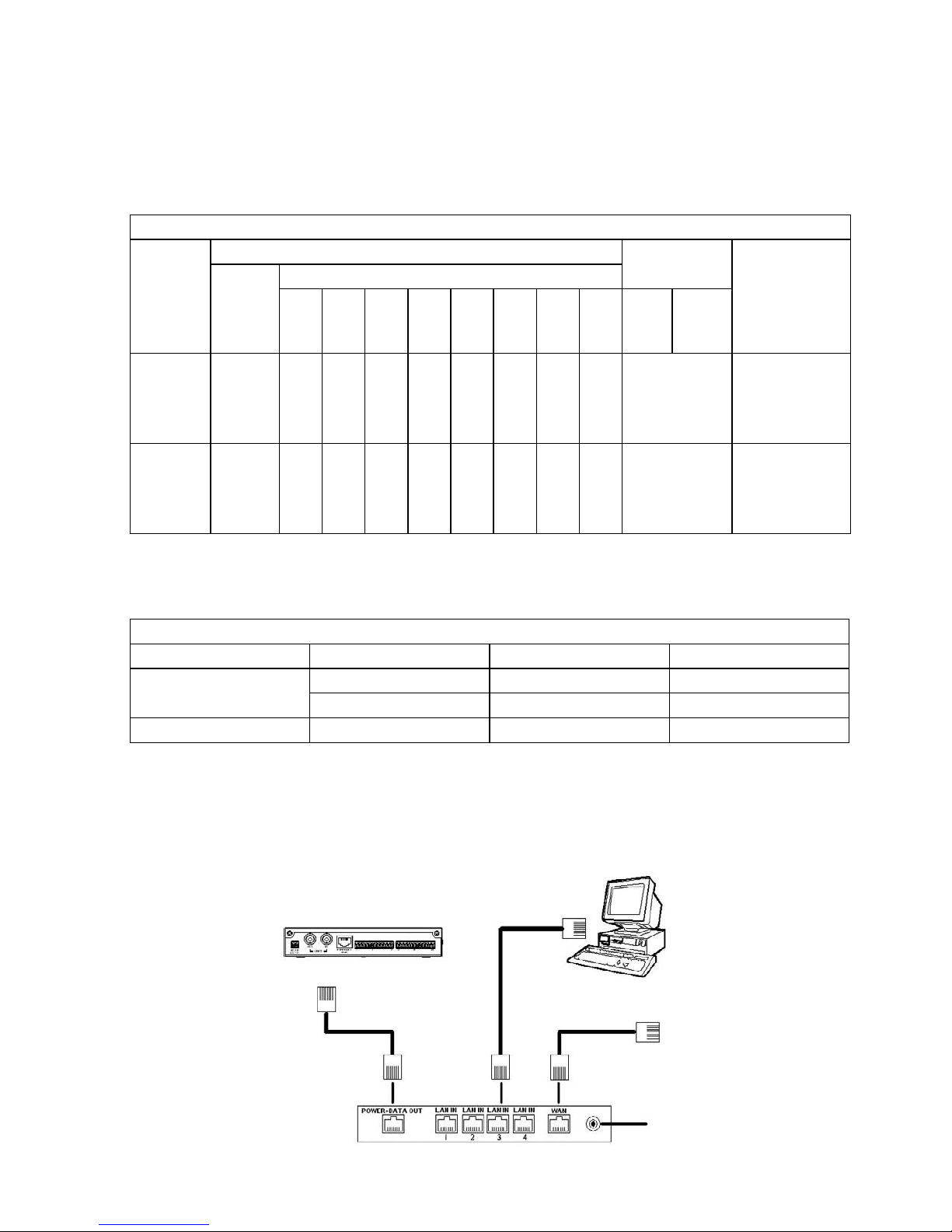

The Summary Comparison of PoE Standards (Table 1) is listed as follows.
Connect to a PoE Switch

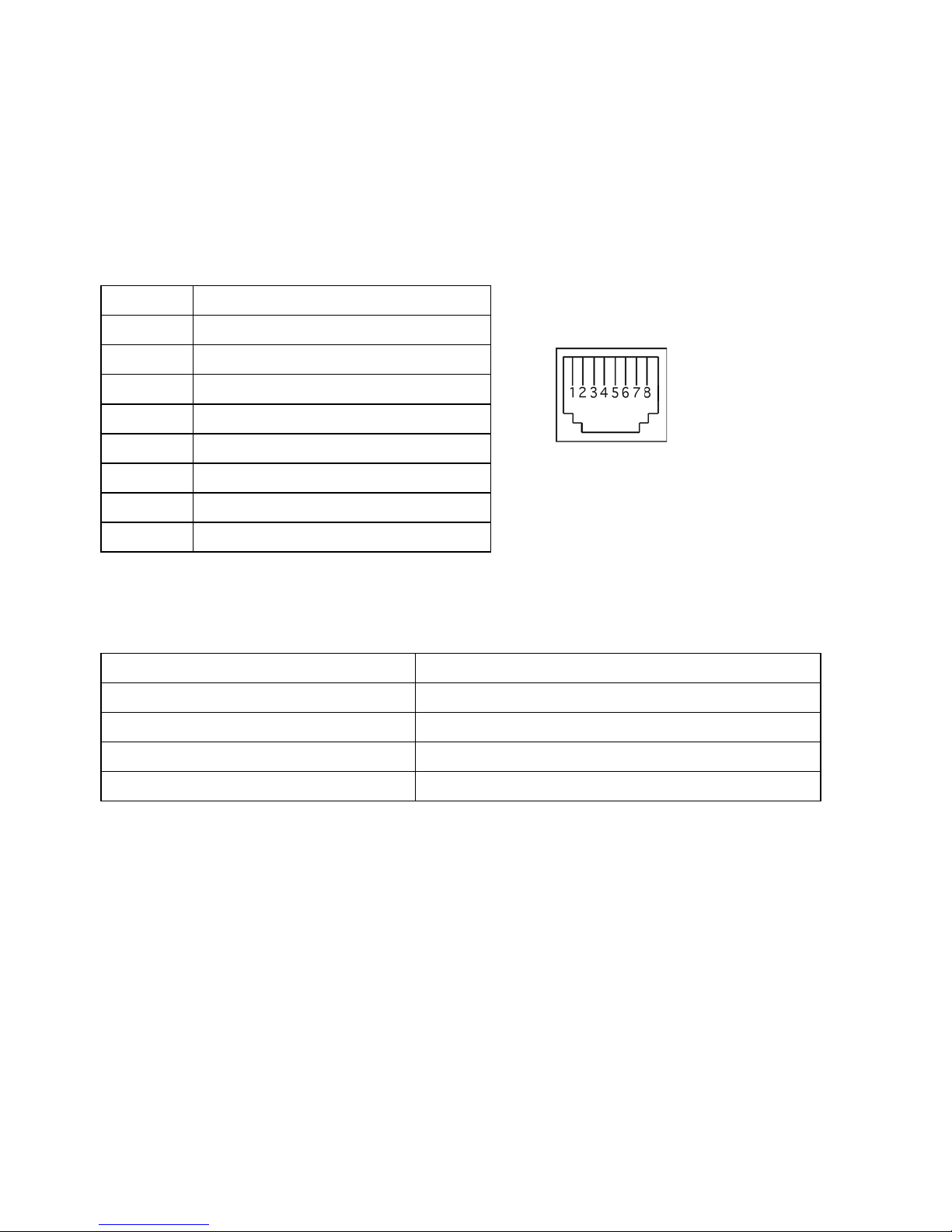

The Standard RJ-45 PIN configuration for connecting with a PoE Switch is shown below.
Table 1. Summary Comparison of PoE Standards
STANDARD
SOURCE LOAD
REMARKS
Source
Voltage
Ethernet RJ-45 connector pin number *
12345678Load
Voltage
DC Load
Connec-
tor
IEEE
802.3af
using data
pairs
48VDC,
protected
RX,
DC+
RX,
DC+
TX,
DC- spare spare TX, DC- spare spare (embedded) Industry Standard for embedded PoE
IEEE
802.3af
using spare
pairs
48VDC,
protected RX RX TX DC+ DC+ TX DC- DC- (embedded) Industry Standard for embedded PoE
The compatible PoE Hubs (Table 2), which can be used with the unit, are shown in the tables below.
Table 2. Compatible PoE Switch
Manufacturer Model Port Note
PLANET FSP-804P 4 Port PoE Switch
POE-151 1 Port PoE Switch
D-Link DWL-P200 1 Port PoE Switch
Video Server
PoE Switch
RJ-45
RJ-45
RJ-45
to Network
to PC
PoE
Power Inlet (Using the supplied
48V power supply,connect to a
wall power outlet.)

10
4. Installation
Please follow the instructions below to set up the system.
4.1 Updating System Software
If the system software of the Video Server needs to be upgraded, please take the following steps to safely process it.
IMPORTANT: Before carrying out the following procedures, please ensure the SD card is working and the file
of the system firmware is intact
1. Format an SD card using the FAT format if it is unformatted.
2. Create a directory named „VSERVER” in the SD card if it does not exist.
3. Copy the file of UPDATE.BIN to the VSERVER-directory.
4. If the Video Server is running, please power it off first.
5. Insert the SD CARD into the Video Server.
6. Remove the Ethernet cable from the RJ-45 port and then power on the Video Server.
7. In 5 to 10 seconds, a message reading „UPDATE PROCESSING” will show up on the screen on a blue back-
ground; if not, please check out steps 1 to 6 carefully or else inform your technical support while ignoring the
following steps.
8. DO NOT power off the Video Server while this update process is running until the message „UPDATE OK RESET
PLEASE” appears on the screen; it might take 15 to 30 seconds to appear.
9. If the message „UPDATE NG RESET PLEASE” appears rather than „UPDATE OK RESET PLEASE”, please write down
the error messages shown on the screen and inform your technical support, while ignoring the following steps.
10. Power off the Video Server when this update process is finished, then remove the SD card from the Video Server.
11. Reconnect the Ethernet cable to the RJ-45 port if necessary.
12. Power ON the Video Server and it will work normally if the entire update procedure goes correctly.
13. Verify the version of the system software.
WARNING:
1. Don’t use the NTFS format in step 1.
2. Steps 1 to 3 have to be done on a PC.
3. Make sure the file of UPDATE.BIN is a correct one in step 3, or the VIDEO SERVER will not work normally
after being updated.
4. If the power of the VIDEO SERVER is suddenly lost in step 8, please remove the SD card first and turn on
the VIDEO SERVER next to test its operation. If the VIDEO SERVER remains working normally, please go
back to step 4; otherwise, please inform your technical support.
5. In step 10, if the SD card is not removed and the Video Server does not get online as well, the updating
process must be repeated again after rebooting the Video Server.
6. Make sure that the SD card is inserted in a correct position in step 5, or the Video Server will suffer
permanent physical damage.
7. If the message „CSUM ERROR” appears in step 8, it implies a problem in the file of UPDATE.BIN.
8. Don’t interrupt the process while the unit is updating itself; proceed with an SD card not including any
system software of the unit, or else the unit will crash.
