Enerdrive DOMETIC B-TEC LITHIUM EPL-200BT-12V-SLIM User manual

Enerdrive B-TEC Lithium (LiFePO4), Lithium Ion Phosphate
Prismatic Cell Battery with Smart Phone Monitoring
Enerdrive B-TEC G2 Manual (Rev. 3.2)
EPL-100BT-12V-SLIM EPL-125BT-12V-G2 EPL-200BT-12V-G2 EPL-200BT-12V-SLIM
EPL-300BT-12V-G2 EPL-100BT-24V EPL-150BT-24V-G2 EPL-100BT-36V
ENERDRIVE

Enerdrive B-TEC G2 Manual (Rev. 3.2)
For safe and optimum performance, the Enerdrive B-TEC LiFePO4 Lithium Ion Phosphate Battery with Smart
Phone Monitoring must be used properly. Carefully read and follow all instructions and guidelines in this
manual and give special attention to the CAUTION and WARNING statements.
EPL-100BT-12V-SLIM
EPL-125BT-12V-G2
EPL-200BT-12V-G2
EPL-200BT-12V-SLIM
EPL-300BT-12V-G2
EPL-100BT-24V
EPL-150BT-24V-G2
EPL-100BT-36V
2023
Warranty Returns: Reply Paid 8786, Wynnum Plaza, QLD 4178
Dometic Power & Control (Enerdrive) Pty Ltd
Email: [email protected]
Support Contact Information
Please be sure to read and save the entire manual before using your Enerdrive B-TEC LiFePO4 Lithium Ion
Phosphate Battery with Smart Phone Monitoring. Misuse may result in damage to the battery, and/or cause
harm or serious injury. Read manual in its entirety before using the unit and save manual for future reference.
Enerdrive B-TEC G2 Manual (Rev. 3.2)

www.enerdrive.com.au Page 3
TABLE OF CONTENTS
SECTION 1 - INSTALLATION 4
SECTION 2 - CONNECTIONS 4
SECTION 3 - CHARGING 5
SECTION 4 - DISCHARGING (USING THE BATTERY) 6
SECTION 5 - PROTECTING YOUR BATTERY 7
SECTION 6 - RESTARTING YOUR BATTERY 8
SECTION 7 - USING THE SMART PHONE BATTERY MONITOR APP 9
SECTION 8 - WARNINGS 10
SECTION 9 - FAQ 11
SECTION 10 - BATTERY SPECIFICATIONS 13
SECTION 11 - DIMENSIONS 15
SECTION 12 - WARRANTY 23

SECTION 1 - INSTALLATION 4
SECTION 2 - CONNECTIONS 4
SECTION 3 - CHARGING 5
SECTION 4 - DISCHARGING (USING THE BATTERY) 6
SECTION 5 - PROTECTING YOUR BATTERY 7
SECTION 6 - RESTARTING YOUR BATTERY 8
SECTION 7 - USING THE SMART PHONE BATTERY MONITOR APP 9
SECTION 8 - WARNINGS 10
SECTION 9 - FAQ 11
SECTION 10 - BATTERY SPECIFICATIONS 13
SECTION 11 - DIMENSIONS 15
SECTION 12 - WARRANTY 23
Page 4
Section 1 - Installation
Section 2 - Connection

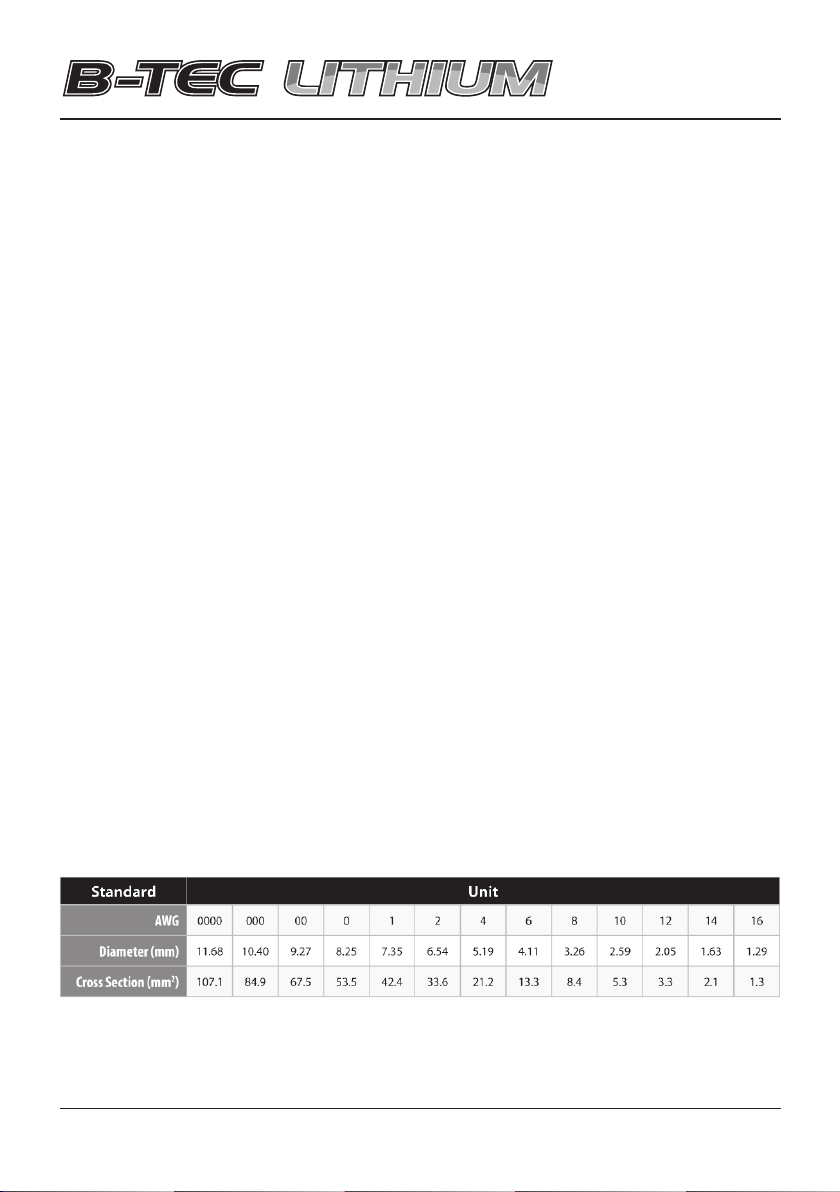

Cable Conversion Guide
The spring washers must be used on the battery terminal bolts - they apply pressure to the lugs for a secure
connection. There is no need to over-tighten the bolts, simply ensure there is no movement of the cables.
Make sure the main Battery Cable lug is mounted directly onto the Battery terminal with no washers
between them.
Your B-TEC battery must be installed in a dry and cool location.
Supplied battery trays and straps are the preferred mounting method. Ensure that suciently rated
fasteners are used to hold the tray rmly to the mounting material.
Enerdrive highly recommend the battery is installed in the upright position.
Enerdrive approve installation of B-TEC batteries in accommodation areas of RV's. Temperatures must not
exceed the rated operating temperatures therefore natural, or fan forced ventilation maybe required.
There should be 25mm clear space around the B-TEC battery.
Consideration should be taken to not mount the battery near any metallic service lines such as LPG, diesel, or
petrol lines. This is to ensure no accidental shorting of the battery terminals occur, especially when tting or
removing the battery.
B-TEC batteries must not be installed -
• In vehicle engine bays or in high heat environments, refer to Section 10 - Battery Specications
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.
It is recommended that no more than four terminals be connected to a battery terminal, if you do have more
than 4 terminals the use of a fuse block and negative busbar are recommended.
Cable terminal should be in the order with heaviest current draw (largest cable) in contact with the battery
to light estimated current draw (smallest cable) terminals on the top.
Use of insulating terminal boots is recommended, especially in areas where accidental shorting may occur,
such as storage lockers or under lounges and beds. Connect the Positive (Red) and Negative (Black) cables to
the battery, ensuring you are using cable that is of adequate size for the demands of the system, and well
crimped and protected termination lugs.
Example;
1000W Inverter - at least Guage 2 (35mm²)
2000W Inverter - at least Guage 00 (70mm²
3000W Inverter - at least Guage 000 (95mm²)
Enerdrive B-TEC G2 Manual (Rev. 3.2)

www.enerdrive.com.au Page 5
Section 3 - Charging
Lithium batteries need to be charged slightly dierent to other batteries.
To ensure they live a long life and provide maximum capacity, you must use a charger with a lithium LiFeP04
setting - this includes:
• AC Chargers
• DC to DC Chargers
• Solar Controllers
If your charger allows, set the charge voltage from 14.2 - 14.6 Volts and Float 13.5 - 13.6 Volts and proceed
with charging. We recommend charging at the lower end of the voltage scale for maximum longevity of the
battery.
It is recommended that the charging current should be 30% of your battery capacity. You can charge at
higher currents but 30% is the recommended for long life.
See Section 10 - Battery Specications.
*Note:
You can charge a lithium battery with a non-lithium charger, but these chargers can deliver too much or too
little voltage and may not cut o when the battery is full.
DO NOT use a charger with a “Pulse Stage”or“Equalisation Mode”. This will damage the battery and void
warranty.
DO NOT connect this battery to a start battery with a VSR (Dual Battery System or“Voltage Sensitive Relay”).
The voltage of the Lithium battery may keep the VSR switched on resulting in it discharging into the start
battery, and/or attening the start battery.

The Enerdrive B-TEC Lithium Battery can deliver a very high discharge current due to the high power, high
quality Battery Management System (BMS) and prismatic Lithium cells inside the battery.
Refer to Section 10 - Battery Specications for the maximum rated discharge current of your battery.
For this to happen, you MUST USE cable of the correct guage.
Inverter Usage
It is recommended to not put more load on your batteries than the rating of the BMS installed. We also
recommend following the below even if you have two batteries in parallel, this protects overloading a single
battery if the other battery in the bank was to shut down (i.e. low capacity).
• 12V 100AH B-TEC - 12V 1000W Inverter Max
• 12V 125AH B-TEC - 12V 1000W Inverter Max
• 12V 200AH B-TEC - 12V 2600W Inverter Max
• 12V 200AH SLIM B-TEC - 12V 3000W Inverter Max
• 12V 300AH B-TEC - 12V 3000W Inverter Max
• 24V 150AH B-TEC - 24V 3500W Inverter Max
Section 4 - Discharging (using the battery)
Enerdrive B-TEC G2 Manual (Rev. 3.2)

www.enerdrive.com.au Page 7
Lithium batteries cannot be protected eectively by monitoring voltage due to their ability to maintain a
higher voltage for much longer than AGM or ooded/sealed batteries.
“State of Charge” (SOC%) percentage is the most accurate and eective method of disconnecting loads from
the battery - this requires a battery monitor which uses a “shunt”to measure the current going into
(Charging) and coming out of (Discharging) the battery.
Example;
200 Amp Battery Fully Charged State of Charge = 100%
50 Amps used State of Charge = 75%
100 Amps used State of Charge = 50%
It is recommended that Lithium batteries not be discharged below 20% State of Charge or the battery life
may be shortened.
As an added layer of protection, the Enerdrive B-TEC Lithium Battery also has a built-in low voltage
disconnect circuit. If this occurs, please refer to Section 6 - Restarting Your Battery.
If your battery has shut down due to low voltage you must charge your battery within 14 days to prevent
permanent damage occuring to the cells.
Section 5 - Protecting Your Battery

FLAT BATTERY
RESET BUTTON
Page 8
Section 6 - Restarting Your Battery
We strongly recommend keeping the battery charged to avoid activating the internal low battery voltage
discconnect.
If your DC system shuts down, the battery may require re-starting. Please use the following procedure:
1. Turn o all DC and AC Loads
2. Connect charging source/s and switch ON
3. Hold the“Reset”button 5 seconds, release and quick press
4. Release and wait 7 seconds
5. Power will be restored and charging will commence after a few seconds
6. When the SOC (State of Charge) is above 20%, loads can be switched on if required
By continuously tripping the low voltage discconnect of the battery you may cause damage to sensitive
electronic equipment that is attached to the battery. i.e. battery chargers, solar controllers, inverters, stereo
equipment etc - all of which are not covered under the battery warranty.
To reconnect, a charge voltage of ≥12.8v must be applied to the battery before the over-discharge release
will activate and allow charge current to ow into the battery. This can be done via a momentary reset switch
between the start battery and B-TEC or by jump starting with a portable power pack.
Follow the above steps to turn o all DC and AC loads, turn on charging sources and then activate reset
switch or apply jump start pack, disconnect as soon as chargers begin charging.
Batteries with Reset Button on Battery
Batteries without Reset Button on Battery
Enerdrive B-TEC G2 Manual (Rev. 3.2)

www.enerdrive.com.au Page 9
Section 7 - Using the Smart Phone Battery Monitor App
• Battery Capacity • Individual Cell Voltage
• Battery Voltage • Battery Temperature
• Battery Current (Amps) • Battery Cycles
• Battery State of Charge (SOC) • Battery Alarms
• Battery State of Health (SOH) • Battery Event Information
• Battery Status
The Enerdrive B-TEC Lithium Battery incorporates a wireless Smart Phone Monitoring system. By
downloading the Android™ or Apple® app to your Smart Phone or tablet device, you can monitor the
following information;
* The red warning light is only an indicator, not a fault condition.
* The 3 vertical dots on the lower part of the main screen allows you to change the Bluetooth name of the
battery. Touch the dots, and use 1234 as the password to enter your battery name.
* A notication will only appear in the notications page if under alarm condition.
HV - High Voltage
LV - Low Voltage
OCC - Over Current Charge
OCD - Over Current Discharge
LTD - Low Temperature Discharge
LTC - Low Temperature Charge
HTD - High Temperature Discharge
HTC - High Temperature Charge
(Refer to Section 10 - Battery Specications for values).
Alarms Denitions

Page 10
Please read and follow the cautions listed on the battery before installation. Improper use may cause heat,
re, rupture, damage or capacity deterioration of the battery. Dometic Power & Control (Enerdrive) Pty Ltd
is not responsible for any accidents cause by the usage without following our specication.
The battery has a low voltage disconnect incorporated for self-protection. If the battery is drawn down
to the internal low voltage disconnect set point 2.8v per cell (11.2V for 12V battery) the battery will
disconnect.
Section 8 - Warnings
Enerdrive B-TEC G2 Manual (Rev. 3.2)

www.enerdrive.com.au Page 11Page 11
Section 9 - FAQ
Q: Can I parallel B-TEC batteries?
A: The short answer is yes.
The long answer is - make sure the link cables are of the same size or greater than your load/charging
requirements and no more than 4 batteries in parallel.
With low to medium current draw installations (the vast majority of applications) you may never see an issue
and your storage capacity will be greatly increased - I.E. 2 x 200 Amp = 400 Amp capacity.
When installing, fully charge the batteries separately - then let sit for 30 minutes before connecting
together. When connecting in parallel - take the positive from Battery 1, and the negative from Battery 2
to your system as per the diagram below.
The Smart Phone App will only show the information from one battery at a time - not both. This is another
advantage of a separate Battery Monitor - it will show the total system environment.
*Note: Slight variance of State of Charge or Amps may occur between the batteries in parallel however these
should not vary by more than 5%.
It is recommend that annually the batteries be disconnected and individually charged allowing them to sit at
a fully charged state for 12hrs each before connecting back together.

Page 12
Q: Can I series connect B-TEC batteries to achieve higher voltage?
A: No. Enerdrive oers higher voltage Lithium solutions - contact us for details.
Q: Can I use an Inverter with my B-TEC battery?
A: Yes. Refer to Section 4 for more detail.
Q: Can I install the B-TEC battery in a wet area?
A: No. Due to the construction of the B-TEC cases the batteries must be installed in a dry environment to
protect against moisture ingress.
Q: Can I install the B-TEC battery on its side or end?
A: No. Please note that the 12V 200Ah SLIM B-TEC Battery features a wider range of acceptable mounting
orientations - please refer to the diagram below for guidance.
Enerdrive B-TEC G2 Manual (Rev. 3.2)
MULTIPLE
MOUNTING ORIENTATIONS
CAN’T BE MOUNTED SIDEWAYS

www.enerdrive.com.au Page 13
Section 10 - Specications
12.8V
≥2000 Cycles
0 - 45˚C
3.750 ± 0.03V
3.60 ± 0.05V
Discharge below release voltage
-20˚C ~ 60˚C
11.20 ~ 14.60V approx.
450A for 1.0s250A for 1.0s
≤11.20V
14.20 ~14.60
13.50 ~13.80
SPECIFICATIONS: Enerdrive B-TEC 12v-G2 Lithium Battery Technical Data - 12 VOLT
Standard Charge Specication (Lithium prole charger required)
Standard Discharge Specication
Circuit Protection
Nominal Voltage
Nominal Capacity
Battery Charge Temperature
Normal Charge Voltage CV/CC*
Standby (Float) Voltage
Maximum Charge Current
Maximum Discharge Current
Pulse Discharge Current
Discharge Cut-O Voltage
Over-Charge Protection Per Cell
Over-Charge Release Per Cell
The battery is supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimise each single prismatic cell during charge & discharge,
to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Battery Discharge Temperature
Battery Output Voltage Range
Nominal Charge Current
for Maximum Life
Cycle Life (DOD - 80%
under controlled conditions)
2.80V ± 0.05V
Protection to 65˚C ± 5˚C
Release at 50˚C ± 5˚C
Protection to 55˚C ± 5˚C
Release at 45˚C ± 5˚C
Auto release after 5s
Approx. 12.5kg
551mm 318mm 318mm
165mm
240mm
165mm
232mm
505mm 505mm 352mm
83mm
280mm
173mm
272mm
173mm
265mm
110mm
240mm
Approx.
25kg
Approx.
16.2kg
Approx.
15.5kg Approx. 26kg Approx. 31kg Approx. 38.2kg
253mm
280mm
521mm 521mm
288mm
261mm
Approx.
39.4kg
≤3% per month
≤30 days - 20˚C to 60˚C, 5 ~ 75% RH
≥90 days - 10˚C to 45˚C, 5 ~ to 75% RH
Approx 10s Auto Release
Disconnect Load
3.20V ± 0.05V
Apply Charge/Voltage ≥12.8v
Over-Charge Protection
Over-Discharge Protection
Over Current Protection
Over-Charge Release Method
Discharge Over Current
Protection Reset Time
Over Current Release Method
Over Temperature Protection
Battery Discharge Over Temp
Battery Charge Over Temp
Short Circuit Protection
Self-Discharge Rate
Mechanical Characteristics Without Tray Without
Tray Without Tray
With
Tray Without Tray With Tray With Tray Without Tray
Storage Information
Dimensions
Temperature & Humidity Range
Weight
Over-Discharge Protection Per Cell
Over-Discharge Release Per Cell
Over-Disharge Release Method
Length
Width
Height
EPL-100BT-12V-SLIM EPL-125BT-12V-G2 EPL-200BT-12V-G2 EPL-200BT-12V-SLIM EPL-300BT-12V-G2
100Ah 125Ah 200Ah 200Ah 300Ah
80A @ 25˚C for 30mins 80A @ 25˚C for 30mins 150A @ 25˚C for 30mins 150A @ 25˚C for 30mins 190A @ 25˚C for 30mins
20~50A 20~60A 40~100A 40~100A 80~120A
200A @ 25˚C ±5˚C
for 30 mins 250A @ 25˚C ±5˚C
for 15 mins
250A @ 25˚C ±5˚C
for 15 mins
100A @ 25˚C ±5˚C
for 30 mins 100A @ 25˚C ±5˚C for 30 mins
220A for 30s - 450A for 1s 280A for 25s - 400A for 3.5s280A for 25s - 400A for 3.5s110A for 30s - 450A for 1s 110A for 30s - 450A for 1s

38.4V25.6V 25.6V
≥2000 Cycles
0 - 45˚C
3.750 ± 0.03V
3.60 ± 0.05V
Discharge below release voltage
150A @ 25˚C ±5˚C for 30 mins100A @ 25˚C ±5˚C for 30 mins 100A @ 25˚C ±5˚C for 30 mins
-20˚C ~ 60˚C
22.40 ~ 29.20V 22.40 ~ 29.20V 33.60 ~ 43.80V
450A for 1.0s
≤22.40V ≤33.60V≤22.40V
28.80 ~29.20 28.80 ~29.20
27.00 ~27.60 27.00 ~27.60
43.20 ~43.80V
40.5 ~41.40V
50A @ 25˚C for 30mins50A @ 25˚C for 30mins 100A @ 25˚C for 60mins
20~50A20~50A 30~75A
100Ah150Ah100Ah
Standard Charge Specication (Lithium prole charger required)
Standard Discharge Specication
Circuit Protection
Nominal Voltage
Nominal Capacity
Battery Charge Temperature
Normal Charge Voltage CV/CC*
Standby (Float) Voltage
Maximum Charge Current
Maximum Discharge Current
Pulse Discharge Current
Discharge Cut-O Voltage
Over-Charge Protection Per Cell
Over-Charge Release Per Cell
The battery is supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimise each single prismatic cell during charge & discharge,
to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Battery Discharge Temperature
Battery Output Voltage Range
Recommended Charge Current
for Maximum Life
Cycle Life (DOD - 80%
under controlled conditions)
2.80V ± 0.05V
Protection to 65˚C ± 5˚C
Reconnection < 50˚C ± 5˚C
Protection to 55˚C ± 5˚C
Reconnection < 45˚C ± 5˚C
Auto release after 5s
Approx. 25.0kg Approx. 37.7kg
446mm 520mm
521mm 521mm
288mm
261mm
280mm
253mm
Approx. 38.2kg Approx. 39.4kg
161mm 273mm
245mm 225mm
≤3% per month
≤30 days - 20˚C to 60˚C, 5 ~ 75% RH
≥90 days - 10˚C to 45˚C, 5 ~ to 75% RH
Approx. 30s Auto Release
Disconnect Load
170A for 10s - 400A for 3.5s110A for 30s - 450A for 1s 110A for 30s - 450A for 1s
3.20V ± 0.05V
Apply Charge/Voltage ≥25.6v Apply Charge/Voltage ≥38.4vApply Charge/Voltage ≥25.6v
Over-Charge Protection
Over-Discharge Protection
Over Current Protection
Over-Charge Release Method
Discharge Over Current
Protection Reset Time
Over Current Release Method
Over Temperature Protection
Battery Discharge Over Temp
Battery Charge Over Temp
Short Circuit Protection
Self-Discharge Rate
Mechanical Characteristics Without Tray Without Tray Without TrayWith Tray
Storage Information
Dimensions
Temperature & Humidity Range
Weight
Over-Discharge Protection Per Cell
Over-Discharge Release Per Cell
Over-Disharge Release Method
Page 14
SPECIFICATIONS: Enerdrive B-TEC Lithium Battery Technical Data - 24 & 36 VOLT
EPL-100BT-24V EPL-150BT-24V-G2 EPL-100BT-36V
Weight
Length
Width
Height
Enerdrive B-TEC G2 Manual (Rev. 3.2)

Page 15www.enerdrive.com.au
DIMENSIONS (NO STRAP & TRAY INCLUDED WITH THIS MODEL)
EPL-100BT-12V-SLIM
110
551
240
551
110

Page 16
EPL-125BT-12V-G2
318
318
318
M4 Fastening
Holes
165
DIMENSIONS WITHOUT STRAP & TRAY
EPL-125BT-12V-G2
DIMENSIONS WITH STRAP & TRAY
232
165 318
232
318
240
240
165
165
160
9013290
23 25
Enerdrive B-TEC G2 Manual (Rev. 3.2)

265 265 245
173
173
505
EPL-200BT-12V-G2
EPL-200BT-12V-G2
DIMENSIONS WITHOUT STRAP & TRAY
DIMENSIONS WITH STRAP & TRAY
272 265
173 173
505
Page 17www.enerdrive.com.au
475 4113113113141
30
170
110 30

EPL-200BT-12V-SLIM
Page 18www.enerdrive.com.au
530
83
580
597
470
506
280
352
280
DIMENSIONS (NO STRAP & TRAY INCLUDED WITH THIS MODEL)

EPL-300BT-12V-G2
DIMENSIONS WITHOUT STRAP & TRAY
Page 19
EPL-300BT-12V-G2
DIMENSIONS WITH STRAP & TRAY
521
261
261
288
521
521
280
288
288mm Including Strap
253
238
521 280
253
69120120120
69
52 180 52
283
498
Enerdrive B-TEC G2 Manual (Rev. 3.2)

245
485
485
455
161
167
446
EPL-100BT-24V
Page 20www.enerdrive.com.au
