ON Series Replacement Battery Installation
ON Series Replacement Battery Installation
ON Series Replacement Battery Installation
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
Please read and save these instructions. This manual contains important
instructions for the replacing batteries. Follow these instructions during the
unpacking, installation and maintenance of the product. If you have a problem
with the product, please refer to this manual before calling ONEAC Technical
Services.
Licenses andTrademarks
ONEAC, andONSeries areallregisteredtrademarksof ONEAC Corporation.All
othertrademarks, productand corporate namesare thepropertyof theirrespective
owners.
Entire contents copyright © 2005 ONEAC Corporation. All rights reserved. Reproduction in whole or
in part without permission is prohibited. All information subject to change without notice.
913-338 Rev. E 07/05
ONEAC USA
27944 North Bradley Road
Libertyville, IL 60048-9700
USA
ONEAC EUROPE
George Curl Way
Southampton, Hampshire SO18 2RY
United Kingdom
Telephone: [phone]
Toll Free: [phone]
Facsimile: [phone]
Telephone: [phone]
Facsimile: [phone]

Introduction
ON Series Replacement Battery Installation 1
Introduction
ONEAC battery packs can be replaced
without turning off the power or disrupting
the protected equipment.
This document provides instructions for
replacing battery packs in the ONEAC ON
Series UPS products.
After replacing the batteries in the ON
Series UPS products, the LED display
should give the % load the UPS is
supporting. If the LED displays a “C4”
code, the batteries are in the process of
charging. If the code does not charge
within 4 to 8 hours, contact ONEAC
Technical Support.
Technical Support
ONEAC offers 24-hour technical support.
To contact ONEAC Technical Services:
• North America: [phone],
option 3
or toll free [phone], option 3.
• Europe: [phone]
• email: [email protected].
Please check with ONEAC Technical
Services before attempting to repair or
return any ONEAC product. If an ONEAC
product needs repair or replacement,
ONEAC Technical Services will issue a
Return Material Authorization (RMA)
number along with instructions on how to
return the product.

Standard Units
2 ON Series Replacement Battery Installation
Standard Units
To replace a battery pack in a standard
UPS, remove the front cover of the unit by
pushing down on the front panel
approximately 1/8 in. (3 mm) and tilting
the top away from the unit. Squeeze and
unlatch the wire retainer from the upper
casing. Squeeze both sides of the plug to
unplug the battery enclosure(s).
Insert the new battery pack into the UPS
with the molded cover facing into the unit.
Rest the wires over the top of the battery
with the plug kept toward the front. Once
the battery pack is in place, insert the plug
andattach the wireretainerand frontcover.
(ON400 shown below.)
See “Returning Depleted Batteries” on
page 9. for instruction on returning
depleted battery pack(s) to ONEAC.

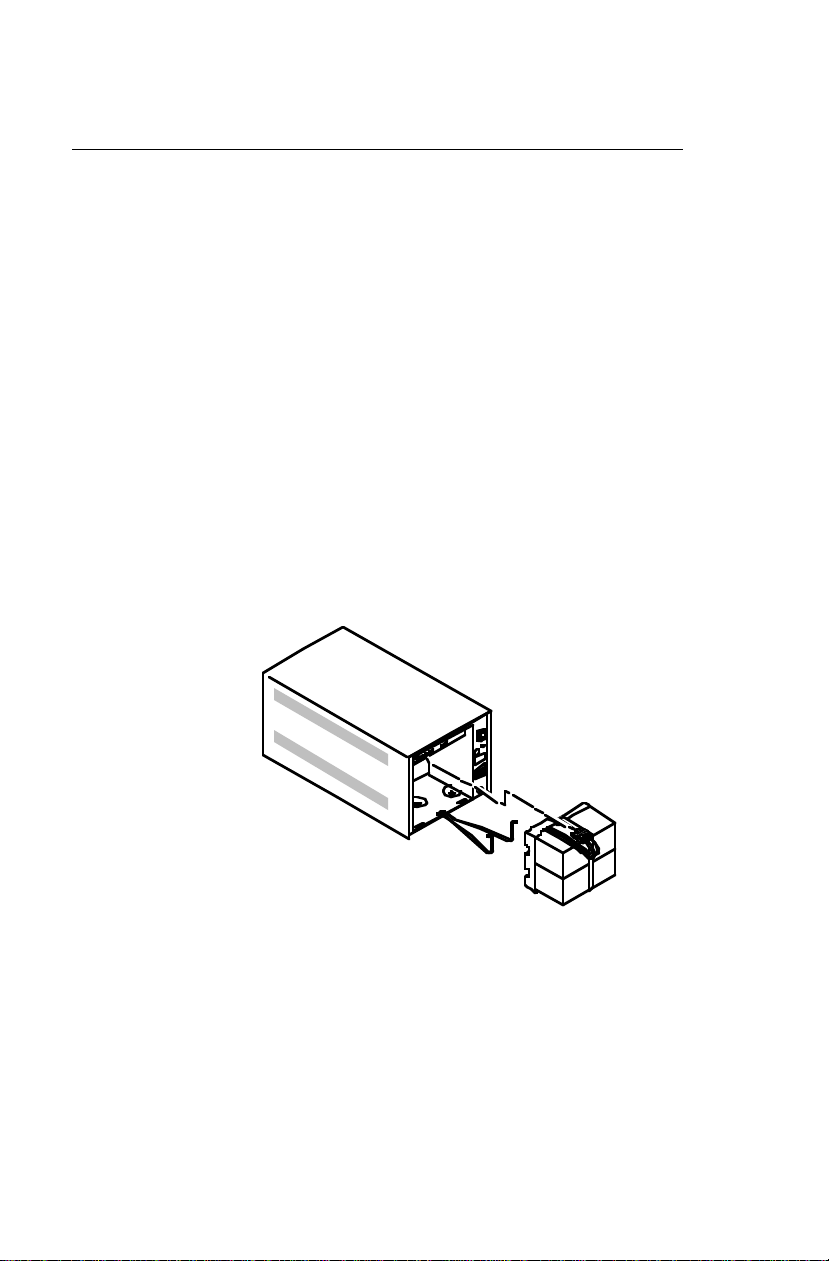

Fig. 1: Battery Replacement for Standard UPS
ON400, ON600,
ON900, ON1300,
ON2000, ON2200

Rackmounts
ON Series Replacement Battery Installation 3
Rack-mounts
Toreplace thebatterypack in arack-mount
unit, remove the battery cover by pushing
down on the indented latch approximately
1/8in.(3 mm).Tiltthecoverawayfromthe
front panel.
Squeeze and unlatch the wire retainer from
the casing. Squeeze both sides of the plug
to unplug the battery pack(s).
Insert the new battery pack into the UPS
with the molded cover toward the front.
Once the battery pack is in place, insert the
plug and attach the wire retainer and front
cover.
See “Returning Depleted Batteries” on
page 9. for instruction on returning
depleted battery pack(s) to ONEAC.

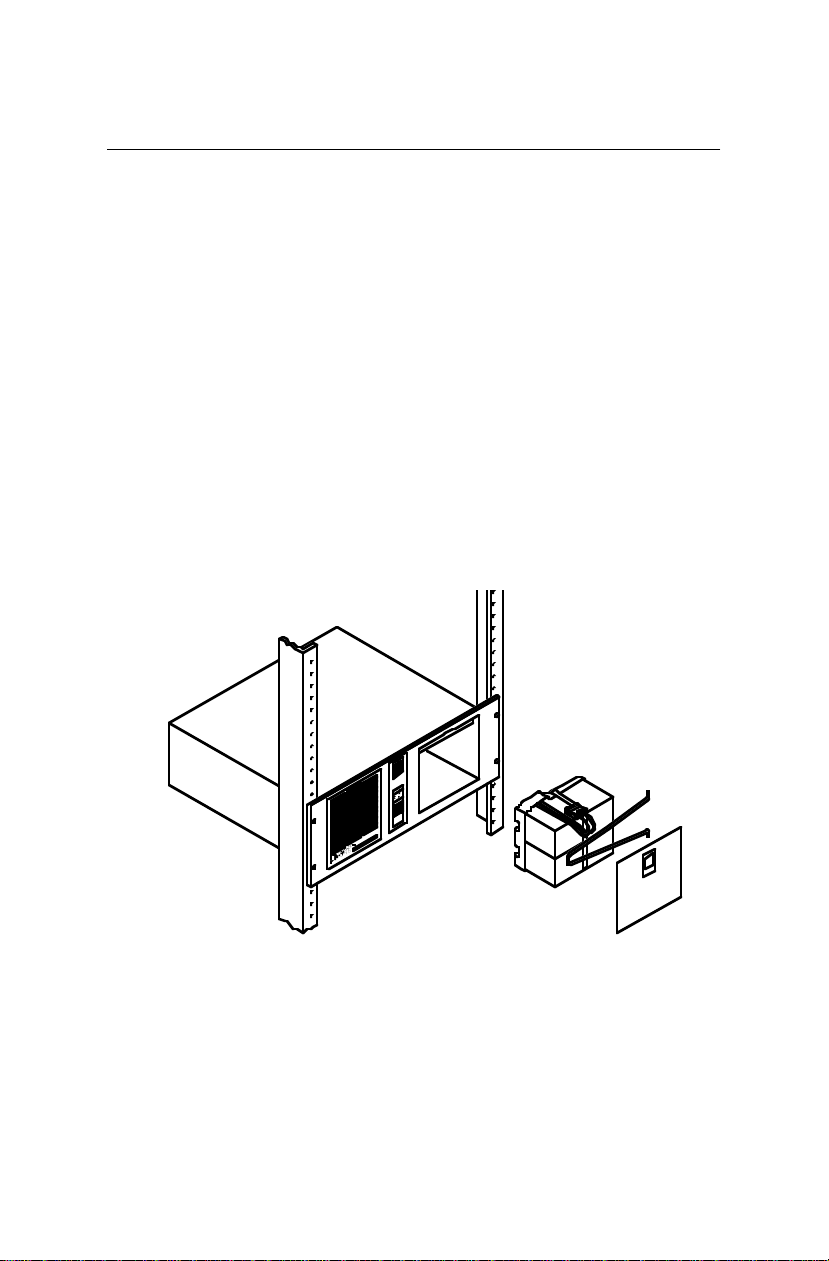

Fig. 2: Battery Replacement for Rack-mount UPS
ON600, ON900,
ON1300, ON2000

Wallmount
4 ON Series Replacement Battery Installation
Wall-mount
To replace the battery pack in the
wall-mount battery enclosure, remove the
front cover of the unit by pushing down on
the front panel approximately 1/8 in. (3
mm) and tilting the top away from the unit.
Remove the screw from the inside cover
and remove the inside cover by lifting it
away from the UPS. Squeeze both sides of
the plug to unplug the battery pack.
Insert the new battery pack into the UPS
with the molded cover at the top. Rest the
wires at the front and to the left of the
battery. Once the battery pack is in place,
insert the plug and refit the inside cover
with the screw. Attach the front cover.
See “Returning Depleted Batteries” on
page 9. for instruction on returning
depleted battery pack(s) to ONEAC.

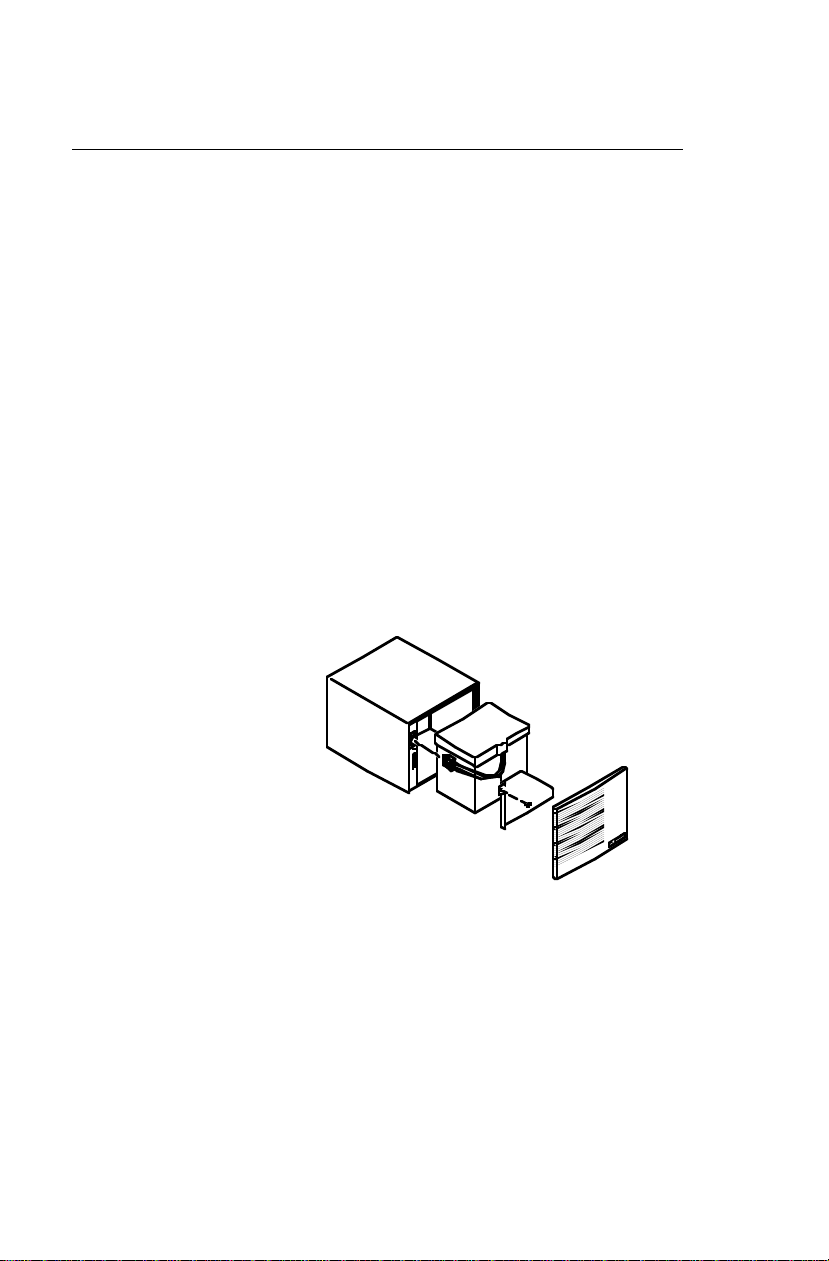

Fig. 3: Battery Replacement for Wall-mount UPS
ON400, ON600

Universal Mount
ON Series Replacement Battery Installation 5
Universal Mount
Determine if your unit has a plastic or
metal front bezel and follow the
appropriate instructions below.
Plastic Front Bezel Universal Mount ON700, ON1000 and
ON1500
To replace the battery pack in the universal
mount unit with a plastic front bezel:
1. Slide the front bezel to the left
(bottom) and then pull away from the
UPS to remove (fig. 4)
Fig. 4: Removing the UPS Front Bezel
2. Once the bezel is removed, unscrew
the two thumb screws on the battery
retention plate located on the left
(bottom) side of the unit (fig. 5) and
remove the plate.
Fig. 5: Removing Front and Battery Retention Plate
Slide bezel to the left slightly.
Gently remove bezel in direction of arrow
Tip away from the front of the unit slightly.
Battery Connectors
Front Bezel
Battery Retention Plate

Universal Mount
6 ON Series Replacement Battery Installation
3. Disconnect the battery from the UPS
by grasping and pulling the battery
connectors straight out.
4. Slide battery out (fig. 6).
Fig. 6: Removing the Battery
5. Slide new battery into the UPS and
reconnect the battery connector
(fig.7). The battery connector is
polarized and will only fit one way.
Make sure it is completely installed.
Fig. 7: Replacing the Battery
6. Replace and secure the battery
retention plate with the thumb screws.
7. Replace the front bezel by reversing
all three steps in figure 4.
NOTE: Do not replace the front bezel
without first securing the battery retention
plate.
Battery

Universal Mount
ON Series Replacement Battery Installation 7
Universal Mount ON2000
Battery replacement procedure is the same
as for the ON700, ON1000 and ON1500
units above. However, there are two sets of
batteries, each located behind the front
bezels on the ON2000 UPS (fig. 8).

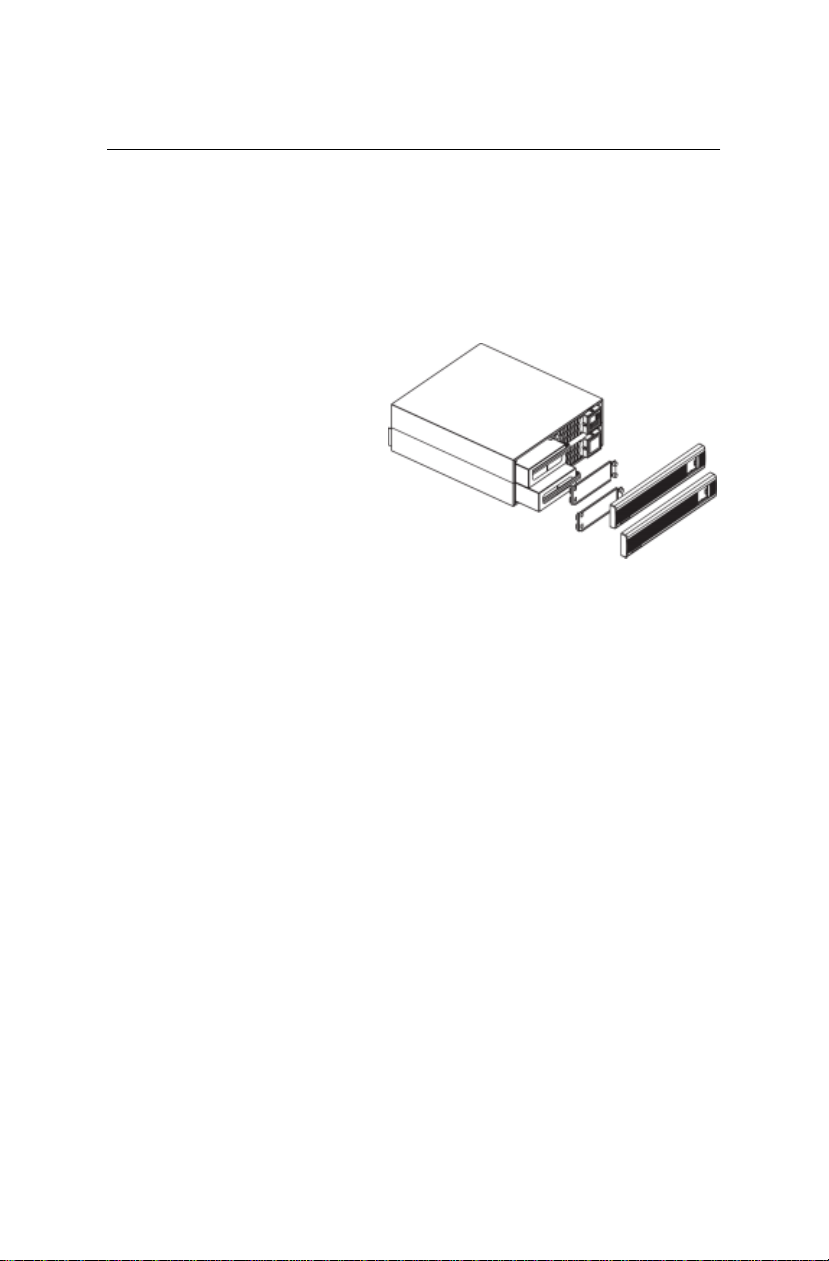

Fig. 8: Battery Replacement for ON2000 UPS
NOTE: Both sets of batteries must be
replaced at the same time to ensure proper
operation and expected runtimes.
See “Returning Depleted Batteries” on
page 9. for instruction on returning
depleted battery pack(s) to ONEAC.
Metal Front Bezel ON700 and ON1000
To replace the battery pack in the universal
mount unit with a metal front bezel:
1. Remove the two black screws from
the left or bottom (vent) side of the
front bezel.
2. Slide the bezel to the left (bottom)
slightly and then pull away from the
UPS to remove.

Universal Mount
8 ON Series Replacement Battery Installation
3. Oncethebezel is removed,removethe
four retaining screws from the battery
retention plate located on the left
(bottom) side of the unit (fig. 9).

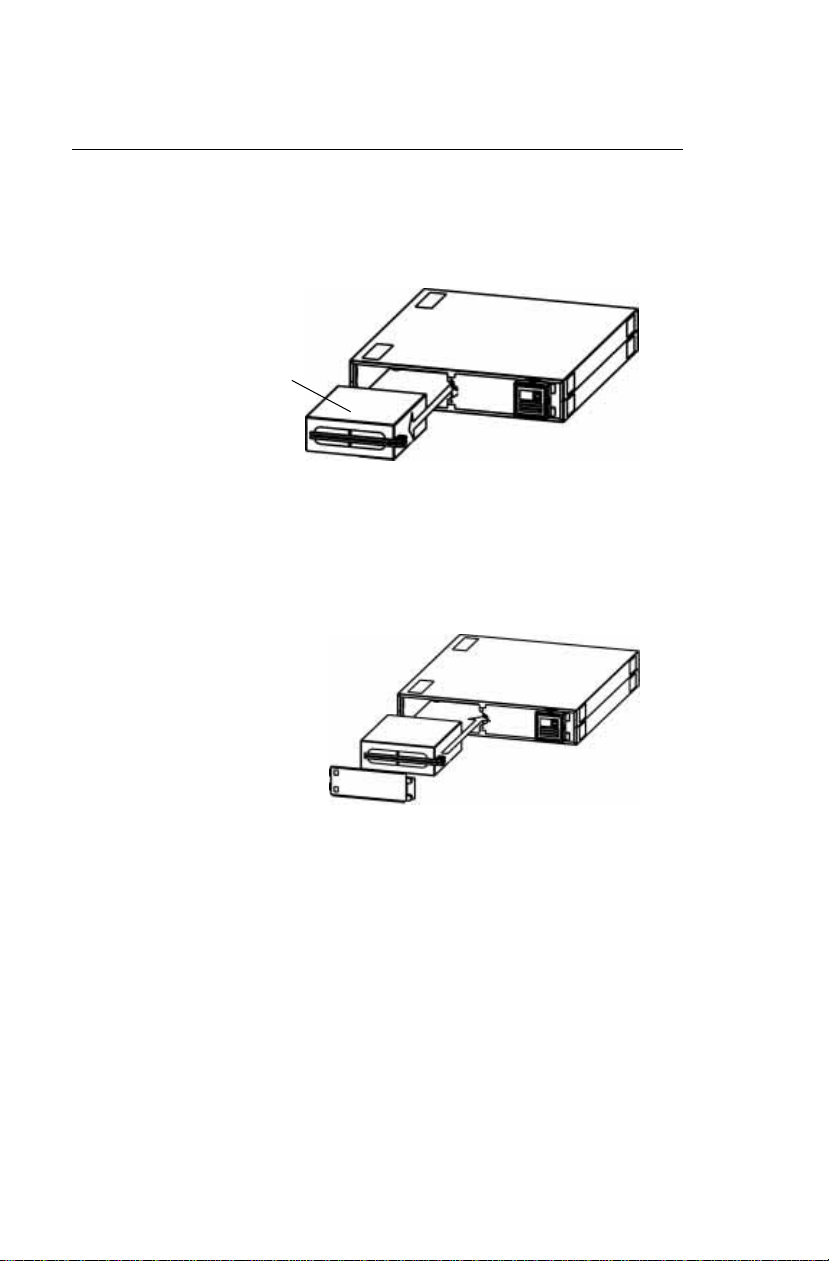

Fig. 9: Replacing Battery Pack
4. Disconnect the battery from the UPS
by grasping and pulling the battery
connectors straight out.
5. Slide battery out.
Fig. 10: Battery Removed
6. Slide new battery into the UPS and
reconnect the battery connector. The
battery connector is polarized and
will only fit one way. Make sure it is
completely installed.
Battery Connectors
Battery Retention Plate
Front Bezel
Battery

Returning Depleted Batteries
ON Series Replacement Battery Installation 9
7. Replace and secure the battery
retention plate with the screws
removed in step 2.
8. Replace the front bezel by placing it
squarely on the front and sliding to
the right (top) and replace the two
screws removed in step 1.
NOTE: Do not replace the front bezel
without first securing the battery retention
plate.
Returning Depleted
Batteries
ONEAC provides pre-paid return for
depleted batteries with all replacement
battery purchases. Just follow these simple
steps:
1. Remove the new battery pack and
install it in the ONEAC unit as per the
installation instructions. Put the UPS
A.R.S label aside.
2. After the battery pack has been
replaced, place the depleted battery
pack in the box the same way the
replacement was packaged and seal
the box.
3. Follow the return instructions on the
back of the attached UPSA.R.S. label
and affix to the box.
4. To return to ONEAC for proper
recycling (at no cost to you), give the
box to any UPS pick-up driver or call
1-800-742-5877 for the nearest
drop-off location.

Replacement Battery Installation
For Use with ON Series®Conditioned UPSs
A HIGHER LEVEL OF CONFIDENCE
User Installation Instructions
A HIGHER LEVEL OF CONFIDENCE
Standard
Rackmount
Wallmount
Universal Mount
ONEAC Corporation, a wholly owned subsidiary of Chloride Group, PLC was founded
in 1979. ONEAC designs and manufactures products that provide the highest level of
protection against power and data line disturbances, regardless of conditions.
ONEAC's comprehensive product lines include power conditioners, uninterruptible
power supplies, DC power solutions and voice & data line protection devices. With
ISO9001 certified manufacturing plants in the U.S. and U.K., ONEAC is dedicated to
demand-flow manufacturing and the highest quality standards.
Organizations whose productivity goals allow no possibility for system downtime use
ONEAC. They include many of the world's leading companies, in a wide range of
applications including telecommunication systems, information technology, retail
information systems, computer-integrated manufacturing systems, semiconductor test
equipment and biomedical instrumentation and information systems. Information on
ONEAC products and services is available on the Internet at www.oneac.com.
ONEAC USA ONEAC EUROPE
27944 North Bradley Road George Curl Way
Libertyville, IL 60048-9700 Southampton, Hampshire SO18 2RY
United States United Kingdom
Toll Free: [phone] Tel: [phone]
Tel: [phone] Fax: [phone]
Fax: [phone]
Visit our website: www.oneac.com
ONEAC and ON Series are registered trademarks of ONEAC Corporation. All other
trademarks are the property of their respective companies.
Entire contents copyright ©2005 ONEAC Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited. All information
subject to change without notice.
Printed in the U.S.A. Part No. 913-338 Rev. E
ONEAC is a
UL/BSI
registered firm.
Certification
No. A2900.
A Chloride Power Protection Company A Chloride Power Protection Company
