Energizer EZN1600 User manual

ORIGINAL INSTRUCTIONS >EN
HIGH PRESSURE WASHER
EZN1600
EZN1600-UK
USER GUIDE
CAUTION Read the instructions before using the machine!

2

3
Let’s get started.
You’re excited to power up, so we’ll keep this brief!

4
CONTENTS
1. SAFETY WARNINGS 5
2. INTENDED USE 12
3. SYMBOLS 13
4. ASSEMBLY INSTRUCTIONS 14
5. OPERATING INSTRUCTIONS 17
6. INFORMATION FOR USAGE 19
7. CLEAN-UP AND STORAGE 21
8. CLEANING TIPS 22
9. TECHNICAL DATA 23
10. TROUBLE SHOOTING TIPS 24
11. DISPOSAL 25
12. DECLARATION OF CONFORMITY 25
13. WARRANTY 26
14. PRODUCT FAILURE 27
15. WARRANTY EXCLUSIONS 28

5
1. SAFETY WARNINGS
•Use this unit as described in this manual. Any
mishandling and any use contrary to instructions for
use shall in no case be the responsibility of the
manufacturer.
•Failure to observe the safety and operating instructions
may result in a risk of electric shock, fire and/or
personal injury.
•If you are giving this unit to another person, please
also provide this manual.
•Do not use attachments other than those
recommended by the manufacturer; they can
damage the unit and/or cause injury.
•Machines shall not be used by children. Children
should be supervised to ensure that they do not
play with the appliance.
•This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
•Children shall not play with the appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•Before any connection, check:
•The appliance, power cable and accessories are not
damaged. In this case, do not use the appliance and
take it to your dealer for inspection and repair.

6
•The voltage indicated on the rating plate of the
appliance corresponds to that of your electrical
installation.
•Do not touch the plug with wet hands. Do not allow
the plug to fall into the water.
•Do not walk on the power cord, do not exert excessive
pressure, or pull on the cord to avoid damage.
WARNING!
•This machine has been designed for use with a
cleaning agent supplied or recommended by the
manufacturer. Use of other cleaning or chemical
agents may affect the safety of the machine.
WARNING!
•High pressure jets can be dangerous if subject to
misuse. The jet must not be directed at persons, live
electrical equipment or the machine itself.
WARNING!
•Do not use the machine within range of persons
unless they wear protective clothing.
WARNING!
•Do not direct the jet against yourself or others in order
to clean clothes or footwear.
WARNING!
•Risk of explosion! Do not spray flammable liquids.
WARNING!
• Do not disassemble the device yourself. Any
disassembly, repair or inspection should be
carriedout exclusively by a qualified person.

7
•High pressure cleaners shall not be used by
children or untrained personnel.
WARNING!
•The machine shall be disconnected from its power
source during cleaning or maintenance and when
replacing parts or converting the machine to another
function.
WARNING!
•High pressure hoses, fittings and couplings are
important for the safety of the machine. Use only
hoses, fittings and couplings recommended by the
manufacturer.
WARNING!
•To ensure the safety of the machine, use only the
original manufacturer’s parts or approved by the
manufacturer.
WARNING!
•Water that has flowed through backflow preventers is
considered to be non-potable.
WARNING!
• WARNING: The machine must be disconnected from
the power supply during cleaning or maintenance and
when replacing parts or converting the machine to
other functions by removing the plug from the
socket-outlet.
WARNING!
•Do not use the machine if a supply cord or important
parts of the machine are damaged, e.g. safety devices,
high pressure hoses, trigger gun.

8
WARNING!
•If an extension cord is used, the plug and cable
must be watertight.
WARNING!
•Inadequate extension cords can be dangerous. If an
extension cord is used, it shall be suitable for outdoor
use, and the connection has to be kept dry and off the
ground. It is recommended that this is accomplished
by means of a cord reel which keeps the socket at
least 60 mm above the ground.
WARNING!
•Make sure there are no exhaust emissions near
the air intakes.
•Children, animals and persons not participating in
the use of the machine must remain at a minimum
distance of 10 meters from the sprayer.
•The high pressure hose must remain connected to the
compressor as long as the system is under pressure.
•Do not use corrosive or flammable liquids in the
machine.
•The appliance must be connected to a water supply
using a new set of hoses; the old pipe set must not be
reused.
•Make sure that there are no exhaust emissions near
the air inlets.
•When using the machine, wear protective equipment
including safety goggles, safety shoes, safety gloves,
safety helmet with visor and double-insulated hearing
protection.
•In order to move the unit easily, bend the lance.

9
•Make sure the unit is turned off and unplugged before
transporting the unit.
•The connection to the power supply must be made
by a qualified electrician in accordance with
IEC60364-1. It is recommended that the power
supply of this machine includes a residual current
device that interrupts power if the earth leakage
exceeds 30 mA for 30 ms or a device that will
homologate the earth circuit.
•Before assembling, dismantling, repairing,
transporting, servicing and storing, please check if
the appliance is disconnected from the power
supply.
•Handle the unit with care, do not drop it.
•Do not use the machine in extreme weather
conditions, when it is very cold. Do not use the
machine with ice water.
•Use the tool in a stable and plain location.
•The inlet hose can be connected to the water main
with a maximum pressure of 10 bars.
WARNING!
•In order to avoid any danger due to the accidental
reset of the thermal circuit breaker, this device must
not be powered via an external switch, such as a timer,
or be connected to a circuit which is regularly
switched on and off by the electricity supplier.
•The appliance must not be connected to a potable water
supply.
•If the appliance is to be connected to a drinking water
supply (exclusively in Europe), an appropriate main
valve must be installed (type BA, standard EN1717).

10
The water that will be passed through the valve is
considered to be non-potable.
WARNING!
•When transporting the machine, take note of its weight.
Do not overestimate your efforts and get help if
necessary.
•The machine must be transported from one point to
another and disconnected. Pull the transport handle
all the way upwards. Use this handle to push the
machine.
•Use the handle to lift the machine.
•Improper transport of the machine may result in
accidents and injuries.
•Do not use the tool where dangerous situations or
accidents may occur. Do not use it indoors, in places
where there are exhausted gases, etc.
•In case of accidents or breakdowns, stop using the
tool, switch it off and unplug it. Check the conditions
of the tool and bring it to a service agent for
inspection and reparation if necessary.
•Warning: When opening the trigger gun, pay attention
to the kickback force. The power of the gun can cause
a kickback and can produce a loss of control of the
gun and create accidents and injuries. Hold the gun
firmly, and with both hands if possible.
WARNING!
•Always switch off the main disconnecting switch when
leaving the machine unattended.
•To avoid dangerous situations in the event of an
accident (for example, contact with or spill of

11
detergents) or equipment failure (such as a puncture
or a component failure) please stop using the machine
immediately. Check the problem. Have the machine
inspected by a qualified technician. In the event of an
overflow, move the machine away and clean the
overflow.
WARNING!
•Always turn off the main switch when leaving the
machine unattended.
•During use, transport, assembly, disassembly, in case
of failure, during foreseeable tests or breakdowns, the
tool must always remain upright.
•Do not use the tool in dangerous situations or when
an accident has occurred. Do not use indoors, in
places where gases can be emitted, etc.
RESIDUAL RISKS
•Even if you are operating this product in accordance
with all the safety requirements, potential risks of injury
and damage remain. The following dangers can arise in
connection with the structure and design of this
product:
•Health defects resulting from vibration emission, if the
product is being used over long periods of time or not
adequately managed and properly maintained;
•Danger of injury and property damage caused by
flying objects;
•Injuries and damage to property due to broken
accessories or the sudden impact of hidden
objects during use

12
2. INTENDED USE
Your high pressure washer can perform a myriad of tasks around the house and in the garden. It effectively
cleans a wide variety of surfaces.
Your pressure cleaner is designed to operate from a cold water supply.
It operates efficiently with water whose temperature is between 5 and 40℃.
Your high pressure washer has been designed for outdoor use only on materials such as stone, wood and
plastics. Please check, before use, whether materials can be cleaned with your sprayer; the manufacturer
cannot be held responsible for any damage resulting from improper use.
The main applications of this product are household cleaning tasks such as:
• Cars, motorcycles, bicycles
• Patios, fences, garden walls, pathways, garages and facades of houses
• To remove algae and mosses from roofs, brick walls and gutters
• For cleaning of gardening tools and machinery, furniture and grills
• For hygiene and maintenance of kennels, stables, etc. and their surroundings
• It is especially useful for cleaning muddy sidings.
The sprayer alone is capable of performing most of the garden cleaning tasks or on buildings.

13
3. SYMBOLS
The labels on your tools and manual may show the below symbols. These represent important information
about the product or instruction on its use.
Indicates a potential personal injury hazard.
In accordance with European directives applicable to this product.
Double-insulated construction.
To reduce the risk of injury, user must read and understand owner’s manual
before using this product.
Warning! Never point the gun at other people, animals, the machine body, power
supply or any electric appliances.
Machine not intended to be connected to the potable water mains.
Waste electrical products should not be disposed of with household waste,
please recycle where facilities exist. Check with your local authority or retailer for
recycling advice.
Recycle unwanted materials instead of disposing of them as waste. All tools,
hoses and packaging should be sorted, taken to the local recycling centre and
disposed of in an environmentally safe way.
3.1 SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided instead of grounding. No means of
grounding is provided on a double-insulated product, nor should a means for grounding be added to the
product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should
be done only by qualified service personnel. Replacement parts for a double-insulated product must be
identical to the parts they replace. A double-insulated product is marked with the words “DOUBLE
INSULATION” or “DOUBLE INSULATED”. This symbol may also be marked on the product.
Always wear safety goggles or safety glasses with side shields and, as
necessary, afull face shield when operating this product.

14
4. ASSEMBLY INSTRUCTIONS
4.1 UNPACKING THE CARTON
After opening the carton, please remove all parts and check them against the following list of components
that are included:
1.
Gun holder
6.
Water inlet connector
11.
High pressure hose
2.
Accessories holder
7.
Adjustable nozzle
12.
Power washer unit
3.
Handle
8.
Extension wand
13.
Wheel
4.
Power cable hook
9.
Gun
14
Detergent bottle
5.
Patio brush
10.
Cleaning pin
Due to transportation and packaging, some of the accessories may be supplied disassembled. Please follow
the assembly instructions.
Always use the handle to transport the machine.

15

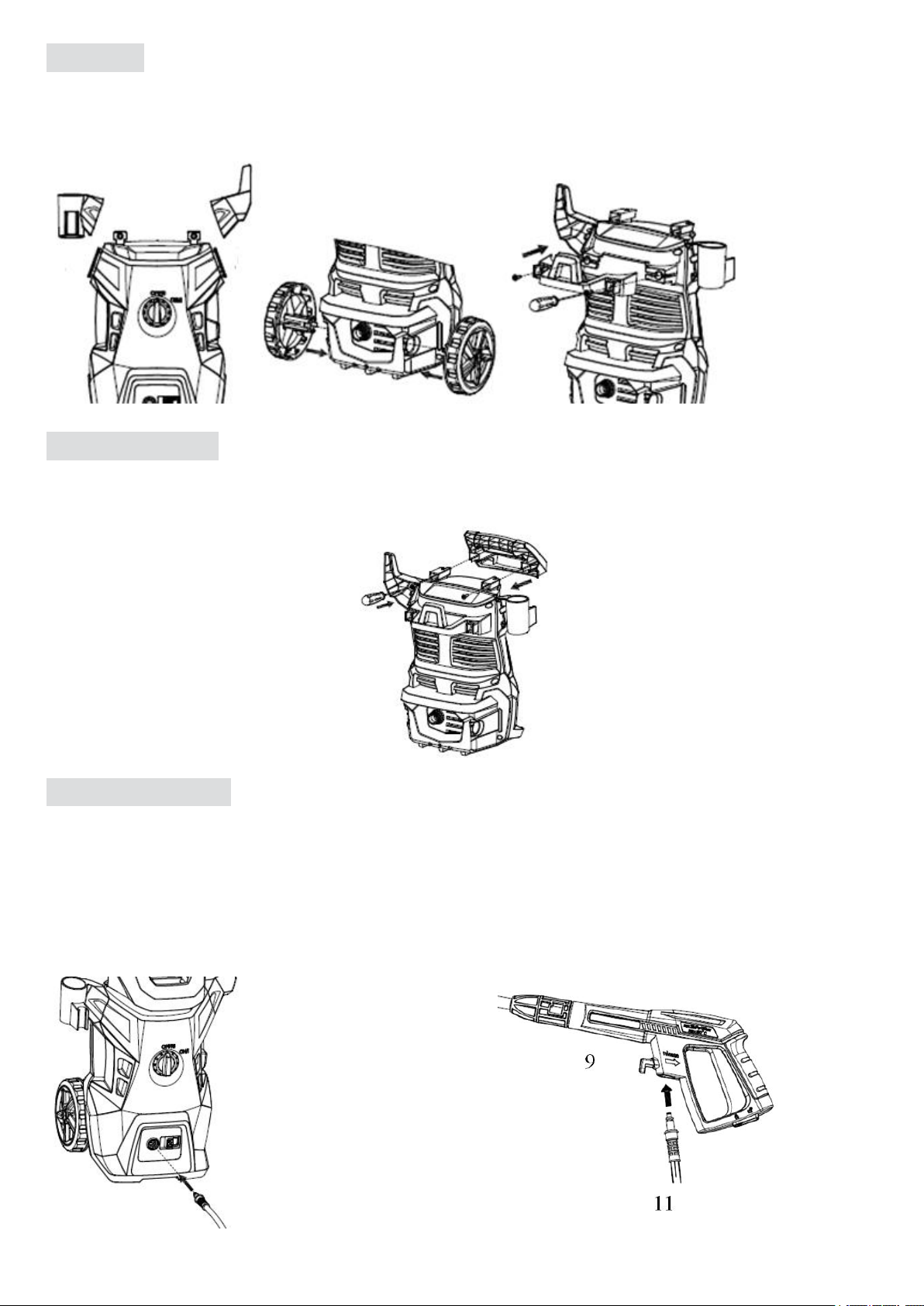

STEP 1
Install gun holder, the power cord hook and the wheel (assembly wheel only for model B/C),
Screw the accessories holder to the main body as below figure. Use the provided screws.
STEP 2
Screw the handle tight to the main body as below figure. Use the provided screws.
STEP 3
Attach the high-pressure hose (11) to the water outlet of the high-pressure cleaner, located at the front of the
machine (Fig.3). Quickly insert and connect to avoid leakage. When the parts are properly assembled, you
cannot pull the pipe apart. Press the button next to the inlet, in the direction of the arrow, then you remove the
high-pressure hose (Fig. 3). Attach the high pressure hose (11) to the gun (9) (Fig. 4). When the hose is
correctly assembled, you cannot remove it by pulling on it (11). To remove the hose from the gun, press the
lock button on the gun, then remove the hose.
Fig.3
Fig.4

16
STEP 4
At the rear of the machine, remove the plastic cap, which is inserted over the male connector of the pressure
washer before shipping. This plastic cap can be discarded once removed. Then screw the water inlet connector
to the male connector. Then connect the garden hose. The recommended length for the water supply hose is 8
meters with a diameter less than 1/2 inch to prevent back pressure and any potential damage to your appliance.
Make sure it can withstand the water and at a maximum pressure of 10 bar (1 Mpa). If you want to connect your
device to other water sources, make sure that the maximum water inlet pressure is 10 bar (1 Mpa).
STEP 5
a. Extension wand
Insert the extension (8) into the gun (9). Push and turn the extension (8) clockwise on the gun (9). When the
parts are properly assembled, you cannot separate the two components. To remove the extension, turn it
and remove it from the gun.
b. Nozzle
Insert the desired nozzle into the extension, and turn it to lock it. Only one nozzle can be inserted in the
extension. Use the right nozzle for the job you want to do.
Push the unlocking button located on the gun to unlock and remove the adjustable nozzle.
c. Patio brush
- Install the extension wand as described above.
- Insert the patio brush in the extension wand and turn it clockwise to lock it. Push the unlocking button
located on the gun to unlock and remove the accessory.
d. Detergent Bottle
Insert the detergent bottle (14) into the gun (9). Push and turn the detergent bottle (14) clockwise onto the
gun (9) until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two
components by pulling straight out on the gun (9)

17
5. OPERATING INSTRUCTIONS
WARNING!
This unit is intended to be used with cold water only! Do not use hot water in this pressure cleaner!
WARNING!
High pressure hose must not loop.
During operation the appliance must be positioned on a firm and stable surface.
5.1 STARTING UP
WARNING!
ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply.
Serious damage could occur to the motor if the unit is run without water.
a) Turn on the water supply tap fully.
b) Unlock trigger (by pressing the safety button first and then actuate the trigger) for a few second; let the
water flow out from the nozzle.
c) Check if water leaks from joints. If water leaks, please reconnect the water hose, the spray gun or the lance
to make sure each accessory is connected perfectly.
d) Connect to power supply.

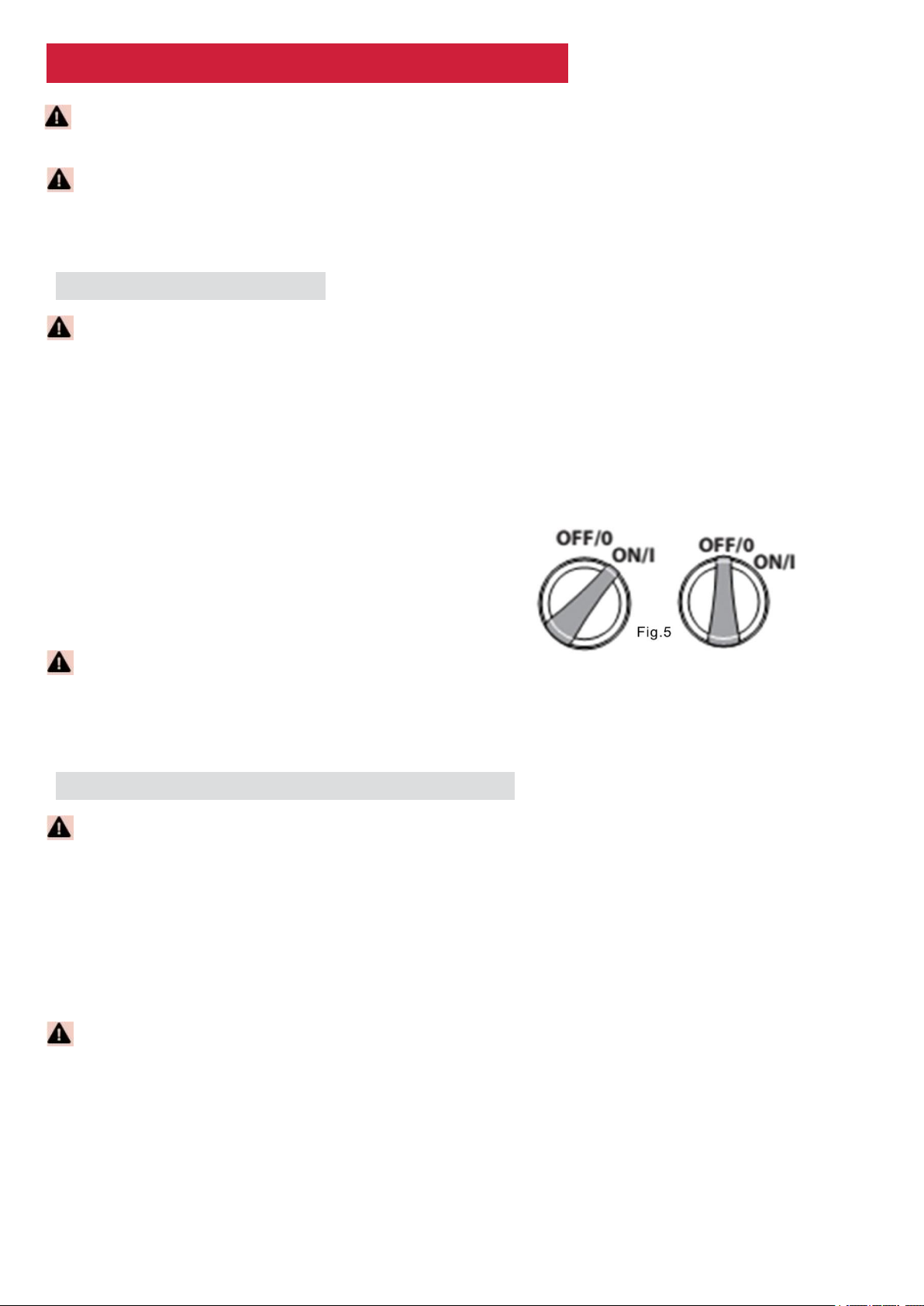

e) Set the power switch at the position «ON/I». (Fig.5)
f) Push the trigger and start the washer.
WARNING!
Check that the supply voltage and frequency correspond to those specified on the appliance data plate.The
appliance should only be connected to a main power supply via a security breaker (Max.30mA) to cut off the
electricity supply in the instance of a short circuit.
5.2 STOPPING THE WASHER
WARNING!
ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious damage could occur to
the motor if the unit is run without water.
a) Release the trigger, the motor will stop operation.
b) Set the switch at the position OFF. (Fig.5)
c) Disconnect the plug from the socket.
WARNING!
Failure to follow the above instructions may cause damage to the machine.

18
5.3 CHANGING ACCESSORIES
a) Release the trigger.
b) Turn off the power switch (the position» OFF). (Fig.5)
c) Disassemble the accessory and assemble the other one (see the chapter “ASSEMBLY INSTRUCTIONS”).
WARNING!
Never disconnect the high-pressure discharge hose from the machine while the system is still pressurized.
To depressurize the unit, turn off the motor, turn off the water supply and squeeze the trigger 2-3 times.

ORIGINAL INSTRUCTIONS >EN
19
6. INFORMATION FOR USAGE
6.1 SAFETY VALVE AND/OR PRESSURE LIMITING VALVE
WARNING!
Do not tamper with or adjust the safety valve setting.
The safety valve is also a pressure limiting valve. When the gun trigger is released, the valve opens,
pressure switch action, the machine automatically shut down.
If the gun nozzle is blocked, it will cause the machine pressure to rise, the safety valve opens, the
pressure switch action, the machine automatically shut down, you can refer to the following point 7 to use
a needle to clean the nozzle.
6.2 AUTOMATIC ON/OFF
The pressure cleaner is equipped with an automatic on/off switch. The pressure cleaner will only run
when the power switch is in the ON position and the trigger on the gun is squeezed. When you release
the trigger to stop spraying water through the gun, the motor on the pressure cleaner will automatically
shut off. Simply squeeze the trigger again to resume using the cleaner. To stop using the pressure cleaner,
release the trigger and switch the unit to the OFF position. The unit should be turned completely OFF
while not in use or while unattended.
6.3 BLEEDING THE GUN
It is very important to bleed the gun before using the pressure cleaner. Refer to the “Assembly
Instructions” to assemble the pressure cleaner. To bleed the gun, simply connect the garden hose to the
pressure cleaner and squeeze the trigger BEFORE turning the electrical supply on. This allows any air
trapped inside the pressure cleaner and gun to be removed before using the unit. Continue holding the
trigger for approximately one minute to allow any excess air out of the unit. Water will flow through the gun
at low pressure during this procedure. For more bleeding tips, see the section titled “Operating
Instructions.”

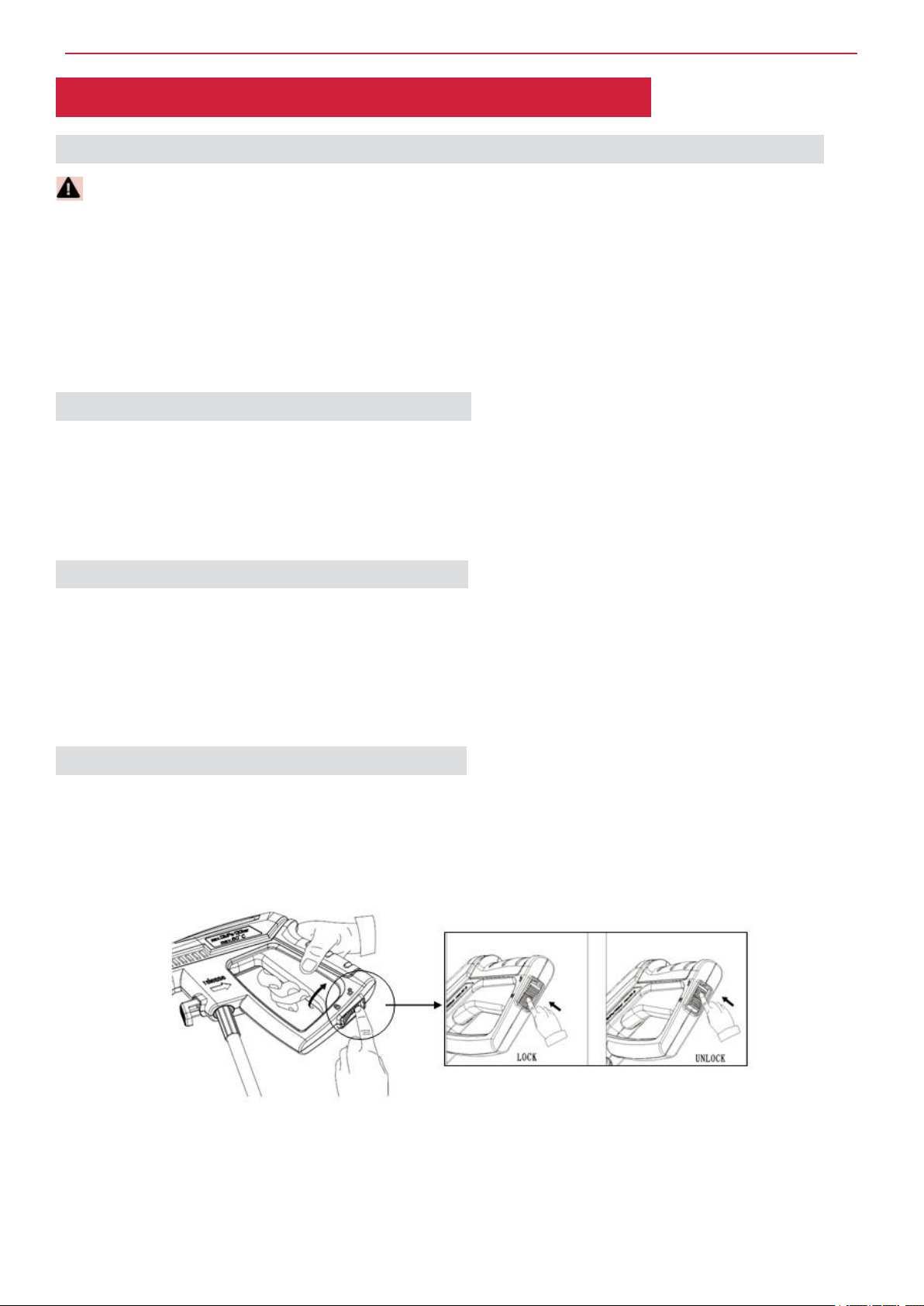

6.4 GUN SAFETY LOC
The operator should press the unlock button and then actuate the trigger to start the spray operation. When you
release the trigger, it can return to the off position automatically.
When not using the pressure cleaner, press the lock button to keep from accidentally engaging the high pressure
spray.

ORIGINAL INSTRUCTIONS >EN
20
6.5 ADJUSTABLE SPRAY NOZZLE
The adjustable nozzle will allow you to use any variety of spray patterns from a full fan spray (diagram 1) to a direct
stream spray (diagram 2). When using the pressure cleaner to clean wood decks, siding, vehicles etc., always start
using the fan spray and begin spraying from a minimum 36” away to avoid damaging the surface of the material you
are cleaning. Always begin by spraying in a testing area free and clear of people and objects. (Fig.6)
Fig.6 Fig.7
WARNING!
• High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live
electrical equipment or the appliance itself.
• Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
6.6 SURFACE CLEANER
The surface cleaner allows efficient cleaning of terraces, paths and similar large surfaces. This function
provides the user with optimum splash protection. The high pressure nozzles in the cleaning housing are
rotated by water pressure. The housing and tight brushes close to the edge prevent splashing.
First, place the surface cleaner on the surface to be cleaned and turn on the high pressure cleaner, as
described above. Without too much pressure, guide the surface cleaner onto the surface to be cleaned.
ATTENTION: Never operate the spray gun trigger until the surface cleaner is placed on the surface to be
cleaned.
You can remove algae, moss and other dirt of the same type from terraces, paths and similar surfaces
without splashing.
6.7 WATER INLET SCREEN
The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the water supply
to the pump.
