Energizer EZN1200 User manual

ORIGINAL INSTRUCTIONS >EN
HIGH PRESSURE WASHER
EZN1200
EZN1200-UK
USER GUIDE
CAUTION：Read the instructions before using the machine!

Let’s get started.
You’re excited to power up, so we’ll keep this brief!

CONTENTS
1. SAFETY WARNINGS 5
2. INTENDED USE 12
3. SYMBOLS 13
4. ASSEMBLY INSTRUCTIONS 14
5. OPERATING INSTRUCTIONS 17
6. INFORMATION FOR USAGE 18
7. CLEAN-UP AND STORAGE 20
8. CLEANING TIPS 21
9. TECHNICAL DATA 22
10. TROUBLE SHOOTING TIPS 23
11. DISPOSAL 24
12. DECLARATION OF CONFORMITY 24
13. WARRANTY 25
14. PRODUCT FAILURE 26
15. WARRANTY EXCLUSIONS 27

1. SAFETY WARNINGS
•Use this unit as described in this manual. Any
mishandling and any use contrary to instructions for
use shall in no case be the responsibility of the
manufacturer.
•Failure to observe the safety and operating
instructions may result in a risk of electric shock, fire
and/or personal injury.
•If you are giving this unit to another person, please
also provide this manual.
•Do not use attachments other than those
recommended by the manufacturer; they can
damage the unit and/or cause injury.
•Machines shall not be used by children. Children
should be supervised to ensure that they do not
play with the appliance.
•This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
•Children shall not play with the appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•Before any connection, check:
•The appliance, power cable and accessories are not
damaged. In this case, do not use the appliance and
take it to your dealer for inspection and repair.
5

•The voltage indicated on the rating plate of the
appliance corresponds to that of your electrical
installation.
•Do not disassemble the device yourself. Any
disassembly, repair or inspection should be carried
out exclusively by a qualified person.
•Do not touch the plug with wet hands. Do not allow
the plug to fall into the water.
•Do not walk on the power cord, do not exert
excessive pressure, or pull on the cord to avoid
damage.
WARNING!
•This machine has been designed for use with a
cleaning agent supplied or recommended by the
manufacturer. Use of other cleaning or chemical
agents may affect the safety of the machine.
WARNING!
•High pressure jets can be dangerous if subject to
misuse. The jet must not be directed at persons,
live electrical equipment or the machine itself.
WARNING!
•Do not use the machine within range of persons
unless they wear protective clothing.
WARNING!
•Do not direct the jet against yourself or others in order
to clean clothes or footwear.
WARNING!
•Risk of explosion! Do not spray flammable liquids.
WARNING!
6

•High pressure cleaners shall not be used by
children or untrained personnel.
WARNING!
•The machine shall be disconnected from its power
source during cleaning or maintenance and when
replacing parts or converting the machine to another
function.
WARNING!
•High pressure hoses, fittings and couplings are
important for the safety of the machine. Use only
hoses, fittings and couplings recommended by the
manufacturer.
WARNING!
•To ensure the safety of the machine, use only the
original manufacturer’s parts or approved by the
manufacturer.
WARNING!
•Water that has flowed through backflow preventers is
considered to be non-potable.
WARNING!
• WARNING: The machine must be disconnected from
the power supply during cleaning or maintenance
and when replacing parts or converting the machine
to other functions by removing the plug from the
socket-outlet.
WARNING!
•Do not use the machine if a supply cord or important
parts of the machine are damaged, e.g. safety
devices, high pressure hoses, trigger gun.
WARNING!
7

•If an extension cord is used, the plug and cable
must be watertight.
WARNING!
•Inadequate extension cords can be dangerous. If an
extension cord is used, it shall be suitable for
outdoor use, and the connection has to be kept dry
and off the ground. It is recommended that this is
accomplished by means of a cord reel which keeps
the socket at least 60 mm above the ground.
WARNING!
•Make sure there are no exhaust emissions near
the air intakes.
•Children, animals and persons not participating in
the use of the machine must remain at a minimum
distance of 10 meters from the sprayer.
•The high pressure hose must remain connected to
the compressor as long as the system is under
pressure.
•Do not use corrosive or flammable liquids in the
machine.
•The appliance must be connected to a water supply
using a new set of hoses; the old pipe set must not
be reused.
•Make sure that there are no exhaust emissions near
the air inlets.
•When using the machine, wear protective
equipment including safety goggles, safety shoes,
safety gloves, safety helmet with visor and
double-insulated hearing protection.
•In order to move the unit easily, bend the lance.
8

•Make sure the unit is turned off and unplugged
before trans- porting the unit.
•The connection to the power supply must be
made by a qualified electrician in accordance
with IEC60364-1. It is recommended that the
power supply of this machine includes a residual
current device that interrupts power if the earth
leakage exceeds 30 mA for 30 ms or a device
that will homologate the earth circuit.
•Before assembling, dismantling, repairing,
transporting, servicing and storing, please check if
the appliance is disconnected from the power
supply.
•Handle the unit with care, do not drop it.
•Do not use the machine in extreme weather
conditions, when it is very cold. Do not use the
machine with ice water.
•Use the tool in a stable and plain location.
•The inlet hose can be connected to the water main
with a maximum pressure of 10 bars.
WARNING!
•In order to avoid any danger due to the accidental
reset of the thermal circuit breaker, this device must
not be powered via an external switch, such as a
timer, or be connected to a circuit which is regularly
switched on and off by the electricity supplier.
•The appliance must not be connected to a potable water
supply.
•If the appliance is to be connected to a drinking water
supply (exclusively in Europe), an appropriate main
valve must be installed (type BA, standard EN1717).
9

The water that will be passed through the valve is
considered to be non-potable.
WARNING!
•When transporting the machine, take note of its
weight. Do not overestimate your efforts and get help
if necessary.
•The machine must be transported from one point to
another and disconnected. Pull the transport
handle all the way upwards. Use this handle to
push the machine.
•Use the handle to lift the machine.
•Improper transport of the machine may result in
accidents and injuries.
•Do not use the tool where dangerous situations or
accidents may occur. Do not use it indoors, in
places where there are exhausted gases, etc.
•In case of accidents or breakdowns, stop using the
tool, switch it off and unplug it. Check the conditions
of the tool and bring it to a service agent for
inspection and reparation if necessary.
•Warning: When opening the trigger gun, pay
attention to the kickback force. The power of the gun
can cause a kickback and can produce a loss of
control of the gun and create accidents and injuries.
Hold the gun firmly, and with both hands if possible.
WARNING!
•Always switch off the main disconnecting switch when
leaving the machine unattended.
•To avoid dangerous situations in the event of an
accident (for example, contact with or spill of
detergents) or equipment failure (such as a puncture
10

or a component failure) please stop using the
machine immediately. Check the problem. Have the
machine inspected by a qualified technician. In the
event of an overflow, move the machine away and
clean the overflow.
WARNING!
•Always turn off the main switch when leaving the
machine unattended.
•During use, transport, assembly, disassembly, in
case of failure, during foreseeable tests or
breakdowns, the tool must always remain upright.
•Do not use the tool in dangerous situations or when
an accident has occurred. Do not use indoors, in
places where gases can be emitted, etc.
RESIDUAL RISKS
•Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers can
arise in connection with the structure and design of
this product:
•Health defects resulting from vibration emission, if
the product is being used over long periods of time
or not adequately managed and properly
maintained;
•Danger of injury and property damage caused
by flying objects;
•Injuries and damage to property due to broken
accessories or the sudden impact of hidden
objects during use.
11

2. INTENDED USE
Your high pressure washer can perform a myriad of tasks around the house and in the garden. It effectively
cleans a wide variety of surfaces.
Your pressure cleaner is designed to operate from a cold water supply. It operates efficiently with water
whose temperature is between 5 and 40 degrees.
Your high pressure washer has been designed for outdoor use only on materials such as stone, wood and
plastics. Please check, before use, whether materials can be cleaned with your sprayer; the manufacturer
cannot be held responsible for any damage resulting from improper use.
The main applications of this product are household cleaning tasks such as:
• Cars, motorcycles, bicycles
• Patios, fences, garden walls, pathways, garages and facades of houses
• To remove algae and mosses from roofs, brick walls and gutters
• For cleaning of gardening tools and machinery, furniture and grills
• For hygiene and maintenance of kennels, stables, etc. and their
surroundings
• It is especially useful for cleaning muddy sidings.
The sprayer alone is capable of performing most of the garden cleaning tasks or on buildings.

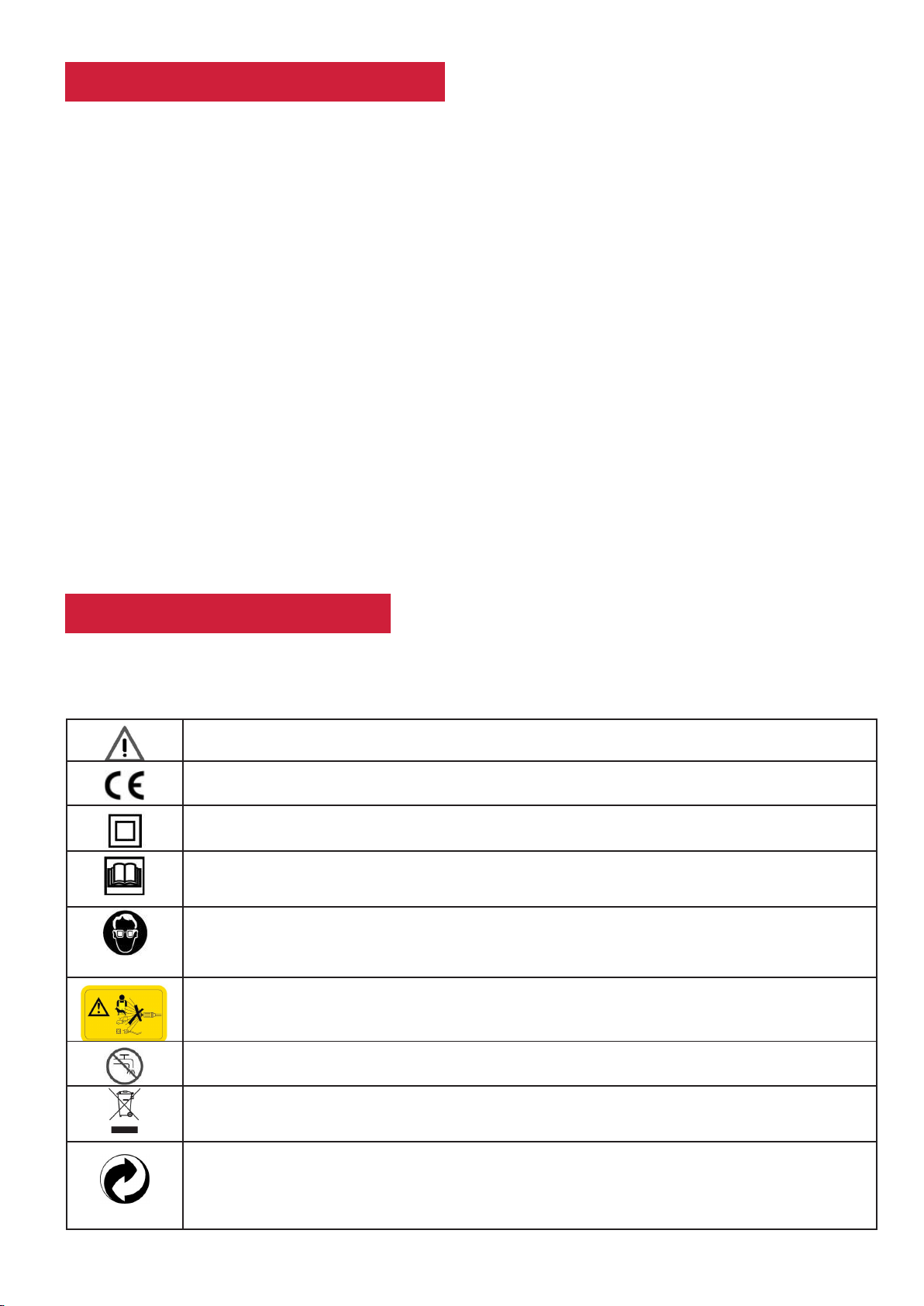

3. SYMBOLS
The labels on your tools and manual may show the below symbols. These represent important information
about the product or instruction on its use.
Indicates a potential personal injury hazard.
In accordance with European directives applicable to this product.
Double-insulated construction.
To reduce the risk of injury, user must read and understand owner’s manual before using
this product.
Always wear safety goggles or safety glasses with side shields and, as necessary, A full face
shield when operating this product.
Warning! Never point the gun at other people, animals, the machine body, power supply or
any electric appliances.
Machine not intended to be connected to the potable water mains.
Waste electrical products should not be disposed of with household waste, please recycle
where facilities exist. Check with your local authority or retailer for recycling advice.
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and
packaging should be sorted, taken to the local recycling centre and disposed of in an
environmentally safe way.
12

3.1 SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided instead of grounding. No means of
grounding is provided on a double-insulated product, nor should a means for grounding be added to the
product. Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel. Replacement parts for a double-insulated product must
be identical to the parts they replace. A double-insulated product is marked with the words “DOUBLE
INSULATION” or “DOUBLE INSULATED”. This symbol may also be marked on the product.
4. ASSEMBLY INSTRUCTIONS

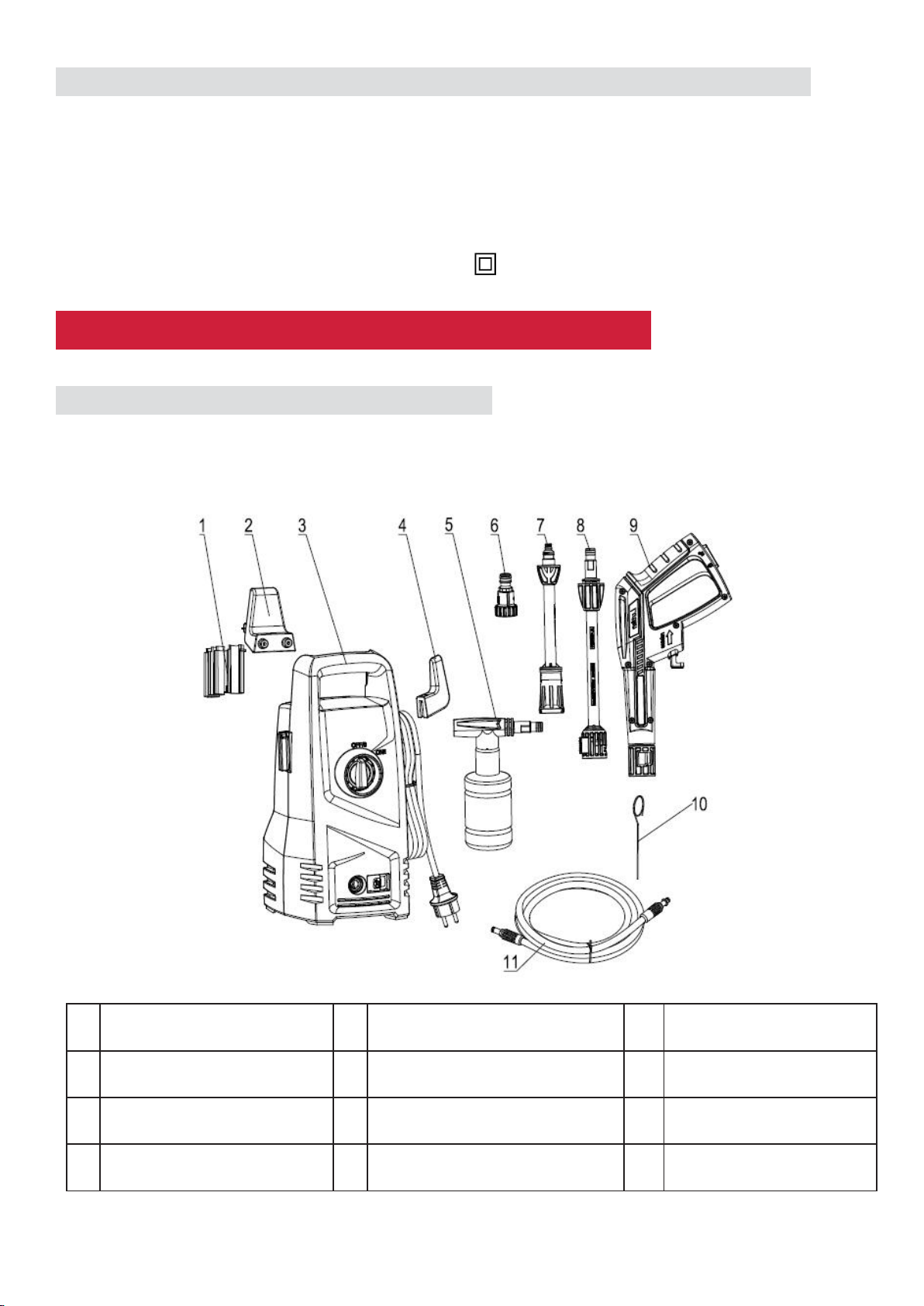

4.1 UNPACKING THE CARTON
After opening the carton, please remove all parts and check them against the following list of components
that are included:
1.
Gun & Accessories holder
5.
Detergent Bottle
9
Gun
2.
High pressure hose hook
6
Water inlet connector
10
Cleaning pin
3.
Power washer unit
7
Adjustable nozzle
11
High pressure hose
4.
Power Cable Hook
8
Extension Wand
13

Due to transportation and packaging, some of the accessories may be supplied disassembled. Please
follow the assembly instructions.Always use the handle to transport the machine.
STEP 1
A), Insert the extension wand(8) into the gun(9). Push and turn the extension wand(8) clockwise onto the
gun(9) until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two
components by pulling straight out on the gun(9).
Insert the detergent nozzle in the same manner, depending upon which attachment is best suited to the
surface you are cleaning. Only one attachment can be inserted into the gun at a time. All attachments must
be inserted into the gun for proper use.(Fig.1)
B), Insert the spray adjustable nozzle(7) into the extension wand(8), as quick-connect type , you just need
push it onto extension wand(8) directly and powerful until hand tight to lock it in place. When the pieces are
joined properly, you cannot separate the two components by pulling straight out on the extension wand(8).
Insert the Turbo nozzle in the same manner, depending upon which attachment is best suited to the surface
you are cleaning. Only one attachment can be inserted into the.extension wand(8) at a time. All
attachments must be inserted into the extension wand(8) for proper use. (Fig.2)
Fig.1 Fig.2
STEP 2
Install gun holder and power cord hook ,
screw the high pressure hose hook to the main body as below fig, the screws will be packed together with
the manual , pls kindly check and find it when unpacked.
STEP 3
Attach the high pressure hose(11)to the pressure cleaner water outlet. Insert and quick-connect it tight to
avoid leakage.When the pieces are joined properly, you cannot separate the two components by pulling
straight out from the water outlet. Push the “Button” according to the direction of arrow, then you can pull out
the high pressure hose.
14

STEP 4
Attach the high pressure hose(11)to the gun(9). Insert and quick-connect it tight to avoid leakage.When the
pieces are joined properly, you cannot separate the two components by pulling straight out from the gun(11)
Push the hose lock button, then you can pull out high pressure hose.
STEP 5
Insert the detergent nozzle(5) into the gun(9). Push and turn the detergent nozzle(5) clockwise onto the
gun(9) until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two
components by pulling straight out on the gun(9).
15

STEP 6
Attach the hose connector to pressure washer. Before attaching the connector to the male fitting, remove
the plastic cap, which is inserted onto the male fitting on the pressure washer before shipping. This plastic
cap can be discarded once removed. After both components have been installed, attach the garden hose
with connector screw on the pressure washer. Connect the garden hose to the waterspout.
5. OPERATING INSTRUCTIONS
WARNING!
This unit is intended to be used with cold water only! Do not use hot water in this pressure cleaner!
WARNING!
High pressure hose must not loop.
During operation the appliance must be positioned on a firm and stable surface.
5.1 STARTING UP
WARNING! ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious
damage could occur to the motor if the unit is run without water.
a) Turn on the water supply tap fully.
b) Unlock trigger (by pressing the safety button first and then actuate the trigger) for a few second; let the
water flow out from the nozzle.
c) Check if water leaks from joints. If water leaks, please reconnect the water hose, the spray gun or the
lance to make sure each accessory is connected perfectly.
d) Connect to power supply.
e) Set the power switch at the position «ON/I».(Fig.3)
f) Push the trigger and start the washer.
16

WARNING!Check that the supply voltage and frequency correspond to those specified on the
appliance data plate.The appliance should only be connected to a main power supply via a security breaker
(Max.30mA) to cut off the electricity supply in the instance of a short circuit.
5.2 STOPPING THE WASHER
WARNING! ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply.
Serious damage could occur to the motor if the unit is run without water.
a) Release the trigger, the motor will stop operation.
b) Set the switch at the position OFF.(Fig.3)
c) Disconnect the plug from the socket.
WARNING! Failure to follow the above instructions may cause damage to the machine.
5.3 CHANGING ACCESSORIES
a) Release the trigger.
b) Turn off the power switch (the position» OFF).(Fig.3)
c) Disassemble the accessory and assemble the other one (see chapter “ASSEMBLY INSTRUCTIONS”).
WARNING! Never disconnect the high -pressure discharge hose from the machine while the system
is still pressurized.To depressurize the unit, turn off the motor, turn off the water supply and squeeze the
trigger 2-3 time.
17

6. INFORMATION FOR USAGE
6.1 THE SAFETY BUTTON OF GUN
The operator need press the unlock button and then actuate the trigger to do the spray operation.When you
release the trigger, it can return to the off position automatically. When not using the pressure cleaner, press
the lock button to keep from accidentally engaging the high pressure spray.
6.2 HOLD THE GUN
Whenever you use the high pressure washer , we suggest you grip the in the right position,with one hand on
the handle and the other on the adjustable spray nozzle.
6.3 USING DETERGENT
Add detergent to the tank. Assemble the tank with detergent dispenser. Insert the end of detergent
dispenser with plastic tab into the opening of spray gun,push and turn in the clockwise direction to lock the
detergent dispenser and spray gun together.
The use of detergents can dramatically reduce cleaning time and assist in the removal of difficult stains.
Some detergents have been customized for pressure washer use on specific cleaning tasks.These
detergents are approximately as thick as water.The use of thicker detergents,such as dish soap,will clog the
chemical injection system and prevent the application of the detergent. The cleaning power of detergents
comes from applying them to a surface and ,giving the chemicals time to break down the dirt and
grime.Detergents work best when applied at low pressure
18

6.4 WATER INLET SCREEN
The water inlet filter must be inspected regularly,so as to avoid blockage and restriction in the water supply
to the pump.
6.5 ADJUSTABLE SPRAY NOZZLE
The adjustable nozzle will allow you to use any
variety of spray patterns from a full fan spray
(diagram 1) to a direct stream spray (diagram 2).
When using the pressure cleaner to clean wood
decks, siding, vehicles etc., always start using the
fan spray and begin spraying from a minimum 36”
away to avoid damaging the surface of the material
you are cleaning. Always begin by spraying in a
testing area free and clear of people and objects.
Warning: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons,
live electrical equipment or the appliance itself. Do not direct the jet against yourself or others in order
to clean clothes or foot-wear.
6.6 CLEANING PIN INSTRUCTION
Using included nozzle cleaner tool, insert wire into the nozzle hole and move back and forth until debris is
dislodged.
19

7. CLEAN-UP AND STORAGE
7.1 SHUTTING DOWN THE PRESSURE CLEANER
When finished using the pressure cleaner, follow these steps to shut down the unit:
• Turn the pressure cleaner to the OFF position, unplug the power cord from the wall outlet.
• Turn off the water supply.
• Before disconnecting high-pressure hose connection, point the gun in a safe direction and discharge the
high-pressure water.
• Disconnect high-pressure hose from the pressure cleaner and gun.
• Disconnect garden hose from the pressure cleaner.
• Remove quick coupler fitting from garden hose and attach to the nipple portion of the fitting installed on
the pressure cleaner for storage.
• Remove excess water from the pump by tipping the unit on both sides to drain any remaining water from
inlet and outlet fittings.
• Remove Water Intake Filter and flush with water to remove dirt or debris. Return filter once cleaned.
• Drain detergent reservoir and flush with running water.
• Wipe away any remaining water on all parts and fittings.
• Engage the gun safety lock.
• Store the pressure cleaner, parts, and accessories in an area with a temperature above 0°C(32°F).
7.2 WINTERIZING AND LONG-TERM STORAGE
Follow all of the above shut-down procedures, adding the following steps.
• After disconnecting the water supply, and before disconnecting the high-pressure hose, turn the pressure
cleaner on for 2-3 seconds, until any remaining water in the pump exits. Turn unit off immediately.
WARNING!
Continued use of the pressure cleaner without water supply attached will cause severe damage to
the unit!
• Always store the pressure cleaner, parts, and accessories in an area with a temperature above 0°C
(32°F).
WARNING!
Failure to comply with these storage instructions will result in damage to the pump assembly.
7.3 MAINTENANCE
• This pressure cleaner is supplied with a closed lubrication system, so no addition of oil is needed.
• Check all hoses and accessories for damage prior to use.
• Check the inlet filter periodically for deposits. Clean this filter regularly for maximum performance
20
