Energizer EZSO14210 User manual

ORIGINAL INSTRUCTIONS >EN

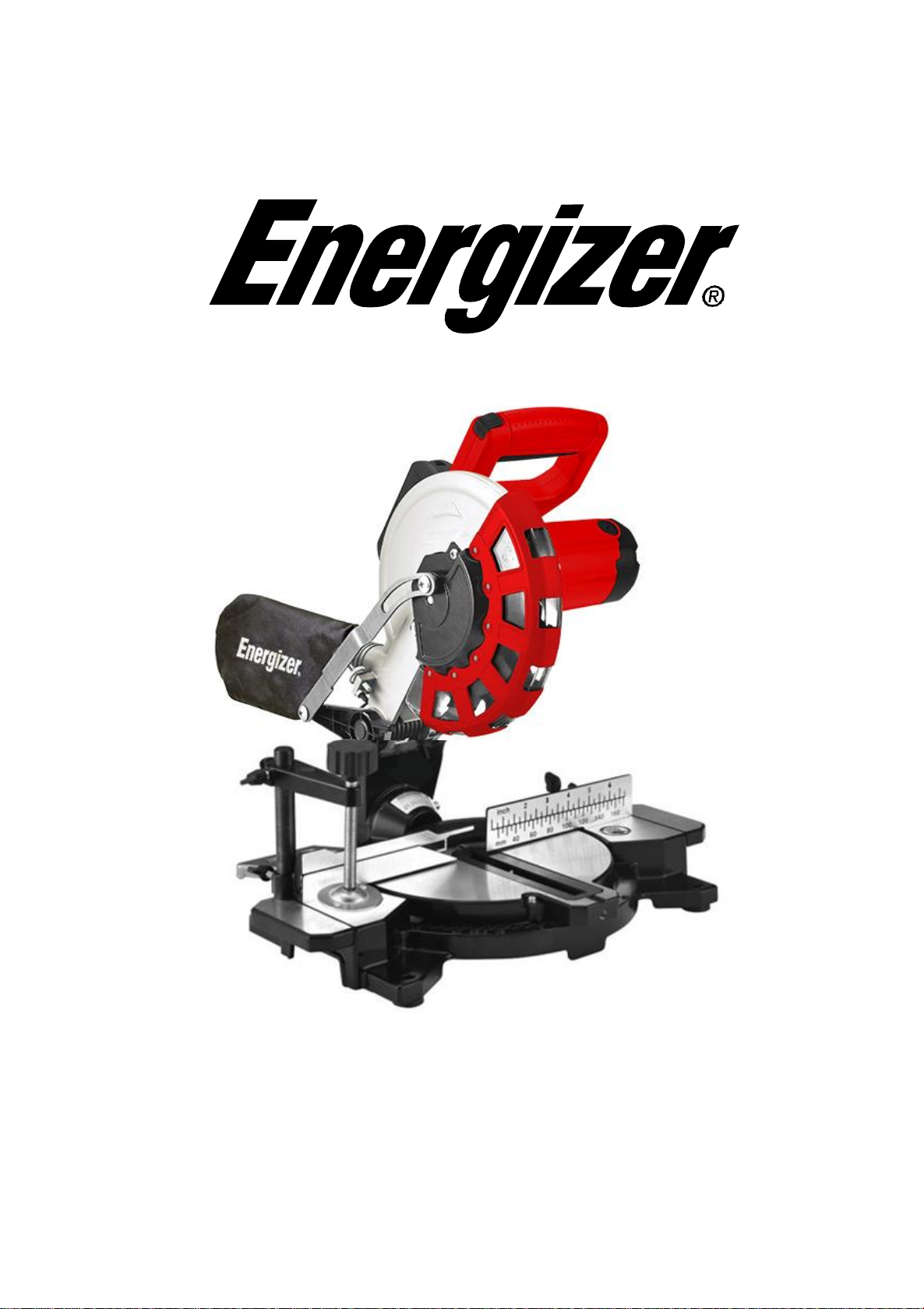

MITER SAW
EZSO14210
USER GUIDE
CAUTION: Read this manual before use this machine!

Let’s get started.
You’re excited to power up, so we’ll keep this brief!

CONTENTS
1. SAFETY INSTRUCTIONS 5
2. TECHNICAL DATA 10
3. DESCRIPTION 12
4. INTENDED USE 16
5. BEFORE STARTING THE EQUIPMENT 17
6. ATTACHMENT AND OPERATION 18
7. TRANSPORT 21
8. MAINTENANCE 21
9. STORAGE 21
10. ELECTRICAL CONNECTION 22
11. TROUBLESHOOTING 23
12. DISPOSAL AND RECYCLING 23
13. DECLARATION OF CONFORMITY 24
14. WARRANTY 25
15. PRODUCT FAILURE 26
16. WARRANTY EXCLUSIONS 27

1. SAFETY INSTRUCTIONS
1.1 GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a fraction of
a second.
4) Power tool use and care
5

a) Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable,
from the power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5) Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
1.2 SAFETY INSTRUCTIONS FOR MITER SAWS
a) Miter saws are intended to cut wood or wood-like products, they cannot be used with
abrasive cut-off wheels for cutting ferrous material such as bars, rods, studs, etc.
Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting
will burn the lower guard, the kerf insert and other plastic parts.
b) Use clamps to support the workpiece whenever possible. If supporting the workpiece by
hand, you must always keep your hand at least 100 mm from either side of the saw blade.
Do not use this saw to cut pieces that are too small to be securely clamped or held by hand.
If your hand is placed too close to the saw blade, there is an increased risk of injury from blade
contact.
c) The workpiece must be stationary and clamped or held against both the fence and the table.
Do not feed the workpiece into the blade or cut “freehand” in any way. Unrestrained or
moving workpieces could be thrown at high speeds, causing injury.
d) Push the saw through the workpiece. Do not pull the saw through the workpiece. To make
a cut, raise the saw head and pull it out over the workpiece without cutting, start the motor,
press the saw head down and push the saw through the workpiece. Cutting on the pull stroke
is likely to cause the saw blade to climb on top of the workpiece and violently throw the blade
assembly towards the operator.
NOTE the above warning is omitted for a simple pivoting arm miter saw.
e) Never cross your hand over the intended line of cutting either in front or behind the saw
blade. Supporting the workpiece “cross handed” i.e. holding the workpiece to the right of the saw
blade with your left hand or vice versa is very dangerous.
f) Do not reach behind the fence with either hand closer than 100 mm from either side of the
saw blade, to remove wood scraps, or for any other reason while the blade is spinning. The
proximity of the spinning saw blade to your hand may not be obvious and you may be seriously
injured.
g) Inspect your workpiece before cutting. If the workpiece is bowed or warped, clamp it with the
outside bowed face toward the fence. Always make certain that there is no gap between the
workpiece, fence and table along the line of the cut. Bent or warped workpieces can twist or
shift and may cause binding on the spinning saw blade while cutting. There should be no nails or
foreign objects in the workpiece.
6

h) Do not use the saw until the table is clear of all tools, wood scraps, etc., except for the
workpiece. Small debris or loose pieces of wood or other objects that contact the revolving blade
can be thrown with high speed.
i) Cut only one workpiece at a time. Stacked multiple workpieces cannot be adequately clamped
or braced and may bind on the blade or shift duringcutting.
j) Ensure the miter saw is mounted or placed on a level, firm work surface before use. A level
and firm work surface reduces the risk of the miter saw becomingunstable.
k) Plan your work. Every time you change the bevel or miter angle setting, make sure the
adjustable fence is set correctly to support the workpiece and will not interfere with the
blade or the guarding system. Without turning the tool “ON” and with no workpiece on the table,
move the saw blade through a complete simulated cut to assure there will be no interference or
danger of cutting the fence.
NOTE the phrase “bevel or” does not apply for saws without bevel adjustment.
l) Provide adequate support such as table extensions, saw horses, etc. for a workpiece that
is wider or longer than the table top. Workpieces longer or wider than the miter saw table can
tip if not securely supported. If the cut-off piece or workpiece tips, it can lift the lower guard or be
thrown by the spinning blade.
m) Do not use another person as a substitute for a table extension or as additional support.
Unstable support for the workpiece can cause the blade to bind or the workpiece to shift during
the cutting operation pulling you and the helper into the spinning blade.
n) The cut-off piece must not be jammed or pressed by any means against the spinning saw
blade. If confined, i.e. using length stops, the cut-off piece could get wedged against the blade
and thrown violently.
o) Always use a clamp or a fixture designed to properly support round material such as rods
or tubing. Rods have a tendency to roll while being cut, causing the blade to “bite” and pull the
work with your hand into the blade.
p) Let the blade reach full speed before contacting the workpiece. This will reduce the risk of the
workpiece being thrown.
q) If the workpiece or blade becomes jammed, turn the miter saw off. Wait for all moving parts
to stop and disconnect the plug from the power source and/or remove the battery pack.
Then work to free the jammed material. Continued sawing with a jammed workpiece could
cause loss of control or damage to the miter saw.
r) After finishing the cut, release the switch, hold the saw head down and wait for the blade to
stop before removing the cut-off piece. Reaching with your hand near the coasting blade is
dangerous.
s) Hold the handle firmly when making an incomplete cut or when releasing the switch before
the saw head is completely in the down position. The braking action of the saw may cause the
saw head to be suddenly pulled downward, causing a risk of injury.
1.3 ADDITIONAL INSTRUCTIONS
When using the saw, wear personal protective equipment such as safety goggles or a screen, helmet,
dust mask, gloves, non-slip footwear and protective clothing.
Ensure that there is sufficient, generalized or localized lighting.
Do not use the saw when the protective parts are not in place.
Do not use the saw to cut metal or masonry parts.
Do not allow persons under 18 to operate the tool.
Ensure that users of this tool have received professional training and know how to set and use this tool.
Do not use the saw to cut firewood
Remove all stumbling blocks from the work area.
Report or record any defects as soon as possible, including the guards and the saw blade.
Install the saw as much as possible on a work stand. Always stay on the side when the saw is turning.
Never use a saw blade that is cracked or deformed.
When cutting round wood, use a clamping assembly to prevent slippage of the workpiece.
Do not use your hand to remove sawdust, chips or debris near the saw blade.
Use only blades recommended by the manufacturer that comply with EN847-1.
Do not use high speed steel blades (HSS blades).
If the plate inserted on the swivel table is worn or damaged, have it replaced by an authorized service
7

center.
Objects such as cloth, strings, should never be left in the working zone. Avoid cutting nails. Check the
workpiece and remove all nails and other foreign objects before starting the machine.
Hold the workpiece firmly.
Avoid collecting debris or sawdust on the saw before the saw is completely stopped and the blade
guard is in the open position.
Do not attempt to release a blocked blade before stopping the machine by pressing the switch
Do not attempt to slow down or stop the blade when it is still in the workpiece.
Let the machine stop by itself.
When you want to pause, turn off the power and wait for the saw to stop completely before leaving the
work area.
Periodically check that all fasteners, screws, bolts and nuts are properly tightened.
Do not put materials or equipment above the saw to prevent the possibility of an unfortunate fall.
Use the saw to cut parts that are insulated from electricity. If you accidentally cut a wire hidden in the
workpiece or cut the power cable of the saw, the metal parts of the saw are covered by the current, the
power must then be switched off immediately and the plug removed from the saw outlet.
Never use the saw near any flammable liquid or gaseous material.
Note and remember the direction of rotation of the motor and that of the blade.
Do not block the movable blade guard in the open position and make sure it can move freely and fully
cover the blade teeth.
Place a saw on a dust collecting bag and ensure it is working properly. As an operator, you need to
know the factors that influence the severity of pollution, such as material type, performance, and setting
of the dust collection or evacuation device. In any case we recommend the use of a dust mask.
Wear gloves when handling saw blades and rough materials.
Put the saw blades in a sheath during transport.
Select the saw blades according to the type of material to be cut.
Use sharp saw blades and observe the maximum speed marked on the blade.
Redouble your attention by machining a groove.
The miter saw can be transported safely by the main handle, but only when it has been disconnected
from the power outlet and locked in the locked position.
Do not use the saw when the guards are not properly assembled, in good condition or well maintained.
Make sure that the arm is securely secured during bevel cutting.
Apply the workpiece strongly against the swivel table on which there should be no other pieces of wood.
Ensure that you have received training and / or training and know how to adjust and use this tool.
Use blades that are properly sharpened and do not exceed the maximum rated speed.
Do not pick up debris from the cutting area until the blade guard closes and the saw is completely
stopped.
Attach the miter saw to a workbench if possible.
When cutting a long piece that extends far beyond the width of the table, supports should be used to
support the ends of the workpiece at the same height as the cutting table. The supports must be
positioned so that the workpiece does not fall to the ground when the cutting has finished. If the part is
very long, several supports must be provided.
Use only a saw blade diameter in accordance with the markings on the saw.
Use only saw blades that are marked with a speed equal or higher than the speed marked on the tool.
Adjust the saw for proper cutting capacity, if applicable.
If adjustable and/or removable workpiece support extensions are provided always fix and use these
extensions during operation.
Avoid overheating the saw blade tips
Always check if the saw blade guard is working properly. It shall be well assembled, and it shall be
easily moving with hand and that it can be locked when operating the tool (see in instructions for use).
8

1.4 RESIDUAL RISKS
Warning: When using a power tool, basic safety precautions should be taken to avoid the risk of fire,
electric shock or injury to persons.
Please read the additional safety instructions in this manual carefully and note that even if the power tool is
used in accordance with the operating instructions, it is not entirely certain that all residual risk factors will
be eliminated. The following hazards can occur:
Contact with blade.
Rebound of the workpiece or debris of the workpiece
Fracture of the blade.
Ejection of debris from the machined part.
Hearing damage if you do not wear ear plugs.
Projection of wood chips that are harmful to health when the tool is used in a poorly sealed room.
It is therefore important to take preventive measures:
Always use a sawdust disposal device if possible.
Do not use deformed or cracked blades.
Remove the plug from the power tool before any adjustment or maintenance, including replacement of
the blades.
Choose a suitable blade for the material to be cut.
Do not use the saw to cut material other than those designated by the manufacturer
The miter saw can be transported safely by the main handle, but only when it has been disconnected
from the power outlet and locked in the locked position.
Do not use the saw when the guards are not properly assembled, in good condition or properly
maintained.
Make sure that the arm is securely secured during bevel cutting.
Apply the workpiece strongly against the swivel table on which there should be no other pieces of wood.
Install sufficient lighting.
Make sure you have been trained or trained and know how to adjust and use this tool. Use blades that
are properly sharpened and do not exceed the maximum rated speed.
Do not pick up debris from the cutting area until the blade guard closes and the saw comes to a
complete stop.
Attach the miter saw to a workbench if possible.
When cutting a long piece that extends far beyond the width of the table, supports must be used to
support the ends of the workpiece at the same height as the cutting table.
The supports must be positioned so that the workpiece does not fall to the ground when the cutting has
finished. If the part is very long, several supports must be provided.
Keep the floor area free of loose material e.g. chips and cut-offs;
Ensure that any spacers and spindle rings used are suitable for the purpose as stated by the
manufacturer.
9

1.5 SYMBOL EXPLANATION
To reduce the risk of injury, the user must read and understand this
manual before using this product.
Wear ear protectors. Exposure to noise can cause hearing loss.
Wear protective goggles.
Wear respiratory protection.
wear protective gloves
Double insulation.
Waste electrical products should not disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or
retailer for recycling advice.
In accordance with essential applicable safety standards of Europeandirectives
Do no touch
10

2. TECHNICAL DATA
Model
EZSO14210
Mains voltage/ frequency
220-240 V~50 Hz
Power
S1:1400W; S6(25%)1700W
Speed
4900/min
Type
Single Phase
Blade size
Tilting swing arm
45°G/D
Swivel base
45°G/D
Sound pressure level LpA
93 dB(A)
Sound power level LwA
104 dB(A)
Uncertainty K:
3 dB(A)
Max. Cutting depth at ：
45°*45°
80 x 25 mm
Table Tilting Range：
Left45°- Right45°
Saw Body Tilting：
45°- 45°
The vibration value does not exceed 2,5 m/s²
Information:
The declared vibration total value has been measured in accordance with a standard test method and
may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning:
The vibration emission during actual use of the power tool can differ from the declared total value
depending on the ways in which the tool is used;
Need to identify safety measures to protect the operator that are based on an estimation of exposure
in the actual conditions of use (taking account of all parts of the operating cycle such as the times when
the tool is switched off and when it is running idle in addition to the trigger time)
11
45°x 90° 60 x 60 mm
90°x 90° 115 x 60 mm
90°x 45° 115 x 25 mm
Ø210*Ø 30*48T*2.6mm
7000/min

3. PRODUCT DESCRIPTION
12

13

14

1
Handle
19
Pointer
2
ON/OFF switch
20
Set screw
3
Lock switch
21
Locking bolt
4
Machine head
22
Screw for cutting depth limiting
5
Moving saw blade guard
23
Stop for cutting depth limiting
6
Saw blade
24
Adjusting screw (90°)
7
Clamping device
25
Adjusting screw (45°)
8
Workpiece support
26
Flange screw
9
Table insert
27
Outer flange
10
Set screw for rotary table
28
Saw shaft lock
11
Pointer
29
Inner flange
12
Scale
30
N/A
13
Rotary table
31
N/A
14
Fixed saw table
32
Guide bracket
15
Stop rail
33
Tilt protection
16a
Movable stop rail
A
90°stop angle (not supplied)
16b
Set screw
B
45°stop angle (not supplied)
17
Sawdust bag
C
Allen key, 6 mm
18
Scale
NOTE: THIS MODEL IS DELIVERED WITHOUT LASER AND WITHOUT LED INDICATOR. THE ILLUSTRATIONS
IN THIS MANUAL MAY BE DIFFERENT THAN THE CURRENT MACHINE.
15

4. INTENDED USE
The miter saw is designed to crosscut wood respective of the machine’s size. The saw is not
designed for cutting firewood.
Warning! Do not use the saw to cut materials other than those specified described in manual.
Warning! The supplied saw blade is only intended for the sawing of wood! Do not use this
blade for the sawing of firewood!
The equipment is to be used only for its prescribed purpose.
Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will
be liable for any damage or injuries of any kind caused as a result of this.
The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of
cutting wheel.
To use the equipment properly you must also observe the safety information, the assembly
instructions and the operating instructions to be found in this manual.
All persons who use and service the equipment have to be acquainted with this manual and must be
informed about the equipment’s potential hazards. It is also imperative to observe the accident
prevention regulations in force in your area. The same applies for the general rules of health and
safety at work.
The manufacturer will not be liable for any changes made to the equipment nor for any damage
resulting from such changes. Even when the equipment is used as prescribed it is still impossible to
eliminate certain residual risk factors. The following hazards may arise in connection with the
machine’s construction and design:
Contact with the saw blade in the uncovered saw zone.
Reaching into the running saw blade (cut injuries).
Kick-back of workpieces and parts of workpieces.
Saw blade fracturing.
Catapulting of faulty carbide tips from the saw blade.
Damage to hearing if hearing protection is not used as necessary.
Harmful emissions of wood dust when used in closed rooms.
Please note that our equipment has not been designed for use in commercial or industrial applications.
16

5. BEFORE STARTING THE EQUIPMENT
Open the packaging and remove the device carefully.
Remove the packaging material as well as the packaging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport damage.
If possible, store the packaging until the warranty period has expired.
Warning!
The device and packaging materials are not toys! Children must not be allowed to play
with plastic bags, and small parts! There is a risk of swallowing and suffocation!
The equipment must be set up where it can stand securely. Secure the machine on a workbench or a
base frame with 4 screws (not included in delivery) using the holes on the fixed saw table (14).
Mount the tilt protection (33).
All covers and safety devices have to be properly fitted before the equipment is switched on.
It must be possible for the blade to run freely.
When working with wood that has been processed before, watch out for foreign bodies such as nails or
screws, etc.
Before you press the ON/OFF switch, check that the saw blade is fitted correctly. Moving parts must
run smoothly.
Before you connect the equipment to the power supply make sure the data on the rating plate are
identical to the mains data.
Checking the moving saw blade guard safety device (5)
The saw blade guard protects against accidental contact with the saw blade and from chips flying around.
Check function
To do so, fold the saw downwards:
The saw blade guard must provide free access to the saw blade without touching other parts.
When folding the saw upwards into the starting position, the saw blade guard must cover the saw blade
automatically.
17

6. ATTACHMENT AND OPERATION
6.1 ATTACHING THE MITER SAW (FIG.1/2/4/5)
In order to adjust the rotary table (13), loosen the set screw (10) approximately 2 turns.
Turn the rotary table (13) and pointer (11) to the de-sired angle measurement on the scale (12) and
use the set screw (10) to secure it.
Pressing the machine head (4) lightly downwards and removing the locking bolt (21) from the motor
bracket at the same time disengages the saw from the lowest position.
Swing the machine head (4) up.
It is possible to secure the clamping devices (7) to the left or right on the fixed saw table (14). Insert the
clamping devices (7) in the holes on the rear side of the stop rail (15) and secure it with the star grip
screws (7a). For 0°-45°miter cuts, the clamping device (7) must only be mounted on the right side (see
fig. 11-12).
It is possible to tilt the machine head (4) a max. 45°to the left by loosening the set screw (20).

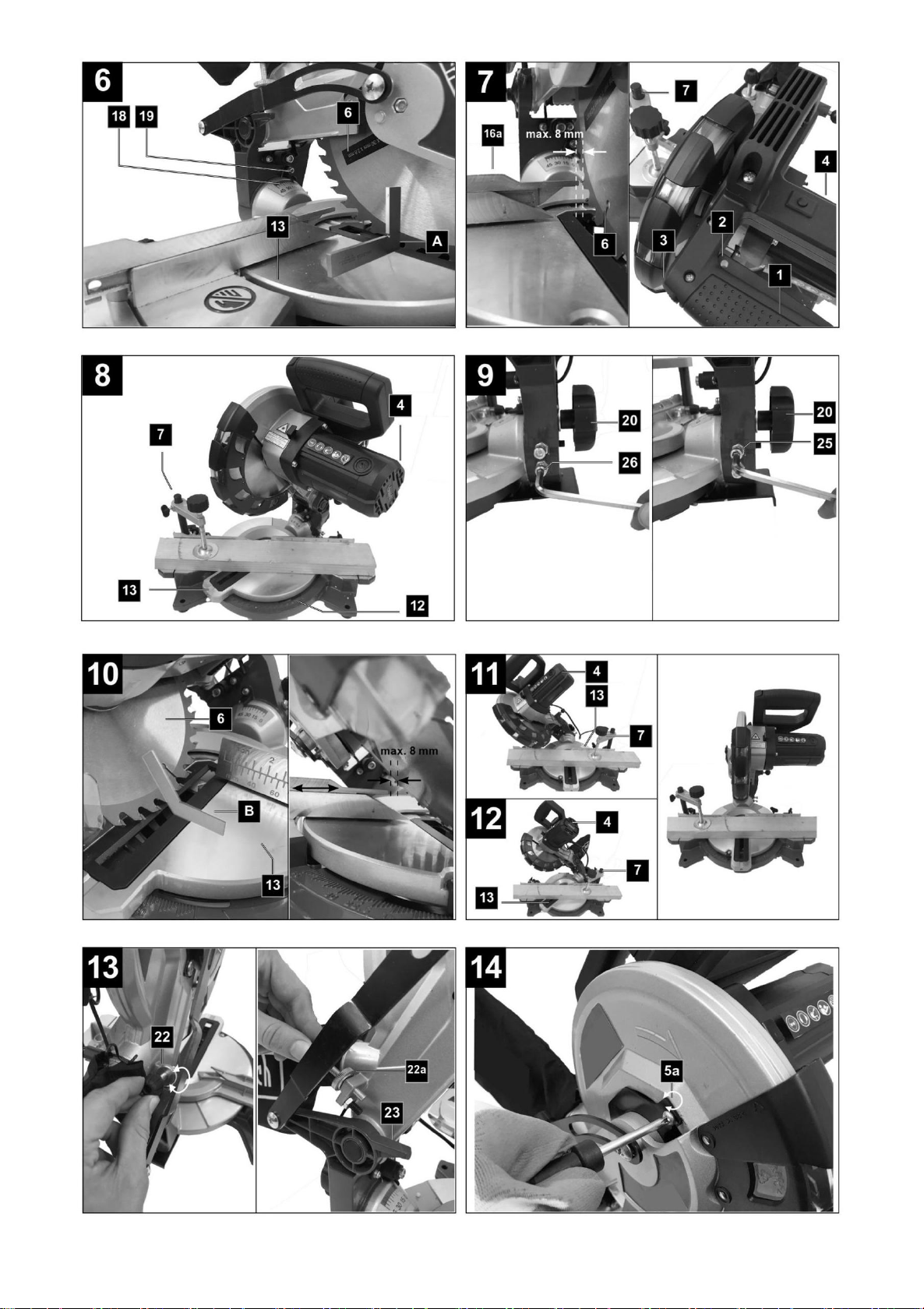

6.2 PRECISION ADJUSTMENT OF THE STOP FOR CROSSCUT
90°(FIG. 1/2/5/6)
No stop angle included.
Lower the machine head (4) and secure it using the locking bolt (21).
Loosen the set screw (20).
Position the angle stop (A) between the saw blade (6) and the rotary table (13).
Loosen the lock nut (24a).
Adjust the adjusting screw (24) until the angle be-tween the saw blade (6) and rotary table (13) is 90°.
Re-tighten the lock nut (24a).
Subsequently check the position of the angle indicator. If necessary loosen the pointer (19) using a
Philips screwdriver, set to position 0°on the angle scale (18) and re-tighten the retaining screw.
6.3 CROSSCUT 90°AND TURNTABLE 0°(FIG. 1/2/7)
Attention! For 90°crosscuts, the moveable stop rail (16a) must be fixed in the inner position.
Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) in-
wards.
The moveable stop rail (16a) must be locked in a position far enough from the inner position that the
distance between the stop rail (16a) and the saw blade (6) is no more than 8 mm.
Before making the cut, check that the stop rail (16a) and the saw blade (6) cannot collide.
Re-tighten the set screw (16b).
Move the machine head (4) to its upper position.
Use the handle (1) to push back the machine head (4) and fix it in this position if required (dependent
on the cutting width).
Place the piece of wood to be cut at the stop rail (15) and on the turntable (13).
Lock the material with the clamping devices (7) on the fixed saw table (14) to prevent the material from
moving during the cutting operation.
Release the lock switch (3) and press the ON/OFF switch (2) to start the motor.
When the cutting operation is completed, move the machine head back to its upper (home) position
and release the ON/OFF button (2).
Warning! The machine executes an upward stroke automatically due to the return spring, i.e. do not
release the handle (1) after completing the cut; in-stead allow the machine head to move upwards slowly
whilst applying light counter pressure.
6.4 CROSSCUT 90°AND TURNTABLE 0°- 45°(FIG. 1/7/8)
The miter saw can be used to make crosscuts of 0°-45°to the left and 0°-45°to the right in relation to the
stop rail.
Important ! For 90°crosscuts, the moveable stop rail (16a) must be fixed in the inner position.
Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) in-
wards.
18

The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the
distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm.
Before making the cut, check that the stop rail (16a) and the saw blade (6) cannot collide.
Secure the set screw (16b) again.
Loosen the set screw (10).
Use the handle (1) to adjust the rotary table to the desired angle.
The pointer (11) on the rotary table must match the desired angle on the scale (12) on the fixed saw
table (14).
Re-tighten the set screw (10) to secure the rotary table (13).
Cut as described under section 6.3.
6.5 PRECISION ADJUSTMENT OF THE STOP FOR MITER CUT
45°(FIG. 1/2/5/9/10)
No stop angle included.
Lower the machine head (4) and secure it using the locking bolt (21).
Fix the rotary table (13) in the 0°position.
Attention! For miter cuts (inclined saw head), the moveable stop rails (16a) must be fixed in the outer
position.
Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out-
wards.
The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the
distance between the stop rail (16a) and the saw blade (6) amounts to a maximum of 8 mm.
Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.
Loosen the set screw (20) and use the handle (1) to angle the machine head (4) 45°to the left.
Position angle stop (B) between the saw blade (6) and rotary table (13).
Loosen the lock nut (25a) and adjust the adjustment screw (25) until the angle between the saw blade
(6) and the rotary table (13) is precisely 45°.
Re-tighten the lock nut (25a).
Subsequently check the position of the angle indicator. If necessary, loosen the pointer (19) using a
Philips screwdriver, set to position 45°on the angle scale (18) and re-tighten the retaining screw.
6.6 MITER CUT 0°- 45°AND TURNTABLE 0°(FIG. 1/2/11)
The miter saw can be used to make miter cuts of 0°- 45°in relation to the work face.
Warning! For miter cuts (inclined saw head), the moveable stop rails (16a) must be fixed in the
outer position.
Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out-
wards.
The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the
distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm.
Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.
Secure the set screw (16b) again.
Move the machine head (4) to the top position.
Fix the rotary table (13) in the 0°position.
Loosen the set screw (20) and use the handle (1) to angle the machine head (4) to the left, until the
pointer (19) indicates the desired angle measurement on the scale (18).
Re-tighten the set screw (20).
Cut as described in section 6.3.
6.7 MITER CUT 0°- 45°AND TURNTABLE 0°- 45°(FIG. 2/4/12)
The miter saw can be used to make miter cuts to the left of 0°- 45°in relation to the work face and, at the
same time, 0°-45°to the left or 0°-45°to the right in relation to the stop rail (double miter cut).
Warning! For miter cuts (inclined saw head), the moveable stop rails (16a) must be fixed in the
outer position.
Open the set screw (16b) for the moveable stop rail (16a) and push the moveable stop rail (16a) out-
19

wards.
The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the
distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm.
Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.
Re-tighten the set screw (16b).
Move the machine head (4) to its upper position.
Release the rotary table (13) by loosening the set screw (10).
Using the handle (1), set the rotary table (13) to the desired angle (refer also to point 8.4 in this regard).
Re-tighten the set screw (10) to secure the rotary table (13).
Undo the set screw (20).
Use the handle (1) to tilt the machine head (4) to the left until it coincides with the required angle value
(in this connection see also section 6.6).
Re-tighten the set screw (20).
Cut as described under section 6.3.
6.8 LIMITING THE CUTTING DEPTH (FIG. 3/13)
The cutting depth can be infinitely adjusted using the screw (22). To do this, loosen the knurled nut
(22a) on the screw (22). Turn the screw (22) in or out to set the required cutting depth. Then re-tighten
the knurled nut (22a) on the screw (22).
Check the setting by completing a test cut.
6.9 SAWDUST BAG (FIG. 1/21)
The saw is equipped with a debris bag (17) for sawdust and chips.
Squeeze together the metal ring on the dust bag and attach it to the outlet opening in the motor area.
The debris bag (17) can be emptied by means of a zipper at the bottom.
Connection to an external dust extractor
Connect the vacuum hose with the dust extraction spout.
The industrial vacuum cleaner must be suitable for the material being worked.
When vacuuming dust that is especially detrimental to health or carcinogenic, use a special vacuum
cleaner.
6.10 CHANGING THE SAW BLADE (FIG. 1/2/14-17)
Warning! Remove the power plug!
Important! Wear safety gloves when changing the saw blade. Risk of injury!
Swing the machine head (4) upwards and lock with the locking bolt (21).
Loosen the retaining screw (5a) of the cover using a Philips screwdriver.
Warning! Do not fully remove this screw.
Fold the saw blade guard (5) upwards until the saw blade guard (5) is above the flange screw (26).
With one hand insert the Allen key (C) in the flange screw (27).
Hold the Allen key (C) and slowly close the saw blade guard (5) until it touches the Allen key (C).
Firmly press the saw shaft lock (28) and slowly rotate the flange screw (26) in clockwise direction. The
saw shaft lock (28) engages after no more than one rotation.
Now, using a little more force, slacken the flange screw (27) in the clockwise direction.
Turn the flange screw (26) right out and remove the outer flange (27).
Take the blade (6) off the inner flange (29) and pull out downwards.
Carefully clean the flange screw (26), outer flange (27) and inner flange (29).
Fit and fasten the new saw blade (6) in reverse order.
Important! The cutting angle of the teeth, in other words the direction of rotation of the saw blade (6)
must coincide with the direction of the arrow on the housing.
Before continuing your work, make sure that all safety devices are in good working condition.
Important! Every time that you change the saw blade (6), check to see that it spins freely in the table
insert (9) in both perpendicular and 45°angle settings.
Important! The work to change and align the saw blade (6) must be carried out correctly.
20
