Energizer EZ20VELPC-UK User manual

©2019 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and
are used under license by Builder SAS.
All other brand names are trademarks of their respective owners.
Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.

Let's get started.
You're excited to power up, so we'll keep this brief!

1. SECURITY INSTRUCTIONS
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to
your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jeweller. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or bur ns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.

Pole saw warnings
-Respect the capacity of the tool. Use the tool as described in this manual and for its intended use,
safely and safely.
-Do not use the tool if the switch is defective. In the event of a malfunction, do not use the tool and take
it to a qualified service for repairs.
-Remove the battery before making adjustments, changing the accessories or storing the tool.
-Keep the tool out of the reach of children. People who are not familiar with the tool or who have not
read these instructions should not use it. Power tools are dangerous when used by untrained people.
-The tool must be regularly maintained. Regular tool maintenance reduces malfunctions and improves
work efficiency.
-Check that the moving parts are working properly and that they are not jammed. Check that there are
no broken or damaged parts that could impair the functioning of the tool. If the tool is damaged or faulty,
do not use the tool anymore and bring it to a qualified service for repairs.
-Keep cutting tools sharp and clean. Carefully maintained tools with sharp, sharp edges are wedged
less frequently and can be guided more easily.
-Never touch any part of the body of the cutting chain when the tool is operating. Before starting the tool,
make sure that the cutting chain is not in contact with anything. A moment of inattention while using the
tool may cause your garment or part of the body to stick to the cutting chain.
-Wear safety glasses and hearing protection. Additional protective equipment is recommended such as
helmets, protective gloves and safety shoes.
-Do not place yourself on the path of falling branches.
-Before felling, check where the trees or branches are going to fall. Make sure that there are no obstacles
to prevent or hinder travel.
-Do not work in areas where the grass is wet and where the soil is slippery.
-Do not use this tool in a tree, on an unstable ladder or surface.
-Adopt a stable position and keep your balance constantly.
-Hold the tool firmly with both hands when the engine is running.
-When the chain is moving, it must not touch objects, materials or persons.
-Start cutting only with a chain at full speed.
-Do not attempt to insert the saw into a pre-existing notch. Always make a new notch.
-Pay attention to moving branches or other forces that could close a notch and pinch or hinder the chain.
-Do not attempt to cut a branch with a diameter greater than the cutting length of the chain saw.
-Always switch off the tool, let the chain stop and remove the battery before making any adjustments,
maintenance or repairs. Always remove the battery always install the blade guard to store the tool or
transport it.
-The chain must remain sharp and taut. Regularly check the tension of the chain.
-Only use replacement parts and original accessories.
-Use only the manufacturers specified replacement guides and chains. Incorrect replacement guides
and chains may cause chain breakage and / or rebound.
-Remove the battery before servicing, cleaning or cleaning the appliance.
-Always hold the appliance firmly with both hands.
-Check that there are no obstacles or electrical wires hidden in the work area.
-Check the general condition of the appliance before each use. Do not use a device with a damaged
battery or other parts. Do not touch a damaged cable. In case of any damage, have the appliance
repaired by an authorized repairer.
-Immediately stop the device if an abnormal level of vibration has been detected. In case of damage to
the blade, it is necessary to change the complete set of blades.

-Use the device only if all protective devices are mounted. Do not use the device with faulty protective
equipment. Do not modify the unit.
-Keep the cable away from the work area.
-Do not work with the tool when it rains, in bad weather or in a damp environment. Do not use the
machine when there is a risk of thunderstorms and storms.
-Only work outdoors, under daylight or under artificial lighting.
-Always carry the appliance by its handle
-Tie long hair in a way to prevent them from coming into contact with the blades. Do not wear jewelry
and loose clothing when operating the machine.
-The appliance should never be used near people, especially children and pets. Stop the operation
immediately if this condition is not met. In all cases, ensure a safe area of at least 15 meters around
the work area.
-The operator is responsible for accidents caused to others.
-Always take a stable working position. Make sure you step on the slopes. Take extreme caution when
working on slopes.
-Do not use the tool when you are tired, sick or under the influence of alcohol or drugs.
-Take regular breaks to reduce the risk of fatigue.
-Never leave the machine unattended. Switch off and remove the battery and put it out of the reach of
people if you are away from work.
-Remove the battery when transporting it. Put the guard on the blade when it is being transported.
-This device is not intended for use by persons (including children) whose physical, sensory or mental
capacities are reduced, or by persons without experience or knowledge, unless they have been able to
benefit, By means of a person responsible for their safety, supervision or prior instructions concerning
the use of the appliance. Children should be supervised to ensure that they do not play with the
appliance
-Always keep this manual at hand.
-The device must always be used fully assembled and secured.
-Store the tool with its blade guard and out of the reach of children
-Never use an incomplete or unauthorized tool.
-Local laws may restrict the use of this tool.
-Check the tool regularly and before each use to observe any impact or damage.
-Always use the tool with the supplied harness.
Residual risks
Even if you use this product in compliance with all safety requirements, the potential risks of injury and
damage remain. The following hazards may arise in the structure and design of this product:
-There are harmful health consequences resulting from the emission of vibrations if the product is used
for long periods of time or not properly managed and properly maintained.
-There is risk of injury and property damage due to attachments or broken the sudden impact of hidden
objects when using cutting.
-Risk of injury to persons and property caused by flying objects.
-Prolonged use of this product exposes the operator to vibration and can produce so-called "white finger"
disease. To reduce the risk, wear gloves and keep your hands warm.
-If any of the symptoms of "white finger syndrome" occur, seek immediate medical attention. Symptoms
of the "white finger" include numbness, loss of sensitivity, tingling, tingling, and pain, loss of strength,
color changes or skin condition. These symptoms usually appear on the fingers, hands or wrists. Risk
increases at low temperatures.

Warning symbol
Risk of projections. Keep bystanders away. Risks de projection.
Do not use the tool under rain and by moist weather.
Wear gloves of protection
Wear hearing protections and glasses of protection
Read the instruction manual
Keep the pole pruner a sufficient distance away from electrical power lines at least 10 m
Wear head protection.
Immediately remove the battery if the battery or tool is damaged. Remove the battery before
maintenance and storage.

Wear safety footwear
Caution about the cutting element!
Guarantee sound power level
Intended use
This machine has been specially designed to cut the twigs at the top of the trees. This tool is intended for
exclusively domestic use. Any other use not expressly permitted in this manual may result in damage to the
device, posing a serious hazard to the user and is not permitted. This cordless pruning machine must
NEVER be used intensively, for professional use (including rental) or agriculture or for public gardens or
forests.
This tool is provided without charger and battery. It is designed to work only with Energizer range battery
and charger. Please ask advice to your dealer. Do not buy others kind of batteries.

10
2. YOUR PRODUCT
a. Description

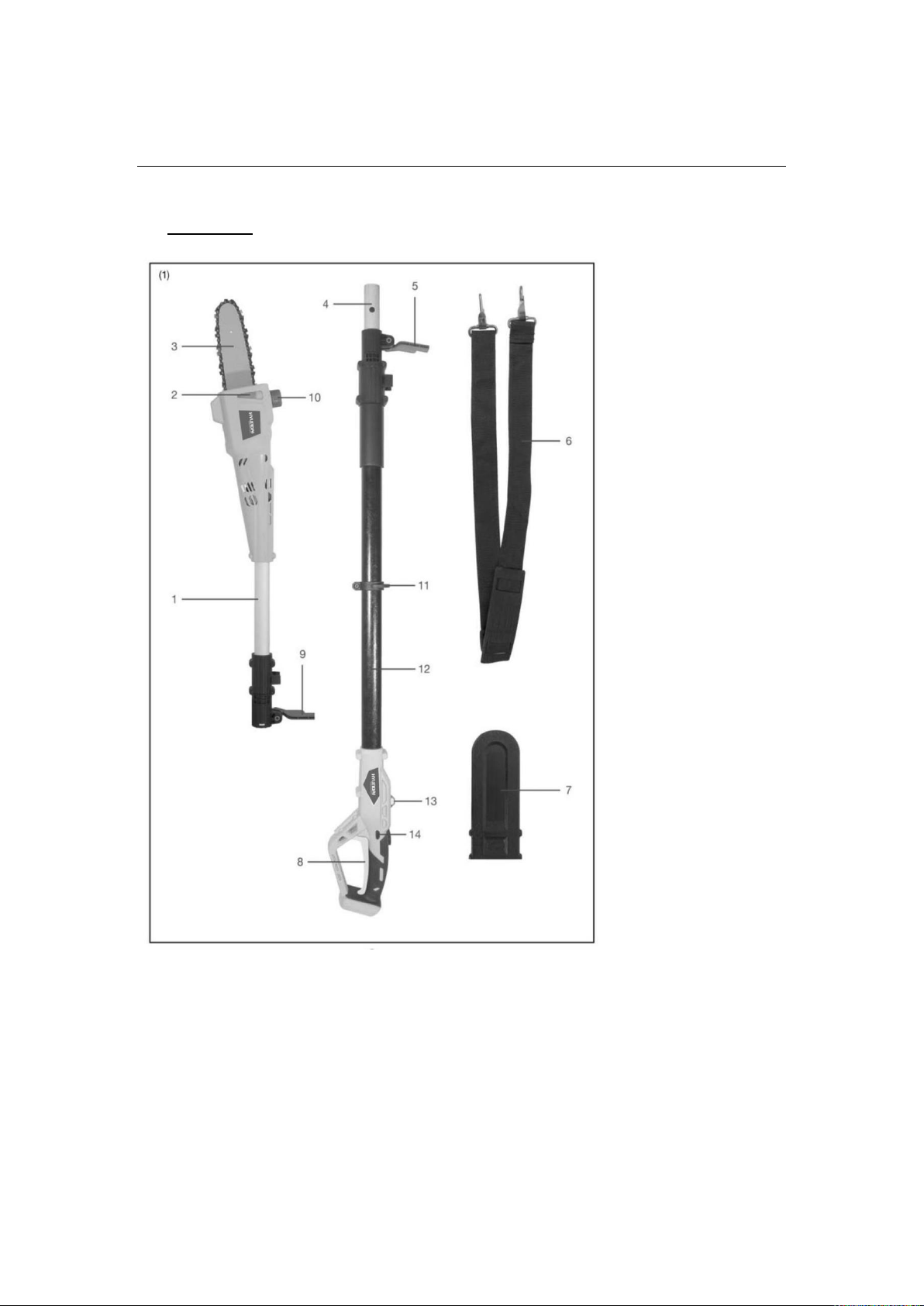

1. Cutting head pole
2. Oil lever indicator
3. Cutter bar with Saw chain
4. Telescopic tube
5. Telescopic tube locking lever
6. Shoulder harness
7. Cutter guard
8. ON/OFF trigger
9. Locking lever
10. Oil cap
11. Harness connection point 1
12. Handle pole
13. Harness connection point 2
14. ON/OFF trigger lock-out button

11
b. Technical data
Voltage
20Vdc
Cutting capacity
165mm
Sound power level
91.8dB(A) K=3dB(A)
Sound pressure level
82dB(A) K=3dB(A)
Vibration value
2,109m/s² K=1,5m/s²
Mass (empty tool, without cutting
attachment, harness, oil and battery)
3,5 kg
Volume of oil tank
50 ml
Information:
The declared vibration total value has been measured in accordance with a standard
test method and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of
exposure.
Warning:
that the vibration emission during actual use of the power tool can differ from the
declared total value depending on the ways in which the tool is used; and
of the need to identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of
the operating cycle such as the times when the tool is switched off and when it is
running idle in addition to the trigger time).
Wear hearing protection.

12
3. USE

13

14
a. Charging
Energizer range battery and charger not sold together with the impact screwdriver,
Battery has not been fully charged at the factory.
Before using it for the first time, charge the screwdriver's battery for 60min to 130min. Insert
the charger plug into the charging socket and plug the charger into a 230V/50Hz electrical
outlet. Detailed information please read carefully the manual for battery and charger.

15
Charge status
To display the amount of charge left in the battery, press the charge level indicator button,
Fig.4.
b. Assembly
Warning! To prevent accidental starting that could cause serious personal injury, always
remove the battery pack from the product when assembling part.
Connecting the pole
Unlock the locking lever on the cutting head pole by lifting upwards, Fig 3. Ensure the
intermediate pole on the locking lever is in the locked position to prevent the intermediate
pole moving whilst being connected. Insert the plug on the intermediate pole into the socket
on the cutting head pole and push together until the locking tabs are fully seated, Fig.4.
Lock the poles together by closing the locking lever on the cutting head pole, Fig 5.

16
NOTE: when assembled correctly, the cutting head pole should not be able to separate
from the intermediate pole when pulled. Repeat above steps if pole can be separated from
the intermediate pole.
Warning! Failure to securely assembly and lock all poles together as directed above could
cause the poles to separate and could result in serious personal injury or death.
Attaching the shoulder harness
Connect the latches on the shoulder harness to the harness connection points, Fig. 6.
Adjust the strap to a comfortable position.
c. Installing the battery pack
Warning! Always remove battery pack from your tool when you are assembling parts,
making adjustments, cleaning, carrying, transporting or when it is not in use. Removing the
battery pack will prevent accidental starting that could cause serious personal injury
NOTE: To avoid serious personal injury, always remove the battery pack and keep hand
clear of the lock out button when carrying or transporting the tool.
Slide battery pack into the pole saw base, Fig 7. Make sure that the battery pack snaps into
place and that the battery is secured in the tool before beginning operation. Improper
installation of the battery pack can cause damage to internal components.
d. Removing battery pack
Locate the battery release catch on the top of the battery and press downwards, Fig 8.
Whilst holding down the battery release catch slide the battery pack away from the tool.
e. Adding bar and chain lubricant
Always use bar and chain lubricant. It is designed for chains and chain oilers, and it is
formulated to perform over a wide temperature range with no dilution required.
The bar and chain lubricant level should be checked after every 20 minutes of use and
refilled as needed.
Remove the oil cap, Fig 9. Carefully pour the bar and chain lubricant into the bar tube
reservoir. Wipe off excess oil.
Check and fill the reservoir when the oil indicator, Fig, is below the second to last indicator
line.
Repeat as needed.
NOTE: Do not use dirty, used or otherwise contaminated oil. Damage may occur to the bar
or chain.

17
NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty
the oil tank after each use then run for one minute.
When storing the unit for a long period of time (three months or longer) be sure the chain
is lightly lubricated. This will prevent rust on the chain and bar sprocket.
f. Operation
Danger! Never cut rear power lines, electric cords or other electric sources. If bar and chain
jams on any electrical cord or line, do not touch the bar or chain; they can become
electrically live and very dangerous.
Continue to hold the pole saw by the insulated rear handle or lay it down and away from
you in a safe manner. Disconnect the electrical service to the damaged line or cord before
attempting to free the bar and chain from the line or cord. Contact with the live electric cords
or lines will result in death by electrocution or serious injury.
Warning! Do not allow familiarity with this product to make you careless. Remember that
a careless fraction of a second is sufficient to inflict serious injury.
Do not use any attachments or accessories not recommended by the manufacture of this
product. The use of attachments or accessories not recommended can result in serious
personal injury.
g. Applications
You may use this product for the purposes listed below:
-Limbing
-Pruning
h. Starting and stopping
Hold the pole saw as shown in Fig 11 and ensure that you are well away from anything that
may contact the blade.
Press and hold the ON/OFF trigger lock out button, Fig 12.
Depress the ON/OFF trigger, Fig 13.
To stop the motor, release the trigger to stop the pole saw. Upon release the trigger, the
ON/OFF trigger lock-out button will automatically reset to the locked position.
i. Preparation for cutting
Wear non-slip gloves for maximum grip and protection. Maintain a proper grip on the unit
whenever the motor is running. Use your right hand to firmly grip the rear handle while your
left hand has firm a grip on the pole shaft.
Hold unit firmly with both hands. Always keep your left hand on the pole shaft and your right
hand on the rear handle, so your body is to the left of the chain line. Never use a left handed
(cross handed) grip, or any stance that places your body or arm across the chain line.
Never stand directly under the limb you are cutting.

18
j. Basics cutting guide
Follow the steps below to prevent damage to tree or shrub bark. Do not use a back-and-
forth sawing motion.
Make a shallow first cut (1/4 of limb diameter) in the underside of the limb close to the main
limb or trunk, Fig 14 (A).
Make a second cut, Fig 14 (B), from the top side of the limb outwards from the first cut.
Continue to cut through the limb until the limb separates from the tree. Be prepared to
balance the weight of the tool when the limb fails.
Make a final cut close to trunk, Fig 14 (C).
NOTE: For second and final cuts (from top of limb of branch), hold font cutting guide against
the limb being cut. This will help steady the limb and make it easier to cut. Allow chain to
cut for you. Exert only low downward pressure. If you force the cut, damage to the bar,
chain or motor can result.
Release the trigger as soon as the cut completed.
Failure to follow proper cutting procedures will result in the bar and chain binding and
becoming pinched or trapped in the limb. If this should happen:
-Stop the motor and remove the battery pack.
-If the limb can be reached from the ground, lift the limb while holding the saw. This should
release the “pinch” and free the saw.
If the saw is still trapped, call a professional for assistance.

19
k. Limbing and pruning
This unit designed for trimming small branches and limbs up to 100mm diameter. For best
results, observe the following precautions.
Plan the cut carefully. Be aware of the direction in which the branch will fall. Never stand
directly under the limb you are cutting. Always position yourself out of the path of falling
debris.
The most typical cutting application is to position the unit at an angle of 60º or less, Fig 15,
depending on the specific situation. As the angle of the pole saw shaft to ground increases,
the difficulty of making the first cut (from the underside of limb) increases.
Remove the long branches in several stages.
Cut lower branches first to allow the top branches more room to fall.
Work slowly. Keep both hands on the saw with a firm grip. Maintain secure footing and
balance.
Keep the tree between you and the chain while limbing. Cut from side of tree opposite
branch you are cutting.
Never stand on a ladder or other unstable support while using the pole saw. Always avoid
any position which can cause you to loose your balance and cause severe injury.
Do not make the flush cut next to the main limb or trunk until you have cut off the limb
further out to reduce the weight. Following proper cutting procedures will prevent stripping
the bark from the main member.
Keep others persons at least 50 feet (15m) from the work area. Distractions can cause you
to lose control.
Risk of electrocution hazard. To prevent shock, do not operate within 50 (15m) of overhead
electrical lines. Always check surrounding area for hidden electrical lines.
Do not overreach. Make sure your footing is firm. Keep feet apart. Divide your weight evenly
on both feet.

20
4. MAINTENANCE AND STORAGE
Before inspecting, cleaning or servincing the unit, stop the motor, wait for all moving
parts to stop, and remove the battery pack. Failure to follow these instructions can result
in serious personal injury or properly damage.
a. General maintenance
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage
from various types of commercial solvents and may be damaged by their use. Use celan
cloths to remove dirt, dust, oil, grase, etc.
Do not at anytime let brake fluids, gasolline, petroleum-based products, prenetrating oils,
etc come in contact with plastic parts. Chemical can damage, weaken or destroy plastic,
which could resul in serious personal injury.
All pole saw service, other than the items listed in these maintenance instructions, should
be performed by competent pole service personnel.
b. Chain tension
Never touch or adjust the chain while the motor is running. The saw chain is very sharp;
always wear protective gloves when performing maintenance to the chain
Stop the motor and remove the battery pack before setting the chain tension.
Make sure the chain cover knob, Fig 16, is loose to finger tight. Use a hex key to turn the
chain tensioning allen screw clockwise to tension the chain, Fig 17.
Do not over-tension the chain as this will lead to excessive wear and will reduce the life of
the bar and bar chain. Overtensionning also reduces the amount of cuts you will get per
battery charge.
NOTE: A cold chain is correctly tensioned when there is no slack on the underside of the
guide bar, the chain is snug, but it can be turned by hand without binding.
The chain must be re-tensioned whenever the flats, Fig 18 (A) on the drive links hang out
of the bar groove as shown in Fig 18.
