Small Duct High Velocity Heating, Cooling and Home Comfort Systems
Installation and Operation Manual

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.

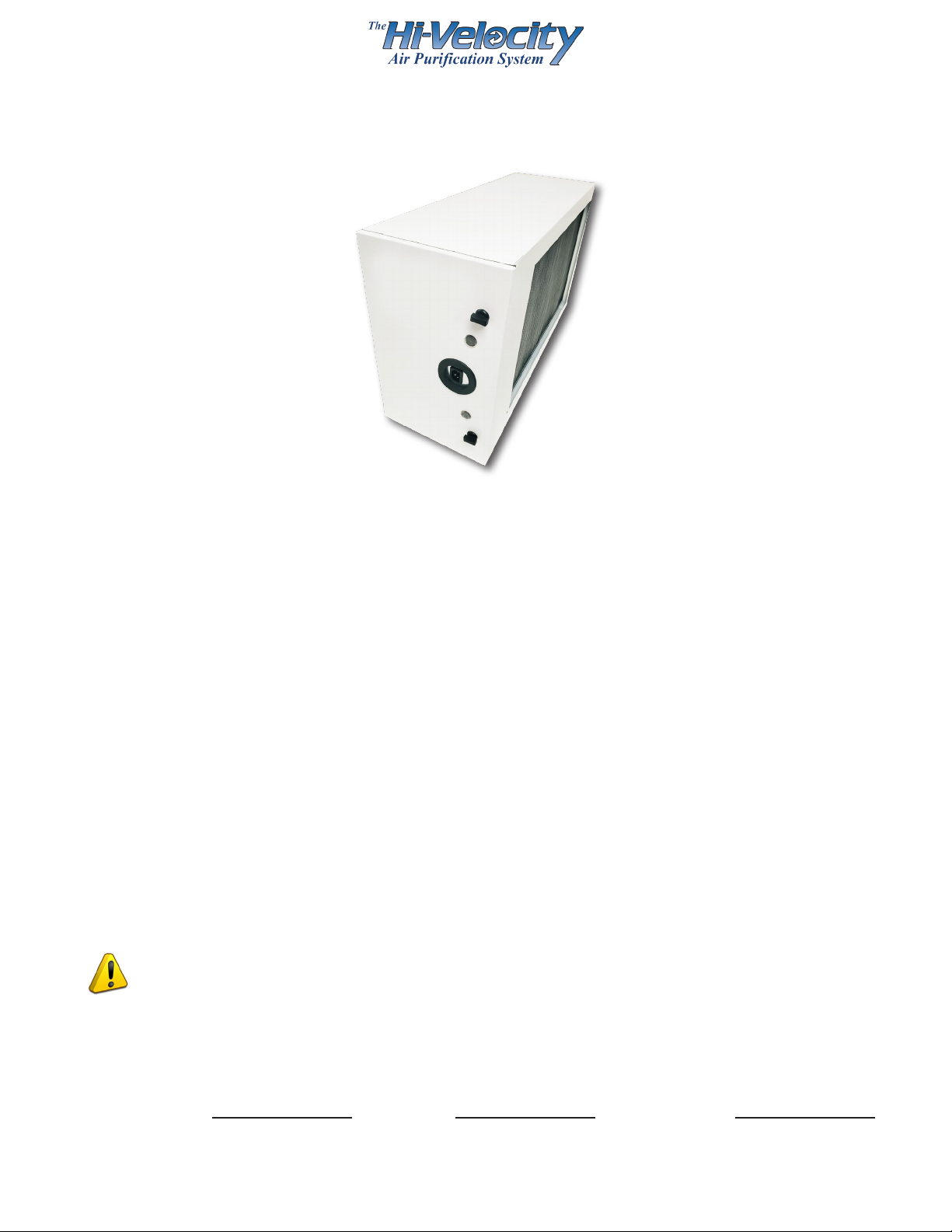

Hi-Velocity HEPS In-Duct Air Purication System
Included:
1 - HEPS Air Purication System
1 - 120v Quick Connect Power Cord
2 - UVC Germicidal Lamps
1 - Instruction Manual
The Hi-Velocity HEPS Air Purication system installs into the return side of ducted HVAC
appliances. Most electronic and media air cleaners only capture particles. The HEPS Air Purication
System not only removes particles, but also reduces viruses, germs, and toxic gases.
This product is not sold as a medical device and is not for the purpose of diagnosis of any
disease or condition, nor for use in mitigation, treatment, or prevention of any disease or condition.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
BEFORE PROCEEDING WITH THE INSTALLATION
WARNING: Do not exceed voltage rating. Severe damage to device and or re could result. Verify proper voltage.
Please retain these instructions after installation.
Installed By:Installed By: Phone:Phone: Install Date:Install Date:
-2--2-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Never expose eyes or skin to UVC light from any source.
• Looking directly at the UVC light may cause permanent eye damage or blindness.
• Never operate the HEPS Air Purifying System out of the plenum.
• Designed for a closed duct system. Do not mount near a supply or a return air opening.
• All duct openings in direct line of site of the UV light must be sealed with aluminum tape or equivalent
sealing methods.
WARNING: UV light will break down plastic materials not rated for UV exposure (examples: wire insulation,
ex duct, drain pans and humidiers).
• The unit must be mounted at least 3” from the above stated type of materials.
• If it is necessary to mount the unit in direct line of site of these types of materials, they must be shielded
with aluminum foil, aluminum foil tape, or sheet metal.
WARNING: DO NOT mount this unit outdoors.
• This product is designed for indoor installation only (i.e. attics, crawl spaces, basements, etc.).
WARNING: Never touch broken lamp or internal contents of lamp. The lamp contains mercury.
• After opening the carton, unpack and inspect the unit and lamp for damage. Do not install this unit if
any damage is noticeable. If lamp is damaged, cracked or broken, do not touch lamp or other contents in
carton. Close carton and return to seller immediately.
• In case of accidental exposure to internal contents of lamp, wash hands and any other aected skin
area with mild detergent. Remove aected clothing immediately. If skin surface is pierced, seek medical
attention immediately.
NOTE: If you touch the glass of the lamp, you should wipe the glass clean with isopropyl alcohol and a lint
free wipe. If the lamp is not cleaned, the lm of hand oils causes a reduction in the light intensity.
WARNING: Before installing or servicing a humidier, air lter, HVAC system, or this unit, etc., always turn
all power OFF and have unit unplugged. Electrical shock can cause personal injury or death. Never expose
eyes or skin to direct UVC light from any source.
WARNING: To prevent water damage or electric shock, do not mount unit under a humidier.
WARNING: This product is designed for indoor installation only (i.e. attics, crawl spaces, basements, etc.).
For use on gas red, oil red, electric and split system heat pump forced air systems.* This product is NOT
designed to be mounted outside on gas red or heat pump packaged units.**
* Split system heat pumps are systems where the air handler and the air conditioning compressor are
separate units.
** Packaged units are systems where the air handler and the air conditioning compressor are built together
and are installed outside of the building.
This product is rated for standard ambient air temperatures during heating and air-conditioning functions
and not rated for elevated air temperatures in excess of 125 degrees fahrenheit.
Do not install insulation within 3” (76 mm) of luminaries.
Access for service is required when mounting above ceilings or behind walls.
Do not install in a position where the interior module can gravity fall from an elevated position and cause
injury to people or equipment below.
-3--3-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
Item Shipping Weight Shipping Dimensions Part Number
HEPS c/w MERV 13 Filter 29 29/11/21 20180100000
HEPS 1750 c/w MERV 13 Filter 39 32/14/23 20180101750
Item Part Number
Replacement UV Lamps* 20180100001
Item Part Number
Replacement MERV 13 Filter 20180100015
Replacement 1750 MERV 13 Filter 20180100012
Optional MERV 14 Filter (n/a for 1750) 20180100006
Item Part Number
Electronic Lamp Ballast 20180100003
Item Part Number
12 Volt Transformer 20180100004
Item Part Number
HEPS Catalyst Module (no lamps) 20180100005
HEPS 1750 Catalyst Module (no lamps) 20180100013
HEPS Replacement Parts
Item Part Number
HEPS One Year Service Kit
c/w two Merv 13 Filters and two UV Lamps 20180100007
HEPS 1750 One Year Service Kit
c/w two Merv 13 Filters and two UV Lamps 20180100011
Hi-Velocity Air Purication System Parts List
Visit www.hi-velocity.com to nd a Distributor
*Caution: Risk of re - replace only with 20180100001 U.V. Lamps
-4--4-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
The Hi-Velocity Air Purication System installs in the
air-inlet side of the Hi-Velocity unit up to ve tons in size.
Before installing the Hi-Velocity Air Purication System,
inspect for any signs of damage.
Warning - Always unplug the power cord from the
HEPS System when changing the lter or ultraviolet lamps.
Never look into a burning ultravioletlamp without proper
eye protection as sever damage to the eyes can result.
This product is rated for standard ambient air temperatures
during heating and air-conditioning functions and not
rated for elevated air temperatures in excess of 125
degrees fahrenheit.
Do not attempt to clean the catalytic aluminum substrate
with cleaning solutions. The catalyst is radiated with short
wave ultraviolet light during period of non-air  ow and
is self-cleaning. If there is build up blocking the catalytic
cells, sit the unit on end, on a  at surface, with electrical
enclosure facing up. Use low-pressure, compressed air to
blow the surface of the catalytic cells free of blockage.
Do not install insulation within 76MM or 3 inches of
Luminaries.
Access for service is required when mounting above
ceilings or behind walls.
Do not install in a position where the interior module
can gravity fall from an elevated position and cause injury
to people or equipment below.
Installation
Make sure to install the Hi-Velocity Air Purication System
so that the inlet or return air enters the side containing the
MERV particle lter rst (Fig. 1).

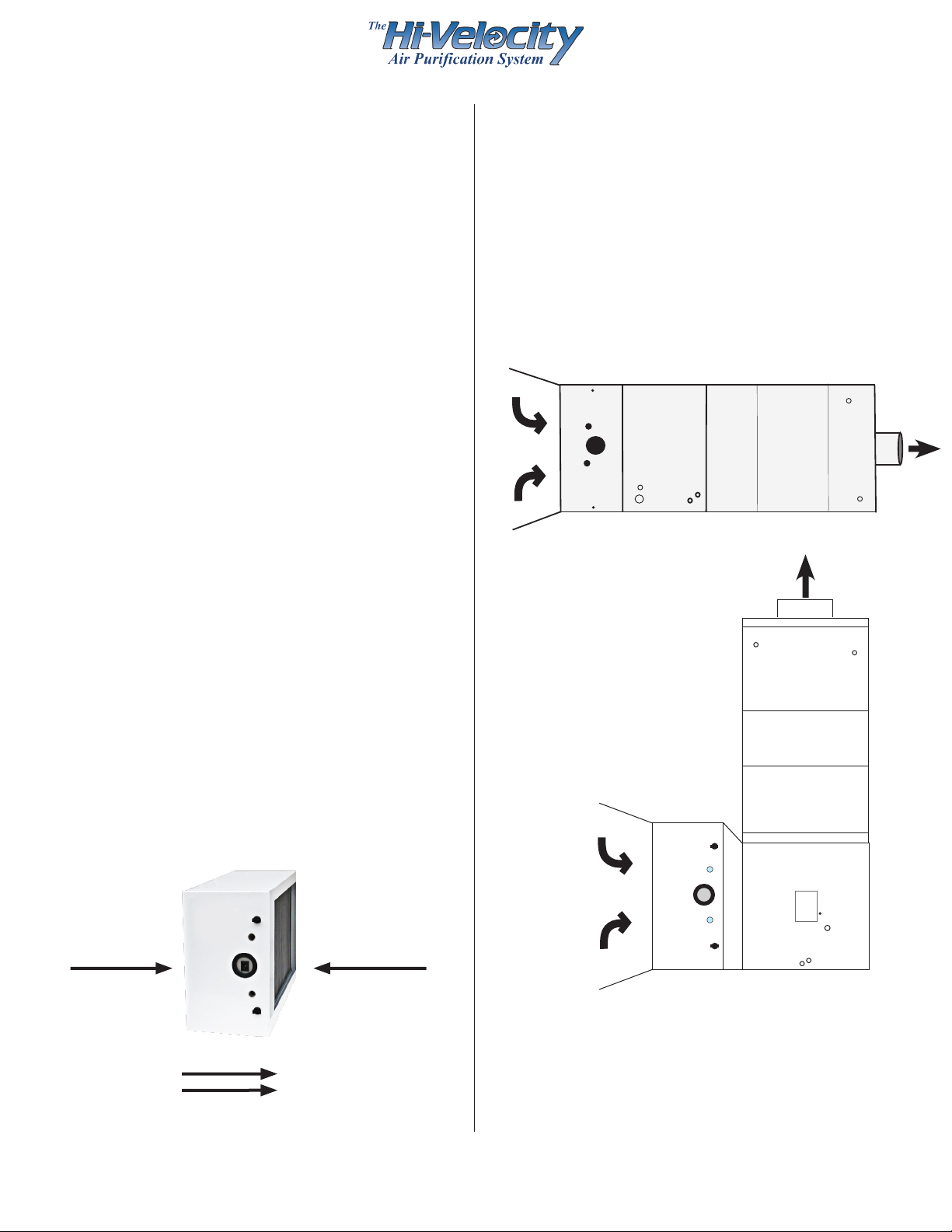

Fig. 1 HEPS Air Flow
Typical Horizontal and Vertical Installation
(Fig. 2, Fig. 3)
1. Unscrew the two locking knobs and remove the
inside components from the outer case.
2. Take care not to bend or distort the outer metal
enclosure.
3. Mount the outer case to the support plenum Note:
Do not use a screw length that will extend into or penetrate
the inside module containing the catalyst or lter.
HEPS RPM-E Air Handler
Air Flow
Fig. 2 Horizontal Installation
IMPORTANT SAFETY INSTRUCTIONS
FILTER SIDE CATALYST SIDE
AIR FLOW
Fig. 3 Vertical Installation
4. When installing the HEPS to a Hi-Velocity 50 or 70 fan
coil, a transition should be made (Fig. 4) or simply block
air ow with a piece of sheet metal (Fig. 5).
RBM Cooling
Coil
Air Flow
Air Handler
HEPS
-5--5-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
Fig. 4 Transition
(Top View)
HEPS
RPM-E-70
50/70 Fan Coil
Block air ow
with 18 ga.
sheet metal
Top View
Fig. 5 Block Air Flow
(Top View)
5. Tape all seams between the air handler and the outlet
side of the HEPS so there can be no air bypassing the
system.
6. Attach the air handler to the outlet side of the HEPS and
fasten with #10 x 3/8 self-drilling sheet metal screws.
NOTE: Only 1/2 inch of clearance has been provided
between the outer and inner case.
7. Slide the components into the outer case and tighten
locking knobs nger tight. Make sure the inner module will
freely slide in and out of the outside enclosure.
8. Plug in the power cord to any 120vac outlet and check
both sight ports to make sure both lamps are illuminated.
Ultraviolet lamps must remain on at all times regardless of
thermostat or AirCycler settings.
9. Set the thermostat or the AirCycler to operate the
fan unit for at least 25 minutes every hour. If air quality
problems persist after one week, increase the fan unit
operating time by (5) minute intervals.
Top View
RPM-E-70 Create transition
from 18 ga.
sheet metal
HEPS
Transition
Transition
50/70 Fan Coil
Service
MERV-13 Filter: Change every 6 months
Ultraviolet Lamps: Change every 12 months
Operation
Only operation of the air-handler fan unit is required for
air purication and sterilization to take place.
Note: The ultraviolet lamps are wired to operate
continuously. This feature allows the catalyst to burn o
surface impurities, cleaning and reactivating itself during
periods of non-use or no airow.
Replacement Filters and Ultraviolet Lamps
Replacement components are available in the form of
a replacement kit containing (2) lters and (1) set of UV
lamps. Replacement kits are available from your local
HVAC wholesaler or contractor.
The HEPS System combines three unique technologies
to protect people against indoor air pollutants.
Photocatalytic Oxidation (PCO) technology combined
with high eciency electrostatic MERV-13 particulate
ltration and germicidal ultraviolet light quickly
reduces toxic gasphase chemicals, lung damaging dust
and airborne germs from the living environment.
Many new homes have smart programmable thermostats
that allow for automatic operation of the air-handler
fan unit when there is no demand for heating or air
conditioning. It is important that the HEPS is operating
at least (30) minutes per hour (24) hours per day to
remove toxic materials from the indoor environment.
The length of operation depends on the location of the
home or oce in relation to point source pollution such
as reneries, processing plants, automobile trac and
areas that produce high levels of pollen. Individuals that
are sensitive to mold spores, dust mites, chemicals or
have respiratory problems such as asthma, emphysema,
and chronic allergies should extend the run time to (40)
minutes or more per hour.
-6--6-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.

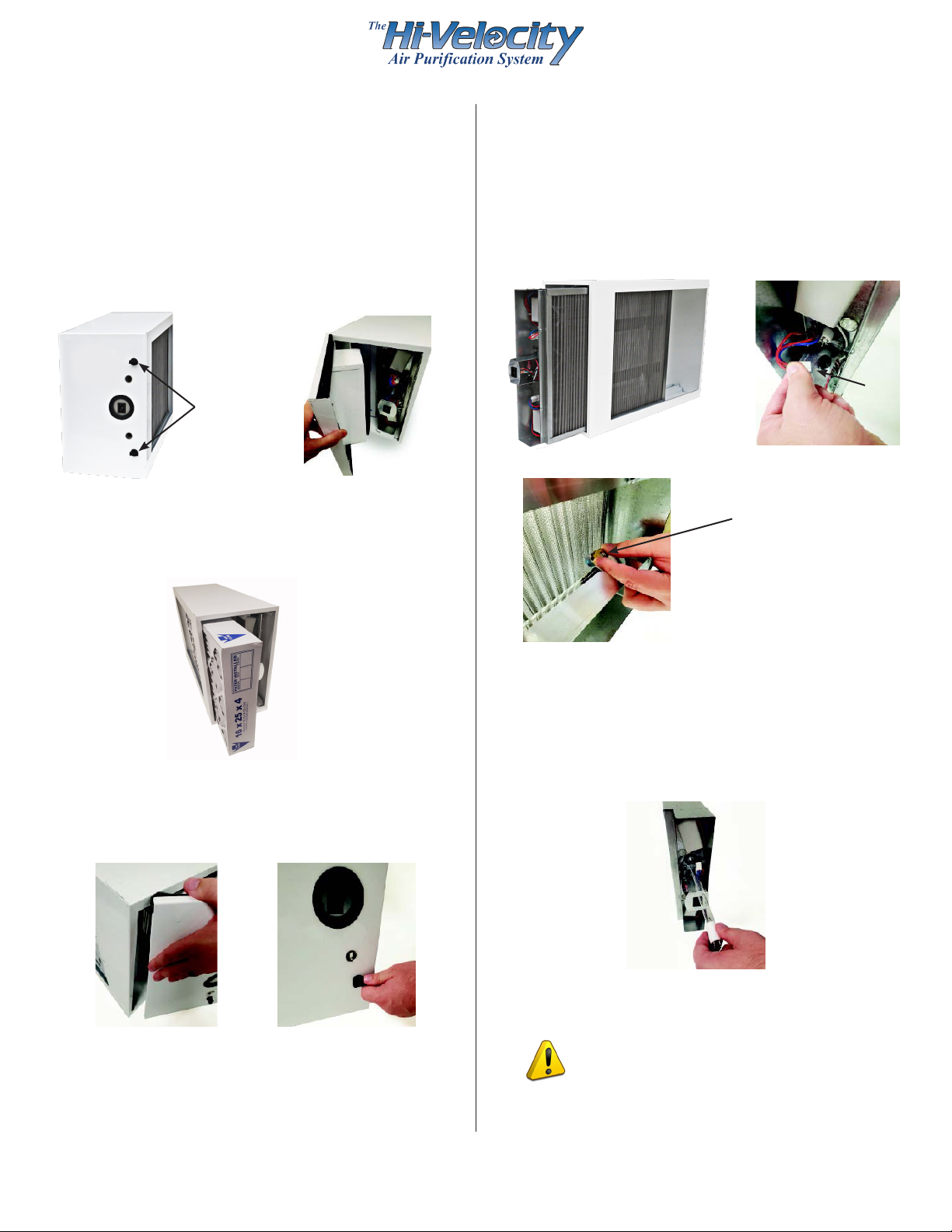

Fig. 6
Changing the Filter
1. UNPLUG THE POWER CORD FROM THE HEPS UNIT
2. Remove door by twisting the two locking cam latches
so that they are vertical to the short edge of the unit.
(Fig. 6)
3. Remove the door at an angle, from the cam latch side
rst. (Fig. 7)
Locking Cam
Latches
Changing the UV Lamps
1. UNPLUG POWER CORD FROM THE HEPS UNIT
2. Remove door as described previously. (Figs. 6,7)
3. Remove inside module from outer cabinet. (Fig. 11)
4. Unplug UV lights, loosen retaining cam latches, and
remove lamp(s). (Figs. 12, 13)
Loosen Retaining
Cam Latch
4. Remove old lter and replace with new lter. Make
sure airow arrow on lter is pointing to the inside of
module. (Fig. 8)
Fig. 8
Fig. 7
5. Replace door by inserting the ange of the door into
the lter side of the cabinet. (Fig. 9)
Fig. 9 Fig. 10
6. Close the door at an angle. Twist the 2 locking cam
latches such that they are horizontal to the short edge of
the unit. (Fig. 10)
Fig. 13
Fig. 11
5. Slide new lamp into the module. (Fig. 14) Tighten
retaining cam latches (nger tighten ONLY or lamp may be
damaged. Plug the ballast connector back on to the lamp.
6. Replace door as described previously. (Figs. 9, 10)
Fig. 14
WARNING: Never touch broken lamp or
internal contents of lamp. The lamp contains
mercury.
Unplug
UV Lights
Fig. 12
-7--7-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
Fig. 15 HEPS Electrical Diagram
HE PS ELECTRICAL DIAGRAM
POWER
CORD
RECEPTACLE
WHITE GROUND
LINE - RED 2 AMP FUSE
AGC2
RED
NEUTRAL - WHITE WHITE
BLACK
1 AMP
TRANSFORMER
120 V
SERVICE PANEL
LAMP
BALLAST
120/220 V
BALLAST
120/220 V
BLACK
WHITE
BLACK
WHITE
BLUE
BLUE
LAMP
-8--8-

©© 1995-2021 Energy Saving Products Ltd.1995-2021 Energy Saving Products Ltd.
www.hi-velocity.com
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage
or blindness. Never operate the HEPS System out of the ductwork. Avoid touching the glass portion of the lamp with your hands.
Installation Notes
-9--9-

Limited Lifetime Warranty
Each Hi-Velocity Air Purication System comes with a limited lifetime warranty excluding
expendable parts such as lters and UV lamp. This exceptional warranty provides for repair or
replacement of any defective parts or components for two years from the date of purchase at
no charge for labor or materials. Warranty work for the remaining life of the product will be
provided with a maximum cost not to exceed $85.00 dollars to the original owner. This warranty
does not cover the expendable ultraviolet lamp, which must be replaced on an annual basis
(1-year) or the expendable lter cartridge media, which must be replaced every six months.
Energy Saving Products Ltd. is not responsible for the installation of this product. This warranty
does not cover faulty installation or damage to personal property resulting from incorrect
or faulty installation. This warranty does not cover the cost for removal or reinstallation
of the HEPS when service or warranty work is required. All warranty repair work must be
performed either at the factory or by a factory certied service center. Shipping cost to the
factory or service center is the responsibility of the owner of the Hi-Velocity Air Purication
System. Warranty return shipping from the factory is prepaid for the rst two years only.
This warranty is provided to the original purchaser of the HEPS and may not be transferred,
sold or bartered. This product is not warranted against freight damage, failure resulting from
misuse, connection to incorrect voltage, or acts of God such as res, earthquakes, or oods.
www.hi–velocity.com
Phone: [phone]
Fax: [phone]
Toll Free: 1-888-652-2219
Hi-Velocity HE-Z Fan Coils,Hi-Velocity HE-Z Fan Coils, GreenGreen TechnologyTechnology
Build Smart, Breathe EasyBuild Smart, Breathe Easy
