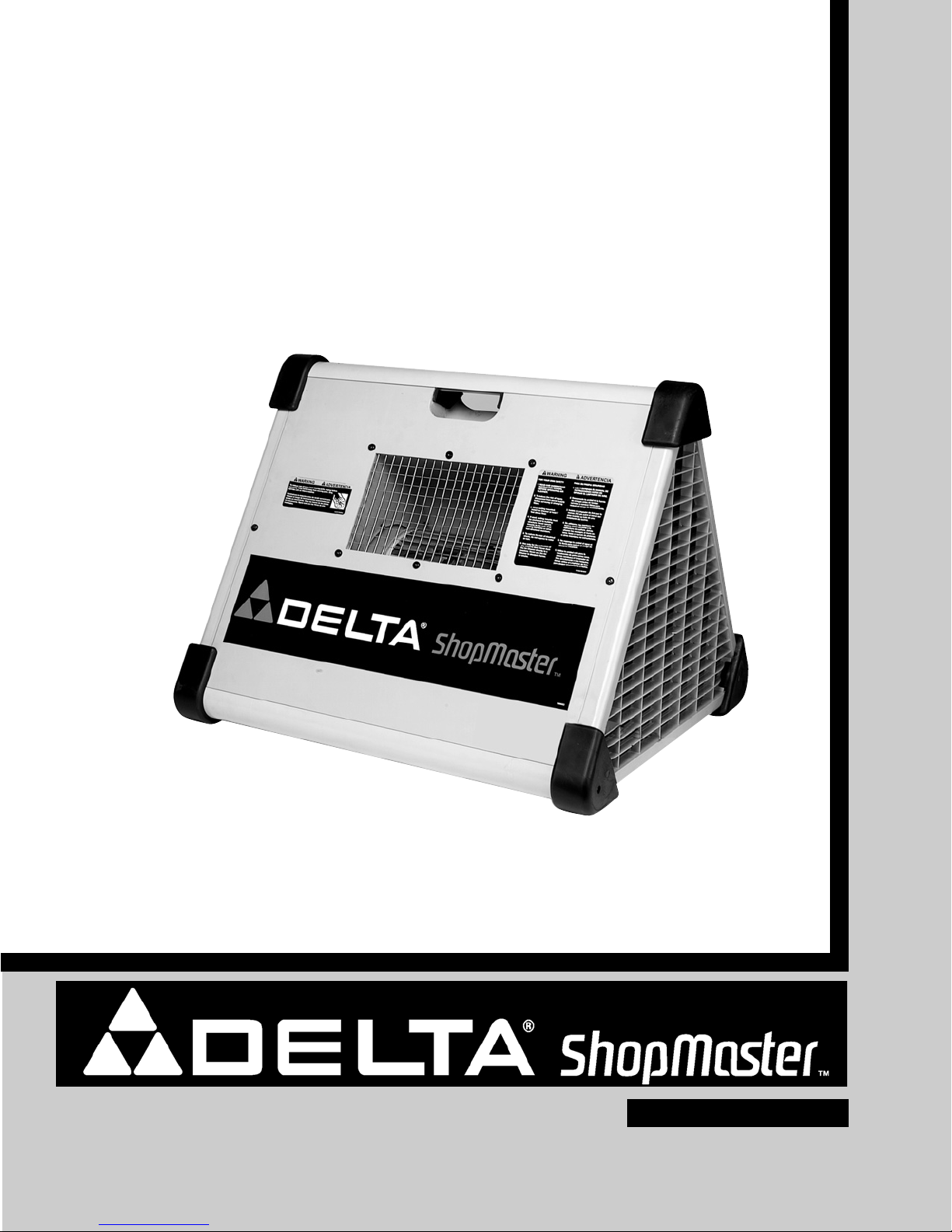

Delta AP-100 User manual

INSTRUCTION MANUAL
Triangle Air Cleaner
and Work Light
(Model AP100)
PART NO. A05733 - 06-22-05
Copyright © 2005 Delta Machinery
ESPAÑOL: PÁGINA 15
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
TABLE OF CONTENTS
Read and understand all warnings and operating instructions before using any tool or equipment. When
using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly
recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery
and we have advised you.
Online contact form at www.deltamachinery.com
Postal Mail: Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 125 Mural St. Suite 300, Richmond Hill, ON, L4B 1M4)
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking Machines, and
the U.S. Department of Labor regulations www.osha.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

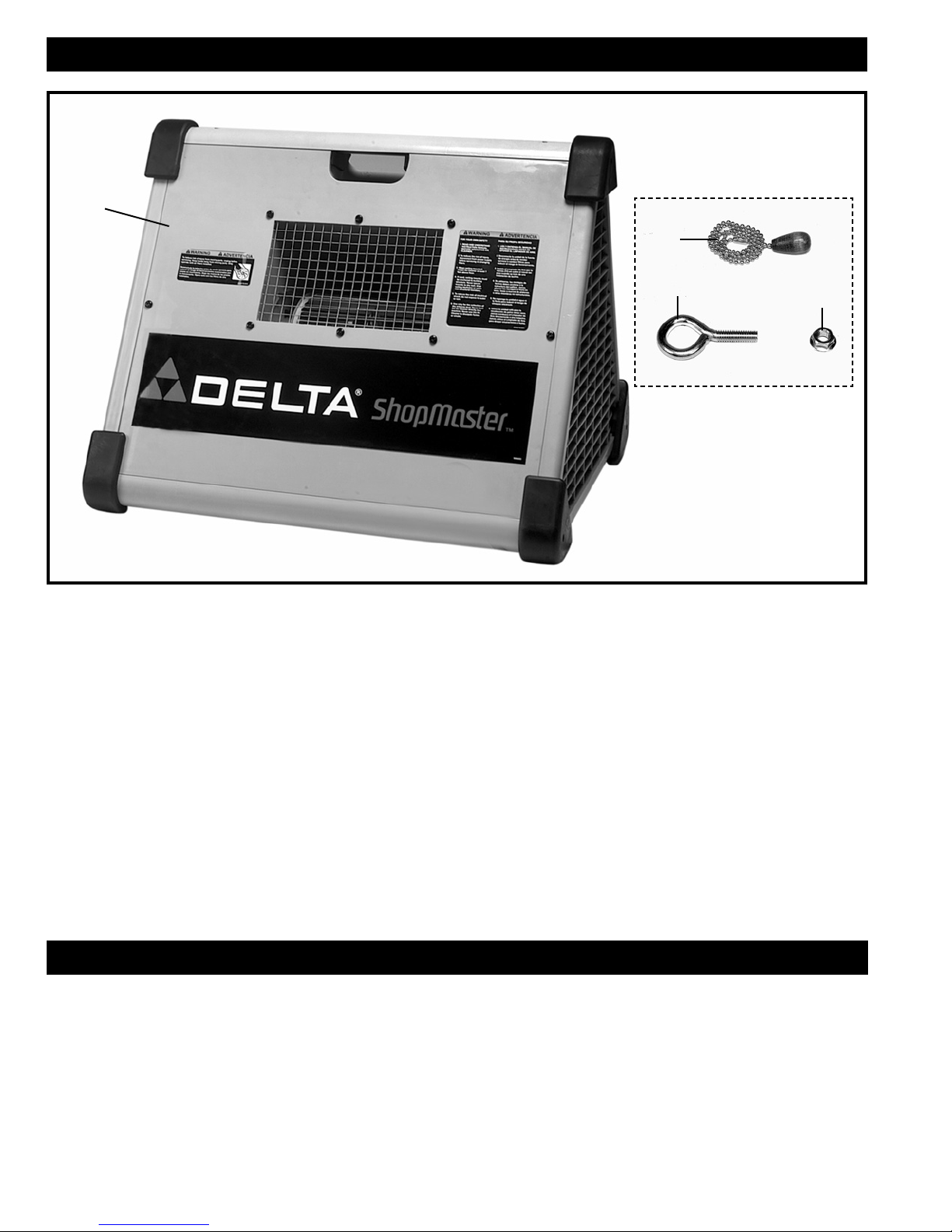

CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

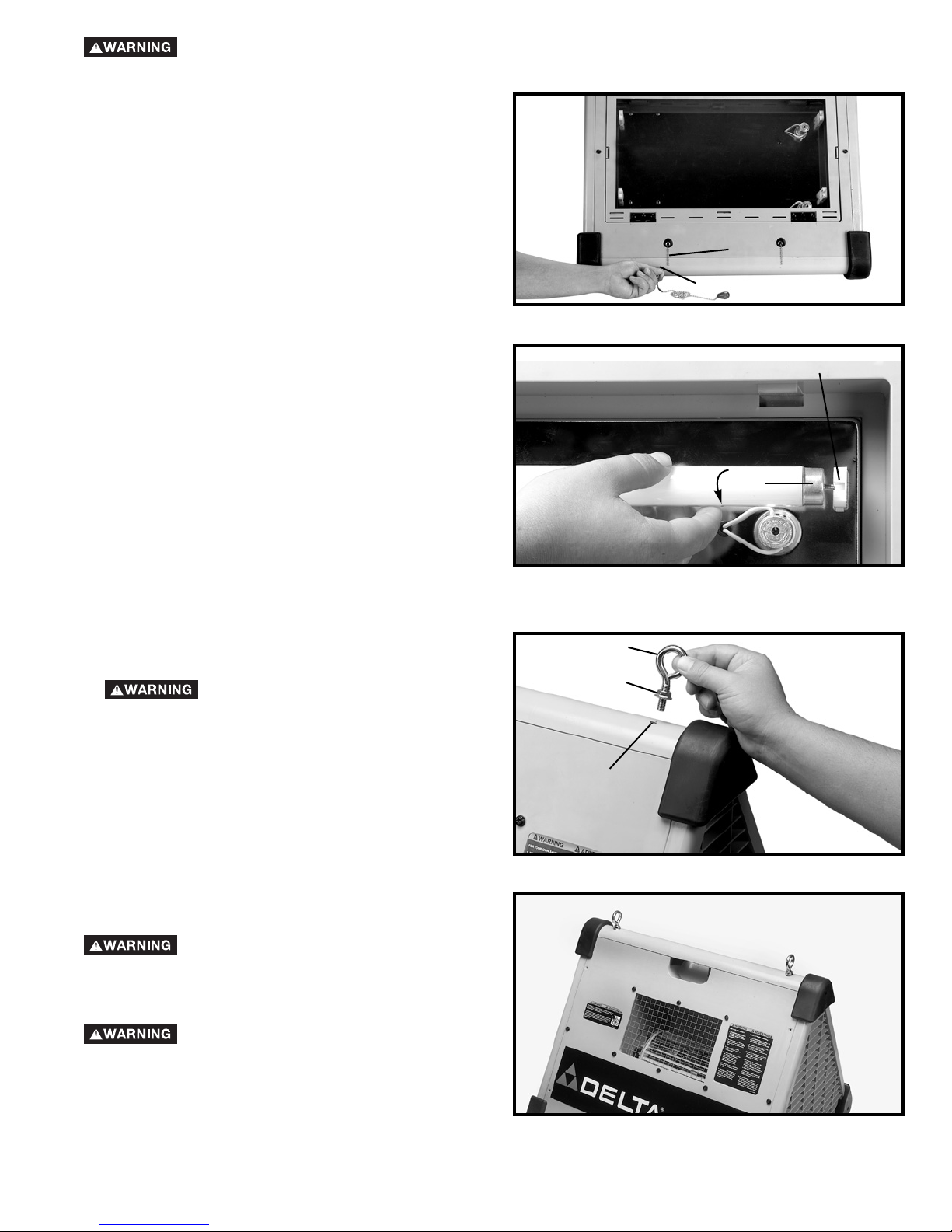

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover

3
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
It is important for you to read and understand this manual. The information it contains relates to protecting
YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this
information.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.
CALIFORNIA PROPOSITION 65

4
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE. Learning
the machine’s application, limitations, and specific
hazards will greatly minimize the possibility of accidents
and injury.
2. WEAR EYE AND HEARING PROTECTION. ALWAYS
USE SAFETY GLASSES. Everyday eyeglasses are NOT
safety glasses. USE CERTIFIED SAFETY EQUIPMENT.
Eye protection equipment should comply with ANSI Z87.1
standards. Hearing equipment should comply with ANSI
S3.19 standards.
3. WEAR PROPER APPAREL. Do not wear loose clothing,
gloves, neckties, rings, bracelets, or other jewelry which
may get caught in moving parts. Nonslip footwear is
recommended. Wear protective hair covering to contain
long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or wet
locations or in rain can cause shock or electrocution. Keep
your work area well-lit to prevent tripping or placing arms,
hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing
accessories. Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the machine,
check for any damaged parts. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
and any other conditions that may affect its operation. A
guard or any other part that is damaged should be
properly repaired or replaced. Damaged parts can cause
further damage to the machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can be
injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make
sure that the switch is in the “OFF” position before
plugging in the power cord. In the event of a power failure,
move the switch to the “OFF” position. An accidental
start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to reduce the risk of
injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap pieces,
and other debris can be thrown at high speed, causing
injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or an
attachment to do a job for which it was not designed.
Damage to the machine and/or injury may result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause damage to the machine or injury to the user.

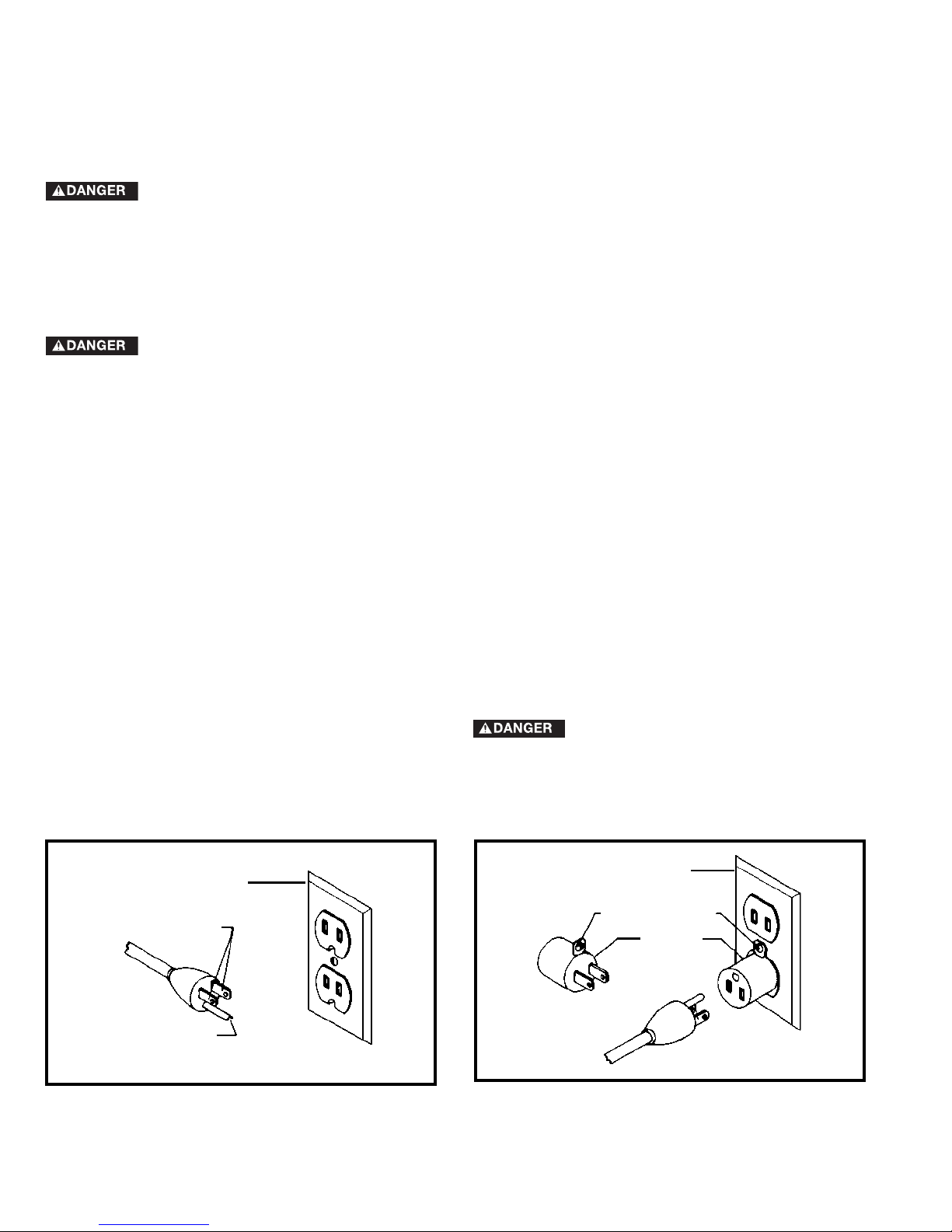

14. USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will
cause a drop in line voltage, resulting in loss of power and
overheating. See the Extension Cord Chart for the correct
size depending on the cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a
workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF THE
ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause
the workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you fall
into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the tool
tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it comes
to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs. An accidental start-up can
cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY REMOVING
STARTER KEYS. The accidental start-up of a machine by
a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE MACHINE
WHEN YOU ARE TIRED OR UNDER THE INFLUENCE
OF DRUGS, ALCOHOL, OR MEDICATION. A moment of
inattention while operating power tools may result in injury.
24. USE OF THIS TOOL CAN GENERATE AND
DISBURSE DUST OR OTHER AIRBORNE PARTICLES,
INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST
AND ASBESTOS DUST. Direct particles away from face and
body. Always operate tool in well ventilated area and provide
for proper dust removal. Use dust collection system wherever
possible. Exposure to the dust may cause serious and
permanent respiratory or other injury, including silicosis (a
serious lung disease), cancer, and death. Avoid breathing the
dust, and avoid prolonged contact with dust. Allowing dust to
get into your mouth or eyes, or lay on your skin may promote
absorption of harmful material. Always use properly fitting
NIOSH/OSHA approved respiratory protection appropriate for
the dust exposure, and wash exposed areas with soap and
water.

5
ADDITIONAL SPECIFIC SAFETY RULES
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
DO NOT USE THIS UNIT TO FILTER
METAL DUST. Combining wood and
metal dust can create an explosion or
fire hazard. This unit is intended to filter
non-explosive atmospheres only.
DO NOT USE THIS UNIT TO DISSIPATE
FUMES OR SMOKE. Explosions or fire can
result. This air cleaner is intended for use
where only dry airborne dust is present.
Its use should be limited to non-
explosive, non-metallic atmospheres.
1. DO NOT OPERATE THIS UNIT until it is completely
assembled and installed according to the instructions.
A unit incorrectly assembled can cause injury.
2. OBTAIN ADVICE from your supervisor, instructor, or
another qualified person if you are not thoroughly
familiar with the operation of this unit. Knowledge is
safety.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections to prevent electrical shock or
electrocution.
4. DO NOT LIFT THIS UNIT BY THE POWER CORD.
Do not use the power cord as a hanging device. A
damaged power cord can cause electrical shock or
electrocution.
5. SECURELY ANCHOR THIS UNIT to a permanent or
fixed supporting structure when suspending it from
the ceiling. A falling unit can cause serious injury.
Always keep a minimum of 7 feet between the
bottom of the unit and the floor surface to allow for
sufficient head clearance. Use only a chain rated for
a minimum of 150 lb. working load to adequately
hold the unit. Use steel S-Hooks that are at least
1/4" in diameter to suspend the unit from the ceiling.
Lag-type bolts used to suspend the unit from the
ceiling must be threaded at least 1-1/2" into
supporting structural members.
6. SUPPORT THIS UNIT or securely clamp it to the
work surface when it is used in a portable
application to eliminate potential injury and/or
damage to the unit.
7. ENSURE THAT THE INTAKE AND EXHAUST
AREAS ARE CLEAR prior to starting the unit.
Clogged intakes or exhausts can cause an
explosion and/or fire.
8. KEEP ARMS, HANDS, AND FINGERS AWAY
FROM THE FAN. Avoid all exposure to rotating
parts to prevent injury.
9. DO NOT OPERATE THIS UNIT WITHOUT THE
FILTERS IN PLACE. Dust and other small debris
will go directly to the motor, causing over-heating
and the potential for fire and/or explosion.
10. DO NOT ATTEMPT to remove or replace the filter(s)
while the unit is running. Exposed fan blades can cause
severe cuts. Make certain that the unit is
disconnected from the power source.
11. MAINTAIN THE UNIT in top condition. Clogged
filters can increase the potential for fire or
explosion. Follow all instructions for changing and
cleaning filters.
12. STORE THE UNIT in a location that eliminates
the potential for damage to the power cord. A
damaged power cord can cause shock or
electrocution. Safely store power cord on the unit
to eliminate tripping hazards.
13. TURN THE UNIT “OFF” and disconnect the unit
from the power source before installing or
removing accessories, before adjusting or
changing set-ups, or when making repairs. An
accidental start-up can cause serious injury.

6
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
POWER CONNECTIONS
MOTOR SPECIFICATIONS
GROUNDING INSTRUCTIONS
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be
protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-prong
grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the machine to the
power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of the same characteristics
as indicated on the machine. All line connections should make good contact. Running on low voltage will damage the
machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Your machine is wired for 120 volts, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position.
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less
than 150 volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the machine
will have a grounding plug that looks like the plug illustrated
in Fig. A. A temporary adapter, which looks like the adapter
illustrated in Fig. B, may be used to connect this plug to a
matching 2-conductor receptacle as shown in Fig. B if a
properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician. The green-colored
rigid ear, lug, and the like, extending from the adapter must
be connected to a permanent ground such as a properly
grounded outlet box. Whenever the adapter is used, it must
be held in place with a metal screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THAT THE
RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT
SURE, HAVE A QUALIFIED ELECTRICIAN
CHECK THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conduc-
tor can result in risk of electric shock. The conductor with
insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-grounding
conductor to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the machine is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding
type plugs and matching 3-conductor receptacles that
accept the machine’s plug, as shown in Fig. A.
Repair or replace damaged or worn cord immediately.

7
EXTENSION CORDS
Use proper extension cords. Make sure
your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type
plug and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure
to use one heavy enough to carry the current of the
machine. An undersized cord will cause a drop in line
voltage, resulting in loss of power and overheating. Fig.
D-1 or D-2, shows the correct gauge to use depending
on the cord length. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the
cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120 up to
25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
FUNCTIONAL DESCRIPTION
The Delta ShopMaster™ air purifier provides all the benefits of clean air along with lighting and portability with a 120 volt
induction motor, two-stage air filtration and two integrated fluorescent bulbs, and hanging capabilities. With 450 CFM
(cubic feet per minute) capacity, a coarse pre-filter and five micron inner filter, the AP100 significantly reduces wood dust
to eliminate health and cleaning concerns. In addition, the AP100 features two integrated lights for dedicated lights on
finishing applications and eye bolts for hanging the air purifier out of workshop space.
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual are representative only and may not depict the actual labeling or accessories included. These are are
intended to illustrate technique only.

8
Fig. 2
1. Air Cleaner
2. Pull Cords (2)
3. 5/16-18x1½" Eye-Bolts (2)
4. 5/16-18 Flange Nuts (2)
1
2
34
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
CARTON CONTENTS
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 30 minutes.
No assembly tools are required.

9
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
PULL CORDS
1. Insert the cord (A) Fig. 3, into the pull cord catch (B).
2. Repeat this process for the remaining pull cord.
Fig. 3
FLUORESCENT BULBS (NOT INCLUDED)
IMPORTANT: THIS MACHINE USES STANDARD
18"x1", 15 WATT, FLUORESCENT LIGHT BULBS.
1. Insert one end of the bulb (A) Fig. 4, through slot (B),
repeat this for the other end of the bulb.
2. Once both ends of the bulb are inserted into the slot,
twist bulb 1/4 of a turn to lock in place.
3. Repeat this process for the remaining bulb.
Fig. 4
B
A
A
B
1. Thread a 5/16-18 flange nut (B) Fig. 5, onto a 5/16-
18x1½" eye bolt (C).
2. Thread eye-bolt (C) Fig. 5, into hole (D).
NOTE: THREAD EYE-BOLTS IN AT LEAST EIGHT
COMPLETE TURNS.
3. Tighten the flange nut (B) Fig. 5, against the air
cleaner.
4. Repeat this process for the remaining hole in the top
of the air cleaner as shown in Fig. 6.
Fig. 5
Fig. 6
MOUNTING THE AIR CLEANER TO
THE CEILING OR OVERHEAD
SUPPORT
THIS TOOL WEIGHS APPROXIMATELY
40 POUNDS. MAKE CERTAIN THE UNIT IS SECURELY
SUPPORTED WHEN MOUNTING TO A CEILING OR
OVERHEAD SUPPORT.
B
C
D
NEVER SECURE THE AIR CLEANER
HARDWARE TO DRYWALL, DROP CEILING
TILE/FRAME, OR OTHER NON-STRUCTURAL
MEMBERS.

10
When suspending the air cleaner from the ceiling or other overhead support, use steel s-hooks that are a minimum of
1/4". NOTE: Thread all lag hooks at least 1-1/2" into the supporting structural members.
KEEP A MINIMUM OF SEVEN FEET BETWEEN BOTTOM OF AIR CLEANER AND THE FLOOR
SURFACE.
DO NOT USE ROPE, CABLE, OR POWER CORD TO SUSPEND THE UNIT FROM THE CEILING. USE
CHAIN RATED FOR A MINIMUM OF A 150 LB. WORKING LOAD.
IMPORTANT: WHEN DETERMINING A LOCATION TO MOUNT THE UNIT, THE AIR CLEANER WILL OPERATE MORE
EFFICIENTLY WHEN THE AIR FLOW IS UNRESTRICTED. DO NOT LOCATE THE UNIT IN A CORNER OR NEAR ANY
HEATING OR COOLING VENTS.
The Air Cleaner is equipped with an in-line rocker switch
(A) Fig. 7, located on the power cord (B). To supply
power to the machine, press downward on the rocker
switch.
NOTE: The motor and light have independent pull
switches, but the cord switch must be in the “ON”
position for them to operate.
NOTE: The switch has markings on the side to
determine the ON/OFF position. The “ON” position is
when the part of the switch, with the white dot (C) Fig. 7,
is depressed.
CORD SWITCH
Fig. 7
A
B
MOTOR AND LIGHT PULL CORDS
NOTE: THE CORD SWITCH MUST BE IN THE “ON”
POSITION.
To start the Air Cleaner motor, pull down on the motor
pull cord (C) Fig. 8. The motor pull cord (C) will have a
fan icon to indicate the motor pull cord. To stop the Air
Cleaner motor, pull down on the motor pull cord (C) Fig.
8, a second time.
MAKE SURE THAT THE SWITCH (C) FIG.
7 IS IN THE “OFF” POSITION BEFORE
PLUGGING IN THE POWER CORD. IN THE EVENT OF A
POWER FAILURE, MOVE THE SWITCH TO THE “OFF”
POSITION. AN ACCIDENTAL START-UP CAN CAUSE
INJURY.
To start the Air Cleaner light, pull down on the light pull
cord (D) Fig. 8. The light pull cord (D) will have a bulb
icon to indicate the light pull cord. To turn off the Air
Cleaner light, pull down on the light pull cord (D) Fig. 8,
a second time.
Fig. 8
C
D
C
FAN ICON
LIGHT ICON
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS

11
MACHINE USE
NOTE: The air cleaner may produce a slight odor for the first few hours of operation due to the protective coating which
is applied to internal components. This odor will dissipate and should be disregarded.
NEVER OPERATE THE AIR CLEANER WITHOUT AIR FILTERS IN PLACE.
The air cleaner can be used in the overhead position, on a work bench, or on the floor.
The Delta AP100 Air Cleaner can be used for:
a. sanding applications.
b. sawing applications.
c. dry wall applications.
d. any other application where non-metallic dust is a factor.
MAINTENANCE
CHANGING AND
CLEANING FILTERS
1. DISCONNECT MACHINE FROM
POWER SOURCE.
2. Remove the six screws (A) Fig. 9, on the filter cover.
Fig. 9
AA
A
AA
Fig. 10
3. Pull out on the filter cover (C) Fig. 10, to remove from
the machine.
C
A
TROUBLESHOOTING
For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call
the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582).

12
4. Remove the three spring clips (D) Fig. 11.
Fig. 11
D
DD
Fig. 12
5. Remove the bag filter (E) Fig. 11. E
6. Remove the pre-filter (F) Fig. 12.
F
7. The filters (E) Fig. 11 and (F) Fig. 12, can be replaced
or cleaned depending on their condition. The filters can
be cleaned in one of two methods: a shop-vac can be
used to remove the dust, or compressed air can be used
to blow the dust out of the filters.
COMPRESSED AIR CAN BE
DANGEROUS. FOR OPERATOR SAFETY, DO NOT
EXCEED 30 PSI OR POINT AIR NOZZLE TOWARD
ANYONE OR AIM AIR NOZZLE AT YOUR OWN BODY.
ALWAYS WEAR SAFETY GLASSES AND DUST MASK
WHEN PERFORMING THIS PROCEDURE.
8. Install both filters in the reverse order in which they
were removed, attach spring clips, and replace the filter
cover.
9. Replace the other filters on the opposite side of the
machine in the same manner.
LIGHT STARTER
NOTE: THE STARTERS SUPPLIED WITH THIS
MACHINE ARE STANDARD FLUORESCENT
STARTERS (FS-2).
1. DISCONNECT MACHINE FROM
POWER SOURCE.
2. To remove the starter (A) Fig. 13, turn the starter (A)
counter clockwise until it stops, and pull starter out.
3. Insert a new starter by aligning the two prongs (B) Fig.
14, in the end of the starter with the two holes (C) in the
starter holder. Turn the starter clockwise until it stops.
4. Replace the other starter in the same manner.
Fig. 13
Fig. 14
A
B
B
C
C

13
PARTS, SERVICE OR WARRANTY ASSISTANCE
All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location
of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
KEEP MACHINE CLEAN
Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth.
NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.
Wear ANSI Z87.1 safety glasses while using compressed air.
FAILURE TO START
Should your machine fail to start, check to make sure the prongs on the cord plug are making good contact in the outlet. Also,
check for blown fuses or open circuit breakers in the line.
SERVICE
A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site www.deltamachinery.com for a catalog or
for the name of your nearest supplier.
Since accessories other than those offered by Delta have not been tested
with this product, use of such accessories could be hazardous. For safest operation, only
Delta recommended accessories should be used with this product.
ACCESSORIES

14
