Enerzone Destination 1.5 User manual

45765A
Printed in Canada 19-09-2014
INSTALLATION
AND OPERATION
MANUAL
Destination 1.5
Insert
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOOD INSERT
Safety tested according to ULC S628
and UL 1482 Standards
by Intertek Testing Services
www.enerzone-intl.com
Stove Builder International Inc.
250, rue de Copenhague,
St-Augustin-de-Desmaures
(Quebec) Canada G3A 2H3
Tel: [phone]
Fax: [phone]
READ AND KEEP THIS MANUAL FOR REFERENCE
This manual is available for free download on the manufacturer’s web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from unauthorized
sources.

2Destination 1.5 Insert Installation and Operation Manual
THANK YOU FOR CHOOSING THIS ENERZONE WOOD INSERT
As one of North America’s largest and most respected wood stove and fireplace manufacturers,
Stove Builder International takes pride in the quality and performance of all its products. We want
to help you get maximum satisfaction as you use this product.
In the pages that follow you will find general advice on wood heating, detailed instructions for safe
and effective installation, and guidance on how to get the best performance from this insert as you
build and maintain fires, and maintain your wood heating system.
We recommend that our wood burning hearth products be installed and serviced by professionals
who are certified in the United States by NFI (National Fireplace Institute®) or in Canada by WETT
(Wood Energy Technology Transfer) or in Quebec by APC (Association des Professionnels du
Chauffage).
Congratulations on making a wise purchase.
If this insert is not properly installed, combustible materials near it may overheat. To reduce
the risk of fire, follow the installation instructions in this manual exactly. Contact local
building or fire officials about restrictions and installation inspection requirements in your
area.
Please read this entire manual before you install and use your new insert. You may need to
get a building permit for the installation of this insert and the chimney that it is connected
to. Consult your municipal building department or fire department before installation. We
recommend that you also inform your home insurance company to find out if the
installation will affect your policy.
This heating unit is designed to serve as a supplementary heat source. We recommend that
a primary heat source also be available in the home. The manufacturer cannot be
responsible for costs associated with the use of another heating system.
REGISTER YOUR WARRANTY ONLINE
To receive full warranty coverage, you will need to show evidence of
the date you purchased your stove. Keep your sales invoice. We also
recommend that you register your warranty online at:
http://enerzone-intl.com/warranty-registration.aspx
Registering your warranty online will help us to quickly track the
information we need about your stove.

Destination 1.5 Insert Installation and Operation Manual 3
Table of content
PART A - OPERATION AND MAINTENANCE ...............................6
1Safety Information.....................................................................6
1.1Summary of Operation and Maintenance Cautions and Warnings..................................... 6
2General Information...................................................................8
2.1Destination 1.5 Insert Specifications................................................................................... 8
2.2Zone Heating and How to Make it Work for You............................................................... 11
2.3The Benefits of Low Emissions and High Efficiency ......................................................... 12
2.4The SBI Commitment to You and the Environment .......................................................... 12
2.4.1What is Your New Insert Made Of?............................................................................... 12
3Fuel ...........................................................................................13
3.1Materials That Should Not be Burned............................................................................... 13

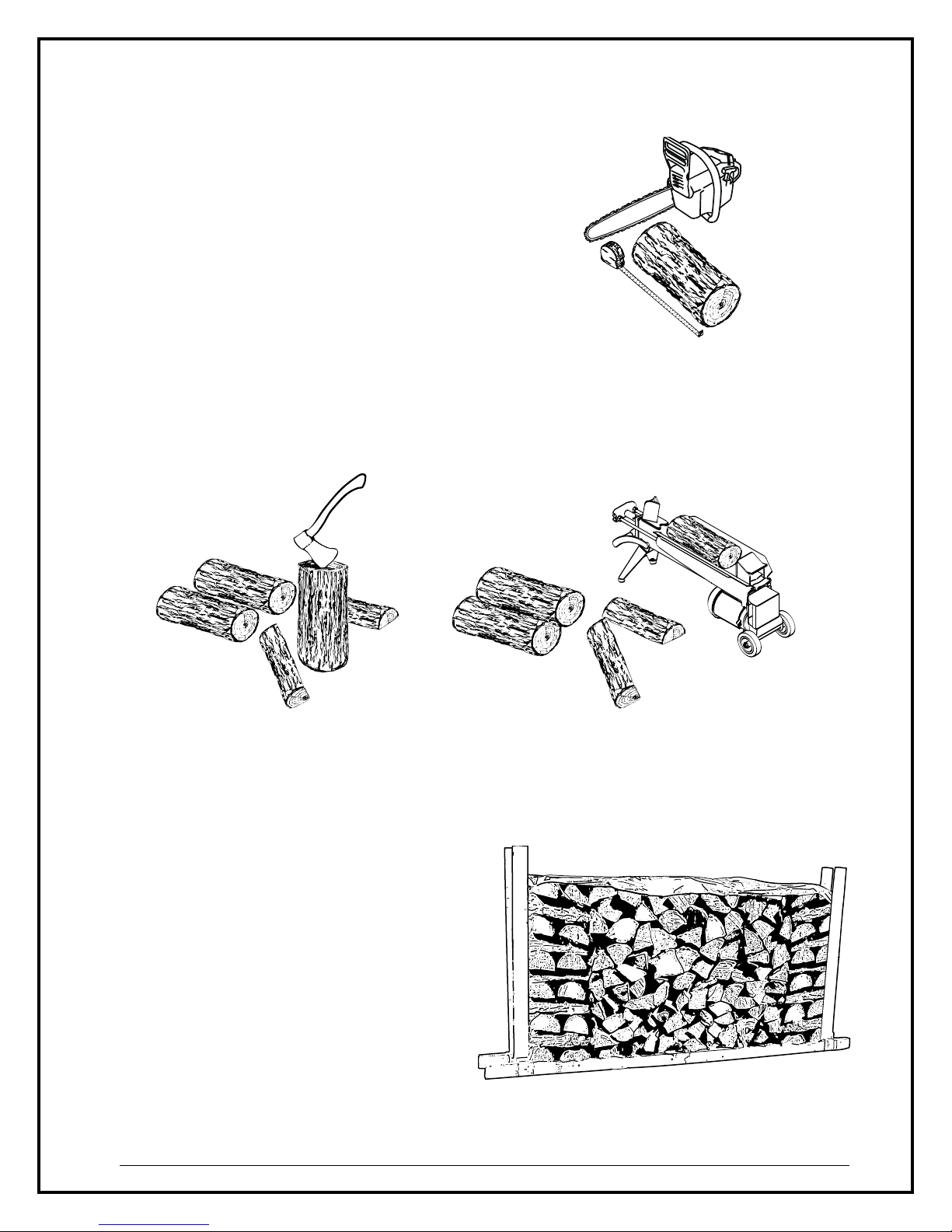

3.2How to Prepare or Buy Good Firewood ............................................................................ 13
3.2.1What is Good Firewood?............................................................................................... 13
3.2.2Tree Species ................................................................................................................. 13
3.2.3Log Length .................................................................................................................... 14
3.2.4Piece Size ..................................................................................................................... 14
3.2.5How to Dry Firewood..................................................................................................... 14

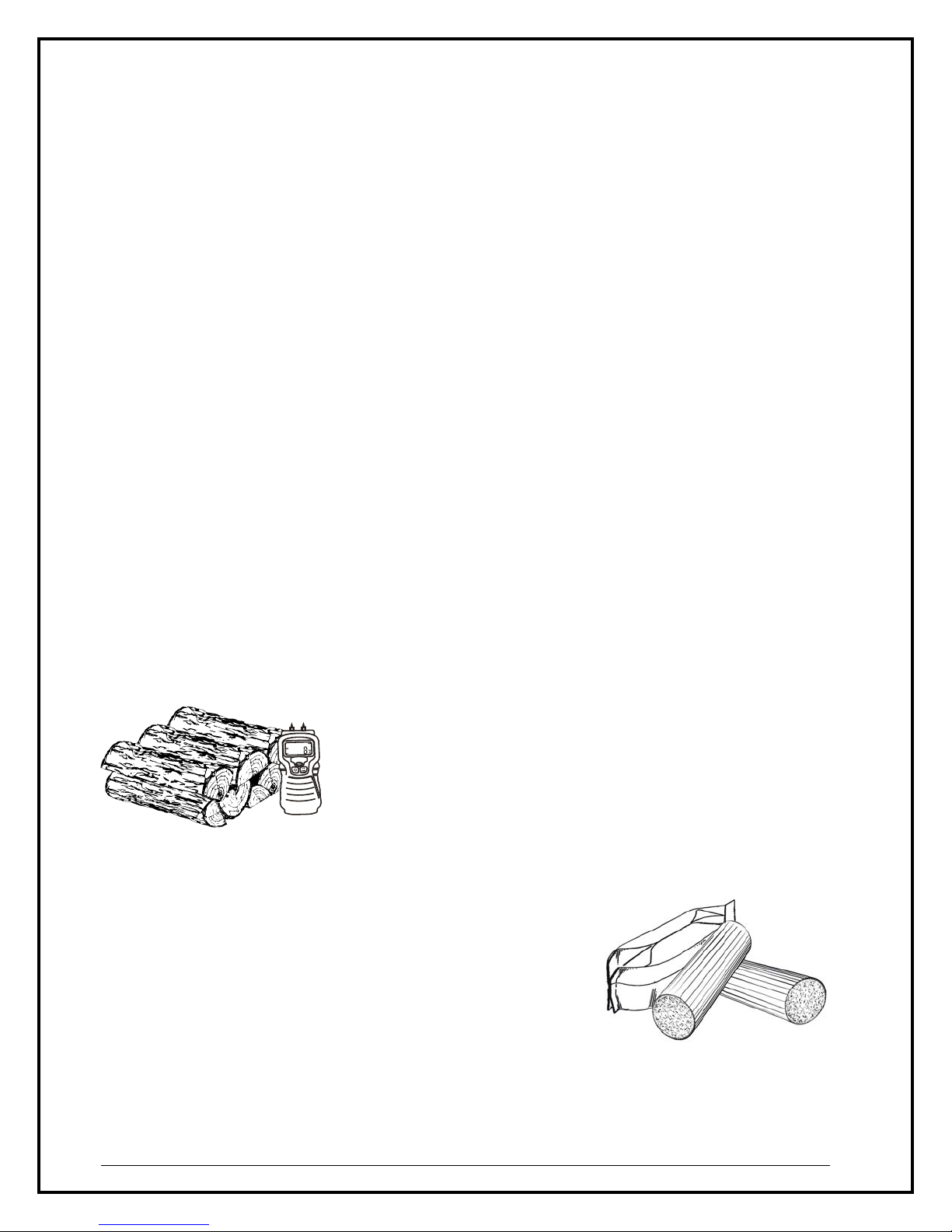

3.2.6Judging Firewood Moisture Content.............................................................................. 15
3.3Manufactured Logs ........................................................................................................... 15
4Operating Your Insert..............................................................16
4.1Your First Fires ................................................................................................................. 16
4.2Lighting Fires .................................................................................................................... 16
4.2.1Conventional Fire Starting............................................................................................. 16
4.2.2The Top Down Fire........................................................................................................ 17
4.2.3Two Parallel Logs.......................................................................................................... 17
4.2.4Using Fire Starters ........................................................................................................ 17
4.3Maintaining Wood Fires .................................................................................................... 17
4.3.1General Advice.............................................................................................................. 17
4.3.2Ash Removal ................................................................................................................. 18
4.3.3Raking Charcoal............................................................................................................ 18
4.3.4Firing Each New Load Hot ............................................................................................ 19
4.3.5Turning Down the Air Supply......................................................................................... 19

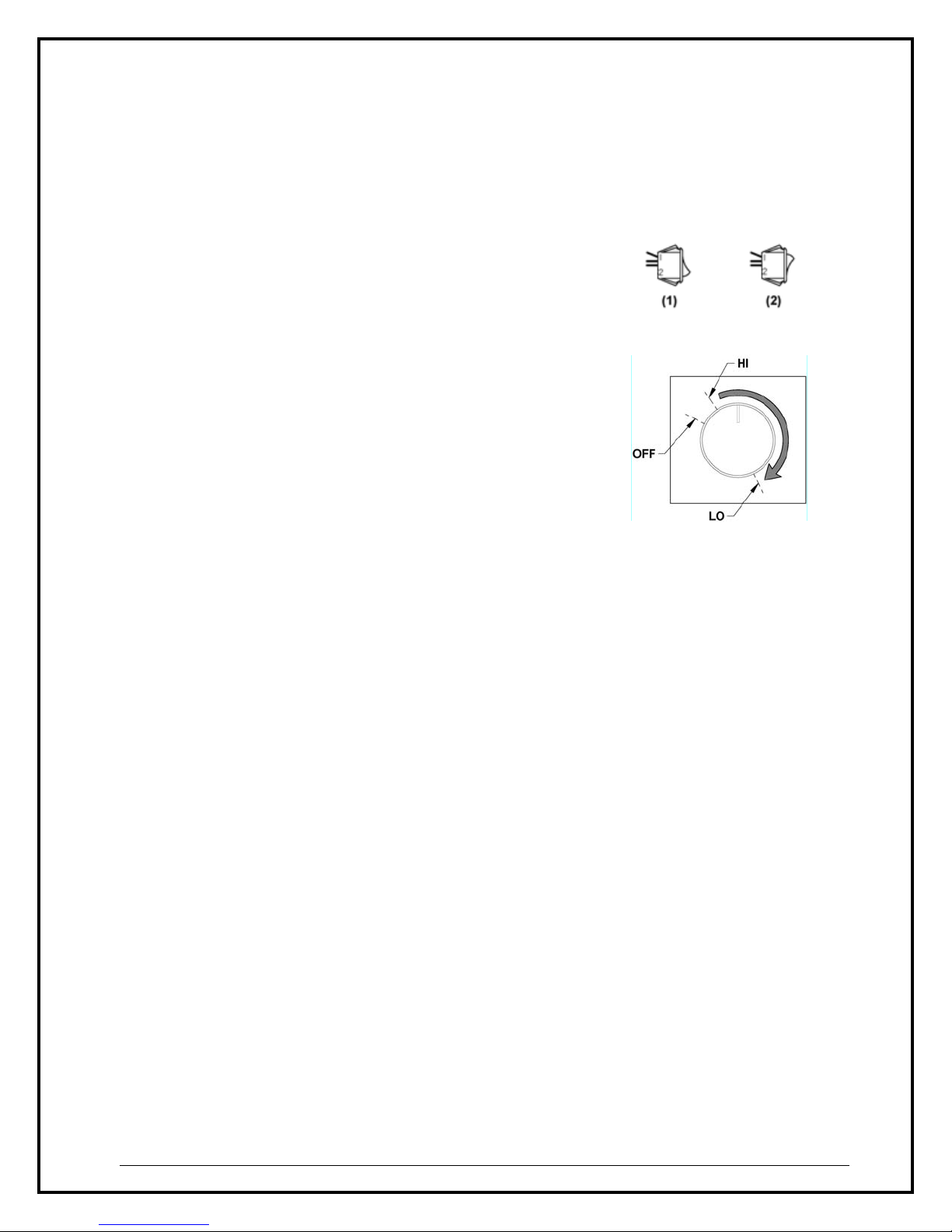

4.4Optional Fan Operation..................................................................................................... 20
4.4.1Building Different Fires for Different Needs................................................................... 20

4Destination 1.5 Insert Installation and Operation Manual
5Maintaining Your Wood Heating System...............................22
5.1Insert Maintenance ........................................................................................................... 22
5.1.1Cleaning Door Glass ..................................................................................................... 22
5.1.2Door adjustment ............................................................................................................ 23
5.1.3Replacing the Door Gasket ........................................................................................... 23
5.1.4Replacing the Glass Gasket and/or the Glass .............................................................. 24
5.1.5Cleaning and Painting the Insert ................................................................................... 26
5.2Chimney and Chimney Liner Maintenance ....................................................................... 26
5.2.1Why Chimney Cleaning is Necessary ........................................................................... 26
5.2.2How Often Should You Clean the Chimney? ................................................................ 26
5.2.3Cleaning the Chimney ................................................................................................... 27
PART B - INSTALLATION.............................................................28
6Pre-Installation Masonry fireplace requirements .................28
7Safety Information...................................................................29
7.1Summary of Installation Cautions and Warnings .............................................................. 29
7.2Regulations Covering Insert Installation ........................................................................... 30
8Clearances to Combustible Material......................................30
8.1Location of the Certification Label..................................................................................... 30
8.2The Masonry Fireplace’s Draft Control System (Throat Damper)..................................... 31
8.3Compliance of a Combustible Mantel Shelf ...................................................................... 31
8.4Positioning the Unit ........................................................................................................... 31
8.5Minimum Masonry Opening, Clearances to Combustibles, and Floor Protector .............. 36
9The Venting System ................................................................38
9.1General ............................................................................................................................. 38
9.2Block-Off Plate .................................................................................................................. 38
9.3Suitable Chimneys ............................................................................................................ 39
9.4Liner installation ................................................................................................................ 39
9.5Chimney liner installation .................................................................................................. 40
9.6Minimum Chimney Height................................................................................................. 41
9.7The Relationship Between the Chimney and the House .................................................. 41
9.7.1Why the chimney should penetrate the highest heated space...................................... 41
9.8Supply of Combustion Air ................................................................................................. 42
9.8.1Air Supply in Conventional Houses ............................................................................... 42

Destination 1.5 Insert Installation and Operation Manual 5
Appendix 1: Optional Blower Assembly With Bottom Facing
(AC01351) Installation ..................................................................43
Appendix 2: Optional Bottom Facing without Blower (AC01352)
Installation.....................................................................................46
Appendix 3: Optional 29" H x 44" W Backing Plate (May Be Cut
To 26"H) Installation.....................................................................47
Appendix 4: Blower Replacement...............................................50
Appendix 5: Installation of Secondary Air Tubes and Baffle ...53
Appendix 6: Removal instructions..............................................56
Appendix 7: Exploded Diagram and Parts List..........................57
ENERZONE LIMITED LIFETIME WARRANTY.............................60

6Destination 1.5 Insert Installation and Operation Manual
PART A - OPERATION AND MAINTENANCE
Please see Part B for installation instructions.
1 Safety Information
1.1 Summary of Operation and Maintenance Cautions and Warnings
•HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR INSERT
OPERATION.
•USING AN INSERT WITH CRACKED OR BROKEN COMPONENTS, SUCH AS GLASS OR
FIREBRICKS OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION AND MAY
DAMAGE THE INSERT.
•OPEN THE AIR CONTROL FULLY BEFORE OPENING THE LOADING DOOR.
•THIS INSERT IS NOT DESIGNED TO BE USED WITH THE DOOR OPEN. THE DOOR MAY
BE OPEN ONLY DURING LIGHTING PROCEDURES OR RELOADING. DO NOT LEAVE
THE INSERT UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED DURING IGNITION.
ALWAYS CLOSE THE DOOR AFTER IGNITION.
•NEVER USE GASOLINE, LANTERN FUEL (NAPHTHA), FUEL OIL, MOTOR OIL,
KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR AEROSOLS TO
START A FIRE IN THIS INSERT. KEEP ALL SUCH LIQUIDS OR AEROSOLS WELL AWAY
FROM THE INSERT WHILE IT IS IN USE.
•DO NOT STORE FUEL WITHIN HEATER MINIMUM INSTALLATION CLEARANCES.
•BURN ONLY SEASONED NATURAL FIREWOOD.

Destination 1.5 Insert Installation and Operation Manual 7
•DO NOT BURN:
oGARBAGE OF ANY KIND,
oCOAL OR CHARCOAL,
oTREATED, PAINTED OR COATED WOOD,
oPLYWOOD OR PARTICLE BOARD,
oFINE PAPER, COLORED PAPER OR CARDBOARD,
oSALT WATER DRIFTWOOD,
oMANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES,
oRAILROAD TIES OR
oLIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE.
•THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
•DO NOT ELEVATE THE FIRE BY MEANS OF GRATES, AND IRONS OR OTHER MEANS.
•SOME JURISDICTIONS IN THE USA REQUIRE A SUPPLY OF OUTDOOR COMBUSTION
AIR FOR THE INSERT. IN CANADA, AN OUTDOOR AIR SUPPLY IS NOT REQUIRED, IF A
CARBON MONOXIDE (CO) DETECTOR/ALARM IS LOCATED IN THE ROOM IN WHICH
THE INSERT IS INSTALLED. THE CO DETECTOR WILL PROVIDE WARNING IF FOR ANY
REASON THE WOOD INSERT FAILS TO FUNCTION CORRECTLY. IF YOU ARE
REQUIRED TO INSTALL AN OUTDOOR AIR SUPPLY, WE RECOMMEND THAT YOU
ALSO INSTALL A CO DETECTOR/ALARM TO PROVIDE WARNING IF SMOKE SPILLAGE
FROM THE INSERT OCCURS.

8Destination 1.5 Insert Installation and Operation Manual
2 General Information

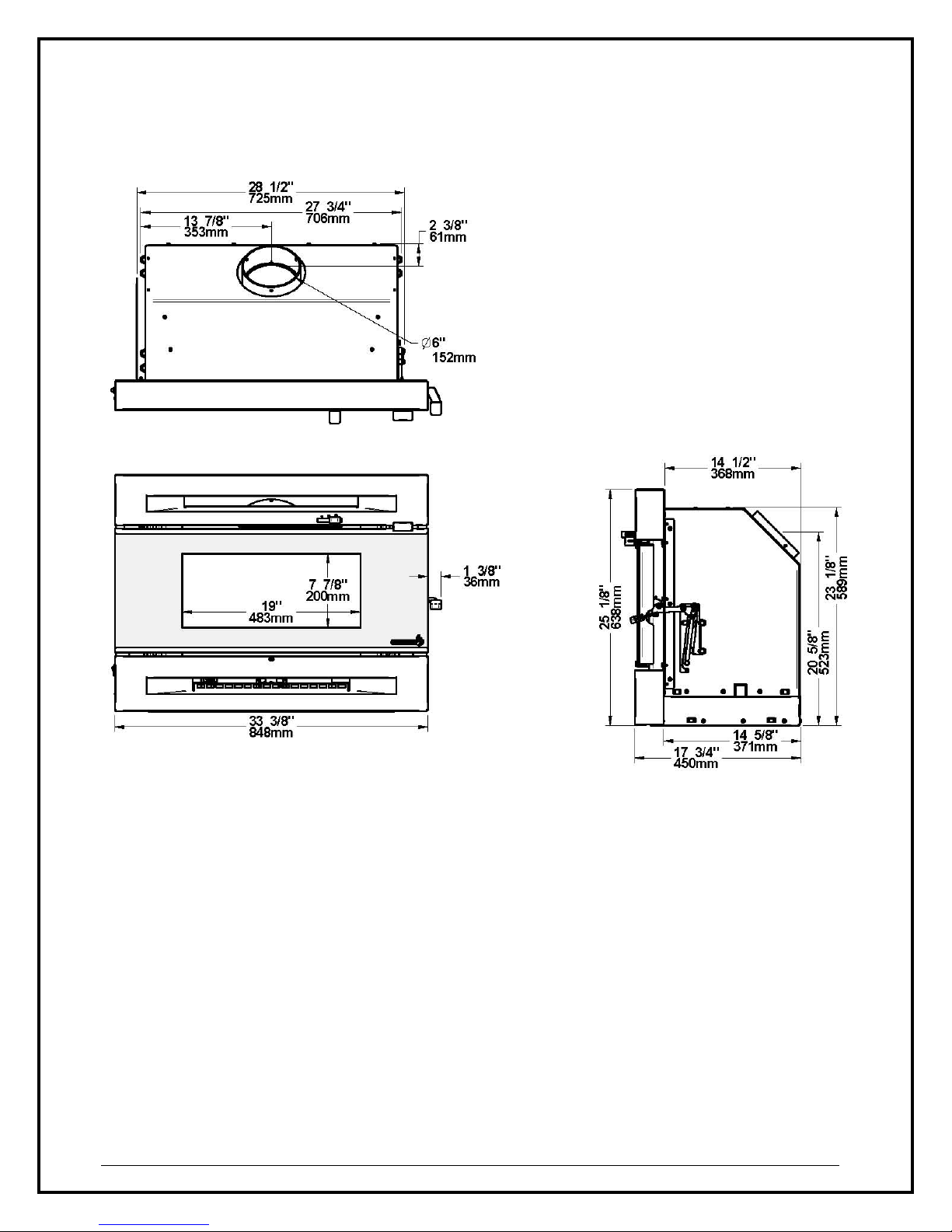

2.1 Destination 1.5 Insert Specifications
Fuel Type Cordwood
Test Standards (safety) ULC S628 and UL 1482
Test Standard (emissions) EPA Method 28 (40 CFR Part 60)
Heating capacity range* 500 to 1700 sq. ft. (46 to 158 m2)
Maximum heat output**
(EPA test fuel) 26 525 BTU/h (7,8 kW/h).
Maximum heat output**
(natural hardwood fuel) 65 000 BTU/h (19 kW/h).
Optimum efficiency 70,4 %
Test Standard (efficiency) CSA B415.1-10
Approximate Burn Time 5 to 6 hours
Shipping Weight ± 280 lb (127 kg) (to be confirmed)
Firebox Volume 1.5 cu.ft. (0,0424 m3)
Maximum Log Length 19 1/2" east-west***
Flue Outlet Diameter 6" (150 mm) diameter (vertical with adaptor)
Baffle Material C-Cast
* Burn time and heating capacity may vary subject to location in home, chimney draft, chimney
diameter, locality, heat loss factors, climate, fuels and other variables.
** The EPA test fuel is dimensional Douglas fir pieces stapled together into cribs with air spaces
between. We also test using the same procedure except using split hardwood firewood to reflect
real-world heat output. This insert is not intended to operate at its peak heat output continuously.
*** East-west: through the door you see the sides of the logs; north-south: through the door you
see the ends of the logs.

Destination 1.5 Insert Installation and Operation Manual 9
Installation on blower assembly with bottom facing
(AC01351)

10 Destination 1.5 Insert Installation and Operation Manual
Installation with bottom facing without blower (AC01352)

Destination 1.5 Insert Installation and Operation Manual 11
Common measurements with AC01351 and AC01352
2.2 Zone Heating and How to Make it Work for You
Your new Destination 1.5 wood insert is a space heater, which means it is intended to heat the
area it is installed in, as well as spaces that connect to that area, although to a lower temperature.
This is called zone heating and it is an increasingly popular way to heat homes or spaces within
homes.
Zone heating can be used to supplement another heating system by heating a particular space
within a home, such as a basement family room or an addition that lacks another heat source.
Although the insert may be able to heat the main living areas of your house to an adequate
temperature, we strongly recommend that you also have a conventional oil, gas or electric heating
system to provide backup heating.
Your success with zone heating will depend on several factors, including the correct sizing and
location of the insert, the size, layout and age of your home and your climate zone. Three-season
vacation homes can usually be heated with smaller inserts than houses that are heated all winter.

12 Destination 1.5 Insert Installation and Operation Manual
2.3 The Benefits of Low Emissions and High Efficiency
The low smoke emissions produced by the special features inside the Destination 1.5 firebox mean
that your household will release up to 90 percent less smoke into the outside environment than if
you used an older conventional stove. But there is more to the emission control technologies than
protecting the environment.
The smoke released from wood when it is heated contains about half of the energy content of the
fuel. By burning the wood completely, your insert releases all the heat energy from the wood
instead of wasting it as smoke up the chimney. Also, the features inside the firebox allow you to
reduce the air supply to control heat output, while maintaining clean and efficient flaming
combustion, which boosts the efficient delivery of heat to your home.
The emission control and advanced combustion features of your insert can only work properly if
your fuel is in the correct moisture content range of 15 to 20 percent. See Section 3 of this manual
for suggestions on preparing fuelwood and judging its moisture.
2.4 The SBI Commitment to You and the Environment
The SBI team is committed to protecting the environment, so we do everything we can to use only
materials in our products that will have no lasting negative impact on the environment.
2.4.1 What is Your New Insert Made Of?
The body of your insert, which is most of its weight, is carbon steel. Should it ever become
necessary many years in the future, almost the entire insert can be recycled into new products,
thus eliminating the need to mine new materials.
The paint coating on your insert is very thin. Its VOC content (Volatile Organic Compounds) is very
low. VOCs can be responsible for smog, so all the paint used during the manufacturing process
meets the latest air quality requirements regarding VOC reduction or elimination.
The air tubes are stainless steel, which can also be recycled.
The C-Cast baffle is made of an aluminosilicate fibre material that is compressed with a binder to
form a rigid board. C-Cast can withstand temperatures above 2,000 °F. It is not considered
hazardous waste. Disposal at a landfill is recommended.
Firebrick is mainly composed of silicon dioxide, also known as silica, a product processed from a
mined mineral. It is most commonly found in nature in the form of sand and clay. Disposal at a
landfill is recommended.
The door and glass gaskets are fibreglass which is spun from melted sand. Black gaskets have
been dipped into a solvent-free solution. Disposal at a landfill is recommended.
The door glass is a 5 mm thick ceramic material that contains no toxic chemicals. It is made of
natural raw materials such as sand and quartz that are combined in such a way to form a high
temperature glass. Ceramic glass cannot be recycled in the same way as normal glass, so it
should not be disposed of with your regular household products. Disposal at a landfill is
recommended.

Destination 1.5 Insert Installation and Operation Manual 13
3 Fuel
3.1 Materials That Should Not be Burned
•GARBAGE OF ANY KIND,
•COAL OR CHARCOAL,
•TREATED, PAINTED OR COATED WOOD,
•PLYWOOD OR PARTICLE BOARD,
•FINE PAPER, COLORED PAPER OR CARDBOARD,
•SALT WATER DRIFTWOOD
•MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES
•RAILROAD TIES
•LIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE
3.2 How to Prepare or Buy Good Firewood
3.2.1 What is Good Firewood?
Good firewood has been cut to the correct length for the insert, split to a range of sizes and
stacked in the open until its moisture content is reduced to 15 to 20 per cent.
3.2.2 Tree Species
The tree species the firewood is produced from is less important than its moisture content. The
main difference in firewood from various tree species is the density of the wood. Hardwoods are
denser than softwoods. People who live in the coldest regions of North America usually have only
spruce, birch and poplar, other low-density species to burn and yet they can heat their homes
successfully.
Homeowners with access to both hardwood and softwood fuel sometimes use both types for
different purposes. For example, softer woods make good fuel for relatively mild weather in spring
and fall because they light quickly and produce less heat Softwoods are not as dense as
hardwoods so a given volume of wood contains less energy. Using softwoods avoids overheating
the house, which can be a common problem with wood heating in moderate weather. Harder
woods are best for colder winter weather when more heat and longer burn cycles are desirable.
Note that hardwood trees like oak, maple, ash and beech are slower growing and longer lived than
softer woods like poplar and birch. That makes hardwood trees more valuable. The advice that
only hardwoods are good to burn is outdated. Old, leaky cast iron stoves wouldn’t hold a fire
overnight unless they were fed large pieces of hardwood. That is no longer true. You can
successfully heat your home by using the less desirable tree species and give the forest a break at
the same time.

14 Destination 1.5 Insert Installation and Operation Manual
3.2.3 Log Length
Logs should be cut at least 1” (25 mm) shorter
than the firebox so they fit in easily. Pieces that
are even slightly too long make loading the
insert very difficult. The most common standard
length of firewood is 16” (400 mm).
The pieces should be a consistent length, with
a maximum of 1” (25 mm) variation from piece
to piece.
3.2.4 Piece Size
Firewood dries more quickly when it is split. Large unsplit rounds can take years to dry enough to
burn. Even when dried, unsplit logs are difficult to ignite because they don’t have the sharp edges
where the flames first catch. Logs as small as 3” (75 mm) should be split to encourage drying.
Wood should be split to a range of sizes, from about 3” to 6” (75 mm to 150 mm) in cross section.
Having a range of sizes makes starting and rekindling fires much easier. Often, the firewood
purchased from commercial suppliers is not split finely enough for convenient stoking. It is
sometimes advisable to resplit the wood before stacking to dry.
3.2.5 How to Dry Firewood
Firewood that is not dry enough to burn is the
cause of most complaints about wood inserts.
Continually burning green or unseasoned wood
produces more creosote and involves lack of
heat and dirty glass door. See Section 5:
Maintaining your wood heating system for
concerns about creosote.

Destination 1.5 Insert Installation and Operation Manual 15
Here are some things to consider in estimating drying time:
•firewood takes a long time to dry
•firewood bought from a dealer is rarely dry enough to burn, so it is advisable to buy the wood in
spring and dry it yourself
•drying happens faster in dry weather than in damp, maritime climates
•drying happens faster in warm summer weather than in winter weather
•small pieces dry more quickly than large pieces
•split pieces dry more quickly than unsplit rounds
•softwoods take less time to dry than hardwoods
•softwoods like pine, spruce, and poplar/aspen can be dry enough to burn after being stacked in
the open for only the summer months
•hardwoods like oak, maple and ash can take one, or even two years to dry fully, especially if
the pieces are big
•firewood dries more quickly when stacked in the open where it is exposed to sun and wind; it
takes much longer to dry when stacked in a wood shed
•firewood that is ready to burn has a moisture content between15 and 20% by weight and will
allow your insert to produce its highest possible efficiency
3.2.6 Judging Firewood Moisture Content
You can find out if some firewood is dry enough to burn by using these guidelines:
•cracks form at the ends of logs as they dry
•as it dries in the sun, the wood turns from white or cream colored to grey or yellow,
•bang two pieces of wood together; seasoned wood sounds hollow and wet wood sounds dull,
•dry wood is much lighter in weight than wet wood,
•split a piece, and if the fresh face feels warm and dry it is dry enough to burn; if it feels damp, it
is too wet,
•burn a piece; wet wood hisses and sizzles in the fire and dry wood does not.
You could buy a wood moisture meter to test your firewood.
3.3 Manufactured Logs
Do not burn manufactured logs made of wax impregnated
sawdust or logs with any chemical additives. Manufactured
logs made of 100% compressed sawdust can be burned, but
use caution in the number of these logs burned at one time.
Start with one manufactured log and see how the insert
reacts. Never use more than two manufactured logs.

16 Destination 1.5 Insert Installation and Operation Manual
4 Operating Your Insert
4.1 Your First Fires
Two things will happen as you burn your first few fires; the paint cures and the internal components
of the insert are conditioned.
As the paint cures, some of the chemicals vaporize. The vapors are not poisonous, but they do
smell bad. Fresh paint fumes can also cause false alarms in smoke detectors. So, when you first
light your insert, be prepared by opening doors and/or windows to ventilate the house. As you burn
hotter and hotter fires, more of the painted surfaces reach the curing temperature of the paint. The
smell of curing paint does not disappear until you have burned one or two very hot fires.
Burn one or two small fires to begin the curing and conditioning process. Then build bigger and
hotter fires until there is no longer any paint smell from the insert. Once the paint smell disappears,
your insert is ready for serious heating.
4.2 Lighting Fires
Each person who heats with wood develops their own favorite way to light fires. Whatever method
you choose, your goal should be to get a hot fire burning quickly. A fire that starts fast produces
less smoke and deposits less creosote in the chimney. Here are three popular and effective ways
to start wood fires.
4.2.1 Conventional Fire Starting
The conventional way to build a wood fire is to
bunch up 5 to 10 sheets of plain newspaper and
place them in the firebox. Next, place 10 or so
pieces of fine kindling on the newspaper. This
kindling should be very thin; less than 1” (25 mm).
Next, place some larger kindling pieces on the fine
kindling. Open the air control fully and light the
newspaper. If you have a tall, straight venting
system you should be able to close the door
immediately and the fire will ignite. Once the fire
has ignited, close the door and leave the air control
fully open.
A conventional kindling fire with paper
under finely split wood.
DO NOT LEAVE THE INSERT UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED.
ALWAYS CLOSE AND LATCH THE DOOR AFTER THE FIRE IGNITES.
After the kindling fire has mostly burned, you can add standard firewood pieces until you have a
fire of the right size for the conditions.

Destination 1.5 Insert Installation and Operation Manual 17
4.2.2 The Top Down Fire
The top down fire starting method solves two problems with the conventional method: first, it does
not collapse and smother itself as it burns; and second, it is not necessary to build up the fire
gradually because the firebox is loaded before the fire is lit. A top down fire can provide up to two
hours of heating or more. The top down method only works properly if the wood is well-seasoned.
Start by placing three or four full-sized split pieces of dry firewood in the firebox. Next, place 4 or 5
more finely split pieces of firewood (2” to 3” [50 mm to 75 mm] in dia.) on the base logs at right
angles (log cabin style). Now place about 10 pieces of finely split kindling on the second layer at
right angles.
The fire is topped with about 5 sheets of newspaper. You can just bunch them up and stuff them in
between the kindling and the underside of the baffle. Or you can make newspaper knots by rolling
up single sheets corner to corner and tying a knot in them. The advantage of knots is that they
don’t roll off the fire as they burn. Light the newspaper and watch as the fire burns from top to
bottom.
4.2.3 Two Parallel Logs
Place two spit logs in the firebox. Place a few sheets of twisted newspaper between the logs. Now
place some fine kindling across the two logs and some larger kindling across those, log cabin style.
Light the newspaper.
4.2.4 Using Fire Starters
Many people like to use commercial fire starters instead of newspaper. Some of these starters are
made of sawdust and wax and others are specialized flammable solid chemicals. Follow the
package directions for use.
Gel starter may be used but only if there are no hot embers present. Use only in a cold firebox to
start a fire.
DO NOT USE FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, FUEL OIL, MOTOR
OIL, OR AEROSOLS TO START OR REKINDLE THE FIRE.
4.3 Maintaining Wood Fires
4.3.1 General Advice
Wood heating with a space heater is very different than other forms of heating. There will be
variations in the temperature in different parts of the house and there will be variations in
temperature throughout the day and night. This is normal, and for experienced wood burners these
are advantages of zone heating with wood.
Do not expect steady heat output from your insert. It is normal for its surface temperature to rise
after a new load of wood is ignited and for its temperature to gradually decline as the fire
progresses. This rising and falling of temperature can be matched to your household routines. For
example, the area temperature can be cooler when you are active, such as when doing housework
or cooking, and it can be warmer when you are inactive, such as when reading or watching
television.
Wood burns best in cycles. A cycle starts when a new load of wood is ignited by hot coals and
ends when that load has been consumed down to a bed of charcoal about the same size as it was

18 Destination 1.5 Insert Installation and Operation Manual
when the wood was loaded. Do not attempt to produce a steady heat output by placing a single log
on the fire at regular intervals. Always place at least three, and preferably more, pieces on the fire
at a time so that the heat radiated from one piece helps to ignite the pieces next to it. Each load of
wood should provide several hours of heating. The size of each load can be matched to the
amount of heat needed.
When you burn in cycles, you rarely need to open the insert’s loading door while the wood is
flaming. This is an advantage because there is more chance that smoke will leak from the insert
when the door is opened as a full fire is burning.
IF YOU MUST OPEN THE DOOR WHILE THE FUEL IS FLAMING, OPEN THE AIR CONTROL
FULLY FOR A FEW MINUTES, THEN UNLATCH AND OPEN THE DOOR SLOWLY.
4.3.2 Ash Removal
Ash should be removed from the firebox every two or three days of full time heating. Do not let the
ash build up in the firebox because it will interfere with proper fire management.
The best time to remove ash is after an overnight fire when the insert is relatively cool, but there is
still some chimney draft to draw the ash dust into the insert and prevent it from coming into the
room.
After ashes have been removed from the insert and placed in a tightly covered metal container,
they should be taken outside immediately. The closed container of ashes should be placed on a
non-combustible floor or on the ground well away from all combustible materials pending final
disposal. Ashes normally contain some live charcoal that can stay hot for several days. If the ashes
are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the
closed container until all cinders have thoroughly cooled. Other waste should not be placed in this
container.
NEVER STORE ASHES INDOORS OR IN A NON-METALIC CONTAINER OR ON A WOODEN
DECK.
4.3.3 Raking Charcoal
Rekindle the fire when you notice that the room temperature has fallen. You will find most of the
remaining charcoal at the back of the firebox, furthest from the door. Rake these coals towards the
door before loading. There are two reasons for this raking of the coals. First, it concentrates them
near where most of the combustion air enters the firebox and where they can ignite the new load
quickly, and second, the charcoal will not be smothered by the new load of wood. If you were to
simply spread the charcoal out, the new load will smoulder for a long time before igniting.

Destination 1.5 Insert Installation and Operation Manual 19
Remove ash first, and then rake charcoal towards the front of the firebox before loading so that it
will ignite the new load.
4.3.4 Firing Each New Load Hot
Place the new load of wood on and behind the charcoal, and not too close to the glass. Close the
door and open the air control fully. Leave the air control fully open until the firebox is full of flames,
the wood has charred to black and its edges are glowing red. Firing each load of wood hot
accomplishes a few things:
•drives the surface moisture from the wood,
•creates a layer of char on the wood, which slows down its release of smoke,
•heats the firebox components so they reflect heat back to the fire, and
•heats the chimney so it can produce strong, steady draft for the rest of the cycle.
Although it is important to fire each new load hot to prepare for a clean burn, do not allow the fire to
burn at full intensity for more than a few minutes.
DO NOT LEAVE THE INSERT UNATTENDED WHILE A NEW LOAD IS BEING FIRED HOT.
DO NOT OVERFIRE.
When you burn a new load of wood hot to heat up the wood, the insert and the chimney, the result
will be a surge of heat from the insert. This heat surge is welcome when the room temperature is a
little lower than desirable, but not welcome if the space is already warm. Therefore, allow each
load of wood to burn down so that the space begins to cool off a little before loading. Letting the
space cool before loading is one of the secrets to clean burning and effective zone heating.
4.3.5 Turning Down the Air Supply
Once the firewood, firebox and chimney are
hot, you can begin to reduce the air supply for
a steady burn.
As you reduce the air supply to the fire, two
important things happen. First, the firing rate
slows down to spread the heat energy in the
fuel over a longer period of time. Second, the
flow rate of exhaust through the insert and flue
pipe slows down, which gives more time for
the transfer of heat from the exhaust. You will
notice that as you reduce the air setting, the
flames slow down. This is your indication that
the insert is burning at its peak efficiency.
If the flames get small and almost disappear
when you turn down the air, you have turned
down the air too early, or your firewood is
wetter than it should be. With good fuel and
correct air control use, the flames should slow
down, but should stay large and steady, even
as the air supply is reduced.

20 Destination 1.5 Insert Installation and Operation Manual
4.4 Optional Fan Operation
Allow the insert to reach operating temperature (approximately one hour), before turning on the
fan, since increased airflow from the fan will remove heat and affect the start-up combustion
efficiency.
The insert's optional fan assembly is equipped with a heat
sensor. You can set the switch to the manual position (1) to
operate the fan at any time. Select the position (2) to manually
stop the fan.
The optional fan has a rheostat, see the illustration to the right
to identify the different adjustment positions; either from high
(HI) to low (LO) or closed (OFF).
NOTE: ENSURE THE FAN CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
INSERT TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN CORD
BENEATH THE INSERT.
4.4.1 Building Different Fires for Different Needs
Using the air control is not the only way to match the insert’s heat output to the heat demand. Your
house will need far less heat in October than in January to be kept at a comfortable temperature. If
you fill the firebox full in fall weather, you will either overheat the space or turn the insert down so
much that the fire will be smoky and inefficient. Here are some suggestions for building fires to
match different heat demand.
4.4.1.1 Small Fires to Take the Chill Off the House
To build a small fire that will produce a low heat output, use small pieces of firewood and load them
crisscross in the firebox. The pieces should be only 3” to 4” in diameter. After raking the coals, you
can lay two pieces parallel to each other corner to corner in the firebox and lay two more across
them in the other direction. Open the air control fully and only reduce the air after the wood is fully
flaming. This kind of fire is good for mild weather when you are around to tend the insert and
should provide enough heat for four hours or more. Small fires like this are a good time to use
softer wood species so there will be less chance of overheating the house.
4.4.1.2 Long Lasting Low Output Fires
Sometimes you will want to build a fire to last up to eight hours, but don’t need intense heat. In this
case use soft wood species and place the logs compactly in the firebox so the pieces are packed
tightly together. You will need to fire the load hot for long enough to fully char the log surfaces
before you can turn the air down. Make sure the fire is flaming brightly before leaving the fire to
burn.
