ENFORCER EV-N2506-NW4WQ User manual

IP 5MP 2.8~12mm
Motorized Turret
Camera with WDR
EV-N2506-NW4WQ
Installation Manual
Features AI Functions
•1/2.7" 5MP SmartSens CMOS Sensor •Human and Vehicle Detection
•3 FPS@ 5MP (288 x162 ) •Perimeter Intrusion Detection
•2.8~12mm Motorized lens •Line Crossing Detection
•Tri-stream encoding: •Stationary Object Detection
H.265, H.264
,
and MJPEG
•Cross Counting
•True Wide Dynamic Range (WDR) •Heat Map
•Digital Noise Reduction (3DNR) •Crowd Density Detection
•True Day & Night function with ICR module
•ICR Sensitivity adjustment
•Corridor mode
•Queue Length Detection
•Face Detection
•IP66 Weatherproof
•IR Range 147' (45m)
•Smart IRs adjust IR strength to conditions
•MicroSD slot (512GB max)
•PoE (IEEE8 2.3af), 12VDC
•ONVIF® Profile G, S, and T conformant
•Operating temperature: -4 °~131°F
(-4 °~55°C)
For the full Web Administration manual,
download from the camera’s product
page on www.seco-larm.com.
ONVIF
®
is a trademark of ONVIF, Inc

IP 5MP 2.8~12mm Motorized Turret Camera with WDR
2 SECO-LARM U.S.A., Inc.
Parts List
1x
Camera
1x
Mounting Template
3x
Mounting Screws
1x
Hex Key
1x
Manual
1x
Weatherproof Connector
Specifications
Type Motorized turret camera
Sensor
1
/
2.7
" 5MP SmartSens CMOS
Video encoding H.265/H.264/MJPEG
Megapixels 5MP
Resolution 288 x162
Bac light Disable (Default), Back Light, HLC, WDR
DNR 2DNR N/A
3DNR Yes
AI functions
Human and Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection,
Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Detection,
Queue Length Detection, Face Detection
# of IR LEDs 4pcs (85 nm)
Lens 2.8~12mm, Motorized
Viewing angle 38°~134°
Minimum illumination Color: . 2 lux at F1.2 (AGC on), 3 Lux with IR on
F Stop F1.8 (W)~3.3 (T)
Gamma correction Auto
S/N ratio 39dB
Gain control Auto
White balance Auto
Operating voltage 12VDC, PoE (IEEE8 2.3af Class )
Current draw (IR Off) 8 mA max.
IP Rating IP66
Operating temperature -4 °~131° F (-4 °~55° C)
Dimensions ø5
5
/
16
" x5
1
/
8
" (ø135x13 mm)
Weight 25.6-oz (725g)
On-board storage Built-in memory card slot, supports MicroSD/SDHC/SDXC up to 512GB
Overview
ø5
5
/
16
" (ø135mm)
5
1
/
8
"
(13 mm)

IP 5MP 2.8~12mm Motorized Turret Camera with WDR
SECO-LARM U.S.A., Inc. 3
Micro SD / Reset button
compartment

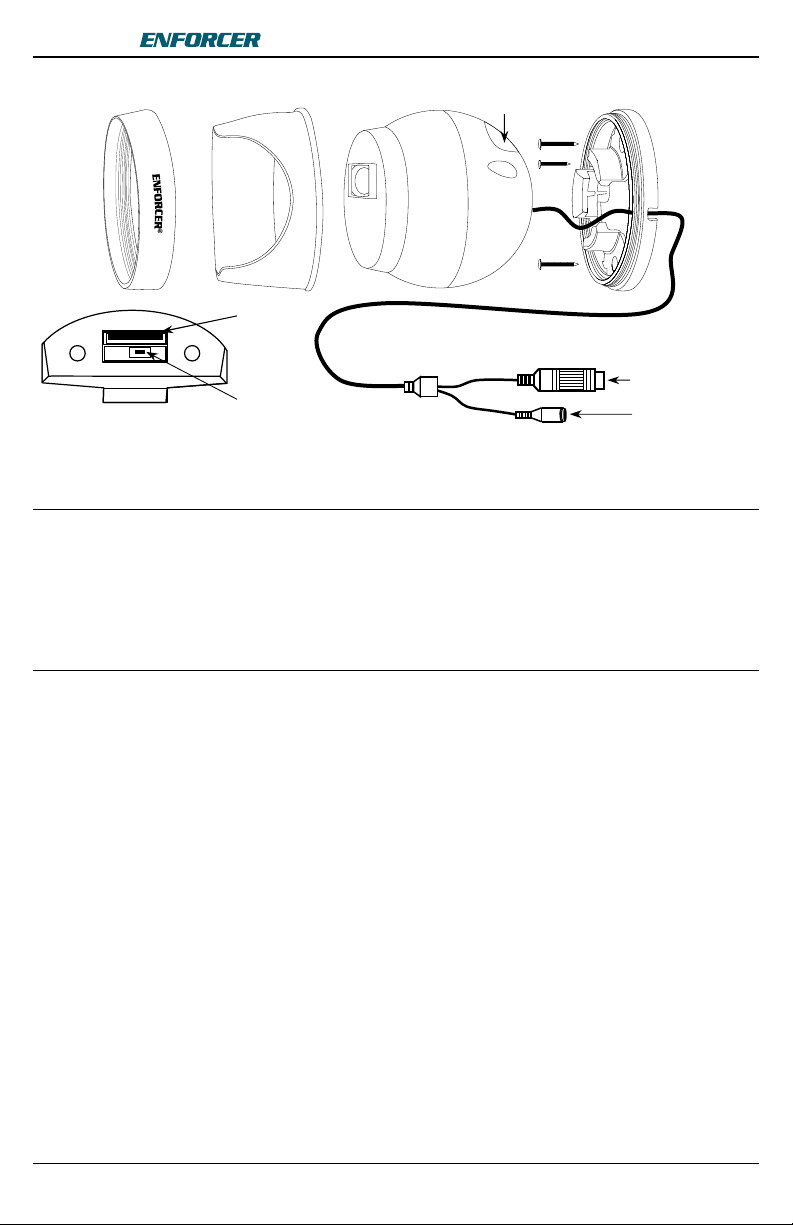

Overview (Continued)
IMPORTANT NOTES
•Do not cut DC jack or RJ45 jack as warranty will be voided.
•Do not open camera case, no serviceable parts.
Before Starting
1. Please read this manual carefully and keep it for
future reference.
2. Use the camera within given temperature and
electrical limits.
3. Do not mount in areas exposed to radiation, strong
magnetic fields, or strong electrical signals.
4. Do not point the camera at the sun. Heat could
damage the camera, even when not in use.
5. Do not open or disassemble the camera. There are
no field-serviceable parts inside.
6. Do not drop the camera or subject it to strong
vibrations.
Installation
1. Run a 12VDC power supply wire and cable with
an RJ45 jack through the wall at the location
where the camera is to be mounted. The 12VDC
power supply wire is not required if using PoE.
2. Install and Execute "Device Config Tool" on a
computer connected to the same network as the
camera.
3. Press the "Search" button. This will search for IP
cameras connected to the same router on the
network. It may take several seconds to
complete. Default IP address is 192.168.1.168.
4. Once the search is complete, click on the camera
IP or type the IP address manually using Internet
Explorer.
5. IP Address: The camera may use Dynamic or
Static IP addressing. An example of a typical
static IP setting is as follows:
IP Address: 192.168. .1 (you can change the
last column)
Netmask: 255.255.255.
Gateway: 192.168. .1
DNS1/2: You can copy the PC’s network
properties. This is for an internet
environment.
6. Input "admin" for user ID and password. If this is
the user's first time logging into the camera, the
user will be prompted for a new password.
NOTE: If the password is unknown, hold the
RESET button located on the camera for
about 1 seconds and reload "Device
Config Tool".
7. In order to access the camera web interface, the
user will be prompted to download and install the
Active-X web plugin.
8. Once installed, the user will be able to view live
camera video and modify necessary
configurations.
NOTE: For the full Web Admin manual, download from the camera’s product page on www.seco-larm.com.
DJ Jack
RJ45 Ethernet Jack
Micro
SD
Card slot
Reset
button
Top of camera

IP 5MP 2.8~12mm Motorized Turret Camera with WDR
FCC COMPLIANCE STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)
THIS DEVICE MAY
NOT CAUSE HARMFUL INTERFERENCE AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitt
ed. Any change to the antenna
or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
IMPORTANT
:
Users and installers of this product are responsible for ensuring this product complies with all national, state, and local l
aws and statutes related to
monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.
IMPORTANT:
Users and installers of this product are responsible for ensuring that the installation and configuration of this product com
plies with all national, state,
and local laws and codes. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
California Proposition 65 Warning:
These products may contain chemicals which are known to the State of California to cause cancer and birth defe
cts or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.
WARRANTY:
This SECO
-
LARM product is warranted against defects in material and workmanship wh
ile used in normal service for
three
(
3
)
year
s
from the date of
sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepa
id, to
SECO-LARM. This Warranty is void if damage is caused by or attributed
to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper
or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that
such equipment is not operating properly as a result of causes other
than defects in material and workmanship. The sole obligation of SECO-LARM and the purchaser’s
exclusive remedy, shall be limited to the replacement or repair
only, at SECO-LARM’s option. In no event shall SECO-
LARM be liable for any special, collateral, incidental, or consequential personal or property damage of any
kind to the purchaser or anyone else.
NOTICE:
The SECO
-
LARM policy is one of continual development and improvement. For th
at reason, SECO LARM reserves the right to change specifications without
notice. SECO-LARM is also not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2 23
SECO-LARM U.S.A., Inc. All rights reserved.
Troubleshooting
The screen is blank
•Check that the camera is powered up.
•Check that the power supply’s polarity is correct.
•Check that the monitor is powered up.
•Check that the video cable connecting the camera to the monitor is
connected properly.
The screen image is dim
•Clean the lens using a soft, clean cloth.
•Check that the light source is adequate.
The screen image has poor
contrast
•Adjust the monitor’s contrast knob.
•Change the position of the camera.
The screen image flickers •Change the position of the camera.
The screen image is distorted •Change the position of the camera.
The camera case is hot •Check that the correct power supply is in use.
