ENQT LTElite User manual

Network Tester LTE
HANDBOOK
Do you have questions about our products?
[phone] [e-mail]

Content
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AboutNetworkTesterLTE... . .. . . .. . . .. . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . ... . .. . . .. . . .. . . .. . ... . ... . ... . ... . ... . 4
Dierentiation network tester LTElite / LTE / LTE+ / LTEmax ...... . ..... . .... . . .... . . .... . . .... . . .... . . .... . . .... . . .... . . .... . ....4
General notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Quick Start Guide & Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Functionsofthenetworktester . . .. . .. . ... ... . .. . .. . .. . ... . .. . .. . .. . ... . .. . .. . .. . .. . ... . .. . .. . .. . ... . .. . .. . .. . ... ... . .. . .. . .. . ... . .6
Function overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
 Switchingthedeviceon/o......................................................................................8
Start screen/status screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Counter test/measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Provider - selection and editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Data export LTE and LTE+. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Data export LTEmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Explanation of the measurement data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Broken down value ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Country codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Licenses & other information.....................................................................................48
OpenSourceSoftware................................................................................................48
Disposal........................................................................................................48

The LTE network tester (hereinafter referred to as NT) is a high-end measuring device for mobile networks to support your
digitization project.
The following instructions will introduce you to the functions of the NT.
The illustrations in this manual refer to the LTE+ and LTEmax network testers.The LTE and LTElite network testers are not
illustrated in this document.
INTRODUCTION
About Network Tester LTE
Dierentiation network tester LTElite / LTE / LTE+ / LTEmax
General notes
Please note:
Please use only the supplied charging cable and the supplied and approved accessories to charge the power tester!
The included stylus is recommended for input! The display also responds to direct touch inputs, but is optimized for
handling the input pen!
4

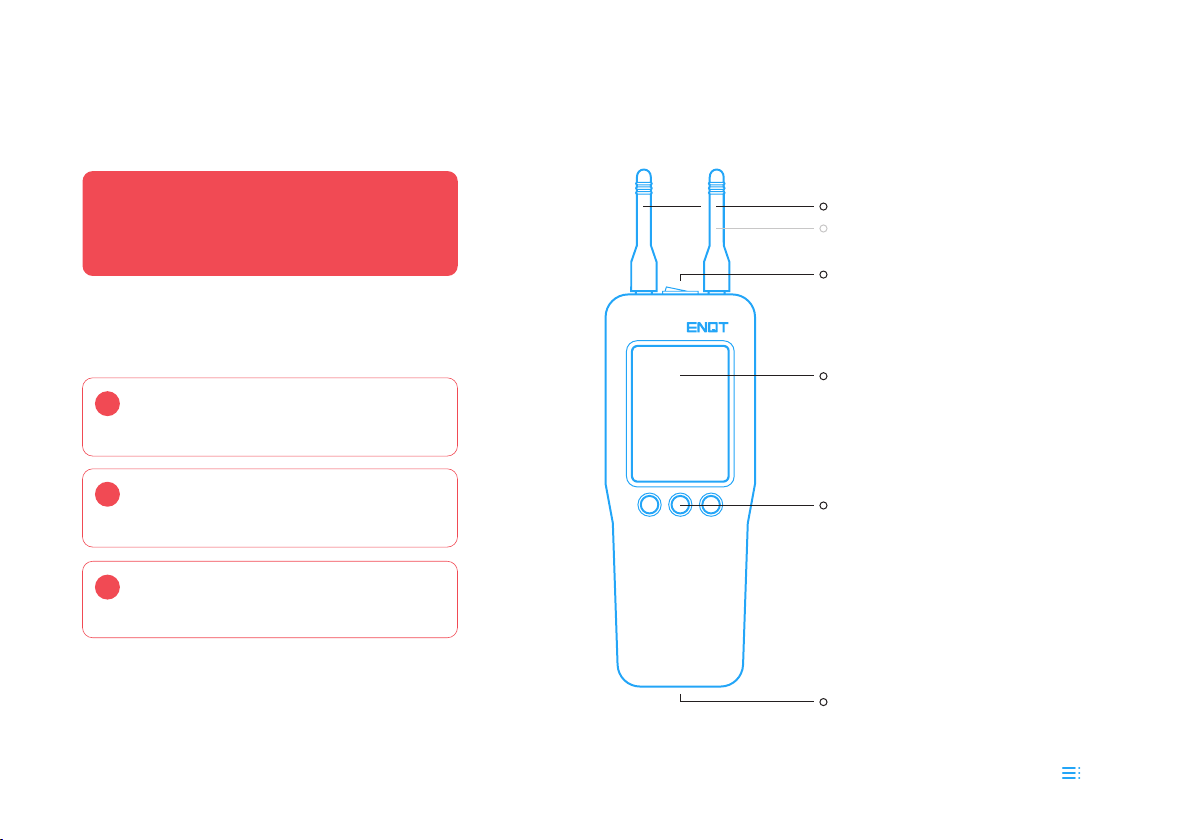

On/Oswitch
Touchscreen
Input keys
Charging socket
2 SMA antenna connectors
QUICK GUIDE & SAFETY INSTRUCTIONS
Quick guide & safety instructions
Main antenna
ATTENTION:
Do not screw the antennas too tightly,
otherwise there is a risk of damaging the
device.
Safety instructions:
Do not use the device during
thunderstorms.
Use only antennas suitable for GSM
communication.
Do not use the device with exter-
nalantennaampliers.
!
!
!
5

ENQT‘s network testers LTE have various functions depending on the equipment, which are listed in more detail below. The indi-
vidual functions are explained in more detail in this chapter. Which version you have is indicated on the top left of the tester above
the display. If you still have a previous version, the LTE corresponds to the TMate Field Live and the LTEmax to the TMate Field
Complete.
Functions of the network tester

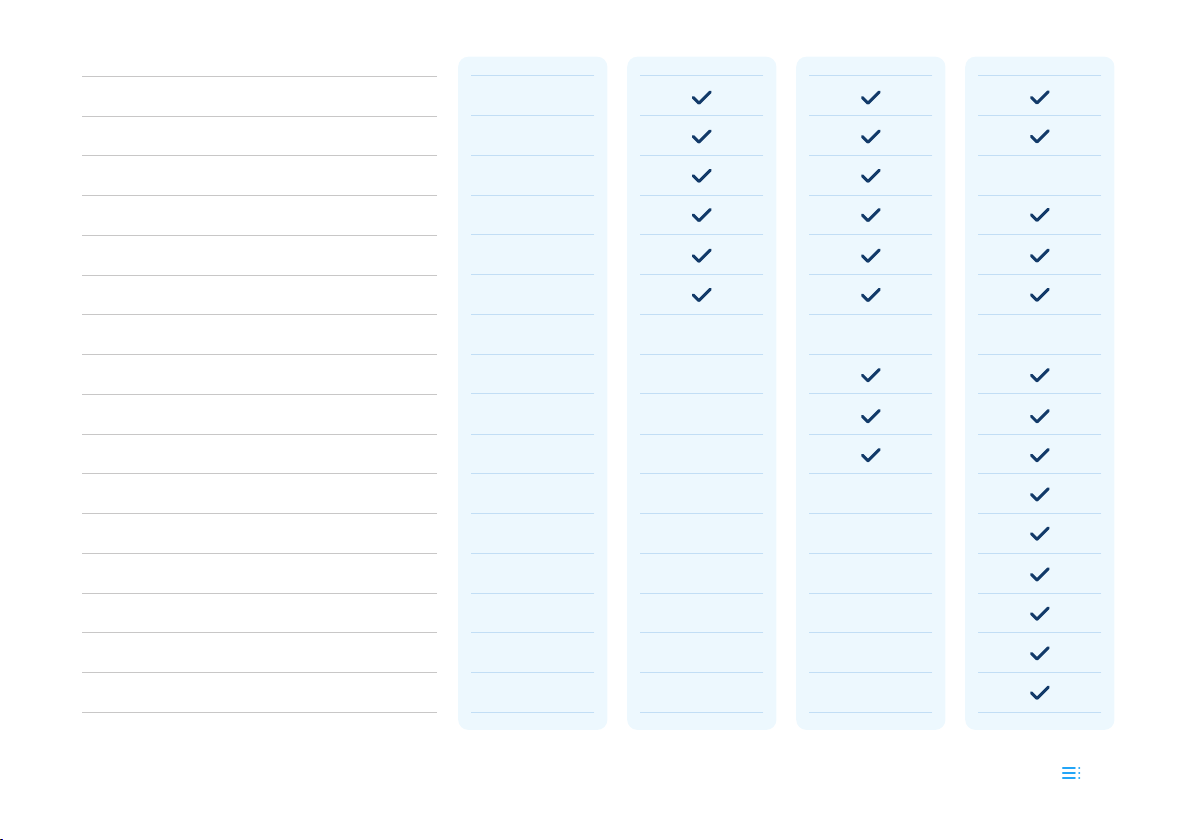

Function overview
FUNCTIONS OF THE NETWORK TESTER
2G/3G/4G
Counter test
LiveSignal
Language support
Simple video tutorials
Provider conguration
Survey+ (Interval measurement)
Stable carrying case
LTE Lite LTE LTE+ LTEmax
6

FUNCTIONS OF THE NETWORK TESTER
RSSI/RSRP/RSRQ Switch
International networks
LiveHistory (History diagram)
Local measurement data export
InstaMeasure
Color coding
EasyIntegration (QR-Scan)
Ongoing updates
Remote maintenance & conguration
Export Live-Measurement data
Speedtests & Transit time measurement
Measurement data portal
ChannelScan
API-Integration
FrequencyLock
CloudSync
optional optional
optional
7

Makesurethatthepowertesterissuicientlycharged.TheNTisswitchedon/oviathetoggleswitchonthetopofthedevice.The
device boots up in approx. 20 seconds.
Switching the device on / o
FUNCTIONS OF THE NETWORK TESTER
8

Thestartscreenmayvaryonthedierentdevices.TheNTLTElitedoesnothaveanexportfunction.TheNTLTEmaxuploads
measured data directly to the measurement data portal. Therefore, these devices do not have an „Export“ selection on the start
screen.
Start screen / status screen
FUNCTIONS OF THE NETWORK TESTER
1 - Start screen
Here you can see the current charge status as well as the synchronization
status. Furthermore, you can reach from here by clicking on:
the ENQT Logo: the status screen.
on COUNTER TEST: the meter entry screen and then the possibility of
full net metering.
on SIGNAL: thepossibilitytomeasurelivetheaenuationofaprovider
& standard.
on PROVIDER: thepossibilitytomakeseingsregardingtheproviders
to be tested.
on EXPORT: the possibility to export your measurement data from the
device via WLAN. (LTE and LTE+)
9

FUNCTIONS OF THE NETWORK TESTER
2 - Status screen
By clicking on the ENQT logo you reach the status screen.
The following data can be checked here:
Serial number of the device
Software version
Modem ID
IMEI
IMSI
Baeryvoltage
Charging voltage
System time & date
Cloud sync status
General status
Last error message
10

Counter test / measurement
FUNCTIONS OF THE NETWORK TESTER
1 - Status screen
Clicking on „COUNTER TEST“ will take you to the counter input screen.
11

FUNCTIONS OF THE NETWORK TESTER
2 - Counter test
Here they can enter the number of the meter at the test location.
Alphanumeric entries are also possible to enter meter point designations.
ConrmyourinputbypressingtherightEnterkey.
12

FUNCTIONS OF THE NETWORK TESTER
2.1 - Additional measurement functions
Byclickingonthemiddleenterbuon,youwillgettofurthermeasure-
ment options.
You can set a band scan or a measurement interval here to perform sev-
eral measurements in succession.
If you want to cancel the operation, press the left Enter key on the device.
13

FUNCTIONS OF THE NETWORK TESTER
3 - Measurement
The measurement to the previously entered meter number is started.You
can see live the progress for the respective provider & mobile standard.
During the measurement, numerous technical data are recorded.
You can choose between RSRQ, RSRP and RSSI display. The band used is
displayed directly (LTE, LTE+ and LTEmax).
You can cancel this process at any time by pressing the left Enter key.
If you want to customize the list of providers and/or standards to be
measured, you can select this via the start screen under the „Provider“
item.
14

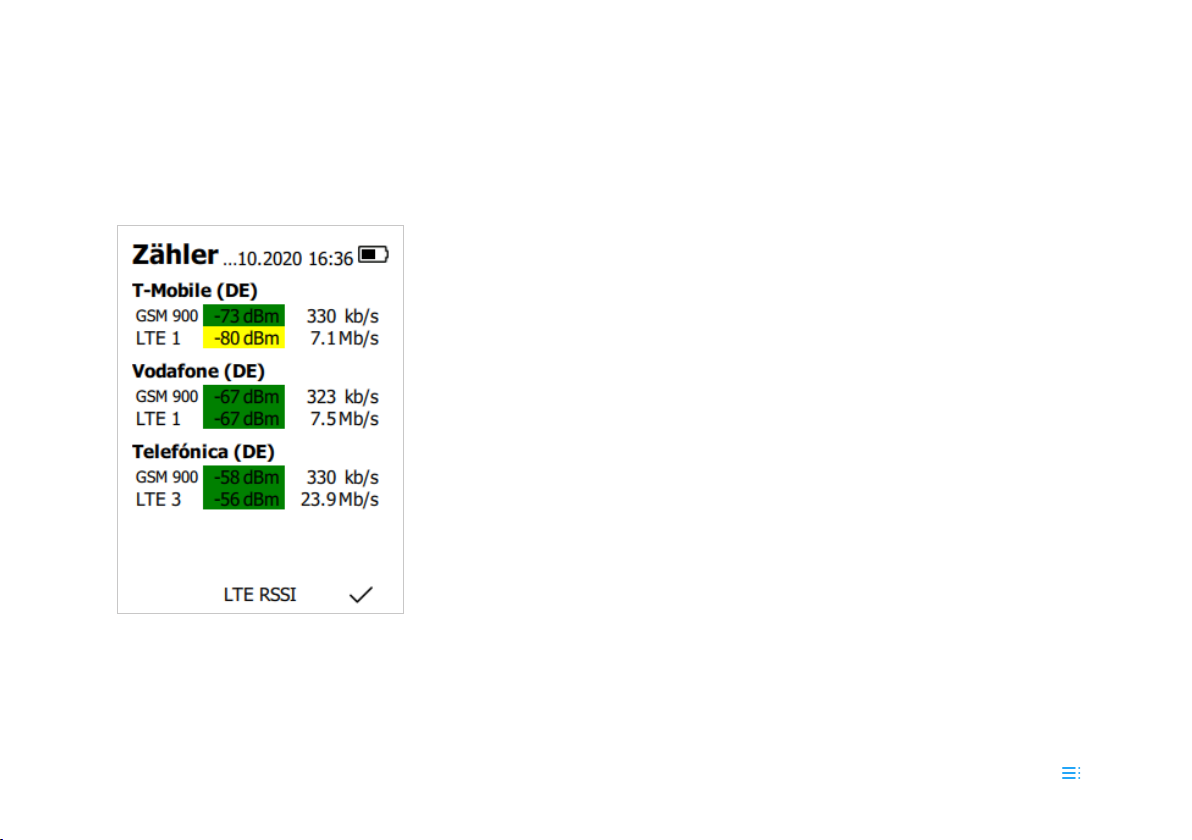

4 - Measurement result
When the measurement is complete, you can view the data directly.
Bypressingtherightenterkeyyouconrmthemeasurement.thedata
are now available for export.(LTE only LTE+)
ATTENTION:Thedataforthisspecicmeasurementcanthenonlybe
displayed there and no longer directly on the device.
FUNCTIONS OF THE NETWORK TESTER 15

FUNCTIONS OF THE NETWORK TESTER
5 - Data export
Onceyouhaveconrmedthemeasurement,youwillreturntothestart
screen.
A small symbol now appears at the top of the display when „EXPORT“ is
selected. This indicates that a measurement from the device is ready for
export. The number indicates how many new measurements are current-
ly available. (LTE and LTE+)
16

1 - Start screen
From the home screen, click on „SIGNAL“ to access the feature to mea-
surethecurrentaenuationofthesignalforaprovider&standardlive.
FUNCTIONS OF THE NETWORK TESTER
Signal
17

FUNCTIONS OF THE NETWORK TESTER
2 - Signal
After clicking on Signal you have the possibility to choose the desired
provider.
Click on a desired provider and then on the desired standard at the
boom,forlivesignalmeasurementofaenuation.Youcancancelthe
processifyouclickonthearrowattheboomleft.
Then you will return to the home screen.
18

3 - Provider selection
When you have selected the provider and the standard, you can start the
measurementbypressingtheEnterkeyattheboomright.
FUNCTIONS OF THE NETWORK TESTER 19

FUNCTIONS OF THE NETWORK TESTER

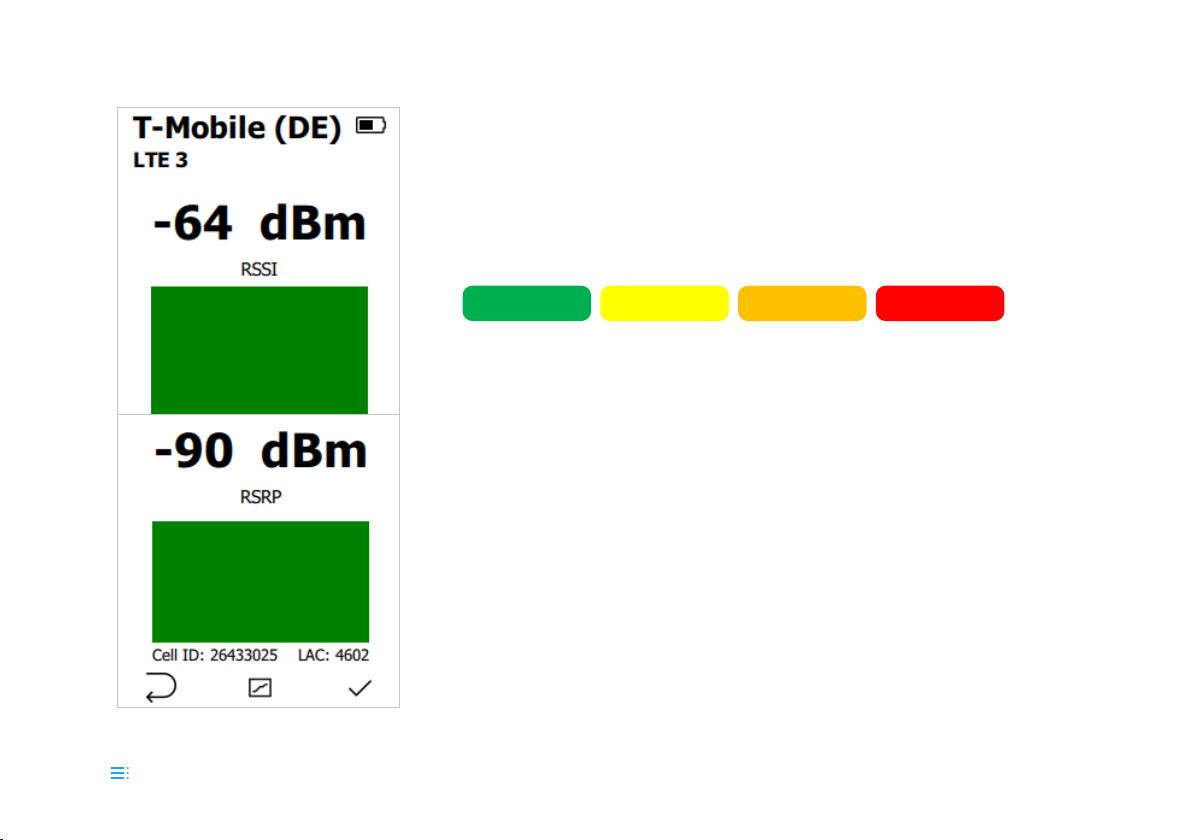

4 - Live display
Thebarrisesandturnsfromredtoyellowtogreen,thebeerthecur-
rentlymeasuredaenuationturnsouttobe.
ThetraiclightisdenedasfollowsfortheRSSImeasurement:
(LTE, LTE+ and LTEmax)
Dependingonthetechnologyanddeviceconguration,theaenuation
(RSSI), the signal quality (RSRP) or the reference signal (RSRQ) is
displayed here.
Additionally, the currently used cell is displayed with Cell ID and LAC.
Pressing the left Enter key will take you back to the previous selection.
Conrmthemeasurementwiththerightenterkey,youwillreturntothe
start screen.
RSSI > -80 RSSI > -105 RSSI > -125 RSSI <
20
