Equator ED 510 User manual

Dryer
ED 510
Owner’s Manual
Colors: Platinum & White
FRONT LOADING

1Tumble Dryer Owner’s Manual
TABLE OF CONTENTS
Warranty……………………………………………………………………………2-3
Introduction ………………………………………………………………………….4
Important Safety Instructions ………………………………………………………5
Picture of the Dryer ………………………………………………8
Installation………………………………………………………………………….9-10
Control Panel ……………………………………………………………………11
Operating Instructions …………………………………………………………….12
How to dry………………………………………………………………………….13
Maintenance ……………………………………………………………………….14
Technical Data …………………………………………………………………….14
Troubleshooting .………………………………………………….……………… 15
Company Information …………………………………………………………….16
Please read the Owner’s Manual carefully before using your
new Equator Dryer

2Tumble Dryer Owner’s Manual
WARRANTY INFORMATION
Your Equator® appliance is protected by this warranty under normal,
personal, family or household use (1 Year), and limited commercial use
(90 days) in the USA and Canada.
WARRANTY
Equator Corporation undertakes to the consumer-owner to repair or, at Equator
Corporation’s option, to replace any part of this product which proves to be defective in
workmanship or material under normal personal, family or household use, in the USA and
Canada, for a period of one year from the date of original purchase. For commercial use, the
product is warranteed for a period of 90 days. During this period, Equator Corporation will
provide all labor and parts necessary to correct such defect, free of charge, if the appliance
has been installed and operated in accordance with Equator Corporation’s written
instructions with the appliance. Ready access to the appliance, for service, is the
responsibility of the consumer-owner.
Geographic Exception:If the product is installed at a location more than 50 miles from an
urban area (minimum population 25,000), Equator Corporation may, at its option, offer a
2-year parts only Warranty, if a service agent cannot be found. Responsibility for labor, in
such instances will be that of the consumer-owner. Equator Corporation will, however
provide free technical assistance for repairs.
EXCLUSIONS
In no event shall Equator Corporation be liable for incidental or consequential damages or
for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts
God. This warranty does not cover service calls which do not involve defective workmanship
or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service
call which does not involve defective workmanship or materials will be the responsibility of
the consumer-owner.
Specifically, the following work is not covered under warranty and does not constitute
warranty work:
§Installation –e.g. improper hook-up or leveling or non-removalofshippingbolts
§Maintenance –e.g. cleaning of lint filter
§Damage –e.g. replacing broken door handle
Most work is covered. The defining factor is, has the machine malfunctioned (Equator is
responsible) or has the customer omitted or done something to cause machine to
malfunction (customer is responsible). Some States do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply
to you.

3Tumble Dryer Owner’s Manual
WARRANTY SERVICE
This warranty is given by:
Equator Corporation,
Equator Plaza,
2801 W. Sam Houston Parkway N.
Houston, TX 77043-1611
Service under this warranty must be obtained by the following steps, in order:
Call an Equator Corporation Authorized Service Agent (obtain number of nearest agent
from your dealer or by calling Equator Service at 1-800-776-3538). Under normal
circumstances, Service will be provided during regular business hours (9:00 a.m. to 5:00
p.m. weekdays).
GENERAL
Since it is responsibility of the consumer-owner to establish the warranty period by verifying
the original purchase date, Equator Corporation recommends that a receipt, delivery slip or
some other appropriate payment record be kept for that purpose. Remember to send in your
Warranty Registration Card so that a proof of your purchase exists with Equator. You can
also register online or by calling Equator Customer Service at 1-800-776-3538. This
warranty gives you specific legal rights, and you may also have other rights which vary from
State to State.
Corporate Office
EQUATOR CORPORATION
Equator Plaza
2801 W. Sam Houston Parkway N.
Houston, Texas 77043-1611
Tel: [phone]
Fax: [phone]
Toll Free: 800-935-1955
European Testing Laboratories
US N° 3008319 CANADA
The ETL Listed Mark is the legal equivalent to the UL and CSA Listed Marks
EQUATOR CONTACT NUMBERS
Service: 800-776-3538
Parts & Accessories: 888-483-9627
Technical Support: 888-935-1565

4Tumble Dryer Owner’s Manual
INTRODUCTION
Congratulations on your new Equator Vented Tumble Dryer. In addition to its unique design,
this is a highly sophisticated product that will give you many years of satisfaction. Please
spend a few moments to read the Owner’s Manual. This will show you ways to best utilize
your valuable purchase.
Here are some of the best reasons for buying your Dryer:
1. Energy Savings
This appliance is engineered to provide valuable energy savings when compared to other
dryers.
2. Space Savings
The Dryer is designed to utilize horizontal and vertical space effectively. By using the
stacking kit (available separately) this unit can be mounted onto the Equator Combo
Washer-Dryer or the Equator Washer.
3. Temperature Selection
Choose your drying temperature for the quantity and quality of clothes you place in the dryer.
High and low heat settings are available for cottons/mixed thread clothing and fordelicates.
4. Meeting Standards
The dryer vents using a standard 4" duct that fits most dryer exhaust vents.
5. Convenient Lint Control
This unit does not use a lint filter and no cleaning is required after every load.
6. 110V operation
The dryer power cord plugs into a standard 110V outlet -available in most homes.
7. Safety
The dryer has a built in safety switch that reset when air flow is restricted. This lets the dryer
electronics remain unharmed by pausing the appliance till the conditions arecorrected.
8. Easy Operation
Just set the dryer time based on type of clothing and press the Power button. Easy as
1-2-3.

5Tumble Dryer Owner’s Manual
1.
Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in, or spotted with gasoline,
dry-cleaning solvents, other flammable or explosive substances, as they emit vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door.
5. Do not reach into the appliance if the tub or drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions
that you understand and have skills to carry out.
9. Do not use fabric softeners or products to reduce static unless recommended by the
manufacturers of the fabric softener product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
11. For vented dryers keep the exhaust opening and surrounding areas free from accumulation of
lint, dust, and dirt.
12. Do not place items exposed to cooking oils in your dryer. Item contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
IMPORTANT SAFETY INSTRUCTIONS
Your safety and that of you children
Your machine has been built in compliance with safety regulations, to protect
you and all your family.
WARNING -To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
SAVE THESE INSTRUCTIONS

6Tumble Dryer Owner’s Manual
HELPFUL HINTS
This Dryer is a 110 Volt machine, so the heating element requires more time to achieve full heat than
a larger 220 volt unit requires. The heating element will take about 10 minutes to reach full heat.
To dry your laundry, the Dryer blows heated air into the rotating drum. As the drum tumbles your
laundry, the warm air dries it. If the drum is overfilled with laundry, the air is not allowed to circulate
and clothes will not dry properly.
DRYER EFFICIENCY
Your dryer operates on 110 volts and has a dryer heat element is 1,200 watt; It will take a longer time
to dry clothes than a traditional dryer (which operates on 220 volts, 5,000 watts). However, with the
following tips, you can increase the efficiency of the dryer:
1. FABRIC SOFTENER: Prior to putting clothes into the this unit, adding liquid fabric softener (e.g.
Downey®) to the wash load will help improve the drying efficiency by at least 30%.
2. OVERLOADING: The drum has a capacity of 11 lbs (1.67 cu. ft.) With too many clothes, airflow is
reduced, increasing drying time. A maximum of 6.5 lbs or 3/5th of the drum full of clothes is
recommended for ideal drying.

7Tumble Dryer Owner’s Manual
SAFETY
The model number of this product may be found on
the back of the unit; the serial number of the label
affixed to the back of the unit.
You should note the model and serial numbers of
this unit in the space provided. Retain this booklet
as a permanent record of your purchase to aid in
identification in the event of theft.
MODEL#
SERIAL#
INTRODUCTION
Your new appliance is carefully engineered product. Many times what appears to be a reason to call
service, the problem may require nothing more than a simple adjustment you can easily make in your
own home.
You will be charged for a service call while the appliance is in warranty if the problem is not
caused by defective product workmanship or materials covered by this warranty.
To avoid a charge for an unnecessary service call, and before calling a serviceman, please refer to
the troubleshooting section for situations that you can remedy. This section is included on pages 15 of
this Owner’s Manual.
Your Dryer is front loading, with an extra large door opening for easier access.
You will obviously want to obtain the best possible dry. By reading and following the instructions in
this booklet you will achieve excellent results.
Please, ensure that the instructions are followed. If you should need any further advice or assistance,
please, contact the dealer where your machine was purchased, or call Equator Customer Service at
1-800-776-3538.
This appliance is an automatic dryer with a capacity of up to:
-DRYING 6.5 Lbs dry weight of clothes
PRE-INSTALLATION
1. The unit must be installed on a strong level floor, and in protected, dry, and well-ventilated area
close to a power source.
2. Installation on Carpet or Wood increases vibrations.
• Carpets-place on light carpet only.
• Wood-brace floor with screws and place additional sheets of plywood before installation.
3. This unit’s installation and grounding should be done in accordance with local codes by a qualified
installer. “Installation Instructions” are included in this manual for the Installer’s reference.
4. The unit should be plugged into a properly grounded three (3) prong electrical outlet of 110 V/ 60Hz
with minimum 15 Amps. It should not be controlled by a wall switch or pull cord which might be turned
offaccidentally.
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER
SERVICABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PROFESSIONALS.
RISK OF ELECTRIC SHOCK
DO NOT OPEN

8Tumble Dryer Owner’s Manual

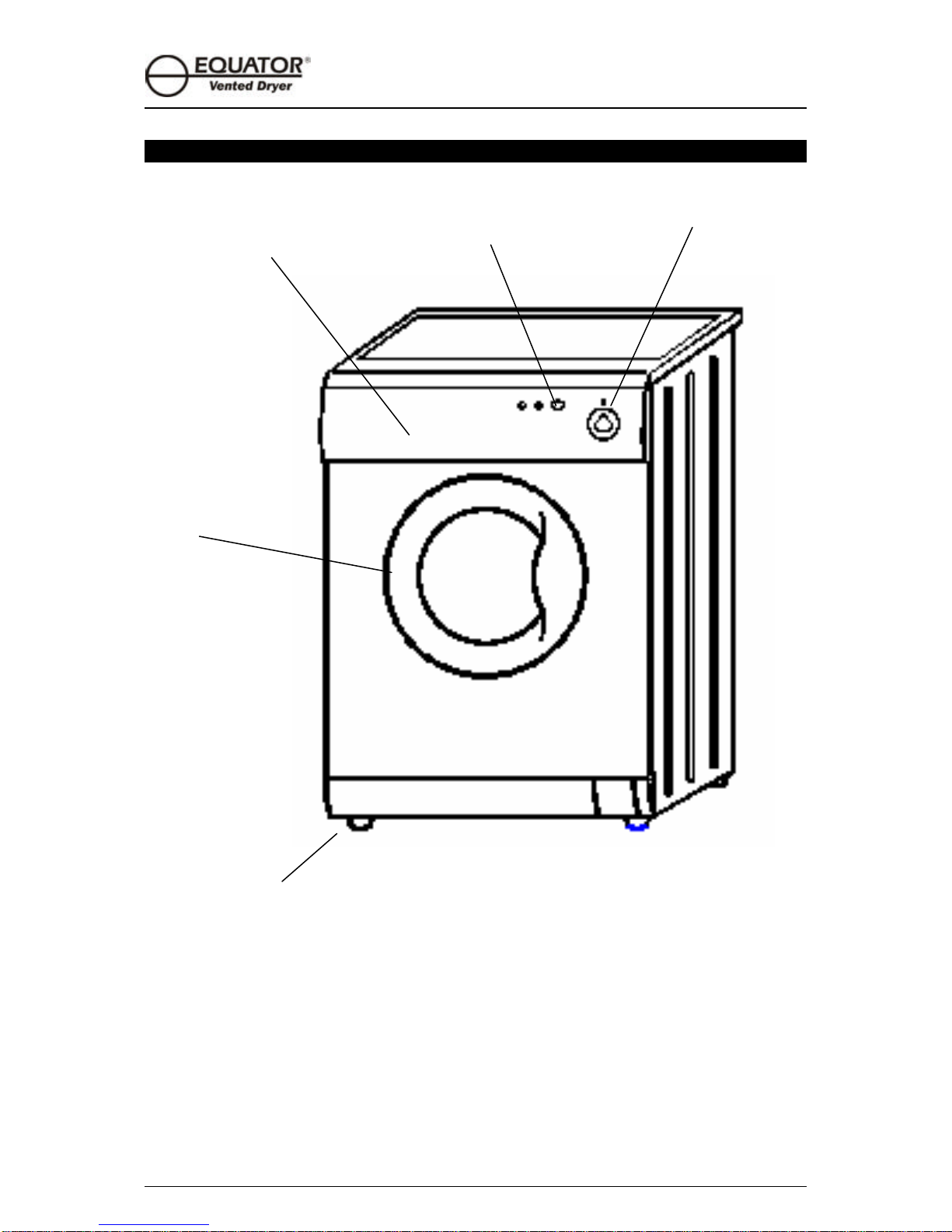

PICTURE OF THE TUMBLE DRYER
Control panel Power button Dryer knob
Door
Adjustable feet

9Tumble Dryer Owner’s Manual
INSTALLATION
UNPACKING, LEVELING, & POSITIONING
Remove the packing and check that the dryer is undamaged. If you have any doubt, do not use the
dryer and call Equator Customer Service. Keep all packing parts (plastic bag, foam rubber, screws,
etc.) out of the reach of children since they could be dangerous.
Important: The inside of the dryer consists of a free floating drum that is affixed with shipping bolts at
the back of the cabinet (Fig.1) during transport. Before starting the machine, remember to remove the
shipping bolts. To prevent any external pollutants from entering the machine, remember to close the
holes left open by the bolts with the plastic caps provided in the packet containing the Owner’s
Manual.
It is important for the machine to be perfectly level. For this reason, the machine is fitted with
adjustable feet used for leveling the machine before use (Fig.2).
In the case of flooring with carpeting, remember to check that there is sufficient
ventilation around the machine.
(Fig.1) (Fig.2)
ELECTRICAL CONNECTION
Connect the plug to a power outlet –110V/60Hz with minimum 15 Amps. Make sure that the voltage
and frequency available correspond with those stated on the serial number plate located on the
machine. Do not use adaptors or extension cords since they could result in overheating and burn out.
GROUNDING
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. This appliance is
equipped with a power cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
WARNINGS
-Improper connection of the equipment-grounding conductor can result in a risk ofelectric shock.
Check with a qualified or service representative or personnel if you are in doubt as to whether the
appliance is properly grounded.
-Do not modify the plug provided with the appliance: if it will not fit the outlet, have
a proper outlet installed by a qualified electrician.

10 Tumble Dryer Owner’s Manual
Connection the vent hose
This machine vents the moist hot air out of the unit and require
a vent hose to be installed, To install the vent hose,
Screw the vent hose 2 into the flange 1(Fig.3).
(Fig.3)
RECESSED, CLOSET AND ALCOVE INSTALLATION (Instructions)
The machine may be installed in a recessed area, closet or alcove.
The installation spacing is in inches and is the minimum acceptable.
Additional spacing should be considered for easy installation, servicing and compliance with
local codes and ordinances.
Closet installation must be exhausted.
Other installations must use the minimum dimension indicated.
?Additional clearances for wall, door and floor molding may be required.
?? Additional space is needed when an external exhaust elbow is used.
The closet’s front door must be a shutter, and the clearance between the slats must be more
than 1/3 area the front door.
see Fig 4,
(Fig.4)

11 Tumble Dryer Owner’s Manual
CONTROL PANEL
A Dryer knob C Power indicator light
B Power button D Run indicator light
D C B A
A
Turn dryer knob to set minutes for drying.
The left side is full heat (250° F)
The right side is less heat (185° F).
B
Power button.
Pressed in for ON
Not pressed for OFF
C
Power indicator light
This light indicates whether the power is on or off. The light comes on when button B
is pressed and goes off when button B is not pressed.
D
Run indicator light
This light indicates whether the dryer is on or off.

12 Tumble Dryer Owner’s Manual
Warning —to reduce the risk of fire, electric shock, or injury to person, read the
IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
OPERATING INSTRUCTIONS
1. Make sure Dryer is turned off. (Indicator light should be off).
2. Separate clothes into cottons, permanent press.
3. Load clothes of the selected type loosely into the drum. Do not load clothes more than 3/5 th full.
4. Close the Dryer door. You will hear a click when it is correctly closed.
5. Turn the Dryer knob to the desired amount of minutes for drying. High Heat for Cottons and
Less Heat for Perma Press clothing.
6. Review these steps and check all the settings on the control panel before starting the machine.
7. Press the Power button. The indicator light will come on and in a few seconds, you will hear the
cycle begin.
8. When the Dryer has completed the cycle, the machine will stop automatically, although the
indicator light will remain on until you manually press out the Power button.
Note:
You can open the door any time during the Dry cycle without waiting.
STARTING THE DRYER
Starting your dryer in the right way is important for the quality of your dry, to help prevent future
problems and enhance life expectancy of your appliance. Once you have loaded your dryer , always
check that:
1) The door is closed correctly.
2) The plug is secured in the socket.
Choose the desired program
The program is selected according to the type of garments that need to be dried. To choose a dryer
time, refer to the table on page 13, then:
1) Turn Dryer knob to the desired position,
2) Press thePower button.
At the end of the dry cycle...
Turn the dryer off by pressing Power button. You can now open the dryer door safely. After having
removed the freshly cleaned laundry, leave the door open to allow air circulation inside the drum.
Remember that, in the event of a power failure, or should the dryer switch itself off, the program
chosen will remain in memory.

13 Tumble Dryer Owner’s Manual
DRYER HEAT
•Left Side Full heat 250° F
•Right Side Less heat 185° F
HOWTODRY
Dryer
• Look at table Ato the side and follow the instructions provided for MAX load to have an automatic
washing and drying cycle.
• Follow the instructions (see page12, the section “Starting the Dryer")
• Set the dryer time on Dryer knob.
• Press thePower button.
Table A: The best dry time also depends on the amount of laundry to be dried.
Selecting the correct drying time, Use the following table as a guide:
Fabric Load Maxload
(lbs)Drying Knob Sector Drying Time (minutes)
Cottons Laundry of
different sizes 6.5 High Heat 120
Cottons Only terry towels 5.5 High Heat 120
Mixed fabric
(cotton+ polyster) Sheets or shirts 4.5 Less Heat 80-90
Acrylics Pajamas. Socks
etc 3.5 Less Heat 60-70
Nylon Petticoats.
Stockingsetc 3.5 Less Heat 40-50
• Load the clothes no more than 6.5 lbs for cottons, (see table for other fabrics), make sure that:
-the door is shut correctly;
-Power button has not been pressed
• Set dryer time on the Dryerknob
• PressPower buttontostart.
When Drying is Complete...
Turn the dryer off by pressing the Power button. Now you can open the appliance door. Once
you have removed the dry clothes from the appliance, leave the door open or ajar to avoid the
formation of bad odors.
USEFUL TIPS
Denim Alert:
Some overalls have straps with hooks that can damage the drum of your machine or other
garments during the dry. To minimize the risk, place hooks in the pocket and fasten with safety
pins.
Vacations: unplug theappliance:
It is recommended that you should unplug the machine from the socket. Leave the door ajar to
allow air circulation to the draw and the door gasket area. This will prevent unpleasant odors.

14 Tumble Dryer Owner’s Manual

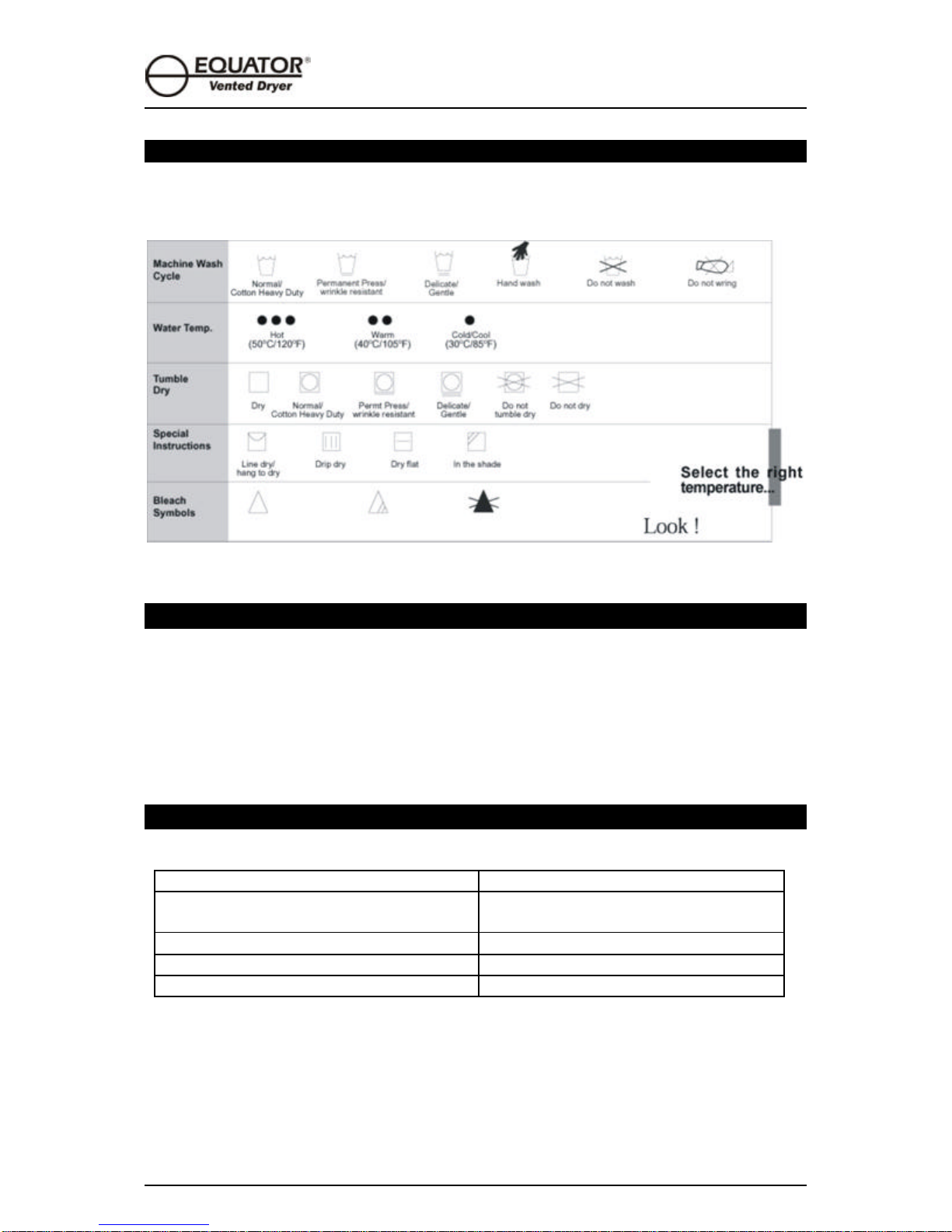

UNDERSTANDING FABRIC CARE LABELS
The symbols on labels of your garments will help you in choosing the suitable wash
program, the right temperature, wash cycles, and ironing methods. Don’t forget to give a
glance to these useful indications!
MAINTENANCE
The Equator Tumble Dryer is designed to operate without complicated maintenance.
Follow these simple maintenance procedures for good results:
1. Ensure that your machine was installed according to the correct installation procedures
detailed in this Manual.
2. Do not use solvents to clean the machine.
TECHNICAL DATA
Model ED 510
Rated Volt 110-120V/60Hz
Drying input power 1560 W
Dryingcapacity 6.5 lbs
Outside dimensions (WXHXD) 33.5 x 23.5 x 21.6 (inches)
Weight 121lbs

15 Tumble Dryer Owner’s Manual
TROUBLESHOOTING
In most cases, when your dryer fails to work, the problems arising can be easily solved without having
to call for a technician. Before calling for assistance, always check these points.
uThe dryer fails to start
Is the plug correctly inserted into the socket?
Is there electricity in the house?
Is the door closed properly?
Is the power button pressed?
uThe dryer vibrates too much
Have all shipping bolts been removed during installation?
Has the machine been leveled correctly?
Is there space between the machine and adjacent units?
Is the machine loaded evenly?
Is the machine installed on carpet or on a wooden floor?
uThe dryer is not drying
Is the plug correctly inserted into the power outlet?
Is the door properly closed?
Is the dryerknob in the correct position indicating minutes for drying?
uThe dryer is not drying efficiently
Is the drum overloaded?
Is fabric softener being used?

16 Tumble Dryer Owner’s Manual
COMPANY INFORMATION
EQUATOR CONTACT NUMBERS
SERVICE: [phone]
PARTS, ACCESSORIES & DETERGENT ORDERING:
[phone]
TECHNICAL SUPPORT: [phone]
Equator Corporation
EquatorPlaza,
2801WSamHoustonPkwyN,Houston,Texas77043-1611
Phone[phone] •Fax [phone]
All rights reserved.
Manual subject to change withoutnotice
