Equator PFF 07 User manual

Read the instructions carefully and keep for future reference

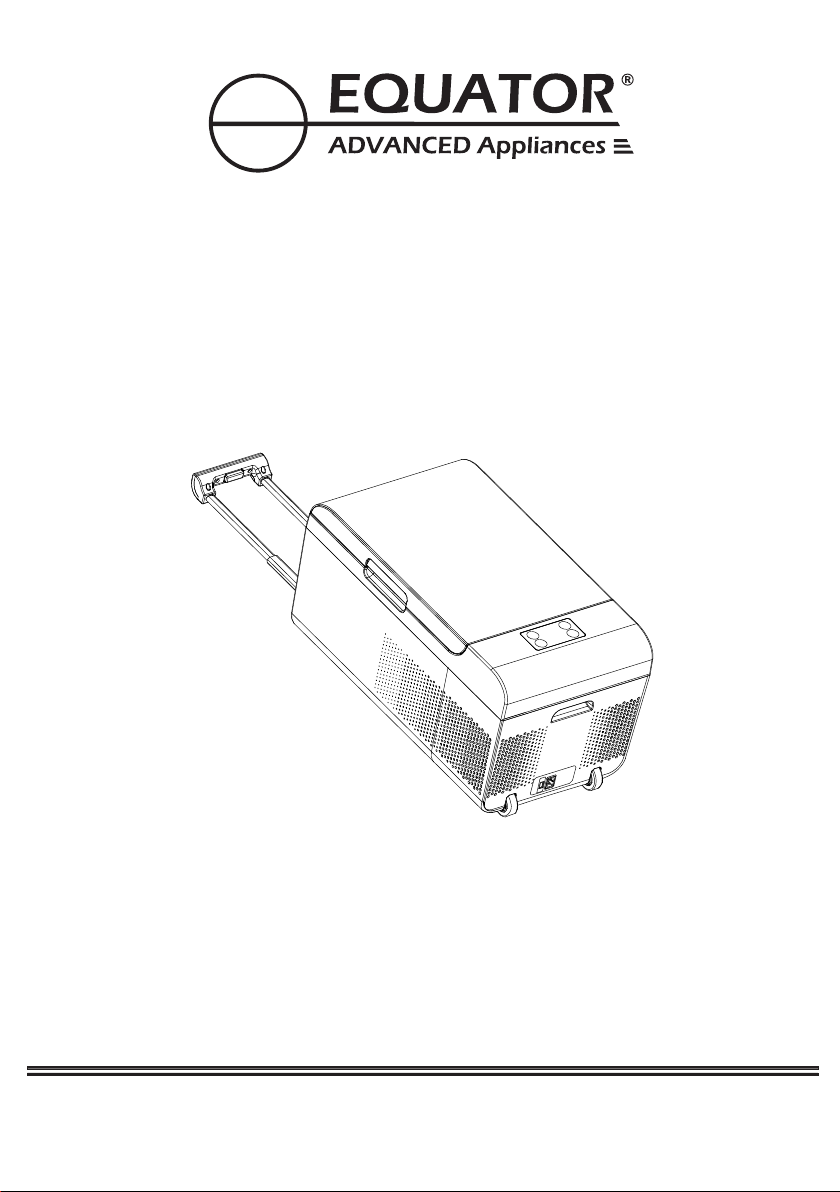

OWNER’S MANUAL
Model - PFF 07
PORTABLE FRIDGE-FREEZER

Equator Appliances undertakes to the consumer-owner to repair
or, at our option, to replace any part of this product which proves
to be defective in workmanship or material under normal personal,
family or household use, in USA and Canada, for a period of one
year from the date of original purchase. During this period, we will
provide all labor and parts necessary to correct such defect, free
of charge, if the appliance has been assembled and operated in
accordance with the written instructions with the appliance.
In no event shall Equator Appliances be liable for incidental
or consequential damages or for damages resulting from
external causes such as abuse, misuse, incorrect voltage or
acts of God. This warranty does not cover service calls which
do not involve defective workmanship or materials covered
by this warranty. Accordingly, diagnosis and repair costs for
a service call which does not involve defective workmanship
or materials will be the responsibility of the consumer-owner.
Warranty
Exclusions
Specifically, the following work is not covered under
warranty and does not constitute warranty work:
Operation - e.g. Using in confined space, blocking ventilation
Maintenance - e.g. cleaning appliance using solvents
Mishandling - e.g. breakage of handle and wheels
Most work is covered. The defining factor is, has the machine
malfunctioned (Equator Appliances is responsible) or has the
customer omitted or done something to cause the appliance to
malfunction (customer is responsible). Some States do not
allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply
to you.

You can register your Warranty by any of the following methods:
1. Mail in the Warranty Registration Card
2. Register online at www.ApplianceDesk.com
3. Scan the QR Code
Appliance Desk
Phone/Text: 1-800-776-3538
Email: [email protected]
Web: www.ApplianceDesk.com
Business hours: 9:00 am to 5:00 pm weekdays
For Customer Service:
This warranty is given by:
Equator Appliances
10216 Georgibelle Drive, Suite 900D
Houston, Texas 77043-5249
Since it is a responsibility of the consumer-owner to establish
the warranty period by verifying the original purchase date,
Equator Appliances recommends that a receipt, delivery slip or
some other appropriate payment record be kept for that purpose.
This warranty gives you specific legal rights, and you may also
have other rights which vary from State to State.
WARRANTY SERVICE
GENERAL

Safety
1
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not transport caustic materials or solvents in the appliance.
Ensure that the refrigerant circuit is not damaged.
Keep ventilation openings clear of obstructions.
When positioning the appliance, ensure the electrical cord is
not tangled or damaged.
Do not place multiple portable socket-outlets at the rear of
the appliance.
Never unplug the appliance by pulling on the power cord. Grip
the plug firmly and pull straight out to remove from wall socket.
Do not use a damaged power cord.
Do not use an extension cord.
Do not use mechanical devices or sharp tools to accelerate
the defrosting process. Never immerse the appliance in water.
Never handle plugs and switches with wet hands or if you are
standing on a wet surface.
Children should be supervised to ensure that they do not climb
on or play with the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction.
Safe Disposal
Before discarding the appliance, remove the cover in order to
prevent risk of child entrapment.
Please dispose of this appliance in accordance with local
regulations.

2
The Portable Fridge Freezer (PFF) can be used as a refrigerator
or as a freezer and can be used in homes, cars, trucks, RVs and
boats. The retractable handle and sturdy wheels make it easy
to transport.
Description
Keep the ventilation opening away from walls and other obstructions.
A maintenance-free refrigerant circuit with a compressor provides
the cooling function.
Place the appliance out of direct sunlight and away from sources
of heat and high humidity.
The PFF comes equipped with a multi-use divider, which is stored
under the cover. It can be used as a divider inside the unit and can
also be used as a cutting board.
Multi-use Divider
Retractable
Handle
Feet
Control Panel

Apply the two Anti-Scratch Stickers made of silicone that are
provided in order to protect the exterior of the PFF.
The PFF switches off automatically at low battery voltage.
Check the plug and cable before you connect the power and
ensure it is 110 voltage.
Only connect the device as follows:
· With DC cable to a 12/24V plug socket in a vehicle
(e.g. cigarette lighter)
· With AC power supply connection cable to AC mains supply
When connected to the DC socket, disconnect it or turn Power
off when the engine is turned off, to prevent discharge of
the battery.
There is an Emergency Override switch on the side of the PFF.
If an electronic failure occurs, push down the switch from
“Normal Use” to “Emergency Override” mode.
If the PFF is operating with battery power supply and if the battery
voltage is low, the display will automatically shut off and the error
code “E1” will be displayed.

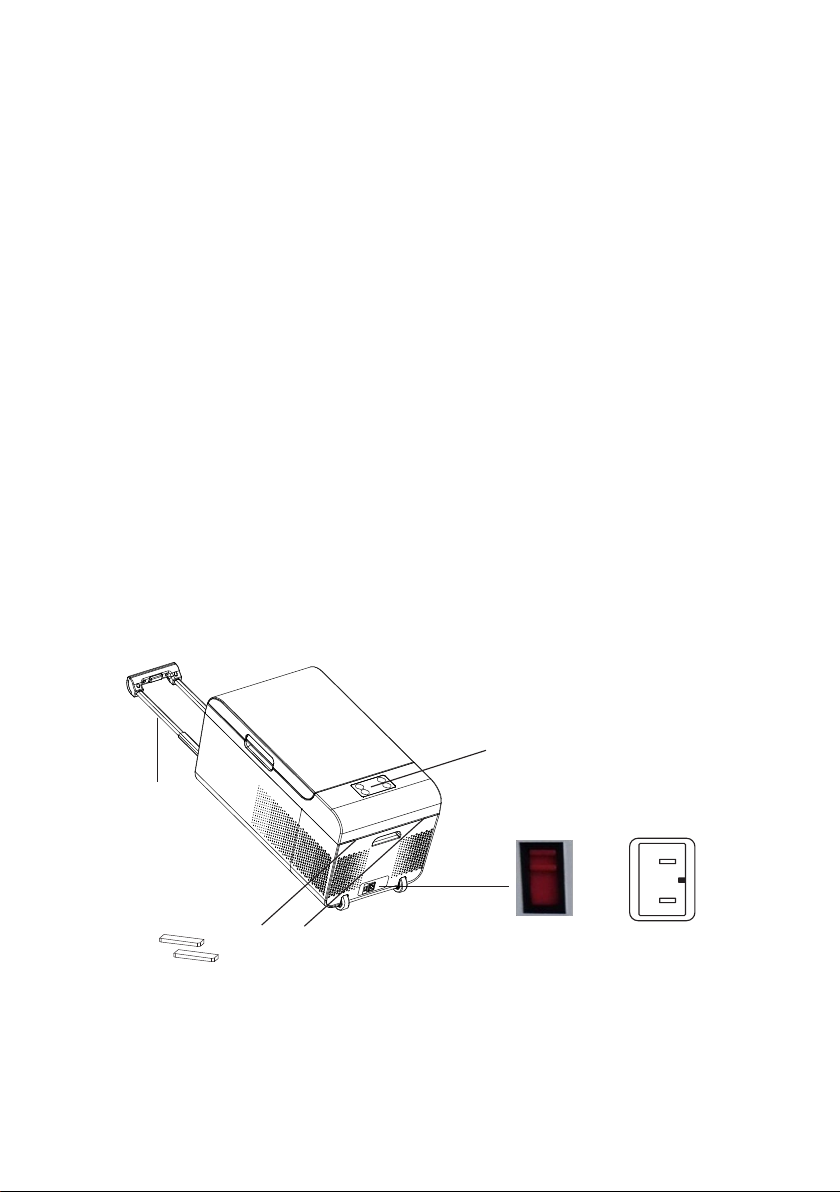

Normal Use
12/24V DC
Plug
Emergency
Override
Control Panel
Retractable
Handle
Anti-Scratch
Stickers
3

Before using the PFF for the first time, clean the inside
compartment with a damp cloth and mild detergent.
Operation
4
Store food in appropriate packaging and containers to ensure
that raw meat does not come in contact with other foods.
The PFF can be operated with any 12/24V DC portable
battery station.
Connecting to a battery (vehicle or boat)
Disconnect the PFF and other consumer units from the battery
before you connect the battery to a charging device. Overvoltage
can damage the electronics of the device.
For safety reasons the PFF is equipped with an electronic system
to prevent polarity reversal. This protects it against short-circuiting
when connected to a battery.
Plug the 12/24V connection cable into the DC voltage socket or
into a 12V cigarette lighter socket.
If connecting PFF to an external portable battery, the battery
should be at least 60W with output of 11V-16V.
Connecting to 100 ~ 240V AC power supply mains
(e.g. at home)
If using the PFF on board a boat from a mains AC power supply
connection of 100 ~ 240V, install a surge protector between
100 ~ 240V AC mains and the PFF.
Plug the 100 ~ 240V connection cable into the 100 ~ 240V AC
voltage mains and the AC power supply's output end connection
into PFF's socket.

5
The temperature range of the PFF is 0°F (-18°C) to 50°F (10°C).
Control Panel
· The range for refrigeration is: 32°F (0°C) to 50°F (10°C).
· The range for freezing is: 0°F (-18°C) to 32°F (0°C).
Press the Power button to turn the PFF on and off.
The Set button is used for:
· Temperature
· Celsius or Fahrenheit selection
· Max or Eco mode
· Battery monitor
Press the Set button one time to input the desired temperature.
Setting Temperature
The + and – buttons enable selection of the temperature by
increasing or decreasing in one degree increments.
The Display Window shows the selected temperature.
Setting Eco or Max mode
Max mode provides fast cooling.
Eco mode provides energy saving
Press the Power button to turn on.
Press the Set button 2 times.
Press + and – buttons to select Max or Eco
Power
Battery
Max Mode Eco Mode
Degrees C or F
O O
Set
Temperature Display
Increase
Decrease
·
·
·

6
Using the Battery Monitor
The PFF is equipped with a multi-level Battery Monitor that
protects your vehicle battery against excessive discharging
when the device is connected to the on-board 12/24 V supply.
If the PFF is operated when the vehicle's ignition is switched off,
the PFF switches off automatically as soon as the supply voltage
falls below a set level. The PFF will switch back on once the
battery has been recharged to the restart voltage level.
Select the Battery Monitor Mode based on the following table:
Battery Monitor Mode
Switch-off voltage at 12 V
Restart voltage at 12 V
Switch-off voltage at 24 V
Restart voltage at 24 V
H1 H2 H3
10.1 V
11.1 V
21.5 V
23.0 V
11.4 V
12.2 V
22.5 V
24.0 V
11.8 V
12.6 V
23.0 V
24.5 V
Press the Power button to turn on.
Press the Set button 3 times.
Press + and – buttons to select H1, H2 or H3.
NOTE:
When Power to PFF is supplied by the starter battery of a car,
select the battery monitor mode “H3”. If the PFF is connected to
a supply battery, the battery monitor mode “H1” will suffice.
If you operate the PFF from an AC power supply, set the battery
monitor to “H1”.
Do not use sharp tools to defrost and remove ice.
Defrost
Remove all the food and beverage items.
Switch off the unit.
Leave the cover slightly open.
Wipe off defrosted water.
·
·
·
·
·
·

Replacing the Plug Fuse (12/24V)
Pull off the adapter sleeve of the plug.
Unscrew the screw from the upper half of the housing.
Carefully raise the upper half of the housing from the lower half.
Take out the contact pin.
Replace the defective fuse with a new one that has the same rating.
Re-assemble the plug in the reverse order.
Replacing the PCB Light Blub
Shut off the power supply.
Carefully pry out the plastic light cover with a Flathead screwdriver.
Unscrew the PCB mounting screws.
Pull out the PCB.
Replace with a new PCB.
Fit the screws in with a screwdriver.
Press the transparent part of the lamp back into the housing.
Connect the power supply to the PFF.
Maintenance
Ensure the power cord is unplugged before moving or cleaning
the appliance.
Clean the outside and inside of the appliance regularly, using a
damp cloth and mild detergent.
Do not use abrasive materials to clean.
Remove all the food and beverage items.
Switch off the unit.
Pull out the power cable connection.
Leave the cover slightly open to prevent odors.
Do not wash under running water or immerse the PFF in water.
If turning Off the PFF for long periods of time:
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
7

8
Troubleshooting
Problem Possible Cause Solution
Not Working There is no voltage in the
12/24V socket (cigarette
lighter) in vehicle.
The vehicle ignition must
be on to apply current.
No voltage present in the
AC voltage socket.
Try using another plug
socket.
Not Cooling Battery voltage is too low. Test the battery and
charge it as needed.
When operating from
12/24V socket (cigarette
lighter), it may have debris
resulting in poor electrical
contact.
Clean debris from socket.
In addition to the Troubleshooting table above, the following Error
Codes may display on the appliance. For some of the Error Codes,
please call Customer Service for help.
Error Code Explanation
E1
E2
E3
E4
E5
E6
Battery voltage too low – Charge battery
Defective Fan
Defective compressor
Defective PCB (Printed Circuit Board)
High temperature protection – Ensure vents are
not blocked.
Defective NTC (Negative Temperature Coefficient)

9
Technical Specifications for PFF 07
Model
Capacity
Rated Voltage
Rated Current
Rated Power
Refrigerant
Working Temperature
Weight Net / Gross
Product Dimensions (HxWxD)
Packaging Dimensions (HxWxD)
PFF 07
0.7 cu.ft
DC 12V / 24V
4.2 A / 2.1a
50 W
R134a
0 F - 50 F
27.5 / 30.8 lbs
12.6 x 22.4 x 12.7 (inch)
15.6 x 25.4 x 15.7 (inch)
O O
WARNING: This product contains chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.
California Proposition 65
