Erayak LGY20i User manual

2
4-in-1 Li-Ion Cordless Screwdriver
WWS-IGS1800
01/2018
96344
List of contents and features ...................................................................................................................................................................4
Introduction.........................................................................................................................................................................................................................6
Reading and storing the user manual.................................................................................................................................................... 6
Explanation of symbols....................................................................................................................................................................................................... 6
Safety ............................................................................................................................................................................................................................................8
Scope of use.............................................................................................................................................................................................................................................8
Residual risks......................................................................................................................................................................................................................................... 9
General safety instructions .........................................................................................................................................................................................9
Electrical safety ................................................................................................................................................................................................................................. 9
Before start-up ...............................................................................................................................................................................................................................10
Starting the RIC engine .................................................................................................................................................................................................... 11
Using the generating set .............................................................................................................................................................................................. 11
Maintenance ....................................................................................................................................................................................................................................... 11
Instructions for transporting and storage...................................................................................................................................... 11
Additional safety instructions................................................................................................................................................................................ 11
Safety instructions for charging 12 V DC lead –acid batteries...................................................................... 13
Personal precautions........................................................................................................................................................................................................... 13
Before using the product............................................................................................................................................................................. 14
Checking the generator and pack contents...............................................................................................................................14
Preparing to charge a battery ............................................................................................................................................................................14
Charging location.......................................................................................................................................................................................................................14

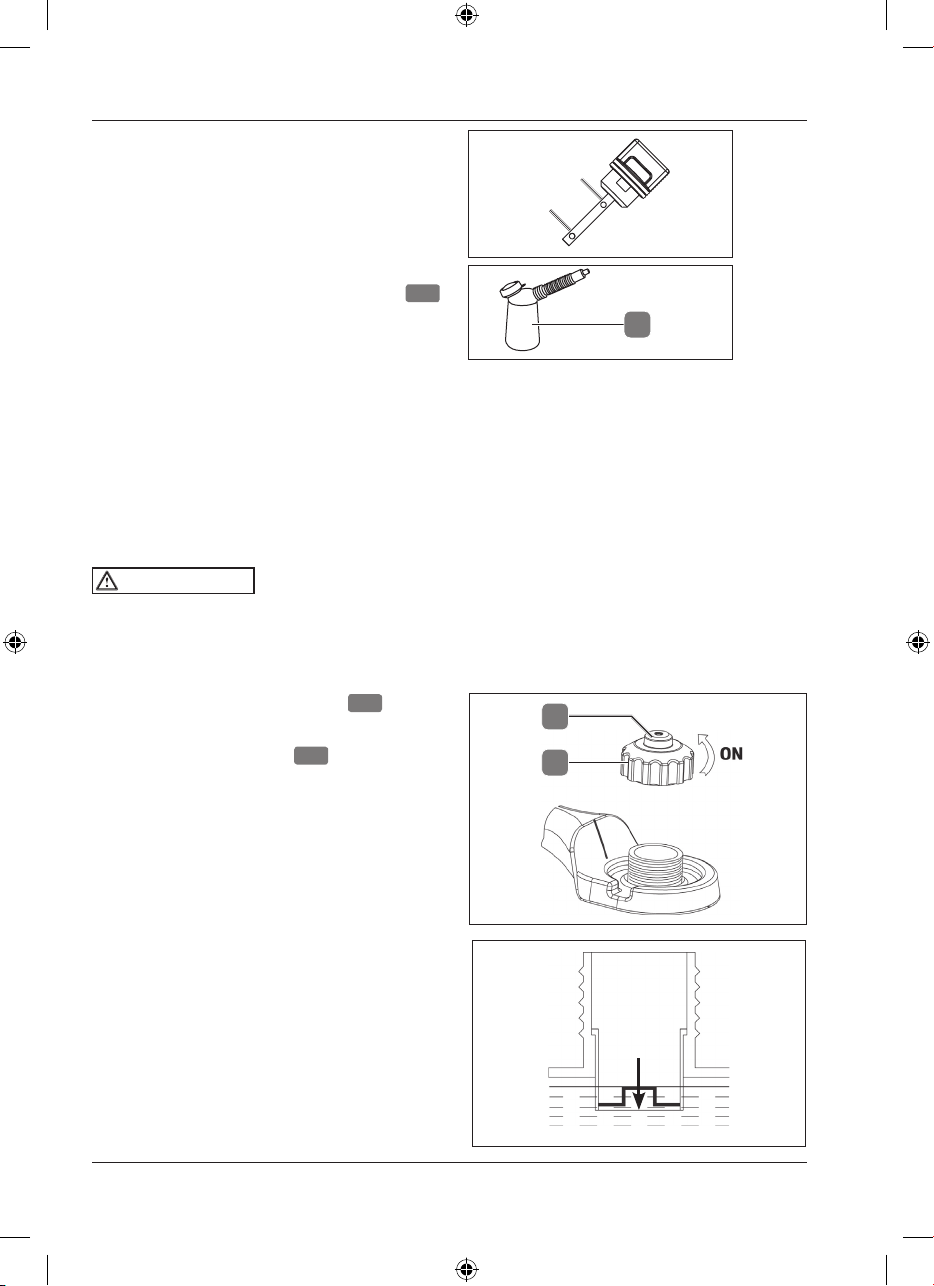

Filling the engine with oil............................................................................................................................................................................................15
Filling the fuel tank..................................................................................................................................................................................................................16
Earthing the generator.................................................................................................................................................................................................... 17
Engine oil alert system...................................................................................................................................................................................................... 17
Using the generator..............................................................................................................................................................................................17
Starting the engine................................................................................................................................................................................................................. 17
12V DC Socket.......................................................................................................................................................................................................................................18
230V AC Sockets..............................................................................................................................................................................................................................19
Switching the generator OFF................................................................................................................................................................................20
Contents

3
Maintenance, cleaning, storage and transport........................................................................................................ 20
Maintenance.......................................................................................................................................................................................................................................20
Changing the oil..........................................................................................................................................................................................................21
Cleaning the air filter............................................................................................................................................................................................................22
Spark plug................................................................................................................................................................................................................................................22
Cleaning...................................................................................................................................................................................................................................................... 23
Storage and transport....................................................................................................................................................................................................... 23
Troubleshooting........................................................................................................................................................................................................ 24
Technical specifications..................................................................................................................................................................................25
Noise emmissions.....................................................................................................................................................................................................25
Recycling............................................................................................................................................................................................................................... 26
Disposal of the packaging.......................................................................................................................................................................................... 26
Disposing of old appliances.................................................................................................................................................................................... 26
EC Declaration of Conformity..................................................................................................................................................................27

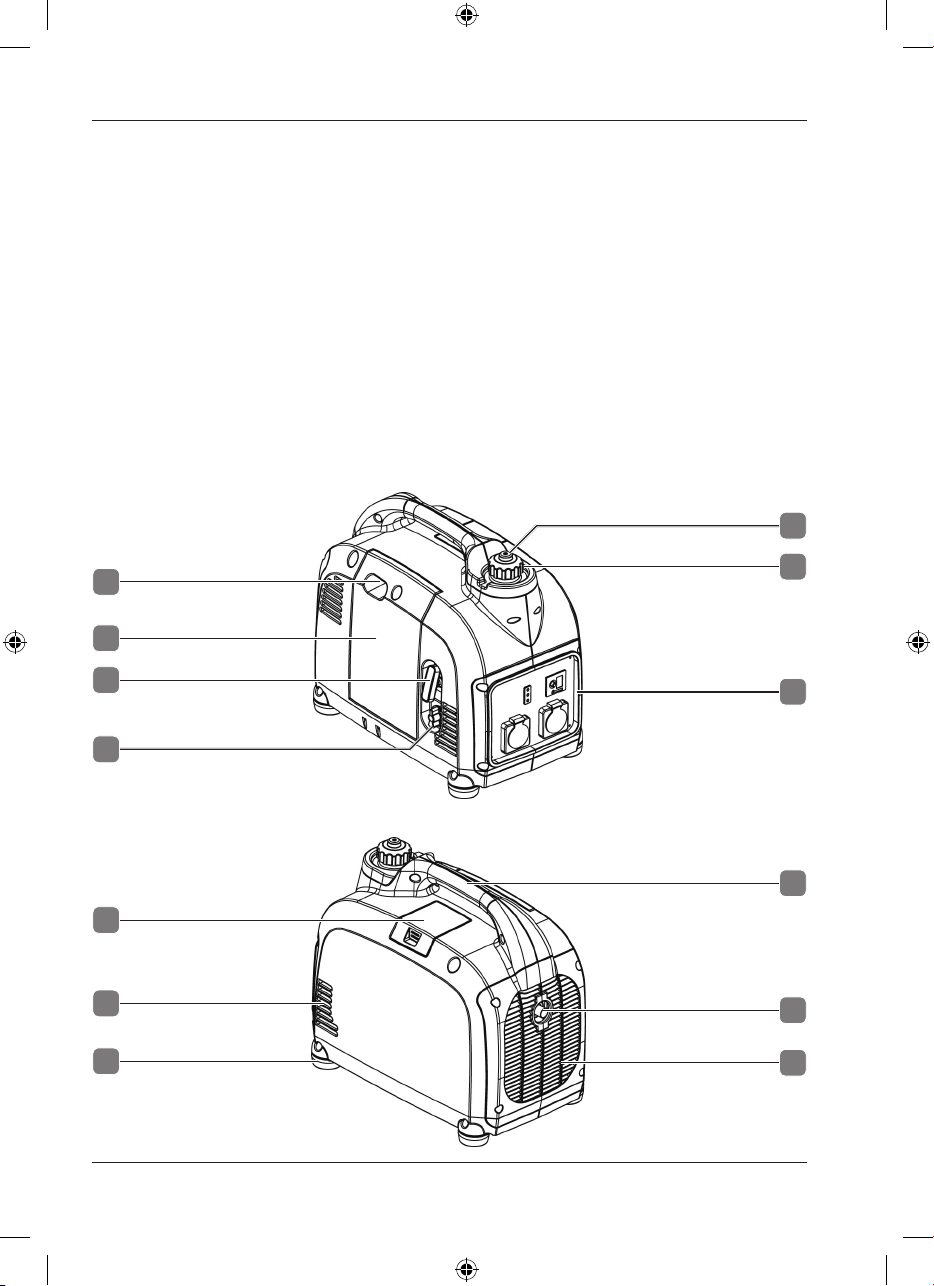

List of contents and features
4
List of contents and features
1. Fuel cap vent lever
2. Fuel cap
3. Control panel
4. ON / OFF switch
5. Starter coil
6. Maintenance cover
7. Choke
8. Carry handle
9. Exhaust
10. Air outlet
11. Rubber feet
12. Air inlet
13. Spark plug maintenance cover
1
2
3
9
11
12
13
4
5
6
7
8
10

List of contents and features
5
14. 12V DC battery charger socket
15. DC Circuit breaker / reset switch
16. 230 V ~ / 50 Hz Output socket (2x)
17. Earth terminal
18. Output indicator
19. Overload alert
20. Engine oil alert
21. Oil inlet cap with dipstick
22. Air filter cover
23. Spark plug cap
14
16
18
19
20
17
15
21
22
23
27

Introduction
6
Introduction
Reading and storing the user manual
These operating instructions form an integral part of this 2000 W Inverter Generator
(referred to as generator in the remainder of this manual). They contain important
instructions on safety, use and disposal of the generator. Please familiarise yourself
with all operating and safety instructions before using the generator. Only use the
generator as described and for the stated purpose. If the generator is passed on
to a third party, please provide all documents to the third party together with the
generator. Keep the operating instructions safe for future reference.
24. Spark plug wrench
25. Oil refill container
26. Open end spanner
27. Screwdriver
27
26
24
25

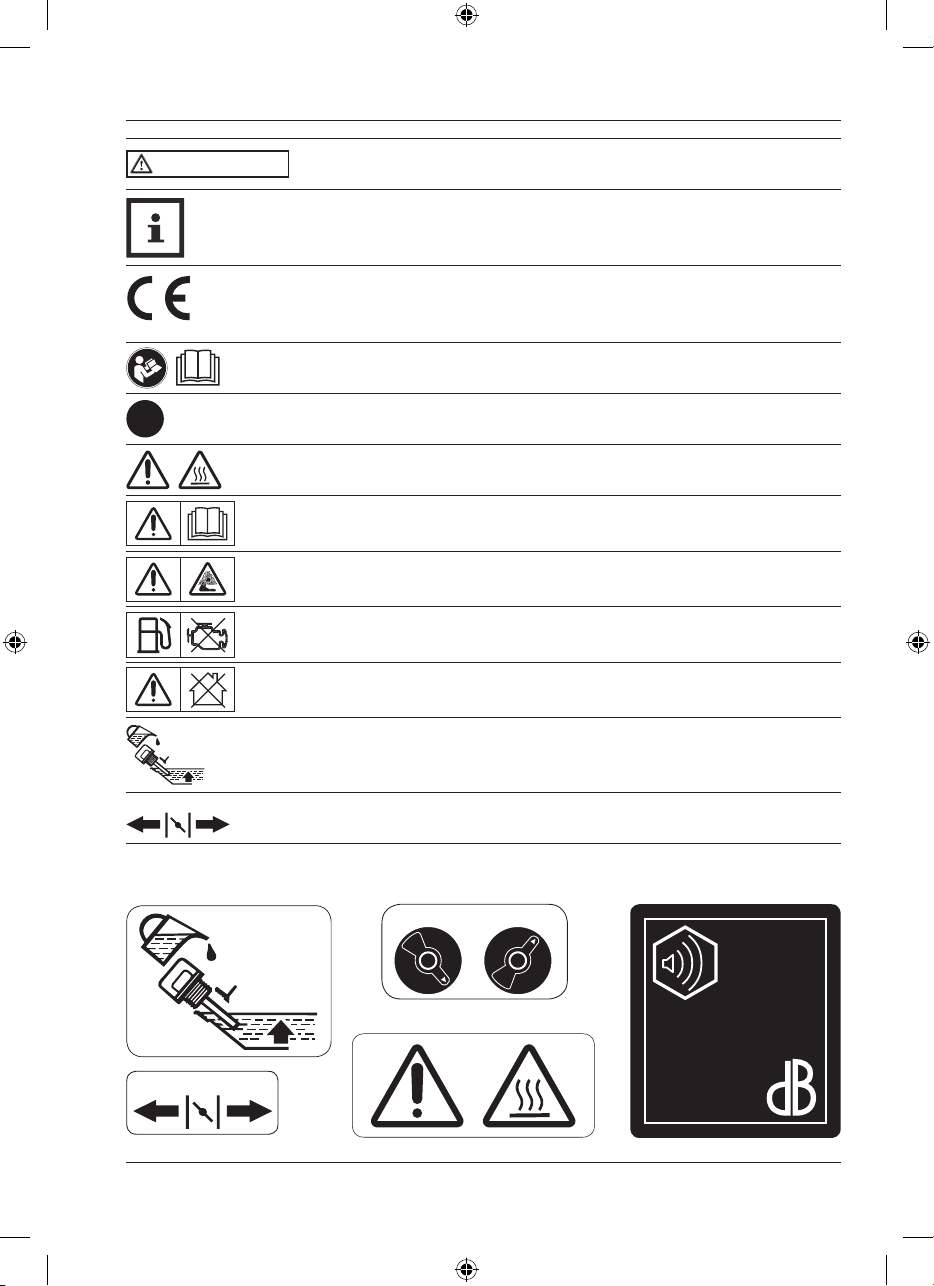

Explanation of symbols
The following symbols and signal words are used in this user manual, on the
screwdriver or on the packaging.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in minor or moderate injury.
WARNING!
CAUTION!

Introduction
7
LWA
95
RUN START
OFF ON
NOTICE!
12
RUN START
Warns of possible damage to property.
This symbol provides you with useful additional information
regarding assembly or operation.
Declaration of Conformity (see chapter “EC Declaration of
Conformity”): Products labelled with this symbol meet all
applicable provisions of the European Economic Area.

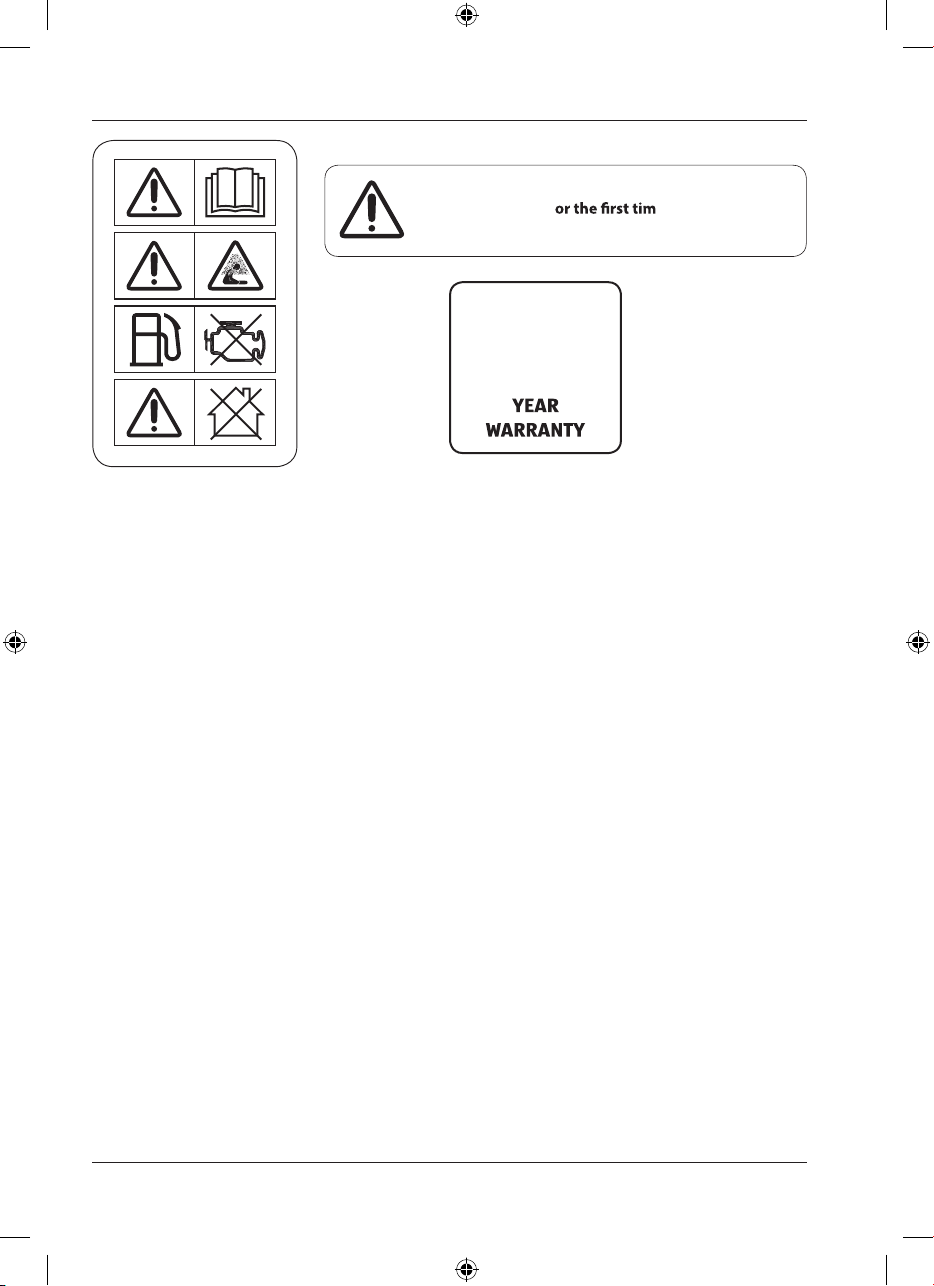

Read the user manual.
12 month warranty.
WARNING! Risk of burns.
WARNING! Read the operating instructions.
WARNING! Risk of carbon monoxide poisoning
Do not refill the fuel tank while the engine is running
WARNING! Outdoor use only, do not use indoors or in enclosed
spaces
Oil filler
Choke

Safety
8
IMPORTANT! Fill with 0.6l oil before you use the
inverter generator f e. In summer use
type SAE 15W40 and in winter use type SAE10W30.
Safety
Scope of use
This generator is exclusively designed for private use and for hobby and DIY projects
for the following purposes:
•
•
230 V ~ / 50 Hz electricity for powering small electrical appliances
outdoors.
Generating
Generating 12 V DC electricity for charging 12 V batteries.
The generator must be used in accordance with the instructions and safety warnings
contained in this manual and may not be used for any other purpose. It is designed
for DIY use only and is not suitable for commercial or heavy-duty use, such use may
damage your generator and invalidate your warranty. Neither the manufacturer nor
the retailer can accept any responsibility for injury, loss or damage caused by misuse
of this generator of any kind. Examples of misuse are given in the following non-
exhaustive list:
•Use of the generator for any other than its intended purpose
•Non-observance of the safety warnings and instructions as well as the assembly,
operating, cleaning and maintenance instructions contained in this manual
•Non-observance of any applicable health, safety and accident prevention
regulations concerning the use of this generator
1

Safety
9
 •Useofaccessoriesorsparepartsthatarenotsuitableforthegenerator
 •Useofthegeneratorinmodifiedform
 •Commercialorotherwiseexcessiveuse
Anyone who operates or services the generator must be familiar with these
instructions and must be aware of possible dangers. This generator may only be
used by a competent person – in case of doubt seek training or advice from an
expert.
Non-observance of the safety, assembly and operating instructions while operating
the generator counts as misuse. Any applicable health and safety regulations
must be followed. Any other applicable local and national legislation must also be
followed. The generator may not be modified as modifications may cause damage or
injury.
General safety instructions
1) Protect children by keeping them at a safe distance from the generator.
2) Fuel is combustible and easily ignited. Do not refuel during operation.
Do not refuel while smoking or near naked flames. Do not spill fuel.
3) Some parts of the internal combustion engine are hot and may cause
burns. Pay attention to the warnings on the generator.
4) Engine exhaust gases are toxic. Do not operate the generating set
indoors.
Electrical safety
1) Check the generator and its electrical equipment (including lines and
plug connections) before use to ensure that they are not defective.
Defective generators or electrical equipment must be taken out of use
immediately and repaired by a competent person.
Residual risks
A residual risk of injury remains even if the generator is used for its intended
purpose in accordance with the safety, assembly and operating instructions.
Due to the nature of the generator, the following dangers may arise:
 •Hiddendefectsonconnectedelectricalequipmentcouldposeariskofelectric
shock.

Safety
10
2) Do not connect the generator to other power sources, such as the
power company supply mains. Do not connect the generator to any
other existing electrical distribution systems.
3) Protection against electrical shock depends on circuit breakers
specially matched to the generating set. If the circuit breakers require
replacement, replace them only with circuit breakers having identical
ratings and performances characteristics.
4) Due to high mechanical stresses, use only tough rubber-sheathed
flexible cable (in accordance with IEC 60245-4) or the equivalent.
5) Always connect the generator’s earth terminal to a suitable earth point
using a suitable earth spike and cable.
6) Do not use extension cables with a resistance value exceeding 1,5 Ω.
The total length of lines for a cross section of 1,5 mm2must not exceed
60 m and for a cross section of 2,5 mm2, must not exceed 100 m. Use
only extension cables that are approved for outdoor use.
WARNING!
Comply with all applicable electrical safety regulations in force in the location
where the generator is used.
WARNING!
The generator is designed for powering small electrical appliances only.
Do not connect the generator to any existing electrical installation or
distribution network.
Before start-up
1) Safe operation requires sufficient operator knowledge of the functions
and positions of the controls and indicators. Familiarise yourself with
the functions of the generator and the position of the controls and
indicators before use.
2) Check the generator for signs of damage, disconnect any electrical
equipment; and ensure that the generator is located on a flat, level
surface well away from bystanders and any inflammable materials
before starting the generator.
3) Place the generator on a flat, level surface well away from inflammable
materials and away from any bystanders. Mantain a safety distance of
at least one meter between the generator and surrounding walls and
between the generator and the connected equipment.

Safety
11

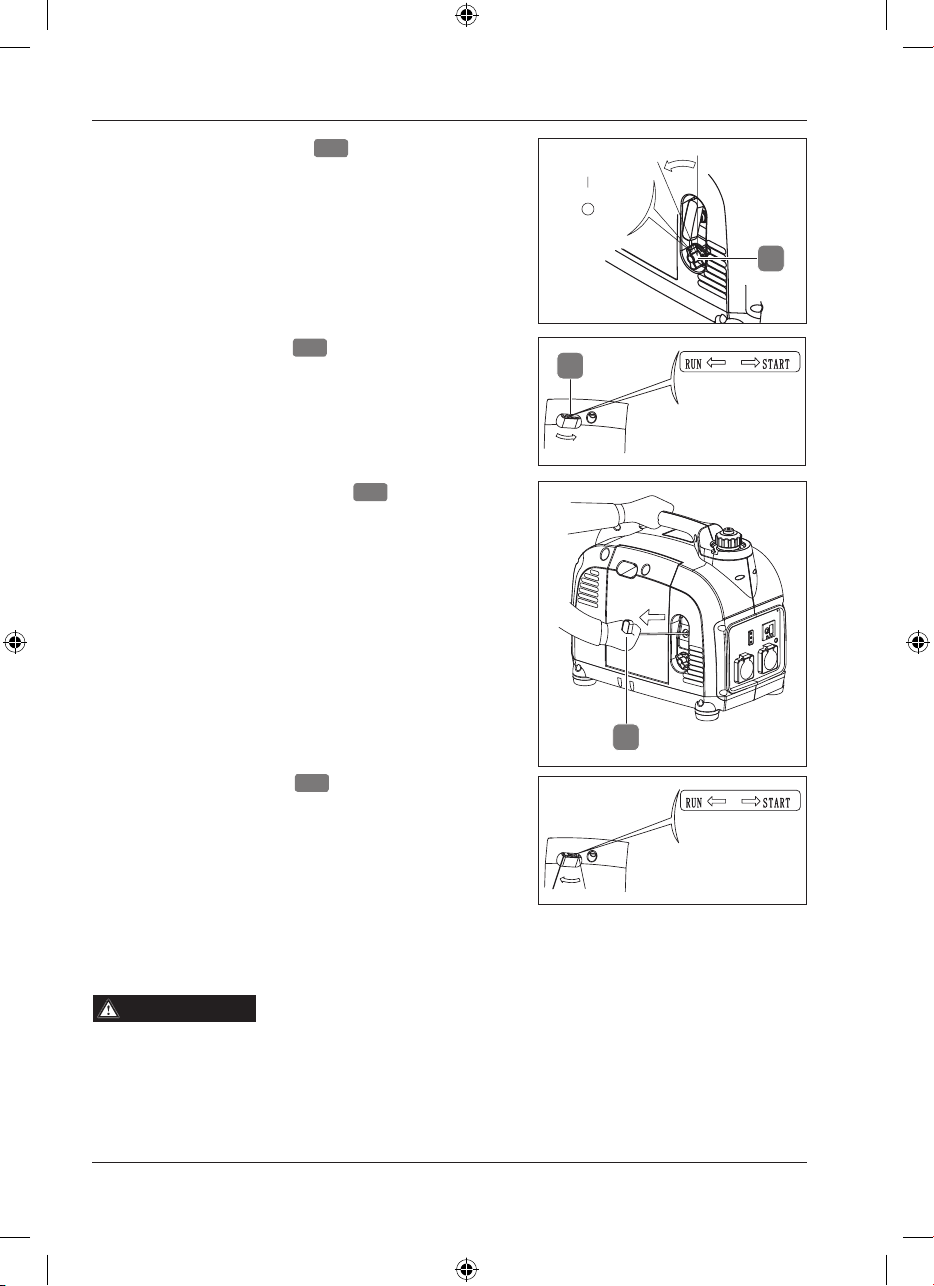

Starting the RIC engine
1) Do not use any readily evaporating fuels as a starting aid.
2) Start the generator with care and be aware that the recoil starter can
‘whiplash’. Keep a firm grip on the recoil starter to avoid the risk of
injury.
Using the generating set
Never overload the generator – it may only be used up to the max. rated
power stated on the rating label. Never use the generator under ambient
conditions (temperature, humidity and altitude) that do not conform to those
stated in the ‘Technical Specifications’ section of this manual.
Maintenance
1) Ensure that the ON/OFF switch is in the OFF position prior to
commencing maintenance work in order to prevent unintentional
starting.
2) Perform maintenance at the intervals stated in the ‘Maintenance’
schedule contained in the ‘maintenance’ section of this manual.
Instructions for transporting and storage
The generator may only be transported or stored according the instructions
contained in the ‘Transport’ and ‘Storage’ sections of this instruction manual.
Additional safety instructions
1) WARNING!
The exhaust gases produced by the generator are toxic. Never use the
generator indoors or in otherwise enclosed spaces. Risk of poisoning or
suffocation.
2) WARNING!
The generator is powered by petroleum spirit, benzol content
0.1 – 1.0 % May cause cancer. Irritating to skin. Harmful: danger of
serious damage to health by prolonged exposure through inhalation,
in contact with skin and if swallowed. Harmful: may cause lung
damage if swallowed. Vapours may cause drowsiness and dizziness.
Toxic to aquatic organisms, may cause long-term adverse effects in the
aquatic environment.
Avoid exposure. Do not inhale fumes. If swallowed, do not induce

Safety
12
vomiting: seek medical advice immediately and show this text. Keep
away from sources of ignition. No smoking. Do not empty into drains.
Do not use for cleaning. Keep out of the reach of children. In case of
accident or if you feel unwell, seek medical advice immediately.
3) Do not use the generator in locations where the risk of fire is high and
keep the generator well away from any inflammable materials.
4) Never touch the area around the generator’s exhaust as it becomes
extremely hot during operation.
5) Take extreme care when disposing of waste fluids such as waste
petroleum spirit and/or engine oil. Avoid sources of ignition and do
not smoke. Dispose of residual fluids in an environmentally friendly
manner and in accordance with the applicable regulations.
6) Only connect electrical equipment to the generator if the rated voltage
agrees with the rated voltage printed on the generator’s rating
plate and ensure that any electrical equipment connected is in good
condition.
7) Lay extension cables and the mains cable of the connected electrical
equipment so that they do not pose a tripping hazard.
8) Never touch the generator or electrical equipment when your hands
are wet.
9) Do not use the cable of the connected electrical equipment to pull the
plug out of the socket. Instead always grip the plug firmly.
10) Never operate the generator in rainy, snowy or foggy conditions.
11) This generator may not be used by children or by persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge. Keep children away from the generator.
12) Children shall not play with the generator. Cleaning and user
maintenance shall not be performed by children.
13) Store petroleum spirit and engine oil in suitable and correctly marked
containers. Prevent unauthorised access.
14) Do not remove the generator’s protective covers while the generator
is running and replace any protective covers before starting the
generator.
15) Wear ear protectors.
16) Never attempt to modify the generator and always have defective
generators repaired by a competent person.
17) Use only original replacement parts.

Safety
13
18) Do not use the generator in dusty environments.
Safety instructions for charging 12 V DC lead –acid
batteries
WARNING!
Bear in mind that the clamps of any cable connected to the 12 V DC outlet are
always live when the generator is running. Never allow the red and black
clamps to touch and keep them away from metallic objects.
WARNING!
RISK OF EXPLOSIVE GASES:
a. Working in vicinity of a lead-acid battery is dangerous: batteries
generate explosive gases during normal battery operation. For this
reason, it is of utmost importance that you act with care and follow
all instructions each time you use the generator to charge lead acid
batteries.
b. To reduce the risk of battery explosion, follow these instructions and
those published by the car battery manufacturer and the manufacturer
of any equipment you intend to use in the vicinity of the battery.
Review cautionary markings on these products and on the engine.
Personal precautions
a. Consider having someone close enough by to come to your aid when
you work near a lead-acid battery.
b. Wear complete eye protection and clothing protection. Avoid touching
eyes while working near batteries.
c. Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
d. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters your eye, immediately flood eye with running
cold water and get medical attention immediately.
e. NEVER smoke or allow a spark or flame in the vicinity of battery or
engine.
f. Be extra cautious to reduce risk of dropping a metal tool on to the
battery. It might spark or short circuit the battery or another electrical
part that may cause explosion.

Before using the product
14
g. Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery. A lead-acid battery
can produce a short-circuit current high enough to weld a ring or the
like to metal, causing a severe burn.
h. Connect any cable connected to the generator to a LEAD-ACID battery
only. The generator’s 12 V DC outlet is not intended to supply power to
a low voltage electrical system. Do not use the generator for charging
dry-cell batteries that are commonly used with household appliances.
These batteries may burst and cause injury to persons and damage to
property.
i. NEVER attempt to charge a frozen battery.
Preparing to charge a battery
a. Remove your vehicle’s battery from the vehicle.
b. Be sure the area around the battery is well ventilated.
c. Clean the battery terminals. Be careful to keep corrosion from coming
into contact with your eyes.
d. Study the battery manufacturer’s specific precautions and follow these.
e. Determine voltage of battery by referring to your car's owner’s manual
and make sure that it matches the rating of the generator.
Charging location
a. Locate the generator as far away from your battery as cable permits.
b. Do not operate in any closed-in area or restrict ventilation in any way.
Before using the product
Checking the generator and pack contents
• Take the generator out of the packaging.
• Check that the delivery is complete (see section: “List of contents and features”)
• Check whether the generator or any of its individual parts are damaged.
• If this is the case, do not use the generator. Contact the manufacturer at the
service address specified on the warranty card.

Before using the product
15
Filling the engine with oil
Do not to overfill with oil. Overfilling with oil can lead to damage to the engine. The
maximum capacity of the oil tank is 0.6l.
Never start the engine without oil.
CAUTION!
Check that the generator is not running, disconnect any electrical
equipment and ensure that the ON/OFF switch is in the OFF position
before performing any kind of maintenance or adjustments.
The engine oil alert system will automatically stop the engine before the oil
level falls below the safe limit. However, it is advisable to visually inspect the
oil level regularly.
NOTICE!
Material required: #2 PH Screwdriver
Engine oil
Petroluem spirit
Clean cloth
• Place the generator on a flat, level
surface.
• Unscrew and remove the maintenance
cover 6using a #2 PH screwdriver.
• Remove any debris from around the oil
inlet area using a clean cloth.
In summer use type SAE 15W40 and in winter use type SAE10W30.
Proceed as follows to fill the generator with oil:
6
• Unscrew the oil inlet cap 21 from the
oil inlet.
• Use the dipstick fitted to the oil cap to
measure the oil level. Wipe the dipstick
clean with a rag then insert the dipstick
into the oil inlet but do not screw it in
place. Withdraw the dipstick and check
the oil level.
21

Before using the product
16
• To add oil fill the oil refill container 25
with oil and slowly pour oil into the oil
inlet.
• Let the oil settle for one minute and recheck the oil level as described above.
• Repeat as many times as necessary, checking the oil level with the dipstick each
time. Do not overfill.
• Screw the dipstick into the oil inlet and replace the maintenance cover.
• Ensure that the oil is level between the
LOW (L) and HIGH (H) marks.
LOW (L)
HIGH (H)
• Do not exceed the maximum capacity.
• Refer to the fuel level indicator fitted in
the fuel filter (see arrow).
Filling the fuel tank
NOTICE!
Use clean, fresh unleaded petrol min. 91 RON. Petrol with up to 10% ethanol content
may be used but do not use E85 high ethanol fuels. Do not mix the fuel with oil.
Never fill the tank without the fuel filter in place.
• Turn the fuel cap vent lever 1to the
ON position.
• Unscrew the fuel cap 2.
• Carefully fill the tank with unleaded
fuel.
1
2
25

Using the generator
17

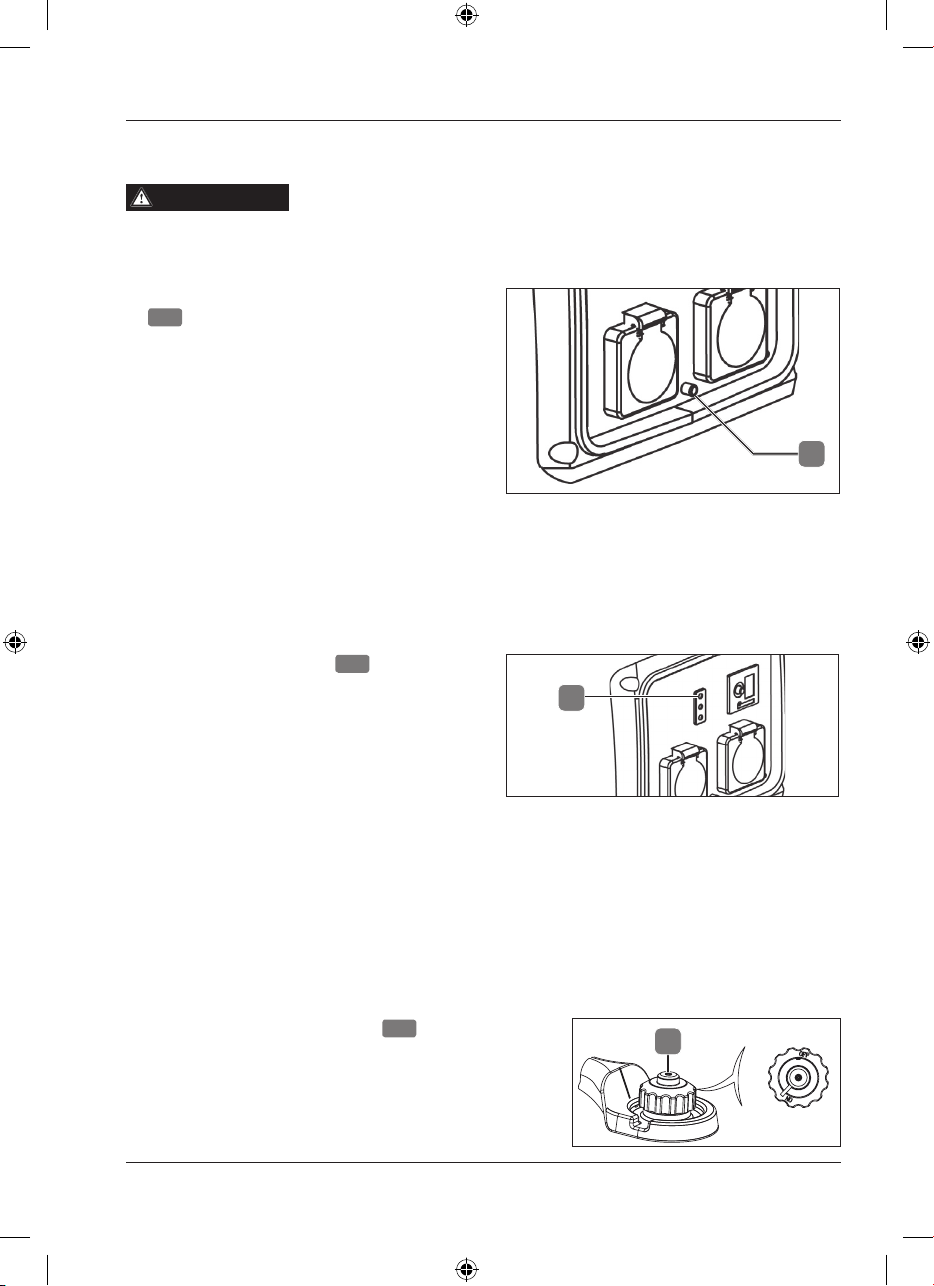

Earthing the generator
WARNING!
Ensure the generator is externally earthed when using an earthed
appliance to prevent electric shock.
• Connect the generator’s earth terminal
17 to a suitable earth point.
We recommend the use of an earth spike
(not supplied).
17
Engine oil alert system
The generator's engine oil alert system is designed to prevent engine damage
caused by an insufficient amount of oil in the crankcase. Before the oil falls below a
safe limit, the engine oil alert system with shut the engine off.
The engine oil alert light 20 will light red
when the engine oil alert system shuts off
the motor.
If this occurs, add engine oil as described
in the chapter "Filling the engine with oil".
20
Using the generator
Starting the engine
• Turn the fuel cap vent lever 1to the
"ON" position.
ON
OFF
1

Using the generator
18
• Turn the ON/OFF switch 4to the "ON"
position. ON
ON
OFF
• Slide the choke lever 7
7
to the "START"
position. 7
4
12V DC Socket
WARNING!
NEVER let live clamps touch each other.
Sparks created by contact of live DC clamps can pose a risk of explosions
or fire.
• Slide the choke lever to the "RUN"
position once the engine has warmed up.
• Carefully pull the starter coil 5until
it engages and then abruptly pull the
starter coil.
• Repeat as necessary until the engine
starts.
5

Using the generator
19
NOTICE!
• Connect the DC clamps of the charging
cable used first to the battery terminals
and subsequently to the generator. Refer
to the polarity markings on the battery.
− The red clamp is positive +
− The black clamp is negative –
The generator is equipped with a 12V DC socket which may be used for charging
automotive-type batteries only. The no-load voltage is 15 - 30V.
To avoid sparks only connect as follows:
• The 12V DC socket is fitted with a circuit
breaker. If the breaker trips unplug the
DC cable and press the DC Circuit breaker
/ reset switch.
230V AC Sockets
• The generator is equipped with two AC
sockets.
• Connect your electrical equipment to the
socket and use it in the normal way.
WARNING!
The rated power of the connected load must not exceed the generator'
s rated output. Refer to the type label of the electrical equipment you
wish to connect.

Maintenance, cleaning, storage and transport
20
Switching the generator OFF

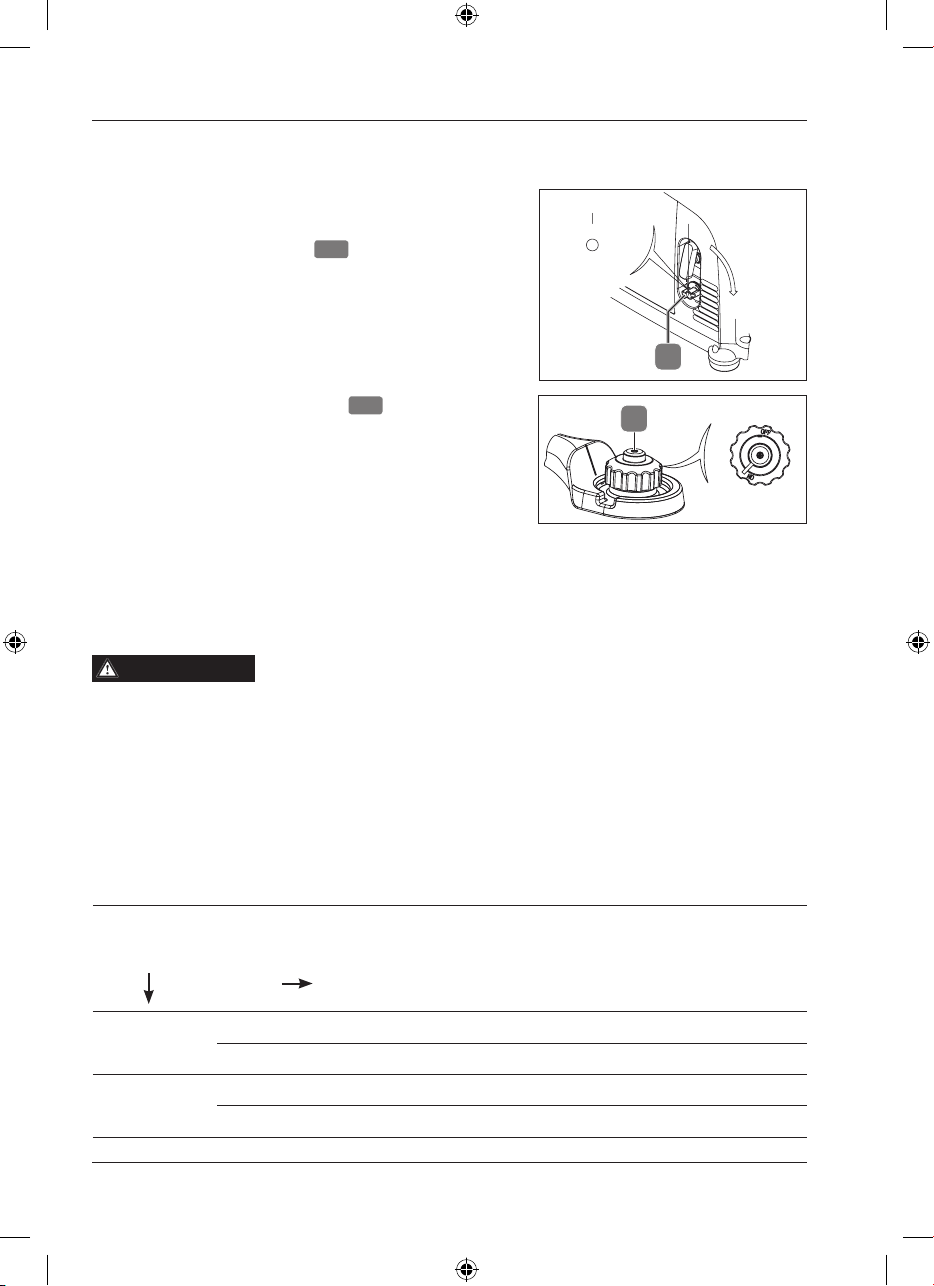

• Switch off all connected equipment and
disconnect it from the generator.
• Turn the ON/OFF switch 4to the "OFF"
position.
ON
OFF
OFF
• Turn the fuel cap vent lever 1to the
"OFF" position. 1
4
Maintenance, cleaning, storage and transport
Maintenance
WARNING!
Disconnect all appliances and switch the generator OFF before making
adjustments or carrying out maintenance work
For long service life petrol engine powered generators require regular maintenance.
Major repair work may only be carried out by qualified personnel. In case of doubt
consult a mechanic. Follow the maintenance chart below:
Component Frequency
Before
each
use
First
month
or 20
hours
Every 3
months
or 50
hours
Every 6
months
or 100
hours
Every
year
or 200
hours
Engine oil Check level X
Change X X
Air filter Check X
Clean X1
ON
OFF
