ergoline ergoselect 1 User manual

Manual
ergoselect 1
Bicycle Ergometer
Operator’s Manual
201000551000 • Version 2021-05-12 / Rev 02 • English

ergoselect 1 1
ergoselect 1
Bicycle Ergometer
Operator's Manual
201000551000 • Version 2021-05-12 / Rev 02 • English
This manual was written with the utmost care. Should you still nd details that do not corre‑
spond with the system, please let us know and we will correct the issue as soon as possible.
We reserve the right to modify the design and technical features and are not bound by the
information and illustrations provided in this manual.
All trademarks appearing in this document are trademarks of their respective owners.
Theirprotection is acknowledged.
No part of this manual may be reprinted, translated or reproduced without the manufacturer‘s
written permission.
This manual will not be automatically updated. Please contact the manufacturer for the
latest document revision.
This manual also describes optional components that are not included in the standard scope
of delivery of this product.
The document „Cleaning, and Disinfecting ergoline Medical Devices“ (Part No. 201000641000)
in its most recent version is also part of this manual. This document is exclusively made
available for download from the ergoline website www.ergoline.com.
ergoline GmbH
Lindenstrasse 5
72475 Bitz
Germany
Tel.: [phone] - 9894 - 0
Fax: [phone] - 9894 - 128
e-mail: [e-mail]
http: www.ergoline.com

2 ergoselect 1

Contents
1General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Contraindications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.3 Intended User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4 Intended Patient Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.5 Biocompatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6 Applicable Laws, Regulations and Directives . . . . . . . . . . . . . . . . . . . . . .8
3Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4Preparing the Patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

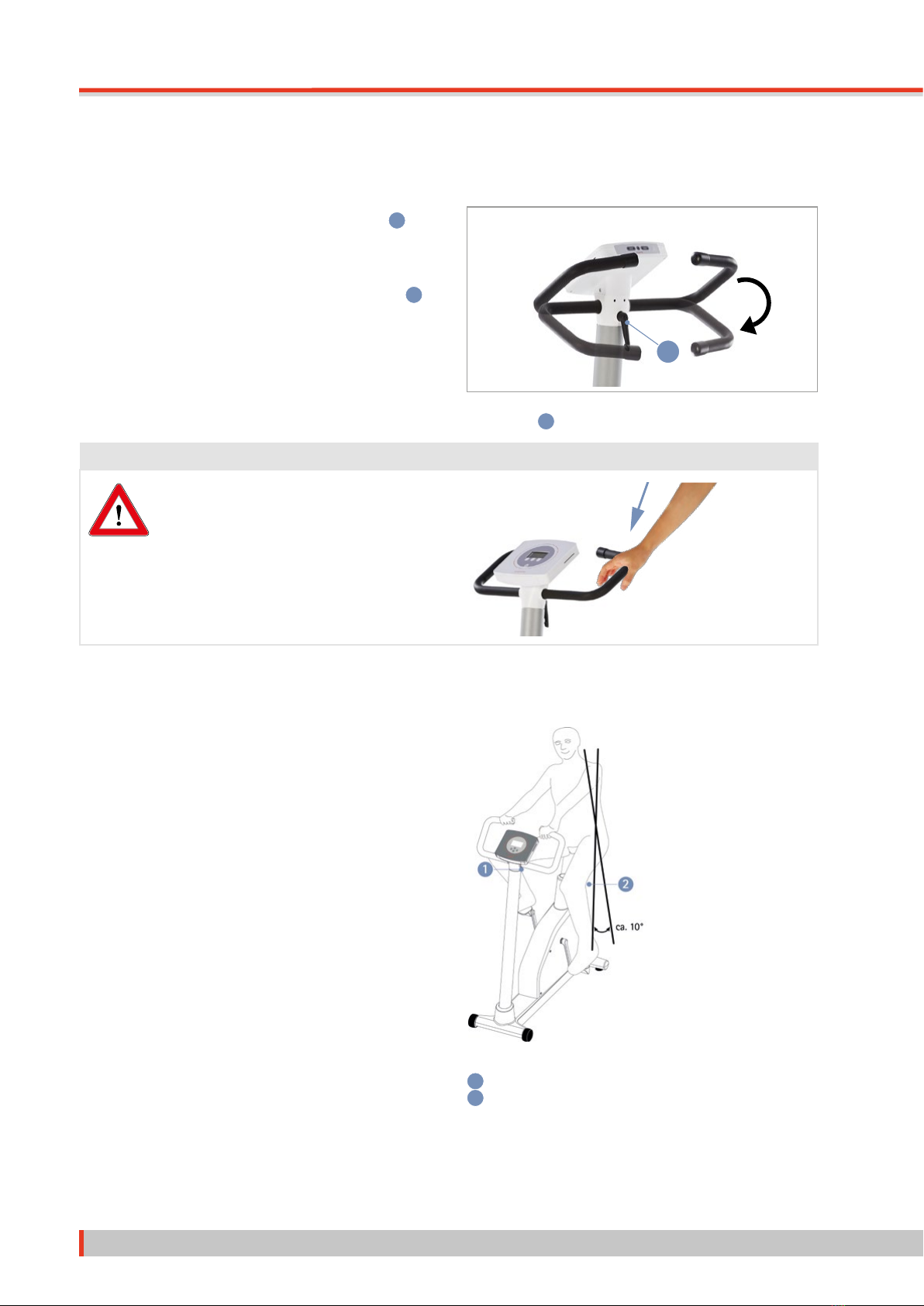

4.1 Handlebar Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.2 Saddle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5Setup and Mains Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Mounting the Control Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.3 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.4 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.5 Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5.6 Connecting the ECG Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1 Turning the System On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.3 Speed Readout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4 PC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.5 Ergometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.6 Terminating an Exercise Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.7 Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.8 Terminating an Exercise Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.9 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.9.1 Default Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.9.2 Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.9.3 Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.9.4 Load Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.9.5 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.9.6 Software Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.9.7 EKG Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
6.9.8 RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.9.9 HR Belt Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ergoselect 1 3

7Accessory / Compatible Devices . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7.1 Accessories Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.2 Compatible Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8Cleaning, Disinfection and General Hygiene Measures . . . . . . . . . . . . 26
9Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.1 Checks Before Each Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
9.2 Technical Safety Inspections, Inspections of the Measuring System . . . . . . .27
9.3 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
10.1 Ergometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10.2 Exercise Test Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10.3 Family of characteristics of the braking torque control range . . . . . . . .30
10.4 Family of characteristics of the load periods according to IEC60601-1 . . . 30
11 Electromagnetic Compatibility EN 60601-1-2 . . . . . . . . . . . . . .31
4 ergoselect 1

MF ergoselect 1 ergoselect 1 5
1 General Information
1 General Information
• The product ergoselect bears the CE marking CE‑0123
(Notied Body: TÜV), indicating its compliance with the
provisions of the Council Directive 93/42/EEC about
medical devices and fullls the essential requirements
ofAnnex I of this directive.
The CE marking covers only the accessories listed in the
Order Information chapter.
The device is an MDD class IIa product.
• The device fullls the requirements of the standard
EN60601‑1 "Medical electrical equipment, Part 1:
General Requirements for Safety" as well as the inter‑
ference protection requirements of standard EN60601‑1‑2
"Electromagnetic Compatibility – Medical Electrical
Devices".
The radio‑interference emitted by this device is within
the limits specied in EN55011, classB.
• The symbol means: protection class II.
• This manual is an integral part of the device. It should
be available to the device operator at all times. Close
observance of the information given in the manual is a
prerequisite for proper device performance and correct
operation and ensures patient and operator safety.
Please note that information pertinent to several chap‑
ters is given only once. Therefore, read the manual once
in its entirety.
• The symbol means: Follow the instructions in the
documentation.
It indicates points that are of particular importance in
the operation of the device.
• Observance of the safety information protects from
injuries and prevents inappropriate use of the device.
All device users and persons responsible for assembly,
maintenance, inspection and repair of the device must
read and understand the content of this manual, before
using the device or working with it. Paragraphs with
special symbols are of particular importance.
• If unauthorized individuals open the control terminal,
damaging the calibration sticker, any warranty claim
shall become void.
• This manual reects the device specications and appli‑
cable safety standards valid at the time of printing.
All rights are reserved for devices, circuits, techniques,
software programs, and names appearing in this manual.
• On request ergoline will provide a Field Service Manual.
• The ergoline quality management system complies with
the standard ENISO 13485: 2016.
• The safety information given in this manual is classied
as follows:
Danger
indicates an imminent hazard. If not avoided,
thehazard will result in death or serious injury.
Warning
indicates a hazard. If not avoided, the hazard may
result in minor injury and/or product/property
damage.
Caution
indicates a potential hazard. If not avoided, the
hazard may result in minor injury and/or product/
property damage.
• To ensure patient safety, the specied measuring accu‑
racy, and interference‑free operation, we recommend
using only original ergoline accessories. The user is
responsible if accessories from other manufacturers are
used.
• ergoline is responsible for the safety, reliability, and
performance of the device, only if
— modications and repair are carried out by ergoline
GmbH or by an organization expressly authorized
by ergoline GmbH
— the device is used in accordance with the instruc‑
tions given in this operator manual.

6ergoselect 1
2 Safety Information
2 Safety Information
Danger
Explosion Hazard
The device is not designed for use in areas where
an explosion hazard may occur.
Explosion hazards may result from the use of ammable anes-
thetics, skin cleansing agents, or disinfectants.
Warning
Patient Hazard, Equipment Damage
Do not expose the ergoselect to direct sunlight
to prevent system components from reaching
inadmissible high temperatures.
Do NOT use the ergoselect outdoors (medical device). Further-
more the device has no additional protection against the
ingress of humidity. Humidity inside the device may cause
equipment malfunctions and increases the risk of an electric
shock.
Additionally, the device should not be operated in the vicinity of
power systems, because they may impair equipment functions.
The ergoselect may only be used in combination with accesso-
ries approved by ergoline GmbH.
Personal Injury
Before using the ergometer, the user must ascertain that it is in
correct working order and operating condition. The cables and
connectors, in particular, must be checked for signs of damage.
Damaged parts must be replaced immediately.
Equipment Malfunction
Only the special shielded cables supplied by ergoline may be
used to connect the device to other pieces of equipment.
Equipment Malfunction
Cellular telephones may not be used in the immediate vicinity
of the ergometer, because they might interfere with the proper
functioning of the ergometer.
Electromagnetic interference most probably exists when
the watt reading is unstable. If the displayed value changes
frequently even though the speed is above 30 RPM, this may be
due to electromagnetic interference.
Note
Only the removal of the power cord will result in an
all-pole disconnection of the device from the power
line.
Warning
Shock Hazard
When the device is connected to other equip-
ment or if a medical system is created, it must
be ensured that the added leakage currents do
not present a hazard. In case of questions, please contact your
ergoline dealer or the ergoline GmbH Service Department.
For use, the ergometer must always be connected to electric
installations that fulll the local requirements.
Patient Hazard
The German Medical Device Operator Ordinance (MPBetreibV, §5)
demands that users
• must be trained in the use of the ergometer
• must be familiar with the routines for handling and assembly
of the ergometer
• must be familiar with and observe the safety rules and regu-
lations for operation of this type of equipment
• must be informed about any other pertinent rules and regu-
lations (e.g., safety instructions)
• must be informed about the potential hazards arising from
the use of this type of equipment
• make sure that no unauthorized changes are carried out.
Patient Hazard
The medical device is only intended for use by trained and
appropriately qualied sta.

6ergoselect 1 ergoselect 1 7
2 Safety Information
Caution
Additional equipment connected to medical electrical
equipment must comply with the respective IEC or
ISO standards (e.g., IEC 60950 for data processing
equipment).
Furthermore, all congurations must meet the requirements of
the applicable medical systems standards (see 3rd edition of
IEC 60601-1).
Anybody connecting additional equipment to medical electri-
cal equipment congures a medical system and is therefore
responsible for the system's compliance with the requirements
for medical electrical systems. Attention is drawn to the fact
that local laws take priority over the above mentioned require-
ments.
If in doubt, please consult your local dealer or ergoline GmbH.
Note
Applied Parts
Applied parts are components that are in direct
contact with the human body (e.g., sphygmoma-
nometers).
Note
Stability
Ensure the stability of the ergometer. If the max-
imum permitted patient weight is exceeded, the
stability of the ergometer can no longer be guaran-
teed. It may become unstable as a result.
2.1 Contraindications
• The general, absolute contraindications to cardiac stress
testing apply.
• Patients with physical, psychological, or mental aic‑
tions who cannot be mobilized and are therefore not
capable of using rehabilitation facilities.
The following patient categories are excluded from using
the device:
• dizziness, nausea, or pain
• patients under the inuence of substances that may
impair vigilance (alcohol, drugs, medication).
Contraindications in exercise testing carried
out with ergometers
(source: Banerjee A et al., 2012)
Contraindications in exercise testing:
• acute myocardial infarction in the previous 4 to 6 days
• unstable angina with rest pain in the previous 48 hours
• uncontrolled heart failure
• acute myocarditis or pericarditis
• acute systemic infection
• deep vein thrombosis as it is likely to shift and cause
pulmonary embolism
• uncontrolled hypertension with systolic blood pressure
>220mmHg or diastolic blood pressure >120mmHg
• severe aortic stenosis
• severe hypertrophic obstructive cardiomyopathy
• untreated life‑threatening arrhythmia
• dissecting aneurysm
• recent aortic surgery
• abnormalities during testing include:
− abnormal ST‑segment response (horizontal, planar,
or down‑sloping depression of >1mm).
− T‑wave elevation of >1mm in non‑Q‑wave leads.
− T‑wave changes such as inversion and pseudo‑nor‑
malization when an inverted T‑wave becomes
upright are non‑specic changes.
Criteria for stopping bicycle-based exercise
testing
(source: Banerjee A et al., 2012).
Criteria for stopping bicycle based exercise testing include:
ECG criteria
• severe ST depression of >3mm
• ST elevation >1mm in non‑Q‑wave lead
• frequent ventricular extra systoles
• onset of ventricular tachycardia
• new atrial brillation or supraventricular tachycardia
• development of new bundle branch block
• progression of heart block to second or third degree
• cardiac arrest

8ergoselect 1
2 Safety Information
Clinical criteria
• excessive fatigue
• severe chest pain, dyspnoea, or dizziness
• >20mmHg reduction in systolic blood pressure
• rise in blood pressure
2.2 Intended Use
The medical device is a stationary ergometer used for
reproducible, controlled stress testing of the cardiovascular
system.
It is employed as a training device in the eld of ortho‑
pedics, in rehabilitation and secondary prevention for the
treatment of decreased physical tness resulting from the
following conditions:
• cardiovascular diseases
• metabolic disorders
• cancers
• pulmonary diseases
• sedentary lifestyle
Furthermore, it is a diagnostic tool in performing exercise
stress tests.
2.3 Intended User
Only the intended users are allowed to use the ergometer.
The group of intended users includes:
• healthcare professionals thoroughly instructed on the
basis of the operator manual
• patients of the intended patient group who have been
thoroughly instructed by trained specialists
The group of intended users does not include persons
whose mental and physical capabilities and skills have an
adverse eect on their ability to use the medical device in
accordance with its intended purpose.
2.4 Intended Patient Group
The intended patient group includes all persons
• with a maximum weight of 160kg
• whose body height and age makes them eligible for
exercise testing. Due to various ergonomic aspects, it is
not possible to provide exact data for body height and
age.
• whose medical condition has been checked by a medical
specialist who judged them to be suitable for the appli‑
cation described in the intended use.
2.5 Biocompatibility
The parts of the product described in this manual, includ‑
ing all accessories that come in contact with the patient
during the intended use, fulll the biocompatibility require‑
ments of the applicable standards if applied as intended.
If you have questions in this matter, please contact
ergoline GmbH or an ergoline representative.
2.6 Applicable Laws, Regulations
and Directives
If you have questions regarding laws, regulations or direc‑
tives related to the product, please contact ergoline GmbH.

8ergoselect 1 ergoselect 1 9
3 Symbols
3 Symbols
Symbol ’type B applied part’.
Type B applied parts have no direct contact with
patients and oer the lowest protection against
electric shock.
Note: Consult accompanying documents.
Protection class II equipment.
This symbol indicates that the waste of electrical
and electronic equipment must not be disposed of
as unsorted municipal waste and must be collected
separately.
Consult Operator's Manual!
Order number.
Serial number.
nächster
Prüftermin
gemäss MPBetreibV
20
21
22
19
18
17
01
02
03
04
05
06
07
08
09
10
11
12
Scheduled date of the next inspection
(e.g., March 2020).
Toggle switch ON (voltage).
Toggle switch OFF (voltage).
CE mark per the Medical Device Directive 93/42/EEC
of the European Union.
Notied body: TÜV SÜD Product Service GmbH,
Ridlerstr. 65, 80339 München, Germany.
Nationally Recognized Testing Laboratory
NRTL label for the USA and Canada.
Do not lean against device: tipping hazard.
Manufacturer’s identication.
Date of manufacture.
The number found under this symbol is the date of
manufacture in the YYYY‑MM‑DD format.
Transport and storage label:
top.
Transport and storage label:
keep dry.
Transport and storage label:
fragile.
Transport and storage label:
approved temperature range.
Transport and storage label:
approved humidity, non‑condensing.
Transport and storage label:
approved pressure range.
Transport and storage label:
do not stack.

10 ergoselect 1
4 Preparing the Patient
4 Preparing the Patient
4.1 Handlebar Adjustment
To adjust the handlebar angle, open the rotary lever
1
by
turning it counter‑clockwise.
Choose a handlebar angle that allows the patient to sit up
straight and comfortably. Then tighten the rotary lever
1
hand tight by turning it clockwise.
Before allowing the patient to rest the full body weight on
the handlebar, check the clamping as follows:
1
Figure 4 – 1: Handlebar adjustment
1
Rotary lever
Danger
• With the ergometer standing rmly, check that
the handlebar is tight by trying to push the
handlebar downwards from above. Adjust the
clamping force of the rotary lever if necessary.
The handlebar is not designed to support the full body weight!
Risk of falling!
4.2 Saddle adjustment
Thesaddleheightoftheergoselect1isadjustedmanuallywitha
rotary lever.
When the pedal is in its lower position, there should be a
10° angle between the axis formed by the upper body and
the thigh.
Set the handlebar to a position where it is comfortable to
reach for the patient while sitting upright (see section4.1
Handlebar Adjustment on page10).
Figure 4 – 2: Adjusting Saddle and Handlebar
1
Adjusting the handlebar angle
2
Adjusting the height of the saddle

10 ergoselect 1 ergoselect 1 11
4 Preparing the Patient
To adjust the saddle height, open the rotary lever
1
by
turning it counter‑clockwise.
Adjust the appropriate saddle height. Ask the patient to
stand next to the saddle. Position the saddle at the level
of the patient's hip. Then tighten the rotary lever
1
hand
tight by turning it clockwise.
Figure 4 – 3: Tightening the rotary lever
Warning
Do not choose saddle height settings above the
"max." mark.
Do not exceed the maximum height marked on
the scale to avoid any risk of falling!
max.
Before allowing the patient to sit down on the saddle,
check the secure xation of the saddle as follows:
Danger
With the ergometer standing rmly, check that
the saddle is securely clamped by trying to push
itdownwards from above. Adjust the clamping
force of the rotary lever if necessary.

12 ergoselect 1
5 Setup and Mains Connection
5 Setup and Mains Connection
5.1 Controls and Indicators
1
Control terminal
2
Speed indication for the patient
3
Adjustment of handlebar angle
4
Castors
5
Adjustment of saddle height
6
Power switch (toggle switch [I/0])
7
Leveling feet to adjust the ergometer to uneven oors
8
Sockets for power cord and connection cables (under‑
side of ergometer)
Figure 5 – 1: Operating controls of the ergoselect 1
5.2 Mounting the Control Terminal
The control terminal can be installed with the display either
facing the patient or the operator.
It is recommended to install the terminal with the display
and control keys towards the operator and the speed read‑
out towards the patient.
Figure 5 – 2: Dierent orientations of the control terminal

12 ergoselect 1 ergoselect 1 13
5 Setup and Mains Connection
5.3 Transport
For short distances, the ergoselect 1 can be lifted at the saddle
and rolled away on its castors.
To cover greater distances with the ergoselect 1, however, we
recommend the following method:
• Disconnect the power cord from the wall outlet.
• Rotate the handlebar of the ergoselect 1 towards the front
and tighten the clamping lever.
• Standinfrontoftheergoselect1,graspthehandlebarandtilt
the ergometer towards you until it is standing on the
castors only and is balanced.
• It is now possible to transport the ergoselect 1.
• When you have reached the new location, lower the
ergoselect 1 very carefully to protect it from considerable
damage.
Caution
Equipment Damage
Avoid strong vibrations of the ergoselect 1 during
transport.
Figure 5 – 3: Transporting the ergoselect 1
5.4 Setup
Place the ergoselect 1 on a level oor.
Theergoselect 1must be set up ina secureand stableposition;
the two leveling feet at the back make for easy adjustment
tounevenoors.Extendthefootconcerneduntiltheergoselect1
no longer wobbles.
In case of delicate ooring, it is recommended to place
a mat under the ergometer to protect the ooring from
damage by the feet.
The ergoselect 1 has 2 castors at the front for transport.
Figure 5 – 4: Leveling foot of the ergoselect 1 ergometer

14 ergoselect 1
5 Setup and Mains Connection
5.5 Connecting the Power Cord
• Rotate the handlebar of the ergometer towards the front.
• Tilt the ergometer carefully towards the front until it
rests on the handlebar.
Figure 5 – 5: Assembly position of the ergoselect 1 ergometer
• Connect the power cord on the underside of the
ergoselect 1.
• Insert the power cord into the strain relief and screw
the strain relief to the frame. Make sure that the plastic
pin engages in the corresponding hole.
• Return the ergometer carefully to its upright position
and adjust the handlebar.
• Plug the power cord into a wall outlet.
Figure 5 – 6: Power cord in strain relief mounted to frame
Warning
• Arrange the power cord properly.
• Lay the power cord at on the oor.
• Keep the power cord away from the pedals.
Caution
Equipment Damage
Before connecting the ergometer to the power
line, check that the line voltage corresponds to the
ratings on the type plate.
The type plate is located on the back of the device, at the bottom.
Note
Disconnection from Power Supply
Pressing the power switch or removing the power
cord disconnects the device from the power supply.
Removing the power cord results in a complete disconnection
of the device from the power supply (all poles).
Ensure that the power plug is readily accessible at all times.

14 ergoselect 1 ergoselect 1 15
5 Setup and Mains Connection
5.6 Connecting the ECG Cable
Theergoselect1ergometerscanbeconnectedtoelectrocardio‑
graphs and PC‑based ECG systems of most manufacturers.
Theergoselect1ergometersareequippedwithadigitalinterface.
The connection cable is plugged into the 9‑pole socket of
the connection panel (Port 1) or the USB port and secured
at the metal frame with an additional strain relief. Figure 5 – 7: Connection for ECG recorder / PC ECG system
1
USB: PC connection via USB (virtual COM)
2
PORT 1: Digital connection
(remote control from PC or ECG recorder)
Note
Connection Cables
Use only connection cables approved by ergoline.
A special PC driver software, which can be obtained
from ergoline, is required for operation via the USB port.

16 ergoselect 1
6 Operation
6 Operation
Figure 6 – 1: Control terminal of ergoselect 1
6.1 Turning the System On
You turn on the ergometer by pressing the power switch.
The ergometer runs a self‑test. Subsequently, the main
menu displays.
ergoline
GmbH
Selftest running
Figure 6 – 2: Self-test screen
Note
• Instruct the patient not to pedal while the ergometer
is being turned on and during the self-test.
• The device can be congured to default to one of
the operating modes.
If this option is selected, the start screen of the selected
operating mode (e.g., Ergometry) will be displayed instead of
the main menu.
With the key, you can display the main menu.

PC Mode
Ergometry
Manual
Settings
Select
Figure 6 – 3: Main menu

16 ergoselect 1 ergoselect 1 17
6 Operation
The ergometer software is controlled with 4keys:
With this key you display the main menu or return to
the previous menu level.
The functions of these 3 softkeys change with
the displayed menu – the key label describing
the function is shown on the display.
Figure 6 – 4: ergoselect 1 – keypad and display
6.2 Operating Modes
The ergoselect 1 ergometer supports the following operating
modes:
PC Mode
An external device (e.g. an ECG recorder, a PC‑based ECG
system) controls the ergometer – no intervention at all is
required at the ergometer.
Ergometry
The ergometer runs an automatic exercise test – some of
the corresponding test protocols are user‑congurable and
stored in the system.
(see chapter10.2 Exercise Test Protocols on page29)
Manual
The ergometer is controlled manually, i.e., the user performs
all load changes via the keypad.
Settings
Used to congure the ergometer.
6.3 Speed Readout
A speed readout as well as ve LEDs at the top of the
control terminal inform the patient of the speed: too slow,
too fast or correct.
The ranges for the respective speed ratings depend on the
selected load (see “Note“ on page24).
21 3
Figure 6 – 5: Speed readout
1
speed low (patient should pedal faster)
2
correct speed
3
speed high (= patient should pedal slower)
Note
If, during an exercise test, the speed drops below
30RPM, the load readout starts blinking on the
display.

18 ergoselect 1
6 Operation
6.4 PC Mode
Use the softkeys on the right and left (↑↓) to position the
bar cursor on PC Mode and confirm the selection with
Select.

PC Mode
Ergometry
Manual
Settings
Select
Figure 6 – 6: Main menu
The display changes – the ergometer is waiting for commands
from the external ECG unit.
0— 0
Watt min:sec /min
PC Mode
Figure 6 – 7: Start screen
As soon as the ergometer receives commands from the
controlling ECG unit or PC, the exercise test will start and
the corresponding values will be displayed.
The exercise test can only be terminated with the corre‑
sponding command from the controlling ECG unit.
1 2 3
120 15:23 76
Watt min:sec /min
PC Mode
Figure 6 – 8: Exercise test screen
1
current load (watts)
2
duration of exercise test (min)
3
pedal speed (RPM)
6.5 Ergometry
Use the softkeys on the right and left (↑↓) to position the
bar cursor on Ergometry and conrm the selection with
Select.

PC Mode
Ergometry
Manual
Settings
Select
Figure 6 – 9: Main menu
