ES AW6-V6-MBG User manual

Heat Pump
DC Inverter Air to Water
Before operating this product, please read the
instructions carefully and keep this manual for future use.
User’s manual
User’s manual
AW6-V6-MBG
AW9-V6-MBG
AW11-V6-MBG
AW13-V6-MBG

2

5
Catalogue
1.Introduction
1.1.Preliminary Information
1.2.Safety Precautions
1.3.Functioning Principles
1.4.Product Component Diagram
1.5.Technical Specifications
2.Overview of the Units
2.1.Functional Diagrams
2.2.Outlines and Dimensions
2.3.Exploded Views
3.Assembly Configurations
Assembly Configuration Selection Flowchart
Assembly Drawings, Wiring, and Software
4.Installation Walkthrough
4.1.Sanitary Hot Water Applications
4.2.Heating and Cooling Circuits
4.3.Indoor Unit Installation
4.4.Outdoor Unit Installation
4.5.Wiring
4.6.Water Pipework
4.7.Test Run
5.Appendix
A. Wiring
5
3
6
8
9
10
11
11
14
19
23
23
24
53
53
57
60
62
64
74
75
76
76
B. Wiring Diagrams 78

Installation
Manual
User’s
Manual Temperature Sensor
TC-Water
Temperature
Sensor
(for cooling
and heating)
TR-Room
Temperature
Sensor
(for sanitary
hot water)
TV(1+2)- Water
Temperature
Sensors for
Mixture Valves
Sensor
Communication
Cable
Communication
Cable between
Indoor and
Outdoor Unit
Below are the accessories that are included with your purchase.
Please check to ensure that none are missing or damaged.
If so,please contact your local distributor.

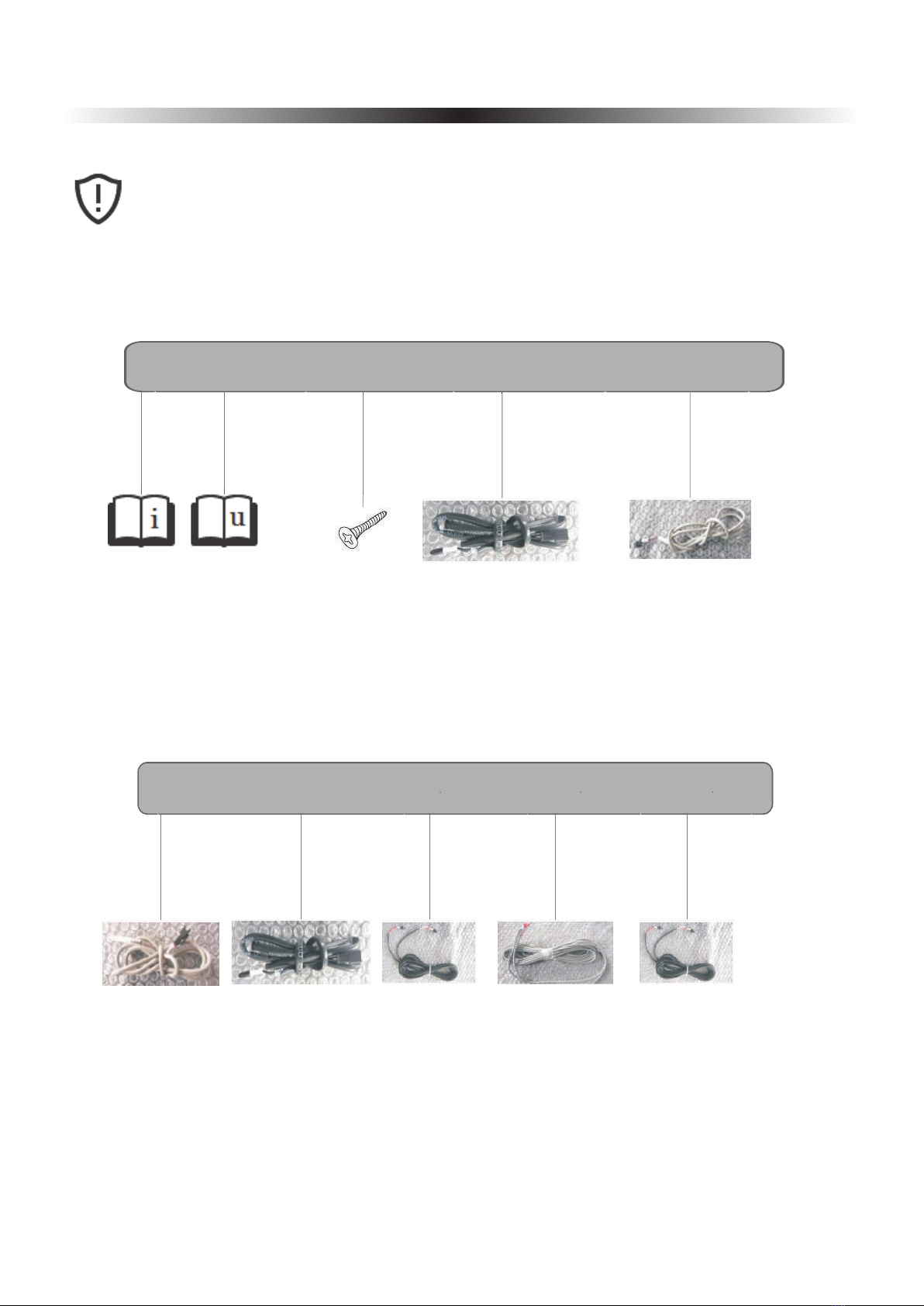

Included Accessories
Screws DHW
(1+2)
1 2 345
6789
X1 X1 X3 X1 X1
X1 X2 X5 X1
4
10
X1
Sensor
Communication
Cable between
Indoor and
Outdoor Unit

1. Introduction
1.1 Preliminary Information
Thank you for your purchase of our quality heat pump.
This manual is intended to provide detailed instructions for the successful installation of your newly
purchased heat pump product. Please ensure that this manual, along with the User’s and Service
manuals, are kept in an easy-to-access location for your reference later on.
DISCLAIMER
Proper adherence to the directions provided herein is vital for both the smooth operation of this
system, as well as for your safety and the safety of those around you. Amitime Electric Co., Ltd. is not
responsible or liable for any losses incurred due to misuse or mishandling of this product, which
includes, but is not limited to:
• Purchasing, installing, and/or operating this product with the intention of using it outside of
its established, technical purpose.
• Carrying out improper work upon the unit, or any of its components, that has not been given
explicit, prior consent in the form of writing.
• Installation attempts of this system by anyone other than a properly trained and licensed
professional.
• Negligence of properly-worn personal protection (safety glasses, gloves, etc.) while performing
installation, maintenance, or servicing of this product.
SAFETY
• The operation of this system during ambient temperatures which are below or beyond the
temperature range intended (-25°C to 43°C)
If unsure of what installation procedures to use, please contact your local distributor for information
and/or advisement. Any accessories used with this product must be official only. Any electrical work
must be carried out by certified electricians only. The manufacturer is not responsible for any alter-
ations or modifications that are made without explicit, written approval. The design of this unit com-
plies and conforms to all necessary and relevant safety regulations, and is otherwise safe to operate for
its intended use.
Please pay attention to the following pages, which detail important precautions that should be closely
followed, to ensure safe installation and operation .
5

1. Introduction

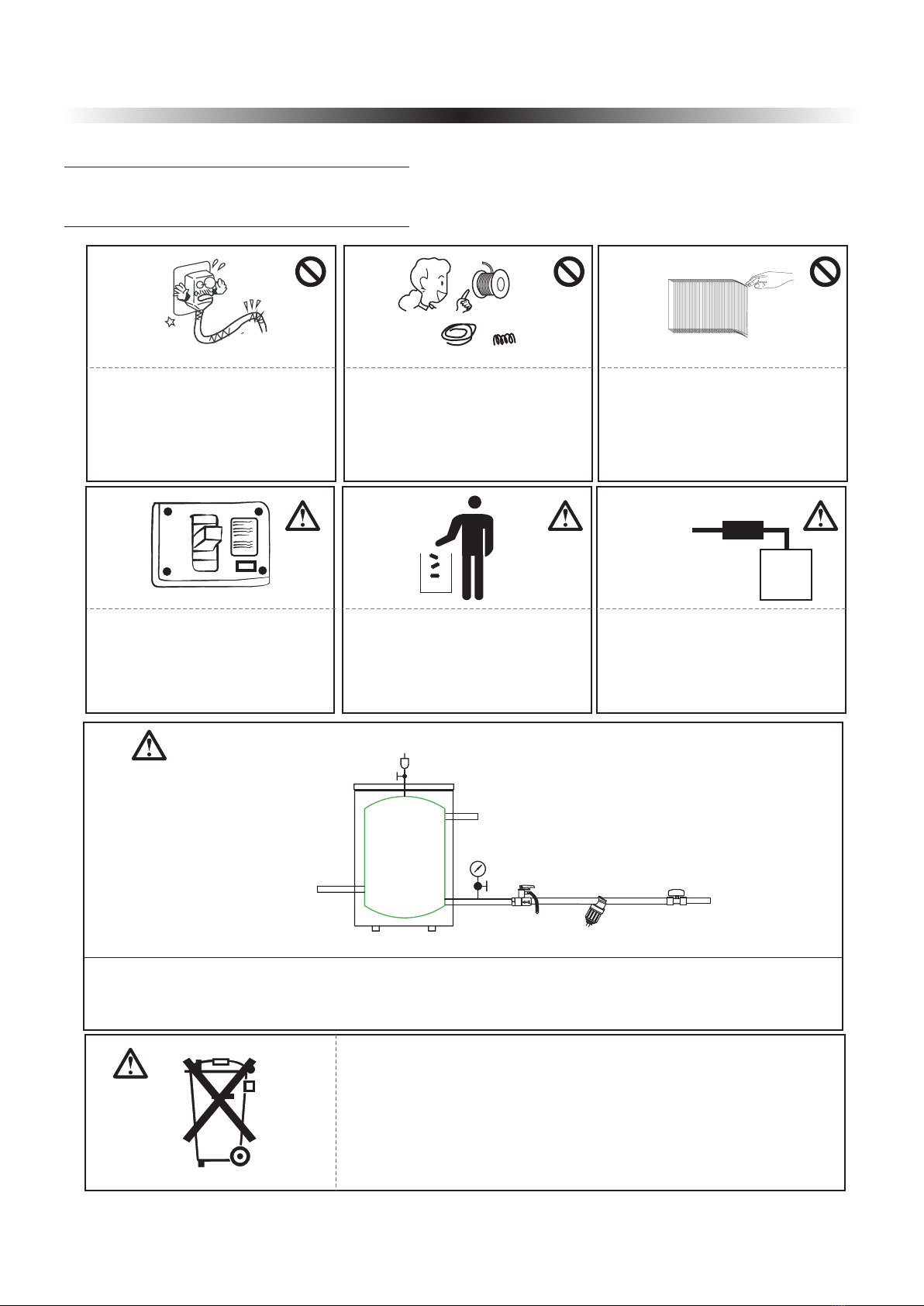

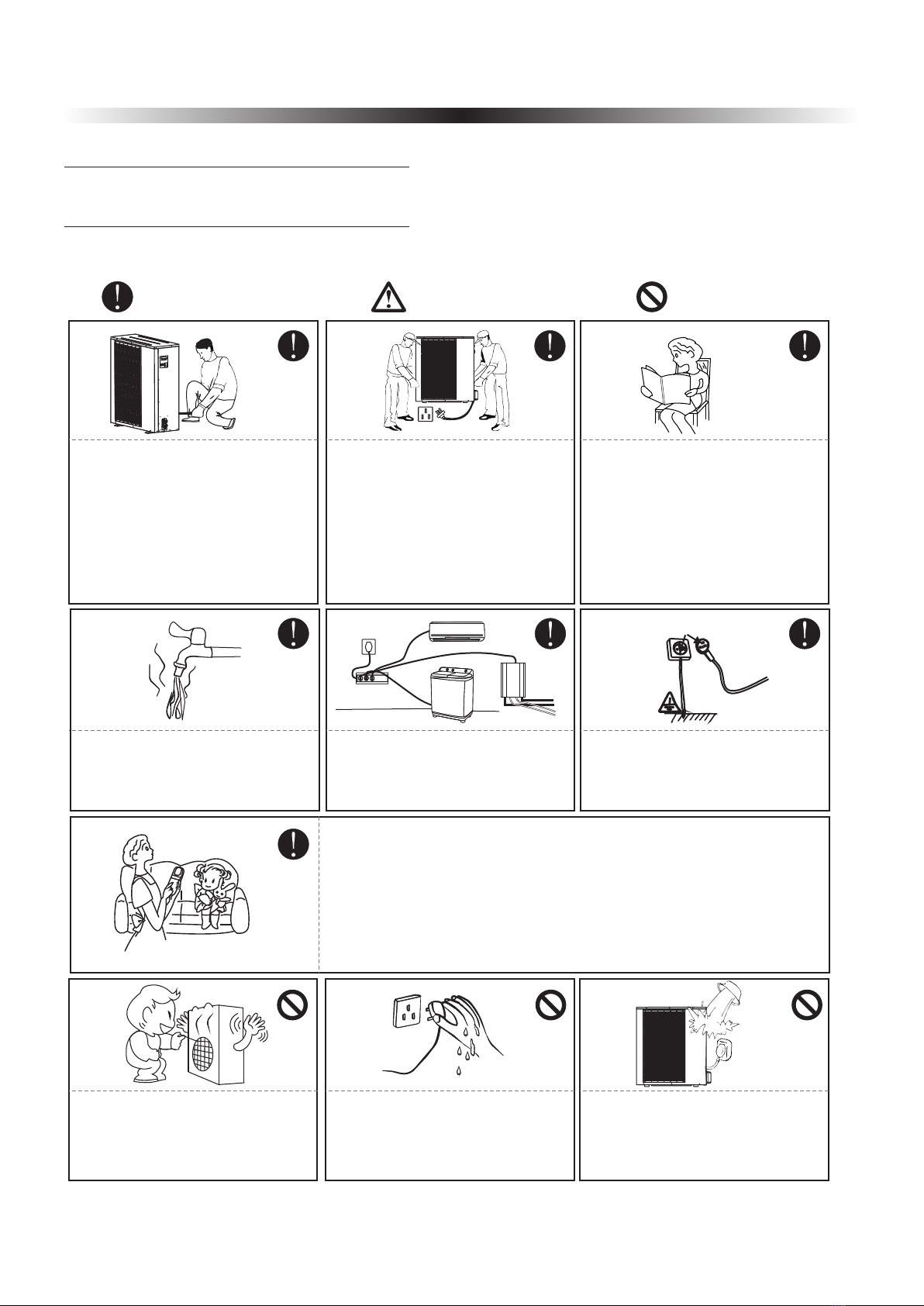

1.2.Safety Precautions
To ensure both your personal safety, as well as the safety of the product, note the symbols below and
be sure to understand their correlation to each of the precautions depicted.
CautionWarning Prohibition
The installation, dismantlement
and maintenance of the unit must
be performed by qualified
personnel. It is forbidden to do any
changes to the structure of the unit.
Otherwise injury of person or unit
damage might happen.
To avoid electrical shock, make
sure to disconnect the power
supply 1 minute or more before
servicing the electrical parts. Even
after 1 minute, always measure the
voltage at the terminals of main
circuit capacitors or electrical parts
and, before touching, make sure
that those voltages are lower
than the safety voltage.
User Manual
Be sure to read this manual before
use.
For sanitary hot water, please
always add a mixture valve before
water tap and set it to proper
temperature.
Ground wire
Use a dedicated socket for this
unit, otherwise malfunction may
occur.
The power supply to the unit must
be grounded.
Do not touch the air outlet grill
when fan motor is running.
Do not touch the power plug with
wet hands. Never pull out the plug
by pulling the power cable.
Water or any kind of liquid is
strictly forbidden to be poured into
the product, or may cause electric
creepage or breakdown of the
product.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
6

Copper
Steel
Fuse
Main
Power Cable RCD
Indoor
unit
When the power cord gets loose
or damaged, always get a qualified
person to fix it.
It is mandatory to use a suitable
circuit breaker for the heat pump
and make sure the power supply to
the unit corresponds to the
specifications. Otherwise the unit
might be damaged.
Disposal of Scrap Batteries(if
there is).Please discard the
batteries as sorted municipal waste
at the accessible collection point.
Installation of a residual current
device (RCD) having a rated
residual operating current not
exceeding 30 mA is advisable.
ON
OFF
Please select the correct fuse or
breaker as per recommended. Steel
wire or copper wire cannot be
taken as substitute for fuse or
breaker. Otherwise, damages
maybe caused.
Be aware fingers might be hurt by
the fin of the coil.
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
System water filling T/P valve
Connect to heating/cooling system
Buffer tank
Connect to heat pump
One way valve
Filter
City water inlet
1. It's suggested to use pure water for filling the system.
2. If use city water for filling, please soften the water and add a filter.
Note: After filling, the system of water system should be 0.15~0.6MPa.
1. Introduction
1.2.Safety Precautions
7

Water inlet
Water Outlet
Outdoor unitIndoor unit
Filter
Water pump
Heat
exchanger
Power supply
Four-way vavle
Compressor
Three-way valve
Refrigerant Filter T-connector
Fan motor
Pressure
check valve
Evaporator
Heating
Cooling
8
1. Introduction
1.3.Functioning Principles

9
1. Introduction
1.4.Product Components Diagram
Below is a general system application of the heat pump. Any specific configurations should be a
variation of this “master” system drawing. All suggested assembly variations are given in Chapter 3.
Name Symbol Name Symbol
Temp.Sensor Safety valve Kit Ball valve Water filter
Air purging valve
Water pump
Mixing valve
Motorized valve
Expansion tank
Note:Dotted lines mean〝able to be controlled by the Heat Pump〞.

10
1. Introduction
1.5.Technical Specifications
Model
Power Supply-Refrigerant V/Hz/Ph 220-240/50/1-R410A
Max. Heating Capacity (1)
C.O.P (1)
Heating Capacity Min./Max.(1)
Heating Power Input Min./Max.(1)
C.O.P Min./Max.(1)
Max. Heating Capacity(2)
C.O.P (2)
Heating Capacity Min./Max.(2)
Heating power input Min./Max.(2)
C.O.P Min./Max.(2)
Max. Cooling Capacity(3)
E.E.R (3)
Cooling Capacity Min./Max.(3)
Cooling Power Input Min./Max.(3)
E.E.R Min./Max.(3)
Max. Cooling Capacity(4)
E.E.R(4)
Cooling Capacity Min./Max.(4)
Cooling Power Input Min./Max.(4)
E.E.R Min./Max.(4)
KW
W/W
KW
W
W/W
KW
W/W
KW
W
W/W
KW
W/W
KW
W
W/W
KW
W/W
KW
W
W/W
11.510.10
3.82
4.03
4.67/11.54.33/10.10
915/3029975/2153
3.82/5.054.02/4.65
10.79.53
2.953.17
4.14/10.74.19/9.53
1218/36241230/2990
2.95/3.563.12/3.55
9.26.84
2.682.09
4.33/9.24.10/6.84
993/3465
1230/3280
2.685/4.11
2.09/3.32
6.745.05
2.151.58
2.17/6.74
2.34/5.05
924/31321080/3200
2.15/3.0
1.58/2.40
Compressor Type-Quantity/System Twin Rotary/1
Fan
Quantity
Airflow
Rated Power
m³/h
W
3100
3000
76
11
Type of Product DC Inverter Air to Water Heat Pump Unit
Noise Level Indoor/Outdoor 30/56
dB(A)
12.6
3.89
4.2/12.6
926/3072
3.89/4.77
11.5
3.08
3.76/11.5
1267/3723
2.97/3.28
10.3
3.29
4.29/10.37
957/3156
3.29/4.63
7.9
2.63
2.34/7.91
1000/3012
2.33/3.12
4200
150
2
30/56
6.21
4.05
2.19/6.21
540/1530
4.05/5.87
5.8
3.22
2.05/5.8
640/1810
3.22/4.12
5.81
3.51
2.05/5.81
768/2105
3.15/4.71
4.5
2.52
1.59/4.5
614/1740
2.52/4.32
2700
1
7665
30/5630/52
Water Side Heat
Exchanger
Allowable Water
Flow
Type
Water Pressure Drop
Piping Connection
Min. Water Flow
Rated Water Flow
Max. Water Flow
23
G1”
0.520.395
0.310.24
0.620.48
Kpa
Inch
L/S0.61
0.37
0.73
Plate Heat Exchanger
23 26
0.29
0.19
0.33
20
NOTE:
(1) Heating condition: water inlet/outlet temperature:30℃/35℃, ambient temperature:DB/WB 7/6℃;
(2) Heating condition: water temperature:40℃/45℃, ambient temperature:DB/WB 7/6℃;
(3) Cooling condition: water temperature:23℃/18℃, ambient temperature:35℃;
(4) Cooling condition: water temperature:12℃/7℃, ambient temperature:35℃.
inlet/outlet
inlet/outlet
inlet/outlet
(5) The specifications are subject to change without prior notice.
For actual specifications of the unit, please refer to the specification stickers on the unit.
AW11-V6-MBG
AW9-V6-MBG AW13-V6-MBG AW6-V6-MBG

2. Overview of the Units
Indoor unit
11

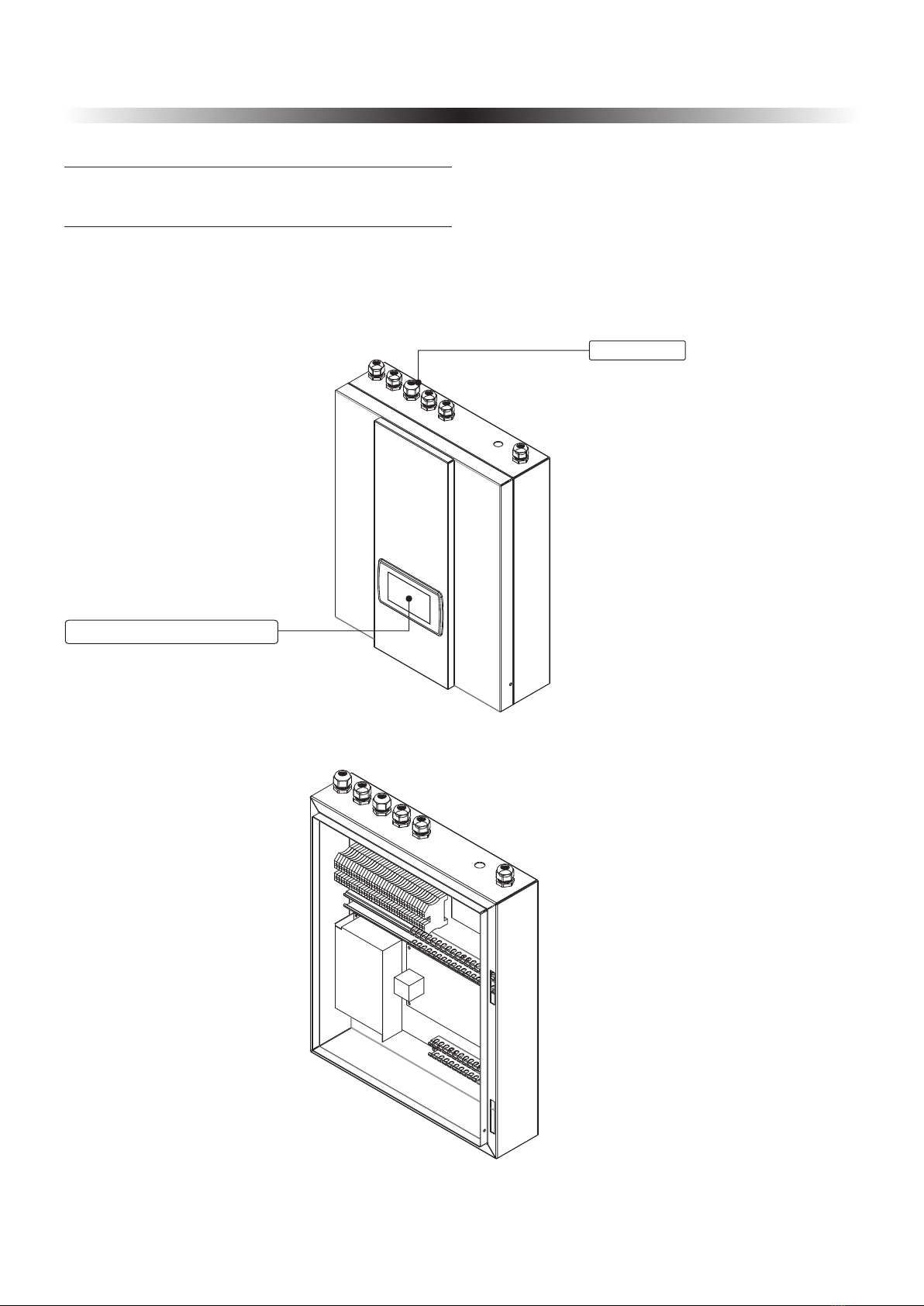

2.1.Functional Diagrams
Cable gland
Touch screen operation panel
AWC6/9/11/13-V6-MBW

Outdoor unit
2. Overview of the Units
12
2.1.Functional Diagrams

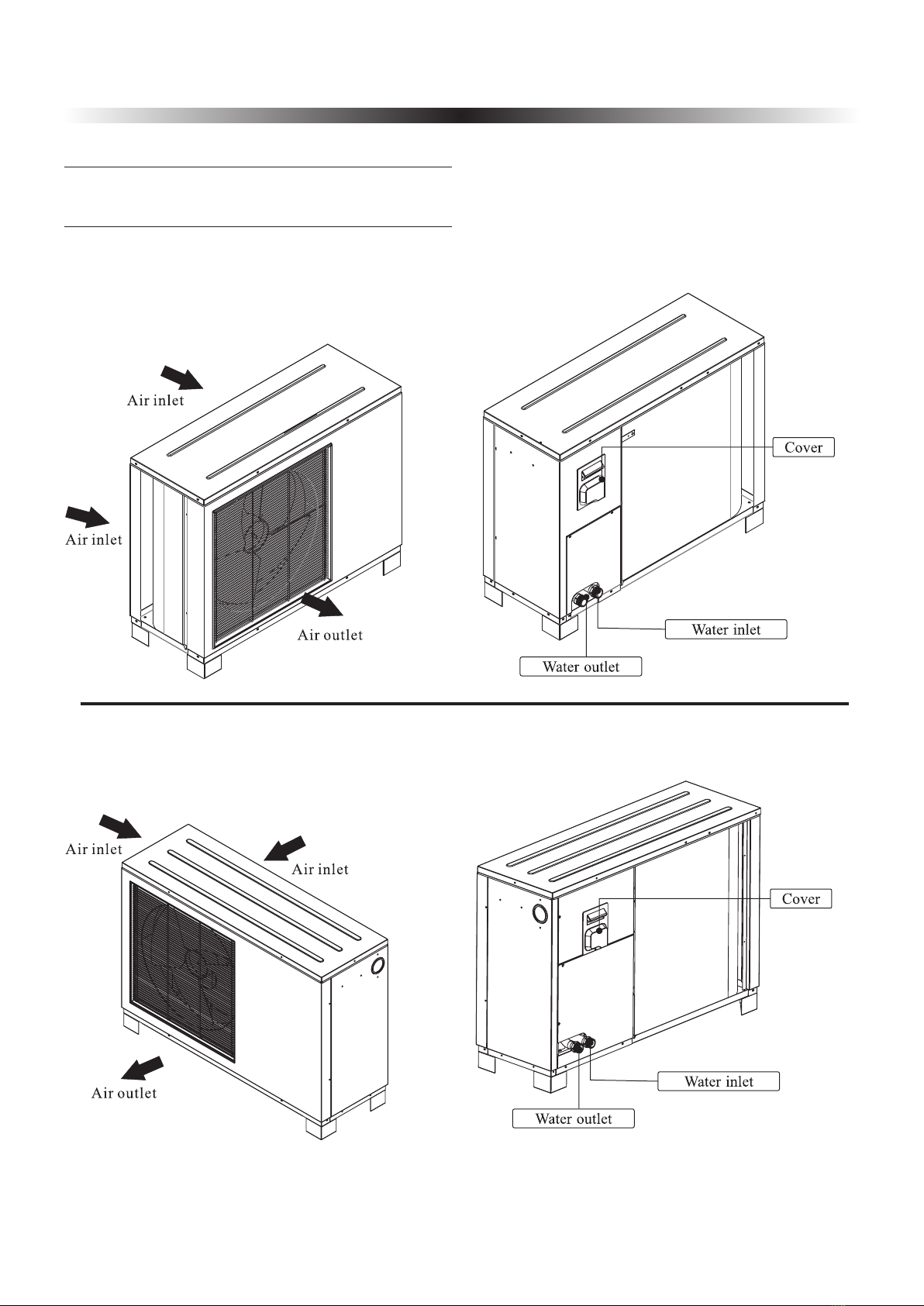

AW6-V6-MBG
AW9-V6-MBG

Outdoor unit
2. Overview of the Units
13
2.1.Functional Diagrams
AW11-V6-MBG
AW13-V6-MBG

14
2. Overview of the Units

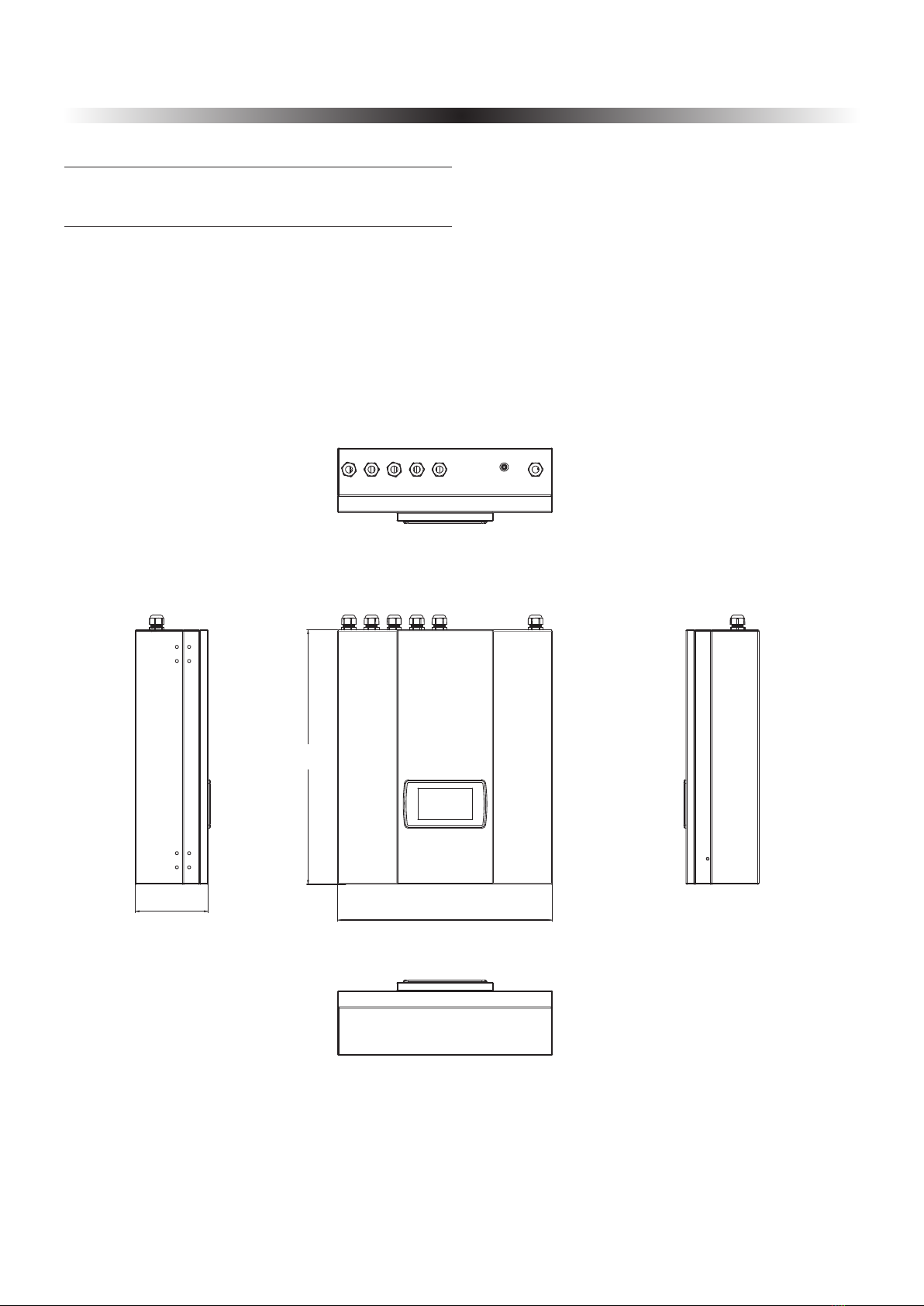

2.2.Outlines and Dimensions
Outlines and dimensions
Unit:mm
Indoor —— AWC6/9/11/13-V6-MBW
129
450
380

15
Unit:mm
2. Overview of the Units
2.2.Outlines and Dimensions

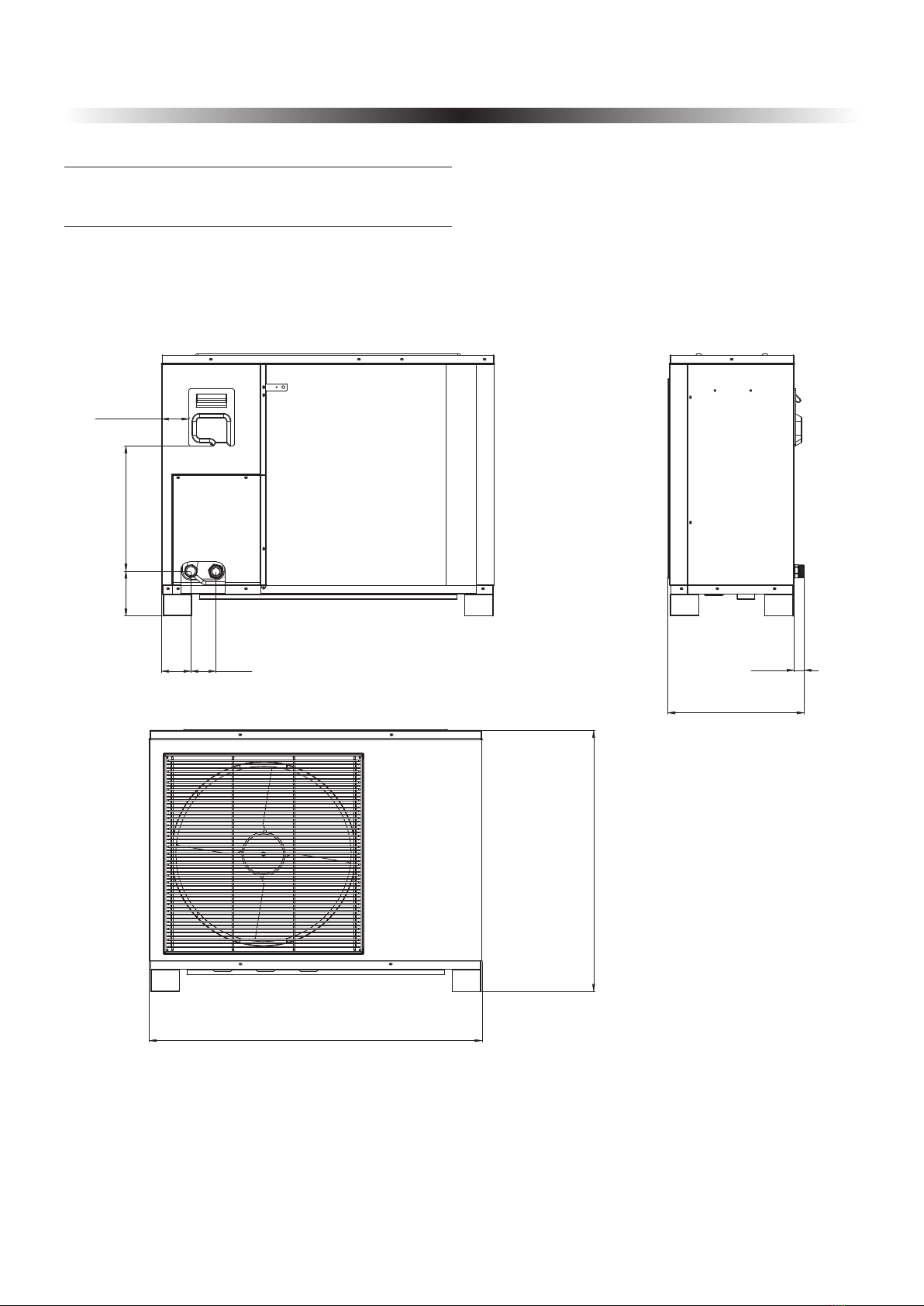

Outdoor —— AW6-V6-MBG
930
730
380
28
70
82
125 350
76.5

16
Unit:mm
2. Overview of the Units
2.2.Outlines and Dimensions
Outdoor —— AW9-V6-MBG
157
95 60
317
156
1065
754
693
1053 343
35450

17
2. Overview of the Units
2.2.Outlines and Dimensions
Outdoor —— AW11-V6-MBG
1204
1215
690
761
121 60
134 385
115
417
403
50
Unit:mm

18
2. Overview of the Units
2.2.Outlines and Dimensions
Outdoor —— AW13-V6-MBG
1171
1195
740
1258
407
460
98 832
105
111
169
Unit:mm

19
Indoor ——
1
2
3
4
5
6
7
8
9
Touch screen operation panel
Power switch
Indoor PCB
DHW TEMP. SENSOR
HEATING/COOLING TEMP. SENSOR
MIXING CIRCUIT 1 TEMP. SENSOR
MIXING CIRCUIT 2 TEMP. SENSOR
ROOM TEMP. SENSOR
NO Name
2.3. Exploded view
2. Overview of the Units
5
6
7
8
9
12 3
4
Wifi module
AWC6/9/11/13-V6-MBW

20
Outdoor —— AW6-V6-MBG
12
NO Name
NO Name
Fan Blade 13
14
15
17
18
19
20
23
24
NO
Electronic Expansion Valve
DC Motor
4-way Reserving Valve
Plate Heat Exchanger
Outdoor PCB Board
Module Assembly
Compressor
PFC Conductor
1
2
3
4
5
6
7
8
9
Plate Heat Exchanger
Compressor Crankcase Heater
10
11
Drain Pan Heater
Compressor Suction Temp.Sensor
Low Pressure Sensor
High Pressure Switch
Evaporating Coil Temp.Sensor
High Pressure Sensor
Coil For E.E.V
Coil For 4-way Reserving Valve
Compressor Discharge Temp.Sensor
21
22 Water Outlet Temp.Sensor
Ambient Temp.Sensor
16
Condensing Coil Temp.Sensor
2.3. Exploded view
2. Overview of the Units
5
8
7631 2
9
4
10
11
12
13
14
16
17
18
19
15
20
21
22
23
24
Water Inlet Temp.Sensor
