ESA EC520E User manual

COLOR TV/DVD
EC520E (20 inch)
OWNER’S
MANUAL
As an ENERGY STAR
Partner, our company has
determined that this product meets
the ENERGY STAR guidelines for
energy efficiency. ENERGY STAR
is a U.S. registered mark.
®
®
®
Please read before using this equipment
SUPPLIED ACCESSORIES
BatteriesRemote Control Unit
2 AA BatteriesNE229UD
Owner’s Manual
1EMN20235
Owner's Manual
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
If you need additional assistance for set-up or operating after
reading owner’s manual, please call TOLL FREE : 1-800-827-0036.

–2–EN
0C28
1.Read instructions-All the safety and operating instructions
should be read before the appliance is operated.
2.Retain Instructions-The safety and operating instructions
should be retained for future reference.
3.Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4.Follow Instructions-All operating and use instructions
should be followed.
5.Cleaning-Unplug the unit from the wall outlet before clean-
ing. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
EXCEPTION: Aproduct that is meant for uninterrupted
service and, that for some specific reason, such as the possi-
bility of the loss of an authorization code for a CATV con-
verter, is not intended to be unplugged by the user for clean-
ing or any other purpose, may exclude the reference to
unplugging the appliance in the cleaning description other-
wise required in item 5.
6.Attachments-Do not use attachments not recommended by
the unit manufacturer as they may cause hazards.
7.Water and Moisture-Do not use this unit near water-for
example, near a bath tub, wash bowl, kitchen sink, or laun-
dry tub, in a wet basement, or near a swimming pool, and
the like.
8.Accessories-Do not place this unit on an unstable cart,
stand, tripod, bracket, or table. The unit may fall, causing
serious injury to someone, and serious damage to the appli-
ance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the unit.
Any mounting of the appliance
should follow the manufacturer’s
instructions and should use a mount-
ing accessory recommended by the
manufacturer. An appliance and cart
combination should be moved with
care.
Quick stops, excessive force, and
uneven surfaces may cause the appli-
ance and cart combination to over-
turn.
Accessoires- Ne placez pas cette appareil sur une table
roulante, un support, un trépied, une console ou une table
instable. Cette appareil risquerait de tomber, pouvant grave-
ment blesser quelqu'un et l'appareil même pourrait être
sérieusement endommagé. N'utilisez qu'une table roulante,
un support, un trépied, une console ou une table recom-
mandé par le fabriquant, ou vendu avec l’appareil. Pour
n'importe quelle installation de l'appareil, on devra suivre
les instructions du fabriquant et l'on devra utiliser les acces-
soires d'installation recommandés par le fabriquant.
L'ensemble combiné de l'appareil avec une table roulante
devra être déplacé avec précaution. Des arrêts brusques,
une force excessive et des surfaces inégales peuvent provo-
quer le renversement de l'ensemble combiné de
l'appareil/table roulante.
9. Ventilation-Slots and openings in the cabinet and the back
or bottom are provided for ventilation and to ensure reliable
operation of the unit and to protect it from overheating, and
these openings must not be blocked or covered. The open-
ings should never be blocked by placing the unit on a bed,
sofa, rug, or other similar surface. This unit should never be
placed near or over a radiator or heat register. This unit
should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
10.Power Sources-This unit should be operated only from the
type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, con-
sult your appliance dealer or local power company. For
units intended to operate from battery power, or other
sources, refer to the operating instructions.
11.Grounding or Polarization-This unit is equipped with a
polarized alternating-current line plug(a plug having one
blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try revers-
ing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELEC-
TRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE
APPLIANCE.
The caution marking is located on the rear of the cabinet.
PORTABLE CART WARNING
AVERTISSEMENT POUR UNE
TABLE ROULANTE PORTATIVE
S3126A
IMPORTANT SAFEGUARDS

–3–EN
0C28

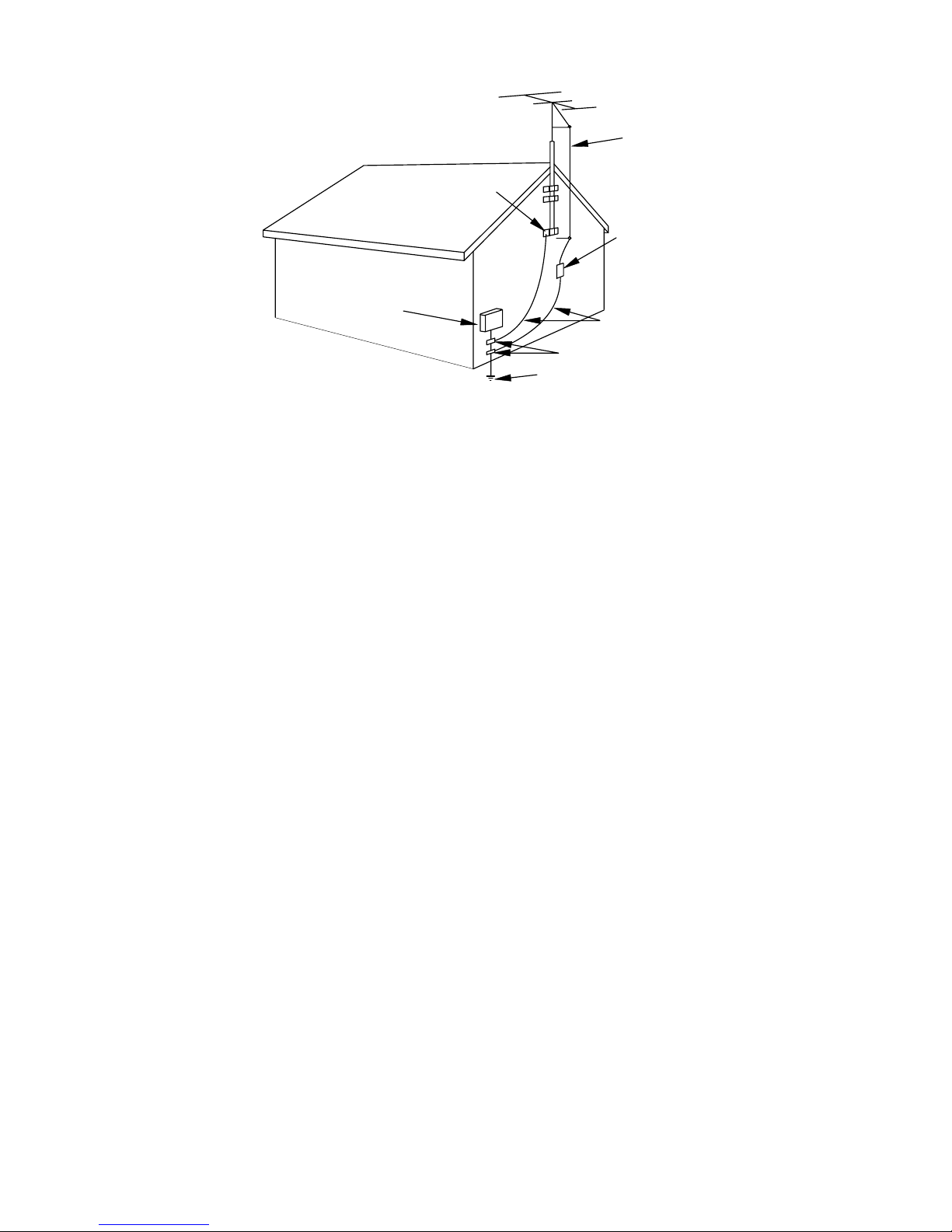

GROUND CLAMPS
NEC - NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
S2898A
WIRE
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRODE SYSTEM
(NEC ART 250, PART H)
SERVICE
EQUIPMENT
CLAMP
ANTENNA
LEAD IN
ANTENNA
POWER SERVICE GROUNDING
GROUND
ELECTRIC
FIGURE A
12.Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying par-
ticular attention to cords at plugs, convenience receptacles,
and the point where they exit from the appliance.
13.Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the unit, be sure the antenna or
cable system is grounded so as to provide some protection
against voltage surges and built-up static charges. Article
810 of the National Electrical Code, ANSI/NFPA No. 70,
provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding con-
ductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding
electrode. (Fig. A)
14.Lightning-For added protection for this unit receiver dur-
ing a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will
prevent damage to the unit due to lightning and power-line
surges.
15.Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them
might be fatal.
16.Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17.Object and Liquid Entry-Never push objects of any kind
into this unit through openings as they may touch danger-
ous voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the
unit.
18.Servicing-Do not attempt to service this unit yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified
service personnel.
19.Damage Requiring Service-Unplug this unit from the wall
outlet and refer servicing to qualified service personnel
under the following conditions:
a. When the power-supply cord or plug is damaged or frayed.
b. If liquid has been spilled, or objects have fallen into the
unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the oper-
ating instructions. Adjust only those controls that are cov-
ered by the operating instructions, as improper adjustment
of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the unit to its normal operation.
e. If the unit has been dropped or damaged in any way.
f. When the unit exhibits a distinct change in performance-
this indicates a need for service.
20.Replacement Parts-When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer that have the same character-
istics as the original part. Unauthorized substitutions may
result in fire, electric shock, injury to persons or other haz-
ards.
21.Safety Check-Upon completion of any service or repairs to
this unit, ask the service technician to perform routine safe-
ty checks to determine that the unit is in proper operating
condition.
22.Heat-This unit product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.

–4–EN
0C28
RADIO-TV INTERFERENCE
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be deter-
mined by turning the equipment off and on, the
user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment
and receiver.
3) Connect the equipment into an outlet on a cir-
cuit different from that to which the receiver is
connected.
4) Consult the dealer or an experienced radio/TV
technician for help.
FCC WARNING- This equipment may gener-
ate or use radio frequency energy. Changes or
modifications to this equipment may cause
harmful interference unless the modifications
are expressly approved in the instruction man-
ual. The user could lose the authority to oper-
ate this equipment if an unauthorized change
or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public perfor-
mance and lending of discs are prohibited.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
LASER SAFETY
This unit employs a laser. Only a qualified service
person should remove the cover or attempt to ser-
vice this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUST-
MENTS OR PERFORMANCE OF PROCE-
DURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN AND INTERLOCK
DEFEATED. DO NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK
MECHANISM.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est con-
forme à la norme NMB-003 du Canada.
PRECAUTIONS
The serial number of this product may be found on the back of the unit. No other unit has the same serial
number as yours. You should record the number and other vital information here and retain this book as a per-
manent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
ANOTE ABOUT RECYCLING
Batteries should never be thrown away or inciner-
ated but disposed of in accordance with your local
regulations concerning chemical wastes.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOCS
ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE
ET POUSSER JUSQU’AU FOND.

–5–EN
0C28
AVOID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE
LOCATION
For safe operation and satisfactory performance of
your TV/DVD, keep the following in mind when
selecting a place for its installation:
•Shield it from direct sunlight and keep it away from
sources of intense heat.
•Avoid dusty or humid places.
•Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes at
the top or bottom of the unit. Do not place the unit
on a carpet because this will block the ventilation
holes.
•Install unit in a horizontal position.
•Avoid locations subject to strong vibration.
•Do not place the unit near strong magnetic fields.
•Avoid moving the unit to locations where tempera-
ture differences are extreme.
•Do not handle the power cord with wet hands.
•Do not pull on the power cord when disconnecting
it from an AC wall outlet. Grasp it by the plug.
•If by accident, water is spilled on your unit, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
•Do not put your fingers or objects into the unit disc
loading tray.
•Do not place anything directly on top of the unit.
WARNING
Moisture condensation may occur inside the unit
when it is moved from a cold place to a warm place
or after heating a cold room or under conditions of
high humidity. If a DVD is played in a unit which has
moisture, it may damage the DVD and the unit.
Therefore when the condensation occurs inside the
unit, turn the unit on and allow at least 2 hours for the
unit to dry out.
The following symbols below appear in some head-
ings and notes in this manual, with the following
meanings
: Description refers to TV operation (in the TV mode).
: Description refers to playback of DVD video discs
(in the DVD mode).
: Description refers to playback of Audio CDs
(in the DVD mode).
: Description refers to playback of MP3 discs
(in the DVD mode).
: Description refers to the items to be set by the
QUICK mode (in the DVD mode).
QUICK
MP3
CD
DVD-V
TV
SYMBOLS USED IN THIS MANUAL

–6–EN
0C28
TABLE OF CONTENTS
CIMPORTANT SAFEGUARDS . . . . . . . . . . . . .2
CPRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4
LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
AVOID THE HAZARDS OF ELECTRICAL
SHOCK AND FIRE . . . . . . . . . . . . . . . . . . . . . .5
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SYMBOLS USED IN THIS MANUAL . . . . . . .5
CTABLE OF CONTENTS . . . . . . . . . . . . . . . . . .6
CFEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
C OPERATING CONTROLS AND FUNCTIONS . . .8
INSTALLING THE BATTERIES . . . . . . . . . . .9
CPREPARATION FOR USE . . . . . . . . . . . . . . .10

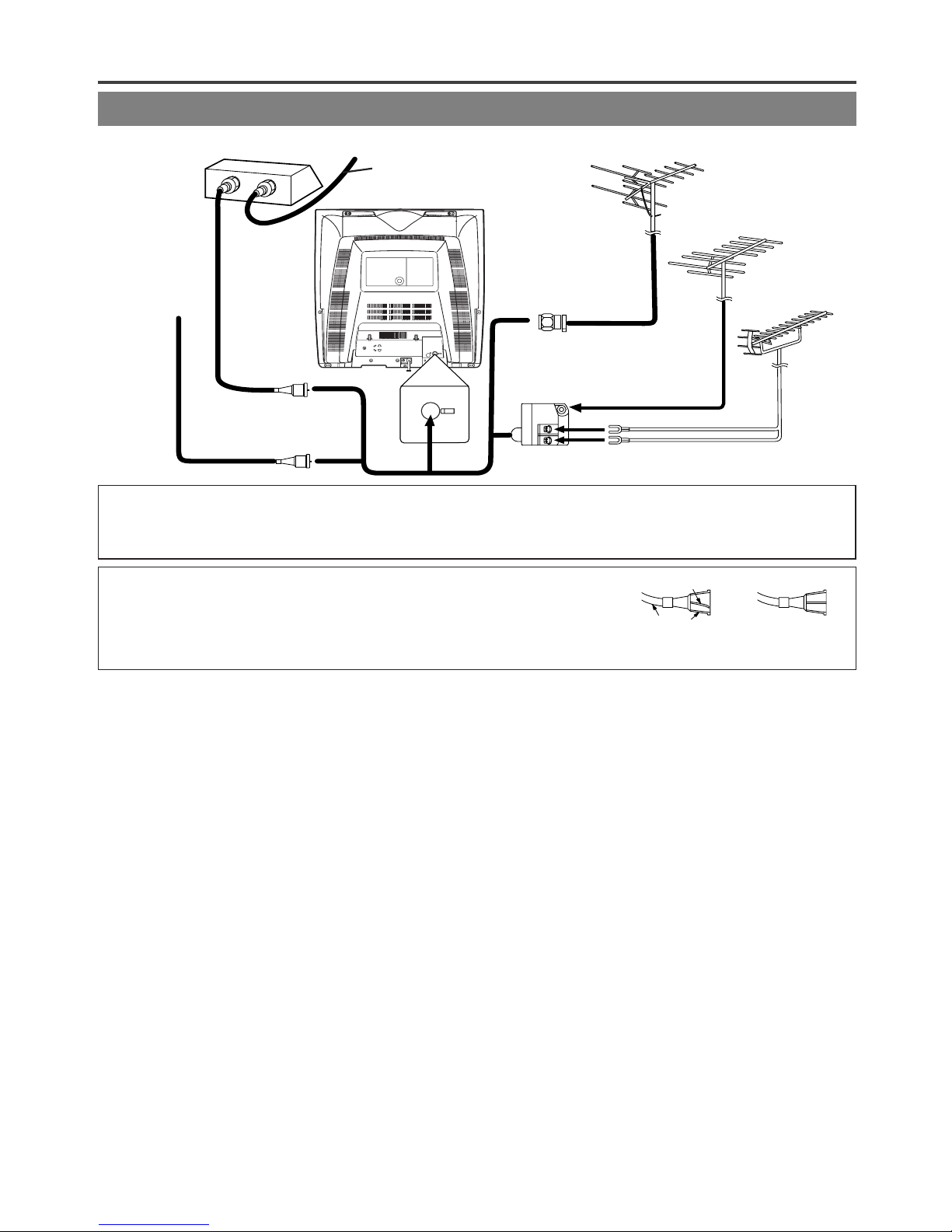

ANTENNA/CABLE CONNECTIONS . . . . . . .10

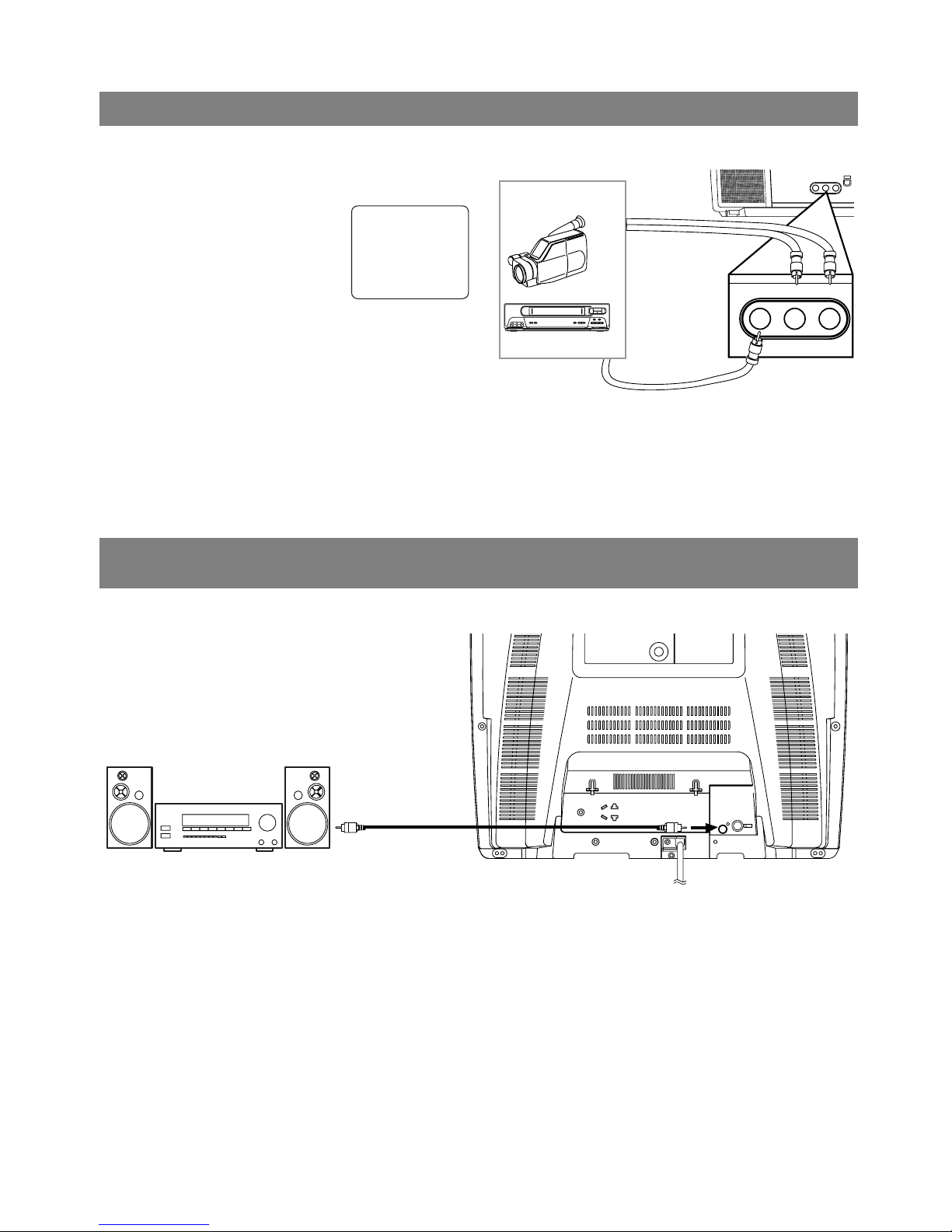

CONNECTING TO EXTERNAL INPUT JACKS . 11
CONNECTING TO AN AMPLIFIER
EQUIPPED WITH DIGITAL INPUT JACKS,
MD DECK OR DAT DECK (for DVD only) . .11

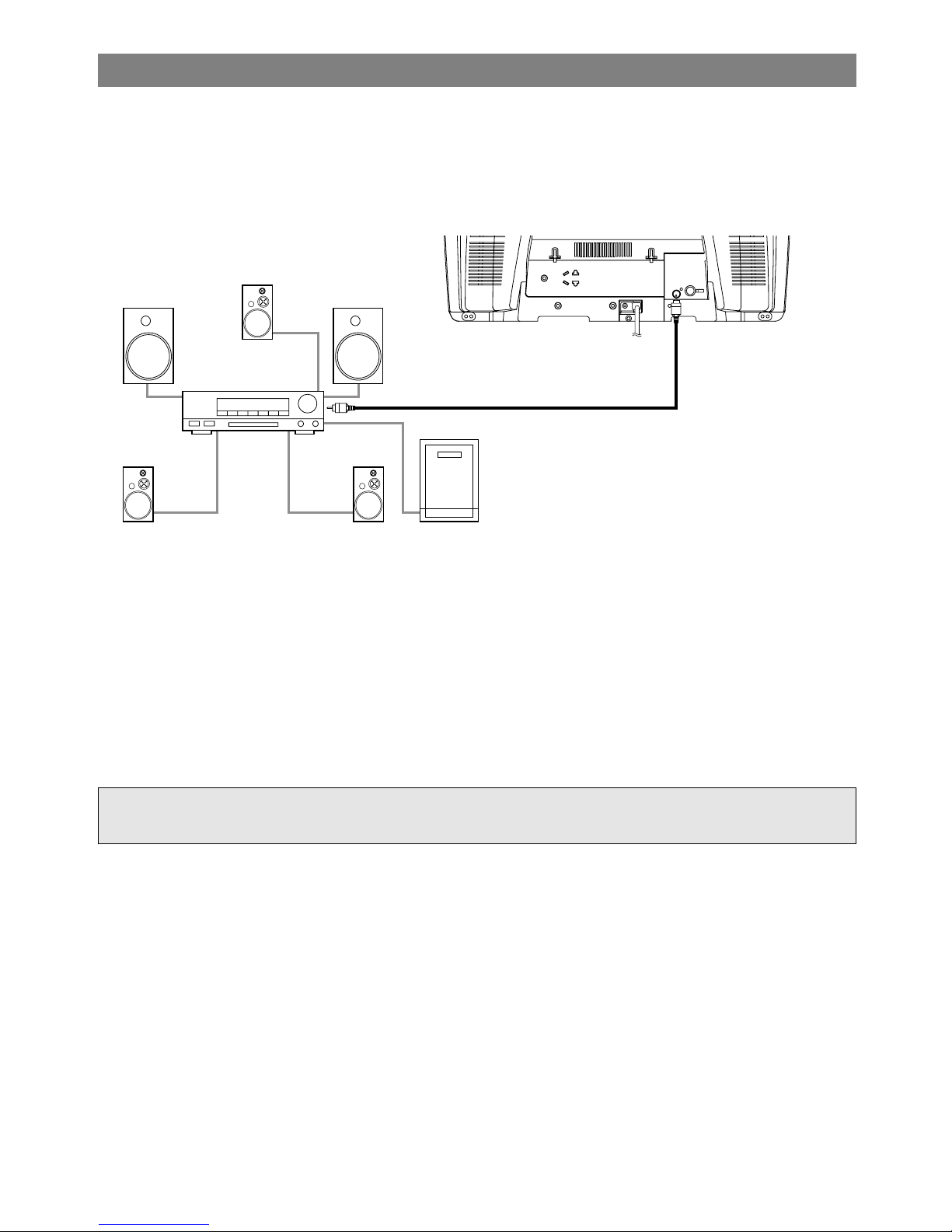

CONNECTING TO A DOLBY DIGITAL
DECODER (for DVD) . . . . . . . . . . . . . . . . . . .12
TV SECTION
CSET UP FOR USE . . . . . . . . . . . . . . . . . . . . .13
SELECTING THE LANGUAGE . . . . . . . . . . .13
CHANNEL SET UP . . . . . . . . . . . . . . . . . . . . .13
DELETING (OR ADDING) CHANNEL(S) . . .14
CTV OPERATION . . . . . . . . . . . . . . . . . . . . . . .15
WATCHING A TV PROGRAM . . . . . . . . . . . .15
DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .15
PICTURE CONTROL . . . . . . . . . . . . . . . . . . .15
SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .16
CLOSED CAPTION SYSTEM . . . . . . . . . . . .16
V-CHIP SET UP . . . . . . . . . . . . . . . . . . . . . . . .17
DVD SECTION
CABOUT THE DISCS . . . . . . . . . . . . . . . . . . . .19
PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . .19
DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . .19
CPLAYING A DISC . . . . . . . . . . . . . . . . . . . . . .20
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . .20
GENERAL FEATURES . . . . . . . . . . . . . . . . . .20
DISC MENU . . . . . . . . . . . . . . . . . . . . . . . . . .20
TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . .20
RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
STEP BY STEP PLAYBACK . . . . . . . . . . . . .21
FAST FORWARD / FAST REVERSE . . . . . . .21
SLOW FORWARD / SLOW REVERSE . . . . .21
CSEARCH FUNCTION . . . . . . . . . . . . . . . . . .22
TRACK SEARCH . . . . . . . . . . . . . . . . . . . . . .22
TITLE / CHAPTER SEARCH . . . . . . . . . . . . .22
TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . .22
MARKER SETUP SCREEN . . . . . . . . . . . . . .22
CSPECIAL PLAYBACK FUNCTION . . . . . . . .23
REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .23
RANDOM PLAYBACK . . . . . . . . . . . . . . . . .23
CPLAYING A MP3 DISC . . . . . . . . . . . . . . . . . .24
MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . .24
REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .24
RANDOM PLAYBACK . . . . . . . . . . . . . . . . .24
CCHANGING THE SETTINGS . . . . . . . . . . . .25
SUBTITLE LANGUAGE . . . . . . . . . . . . . . . .25
AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . .25
STEREO SOUND MODE . . . . . . . . . . . . . . . .25
CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . .25
BLACK LEVEL SETTING . . . . . . . . . . . . . . .25
VIRTUAL SURROUND . . . . . . . . . . . . . . . . .25
CTHE ON-SCREEN INFORMATION . . . . . . .26
CCHANGING THE DVD SETUP ITEMS . . . .27
LANGUAGE SETTING . . . . . . . . . . . . . . . . .27
DISPLAY SETTING . . . . . . . . . . . . . . . . . . . .28
AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . .28
PARENTAL CONTROL . . . . . . . . . . . . . . . . .29
INITIALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . .29
CTROUBLESHOOTING GUIDE . . . . . . . . . . .30
CMAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .32
DISC HANDLING . . . . . . . . . . . . . . . . . . . . . .32
CSPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .33
CESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
CWARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

–7–EN
0C28
TV Mode DVD Mode
¡Dolby Digital sound
This unit can handle Dolby Digital surround sound
having 5.1 channels when connected to a Dolby Digital
decoder.
¡Still/fast/slow/step playback
Various playback modes are available including still pic-
tures, fast forward/reverse, slow motion and step frames.
¡Random playback for Audio CD and MP3
This unit can shuffle the order of tracks to play them in
random order.
¡Program playback for Audio CD and MP3
You can program the order of tracks to play them in any
desired order.
¡DVD menus in a desired language
You can display DVD menus in a desired language, if
available on a DVD.
¡Screen saver/Auto power-off functions
The screen saver program starts when there is no input
from the unit for 5 minutes in the stop mode. After the
screen saver program is activated for 15 minutes, the unit
is automatically turned off.
¡Subtitles in a desired language
You can select a desired language for the display subtitles,
if that language is available on a disc.
¡Selecting a camera angle
You can select the desired camera angle, if a disc contains
sequences recorded from different angles.
¡Choices for audio language and sound mode
You can select the desired audio language and sound mode,
if different languages and modes are available on a disc.
¡Parental lock
You can set the control level to limit playback of discs
which may not be suitable for children.
¡Automatic detection of discs
This unit automatically detects if the loaded disc is DVD,
Audio CD or MP3 on disc.
¡On-screen display
Information about the current operation can be displayed
on a TV screen, allowing you to confirm the currently
active functions (such as program playback), on the TV
screen using the remote control.
¡Search
Chapter search / Title search / Track search / Time search
¡Repeat
Chapter / Title / Track / Group / All / A-B
¡Marker
The part designated by user can be called back.
¡Resume Play
User can resume to playback from the part at which the
play was stopped.
¡Virtual Surround
¡Bit rate indication
¡DRC (Dynamic range control)
You can control the range of sound volume.
•181 channel capability PLL frequency synthesiz-
er tuner with direct station call
(A converter may be necessary to view scrambled cable
channels.)
•Infrared remote control
•Trilingual on screen menu display selectable in
English, Spanish or French
¡Sleep Timer
The Sleep Timer function enables you to shut off the power
without pressing POWER after a desired time period.
¡Closed Caption Decoder
You may view specially labeled (cc) TV programs,
movies, news, etc. with either a dialogue caption or text
display added to the program.
¡Auto Shut Off Function
If there is no air signal input from the antenna terminal and
no operation for 15 minutes, the unit will turn itself off
automatically.
¡V-CHIP
Enables parents to prevent their children from watching
inappropriate material on TV.
FEATURES

–8–EN
0C28

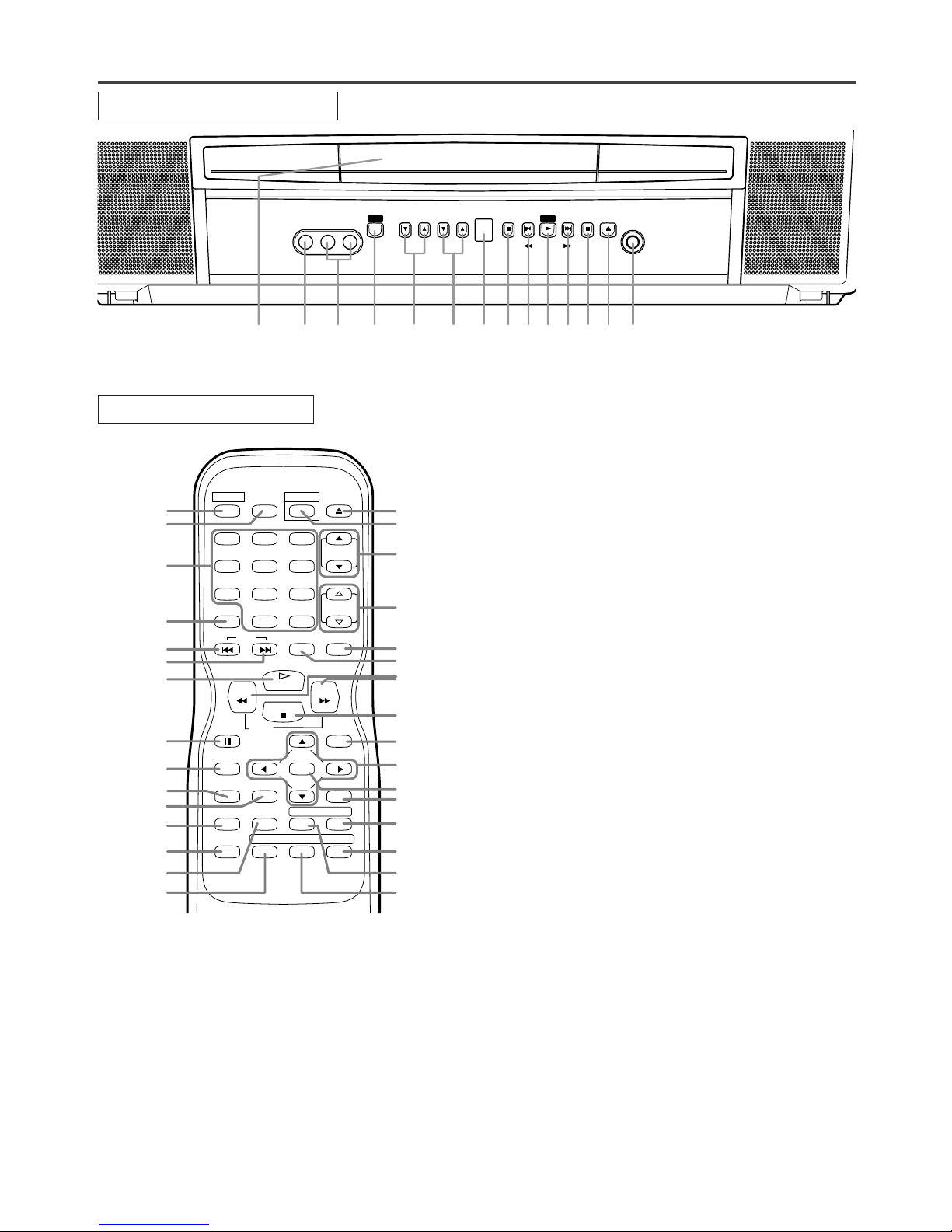

7. Remote Sensor Window
8. STOP Button [page 20]
Stops operation of the disc.
9.SKIP HButton [page 21]
Plays back from the beginning of the current
chapter or track.
SEARCH EButton (Front Panel)
[page 21]
During playback or in the pause mode, press and
hold button down for a few seconds to change
reverse playback speed.
10. PLAY Button [page 20]
Starts playback of the disc contents.
Press to change to DVD mode when TV mode.
11. SKIP GButton [page 21]
Plays back from the beginning of the next chapter
or track.
SEARCH DButton (Front Panel)
[page 21]
During playback or in the pause mode, press and
hold button down for a few seconds to change for-
ward playback speed.
12. PAUSE Button [page 21]
Pauses the current disc operation.
13. OPEN/CLOSE Button [page 20]
Press to insert a disc into or remove it from the tray.
14. HEADPHONE Jack
To connect headphone (not supplied) for personal
listening.
15. MODE Button [pages 23-25]
Activates program playback or random playback
mode when playing CDs or MP3.
16. Number Buttons
TV Mode: [page 15]
Press two digits to directly access the desired channel.
Remember to press 0 before a single digit channel.
+100 Button
Press to select cable channels which are higher than 99.
DVD Mode: [page 22]
Press to enter the desired number.
+10 Button
Press to enter the desired numbers which are higher
than 9.
VIDEO L – AUDIO – R VOLUME CHANNEL STOP SKIP SKIP PAUSE
HEADPHONE
–SEARCH–
OPEN/
CLOSE
PLAY
POWER
742 8910111213 146531
REV
SLOW
PLAY
STOP
FWD
ENTER
PAUSE DISC
MENU
RETURNTITLESETUP
A
- B REPEATSEARCH MODE CLEAR
MODE ANGLESUBTITLEAUDIO
DISPLAY
SKIP
SELECT
POWER PICTURE OPEN/
CLOSE
CH.
VOL.
MUTEV.SURR
SLEEP
123
456
789
0+10
+100
26
27
16
17
9
11
12
23
20
22
15
25
24
21
10
28
29
30
33
35
5
6
13
34
19
18
8
31
32
4
36
OPERATING CONTROLS AND FUNCTIONS
FRONT PANEL
REMOTE CONTROL [Fig. 2]
[Fig. 1]
1. Disc loading tray
2. VIDEO input Jack [page 11]
Connect to the video output jack of a video camera
or VCR.
3. AUDIO L/R input Jacks [page 11]
Connect to the audio output jacks of a video camera
or VCR.
4. POWER Button [page 13]
Press to turn the power on and off.
5. VOLUME K/L(VOL. m / n )Buttons
Press to control the volume level for the DVD and TV.
6. CHANNEL K/L(CH. K/L) Buttons [page 14]
Press to select memorized channels.
Press to change to TV mode when DVD mode.

–9–EN
0C28
COAXIAL
ANT.
3938
37
32. Arrow Buttons
TV Mode: [page 13]
Press to select a setting mode from the menu on the
TV screen.
Press to select or adjust from a particular menu.
DVD Mode: [page 20]
Press to select a menu item.
33. DISC MENU Button [page 20]
Calls up the DVD menu.
Cals up the file list in MP3 disc.
34. SELECT Button [page 20]
Press to change to TV mode, external input mode or
DVD mode.
35. MUTE Button
Press to turn off the sound portion of the TV
program. (Volume level display turns LIGHT RED
from LIGHT BLUE.) Press it again or press VOL.
m / n to restore sound.
36. PICTURE Button [page 15]
Press to enter picture adjustment mode.
37. Power cord
Connect to a standard AC outlet (120V/60Hz).
NOTE: Remove the power cord from the hook to
avoid breaking a wire before you connect to
a standard AC outlet.
38. COAXIAL digital audio out Jack (DVD Audio
Only) [pages 11, 12]
Connect to the digital input of an external amplifier
or decoder.
39. ANT(ENNA). Jack
Connect to an antenna, cable system or satellite sys-
tem.
NOTE: When you select the DVD mode by this
button, press PLAY or OPEN/CLOSE first.
Otherwise, the DVD features are not operated.
17. SLEEP Button [page 16]
Press to display the sleep timer and start the func-
tion. The shut off time can be determined by the
number of times you press this button. (0, 30, 60, 90
or 120 minutes)
18. REV hButton [page 21]
Press to view the DVD picture in fast reverse
motion. Press PAUSE, then press this button to begin
slow motion playback. Press this button repeatedly
to change the reverse speed of slow motion.
FWD gButton [page 21]
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
19. V.SURR (VIRTUAL SURROUND) Button
[page 25]
Press to set virtual surround on/off.
20. SETUP Button [pages 13,27-29]
Press to enter or exit the TV or DVD setup menu.
21. TITLE Button [page 20]
Displays the title menu.
22. CLEAR Button [pages 22-24]
Resets a setting.
23. DISPLAY Button
TV Mode:
Press to display the channel number on the screen.
If you press it again, the channel number will disap-
pear.
DVD Mode: [page 26]
Displays the current status on the TV screen.
24. SEARCH MODE Button [page 22]
Press to locate a desired point.
25. AUDIO Button [page 25]
Press to select a desired audio language or sound
mode.
26. SUBTITLE Button [page 25]
Press to select a desired subtitle language.
27. REPEAT Button [page 23]
Repeats playback of the current disc, title, chapter,
group or track.
28. ANGLE Button [page 25]
Press to change the camera angle to see the sequence
being played back from a different angle (if available).
29. REPEAT A-B Button [page 23]
Repeats playback of a selected section.
30. RETURN Button [page 25]
Returns to the previous operation in the DVD setup
mode.
31. ENTER Button [pages 13, 20]
Press to accept a setting.
REAR VIEW [Fig. 3]
INSTALLING THE BATTERIES
1)Open the battery compartment cover by pressing the
cover on the remote unit in the direction of the arrow.
2)Insert 2 “AA” penlight batteries into the battery
compartment in the direction indicated by the
polarity (+/-) markings.
3)Replace the cover.
NOTES
¡Do not mix alkaline and manganese batteries.
¡Do not mix old and new batteries.

–10 –EN
0C28
NOTE:
Before plugging the antenna into the ANT. jack of the unit, check that the pin is
not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the
ANT. jack of the unit.
PREPARATION FOR USE
ANTENNA/CABLE CONNECTIONS
CABLE WITH CONVERTER/DESCRAM-
BLER BOX OR SATELLITE BOX
If your cable service supplies you with a converter
box or if you use a satellite system, you can use the
basic connection shown here.
Channel selection must be made with the converter
box or satellite box. This means that channels cannot
be changed using the remote control of this unit.
TO VIEW A SCRAMBLED/UNSCRAMBLED
CHANNEL
1.Set the unit channel selector to the output channel
of the Cable Converter Box or Satellite Box. (Ex.
CH3)
2.Select the channel to view on your Cable Converter
Box or Satellite Box.
Bent pin
Cable Plug
(Needs to be straightened)(Straight pin)
COAXIAL
ANT.
ANT.
IN
OUT
VHF/UHF Antenna
(Not supplied)
VHF/UHF
Combiner
(Not supplied)
Flat twin-lead cable
UHF Antenna
(Not supplied)
VHF Antenna
(Not supplied)
From
Cable System
75-ohm Coaxial
Cable (Not supplied)
Satellite Box or
Cable Box
(Not supplied)
From Cable System or
Satellite Dish
or
or
or
[Fig. 4]
VHF/UHF COMBINED ANTENNA
AVHF UHF 75 ohm combination antenna can be
connected to ANT. jack.
VHF/UHF SEPARATE ANTENNAS
In some areas it will be necessary to use an outdoor
antenna.
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your unit without a converter box. Use the
unit’s remote control to select channels.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.

–11 –EN
0C28
CONNECTING TO EXTERNAL INPUT JACKS
When you watch a program recorded on another
source (VCR or video camera), use the Audio/Video
input jacks on the front panel.
Connect the Audio/Video output
jacks of another source to the
AUDIO L/R and VIDEO jacks of
this unit. Then press SELECT until
“AUX” appears on the screen.
NOTE:
•When you connect a monaural VCR to this unit,
connect the Audio output jack of the monaural
VCR (another source) to the AUDIO L input jack
of this unit. The audio will output in both L and R
channel equally.
VIDEO L–AUDIO–R
VIDEO L–AUDIO–R
[Another source]
To the
audio out-
put jacks
Audio/Video
cables
(not supplied)
etc.
To the video
output jack
[Front of the unit]
AUX
[Fig. 5]
CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL
INPUT JACKS, MD DECK OR DAT DECK (for DVD only)
Use an audio coaxial digital cable available at retail for the audio connections.
NOTES:
•The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital
sound by an MD or DAT deck.
•Be sure to turn off the power to all components in the system before connecting another component.
•Refer to the Owner's Manuals for the components to be connected to the unit.
•Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a unit using incorrect settings
may generate noise distortion and may also damage the speakers. (See page 28 to set DOLBY DIGITAL to
OFF.)
COAXIAL
ANT.
Amplifier equipped with digital
input jacks, MD deck,
DAT deck, etc.
To COAXIAL DIGITAL
AUDIO INPUT jack To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
(only DVD AUDIO OUT)
[Fig. 6]

–12 –
CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)
If using this unit to play a DVD disc in a 5.1 channel Dolby Digital surround format, the unit outputs a
DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the unit up to a Dolby
Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround
sound as enjoyed in movie theaters.
Use audio coaxial digital cables available at retail for the audio connections.
NOTES:
•Be sure to turn off the power to all components in the system before connecting another component.
•Refer to the Owner's Manuals for the components to be connected to the unit.
•If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.
(See page 28 to set DOLBY DIGITAL to ON.)
•Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup
mode. Playing a unit using incorrect settings may generate noise distortion and may also damage the speak-
ers.
COAXIAL
ANT.
Front speaker
(left)
Center
speaker Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
(Only DVD Audio out)
To COAXIAL DIGITAL
AUDIO INPUT jack
Dolby Digital decoder
[Fig. 7]
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
EN
0C28

–13 –EN
0C28
SELECTING THE LANGUAGE
1Plug in the unit power cord
Plug the unit power cord into a standard
AC outlet.
NOTE:
•If any digits appear in the corner of
the screen, press POWER without
unplugging the power cord.
Make sure ...
•Press POWER to turn on the unit.
NOTE: This function effects only the language on
the screen menu and not the audio source.
2Select “LANGUAGE”
Press SETUP on the remote control.
Press Arrow (K/L) to point to
“LANGUAGE”.
3Select “ENGLISH”, “ESPAÑOL” or “FRANÇAIS”
Select “ENGLISH”, “ESPAÑOL”= Spanish or
“FRANÇAIS”= French using ENTER.
4Exit the Language mode
Press SETUP to return to TV mode.
NOTE: If for some reason the menu is in Spanish or
French, press SETUP, press Arrow (K/L) to point to
“IDIOMA [ESPAÑOL]” or “LANGAGE
[FRANÇAIS]”, then press ENTER, then press
SETUP on the remote control.
TV
CHANNEL SET UP
You can program the tuner to scan all the channels
you receive in your area.
NOTE: Channel memory programming is NOT
needed when connected to a cable box or satellite
box. Just select the unit channel selector to the output
channel of the cable box or satellite box
(Ex CH3), then select the channel to be viewed on
the Cable Box or Satellite Box.
Make sure ...
•Press POWER to turn on the unit.
1Select “CHANNEL SET UP”
Press SETUP on the remote control.
Press Arrow (K/L) to point to
“CHANNEL SET UP”.
Then press ENTER.
2Begin auto ch programming
Press Arrow (K/L) to point to
“AUTO CH PROGRAMMING”.
Then press ENTER.
The tuner scans and memorizes all
the active channels in your area.
3After scanning
The tuner stops on the lowest memorized channel.
•When AUTO CH PROGRAMMING is activated
where there is no TV signal input, “NO TV SIG-
NALS” will appear on the display after the com-
pletion of the channel scanning.
•The unit may recognize CATV channels to be TV
channels if the reception conditions are poor. In
this case, check the antenna connection and try
auto ch programming again when reception condi-
tions are better.
TV
SET UP FOR USE
TV SECTION
- TV SETUP -
CHANNEL SET UP
V-CHIP SET UP
BLANGUAGE [ENGLISH]
CAPTION [OFF]
- TV SETUP -
BCHANNEL SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
– CHANNEL SET UP –
ADD / DELETE CH (CATV)
BAUTO CH PROGRAMMING

–14 –EN
0C28
DELETING (OR ADDING)
CHANNEL(S)
The channels you no longer receive or seldom watch
can be deleted from the memory. (Of course, you can
add the deleted channel into the memory again.)
1Select “CHANNEL SET UP”
Press SETUP on the remote control.
Press Arrow (K/L) to point to
“CHANNEL SET UP”.
Then press ENTER.
2Select “ADD/DELETE CH”
Press Arrow (K/L) to point to
“ADD/DELETE CH”.
Press ENTER.
3Enter the desired channel number
Press Arrow (K/L) until your
desired channel number appears.
(You can also use the number but-
tons or CHANNEL(CH.) K/Lto
enter it) (Example: CH8)
•You must precede single-digit
channel numbers with a zero (Example: 02 ... 09).
•When selecting cable channels which are higher
than 99, press +100 first, then press the last two
digits. (Example: to select channel 125, first press
+100, then press 2 and 5).
4Delete (or add) it from (or into) memory
Press ENTER. The channel number changes to light
red. The channel is deleted from memory.
•To delete another channel, repeat steps [3] to [4].
•If you press ENTER again, the channel is memo-
rized again.
5Exit the channel setup mode
Press SETUP to return to TV mode.
NOTE: To confirm that channel(s) has been deleted
or added, press CHANNEL(CH.) K/L.
TV
- TV SETUP -
BCHANNEL SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
Added channel: Light blue.
Deleted channel: Light red.
08
ADD / DELETE
– CHANNEL SET UP –
BADD / DELETE CH (CATV)
AUTO CH PROGRAMMING

–15 –EN
0C28
DEGAUSSING
Magnetism from nearby appliances and speakers
might affect the color of the TV picture.
If this happens, move this unit away from the appli-
ance. If the color is still not correct, disconnect
power cord from AC outlet then reconnect it after
30 minutes.
WATCHING A TV PROGRAM
1Turn on the unit
Press POWER to turn on the unit.
2Select the channel number
Press CHANNEL(CH.) K/Lto select your desired
channel number or press the number buttons.
Notes for using the number buttons on the remote
control:
•You must precede single-digit channel numbers
with a zero (Example: 02 ... 09).
•When selecting cable channels which are higher
than 99, press +100 first, then press the last two
digits. (Example: to select channel 125, first press
+100, then press 2 and 5).
Remember:
¡If the unit is connected to a cable box or satellite
box, the unit must be on CH3 or CH4, then the
channel to be viewed must be selected on the cable
box or satellite box.
3Adjust sound
Press VOLUME(VOL.) X/Yto
adjust the volume.
NOTE:
•If you press CHANNEL(CH.) K/Lin the DVD
mode, you can change the TV channels.
Even if you turn off the unit in the DVD mode,
when you turn it on again, it will go into the TV
mode.
TV
sB
BRIGHT to decrease to increase
brightness brightness
CONTRAST to decrease to increase
contrast contrast
COLOR to pale to brilliant
TINT to purple to green
SHARPNESS to soft to clear
PICTURE CONTROL
The unit’s picture controls – BRIGHT, CON-
TRAST, COLOR, TINT and SHARPNESS – are
preset to factory specifications. Although they are
usually the best, you may need to make some further
adjustments for a more natural looking image.
Make sure ...
•The unit power must be turned on.
1Select “PICTURE CONTROL”
Press PICTURE on the remote control.
2Select item you want to adjust
Press Arrow (K/L) until desired control is displayed.
BRIGHT
CONTRAST
COLOR
TINT
SHARPNESS
3Adjust the picture control
Press Arrow (s/ B) to adjust to your desired level
within 5 seconds.
NOTE:
•At step [3], the picture adjustment display will dis-
appear from the TV screen after about 5 seconds
unless you press any buttons, even though you may
not be finished. In this case, repeat from step [1].
TV
•Even if there is a power failure of any kind, the
unit will retain its memory for this feature.
VOLUME 20
C C C C C C C C C C C C C C C C
BRIGHT
– PPPPPPPPPPPPPPCCPPPPPPPPPPPPPP+
TV OPERATION

–16 –EN
0C28
CLOSED CAPTION SYSTEM
You can view specially labeled (cc) TV programs,
movies, news, etc. with either a dialogue caption or
text display.
CAPTION mode: By choosing the caption mode, you
can watch dramas, movies and news while captioning
the dialogues and the contents of news.
TEXT mode: By choosing the text mode, you can
watch half screen text information if you want.
1-2: You may get these captions or text information
by selecting either “1” or “2”. Caption “2” is used,
usually for a second language if available.
NOTE:
Not all programs are broadcast with closed captions.
Your television is designed to provide error free
closed captions from high quality antenna, cable and
VCR signals. Conversely, poor quality signals are
likely to result in caption errors or no captions at all.
Common signal conditions which may cause captions
errors are listed below:
•Automobile ignition noise
•Electric motor brush noise
•Weak snowy reception on TV screen
•Multiplex signal reception displaying picture
ghosts or airplane flutter.
TV
NOTE:
If the unit displays a black box on
the TV screen, this means that the
unit is set to the TEXT mode. To
clear screen, select [CAPTION1],
[CAPTION2] or [OFF].
Make sure ...
•The unit must be turned on.
1Select “CAPTION”
Press SETUP on the remote control.
Press Kor Lto point to “CAP-
TION”.
2Select your desired caption menu
Press ENTER until your desired
caption menu appears.
([CAPTION1], [CAPTION2],
[TEXT1] or [TEXT2])
3Exit the caption setting mode
Press SETUP to return to TV mode.
TO CANCEL THE CLOSED CAPTION
SYSTEM
Repeat steps [1] to [2], and select [OFF] using
ENTER. Press SETUP on the remote control to
return to TV mode.
- TV SETUP -
CHANNEL SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
BCAPTION [OFF]
- TV SETUP -
CHANNEL SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
BCAPTION [CAPTION1]
This function enables you to shut off the unit without
pressing POWER after a desired time period.
1Set “SLEEP TIMER”
Press SLEEP on the remote control.
You may change the sleep time by
pressing SLEEP repeatedly. Each
time SLEEP is pressed, the time
increases by 30 minutes up to 120
minutes.
NOTES:
•When you disconnect the unit from the AC outlet,
or if you have a power failure, the sleep time will
be lost.
•To confirm the time left for sleep timer, press
SLEEP once. After 10 seconds, display will disap-
pear.
To cancel the sleep timer:
Press SLEEP repeatedly until “SLEEP 0 MINUTE”
is displayed.
TV
SLEEP 120 MINUTE
SLEEP TIMER

–17 –EN
0C28
V-CHIP SET UP
V-CHIP enables parents to prevent their children
from watching inappropriate material on this unit.
V-CHIP reads the ratings for programming (except
for news and sports programs, unedited movies on
premium cable channels and Emergency Broadcast
System signals), then denies access to programming
if the program’s rating meets the limitations you
select. In this case, “PROTECTED PROGRAM by
...” message appears on the TV screen.
To block ratings, follow the steps below.
•Programming may be rated by the Motion Picture
Association of America (MPAA) or according to
the Television Parental Guidelines. In order to
block any inappropriate programming, set your
limits in both places (MPAA RATING and TV
RATING).
TV RATING SET UP
Make sure ...
•The unit must be turned on.
1Select “V-CHIP SET UP”
Press SETUP on the remote control.
Press Arrow (K/L) to point to “V-
CHIP SET UP”.
Then press ENTER.
2Input Access code
Press the number buttons to enter 4-
digit access code. The default code
is 0000.
3Select “TV RATING”
Press Arrow (K/L) to point to “TV
RATING”.
Then press ENTER.
4Select your desired item
Press Arrow (K/L) to point to your
desired item.
Then press ENTER to select
[BLOCK] or [VIEW].
TV
Selection Rating Category Explanations
TV-Y Appropriate for all children
TV-Y7 Appropriate for children seven and older
TV-G General Audience
TV-PG Parental Guidance suggested.
TV-14 Unsuitable for children under 14
TV-MA Mature audience only
•When you select a rating category and change it to
[BLOCK], the higher rating will change to
[BLOCK] automatically. Also, the lower rating will
change to [VIEW] automatically.
•When you change “TV-Y” to [VIEW], all ratings
will change to [VIEW] automatically.
- TV SETUP -
CHANNEL SET UP
BV-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ACCESS CODE
_ _ _ _
BTV–Y [VIEW]
TV–Y7 ( ) [VIEW]
TV–G [VIEW]
TV–PG ( ) [VIEW]
TV–14 ( ) [VIEW]
TV–MA ( ) [VIEW]
– V-CHIP SET UP –
BTV RATING
MPAA RATING
CHANGE CODE
When you select TV-Y7, TV-PG, TV-14 or TV-MA
and you press ENTER, the sub-ratings will appear
on the TV screen.
If you select the rating category (example: TV-PG)
and change it to [BLOCK] or [VIEW], the sub-rat-
ings (example: V for Violence) will change
[BLOCK] or [VIEW] automatically.
You can set the sub-ratings to [BLOCK] or [VIEW]
individually when the rating category is set to
[BLOCK].
To set the sub-ratings individually, follow the steps
below.
•When you select [TV-Y7]:
Press Arrow (K/L) to select
“FV” (Fantasy Violence).
Then press ENTER to select
[BLOCK] or [VIEW].
•When you select [TV-PG], [TV-14] or [TV-MA]:
Press Arrow (K/L) to select
“D”(Suggestive Dialog),
“L”(Coarse Language),
“S”(Sexual Situation) or
“V”(Violence). Then press
ENTER to select [BLOCK] or [VIEW].
NOTE: When you select [TV-MA], “D” does not
appear on the TV screen.
•The sub-ratings which are set to
[BLOCK] appears next to the rat-
ing category in the TV RATING
menu.
5Exit the V-Chip setting mode
Press SETUP on the remote control to return to orig-
inal mode.
TV–Y7 [BLOCK]
BFV [BLOCK]
TV–PG [BLOCK]
BD[BLOCK]
L[BLOCK]
S[BLOCK]
V[BLOCK]
TV–Y [VIEW]
TV–Y7 ( ) [VIEW]
TV–G [VIEW]
BTV–PG (DLSV) [BLOCK]
TV–14 (DLSV) [BLOCK]
TV–MA ( LSV ) [BLOCK]

–18 –EN
0C28
•When you select the rating category and change it
to [BLOCK], the higher rating will change to
[BLOCK] automatically. Also, the lower rating will
change to [VIEW] automatically.
•When you change “G” to [VIEW], all ratings will
change to [VIEW] automatically.
5Exit the V-Chip setting mode
Press SETUP on the remote control to return to origi-
nal mode.
MPAA RATING SET UP
Make sure ...
•The unit must be turned on.
1Select “V-CHIP SET UP”
Press SETUP on the remote control.
Press Arrow (K/L) to point to
“V-CHIP SET UP”.
Then press ENTER.
2Enter 4-digit access code
Press the number buttons. The
default code is 0000.
3Select “MPAA RATING”
Press Arrow (K/L) to point to
“MPAA RATING”.
Then press ENTER.
4Select your desired item
Press Arrow (K/L) to point to your
desired item.
Then press ENTER to select
[BLOCK] or [VIEW].
Selection Rating Category Explanations
GGeneral Audience
PG Parental Guidance suggested.
PG-13 Unsuitable for children under 13
RRestricted; under 17 requires accompa-
nying parent or adult guardian
NC-17 No one under 17 admitted
XMature audience only
- TV SETUP -
CHANNEL SET UP
BV-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
– V-CHIP SET UP –
TV RATING
BMPAA RATING
CHANGE CODE
G[VIEW]
PG [VIEW]
PG–13 [VIEW]
BR[BLOCK]
NC–17 [BLOCK]
X[BLOCK]
ACCESS CODE
_ _ _ _
CHANGE ACCESS CODE
To change access code, follow the steps below.
1Select “V-CHIP SET UP”
Press SETUP on the remote con-
trol.
Press Arrow (K/L) to point to “V-
CHIP SET UP”.
Then press ENTER.
2Enter 4-digit access code
Press the number buttons. The
default code is 0000.
3Select “CHANGE CODE”
Press Arrow (K/L) to point to
“CHANGE CODE".
Then press ENTER.
4Enter 4-digit access code
Press the number buttons to enter
your desired access code in the
NEW CODE space. Then enter the
same code in the CONFIRM
CODE will space. V-CHIP SET UP
screen appear on the screen.
•If you enter wrong code, repeat step [4], making
sure you enter the same new code exactly in the
confirm code space.
5Exit the V-Chip setting mode
Press SETUP on the remote control to return to orig-
inal mode.
NOTE:
•If you unplug the power cord or a power failure
occurs, the changed access code will be lost and
will return to default (0000). Change your access
code again as necessary.
- TV SETUP -
CHANNEL SET UP
BV-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ACCESS CODE
_ _ _ _
– V-CHIP SET UP –
TV RATING
MPAA RATING
BCHANGE CODE
NEW CODE
_ _ _ _
CONFIRM CODE
_ _ _ _

–19 –EN
0C28
DVD SECTION
ABOUT THE DISCS
The following discs can be played back on this unit.
¡DVD video ¡DVD-R/RW*
¡DVD+R/RW* ¡Audio CD
¡CD-R/RW* ¡MP3*
* Depending on the types or the writing method of the
medium some discs can not be played.
• Some DVD-R/RW, DVD+R/RW or CD-R/RW discs
made on personal computers or on DVD recorders may
not be played back properly due to the factors such as
scratches, dirt or special properties of the disc.
• Discs made on personal computers may not be played
back properly due to the different environment or the
settings of the application you use. We recommend
always to use the standardized, rightly formatted discs.
(Please contact the sales agency for more detail).
This unit conforms to the NTSC color system. You can-
not play discs recorded in other color systems such as
PAL or SECAM.
¡Some discs include region codes as shown below.
¡The number inside the symbol refers to a region of the
world and a disc encoded in a specific region format
can only be played back on a unit with the same region
code.
The following discs cannot be played back on this unit.
¡DVD with region codes other than 1 or ALL
¡DVD-ROM
¡DVD-RAM (Never play back, otherwise malfunc-
tion may result.)
¡CD-ROM
¡VSD
¡CDV (Only plays back the audio part.)
¡CD-G (Only plays back the sound.)
¡CD-I (Never play back, otherwise malfunction
may result.)
¡SACD
¡Photo CD (Never play back, otherwise malfunc-
tion may result.)
¡Video CD (Never play back, otherwise malfunc-
tion may result.)
¡DTS-CD
Any other discs without compatibility indications
PLAYABLE DISCS
[DVD]
Data on a DVD is divided into sections called “titles” and
then into subsections called “chapters”, each of which is
given a title or chapter number. Playback conditions are pre-
set on some DVD video discs and these playback conditions
take priority over user operations on this unit. If a function
you selected does not run as desired, refer to the manual
accompanying the disc.
DISC TYPES
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4
[AUDIO CD]
Data on an Audio CD is divided into sections called
“tracks”, each of which is given a track number.
Example
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6
[MP3]
Data on an MP3 is divided into sections called “groups”,
and then into subsections called “tracks”, each of which
is given a group or track number.
Example
Group 1 Group 2
Track 1 Track 2 Track 5 Track 6Track 3 Track 4

–20 –EN
0C28
BASIC PLAYBACK
Getting started
¡Turn on the power of amplifier and any other com-
ponents, if necessary.
1 Press POWER.
¡The unit will turn on.
2 Press OPEN/CLOSE to open disc loading
tray.
3 Place the chosen disc in the tray, with the
label facing up.
MP3CD DVD-V
PLAYING A DISC
4 Press PLAY.
¡The tray will close automatically and playback will
then start from the first chapter or track of the disc.
If the playback does not start automatically, press
PLAY.
¡When you playback a DVD which features a title
menu, it may appear on the screen. In this case, refer
to “TITLE MENU”.
5 Press STOP to stop playback.
NOTES:
¡When the DVD mode has been switched to the TV
mode, the DVD mode shuts down first and then the
TV picture and sound appears in about 4 seconds.
Similarly, when POWER is pressed to turn off in the
DVD mode, this mode shuts down first and then the
unit’s power is turned off.
¡A“prohibited icon” may appear at
the top-right on the TV screen dur-
ing operation, warning that a pro-
hibited operation has been encoun-
tered by the DVD or the disc.
¡With DVDs that use titles for playback program sig-
nals, playback may start from the second title or it
may skip these titles.
¡During the playback of a two layered disc, pictures
may stop for a moment. This happens when the 1st
layer switches to the 2nd layer. This is not a mal-
function.
GENERAL FEATURES
DVD may contain menus to navigate the disc and
access special features. Press appropriate numerical key
or use Arrow (K/L/s/B) to highlight your selection in
the DVD main menu and press ENTER to confirm.
NOTES:
¡Select DVD mode by pressing SELECT on the
remote control. Then press PLAY or OPEN/CLOSE
before you operate the DVD functions.
¡Unless stated, all operations described are based on
remote control use. Some operations can be carried
out using the menu bar on the TV screen.
DVD-V
TITLE MENU
1 Press TITLE on the remote control.
¡The title menu will appear.
2 If the feature is not available, symbol
may appear on the TV screen.
3 Press Arrow (K/L/s/B) to select an item
and ENTER to confirm selection.
DVD-V
DISC MENU
1 Press DISC MENU on the remote control.
¡The DVD main menu will appear.
2 If the feature is not available, symbol
may appear on the TV screen.
3 If disc menu is available on the disc, audio
language, subtitle options, chapters for the
title and other options will appear for selec-
tion.
4 Press Arrow (K/L/s/B) to select an item
and ENTER to confirm selection.
DVD-V
CALLING UP A MENU SCREEN
DURING PLAYBACK
¡Press DISC MENU to call up the DVD menu.
¡Press TITLE to call up the title menu.
NOTE:
¡Contents of menus and corresponding menu opera-
tions may vary between discs. Refer to the manual
accompanying the disc for details.
