ESCO Technologies ETS-Lindgren Quick guide

Double Electrically Isolated (DEI) Enclosure
Assembly and Maintenance Guide
206934 Rev C
October, 2021
ets-lindgren.com

ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve
functioning or design. Although the information in this document has been carefully
reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising
out of the application or use of any product or circuit described herein; nor does it convey
any license under its patent rights nor the rights of others. All trademarks are the property
of their respective owners.
© Copyright 2021 by ETS-Lindgren Inc. All Rights Reserved. No part of this document may
be copied by any means without written permission from ETS-Lindgren Inc.
Trademarks used in this document: The ETS-Lindgren logo is a registered trademark of
ETS-Lindgren, Inc.
Revision Record
MANUAL, DEI ENCLOSURE | Part #206934 Rev C
Revision Description Date
AInitial Release February, 2003
BRebrand October, 2013
CReformat and update October, 2021

TABLE OF CONTENTS
NOTES, CAUTIONS, AND WARNINGS 5
1.0 INTRODUCTION 7
1.1 ETS-LINDGREN PRODUCT INFORMATION BULLETIN ........................................................... 7
2.0 PARTS AND COMPONENTS 8
2.1 COMPLETED ENCLOSURE (EXAMPLE) ............................................................................................ 8
2.2 PANELS ................................................................................................................................................................. 9
2.3 HARDWARE........................................................................................................................................................ 9
3.0 BEFORE YOU BEGIN ASSEMBLY 10
3.1 INSPECT CONTACT EDGES ..................................................................................................................... 10
4.0 ASSEMBLY AND INSTALLATION 11
4.1 OVERVIEW OF ASSEMBLY STEPS........................................................................................................11
4.2 ASSEMBLY STEPS...........................................................................................................................................11
STEP 1 - CLEAN AREA .....................................................................................................................................11
STEP 2 - MARK LOCATION...........................................................................................................................11
STEP 3 - OPEN CRATE...................................................................................................................................12
STEP 4 - ASSEMBLE MAIN FLOOR PANELS...................................................................................12
STEP 5 - PLACE INTERIOR FLOOR PANELS ...................................................................................13
STEP 6 - ERECT WALL PANELS...............................................................................................................13
STEP 7 - BOLT WALL PANELS................................................................................................................. 14
STEP 8 - INSTALL FINISHED FLOOR................................................................................................... 14
STEP 9 - PLACE CEILING PANELS.........................................................................................................15
4.3 ELECTRICAL COMPONENTS..................................................................................................................15
4.4 INTERIOR COMPONENTS .......................................................................................................................16
4.5 LIGHT FIXTURE MOUNTING...................................................................................................................16
4.6 FILTER MOUNTING DETAIL....................................................................................................................17
4.7 MOUNTING CONDUIT TO ANGLE BARS........................................................................................17
4.8 GROUNDING....................................................................................................................................................18
5.0 ABOUT MAINTENANCE AND REPAIR 19
5.1 DOOR MAINTENANCE PROGRAM .....................................................................................................19
5.2 SERVICE PROCEDURES............................................................................................................................19
3

4
6.0 CORRECTING LEAKS 20
6.1 ALIGNING PANELS....................................................................................................................................... 20
6.2 IN TOP AND SIDE PANELS......................................................................................................................21
6.3 AROUND THE DOOR .................................................................................................................................22
6.4 AROUND THE FILTERS .............................................................................................................................23
7.0 CLEANING CONTACT SURFACES 24
7.1 RECOMMENDED TOOLS AND SUPPLIES.....................................................................................24
7.2 ALL METAL.........................................................................................................................................................24
7.3 SCREEN ROOM...............................................................................................................................................24
8.0 DOOR FINGER REPLACEMENT 25
8.1 RECOMMENDED TOOLS AND SUPPLIES.....................................................................................25
8.2 OUTER FINGER REPLACEMENT ........................................................................................................26
8.3 INNER FINGER REPLACEMENT..........................................................................................................26
9.0 3-POINT CAM LATCH DOOR MAINTENANCE 27
9.1 WEEKLY................................................................................................................................................................27
9.2 MONTHLY...........................................................................................................................................................27
9.2.1 CLEAN DOOR JAMBS .......................................................................................................................27
9.2.2 CLEAN CONTACT FINGERS..........................................................................................................28
9.3 ANNUALLY.........................................................................................................................................................29

5
NOTES, CAUTIONS, AND WARNINGS
Note: Denotes helpful information intended to provide tips for better
use of the product.
CAUTION: Denotes a hazard. Failure to follow instructions could
result in minor personal injury and/or property damage. Included
text gives proper procedures.
WARNING: Denotes a hazard. Failure to follow instructions could
result in SEVERE personal injury and/or property damage. Included
text gives proper procedures.
*All notes, cautions, and warnings will be located on the left column area of the page.
See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product
marking information.

6

7
1.0 INTRODUCTION
Each ETS-Lindgren Double Electrically Isolated (DEI) Enclosure is tested at the
factory to verify that it provides the proper shielding.
1.1 ETS-LINDGREN PRODUCT INFORMATION BULLETIN
See the ETS-Lindgren Product Information Bulletin included with your shipment
for the following:
• Safety, regulatory, and other product marking information
• Steps to receive your shipment
• Steps to return a component for service
• ETS-Lindgren calibration service
• ETS-Lindgren contact information
Take care when
assembling the DEI
enclosure to avoid
causing an RF leak; an
RF leak can be created
by simply tightening a
bolt improperly.
An RF leak can
cause a large loss in
attenuation. At final
RF attenuation testing,
a low reading would
indicate a leak, or many
leaks, in the shielding.

8
2.0 PARTS AND COMPONENTS
2.1 COMPLETED ENCLOSURE (EXAMPLE)
MODEL NO. ___________________________________________________________
SHIELD MATERIAL(S) __________________________________________________
EXAMPLE:

9
2.2 PANELS
2.3 HARDWARE

10
3.0 BEFORE YOU BEGIN ASSEMBLY
3.1 INSPECT CONTACT EDGES
The most critical parts of each frame are the surfaces that connect the panels,
the two contact surfaces along the edges.
• Keep the contact edges clean at all times.
• As the room is being assembled, visually inspect all of the contact surfaces.
This inspection is especially important on an all metal enclosure (not a
screen room).
• The contact surfaces should be free of any paint, grease, dirt, and corrosion.
If the panels were stored in a damp environment, the edges may be
slightly corroded.
For information
on cleaning
contact surfaces, see
the Cleaning Contact
Surfaces section of
this guide.
Before assembling any
components, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.

11
4.0 ASSEMBLY AND INSTALLATION
4.1 OVERVIEW OF ASSEMBLY STEPS
1. Clean the area to be used for construction of the room.
2. Mark out the space on the floor where the room will be built.
3. To prevent damage to panels, remove panels from the crates or cartons only
as they are needed.
4. Locate, position, and bolt together the floor panels as shown in
the illustrations.
5. After the main floor panels are assembled, place the interior floor panels
(with floor tile) on top of them.
6. Attach the 4 in wide aluminum strips between each of the interior panels
and secure with the wood screws.
Wall and ceiling panels should be assembled as shown in the illustrations
7. Be sure to securely bolt the wall panel seams before inserting and
tightening the 4 in bolts into the floor panels.
8. Check alignment of the panels as they go together to avoid having to
disassemble and re adjust them later.
9. To ease insertion of the ceiling panels, loosen some of the 4 in bolts to allow
for some movement of the wall panels.
10. When inserting and tightening the 4 in bolts into the ceiling panels,
maintain solid contact along all of the seams.
4.2 ASSEMBLY STEPS
STEP 1 - CLEAN AREA
Remove all debris and clean the area where the enclosure is to be installed.
STEP 2 - MARK LOCATION
Use the illustrations in this manual to determine the area required for the
enclosure. Mark the location on the floor.
Review all
steps prior to
starting to assemble the
DEI enclosure.
Before assembling any
components, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
To accommodate
a site with limited
access space, the
DEI enclosure can be
pre-assembled and
moved into position.
When moving a pre-
assembled enclosure,
take care to avoid
contact with all metal
objects (such as
ductwork).

12

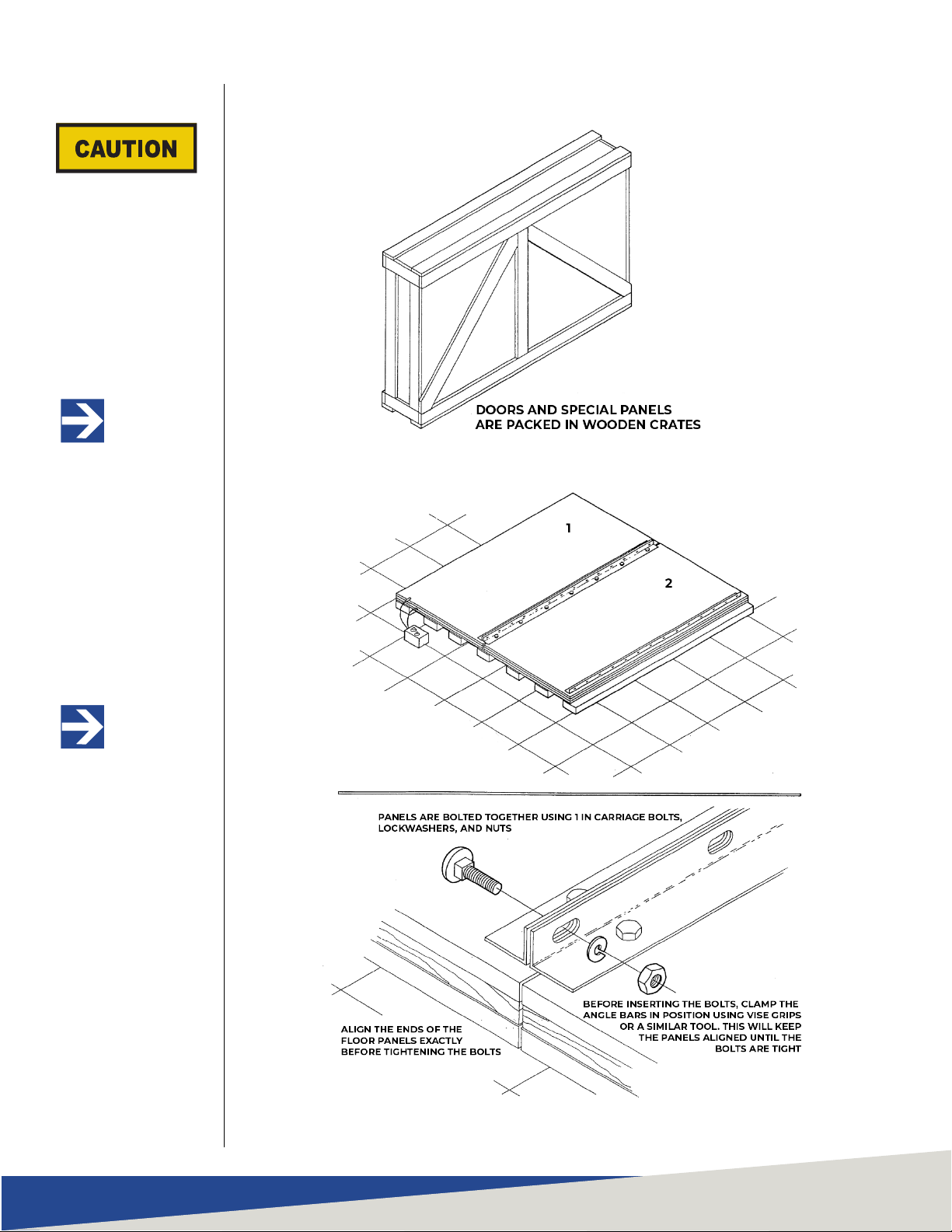

STEP 3 - OPEN CRATE
STEP 4 - ASSEMBLE MAIN FLOOR PANELS
Open all crates
and cartons
in the numbered
sequence, which
indicates the order of
panel construction.
To prevent damage to
panels, remove panels
from the crates or
cartons only as they
are needed.
In numbered
order, place
the main floor panels
on the marks made in
step 2.
To remove a panel,
loosen the crate lumber
or disassemble the
crate. Do not force the
panel from the crate if it
becomes jammed.

13

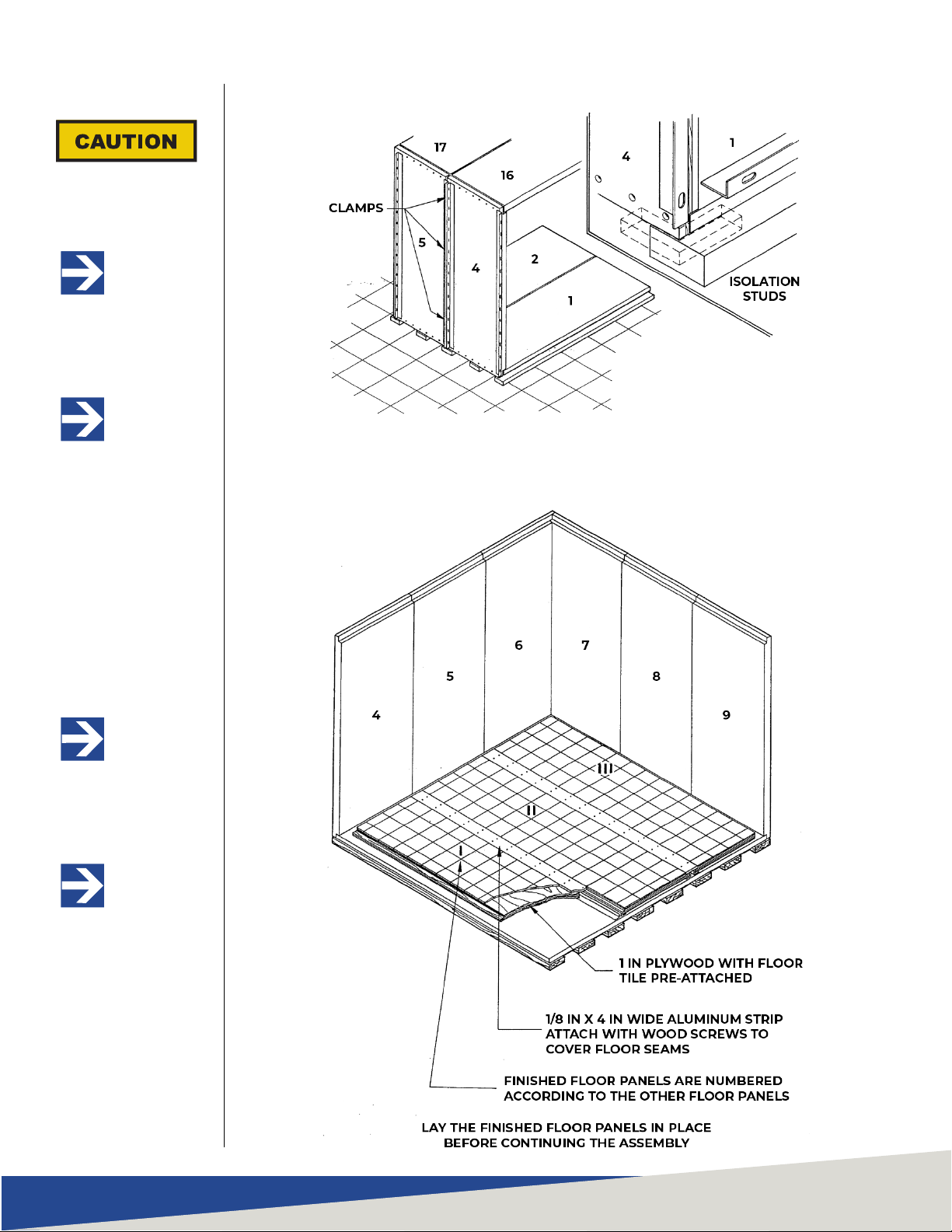

STEP 5 - PLACE INTERIOR FLOOR PANELS
STEP 6 - ERECT WALL PANELS
FOR LARGE ROOMS:
Place the
interior floor
panels (with floor tile)
on top of the assembled
main floor panels.
Begin
construction
of the wall panels at the
end of floor panel
#1 and moving
in a clockwise,
numerical fashion.
Attach the
4 in wide
aluminum strips
between each of the
interior panels and
secure with the
wood screws.
Verify that the floor is
level before assembling
the DEI enclosure or
leaks will occur.

14
STEP 7 - BOLT WALL PANELS
STEP 8 - INSTALL FINISHED FLOOR
Tighten clamps
and align all
panels before inserting
and tightening the
4 in bolts.
Panels can
form leaks,
especially where floor
and wall panels are
joined. Before aligning
the panels, loosen all
bolts on a seam to
ensure a consistent
panel fit. The edges
of the wall and ceiling
panels or wall and floor
panels must
align perfectly.
For more
information
on correcting leaks,
see Correcting Leaks
section of this guide.
Check
alignment of
the panels as they go
together to avoid having
to disassemble and re
adjust them later.
Never use a hammer
directly on the shielding
material.

15
STEP 9 - PLACE CEILING PANELS
4.3 ELECTRICAL COMPONENTS
To ease
insertion of
the ceiling panels,
loosen some of the 4 in
bolts to allow for some
movement of the
wall panels.
Begin ceiling
panel assembly
by positioning the
lowest numbered panel
directly over floor
panel #1.
Place all
panels in the
direction shown in
the illustration.
When inserting
and tightening
the 4 in bolts into the
ceiling panels, maintain
solid contact along all of
the seams.

16
4.4 INTERIOR COMPONENTS
4.5 LIGHT FIXTURE MOUNTING

17
4.6 FILTER MOUNTING DETAIL
4.7 MOUNTING CONDUIT TO ANGLE BARS

18
4.8 GROUNDING

19
5.0 ABOUT MAINTENANCE AND REPAIR
5.1 DOOR MAINTENANCE PROGRAM
ETS-Lindgren offers a door maintenance program that includes:
• Door inspection to assess the condition.
• Door and jamb cleaning.
• Repair of mechanism and fingers, if necessary.
• Hinge inspection and adjustment, if necessary.
• Defective or worn parts that cannot be repaired will be replaced.
Contact ETS-Lindgren for more information on the door maintenance program
5.2 SERVICE PROCEDURES
For the steps to return a system or system component to ETS-Lindgren for
service, see the Product Information Bulletin included with your shipment.
Parts
damaged due
to abuse or to failure to
follow recommended
maintenance
procedures are not
included in the door
maintenance program.
Before performing any
maintenance, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
WARRANTY
Maintenance of the
DEI enclosure is limited
to the procedures
described in this guide.
Warranty may be void if
the instructions in this
maintenance guide are
not followed.
If you have any
questions concerning
maintenance, contact
ETS-Lindgren
Customer Service.

20
6.0 CORRECTING LEAKS
6.1 ALIGNING PANELS
Before performing any
maintenance, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
Never use a hammer
directly on the
shielding material.
