EdgeAccess® Universal Chassis System
Model 1040
User Manual
Model Number 1040-UM
Product Number 6913100
Rev. D 01/2008

EdgeAccess Model 1040 3
Model 1040 Standalone Enclosure User Manual

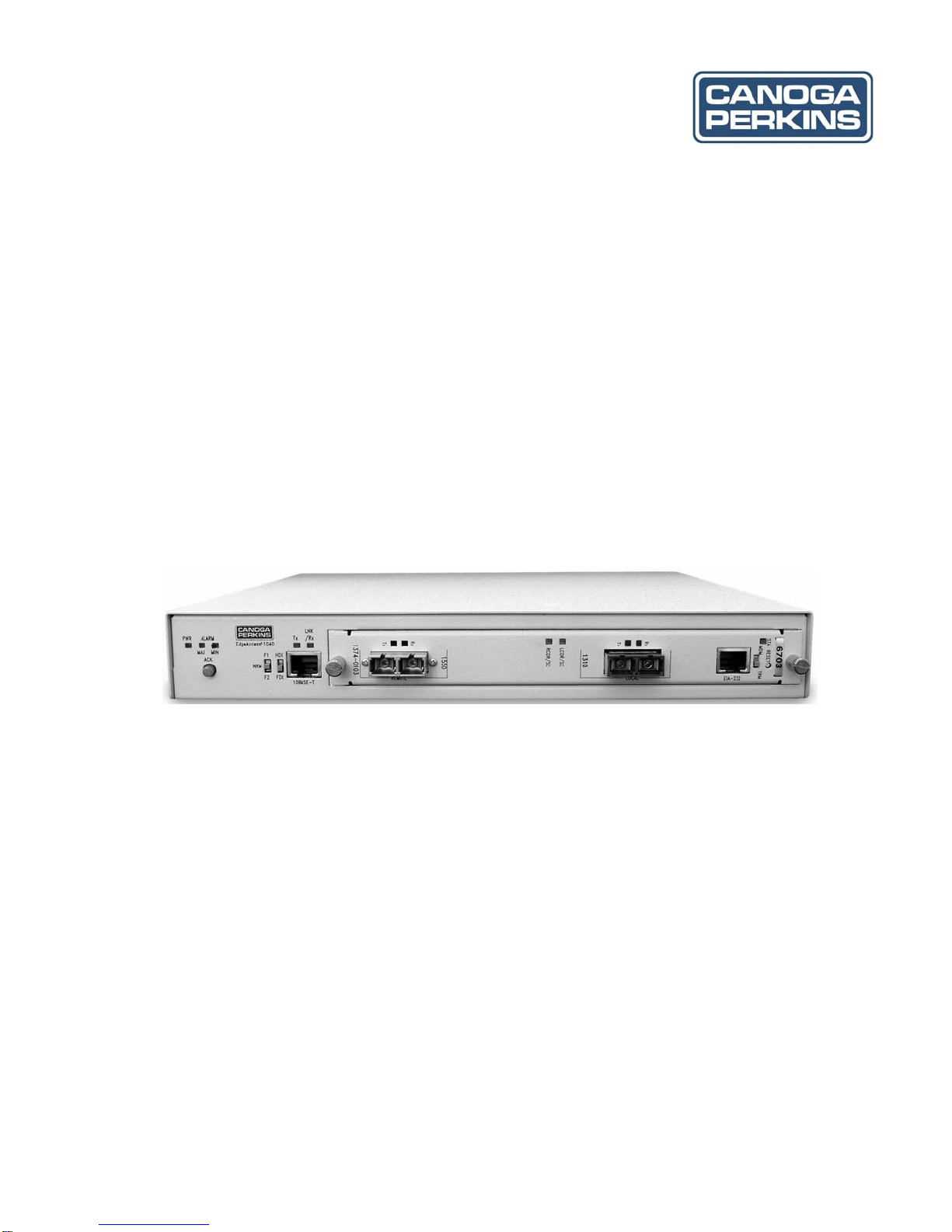

The Model 1040 standalone enclosure, shown in Figure 1, supports one 5U-sized managed module.
Figure 1. Model 1040 Standalone Enclosure
The front provides two switches, five LEDs, one connector, and a slot for a module. The back
includes an AC power cord socket and the ALM IN and ALM OUT connectors.
Switch Setting Selects
F1/NRM/F2 for the module F1 Function 1, such as Local loopback
NRM Normal operation; set this for most applications
F2 Function 2, such as Remote loopback
HDX/FDX for 10BASE-T port HDX Half duplex
FDX Full duplex
Note: If the link partner is set to auto-negotiation, the link uses 10M and follows the HDX/FDX
switch setting for this port; otherwise, set this switch to match the other switch on the link.
LED State Definition
PWR Off No power
Green Power is on
ALARM, MAJ and MIN Off Normal
MIN Amber Minor alarm
MAJ Red Major alarm
Tx for 10BASE-T port Off No transmission
Green blinking Transmission activity
LNK/Rx for 10BASE-T port Off No link
Green Link is established at full duplex
Amber Link is established at half duplex
Blinking Data is received
Note: To clear a latched Minor or Major alarm, push the ACK button.
Connector Provides
ALM IN and ALM OUT, MIN and MAJ Alarm status from another device (IN) and to
another device (OUT)
10BASE-T Half or full duplex Ethernet

EdgeAccess Model 1040
4
Installing and Using the 1040 Enclosure
To use the 1040 enclosure, see Figure 1 and follow these steps:
1. Place it on a secure surface with room for air flow and within 7 ft. (2.134 m) of the AC power
source.
2. Insert a module in the guide rails and press it firmly into the backplane, then secure the
thumbscrews finger-tight.
3. At ALM OUT, on the rear panel, connect devices to receive alarm information; see Figure 2.
•NO The contacts are open for normal operation and closed in a fault condition
•COM The electrical common
•NC The contacts are closed for normal operation and open in a fault condition
4. At ALM IN, on the rear panel, connect devices to supply alarm information; see Figure 2.
Connect cabling from the + output on the device to IN+ on the 1040 and from the - output to IN-
on the 1040; the internal alarm sense circuit is optically protected. Connect an optional Frame or
Chassis Ground to FGND.
Figure 2. Model 1040 Alarm Connectors
5. Plug the power cord into the rear of the 1040 enclosure, then plug it into the AC power source;
this turns on the power. To turn off the power, unplug the power cord.
6. To set any switches on the module, install the module in the 1040 enclosure, connect all cables,
and access the module, see the User Manual for the module.
Specifications
Dimensions: 11.70"L x 12.0"W x 1.718"H (297 mm x 305 mm x 44 mm)
Weight: 5.6 lbs (2.5 kg)
Power: 115 to 230 VAC; 50 to 60 Hz autoranging, 14 W maximum
Operating Environment: 0°to +50°C, Up to 90% humidity (Non-condensing)
Regulatory Compliance
•ETL, cETL (UL 60950 CAN/CSA C22.2 No. 60950, EN/IEC 60950) EN 60825-1, -2
•FCC Part 15B/IC-003/VCCI Class A, C-Tick (AS/NZS 3548)
•EN 55022 Class A, EN 61000-3-2, EN 61000-3-3
•EN 55024
•CE Mark
