Introduction
1

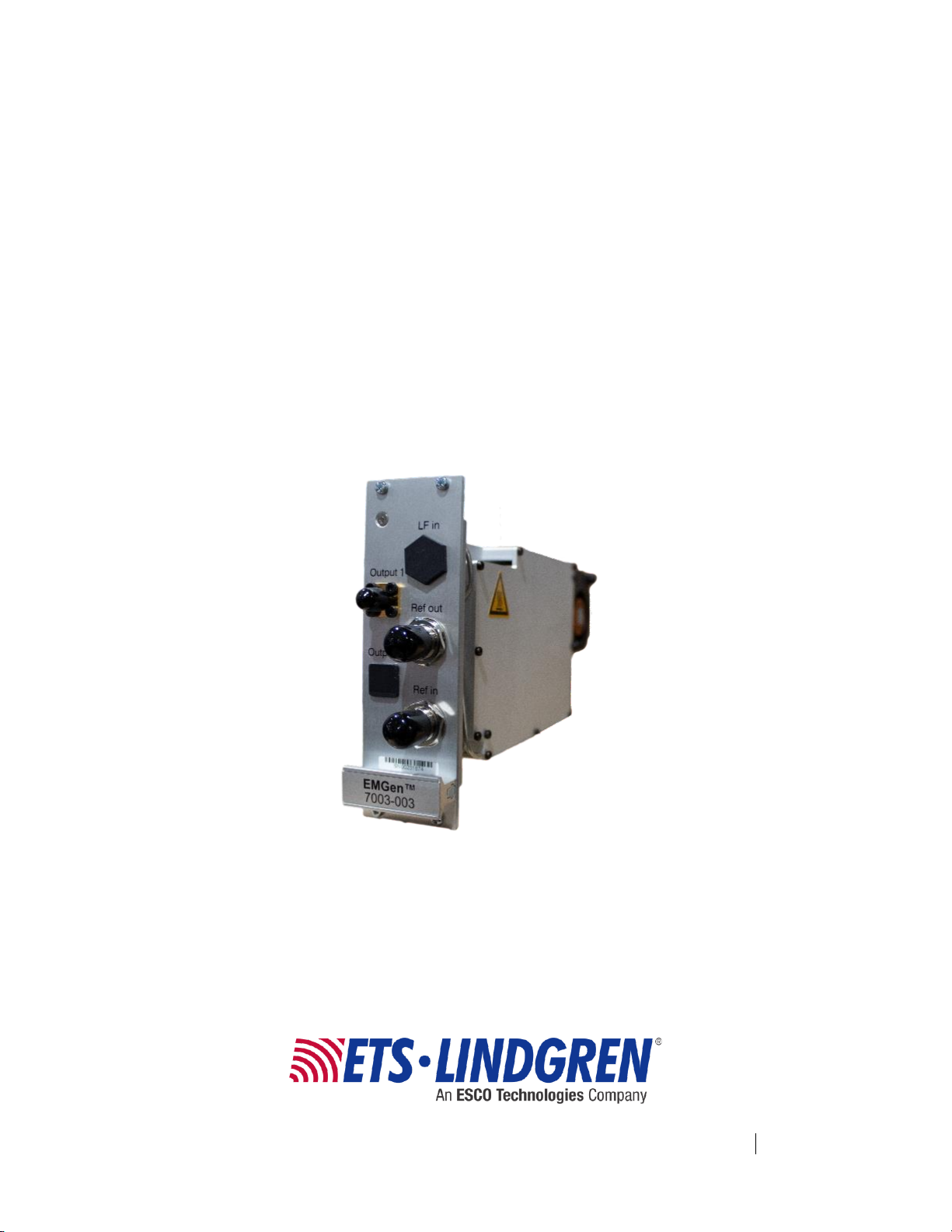

Model 7003-003
EMGen™ RF Signal Generator
Plug-In Card
User Manual

2
Introduction
ets-lindgren.com
ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve
functioning or design. Although the information in this document has been carefully reviewed and
is believed to be reliable, ETS-Lindgren Inc. does not assume any liability arising out of the
application or use of any product or circuit described herein; nor does it convey any license under
its patent rights nor the rights of others. All trademarks are the property of their respective
owners.
© Copyright 2022 by ETS-Lindgren Inc. All Rights Reserved. No part of this document may
be copied by any means without written permission from ETS-Lindgren Inc.
Trademarks used in this document: The ETS-Lindgren logo is a registered trademark, and
EMCenter, EMGen, EMField, EMQuest, and TILE! are trademarks of ETS-Lindgren Inc.
Revision Record
MANUAL, EMGEN CARD | Part #1741904, Rev. A
Revision
Description
Date
A
Initial Release
February 1, 2022

ets-lindgren.com
Introduction
3
Table of Contents
Notes, Cautions, and Warnings.......................................................................................... 7
Safety Information .............................................................................................................. 7
1.0 Introduction...................................................................................................8
Components ....................................................................................................................... 8
2-Slot and 7-Slot EMCenter Processor Requirement.................................................. 9
Modulation Types ............................................................................................................... 9
How to use Gated Pulse Modulation................................................................................ 10
Explanation of Automotive Pulse Testing .................................................................. 10
2.0 Maintenance................................................................................................13
Maintenance of Fiber Optics (If Used).............................................................................. 13
Replacement and Optional Parts ..................................................................................... 13
Service Procedures .......................................................................................................... 14
Contacting ETS-Lindgren........................................................................................... 14
Sending a Component for Service............................................................................. 14
3.0 Specifications..............................................................................................15
Electrical Specifications.................................................................................................... 15
Physical Specifications..................................................................................................... 16
Environmental Specifications ........................................................................................... 16
Power Specifications ........................................................................................................ 16
4.0 EMGen Plug In Card Installation................................................................17
Plug-In Card Installation ................................................................................................... 17
5.0 Operation.....................................................................................................19
Powering On and Off EMCenter....................................................................................... 19
Power On ................................................................................................................... 19
Power Off ................................................................................................................... 20
Manual Control ................................................................................................................. 21
EMGen Control Screen.............................................................................................. 21
EMGen Configuration Screen.................................................................................... 23
Number Pad............................................................................................................... 23
6.0 EMGen Command Set ................................................................................25
Syntax for EMCenter commands............................................................................... 25
Shortcut syntax .......................................................................................................... 25
Special Characters in Command Syntax................................................................... 26
IEEE 488.2 Mandatory Instruction Set ............................................................................. 27

4
Introduction
ets-lindgren.com
*CLS........................................................................................................................... 27
*ESE........................................................................................................................... 27
*ESE?......................................................................................................................... 28
*ESR? ........................................................................................................................ 28
*IDN?.......................................................................................................................... 28
*OPC?........................................................................................................................ 29
*RST........................................................................................................................... 30
*SRE .......................................................................................................................... 30
*SRE? ........................................................................................................................ 31
*STB?......................................................................................................................... 31
Command List................................................................................................................... 31
AM:DEPT ................................................................................................................... 31
AM:DEPT? ................................................................................................................. 31
AM:DEPT:MAX? ........................................................................................................ 32
AM:DEPT:MIN?.......................................................................................................... 32
AM:INT:FREQ............................................................................................................ 32
AM:INT:FREQ?.......................................................................................................... 32
AM:INT:FREQ:MAX?................................................................................................. 33
AM:INT:FREQ:MIN? .................................................................................................. 33
AM:INT:FREQ:STEP.................................................................................................. 33
AM:INT:FREQ:STEP?................................................................................................ 33
AM:INT:FREQ:STEP:MAX?....................................................................................... 34
AM:INT:FREQ:STEP:MIN?........................................................................................ 34
AM:OPT:2HZ.............................................................................................................. 34
AM:POW:MAX? ......................................................................................................... 34
AM:POW:MIN?........................................................................................................... 35
AM:STAT.................................................................................................................... 35
AM:STAT?.................................................................................................................. 35
FM:DEV...................................................................................................................... 36
FM:DEV?.................................................................................................................... 36
FM:INT:FREQ ............................................................................................................ 36
FM:INT:FREQ? .......................................................................................................... 36
FM:STAT.................................................................................................................... 37
FM:STAT?.................................................................................................................. 37
FREQ ......................................................................................................................... 37
FREQ? ....................................................................................................................... 38
FREQ:MAX? .............................................................................................................. 38

ets-lindgren.com
Introduction
5
FREQ:MIN?................................................................................................................ 38
FREQ:STAR............................................................................................................... 39
FREQ:STAR?............................................................................................................. 39
FREQ:STEP............................................................................................................... 40
FREQ:STEP?............................................................................................................. 40
FREQ:STEP:MAX?.................................................................................................... 40
FREQ:STEP:MIN?..................................................................................................... 40
FREQ:STOP .............................................................................................................. 41
FREQ:STOP? ............................................................................................................ 41
HVER? ....................................................................................................................... 41
ID_NUMBER?............................................................................................................ 42
OUTP:SELECT?........................................................................................................ 42
OUTP:STAT............................................................................................................... 42
OUTP:STAT?............................................................................................................. 43
POW........................................................................................................................... 43
POW?......................................................................................................................... 43
POW:MAX?................................................................................................................ 44
POW:MIN?................................................................................................................. 44
POW:STEP................................................................................................................ 44
POW:STEP?.............................................................................................................. 44
POW:STEP:MAX? ..................................................................................................... 45
POW:STEP:MIN?....................................................................................................... 45
PULM:BURST:NUM................................................................................................... 45
PULM:BURST:NUM?................................................................................................. 45
PULM:BURST:NUM:MAX?........................................................................................ 46
PULM:BURST:NUM:MIN?......................................................................................... 46
PULM:BURST:PER.................................................................................................... 46
PULM:BURST:PER?.................................................................................................. 46
PULM:BURST:PER:MAX?......................................................................................... 47
PULM:BURST:PER:MIN?.......................................................................................... 47
PULM:BURST:STAT.................................................................................................. 47
PULM:BURST:STAT?................................................................................................ 47
PULM:STAT............................................................................................................... 48
PULM:STAT?............................................................................................................. 48
PULS:DEL.................................................................................................................. 48
PULS:DEL?................................................................................................................ 48
PULS:DEL:MAX?....................................................................................................... 49

6
Introduction
ets-lindgren.com
PULS:DEL:MIN?........................................................................................................ 49
PULS:WIDT................................................................................................................ 49
PULS:WIDT?.............................................................................................................. 49
PULS:WIDT:MAX?..................................................................................................... 50
PULS:WIDT:MIN?...................................................................................................... 50
REF:EXT:CLK............................................................................................................ 50
REF:EXT:CLK?.......................................................................................................... 50
SOFTWARE:UP......................................................................................................... 51
STAT:OPER?............................................................................................................. 51
STAT:OPER:COND?................................................................................................. 51
STAT:OPER:ENAB.................................................................................................... 51
STAT:PRES ............................................................................................................... 51
SVER? ....................................................................................................................... 52
SYST:BUSA?............................................................................................................. 52
SYST:ERR? ............................................................................................................... 52
SYST:IDNU?.............................................................................................................. 53
SYST:PRES............................................................................................................... 53
SYST:SAVECON....................................................................................................... 53
TEMP? ....................................................................................................................... 54
Appendix A: Appendix A: EC Declaration of Conformity.............................55

ets-lindgren.com
Introduction
7

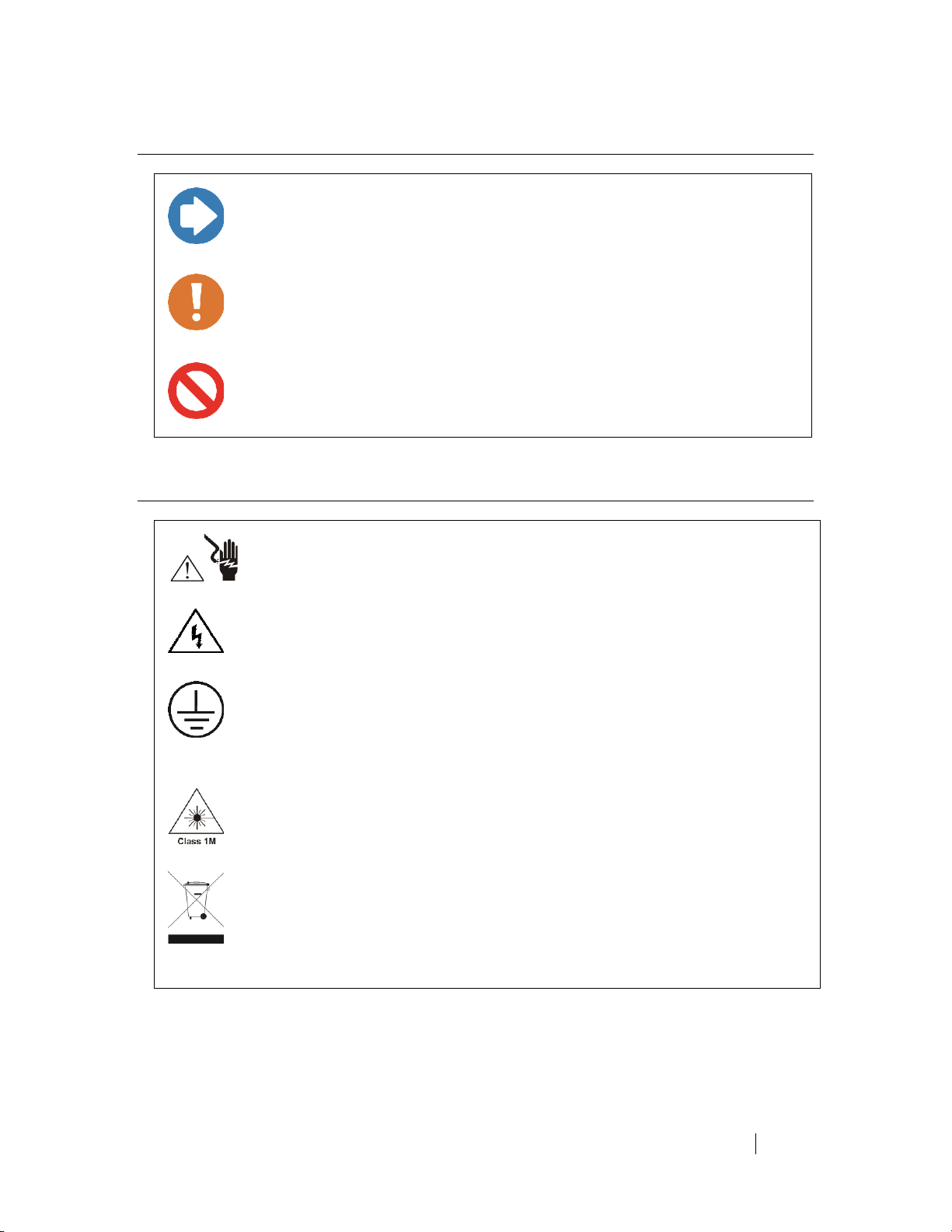

Notes, Cautions, and Warnings
Note: Denotes helpful information intended to provide tips for better use of the
product.
CAUTION: Denotes a hazard. Failure to follow instructions could result in
minor personal injury and/or property damage. Included text gives proper
procedures.
WARNING: Denotes a hazard. Failure to follow instructions could result in
SEVERE personal injury and/or property damage. Included text gives
proper procedures.
Safety Information
High Voltage: Indicates presence of hazardous voltage. Unsafe practice
could result in severe personal injury or death.
High Voltage: Indicates presence of hazardous voltage. Unsafe practice
could result in severe personal injury or death.
Protective Earth Ground (Safety Ground): Indicates protective earth
terminal. You should provide uninterruptible safety earth ground from
the main power source to the product input wiring terminals, power
cord, or supplied power cord set.
Laser Warning: Denotes a laser (class 1M) is part of the operating
system of the device.
Waste Electrical and Electronic Equipment (WEEE) Directive: (European
Union) At end of useful life, this product should be deposited at an
appropriate waste disposal facility for recycling and disposal. Do not
dispose of with household waste.

8
Introduction
ets-lindgren.com

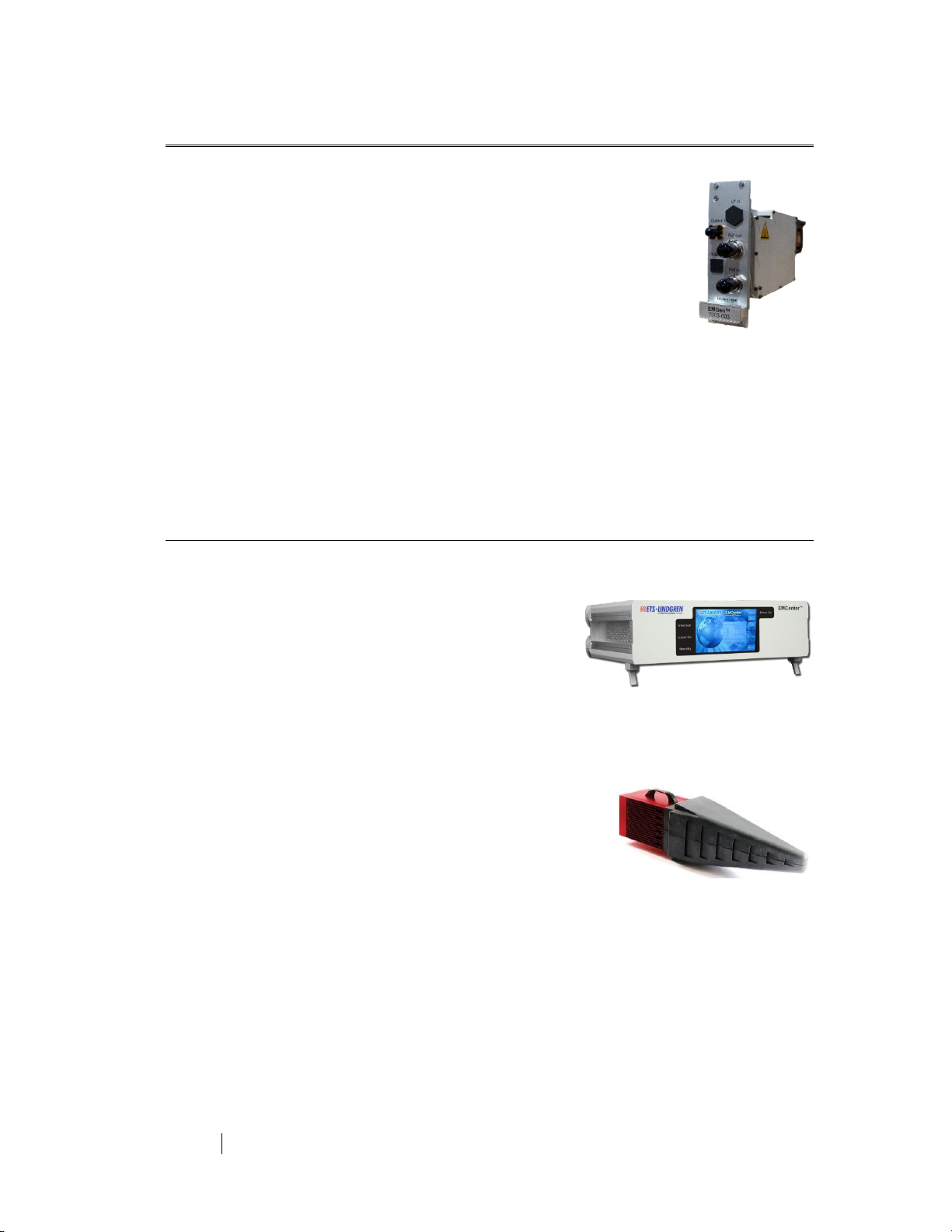

1.0 Introduction
The ETS-Lindgren EMGen™ RF Signal Generator Plug-in
Card is a modular signal generator with AM, FM, and pulse
modulation, covering a frequency range of 4 kHz to 6 GHz.
EMGen is designed for EMC testing, and quickly and accurately
performs EMC tests without the need for an external modulation
source. Using an internal modulator, EMGen provides CW, AM,
FM, and pulse modulated signals.
The primary test signal of an Electric Magnetic Compatibility (EMC) immunity test
system is generated by an RF signal generator. It produces a modulated or un-
modulated RF signal at a certain frequency and signal level. The EMGen generators
are designed for EMC test purposes in order to perform fast and accurate EMC tests
without the need for external modulation sources.
Components
EMCenter Modular RF Platform (Required)
The EMCenter is a modular EMC/RF test system
that serves as the user and computer interface for
all the plug-in cards and modules. See section
below about processor requirement for the 2-slot
and 7-slot EMCenters using the 7003-002
EMGen module.
EMField Electric Field Generator
The patented EMField is no less than a revolution
in EMC immunity testing. A complete paradigm
shift involves a combination of high-level
integration and a field combining technique,
making several discrete components like
combiner, coupler, power meters, and cabling
superfluous. This product is sold separately.
Software
The EMCenter may be controlled from a computer using these software products:
ETS-Lindgren TILE!™ (Totally Integrated Laboratory Environment)
ETS-Lindgren EMQuest™ Data Acquisition and Analysis Software
Other test automation software

ets-lindgren.com
Introduction
9
2-Slot and 7-Slot EMCenter Processor Requirement
Note: The 2-slot and 7-slot EMCenter require an ARM processor board with
firmware version 3.3.3 or higher to operate the EMGen 7003-002 interface card.
2-slot and 7-slot EMCenter systems utilizing an X86 processor board and/or
firmware version 3.3.0 or older are not supported and will not communicate with
the EMGen interface card.

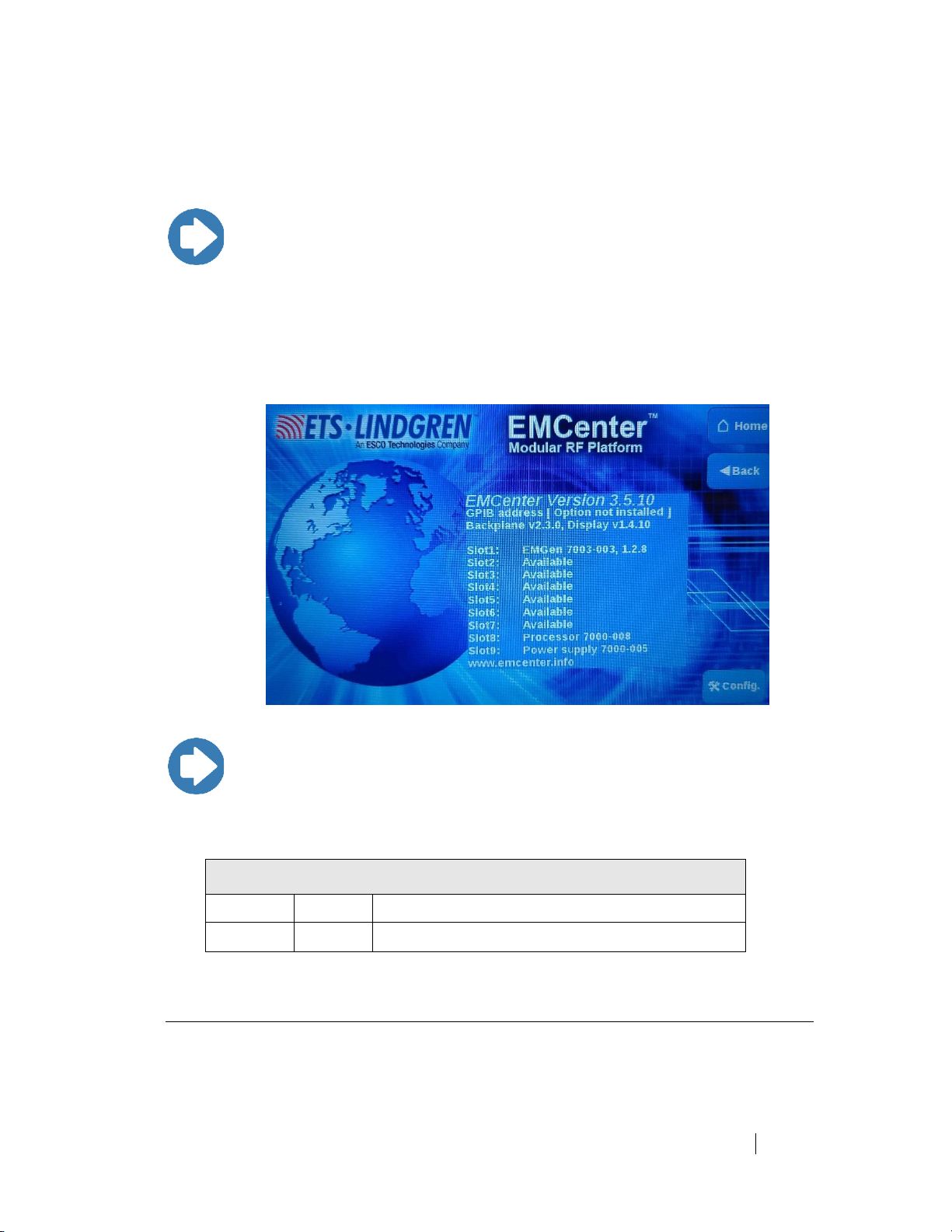

To view the 2-slot or 7-slot EMCenter version information, navigate to the main
screen and press the Info button. Slot 8 indicates the processor version of this
EMCenter as shown in the graphic below.
Note: If the EMCenter is not operating the 7000-008 or 7000-009 processor
card, contact ETS-Lindgren to purchase a new 2-slot or 7-slot EMCenter or a
new processor card compatible with EMGen.
Processor Cards
7000-008
1611365
EMCENTER PROCESSOR BOARD STD (ARM)
7000-009
1695739
EMCENTER PROCESSOR BOARD + GPIB (ARM)
Modulation Types
AM modulation —The EMGen supports AM modulation depths of 0 to
100% and modulation frequencies from 1 Hz to 100 kHz, covering the
requirements of all relevant EMC standards.

10
Introduction
ets-lindgren.com
FM modulation —The EMGen supports FM modulation deviations of 1 Hz
to 100 kHz and modulation frequencies from 1 Hz to 100 kHz.
Pulse modulation: 200 ns - 100 s —The EMGen supports pulse
modulation with ON- and OFF times ranging from 200 ns to 100 s with a
resolution of 100 ns.
Pulse modulation settings —The pulse interval (on/off) of the EMGen can
be set from 200 ns to 100 s This broad range allows for ultimate flexibility in
the configuration of pulse modulation.
Gated Pulse —In addition to standard pulse modulation the EMGen can
also be used to perform Gated Pulse modulation. Gated Pulse testing is
necessary to perform automotive radar pulse testing as prescribed in several
automotive standards (E.G. Ford, General Motors and PSA).
How to use Gated Pulse Modulation
Several automobile manufactures have written standards in which they subscribe the
Automotive Radar Pulse tests. These tests consist of an N-number of pulses in a
certain period of time. When the number of pulses is reached, there must be no more
output for the remaining time during that period.
Explanation of Automotive Pulse Testing
Ford RI-114 Radar Pulse test (EMC-SC-2009) and PSA B21 7110 are using:
Pulse Repetition Rate (PRR) = 300 Hz
Pulse duration (PD) = 3 µs
No. of pulses per second (N) = 50
GM GMW3097-2012 uses:
Pulse Repetition Rate (PRR) = 300 Hz
Pulse duration (PD) = 6 µs
No. of pulses per second (N) = 50

ets-lindgren.com
Introduction
11
The EMGen plug-in card is capable of generating the necessary RF bursts according
to these automotive standards, using the Gated Pulse Modulation. Normal pulse
modulation must be used to set the Pulse ON and Pulse OFF times (these are called,
respectively, PULSe:WIDTh and PULSe:DELay, in the command set of the
EMCenter system user interface).
The standards describe the pulse waveform by means of a Pulse Repetition Rate
(PRR) and Pulse Duration. The EMGen plug-in card, on the other hand, uses Pulse
ON and Pulse OFF (PULSe:WIDTh and PULSe:DELay) times.
As a result the PD and PRR numbers must be calculated to Pulse ON and Pulse
OFF (PULSe:WIDTh and PULSe:DELay) times, according to the example below:

12
Introduction
ets-lindgren.com
Example:
The Ford standard EMC-SC-2009 describes:
PRR = 300 Hz, PD = 3 µs. N =50 pulses per second.
So the period time of the Pulse Modulation is TPRR = 3,333 ms
For the EMGen this means:
The Pulse ON time, or PULSe:WIDTh equals PD = 3 µs
The Pulse OFF time, or PULSe:DELay equals TPRR –PD = 3,333 ms –3 µs = 3,330
ms
Limitations:
The Pulse ON and OFF times apply to the specific limitations to the number of pulses
per period for the Gated Pulse Modulation. The EMGen system user interface makes
use of equations to intelligently adapt the buttons, prohibiting invalid settings. When
the EMGen plug-in card is controlled externally by PC-software, these limitations
must be controlled by the PC-software. The limitations are given by the following
formulas;
1
1  
DelayWidth PulsePulse msGateperiod
MAX
N
The maximum number of pulses in one burst is limited by the settings of the pulse
modulation. For example; using the Ford standard with a repetition rate of 300 Hz, a
pulse width of 3µs and period time of 1 second, results in a maximum of 298 pulses.
NPulseNmsGateperiod
MAX
Delay Width
Pulse )()1(
)(


The formula can also be rewritten to calculate the pulse parameters:
N
PulseNmsGateperiod
MAX
Width Delay
Pulse )()1(
)(



ets-lindgren.com
Maintenance
13
2.0 Maintenance
CAUTION: Before performing any maintenance, follow the safety
information in the ETS-Lindgren Product Information Bulletin
included with your shipment.
WARNING: Maintenance of EMGen is limited to external components
such as cables or connectors.
If you have any questions concerning maintenance, contact
ETS-Lindgren Customer Service.
Maintenance of Fiber Optics (If Used)
Fiber optic connectors and cables can be damaged from airborne particles, humidity
and moisture, oils from the human body, and debris from the connectors they plug
into. Always handle connectors and cables with care, using the following guidelines.
CAUTION: Before performing any maintenance, disconnect fiber optic
cables from the unit and turn off power.
When disconnecting fiber optic cables, apply the included dust caps to
the ends to maintain their integrity.
Before connecting fiber optic cables, clean the connector tips and in-line
connectors.
Before attaching in-line connectors, clean them with moisture-free
compressed air.
Failure to perform these tasks may result in damage to the fiber optic
connectors or cables.
Replacement and Optional Parts
Note: ETS-Lindgren may substitute a similar part or new part number with the
same functionality for another part/part number. Contact ETS-Lindgren for
questions about part numbers and ordering parts.
WARRANTY

14
Maintenance
ets-lindgren.com
Following are the part numbers for ordering replacement or optional parts for the
EMGen™ RF Signal Generator Plug-in Card.
Service Procedures
Contacting ETS-Lindgren
Note: Please see www.ets-lindgren.com for a list of ETS-Lindgren offices,
including phone and email contact information.
Note: ETS-Lindgren is not responsible for service on equipment that has been
configured with software other than what is provided by ETS-Lindgren. Support
for such configurations requires a secondary charge from ETS-Lindgren.
Sending a Component for Service
1. Contact ETS Lindgren Customer Service to obtain a Service Request Order
(SRO).
2. Briefly describe the problem in writing. Give details regarding the observed
symptom(s) or error codes, and whether the problem is constant or intermittent in
nature. Please include the date(s), the service representative you spoke with,
and the nature of the conversation. Include the serial number of the item being
returned.
3. Package the system or component carefully. If possible, use the original packing
materials or carrying case to return a system or system component to ETS
Lindgren.

ets-lindgren.com
Specifications
15
3.0 Specifications
Electrical Specifications
AM Accuracy
2%
AM Modulation Depth:
5% to 95% (Usable from 0% to 100%)
Amplitude Accuracy:
± 1.0 dB +/-0.01 dB
Amplitude Resolution:
0.1 dB
FM Accuracy
2%
FM Modulation Depth
1 Hz -100 kHz
FM Modulation Resolution
1%
Frequency Accuracy:
1 ppm
Frequency Range:
4 kHz–6 GHz
Frequency Resolution:
1 Hz
Harmonics:
< -20 dBc
Modulation Frequency Range:
10 Hz–100 kHz
Modulation Type:
CW, AM, FM, Pulse and Gated Pulse
Non-Harmonic Spurious:
< -50 dBc
Output Level Settling Time:
< 1 ms
Output Level:
Minimum: –70 dBm
Maximum: +13 dBm
(+7.0 dBm when using AM)
Pulse Modulation On/Off Ratio:
> 90 dB
Pulse Time-Range:
ON: 200 ns–100 s
OFF: 200 ns–100 s

16
Specifications
ets-lindgren.com
Physical Specifications
Depth:
220 mm
Height:
3U:100 mm (3.93 in)
Output Connector:
Output,(1) SMA
Width:
One slot
Environmental Specifications
Relative Humidity:
10% to 90% (non-condensing)
Temperature Range:
10°C to 40°C
(50°F to 104°F)
Power Specifications
Power Consumption:
< 30 W
Supply Voltage:
12 VDC

ets-lindgren.com
EMGen Plug In Card Installation
17
4.0 EMGen Plug In Card Installation
CAUTION: Before connecting any components, follow the information
provided in Safety Information on page 7.
CAUTION: The EMGen card is designed to be used ONLY with the
EMCenter. Do not use the card in combination with any other system.
CAUTION: Always unplug the unit before starting maintenance to prevent
electrical shock. Maintenance includes removal of the plug-in cards or the
top panel.
Plug-In Card Installation
Please follow the instructions below on how to install the plug-in card into the
correctly. NOTE:
1. Before installing and inserting a new plug-in card make sure that the EMCenter is
turned OFF and disconnect the AC Mains power cord.

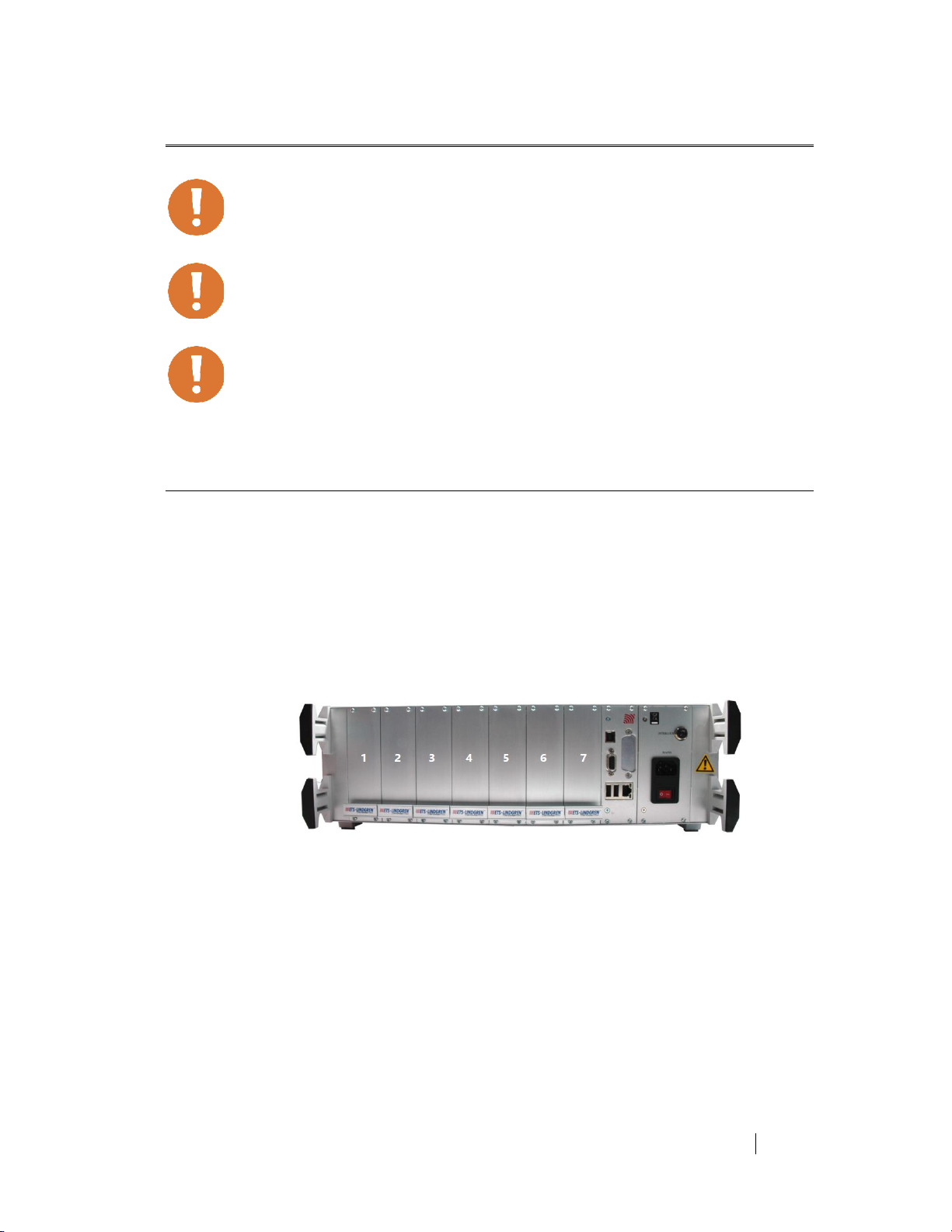

2. Determine in which empty slot in the EMCenter™ Modular RF Platform you want
to install the EMGen™ RF Signal Generator Plug in Card. Looking at the back of
the EMCenter, the slots are numbered 1 through 7 from left to right.
3. Remove the blank panel from the slot by removing the two screws at the top of
the blank panel and the two screws at the bottom.
4. Carefully insert the EMGen card into the slot of the EMCenter. Position the plug-
in card into the slot and slowly push it, using the lower part of the plug-in card.
When it reached the end of the rail, gently push and secure the plug-in card into
the backplane socket.
5. Tighten the four screws using a Pozi type screwdriver head PZ1.
6. Re-connect the AC mains power cord and turn ON the EMCenter. It can now be
started by tapping the touch screen. The EMCenter will automatically detect the
newly installed EMGen card.

18
EMGen Plug In Card Installation
ets-lindgren.com
7. Depending on the test setup requirements, connect coaxial cables to the relay
connections on the back panel of the EMCenter.
8. Connect the EMCenter to a personal computer using USB, RS 232, Ethernet, or
IEEE (optional).
9. Plug the interlock into the connector on the back of the EMCenter.
The card installation is complete. You can control EMGen through the EMCenter
touchscreen, with ETS Lindgren TILE!™ (Totally Integrated Laboratory Environment),
ETS Lindgren EMQuest™ Data Acquisition and Analysis Software, and other test
automation software packages. Contact ETS Lindgren for additional information.

ets-lindgren.com
Operation
19
5.0 Operation
CAUTION: Before placing into operation, follow the information provided
in Safety Information on page 7.
CAUTION: Prior to operation, verify that the mains voltage is within the
operating range of the equipment.
Powering On and Off EMCenter
Note: For information on using the EMCenter touchscreen, see the EMCenter
Modular RF Platform User Manual.
Power On
Note: Verify all cards are installed correctly in the EMCenter.
1. Plug the power cord from the mains inlet on the back panel of the EMCenter™
Modular RF Platform into a power outlet.
2. Plug the interlock jack into the interlock connector on the back panel of the
EMCenter.
3. Turn the power switch located on the back panel of the EMCenter to the on
position.
4. Touch anywhere on the EMCenter screen. It will take approximately 20 seconds
to boot. The Information screen will flash, and then the Home screen will display.

20
Operation
ets-lindgren.com

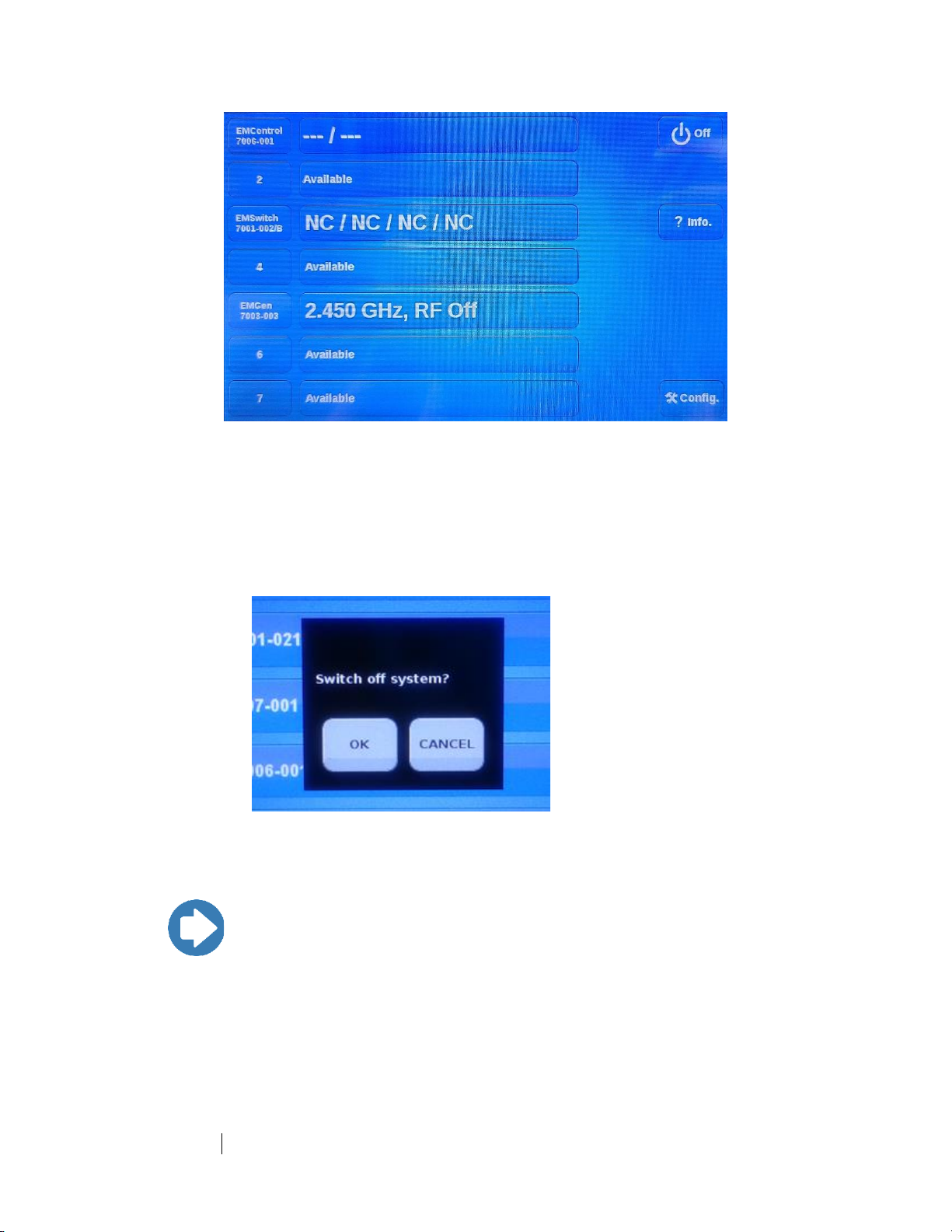

Sample EMCenter Home Screen
Power Off
1. Press the Off button located on the EMCenter screen.
2. Press OK to switch off the system. The standby light located on the front panel of
the EMCenter will flash, and then will illuminate steadily.
Note: When the EMCenter is in standby mode, touch the screen anywhere to
reboot.
3. Turn the power switch located on the back panel of the EMCenter to the off
position.
4. Remove the power cord from the power connector on the back panel of the
EMCenter.
