Esco TG10 Series Datasheet

Printed in USA
JWA ©2014
Page 1
E-TG10-PL-1014
MODEL TG10
PARTS LIST MANUAL
10” TURBO GRINDERS
SKU # MODEL # POWER OPTION
56600 TG10-11H HONDA GASOLINE ENGINE MODEL
GXV340UT2-DX3
56700 TG10-13P KAWASAKI PROPANE ENGINE MODEL FH381V
56900 TG10-5B/230/1 BALDOR ELECTRIC MOTOR 5HP 1PH 60Hz 230V
56800-230 TG10-5B/230/3 BALDOR ELECTRIC MOTOR 5HP 3PH 60Hz 230V
56800-460 TG10-5B/460/3 BALDOR ELECTRIC MOTOR 5HP 3PH 60Hz 460V
56800-50/220 TG10-5B/50/220/3 BALDOR ELECTRIC MOTOR 5HP 3PH 50Hz 220V
56800-50/380 TG10-5B/50/380/3 BALDOR ELECTRIC MOTOR 5HP 3PH 50Hz 380V
56800-50/440 TG10-5B/50/440/3 BALDOR ELECTRIC MOTOR 5HP 3PH 50Hz 440V
REVISED STARTING
SERIAL # 141010199
GASOLINE MODEL PROPANE MODEL ELECTRIC MODEL
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

Printed in USA
©2014 JWA
Page 2
E-TG10-PL-1014
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Extreme care must be taken when operating electric
models with water present: Ensure power cord is prop-
erly grounded, is attached to a Ground-Fault-Interrupter
(GFI) outlet, and is undamaged.
•Check all electrical cables - be sure connections are tight and
cable is continuous and in good condition. Be sure cable is
correctly rated for both the operating current and voltage of
this equipment.
•Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with qualied electri-
cian or service person if there is any doubt as to whether the
outlet is properly grounded. Adhere to all local codes and
ordinances.
•NOTE: In the event of a malfunction or breakdown, grounding
provides a path of least resistance for the electric current to
dissipate. The motor is equipped with a grounded plug and
must be connected to an outlet that is properly installed and
properly grounded. DO NOT modify the plug provided on the
motor. If the plug does not t the outlet have a qualied electri-
cian install the proper receptacle.
•Switch motor OFF before disconnecting power.
•Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproduc-
tive harm.
•Gasoline is extremely ammable and poisonous.
It should only be dispensed in well ventilated areas,
and with a cool engine.
•Small gasoline engines produce high concentra-
tions of carbon monoxide (CO) example: a 5 HP 4 cycle
engine operation in an enclosed 100,000 cu. ft. area with
only one change of air per hour is capable of providing
deadly concentrations of CO in less than fteen minutes.
Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline or propane pow-
ered equipment should not be used in enclosed or partially
enclosed areas. Symptoms of CO poisoning include, head-
ache, nausea, weakness, dizziness, visual problems and
loss of consciousness. If symptoms occur - get into fresh
air and seek medical attention immediately.
SAFETY
MESSAGES
SAFETY MESSAGES
Indicates an imminent hazard which, if not
avoided, will result in death or serious injury.
Indicates an imminent hazard which, if not
avoided, can result in death or serious injury.
Indicates hazards which, if not avoided, could
result in serious injury and or damage to the
equipment.
•Safety Instructions are proceeded by a graphic alert symbol
of DANGER, WARNING, or CAUTION.
ELECTRICAL POWERED EQUIPMENT
GASOLINE/PROPANE POWERED EQUIPMENT
•Equipment should only be operated by trained personnel in
good physical condition and mental health (not fatigued). The
operator and maintenance personnel must be physically able
to handle the bulk weight and power of this equipment.
•This is a one person tool. Maintain a safe operating distance
to other personnel. It is the operators’ responsibility to keep
other people (workers, pedestrians, bystanders, etc.) away
during operation. Block off the work area in all directions with
roping, safety netting, etc. for a safe distance. Failure to do so
may result in others being injured by ying debris or exposing
them to harmful dust and noise.
•This equipment is intended for commercial use only.
•For the operator’s safety and the safety of others, always keep
all guards in place during operation.
•Never let equipment run unattended.
•Personal Protection Equipment and proper safety attire must
be worn when operating this machinery. The operator must
wear approved safety equipment appropriate for the job such
as hard hat and safety shoes when conditions require. Hear-
ing protection MUST be used (operational noise levels of this
equipment may exceed 85db). Eye protection MUST be worn
at all times.
Keep body parts and loose clothing away from moving
parts. Failure to do so could result in dismemberment
or death.
•Do not modify the machine.
•Stop motor/engine when adjusting or servicing this equipment.
Maintain a safe operating distance from ammable
materials. Sparks from the cutting-action of this machine
can ignite ammable materials or vapors.
GENERAL INSTRUCTIONS
DUST WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activi-
ties contains chemicals known to cause cancer,
birth defects, or other reproductive harm. Some
examples of these chemicals are:
•Lead from lead-based paints, and
•Crystalline silica from bricks and concrete and other
masonry products.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your risk:
work in a well ventilated area, use a dust control system, such
as an industrial-style vacuum, and wear approved personal
safety equipment, such as a dust/particle respirator designed
to lter out microscopic particles.
•Do not disconnect power by pulling cord. To disconnect, grasp
the plug, not the cord.
•Unplug power cord at the machine when not in use and before
servicing.
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 3
E-TG10-PL-1014
PARTS LIST MANUAL
MODEL TG10
10” TURBO GRINDERS
Section Page Number
Safety Messages and General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Illustration 1: Main Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5

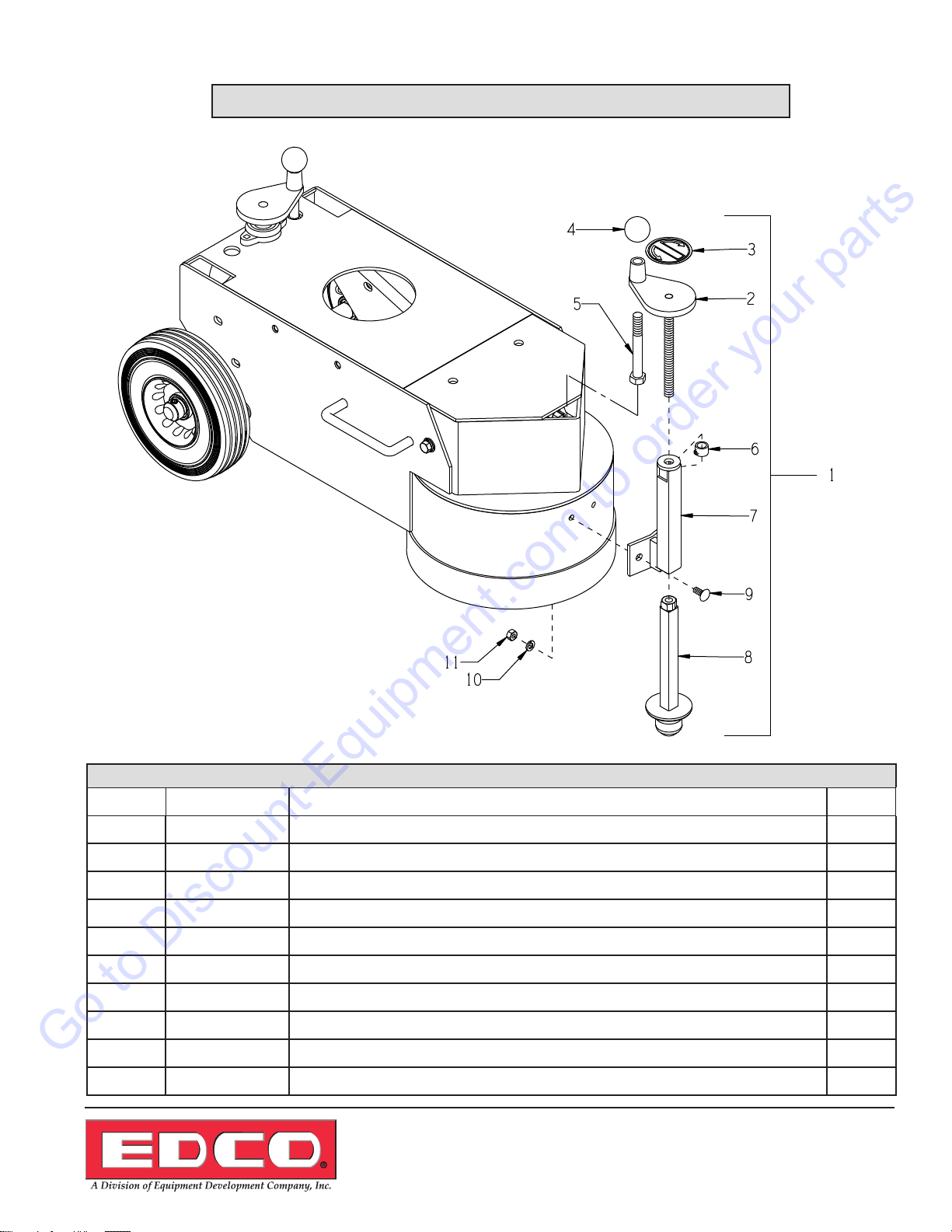

Illustration 2: Optional Leveling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Illustration 3: Optional Ball Caster Depth Stop Kit . . . . . . . . . . . . . . . . . . . . . . . . . 7

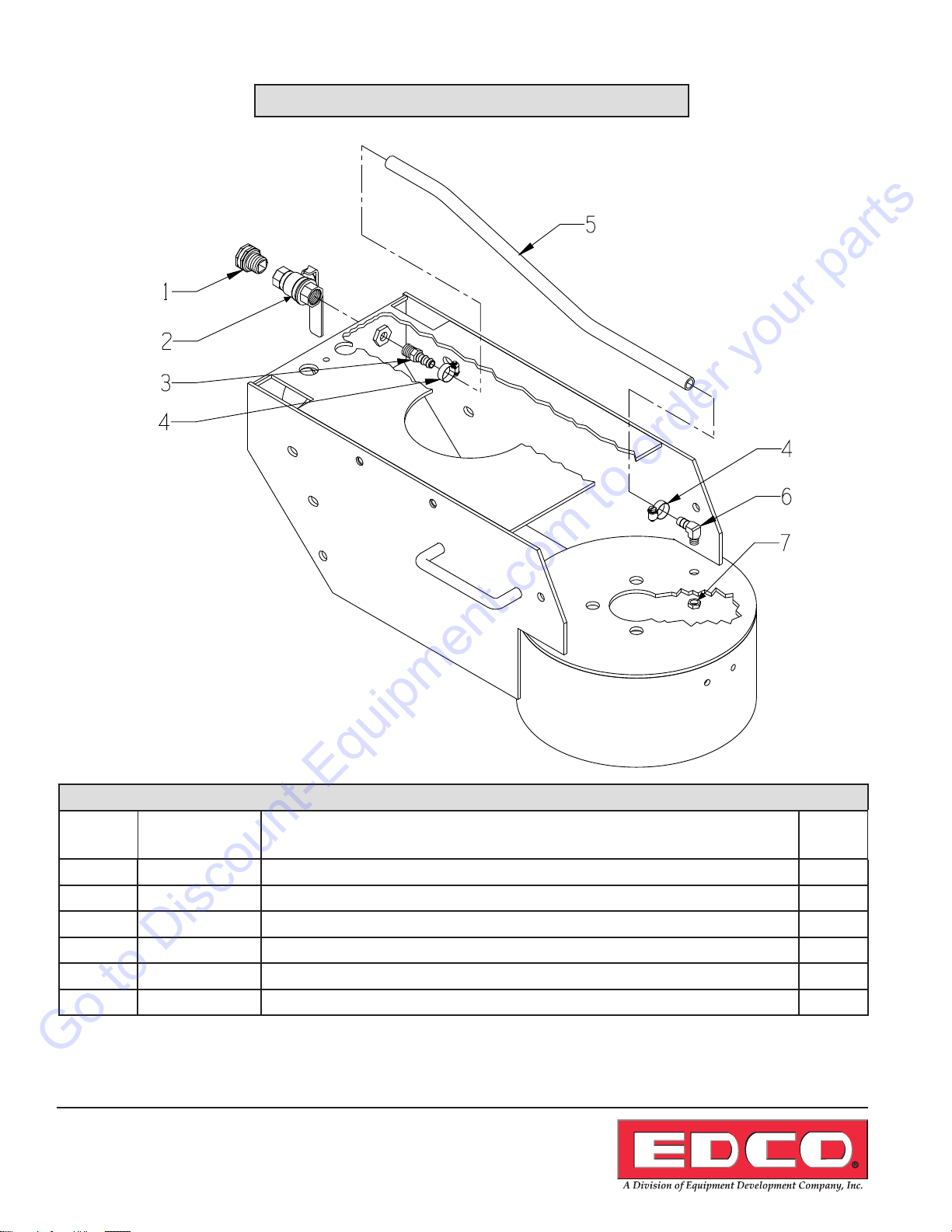

Illustration 4: Water Valve Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

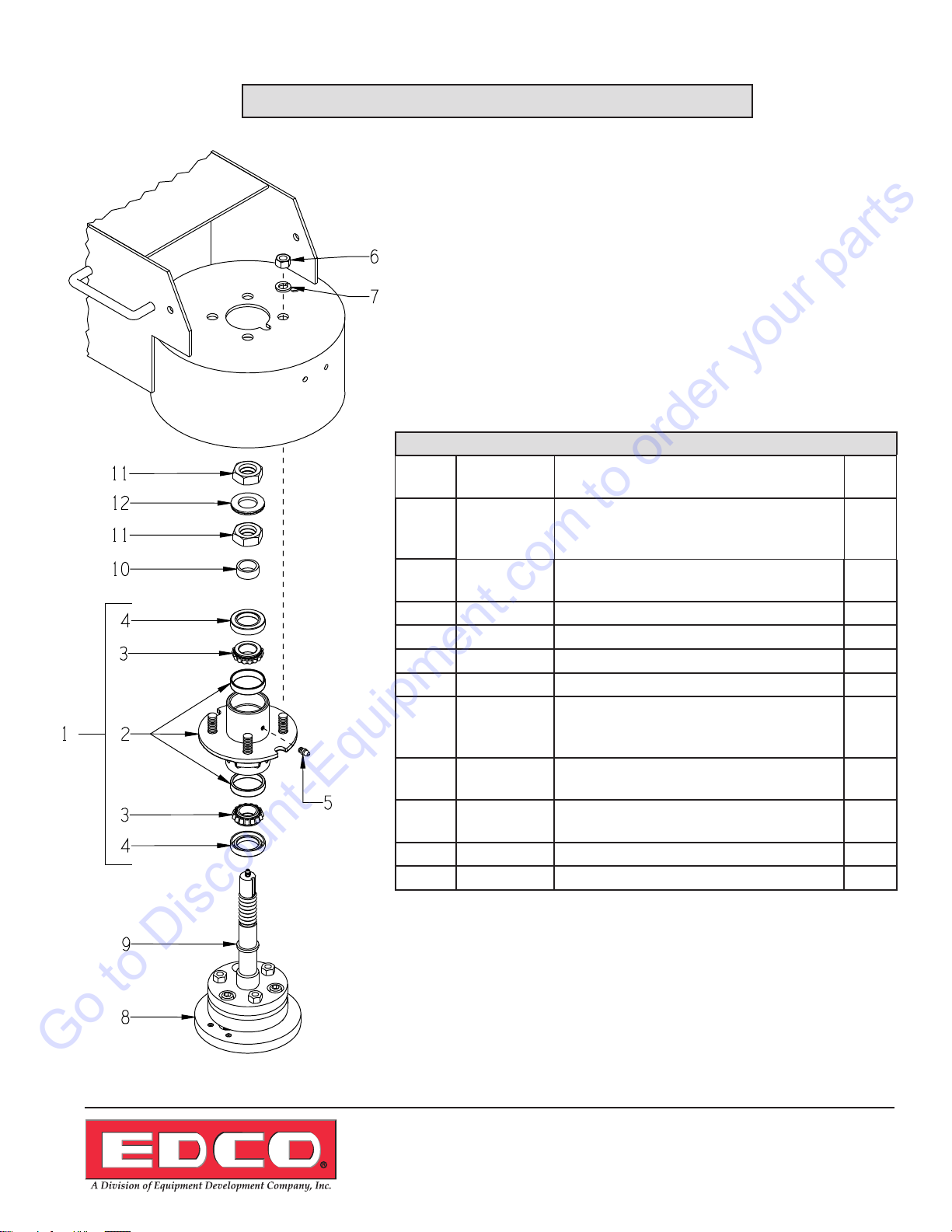

Illustration 5: Bearing Hub & Head Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

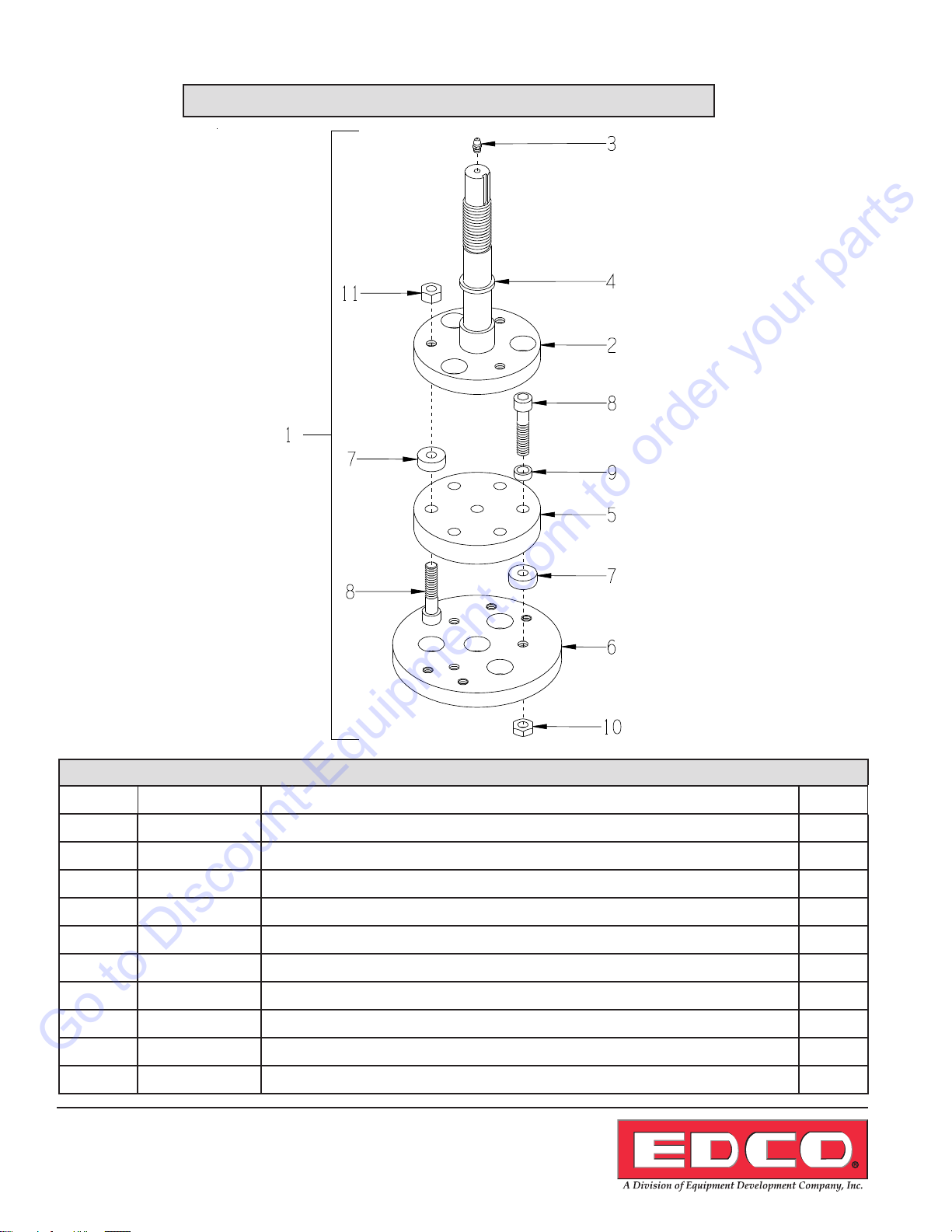

Illustration 6: Rigid Head Assembly (Standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

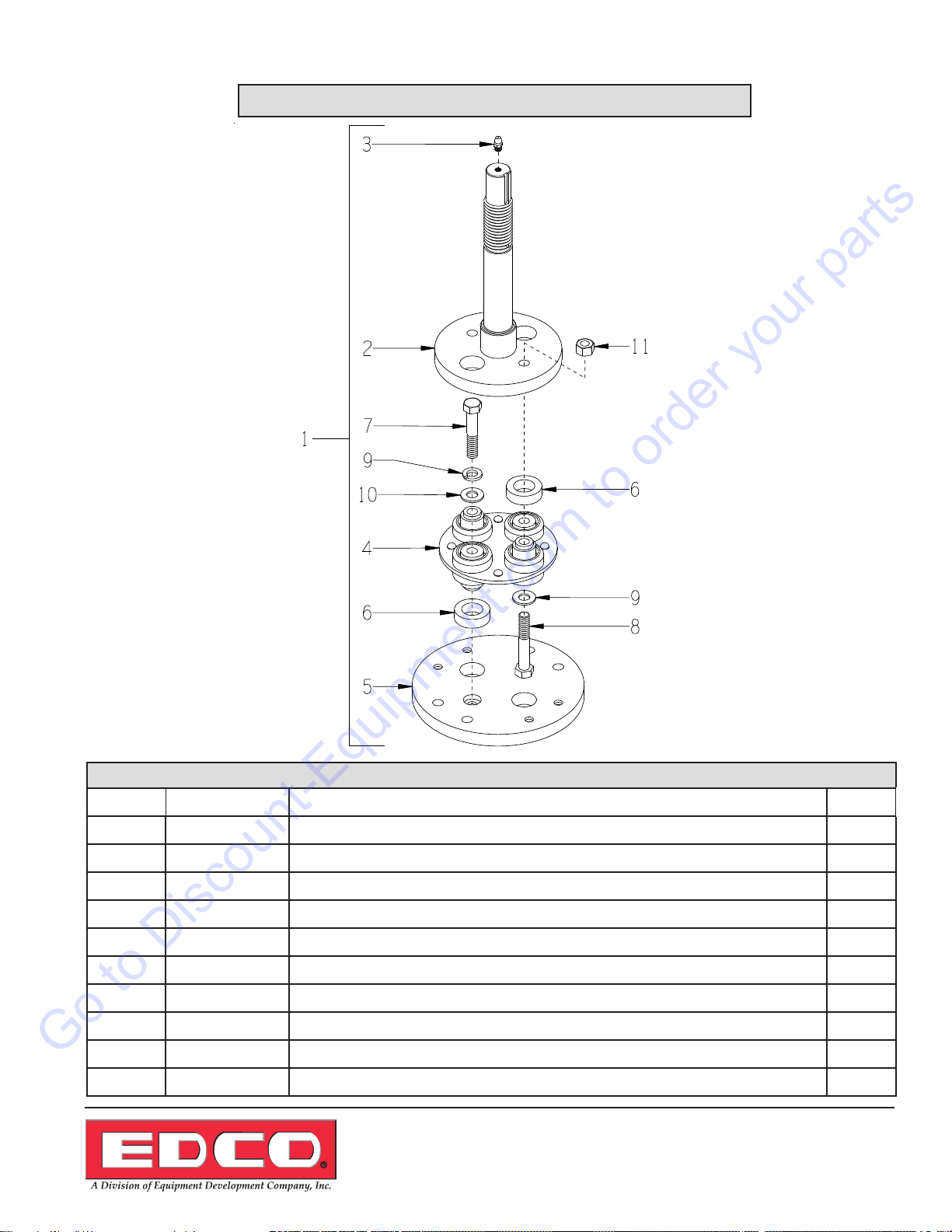

Illustration 7: Flex Head Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Illustration 8: Gasoline Engine & Belt Drive Grouping . . . . . . . . . . . . . . . . . . . . . 12, 13
Illustration 9: Propane Engine & Belt Drive Grouping . . . . . . . . . . . . . . . . . . . . . 14, 15
Illustration 10: Propane Tank Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Illustration 11: Single-Phase Motor & Belt Drive Grouping . . . . . . . . . . . . . . . . . . 18, 19
Illustration 12: Three-Phase Motor & Belt Drive Grouping . . . . . . . . . . . . . . . . . . . 20, 21
Wiring Diagram for Rotary Cam Switch (Single Phase) . . . . . . . . . . . . . . . . . . . . . 22
Wiring Diagram for Starter (Three Phase) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Motor Wiring Diagram 1-Phase 60 Hz 230V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Motor Wiring Diagram 3-Phase 60 Hz 230/460V . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Motor Wiring Diagram 3-Phase 50 Hz 220/380/440V . . . . . . . . . . . . . . . . . . . . . . 26
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Limited Equipment Warranty of Sale - Terms & Conditions . . . . . . . . . . . . . . . . . . 28 (Back Page)
TABLE OF CONTENTS
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 4
E-TG10-PL-1014
ILLUSTRATION 1: MAIN GROUPING
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 5
E-TG10-PL-1014
PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING
ITEM # PART # DESCRIPTION QTY.
1 86701 MAIN FRAME 1
2 - - - - - LEVELING SYSTEM (REFER TO ILLUS. 2 FOR BREAKDOWN) -
3 86426K RUBBER SKIRT W/ VELCRO LOOP & HOOK
(INCLUDES ITEMS 4 & 5 TOGETHER)
1
4 86426 RUBBER SKIRT W/ VELCRO-LOOP 39-1/8”
NOTE: CUT TO 36”
1
5 86427 VELCRO-HOOK ONLY, 1” X 39” (CUT DOWN)
(THIS PIECE IS PLACED AROUND THE BOTTOM EDGE OF THE SHROUD)
1
6 10907 SCREW, CAP 3/8-16 X 3/4 2
7 10811 WASHER, LOCK 3/8 ZINC 2
8 10025 WASHER, FLAT 3/8 SAE ZINC 2
9 86303 HOOD 1
10 86345 WEIGHT BLOCK, 30 LB. 9 X 6 X 2 (ELECTRIC MODELS ONLY) 1
11 10499 SCREW, CAP 1/2-13 X 3 2
12 10045 WASHER, LOCK 1/2 ZINC 2
13 10417 NUT, HEX 1/2-13 ZINC 2
14 86304 HANDLE BAR 1
15 10608 GRIP, HAND 1” MODEL AT 2
16 10029 SCREW, CAP 3/8-24 X 1-3/4 4
17 10025 WASHER, FLAT 3/8 SAE ZINC 8
18 10004 NUT, HEX LOCK 3/8-24 ZINC 4
19 86347 BRACKET, MULTI-VAC PORT 2-3” 1
20 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
21 10038 WASHER, LOCK 1/4 ZINC 2
22 65021 CAP/PLUG 2” RED PLASTIC, FLANGED 1
23 10766 CLAMP, HOSE, SAE #32, ADJ. TO 2-1/2 2
24 77113 HOSE, FLEX 2”ID X 32”L, GRINDERS 1
25 10072 NUT, HEX 1/2-20 ZINC 4
26 10045 WASHER, LOCK 1/2 ZINC 4
27
86333...
86326...
HEAD ASSEMBLY COMPLETE W/ BEARING HUB*
...RIGID STYLE
...FLEXIBLE STYLE
*NOTE: REFER TO ILLUS. 5, 6, AND 7 FOR BREAKDOWNS
1
28
19166...
19167...
86389...
DIAMOND DISC**
...10” - 20 SEG. GENERAL PURPOSE (INCLUDED W/ MACHINE)
...10” - 10 SEG. GENERAL PURPOSE ABRASIVE (OPTIONAL)
...10” QUICK-CHANGE MULTI-ACCESSORY DISC (OPTIONAL)
**NOTE: REFER TO ACCESSORY PRICE LIST OR CATALOG
FOR OTHER DIAMOND DISC THAT ARE AVAILABLE.
1
29 86108 SCREW, FLAT HD SKT 3/8-24 X 3/4 4
30 86340 OPTIONAL 30 LB. WEIGHT 1
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 6
E-TG10-PL-1014
ITEM # PART # DESCRIPTION QTY.
1 86707 KNOB, WHEEL HEIGHT CONTROL 1
2 14023 KNOB, BALL 1-3/8 W/ 1/2-13THD, BLK. 1
3 10411 SCREW, SKT. HD. CAP 1/2-13 X 4 ZINC 1
4 50550 SLEEVE, BRASS 1/2” TAPERED 1
5 80009 BEARING, BALL 5/8” 2-HOLE (NO G.F.) 1
6 55010 SPACER, HANDWHEEL 5/8”ID X 3/4”L 1
7 10046 NUT, HEX 5/8-11 ZINC 1
8 10412 BOLT, CARRIAGE 1/4-20 X 1 FULL THD. 2
9 10861 NUT, KEPS LOCK 1/4-20 ZINC 2
10 86702 FORK, TG-10 1
11 10355 SCREW, CAP 1/2-13 X 11 1
12 10312 WASHER, FLAT 1/2 SAE ZINC 2
13 10407 NUT, HEX LOCK 1/2-13 ZINC 1
14 86705 SPACER 2-9/16”L, WHEEL 2
15 79013SH WHEEL, STEEL HUB 8 X 2-1/2 X 3/4”BRG. 2
16 10428 COLLAR, LOCKING 3/4”ID 2
17 86703 LINKAGE, FORK, TG-10 1
18 10329 SCREW, CAP 1/2-20 X 6 1
19 10205 NUT, HEX LOCK 1/2-20 ZINC 1
ILLUSTRATION 2: LEVELING SYSTEM
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 7
E-TG10-PL-1014
ITEM # PART # DESCRIPTION QTY.
1 86330 BALL CASTER DEPTH STOP KIT (ITEMS 2 THRU 11) 1
2 86313 HANDWHEEL, SMALL W/ ROD 1/2-13 X 6-1/2 1
3 80007 DECAL, DEPTH STOP - DN/UP 2.5” 1
4 10104 KNOB, BALL 1-7/8 W/ 1/2-13THD, BLK. 1
5 81001 SCREW, CAP 1/2-13 X 4 1
6 86316 COLLAR, LOCKING 1/2”, MODIFIED 11/16”OD 1
7 86314 SUPPORT, DEPTH STOP 1
8 86315 BALL-CASTER WELDMENT 1
9 10818 BOLT, CARRIAGE 5/16-18 X 3/4 F.T. 2
10 10801 WASHER, LOCK 5/16 ZINC 2
11 10054 NUT, HEX 5/16-18 ZINC 2
ILLUSTRATION 3: OPTIONAL BALL CASTER DEPTH STOP KIT
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 8
E-TG10-PL-1014
ILLUSTRATION 4: WATER VALVE GROUPING
ITEM # PART # DESCRIPTION QTY.
1 80021 CONN., SWIVEL FEM. 3/4HOSE X 1/2MPT
(INCLUDES HOSE WASHER)
1
2 10711 VALVE, BALL 1/2 FPT 1
3 50075 BARB, 3/8 HOSE X 1/4MPT (BRASS) 1
4 50069 CLAMP, HOSE, SAE #6, ADJ. TO 13/16 2
5 86329 HOSE 3/8”ID X 19-1/4”L, TG-10 1
6 11562 BARB ELBOW 90, 3/8HOSE X 1/8MPT (BRASS) 1
7 10864 NUT 1/8-27 PIPE THREAD (BRASS) 1
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 9
E-TG10-PL-1014
ITEM # PART # DESCRIPTION QTY.
1 86320A HUB ASSY. W/ BEARINGS & SEALS
(INCLUDES ITEMS 2 THRU 5)
1
2 86320HG
86339
HUB W/ RACE CUPS & GREASE HOLE
BEARING RACE CUP L44610
NOTE: RACE CUPS ARE PRESSED IN
1
2
3 86321 BEARING, TAPERED ROLLER 1”ID
CONE ONLY
2
4 86322 SEAL, BEARING HUB, 1.25 X 1.983 2
5 10808 FITTING, GREASE 1/4-28 STRAIGHT 1
6 10072 NUT, HEX 1/2-20 ZINC 4
7 10045 WASHER, LOCK 1/2 ZINC 4
8
86333LB...
86326LB...
HEAD ASSY. LESS BEARING
.....RIGID STYLE (SEE ILLUS. 6)
.....FLEX STYLE (SEE ILLUS. 7)
1
9 68017 SPACER 1-1/4”OD X 1”ID X 5/32”THK.
(RIGID HEAD ASSEMBLY ONLY)
1
10 86319 SPACER, HUB BEARING
1-1/4”OD x 1”ID x 1/2”L
1
11 50020 NUT, HEX JAM 1-14 ZINC GRADE 8 2
12 86323 WASHER, NORD-LOCK 1” (PAIR) 1
ILLUSTRATION 5: BEARING HUB & HEAD ASSEMBLY
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 10
E-TG10-PL-1014
ILLUSTRATION 6: RIGID HEAD ASSEMBLY (STANDARD)
ITEM # PART # DESCRIPTION QTY.
1 86333LB HEAD ASSY. LESS BRG., RIGID (INCLUDES ITEMS 2-11) 1
2 86334 FLANGE W/ SHAFT, RIGID HEAD 1
3 10808 FITTING, GREASE 1/4-28 STRAIGHT 1
4 68017 SPACER 1-1/4”OD X 1”ID X 5/32”THK. 1
5 86132S SPACER, RIGID HEAD, STEEL 1
6 86133 MOUNTING DISC, RIGID HEAD 1
7 40329 BUSHING, RUBBER 1”OD X 3/8”ID X 3/8 6
886111 SCREW, SKT. HD. CAP 7/16-20 X 2 (Grade 8) 6
9 86112 SPACER, STL 5/8”OD X 7/16ID X 1/4TK 3
10 11641 NUT, HEX JAM 7/16-20 ZINC (USE RED LOCTITE) 3
11 10481 NUT, HEX 7/16-20 ZINC (USE RED LOCTITE) 3
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 11
E-TG10-PL-1014
ILLUSTRATION 7: FLEX HEAD ASSEMBLY (OPTIONAL)
ITEM # PART # DESCRIPTION QTY.
1 86326LB HEAD ASSY. LESS BRG., FLEX (INCLUDES ITEMS 2-11) 1
2 86308 FLANGE W/ SHAFT, FLEX HEAD 1
3 10808 FITTING, GREASE 1/4-28 STRAIGHT 1
4 86017 COUPLING, MORFLEX 402 CENTER 1
5 86309 MOUNTING DISC, FLEXIBLE HEAD 1
6 86343 BUSHING, RUBBER 1-1/4 X 3/4 X 3/8 4
7 10030 SCREW, CAP 3/8-24 X 2 (USE RED LOCTITE) 2
8 10336 SCREW, CAP 3/8-24 X 2-1/4 2
9 10811 WASHER, LOCK 3/8 ZINC 2
10 10025 WASHER, FLAT 3/8 SAE ZINC 2
11 10004 NUT, HEX LOCK 3/8-24 ZINC 3
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 12
E-TG10-PL-1014
ILLUSTRATION 8: GASOLINE ENGINE & BELT DRIVE GROUPING
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 13
E-TG10-PL-1014
PARTS LISTING - ILLUSTRATION 8: GASOLINE ENGINE & BELT DRIVE GROUPING
ITEM # PART # DESCRIPTION QTY.
1 76004 ENGINE, HONDA MODEL GXV340UT2-DX3 1
2 15190 MANUAL CHOKE KIT FOR HONDA GXV340 1
2-A 15185 SCREW, MACHINE M6 X 16MM PHILLIP HD 1
2-B 15188 WASHER .265”ID,.50”OD,.029-.035”THK 1
2-C 15187 WASHER, FIBER .75 X .25 X .093 1
2-D 15183 LEVER, CHOKE CONTROL, GXV340 1
2-E 15186 WASHER, BELLEVILE .500 X.255 X.018 1
2-F 28026 NUT, HEX NYLON LOCK M6 X 1MM 1
2-G 15184 CAP, FLAT RED .062 X .75 X 1 1
2-H 91301 DECAL, CHOKE 5/8 X 5/8 1
3 15138 HOUR METER, INDUCTIVE (OPTIONAL) 1
4 86311 MOUNT, ENGINE 1
5 10048 SCREW, CAP 5/16-24 X 3/4 2
6 10342 SCREW, CAP 5/16-18 X 1-1/2 2
7 10213 WASHER, FLAT 5/16 SAE ZINC 2
8 10801 WASHER, LOCK 5/16 ZINC 4
9 10054 NUT, HEX 5/16-18 ZINC 2
10 10055 SCREW, CAP 3/8-16 X 1 4
11 10811 WASHER, LOCK 3/8 ZINC 4
12 10025 WASHER, FLAT 3/8 SAE ZINC 4
13 10071 KEY 1/4SQ X 2-1/2 1
14 76024 CLUTCH, CENTRIFUGAL 3.5 X 2GR X 1 1
15 86706 CLUTCH PLUG, TG-10 1
16 10045 WASHER, LOCK 1/2 ZINC 1
17 11750 SCREW, CAP 7/16-20 X 2-3/4 ZINC 1
18 75010 SHEAVE 6.9”OD X 2GR.B X SDS 1
19 10081M BUSHING, SHEAVE SDS X 7/8 MODIFIED
COUNTER BORED 1-3/4”DIA. X 3/8”DEEP
1
20 50523 KEY 3/16SQ X 1-1/8 1
21 10290 BELT B-35 2
22 40388 CABLE, THROTTLE, LEVER-TYPE 24” 1
23 10831 WASHER, LOCK, INT. TOOTH #10 2
24 10877 SCREW, CAP STSHW 10-24 X 1/2 2
25 10982 TIE, CABLE, BLACK NYLON 11-1/4” 1
26 15201A SWITCH W/ WIRES, ROCKER RED ON-OFF 1
27 10877 SCREW, CAP STSHW 10-24 X 1/2 1
28 50084 TERM., RING #10 16-14GA. INSULATED 1
29 10831 WASHER, LOCK, INT. TOOTH #10 1
30 36042 CLIP, NATURAL CORD, 1/8” X 1/4” 3
31 10970 CONN., WIRE QUICK-SPLICE 18-14 GA. 1
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 14
E-TG10-PL-1014
ILLUSTRATION 9: PROPANE ENGINE & BELT DRIVE GROUPING
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 15
E-TG10-PL-1014
PARTS LISTING - ILLUSTRATION 9 : PROPANE ENGINE & BELT DRIVE GROUPING
ITEM # PART # DESCRIPTION QTY.
1 15083 ENGINE, KAWASAKI FH381V PROP. READY 13HP
INCLUDES:
110V STARTER, OIL PRESSURE SWITCH, OIL DRAIIN,
CATALYTIC MUFFLER AND EXHAUST MANIFOLD
LP FUEL SYSTEM: REGULATOR, VACUUM LOCKOFF,
HIGH & LOW PRESSURE HOSES, & REGO TANK CONNECTOR.
1
2 86372 HEAT SHIELD, MUFFLER, KAW. FH381V 1
3 10053 SCREW, CAP 5/16-18 X 3/4 2
4 10801 WASHER, LOCK 5/16 ZINC 2
5 86373 HEAT SHIELD, SIDE MANIFOLD, KAW. FH381V 1
6 86374 CLAMP, EXHAUST 5/16 X 1-1/4 2
7 86311 MOUNT, ENGINE/MOTOR 1
8 10342 SCREW, CAP 5/16-18 X 1-1/2 4
9 10213 WASHER, FLAT 5/16 SAE ZINC 4
10 10801 WASHER, LOCK 5/16 ZINC 4
11 10054 NUT, HEX 5/16-18 ZINC 4
12 10055 SCREW, CAP 3/8-16 X 1 4
13 10811 WASHER, LOCK 3/8 ZINC 4
14 10025 WASHER, FLAT 3/8 SAE ZINC 4
15 3611 CABLE, THROTTLE, LEVER-TYPE 54” 1
16 10877 SCREW, CAP STSHW 10-24 X 1/2 4
17 10831 WASHER, LOCK, INT. TOOTH #10 4
18 10941 CLIP, CONDUIT, THROTTLE CABLE 2
19 15201A
50084
10831
10877
11567
36042
SWITCH W/ WIRES, ROCKER RED ON-OFF
ADDITIONAL PARTS REQ’D. (NOT SHOWN):
TERM., RING #10 16-14GA. INSULATED
WASHER, LOCK, INT. TOOTH #10
SCREW, CAP STSHW 10-24 X 1/2
CONNECTOR, BULLET STD. 16-14GA.BLUE
CLIP, NATURAL CORD, 1/8” X 1/4”
1
1
1
1
1
3
20 11739 SCREW, MACHINE 10-24 X 2.25 HWHSLMS 2
21 10850 WASHER, FLAT #10 SAE ZINC 2
22 11740 NUT, KEPS LOCK 10-24 ZINC 2
23 10982 TIE, CABLE, BLACK NYLON 11-1/4” 2
24 10071 KEY 1/4SQ X 2-1/2 1
25 76024 CLUTCH, CENTRIFUGAL 3.5 X 2GR X 1 1
26 86706 CLUTCH PLUG, TG-10 1
27 10045 WASHER, LOCK 1/2 ZINC 1
28 11750 SCREW, CAP 7/16-20 X 2-3/4 ZINC 1
29 75010 SHEAVE 6.9”OD X 2GR.B X SDS 1
30 10081M BUSHING, SHEAVE SDS X 7/8 MODIFIED
COUNTER BORED 1-3/4”DIA. X 3/8”DEEP
1
31 50523 KEY 3/16SQ X 1-1/8 1
32 10290 BELT B-35 2
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 16
E-TG10-PL-1014
ILLUSTRATION 10: PROPANE TANK GROUPING
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 17
E-TG10-PL-1014
PARTS LISTING
ILLUSTRATION 10: PROPANE TANK GROUPING
ITEM # PART # DESCRIPTION QTY.
1 15130 PROPANE TANK 20LB. HORZ./VERT. 1
2 91122 DECAL, ARROW, RED, 3 X 3 1
3 86327 MOUNT, PROPANE TANK, TG-10 1
4 10029 SCREW, CAP 3/8-24 X 1-3/4 4
5 10025 WASHER, FLAT 3/8 SAE ZINC 8
6 10004 NUT, HEX LOCK 3/8-24 ZINC 4
7 77061-1 PROPANE TANK CRADLE BRACKET ONLY 1
8 10802 BOLT, CARRIAGE 3/8-16 X 1 ZINC 4
9 10025 WASHER, FLAT 3/8 SAE ZINC 4
10 10811 WASHER, LOCK 3/8 ZINC 4
11 10404 NUT, HEX 3/8-16 ZINC 4
12 77061-2 PROPANE TANK STRAP W/ HINGE 1
13 77061-3 PROPANE TANK CLAW BRACKET 1
14 77061-4 PROPANE TANK TOGGLE CLAMP 1
15 11661 SCREW, FLAT HD SLT 1/4-20 X 1 4
16 10602 WASHER, FLAT 1/4 SAE ZINC 4
17 10861 NUT, KEPS LOCK 1/4-20 ZINC 4
Go to Discount-Equipment.com to order your parts

Printed in USA
©2014 JWA
Page 18
E-TG10-PL-1014
ILLUSTRATION 11:
SINGLE PHASE MOTOR
& BELT DRIVE GROUPING
Go to Discount-Equipment.com to order your parts

Printed in USA
JWA ©2014
Page 19
E-TG10-PL-1014
PARTS LISTING - ILLUSTRATION 11: 1-PHASE MOTOR & BELT DRIVE GROUPING
ITEM # PART # DESCRIPTION QTY.
181026
16121
16164
16540
MOTOR, BALDOR 5HP-1PH 60HZ 3450RPM
REPLACEMENT PARTS:
CAPACITOR, START, BALDOR EC1161C06SP
CAPACITOR, RUN, BALDOR #OC3040F09SP
THERMAL PROT. (RESET BUTTON) TPBRT25DB
1
2
1
1
2 86404 MOUNT, MOTOR 1
3 10021 SCREW, CAP 3/8-24 X 1 4
4 10025 WASHER, FLAT 3/8 SAE ZINC 4
5 10811 WASHER, LOCK 3/8 ZINC 4
6 10014 NUT, HEX 3/8-24 ZINC 4
7 10055 SCREW, CAP 3/8-16 X 1 4
8 10811 WASHER, LOCK 3/8 ZINC 4
9 10025 WASHER, FLAT 3/8 SAE ZINC 4
10 77043 SWITCH, ROTARY CAM ON/OFF 1
11 77042 BRACKET, ROTARY CAM SWITCH 1
12 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
13 10038 WASHER, LOCK 1/4 ZINC 2
14 11663 SCREW, MACHINE 8-32 X 1/2 (LOCATED INSIDE OF SWITCH BOX) 4
15 10462 NUT, KEPS LOCK 8-32 ZINC 4
16 77043-1 SWITCH ADAPTER, PG16 TO 1/2”NPT 2
17 41130 STRAIN RELIEF 1/2NPT X .550-.650” 2
18 10959 STRAIN RELIEF 3/4 NPT X .550-.650” 1
19 10740 CONDUIT LOCK NUT 3/4 NP (LOCATED INSIDE JUNCTION BOX) 1
20 10982 TIE, CABLE, BLACK NYLON 11-1/4” 2
21 86331 WIRE HARNESS 10/3 X 50”LOA, TG-10 1
22 86026 WIRE HARNESS 10/3 X 24”LOA 1
23 40037 PLUG, LOCKING 20A/250V L6-20P 1
24 40000 CONNECTOR, LOCKING 20A/250V L6-20C 1
25 11565 CLAMP, LOOM, 5/8” (SAE SIZE 10) 1
26 10831 WASHER, LOCK, INT. TOOTH #10 1
27 10877 SCREW, CAP STSHW 10-24 X 1/2 1
28 15204 PLUG, RECT. HOLE, PLASTIC SNAP-IN 1
29 ----- KEY 1/4SQ X 1-3/4 (COMES WITH MOTOR) 1
30 79023 SHEAVE 3”OD X 2GR.B X 1-1/8”BORE 1
31 10081M BUSHING, SHEAVE SDS X 7/8 MODIFIED
COUNTER BORED 1-3/4”DIA. X 3/8”DEEP
1
32 50523 KEY 3/16SQ X 1-1/8 1
33 75010 SHEAVE 6.9”OD X 2GR.B X SDS 1
34 10290 BELT B-35 1
Go to Discount-Equipment.com to order your parts
