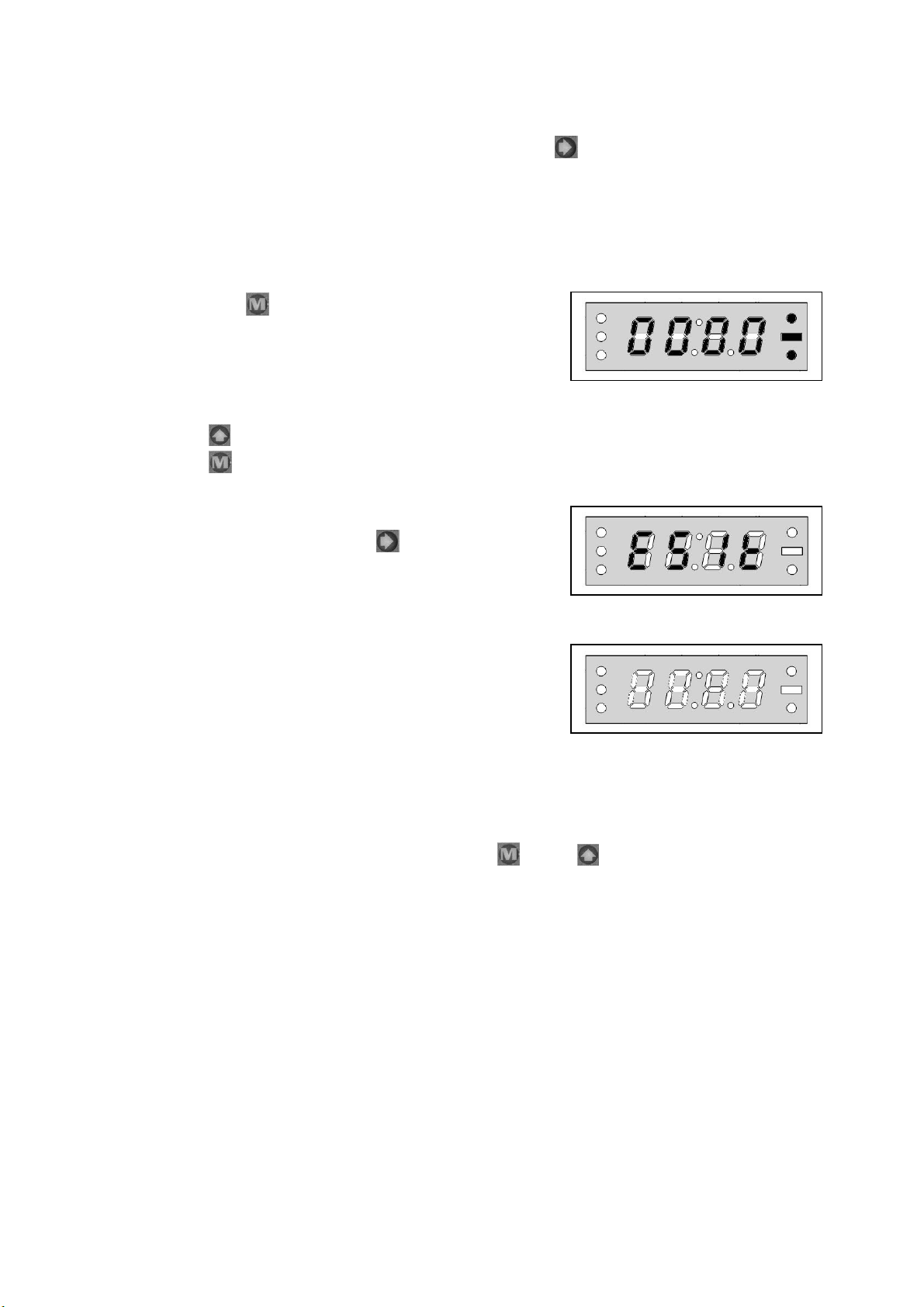

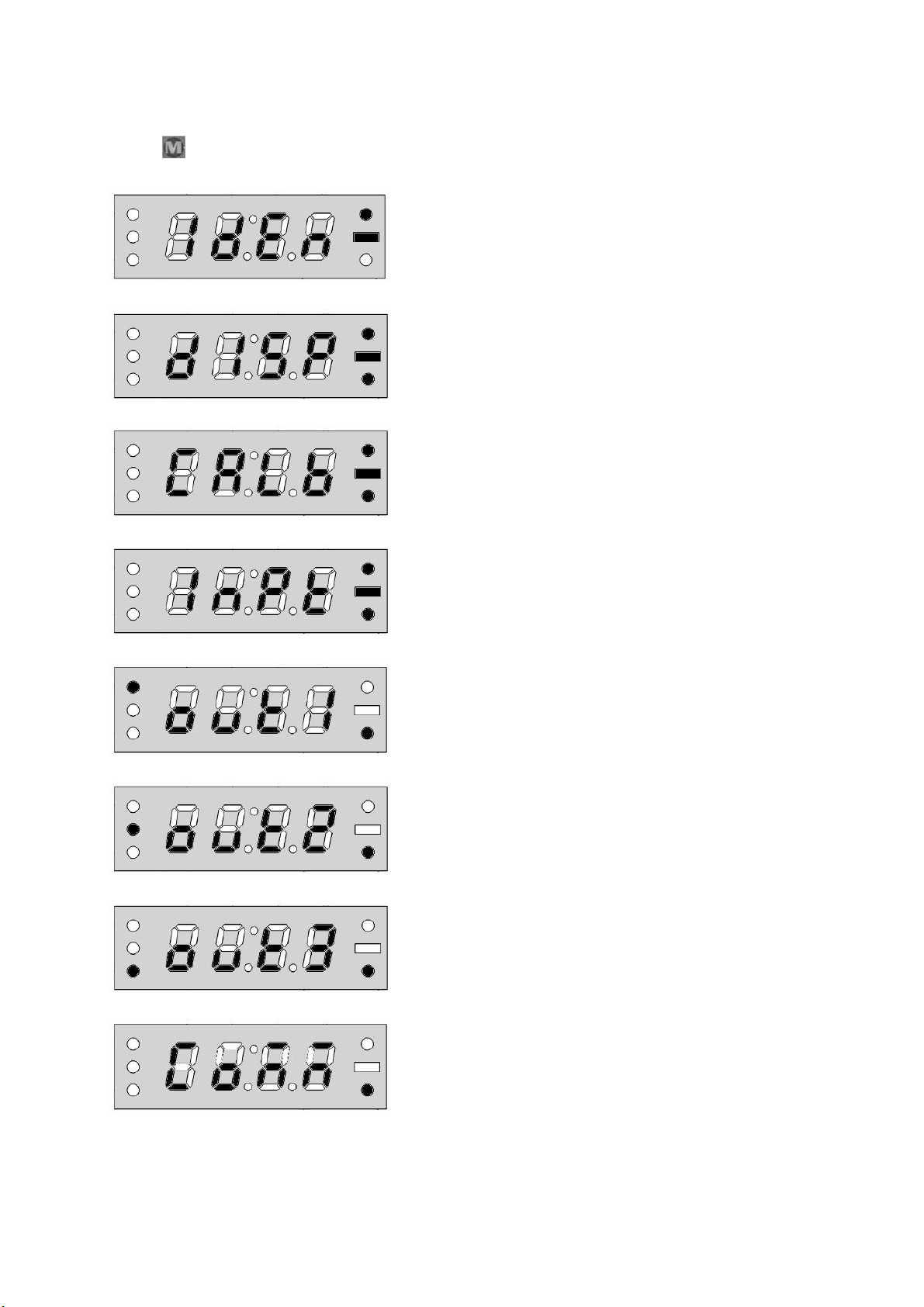

MENU SYSTEM......................................................................................................................6
DISPLAY SETTINGS ...........................................................................................................7

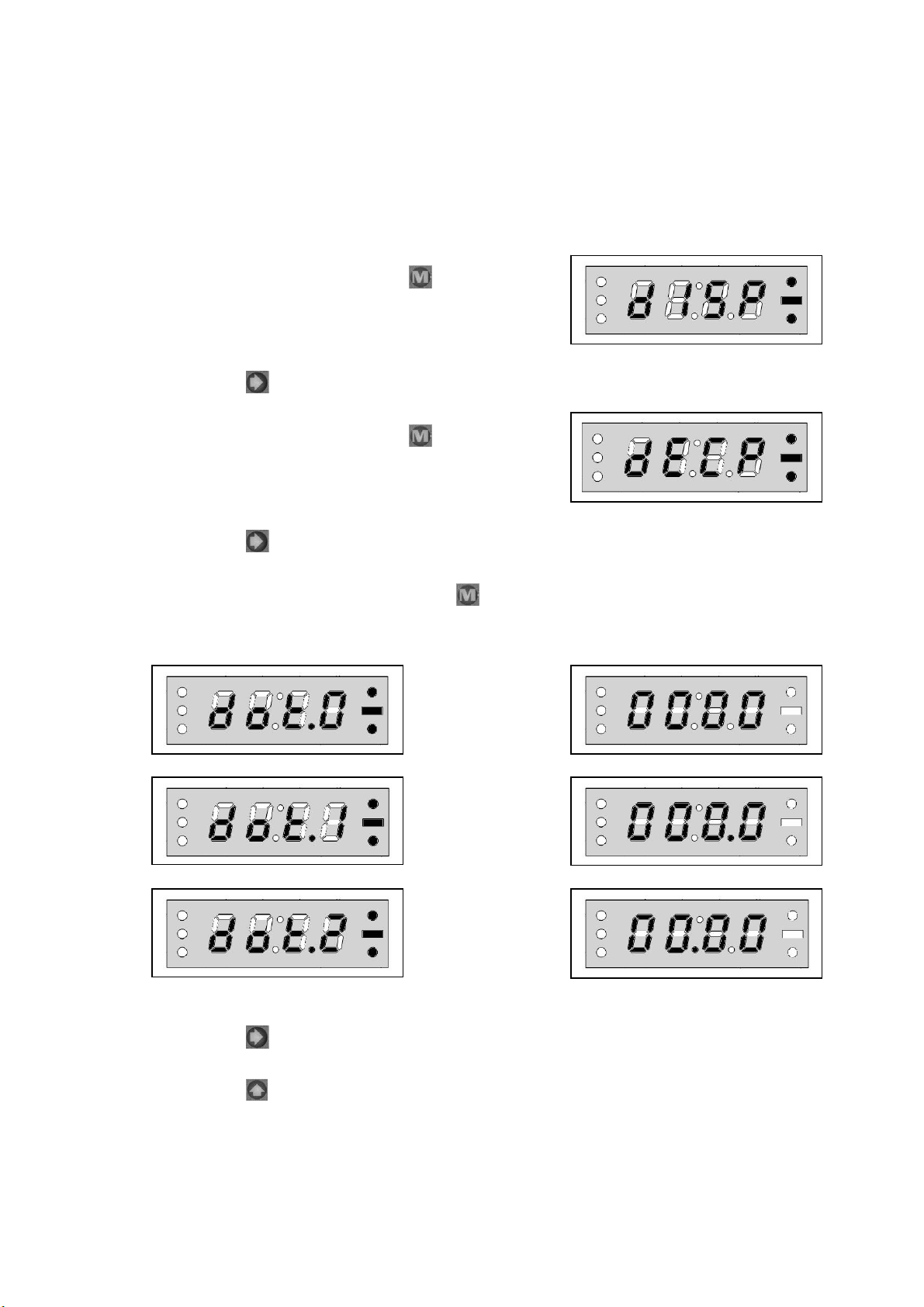

DECIMAL POINT SETTING...........................................................................................7

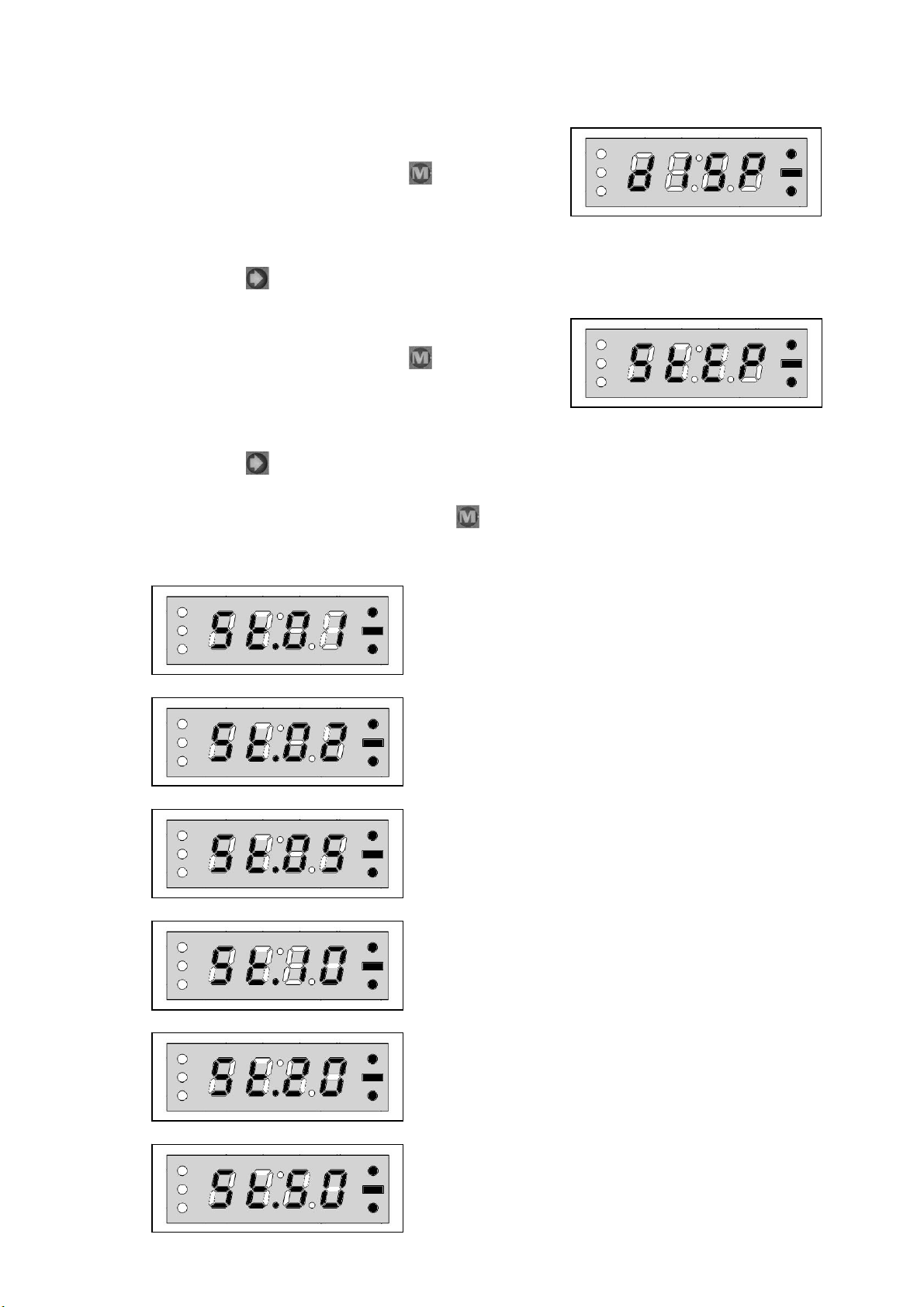

STEP VALUE SETTING...............................................................................................8
MAXIMUM ALLOWABLE WEIGHT SETTING..........................................................9

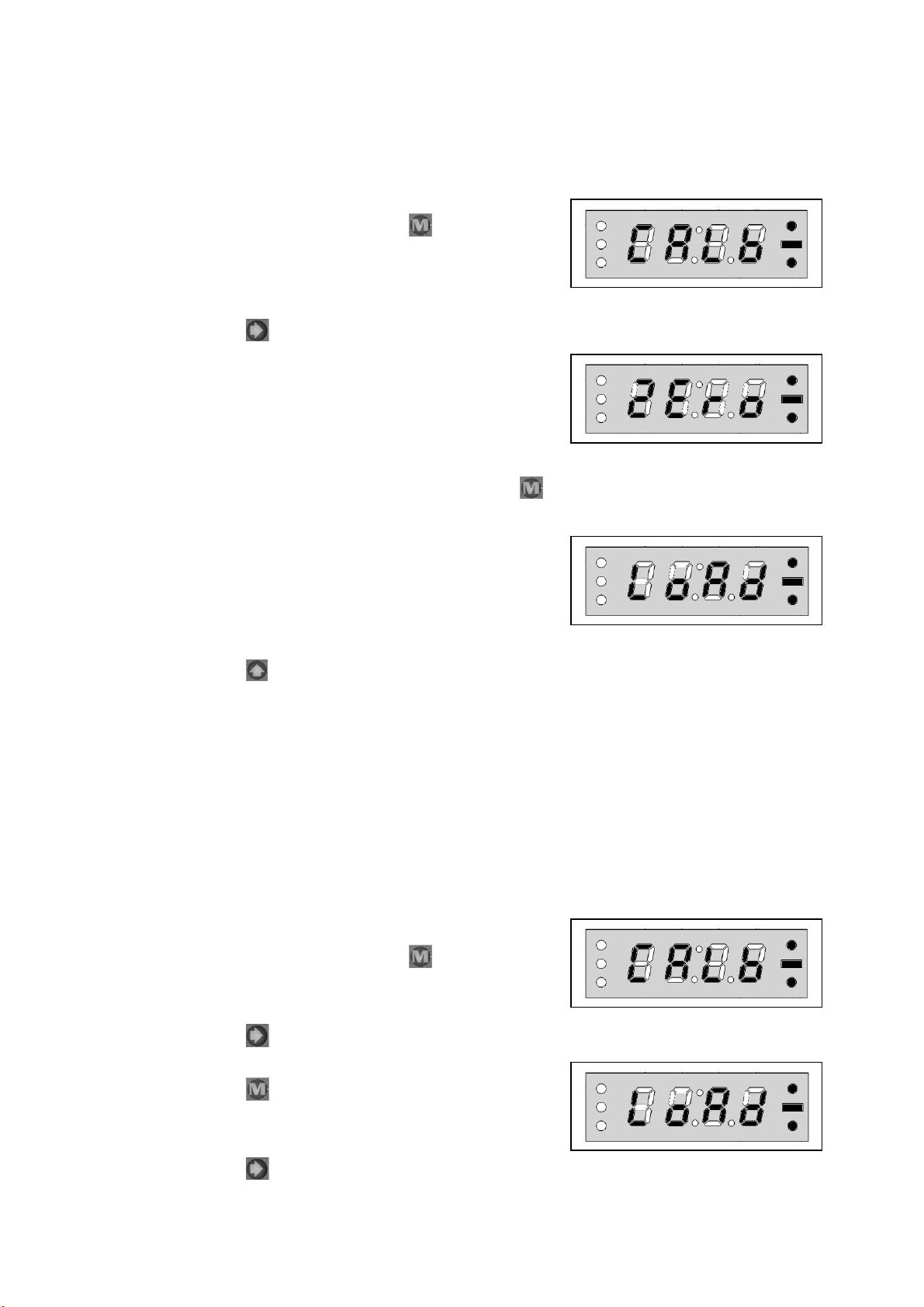

WEIGHT CALIBRATION ..................................................................................................10
ZERO CALIBRATION.....................................................................................................10
LOAD CALIBRATION.....................................................................................................10
COMMUNICATION SETTINGS .....................................................................................12

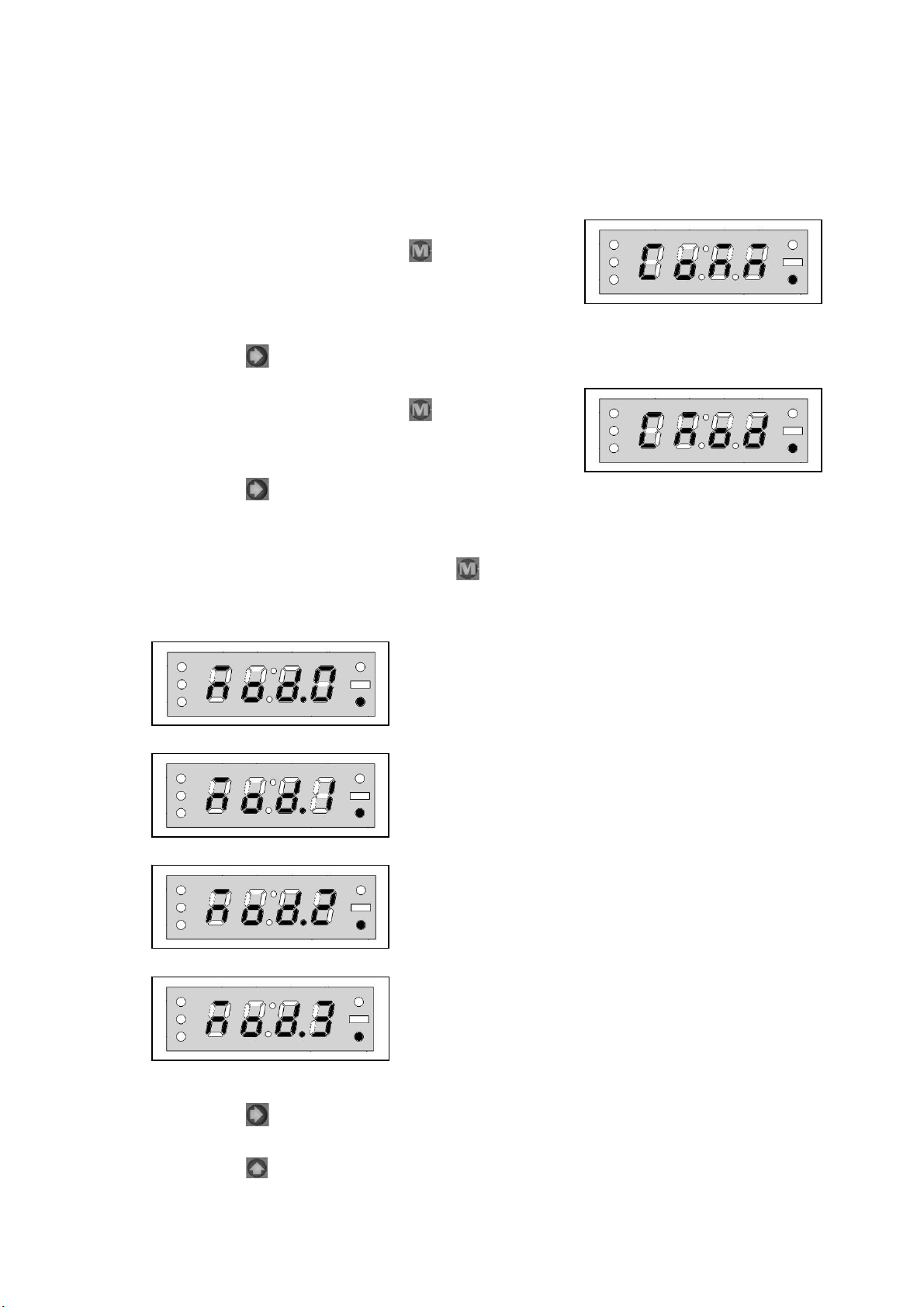

COMMUNICATION MODE SETTING.......................................................................12

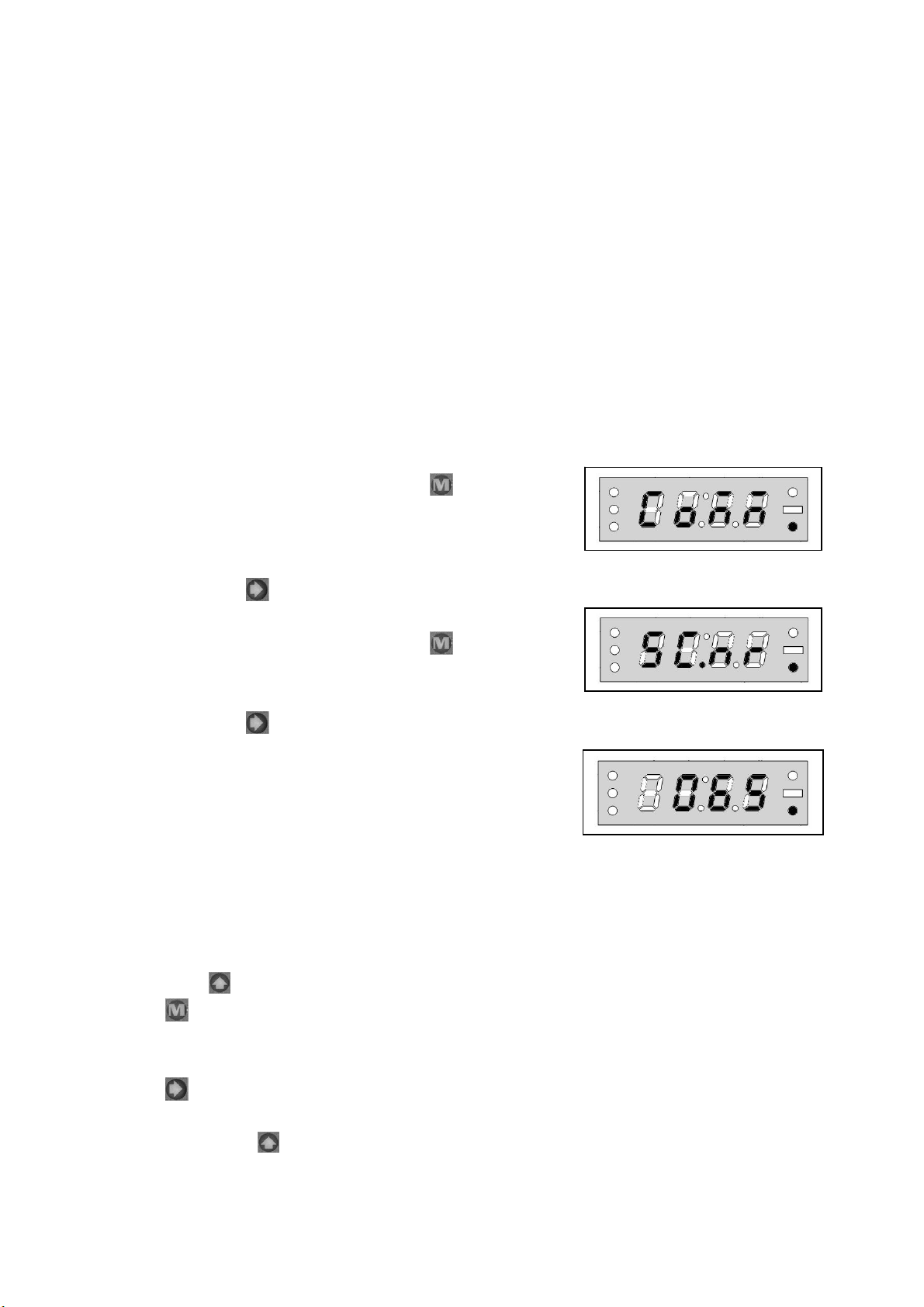

SCALE IDENTITY NUMBER SETTING.....................................................................13

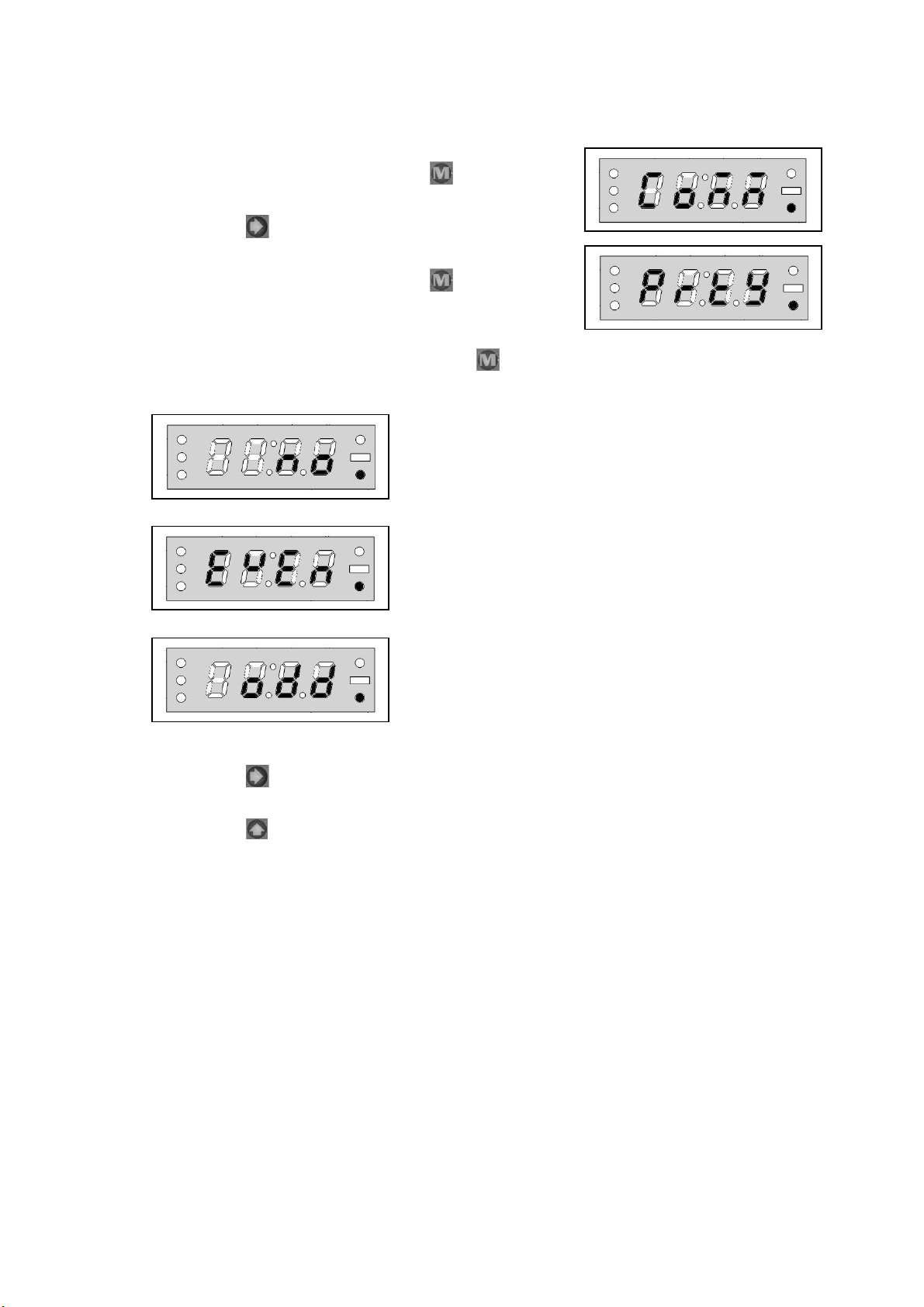

COMMUNICATION PARITY SETTING ....................................................................14

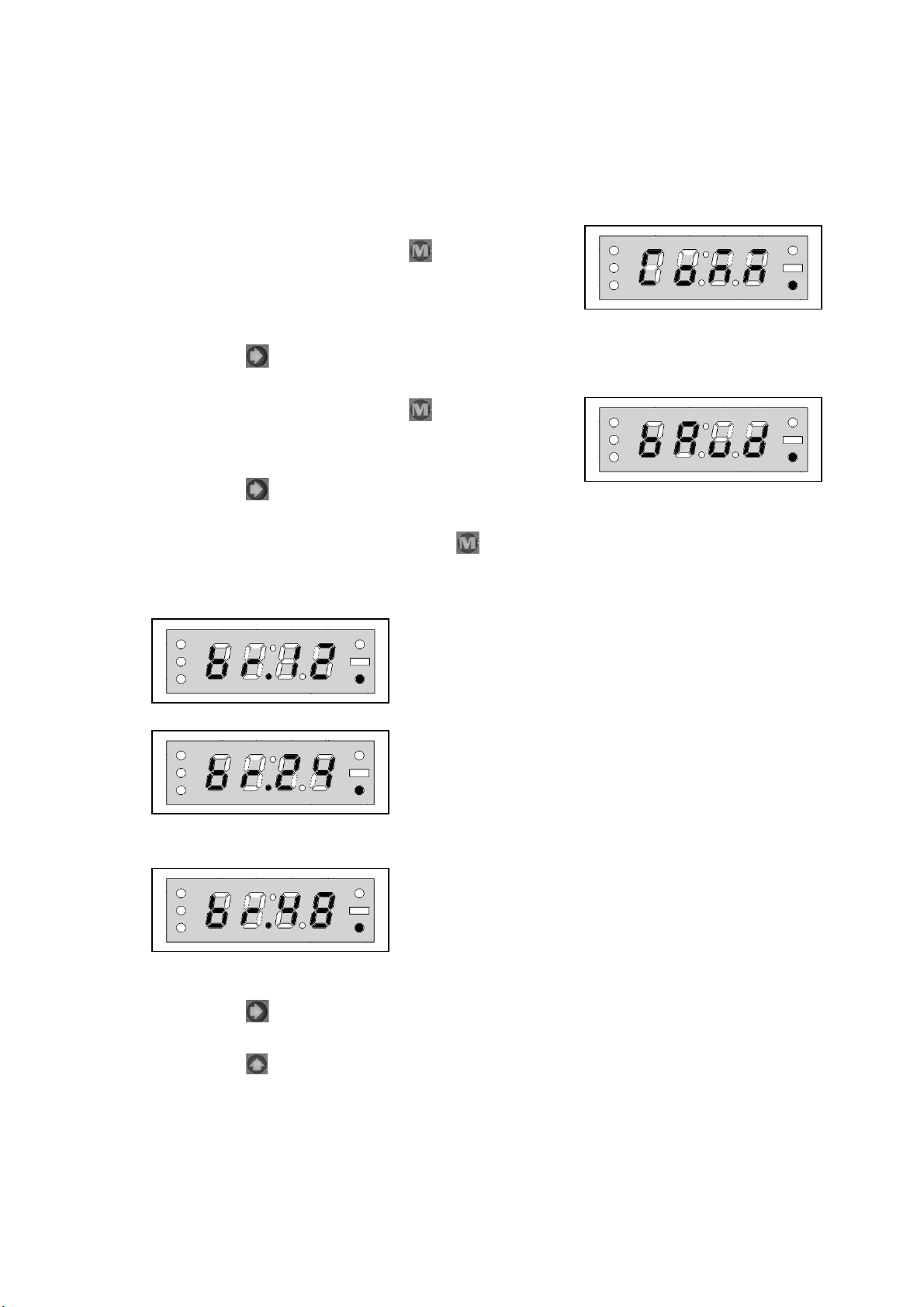

COMMUNICATION SPEED (BAUD RATE) SETTING ...........................................15

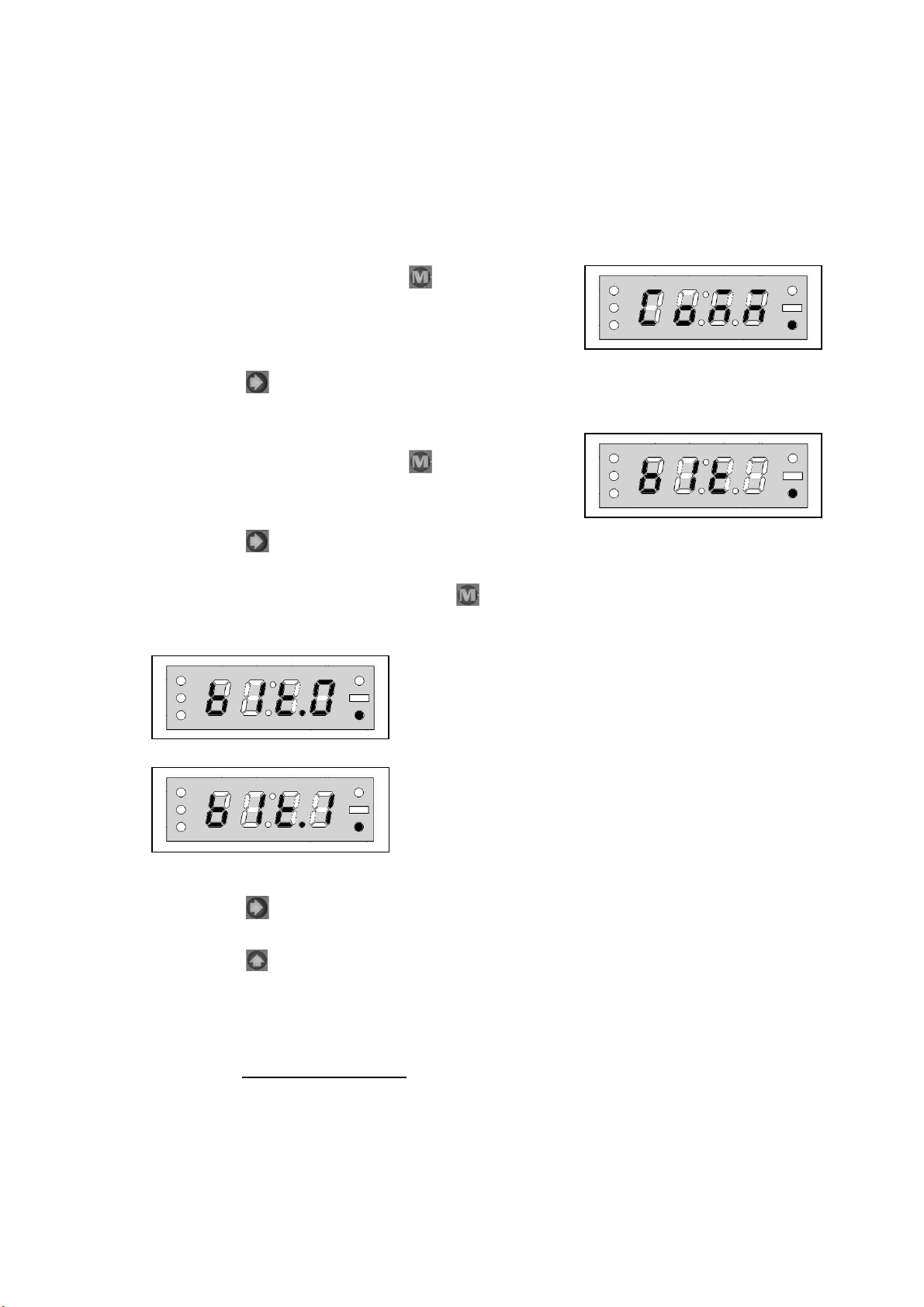

COMMUNICATION BIT SETTING............................................................................16

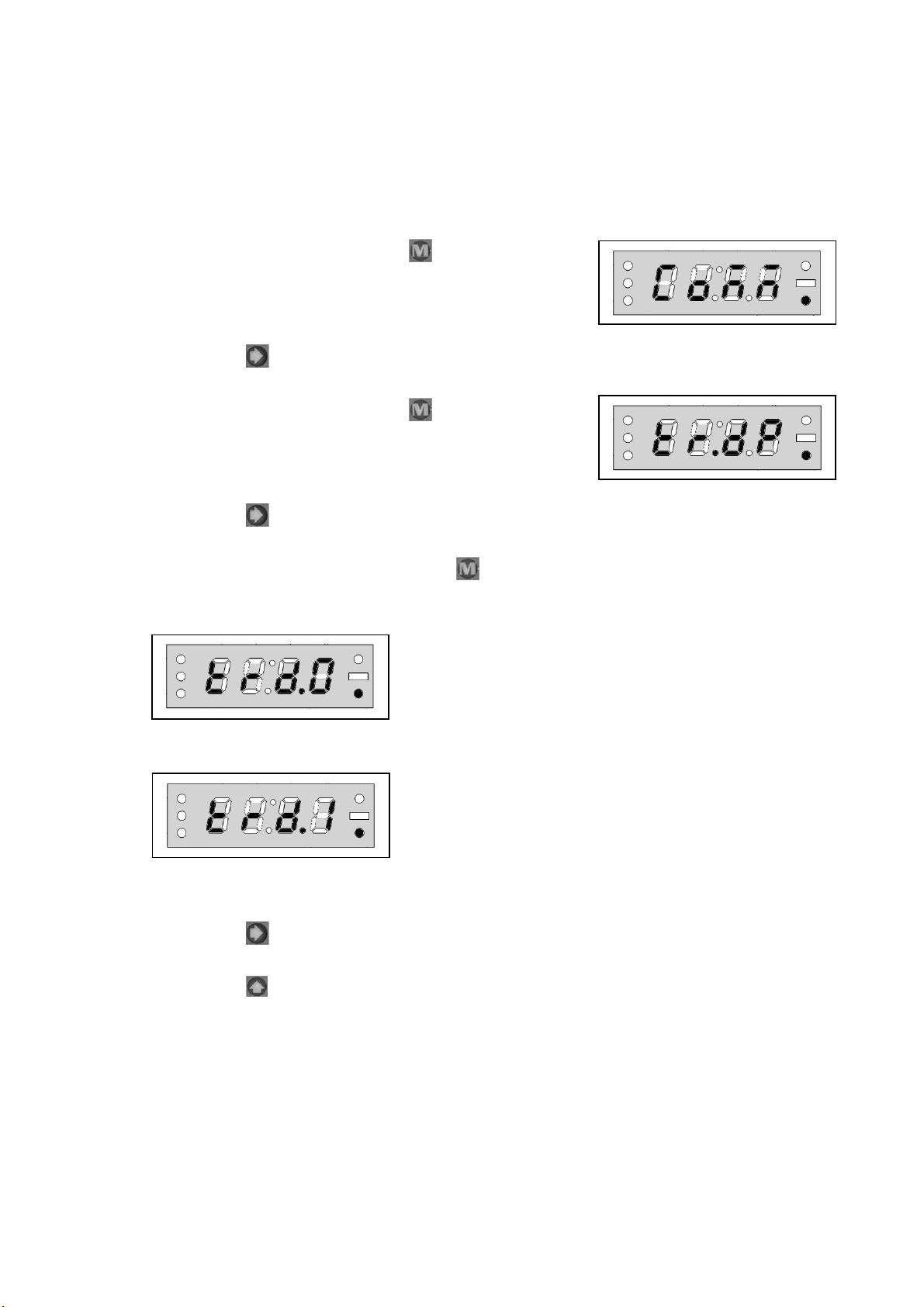

DECIMAL POINT COMMUNICATION SETTING..................................................17
TRANSMITTING WEIGHT VALUE FROM SERIAL LINE WITH KEY ...........19
RESETTING DISPLAY VALUE TO ZERO (ZEROISE) WITH KEY ...................19

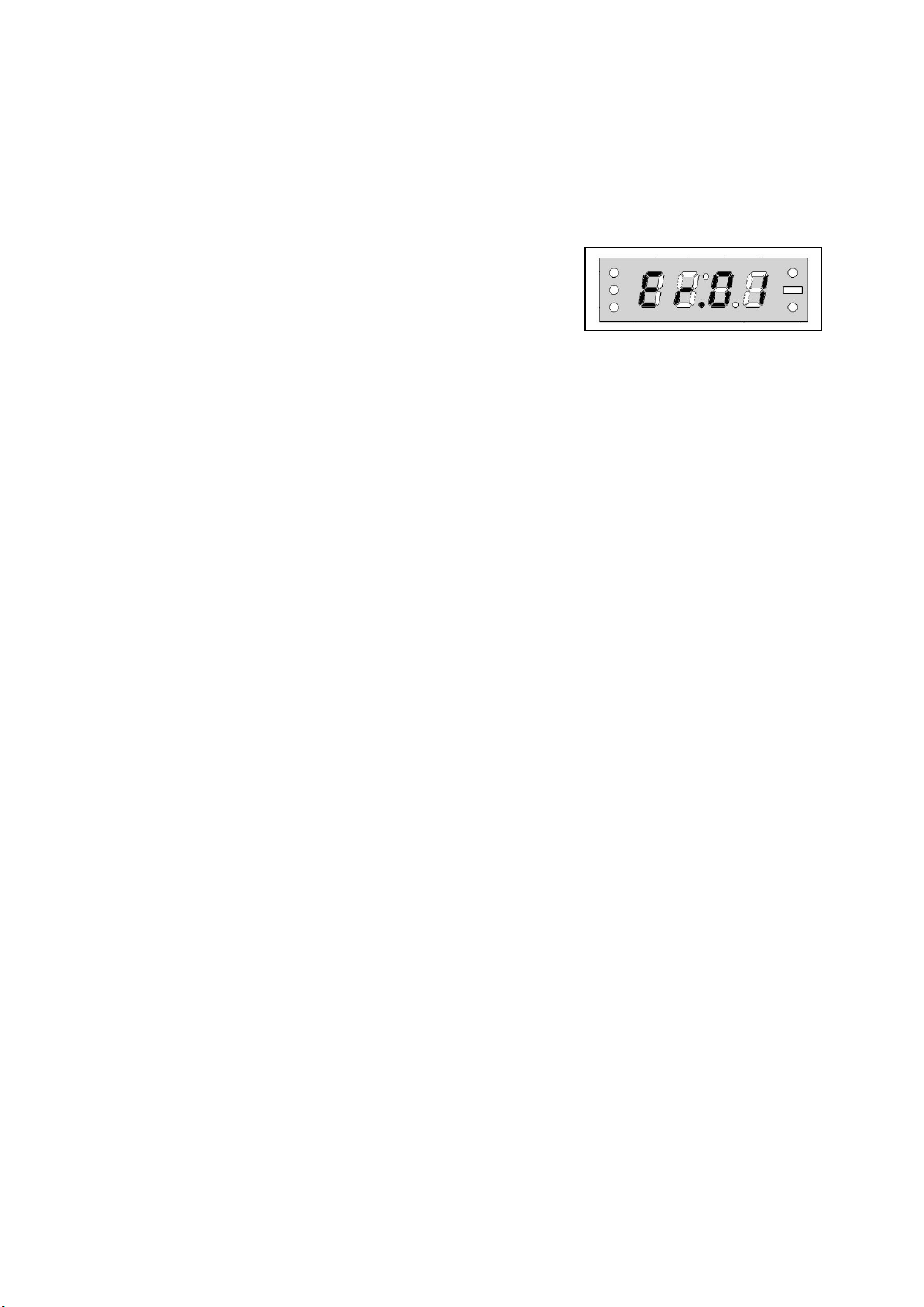

ERROR CODES.....................................................................................................................20
2

Congratulations
… and thank you for choosing SMART, a weighing indicator specially suited for
weighing applications.
Apart from its unique toughness and extraordinary small size, SMART comes
packed with features that will help you in industrial weighing applications.
Like other indicators from ESIT, SMART is produced to meet highest quality
standards.
This guide introduces you to SMART and shows how to get the most out of it.
Please note that some of the functions described in this user’s guide are
depending on orders.
Should you need additional information on how to use them, contact
www.esit.com.tr
3

GENERAL DESCRIPTION
load cell input power, communication cables
Press... to...
Navigate (MENU access key)
Select a menu or transmit serial data
Go back one level in menu system or zeroise display value.
minus
center of zero
no-motion
4

ANNOUNCIATORS
No motion: Lights when there is no motion and goes off when there is movement
on the platform in the range of ±2e within 2 seconds.
Center of zero: Lights when displayed weight is zero and the internal count is
less than 1/4d. (d: The internal count which can increase the display by 1 step
value.)
INDICATOR CONNECTIONS
The multi-positioned printed circuit terminal block connections as follows. #1
indicates the leftmost terminal.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
+Excitation +LCinput -LCinput *** *** *** -Excitation SHIELD +DAC -DAC +V (9-36V) 0 Ground Tx / B Rx / A *** RL1nopen RL1comm RL2nopen RL2comm RL3nopen RL3comm
