HARRISON 5 PIECE BAR SET
Product code: D71 M34581
UPC code: 769455 779571
Vendor Item: SS-I-139NMT2
USE AND CARE GUIDE

Thank you for your purchase
Thank you for your purchase
We are pleased that you have chosen Sears and kmart for your outdoor furniture purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
set. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio furniture needs, so from our team to yours, thank you for letting us
be a part of your outdoors.
Table of Contents
Table of Contents....................................2
Safety Information...................................3
Set Up your Furniture Properly.............3
Examine your furniture.........................3
Warranty...................................................3
Care and Maintenance............................4
Pre-Assembly..........................................4
Planning Assembly..............................4
Observe weight Limits.........................4
Hardware Included..............................4
Assembly Instructions
Package Content.....................................5
Table.........................................................6
Customer Service....................................10
2

3
Safety Information
SET UP YOUR FURNITURE PROPERLY
Ensure that all parts are assembled properly and fully tightened as per the instructions.
When placing in the desired location, ensure that all legs are resting on the same
surface. You may adjust the legs levelers as required to ensure that the item stands
in a rigid position.
EXAMINE YOUR FURNITURE
Examine occasionally to ensure that there are no loose parts. If loose parts are found,
they must be retightened fully before additional use.
Warranty
WARRANTY
We warrant our products to be free of manufacturing defects to the original purchaser for
the period listed below. We reserve the right to make substitutions with similar merchandise,
if the model in question is no longer in production.
EXCLUSIONS
This warranty does not cover: Furniture used for commercial or non-residential purposes;
failures caused by improper care; unreasonable or abusive use; freeze damage; acts of
nature. Steel products are not covered against rust.
GLASS
If your tempered glass table top breaks with in the 1 year warranty, please call your local
Sears/Kmart Store and they can order you a new one. Table tops must be picked up at your
local store. Please have sales check handy to verify purchase date.
FINISH
Frame finish is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FABRIC
Fabric is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FRAMES
Frame is warranted to be free from defects in material or workmanship for a period of
two (2) years for steel frame. This product is made with a steel frame.
FREIGHT & PACKAGING
Freight and packaging are the responsibility of the original purchaser.
CUSTOMER SERVICE
In case of a problem, call
1-800-457-4652
between 9:00 am to 5:00 pm Eastern standard
time Monday through Friday or contact us at www.numarkcustomerservice.com
for
any question or problems you may have.

Ja (7 + 1 spare)
Short Bolt
Jc (13 + 1 spare)
Nut
Jd (15)
Metal Washer
Je (13)
Lock Washer
Jf (1 spare)
Glass Bumper
Jg (1)
Allen Wrench
Jh (1)
Hex Wrench
Ji (1)
Assembly
Instructions Sheet
Jb (8 + 1 spare)
Long Bolt
4
Care and Maintenance
Pre-Assembly
Read through all the instructions before beginning assembly. Unpack and identify all the parts.
Place them on a flat, non-abrasive surface. Assembly by two people is recommended.
PLANNING ASSEMBLY
Though its powder-coated finish is rust-resistant, steel is prone to rust over time with
exposure to the elements. In case of rust or scratches, lightly sand the affected area
and apply touch-up paint. To maintain the finish periodically apply wax with a soft cloth.
OBSERVE WEIGHT LIMITS
The recommended weight limits for the following products are listed below:
Table: 100 lbs
CAUTION: If you overload your
furniture, injuries can occur.

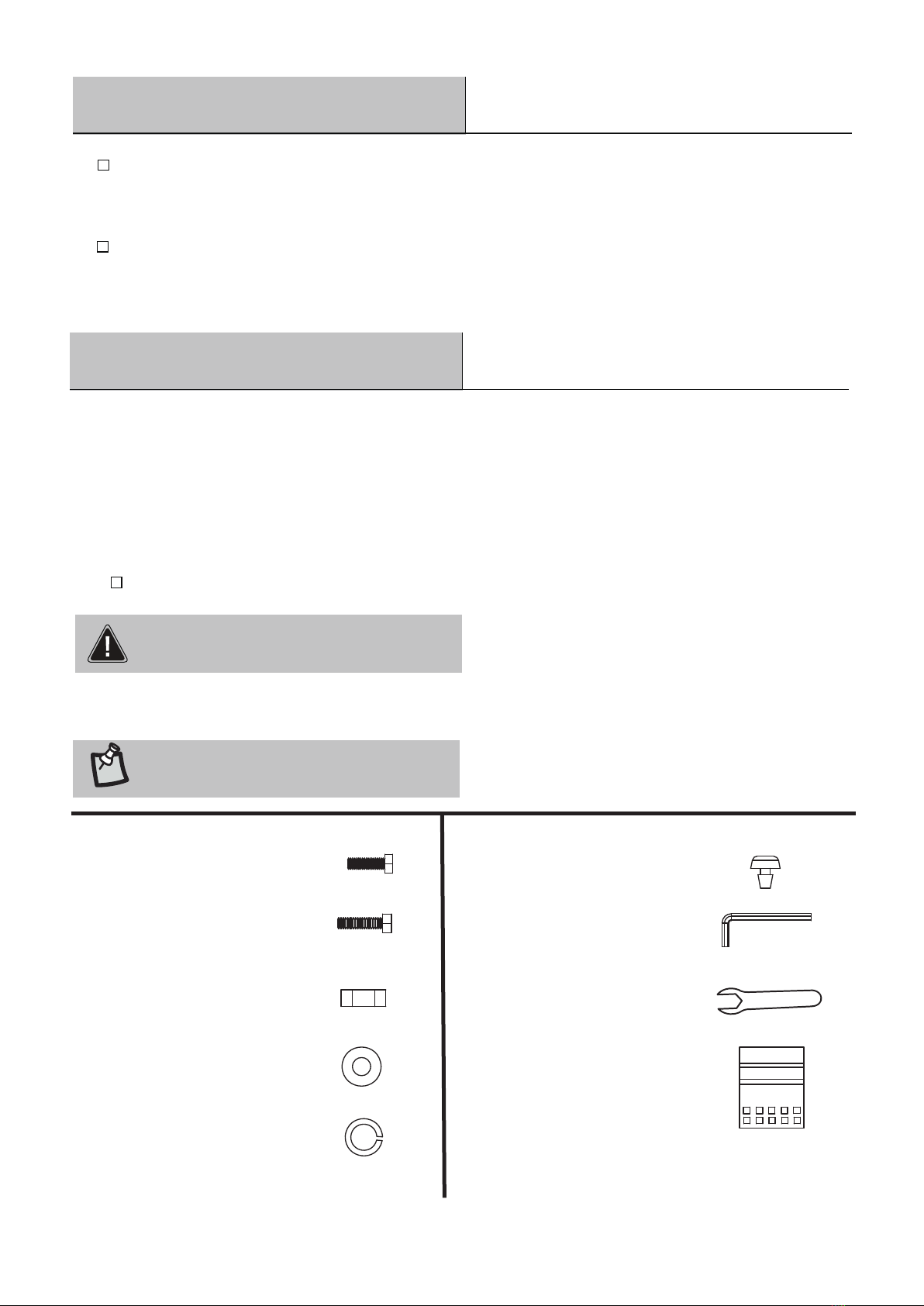

HARDWARE INCLUDED
NOTED: Hardware not shown
to actual size.
Always use an umbrella base to secure umbrella. Do not store anything on glass tabletop.
Ensure the ‘’o’’ ring is in place in the umbrella hole in the glass top before inserting
umbrella. Make sure umbrella is in the closed position when not in use and during high
winds. Use furniture covers or store indoors during cold or inclement weather.

5
A Left Tempered Glass Tabletop with Rim
B Right Tempered Glass Tabletop with Rim
C Left Bottom Mesh Shelf
D Right Bottom Mesh Shelf
E Left Side Apron Panel
F Right Side Apron Panel
G Left Top Mesh Shelf
H Right Top Mesh Shelf
I Support Bar
ITEM DESCRIPTION QUANTITY
1
1
1
1
1
1
1
1
2
I
I
H
C D
G
EF
B
A
Safety Information
Do not completely tighten bolts and nuts until indicated in assembly step.
Pre-Assembly
Assembly Instructions

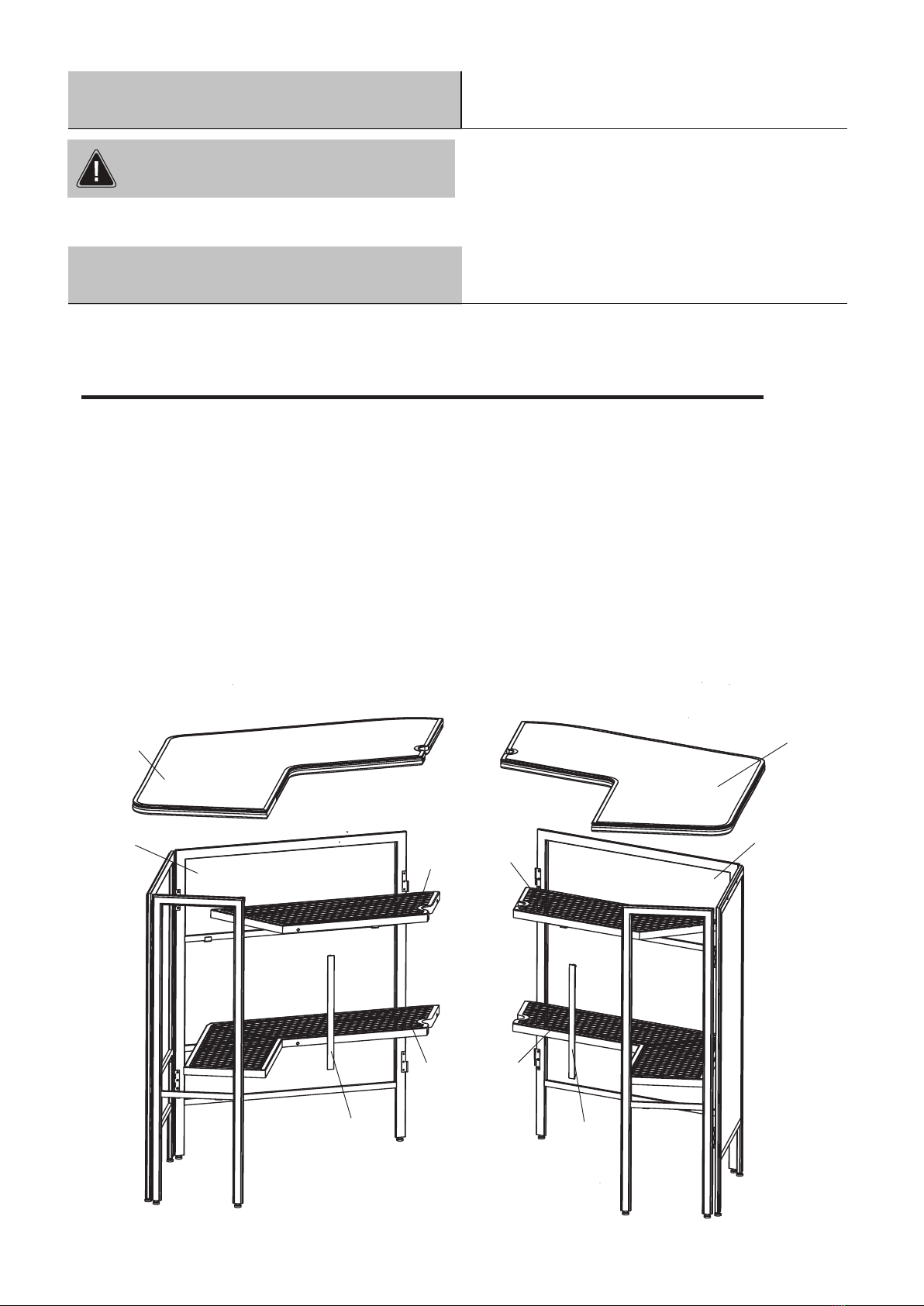

Package Contents

1
6
Adjust panel leg feet up and down to level the unit.
2
Note: The arrow points down side when assembling.
Don’t tighten completely.
Repeat procedure for the other two holes,and then tighten all bolts and nuts.
Jd x 4
Metal Washer
Je x 4
Lock Washer
Ja x 4
Short Bolt
Jc x 4
Nut
E
F
E
F1 F
E
G
H
Jd
Jc Je Ja
3
C
2
D
Je
Ja
Jd
Jc
Assembly Instructions
Attaching the left side apron panel to the right side apron panel
Attaching the left bottom mesh shelf to the right bottom mesh shelf

7
Note: The arrow points down side when assembling.
Don’t tighten completely.
Repeat procedure for the other two holes,and then tighten all bolts and nuts.
3
4
C
D
GH
Jc
Je
I
Je
Jc
I
4
C
G
I
H
I
5
D
Je x 4
Lock Washer
Jc x 4
Nut
Don’t tighten completely.
Repeat procedure for another support bar(I).
Securely tighten all bolts and nuts.
Assembly Instructions

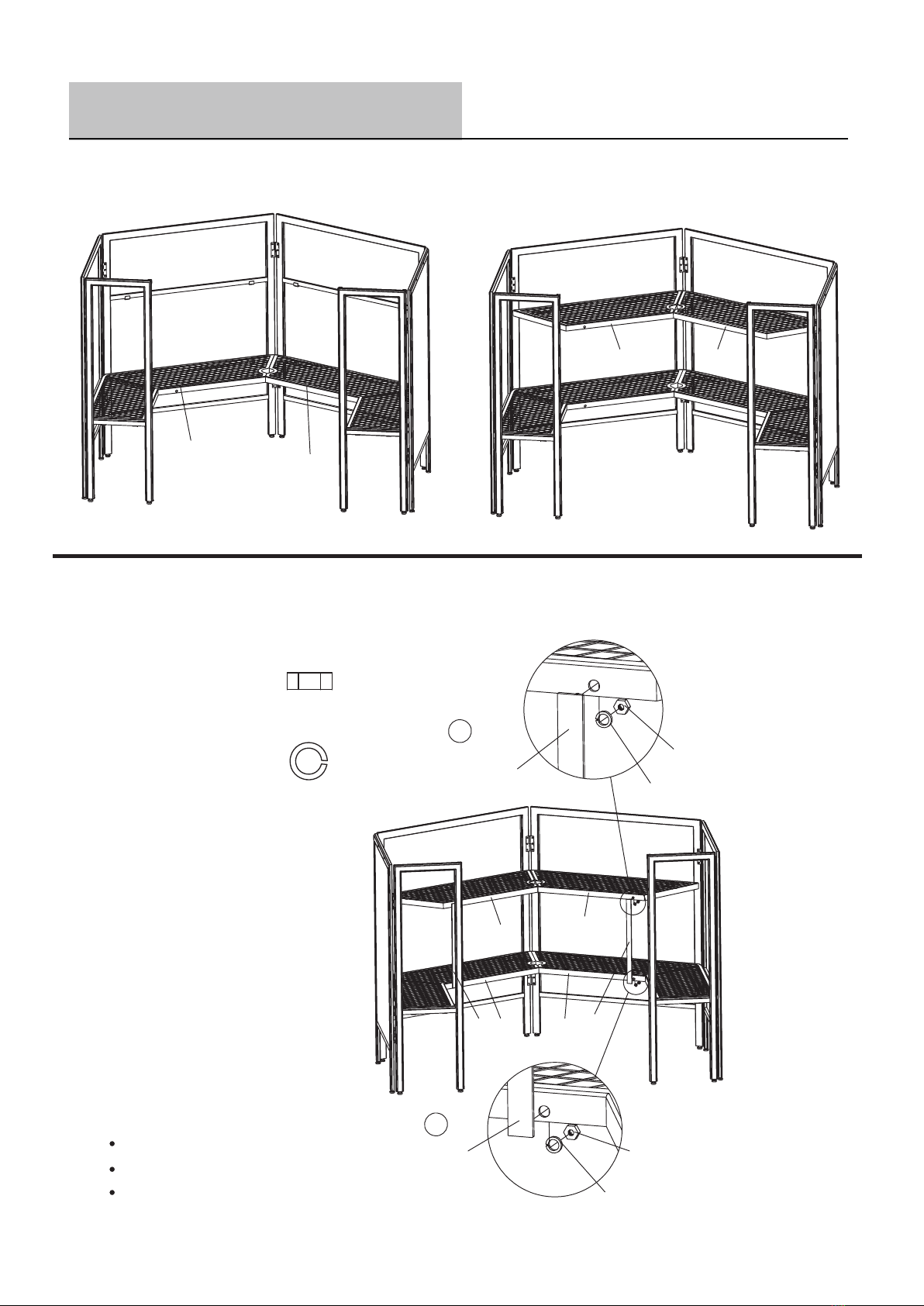

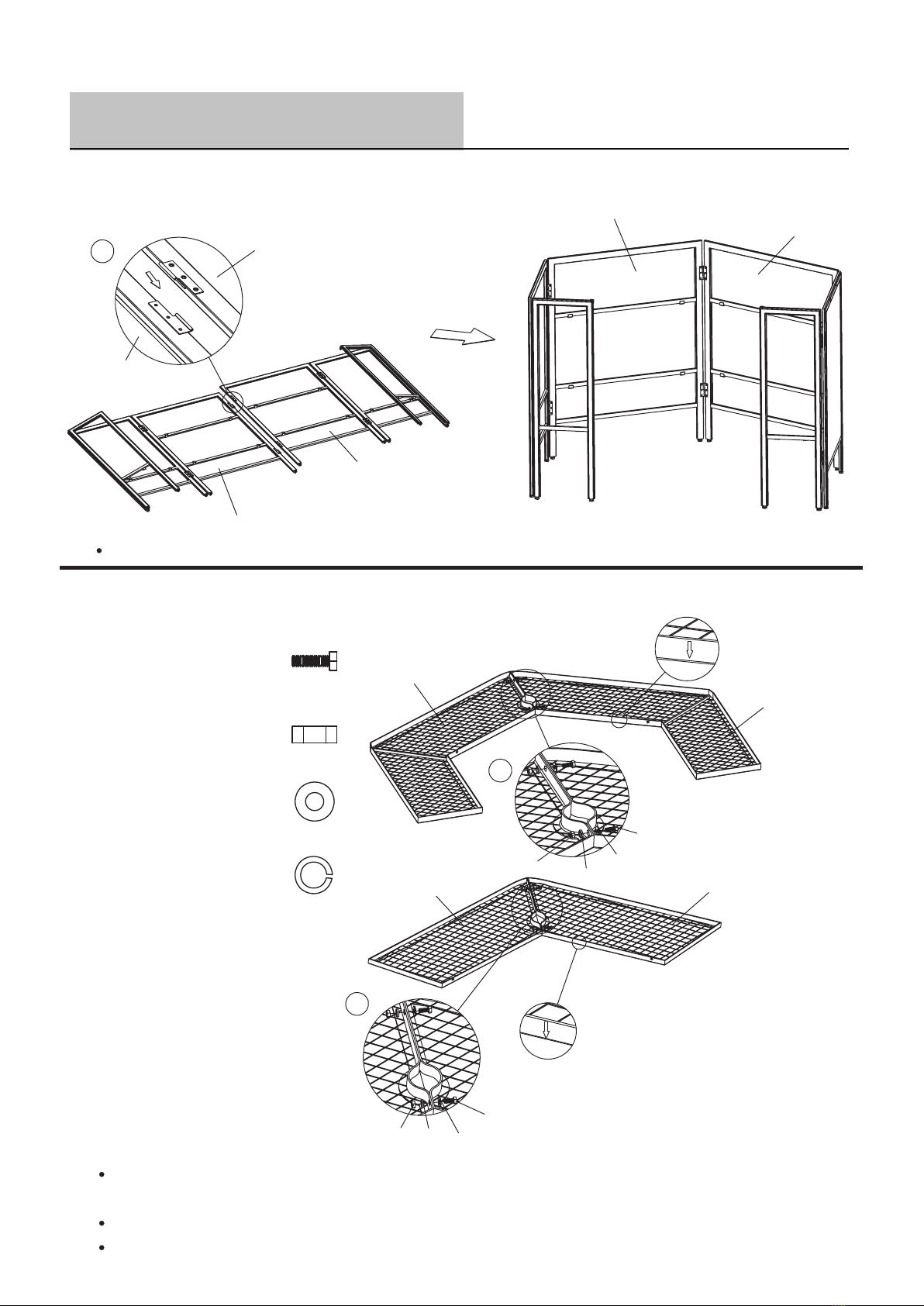

Attaching the support bar to the bottom mesh shelf
Pushing the mesh shelf into the side apron panel

5
Don’t tighten completely.
Repeat procedure for the other side.
6
Jd x 3
Metal Washer
Je x 3
Lock Washer
Ja x 3
Short Bolt
Jc x 3
Nut
8
Don’t tighten completely.
Repeat procedure for the remaining two holes.
Then tighten all bolts and nuts.
Jc x 2
Nut
Je x 2
Lock Washer
B
A
6
Ja
Jd
Je
Jc
AB
7Je
Jc
Assembly Instructions

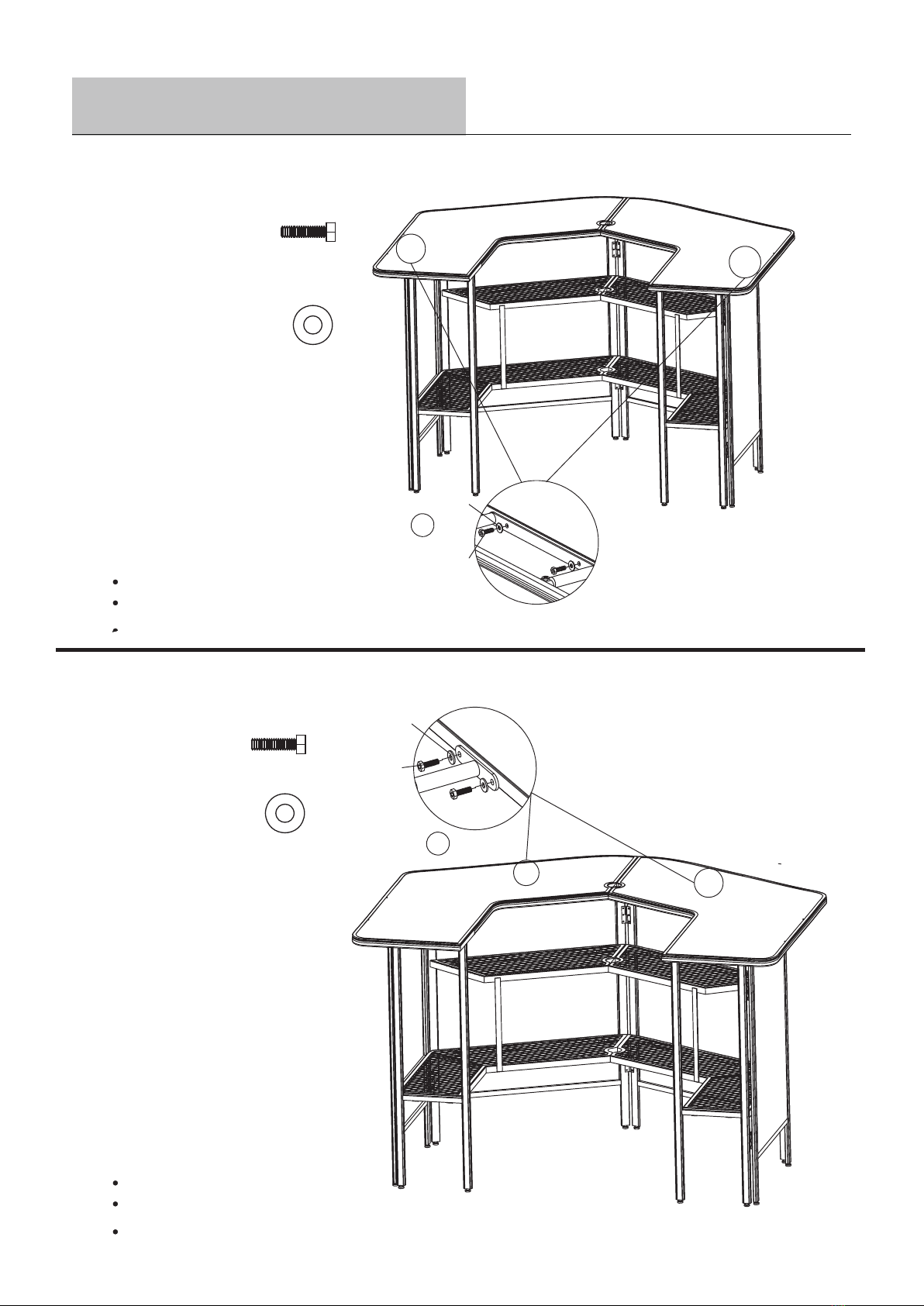

Attaching the left glass tabletop to the right glass tabletop
Attaching the glass tabletop to the side apron panel

7
Don’t tighten completely.
Repeat procedure for the other holes.
Repeat procedure for the other side.
9
8
Don’t tighten completely.
Repeat procedure for the other holes.
Repeat procedure for the other side.
Jb x 4
Long Bolt
Jd x 4
Metal Washer
Jb x 4
Long Bolt
Jd x 4
Metal Washer
8
Jb
Jd
9
Jb
Jd
Assembly Instructions
Attaching the glass tabletop to the side apron panel
Attaching the glass tabletop to the side apron panel

Securely tighten all bolts and nuts.
Your bar table is ready for use.
9
10
Assembly Instructions
Adjusting the table level by twisting knobs on the bottoms of the legs
See our extensive assortment of outdoor living products
on-line at www.sears.com and www.kmart.com
Made in / Hecho en CHINA
Distributed by Transform SR LLC Hoffman Estates, IL 60179
For questions or comments about product:
Call : 1-
800-457-4652
Please refer to part numbers when reordering
between 9:00 am to 5:00 pm Eastern standard time Monday through Friday
or contact us at www.numarkcustomerservice.com
