Essential Garden SC-K-522SFSETBNW User manual

1
garden
ANNISTON 4 PIECE CUSHION SEATING SET - COASTAL
Product code: 0-01938692-9
UPC code: 769455773944
Vendor Item: SC-K-522SFSETBNW
Date of purchase: _____/ _____/ _____
USE AND CARE GUIDE

Thank you for your purchase
Thank you for your purchase
Table of Contents
2
We are pleased that you have chosen Kmart for your outdoor furniture purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
set. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio furniture needs, so from our team to yours, thank you for letting us
be a part of your outdoors.
Table of Contents.................................... 2
Safety Information................................... 3
Set Up your Furniture Properly..............3
Examine your furniture..........................3
Warranty................................................... 3
Care and Maintenance............................ 4
Pre-Assembly...........................................4
Planning Assembly.............................. 4
Observe weight Limits......................... 4
Hardware Included.............................. 4
Assembly Instructions
Package Contents................................. 5
Chair....................................................... 5
Loveseat.................................................8
Table......................................................11
Customer Service.................................12

3
Safety Information
SET UP YOUR FURNITURE PROPERLY
Ensure that all parts are assembled properly and fully tightened as per the instructions.
When placing in the desired location, ensure that all legs are resting on the same
surface. You may adjust the legs levelers as required to ensure that the item stands
in a rigid position.
EXAMINE YOUR FURNITURE
Examine occasionally to ensure that there are no loose parts. If loose parts are found,
they must be retightened fully before additional use.
Warranty
WARRANTY
We warrant our products to be free of manufacturing defects to the original purchaser for
the period listed below. We reserve the right to make substitutions with similar merchandise,
if the model in question is no longer in production.
EXCLUSIONS
This warranty does not cover: Furniture used for commercial or non-residential purposes;
failures caused by improper care; unreasonable or abusive use; freeze damage; acts of
nature. Steel products are not covered against rust. Tempered glass table tops are not
covered against breakage.
FINISH
Frame finish is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FABRIC
Fabric is warranted to be free of manufacturing defects for a period of one (1) year.
Discoloration or fading of the finish as a result of exposure to the elements, chemicals, or
spills is not covered.
FRAMES
Frame is warranted to be free from defects in material or workmanship for a period of
one (1) year for steel frame. This product is made with a steel frame.
FREIGHT & PACKAGING
Freight and packaging are the responsibility of the original purchaser.
CUSTOMER SERVICE
In case of a problem, call 1-800-457-4652 between 9:00 am to 5:00 pm Eastern standard
time Monday through Friday or contact us at www.numarkcustomerservice.com for
any question or problems you may have.

Me (36 + 2 spares)
Bolt Cap
Ma (34 + 2 spares)
Short Bolt
Mb (4)
Medium Bolt
Md (44)
Metal Washer
4
Care and Maintenance
Pre-Assembly
Read through all the instructions before beginning assembly. Unpack and identify all the parts.
Place them on a flat, non-abrasive surface. Assembly by two people is recommended.
PLANNING ASSEMBLY
OBSERVE WEIGHT LIMITS
The recommended weight limits for the following products are listed below:
Loveseat: 400 lbs
CAUTION: If you overload your
furniture, injuries can occur.

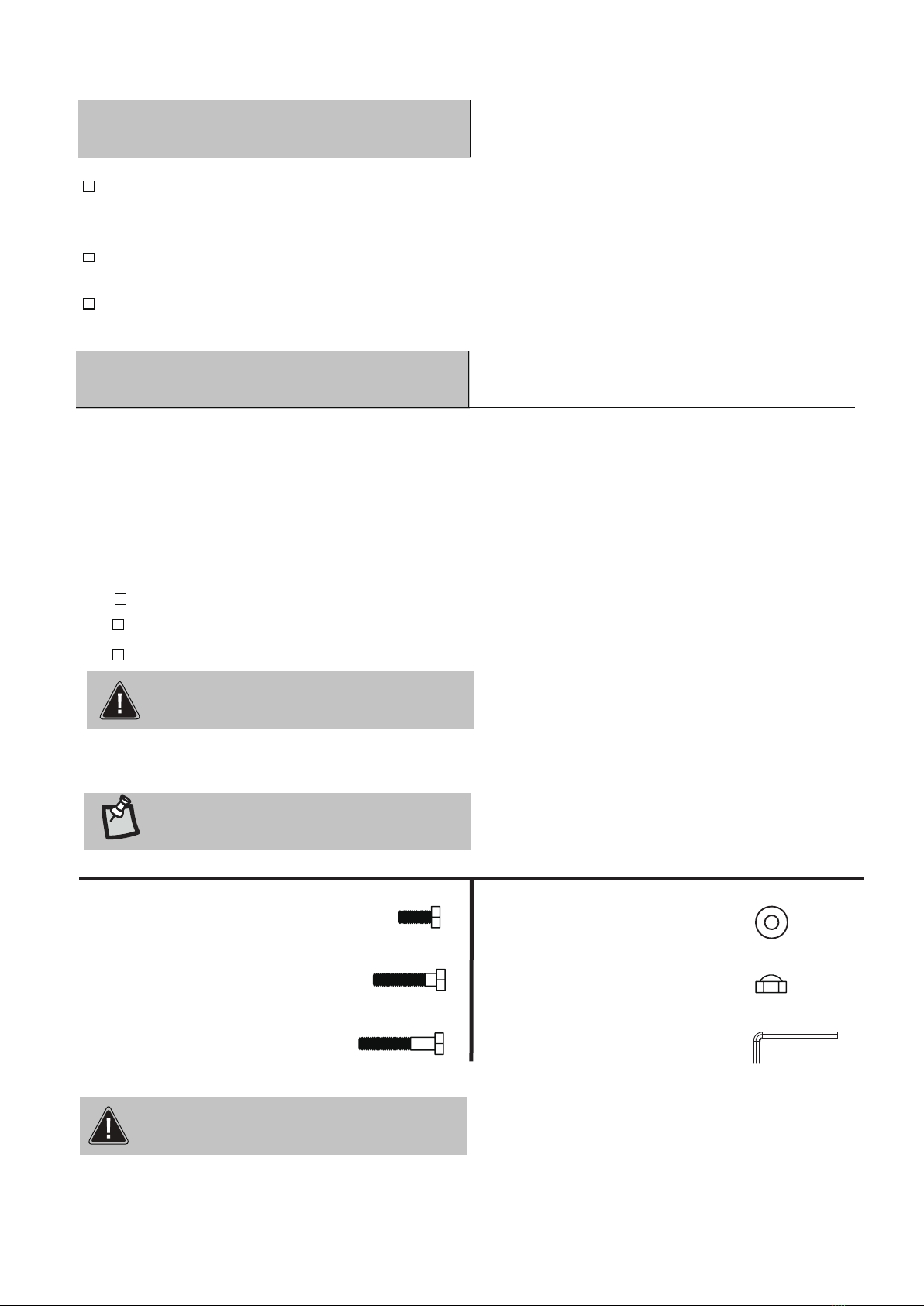

HARDWARE INCLUDED
NOTED: Hardware not shown
to actual size.
Safety Information
Do not completely tighten bolts until indicated in assembly step.
Wash frames with a mild solution of soap and water; rinse thoroughly. Do not use
bleach or solvents.
Though its powder-coated finish is rust-resistant, steel is prone to rust over time with
exposure to the elements. In case of rust or scratches, lightly sand the affected area
and apply touch-up paint. To maintain the finish periodically apply wax with a soft cloth.
Chair: 225 lbs
Table: 50 lbs
Do not store anything on glass tabletop. Use furniture covers or store
indoors during cold or inclement weather.
Mc (6)
Long Bolt
Mf (2)
Allen Wrench

5
A1 Left Arm
A2 Right Arm
B Chair Back
C Chair Seat
D Chair Connector Bar
H Back Cushion
I Seat Cushion
ITEM DESCRIPTION QUANTITY
2
2
2
2
2
2
2
Assembly Instructions
Package Contents

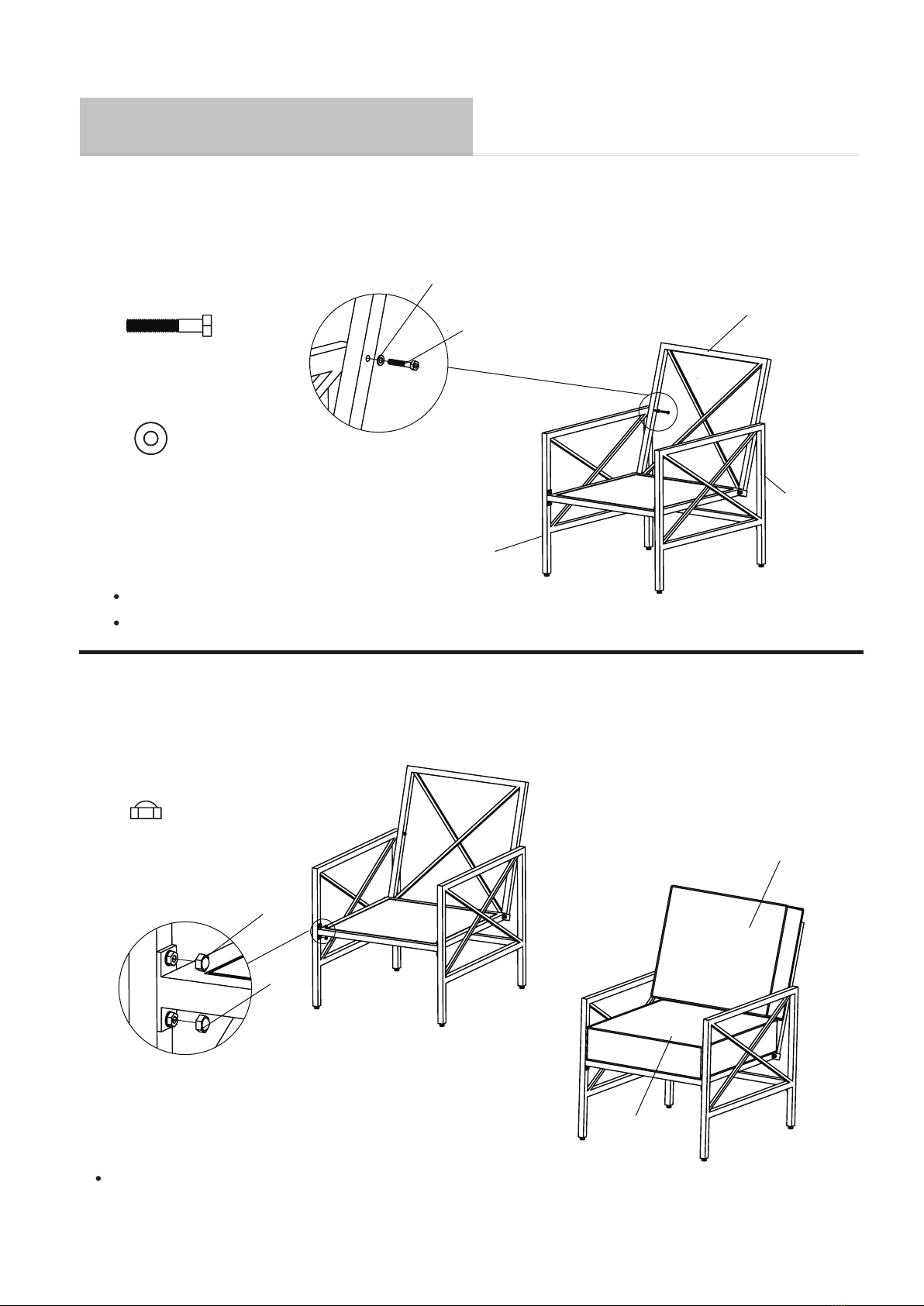

1Attaching the chair back to the chair seat
A1
A2
B
C
D
H
I
B
C
Ma
Md
Ma x 2
Short Bolt
Md x 2
Metal Washer
Repeat procedure for the other side.

6
3
2
Repeat procedure for the other side.
Assembly Instructions
Attaching the chair connector bar to the chair arm
Attaching the chair seat to the chair arm
A2
A1
C
D
A1
A2
Ma
Md
Ma
Md
Ma x 4
Short Bolt
Md x 4
Metal Washer
Ma x 4
Short Bolt
Md x 4
Metal Washer
Repeat procedure for the other side.

Assembly Instructions
7
4Attaching the chair back to the chair arm
H
I
B
A2
A1
Mc
Md
Mc x 2
Long Bolt
Md x 2
Metal Washer
Repeat procedure for the other side.
Securely tighten all bolts.
Repeat procedure for the other chair.
5Adding bolt caps where necessary and putting seat and back cushions
on the chair
Me
Me
Me x 12
Bolt Cap

1
Assembly Instructions

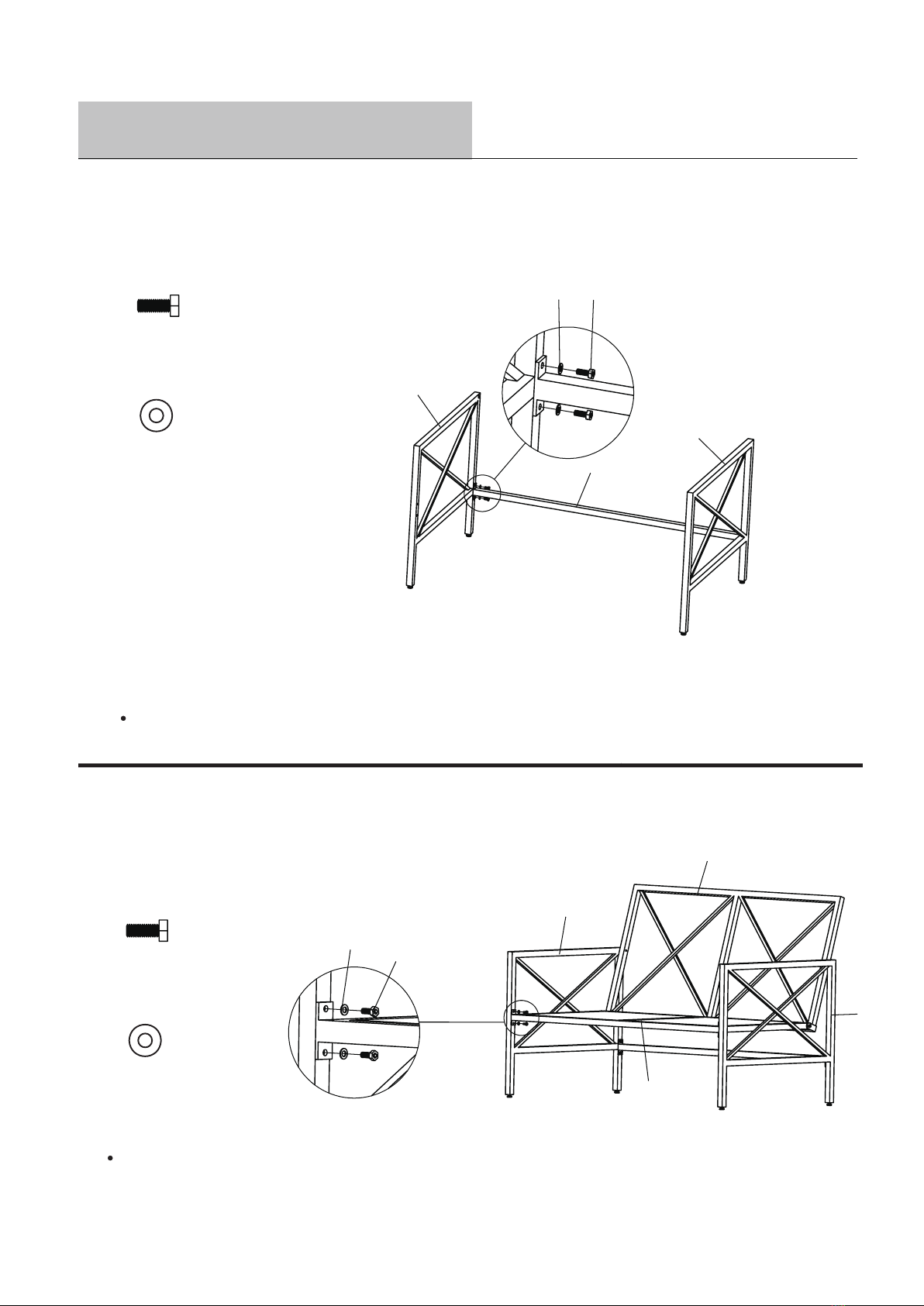

Attaching the loveseat back to the loveseat seat
8
A1 Left Arm
A2 Right Arm
E Loveseat Back
F Loveseat Seat
G Loveseat Connector Bar
H Back Cushion
I Seat Cushion
ITEM DESCRIPTION QUANTITY
1
1
1
1
1
2
2
Package Contents
HH
I
A1
A2 E
F
G
I
F
E
Ma
Md
Ma x 2
Short Bolt
Md x 2
Metal Washer
Repeat procedure for the other side.

9
3Attaching the loveseat to the arm
E
F
A2
A1
Ma
Md
Ma x 4
Short Bolt
Md x 4
Metal Washer
Repeat procedure for the other side.
Assembly Instructions
2Attaching the loveseat connector bar to the arm
Repeat procedure for the other side.
G
A2
A1
MaMd
Ma x 4
Short Bolt
Md x 4
Metal Washer

10
Assembly Instructions
5Adding bolt caps where necessary and putting seat and back cushions
on the loveseat
HH
II
E
A2
A1
Mc
Md
Mc x 2
Long Bolt
Md x 2
Metal Washer
4Attaching the loveseat back to the loveseat arm
Repeat procedure for the other side.
Securely tighten all bolts.
Me
Me
Me x 12
Bolt Cap

J Table Top
K Table Leg
L Center Ring
ITEM DESCRIPTION QUANTITY
1
2
1
Assembly Instructions
Package Contents

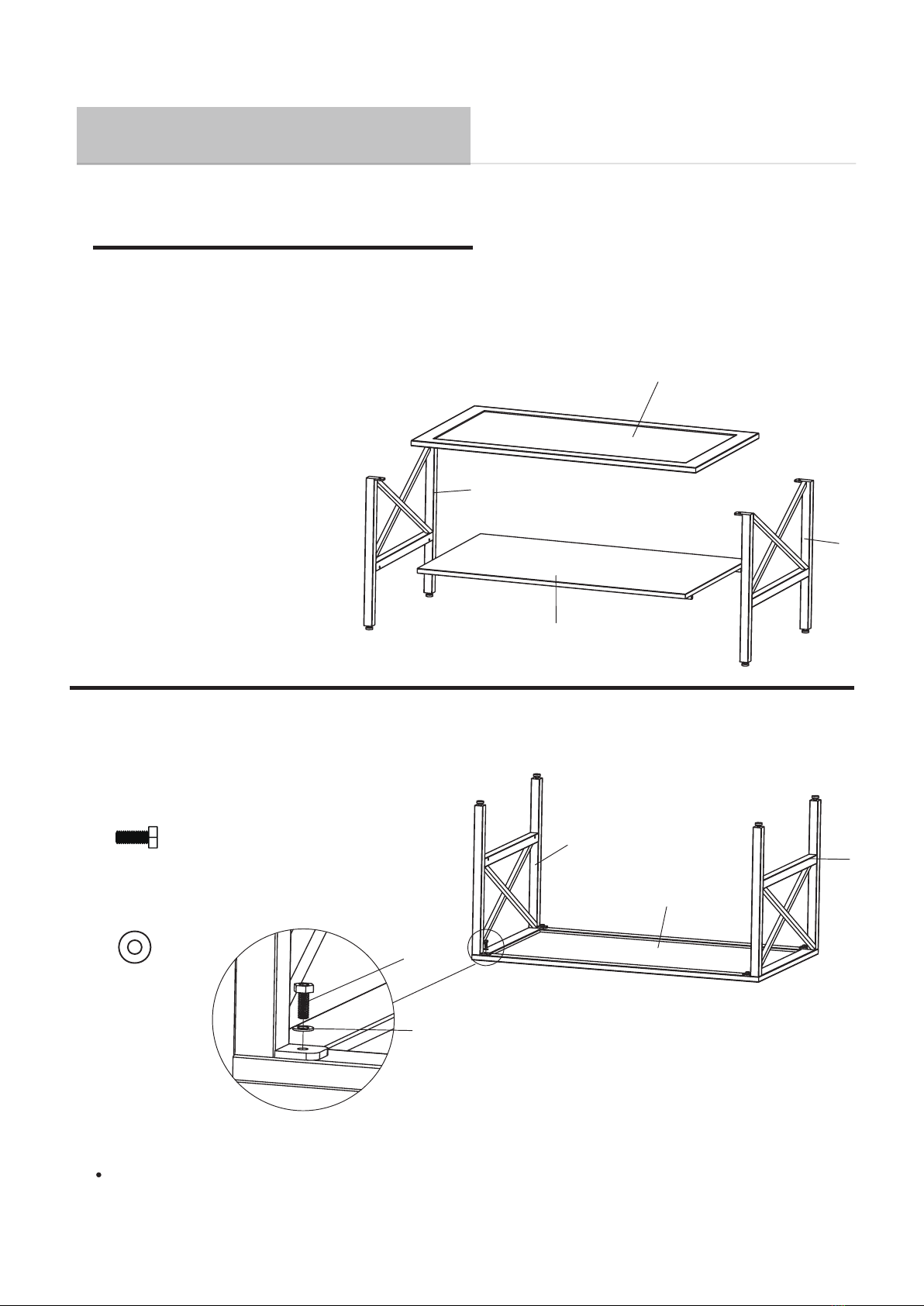

1Attaching the table leg to the table top
Repeat procedure for the other side and other leg.
K
J
L
K
K
J
K
Ma
Md
Ma x 4
Short Bolt
Md x 4
Metal Washer
11

Made in / Hecho en CHINA. Distributed by Kmart Corporation, Hoffman Estates, IL 60179
For questions or comments about product:
Call toll-free: 1-800-457-4652
between 9:00 am to 5:00 pm Eastern standard time Monday through Friday
or contact us at www.numarkcustomerservice.com
Please refer to part numbers when reordering
See our extensive assortment of outdoor living products
on-line at www.sears.com and www.kmart.com
2
Assembly Instructions
Attaching the center ring to the table leg
3Readjusting level by twisting knobs on the bottom of legs as desired
Repeat procedure for the other three holes.
12
Now your 4pc seating set is ready for use. Enjoy!
L
K
K
Mb
Md
Mb x 4
Medium Bolt
Md x 4
Metal Washer
Securely tighten all bolts.
