INSTALLATION & INSTRUCTION MANUAL
KPX-34-ERM3

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com i
All rights reserved. No part of this documentation may be repro-
duced in any form, without prior written consent of Essex Electron-
ics, Inc. Essex Electronics shall not be liable for errors contained in
this manual. The information in this document is subject to change
without notice. Essex Electronics, Inc. reserves the right to modify
this documentation and to make improvements or changes to the
product(s) contained in this documentation at any time.
Document Information
IOMKPX34ERM Installation/Operations Manual for the KPX-34-
ERM3 Keypad with Encoded Relay Module (ERM) - July 2006.
This documentation is also applicable to prior revisions except
where noted.
Trademarks
Keyless Entry® is a registered trademark of Essex Electronics, Inc.
ProxCard® II (“card”) is a registered trademark of HID Corporation.
Contact Information
Essex Electronics, Incorporated
1130 Mark Avenue, Carpinteria, CA 93013
[phone] or [phone] (KEY-LESS)
FAX [phone]
Website: keyless.com
General email: [email protected]
Technical Support email: [email protected]
Copyright© 2006 Essex Electronics, Inc. All rights reserved.
KPX-34-ERM3 Encoded Keyless Entry®
Access Control System

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
ii
Introduction .................................................................................. 1
Overview - The KPX-34-ERM3 Series .......................................... 1
Keypad with ERM .......................................................................... 1
Part Numbers................................................................................. 1
Specifications ................................................................................. 2
ERM Configuration ........................................................................ 3
Keypad Connector Diagram .......................................................... 5
Keypad Configuration .................................................................... 7
Normal System Operation ......................................................... 10
Keypad LED Status Indicators .................................................... 10
Tamper Alarm .............................................................................. 11
Encoded Relay Module LED Status Indicators ........................... 11
Operation Notes .......................................................................... 11

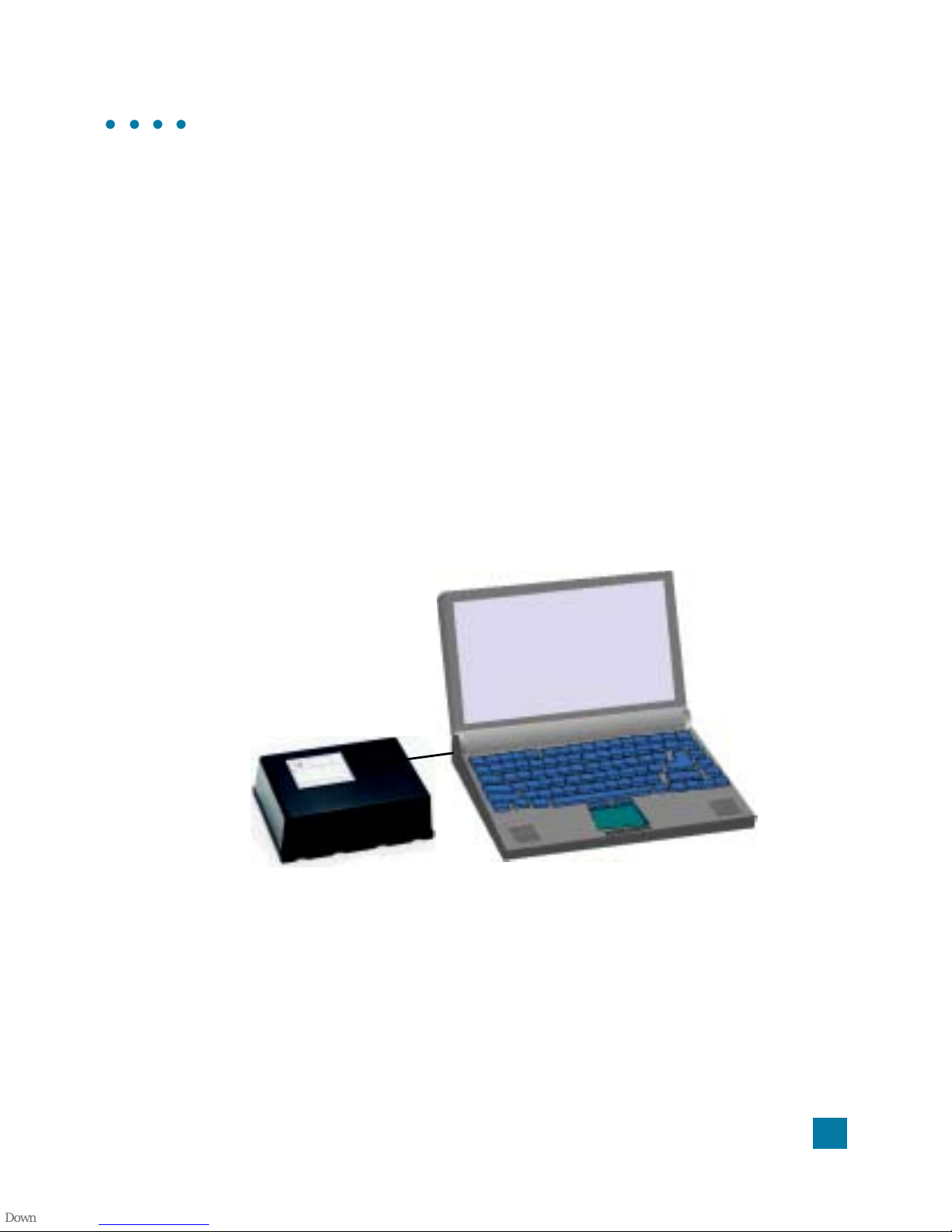

Using the KPX-34-ERM3 with a PC ........................................... 13
Connecting the KPX-34-ERM3 to a PC ...................................... 13
Installing the CD-ROM................................................................. 13

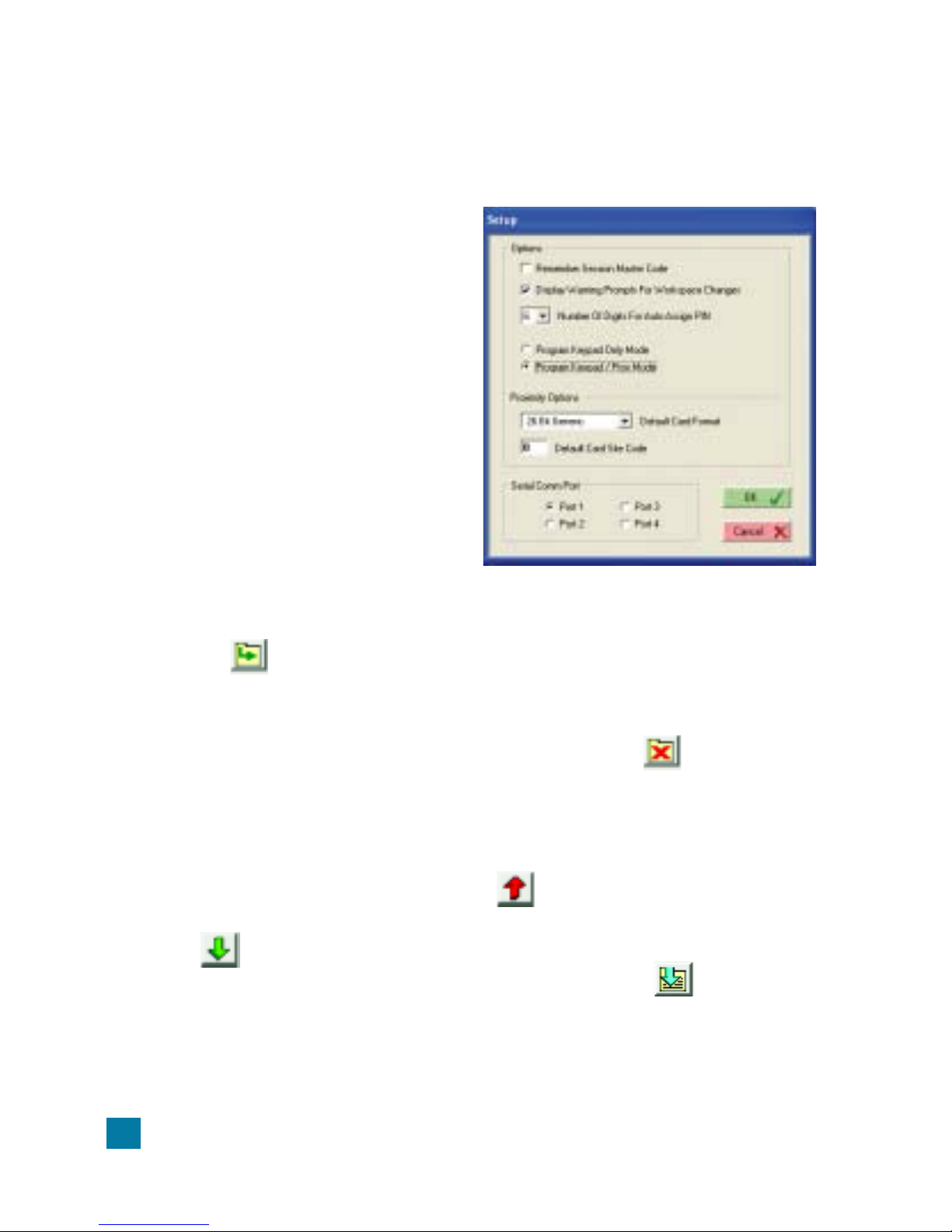

Using Keypad Programmer Software (keyprog) ......................... 14
Using Keypad Logger Software (keylog) .................................... 15
Programming the KPX-34-ERM3 with the Keypad .................. 16
Programming Individual Users .................................................... 21
KPX-34-ERM3 Series Diagrams ................................................ 28
ERM Circuit Board ....................................................................... 28
Typical Hook-up Fail Safe or Fail Secure and CCTV Diagram .. 29
Warranty & Repairs .................................................................... 32
Table of Contents
○○○○○

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
iii

1
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
Introduction
!!
!!
!Overview – The KPX-34-ERM3 Series
!!
!!

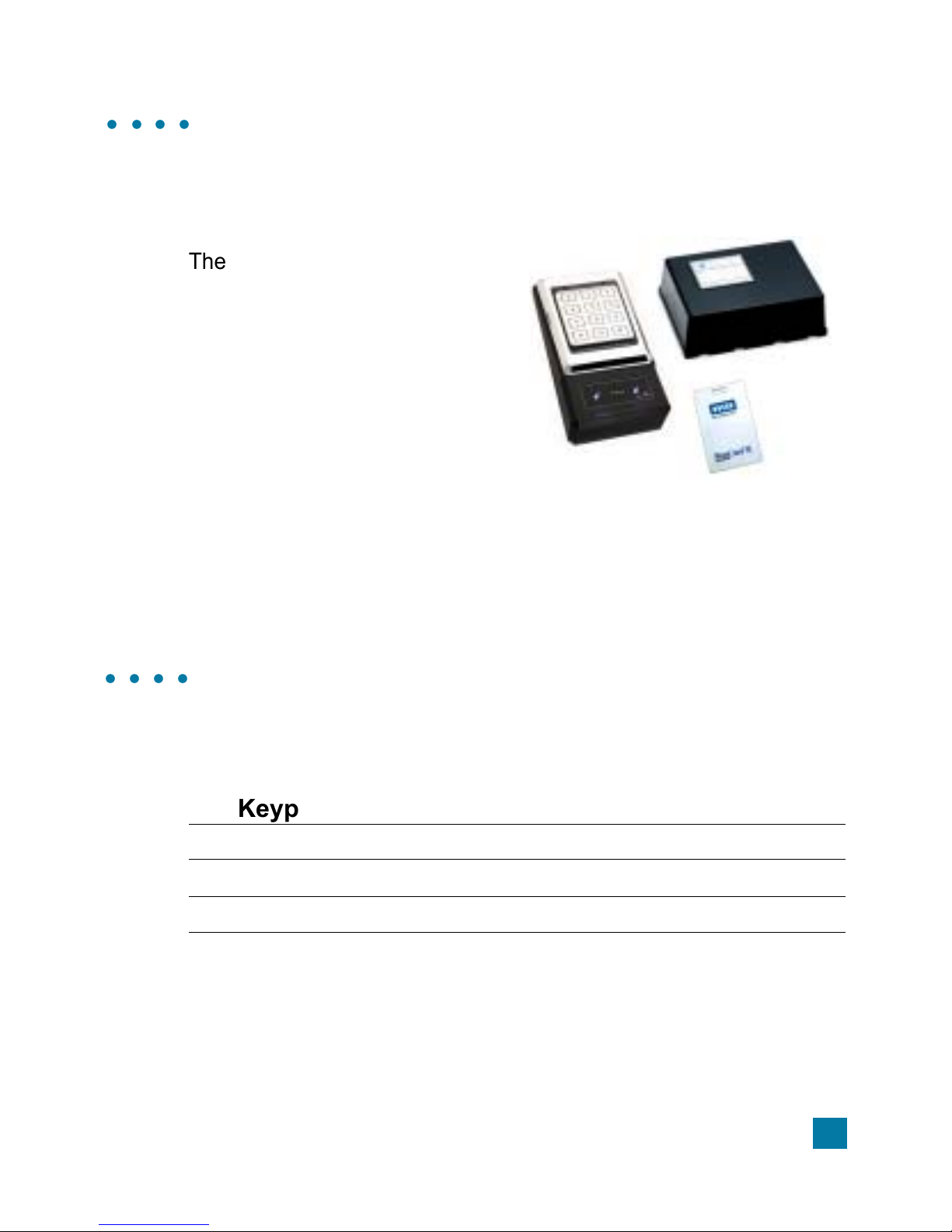

!3x4 Keypad & Prox Reader
(left) with ERM (upper right)
○○○○
The Essex KPX-34-ERM3
Encoded Keyless Entry® Access
Control System is an extremely
versatile, 500 user code, keyless
entry system that combines an
Essex Piezoelectric Keypad with
HID Proximity and an Encoded
Relay Module (ERM).
K-Prox with ERM
!!
!!
!Part Numbers
○○○○
3x4 Keypad with ERM
KPX-34B-ERM3 Brass Finished* Bezel
KPX-34S-ERM3 Stainless Steel Bezel
KPX-34K-ERM3 Black Bezel
*Bezel is brass in appearance. Actual bezel is PVD-coated stainless
steel.

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
2
!!
!!
!Specifications
Input Voltage: 12 to 24V AC/DC
Standby Current Draw: 120mA with illumination (incl. Keypad)
90mA w/o illumination (incl. Keypad)
Outputs: 3 SPDT Relays rated 6A at 120VAC
Keypad Switch Life: >1 Billion Cycles
Keypad Operating Environment: -40°C to +70°C (-40°F to +160°F),
100% Relative Humidity
3x4 Keypad: Dimensions- 5-1/8"H x 3-3/8"W x 7/16"D
(13 x 8.6 x 1.1 cm)
Weight- 16 oz (454 g)
Prox Reader: Dimensions- 7-1/4”H x 3-5/8”W x 1-3/16”D
(18.4 x 9.2 x 3.0 cm)
Weight- 10.3 oz (292 g)
3x4 Keypad & Dimensions- 7-1/4"H x 3-5/8"W x 1-1/2"D
Prox Reader: (18.4 x 9.2 x 3.8 cm)
Weight- 26.3 oz (745 g)
ERM: Dimensions- 5-1/2"H x 7-1/2"W x 2-1/2"D
(14 x 19.1 x 6.4 cm)
Weight- 16 oz (454 g)
LED's: 1 Red, 1 Green
Communication: COM Port (Serial)*
*The ERM contains a serial interface to connect a computer for program-
ming (see page 13) and reading codes or to a printer for real-time print-out
of activities. A serial cable or serial to USB cable is required and not
included.

3
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
!!
!!
!ERM Configuration
Input Requirements
The ERM accepts 12 - 24V AC/DC. An optional battery charging
module and rechargeable gel cells are available to keep the
system operational for up to 50 hours during a power interruption.
System and Keypad current draw (max) is as follows:
!Standby: 120mA
!During Operation: 230mA
Output Capabilities
Main Relay
The Main Relay will activate either a Fail-Safe or a Fail-Secure
(Non Fail-Safe) electronic locking device or other equipment. It
may also be configured as a dry contact relay output to control a
gate operator or garage door opener (Set Door Open Time to 1
second). The main output is programmable from 01 to 99 seconds
with optional timed or manual latching.
Output A
A Relay Contact output that can be programmed for one of the
following:
1. CCTV or Light Controller - First key press or ProxCard® II
(“card”) presentation to the K-Prox label area triggers a Timed
Output (1 to 99 seconds).
2. Auxiliary Output - Manual Control or Timed Output (1 to 99
seconds).
3. Second Door - Users can be assigned to open a 2nd door.
4. Doorbell - Press # at the Keypad to trigger a 1 second output
for a doorbell (not included).

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
4
Output B
A Relay Contact output that can be programmed for one of the
following:
1. CCTV or Light Controller - First key press or card presentation
to the K-Prox label area triggers a Timed Output (1 to 99
seconds).
2. Auxiliary Output - Manual Control or Timed Output (1 to 99
seconds).
3. Third Door - Users can be assigned to open a 3rd door.
4. Internal Alarm System - Detect Break-in, Door-ajar & Tamper.
5. Doorbell - Press # at the Keypad to trigger a 1 second output
for a doorbell (not included).

5
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
!!
!!
!Keypad Connector Diagram
The 5 wire harness connects the Keypad to the Prox Reader.
YELLOW- Anti Tailgate
If not used, this must be connected to BLACK. By adding a door
monitor switch between YELLOW and BLACK, the door will relock
immediately after opening. If Output B is set up as Internal Alarm,
this switch will trigger the alarm if the door is opened without a
code or if the door is left open longer than the Door Ajar Time
setting.
RED, BLACK, GREEN, VIOLET, GRAY, ORANGE and SHIELD-
These wires all connect to the ERM module.
CONFIGURATION
PINS- “CONFIG”
YELLOW- Anti
Tailgate/Internal Alarm
(Do NOT apply voltage)
GRAY*
SHIELD*
BLACK*- Ground
ORANGE*
VIOLET*
RED*- Input Voltage
GREEN*
*Connect to ERM inputs.
VOLTAGE SELECT
(Do NOT apply voltage)
12-24V (default)- Jumper on
one pin only

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
6
Security Level - Enabled
If SECURITY LEVEL is enabled in Set up (page 20):
When the CLOCK terminal on the ERM circuit is connected to
ground (through time clock or other switch contacts), users who
are “non-exempt” and were assigned both a code and card can
use either to enter. Those who were assigned only a card or a
code can also enter.
When the input is NOT grounded, only non-exempt users as-
signed both a code and a card can enter by using both.
In other words, “grounded” is low level security; only one form of ID
is needed. “Not grounded” is high level security; two forms of ID
are needed.
Security Level - Disabled
If SECURITY LEVEL is disabled:
Whether the CLOCK terminal is connected to ground or not
grounded, “non-exempt” users with both a card and a code can
get in by using both. All other non-exempt users are locked out.
When programming Individual Users (page 21), assigning the
Exempt from Security Level User Authorization Code (7#) exempts
a User from the security level. All “exempt” users can get in with
either a code or a card no matter what the security level is set for.

7
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
!!
!!
!K-Prox Configuration
Voltage Selection
The factory default setting for the Keypad and Prox Reader
voltage is 12-24VDC. Verify that the jumpers are removed or
placed over only one pin. Do not set either for 5V.
Keypad Output Selection
Once the voltage jumper is verified or correctly set:
1. Remove power.
2. Jumper the two pins above the connector labeled "CONFIG.”
3. Apply appropriate power. (You should hear 4 beeps and the
RED LED will flash and the GREEN LED will be solid).
4. Now that the Keypad is in configuration mode, enter 98
followed by #. You should hear 3 beeps indicating successful
configuration. If you hear a long error beep, re-enter 98
followed by #. To change the audible beep, proceed as
follows. Otherwise, go to Step 5.
To change the audible beep, enter
Code Audible Beep
201 # Normal Beep (factory default)
200 # Short Click (quieter)

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
8
5. Remove power.
6. Remove configuration jumper.
7. Re-apply power.
8. Press PROGRAM button in the ERM to establish the encoded
connection. This will put the system into setup mode.
9. Press * * to exit.
CAUTION: This procedure completely erases the memory and
restores factory defaults! Once the memory is cleared, all pro-
grammed User Codes are erased and factory default settings
are restored.
Keypad Reset
In certain cases you may want to erase all user codes and restore
system defaults. To perform this procedure:
1. Remove power.
2. Jumper the two pins above the connector labeled "CONFIG.”
3. Apply appropriate power. (You should hear 4 beeps and the
RED LED will flash and the GREEN LED will be solid).
IMPORTANT: Once the configuration is selected, you must re-
move power, remove the configuration jumper and then re-apply
power in order to complete the configuration procedure. Note: If
the configuration jumper is not removed, the LED's will flash and
the Keypad will beep continuously.

9
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
4. Once the Keypad is in configuration mode, enter 0099#. The
Keypad will beep twice and both LEDS will flash for approxi-
mately 10 seconds. (During this time, the Keypad will appear
dead. Do NOT remove power!)
5. Enter 98 followed by #. You should hear 3 beeps indicating
successful configuration. If you hear a long error beep, re-
enter 98 followed by #. To change the audible beep, proceed
as follows. Otherwise, go to Step 6.
To change the audible beep, enter the code as follows:
Code Audible Beep
201 # Normal Beep (factory default)
200 # Short Click (quieter)
6. Remove power.
7. Remove configuration jumper.
8. Re-apply power.
9. Press PROGRAM button in the ERM to establish the encoded
connection. This will put the system into setup mode.
10. Press * * to exit.

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
10
Normal System Operation
When the system is first powered up (or when communication is
broken between the Keypad and the ERM3 module), the PRO-
GRAM button in the ERM must be pressed to establish the
encoded connection. This also puts the system into setup mode.
To end setup, press * * to exit. Or, the system will automatically
exit programming if no entries are made for 30 seconds.
!!
!!
!Keypad LED Status Indicators
!A flashing green LED indicates that the door is unlocked (mo-
mentarily).
!A solid green LED indicates that the door is unlocked (latched).
!A solid red LED indicates that the door is locked.
Depending on how the System Options are configured, User
Commands are used to operate Manual Latching. The User
Commands are trailing digits entered after an authorized user
code followed by # (enter) or card. The ability to use these User
Commands depends on authorizations assigned to each User
(see page 13 or pages 21-22).
As the Main Output activates, the green LED will flash for 5
seconds. While the green LED is flashing, enter one (or more) of
the following User Commands:
0 # to Latch the Door Closed (Main Relay, 2
nd
Door or 3
rd
Door)
1 # to Latch the Door Open (Main Relay, 2
nd
Door or 3
rd
Door)
2 # to Turn Output A OFF (2
nd
Output as Aux.)
3 # to Turn Output A ON (2
nd
Output as Aux.)
4 # to Turn Output B OFF (3
rd
Output as Aux.)
5 # to Turn Output B ON (3
rd
Output as Aux.)
○○○○○

11
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
!!
!!
!Tamper Alarm
An audible Tamper Alarm sounds when four incorrect code entries
are made. After 30 seconds, the unit returns to standby mode.
!!
!!
!Encoded Relay Module LED Status Indicators
Mode Green Red
Normal Operation On Off
Lockup Mode On Flashing
Setup Mode Flashing Off
Connection Problems Off On
!!
!!
!Operation Notes
Pressing the PROGRAM button on the Encoded Relay Module
(ERM) sets a new Encode Code (EC) between the ERM and the
Keypad and puts the Keypad into Programming Mode. If no further
programming is required, press * * to exit.
If the ERM receives more than three (3) invalid EC’s in a row, the
unit will go into LockUp Mode. Once in LockUp Mode, the unit is
essentially shut down and can only be restored to normal opera-
tion by pressing the PROGRAM button.
Upon communication loss or LockUp, all relays are released and
the Main Door latching is cleared if set. The Remote Bypass will
not work and the Keypad will be forced to Hi Security mode if
enabled. If communication is lost for more than 2 seconds, the unit
goes into LockUp Mode and can only be restored to Normal
Operation by pressing the PROGRAM button.

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
12
If communication is lost with the ERM or the ERM is in LockUp
Mode, the Keypad will indicate the problem by flashing the Red
LED very fast.
Since the Encode Code (EC) is only sent at the beginning of a
Latch Open sequence, this is the only time the unit knows if the
EC’s match. Upon a power up, both units will communicate with
each other and the second and third relays, remote bypass and
clock input will work normally. Upon the first attempt to send an
ERM packet with a non- matching EC, the device will be put into
the LockUp mode, and from that point, until a new EC is pro-
grammed, the unit will essentially be shut down.
Pressing the PROGRAM button while the unit has lost communi-
cation can cause the EC to be erased and will require an EC setup
upon re-establishing communication. For this reason, it is recom-
mended that the Keypad and the ERM be powered by the same
power supply so they are both powered up and down at the same
time.
When using Output B relay as an Alarm, and since the output is on
to indicate a Non-Alarm status, a loss of communication or invalid
EC will always create an alarm indication.

13
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
Using the KPX-34-ERM3
with a PC
!!
!!
!Connecting the KPX-34-ERM3 to a PC
Connect the ERM to a PC using a serial cable (not included)
through the Serial COM Port. (The KPX-34-ERM3 is set for 9600
baud.) A serial to USB cable may also be used (not included).
!!
!!
!Installing the CD-ROM
Install the "Essex EZKey Software" program from the enclosed
CD. The files will default to C:\Program Files\Essex\EZKey unless
otherwise re-directed.
○○○○

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
14
!!
!!
!Using Essex EZKey Programmer
Program Code
1. To add a code, double-click an empty line or click
and fill in the blanks. You can leave either the code or the
card number blank if only one form of ID is desired. See
Security Levels on page 6.
2. To delete, highlight the code line and click .
3. To change user options / authorizations, double-click the code
line.
When finished, save the code chart file in either protected or
unprotected format and upload to the KPX-34-ERM3. If
programming has been done at the Keypad, you can download
from the Keypad to a blank code chart (names are not stored
in the Keypad so they will be blank) or MERGE the Keypad
information with an existing code chart. If there are conflicts (e.g.,
two User Number 1’s), you will be asked to select a resolution.
Once complete, you will need to save the chart and upload to the
Click “Set Up” and select
appropriate options and
COM Port. Click “OK.” Enter
the Keypad Master Code
(DEFAULT 1,2,3) at the
bottom. In setup, default
setting is "Program Keypad
Only Mode". This must be
changed to "Program
Keypad / Prox Mode".

15
Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
Keypad to make sure they both agree. NOTE: If you save the
Keypad file with password protection, do not lose or forget the
password. It cannot be recovered.
Temporary Code
You can program one temporary code that will be good for up to
99 hours 59 minutes.
Configuration
You can GET the configuration that is in the Keypad or make your
own, then SET it into the Keypad.
!!
!!
!Essex EZKey Logger Software
Running this log will record all actions of the KPX-34-ERM3. You
can also print up to the last 500 transactions. The date and times
are taken from the computer, not the KPX-34-ERM3. The logger
will only record transactions when the ERM is connected to a
computer which is running the EZKey Logger software.
Set up
If BIND is blank, the log will only list the User Number along with
the action. If you BIND to an existing Keypad Program File (see
previous section), the user name will also be listed.
Select “Options” and “COM Port.”
Alarms
Loss of power- reported when power is restored.
Tamper Alarm- 4 incorrect code entries
Loss of communication between Keypad and ERM (Keypad
removed or broken connection).

Essex Electronics, Inc. | 805.684.7601 | 800.KEY-LESS | fax [phone] | keyless.com
16
Programming the KPX-34-ERM3
with the Keypad
1. Enter * 3
2. Enter the Master Code followed by #
Example: * 3 1 2 3 #
This opens programming and causes:
3. Proceed to one of the following eight programming options:
!Changing the Master Code (Default: 1,2,3)
a. Enter 1 #
b. Enter the New Master Code followed by #
c. Return to Step 3 or enter * * to exit programming.
Keypad Status After Step Completion
Step Beep Red LED Green LED
a Double Fast Flash Slow Flash
b Triple Fast Flash Solid
Note: If you forget the Master Code, locate and press the PROGRAM
button on the ERM board. This will take you to Step 3 of Programming
System Setup. Once you enter setup mode, you have 30 seconds to
begin the program sequence.
Red LED Green LED
Fast Flash Solid
○○○○○
To set up and program the system using the
Keypad, proceed as follows. The System
Setup can only be modified if you know the
Master Code. When the system is initially set
up, the default system settings should be
reviewed prior to other programming.
