ESTeem Edge 900 Service manual

Technical Bullen
Edge 900 Antenna Setup
ESTeem Industrial Wireless Solutions Specifications subject to change without notice
415 North Roosevelt Street Kennewick, WA 99336 www.esteem.com
Phone [phone] Fax [phone] Revised: 7 Dec 2020

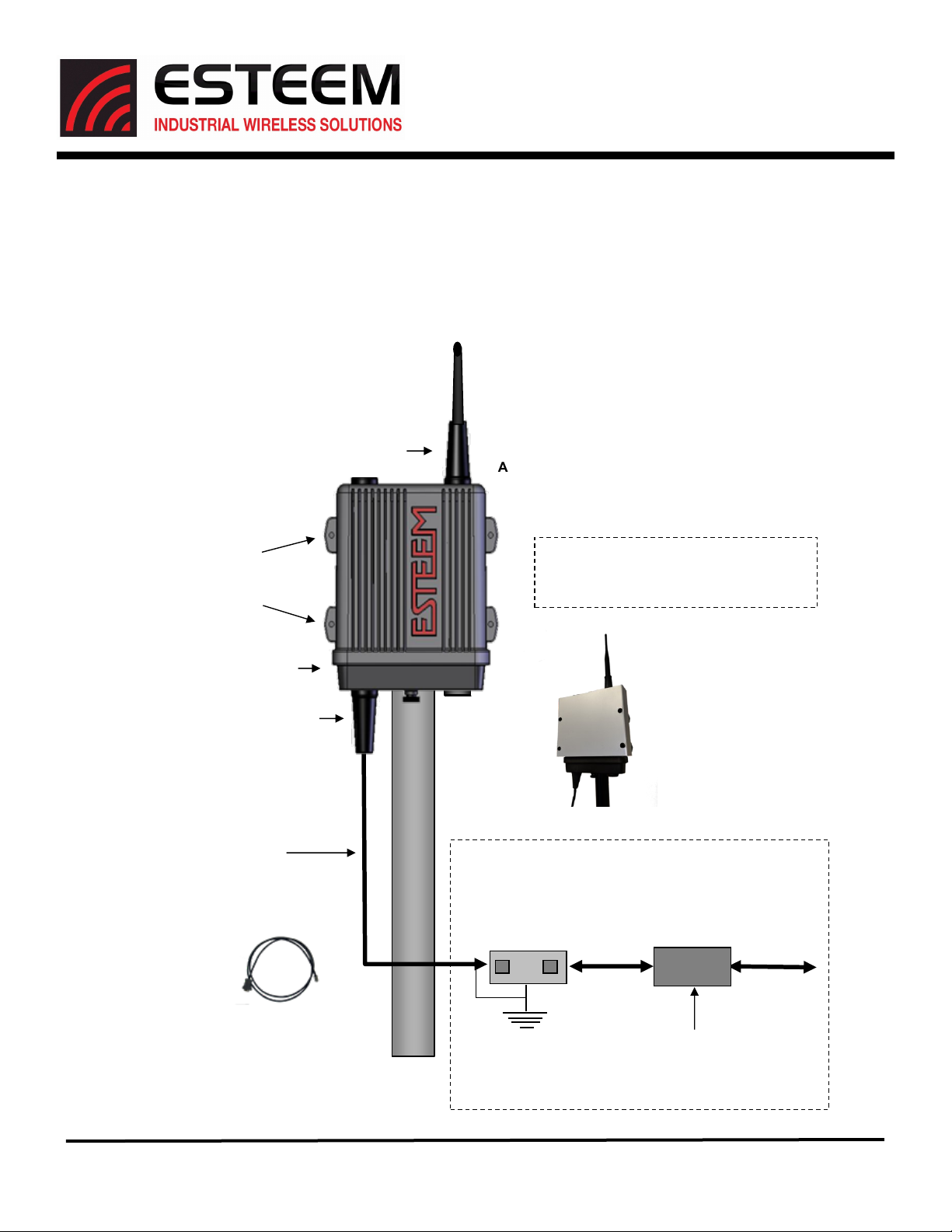

Edge 900
Direct Mount Antennas
w/Surge Protection
Antenna Port
RS-232
Programming
Interface Cable
(AA0621.1)
Omni-Directional Antenna
(AA20DMEs)
In Building
100-250 VAC
50-60 Hz
LAN
Interface
PoE+ Power Supply
(AA173)
Earth Ground
Ethernet Surge
Protection
(AA166)
Ethernet
Cable
(AA09.2)
Weatherproof
Front Cover*
Weatherproof Boot*
Pole Mounting Brackets*
(For 1.25” to 2.25” poles)
PoE Ethernet Cable
(AA09.1 - 300 ft. maximum)
Weatherproof Boot*
Fully Assembled
Pole Mount Kit
With included
Solar Shield
Direct Pole Mount
Pole Mounting Kit (AA195PM)
* Parts Included in Pole M ount Kit
Individual components not sold separately

Technical Bullen
Edge 900 Antenna Setup
ESTeem Industrial Wireless Solutions Specifications subject to change without notice
415 North Roosevelt Street Kennewick, WA 99336 www.esteem.com
Phone [phone] Fax [phone] Revised: 7 Dec 2020
Edge 900
Direct Mount Antennas
Serial Port w/Surge Protection
RS-232
Programming
Interface Cable
(AA0621.1)
Omni-Directional Antenna
(AA20DMEs)
Serial Interface Cable
(AA09.1 - 50 ft. maximum) Cable RS-232, RJ-45/DB9F
(AA0621.1)
RS-232C
Serial Interface Cable
In Building
100-250 VAC
50-60 Hz
LAN
Interface
Earth Ground
Ethernet Surge
Protection
(AA166)
Ethernet
Cable
(AA09.2)
Weatherproof
Front Cover*
Weatherproof Boot*
Pole Mounting Brackets*
(For 1.25” to 2.25” poles)
PoE Ethernet Cable
(AA09.1 - 300 ft. maximum)
Weatherproof Boot*
PoE+ Power Supply
(AA173)
Fully Assembled
Pole Mount Kit
With included
Solar Shield
Direct Pole Mount
Pole Mounting Kit (AA195PM)
* Parts Included in Pole M ount Kit
Individual components not sold separately

Technical Bullen
Edge 900 Antenna Setup
ESTeem Industrial Wireless Solutions Specifications subject to change without notice
415 North Roosevelt Street Kennewick, WA 99336 www.esteem.com
Phone [phone] Fax [phone] Revised: 7 Dec 2020

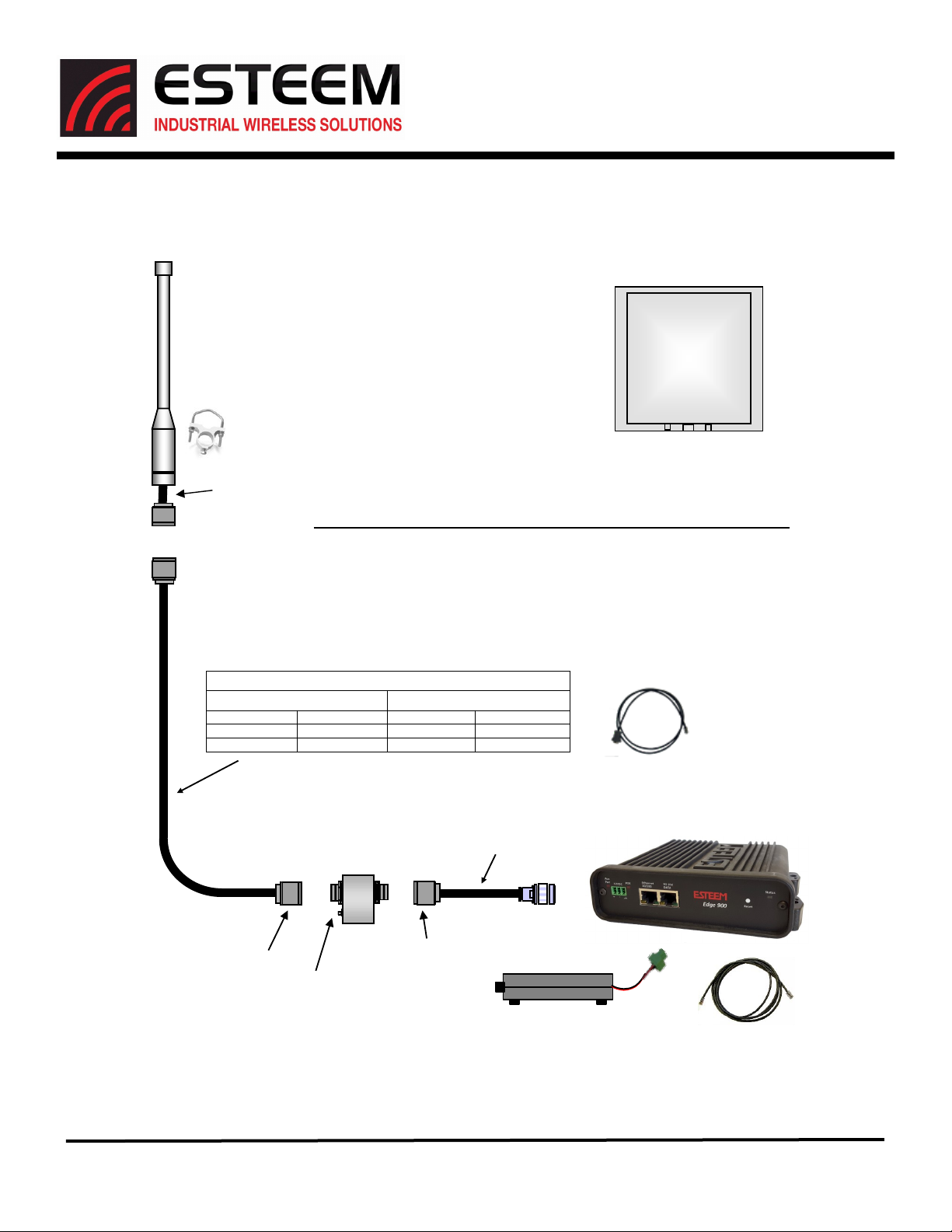

TNC-RP
Male Connector
Lightning Arrestor
(AA161)
Coax Cable
(AA230LMR)
Edge 900
Enclosure Mounting
N-Male
Connector
N-Male
Connector
Attached earth ground
to mounting lug
NOTES
1. Vapor wrap all external antenna coax connections with vinyl wrap (AA241).
2. Contact ESTeem for recommendations regarding antenna mounting
hardware and installation tips.
3. Ground antenna structure, base and lightning arrestor.
N-male
Omni-Directional Antenna
(AA20Es900N)
Pole Mounting
bracket included
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 20 cm
must be maintained between
the antenna and all persons.
Antenna Feedline Recommendations
Antenna Part No.
Feedline Type
AA20Es900N
AA206Es900N
< 25 ft. Length
RG-8
AA240RG8
AA237
> 25 ft. Length
Heliax
AA240
AA236
RS-232
Interface Cable
(AA0621.1)
N-Female
16 in. pigtail
12 VDC Power
Recommendations
Power Supply AA179
Battery Packs
Solar Power
Ethernet
Interface Cable
Directional Panel Antenna
(AA206Es900N)
N-Female Connector

Technical Bullen
Edge 900 Antenna Setup
ESTeem Industrial Wireless Solutions Specifications subject to change without notice
415 North Roosevelt Street Kennewick, WA 99336 www.esteem.com
Phone [phone] Fax [phone] Revised: 7 Dec 2020

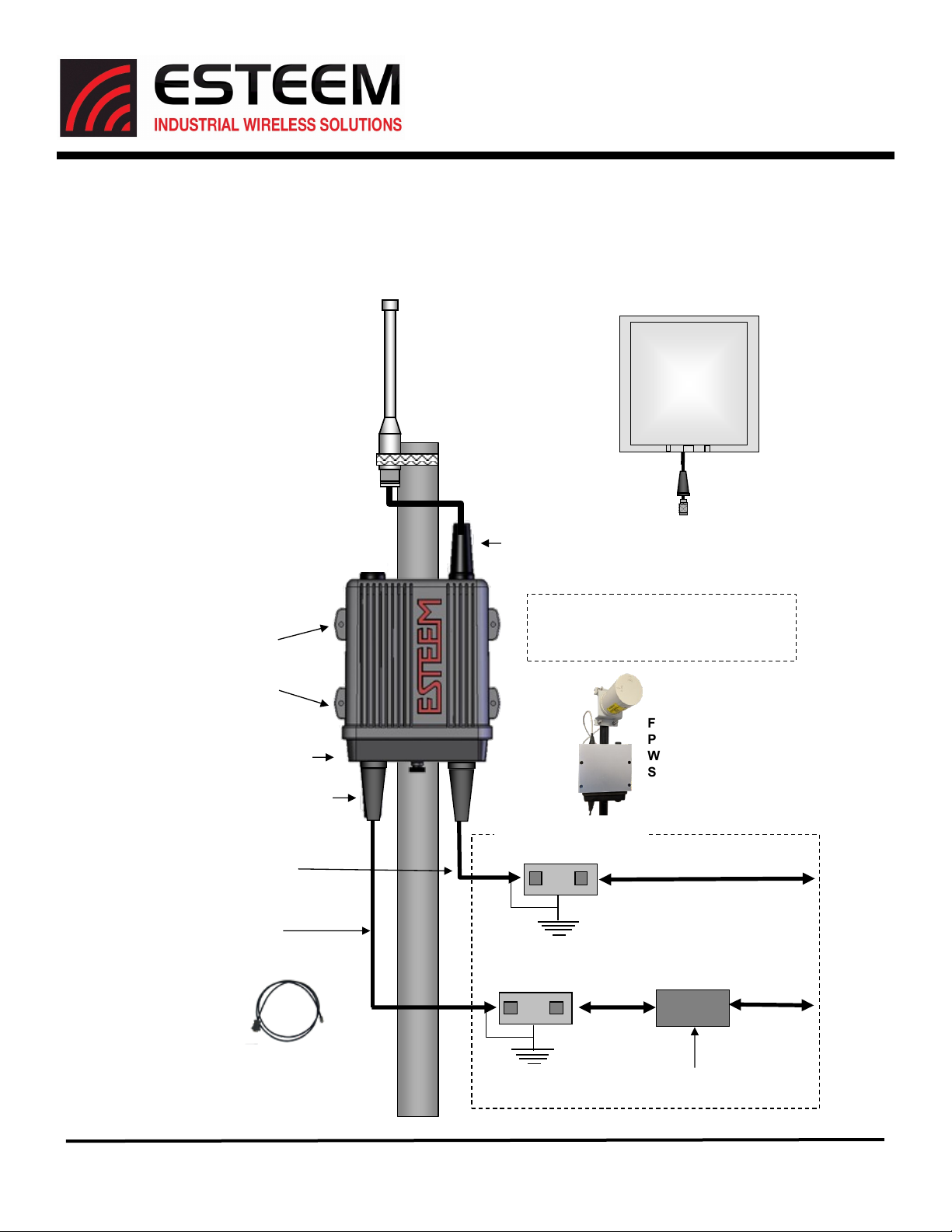

Edge 900
External Mount Antenna
w/Surge Protection
Omni-Directional Antenna
(with 16 in. pigtail)
(AA20Es900)
RS-232
Programming
Interface Cable
(AA0621.1)
In Building
100-250 VAC
50-60 Hz
LAN
Interface
PoE+ Power Supply
(AA173)
Earth Ground
Ethernet Surge
Protection
(AA166)
Ethernet Cable
(AA09.2)
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 20 cm
must be m aintained
between the antenna and
all persons.
Weatherproof
Front Cover*
Weatherproof Boot*
Weatherproof Boot*
Pole Mounting Brackets*
(For 1.25” to 2.25” poles)
PoE Ethernet Cable
(AA09.1 - 300 ft. maximum)
Fully Assembled
Pole Mount Kit
With included
Solar Shield
Direct Pole Mount
Pole Mounting Kit (AA195PM)
* Parts Included in Pole M ount Kit
Individual components not sold separately
Directional Panel
Antenna
(with 16 in. pigtail)
(AA206Es900)
Weatherproof
Boot

Technical Bullen
Edge 900 Antenna Setup
ESTeem Industrial Wireless Solutions Specifications subject to change without notice
415 North Roosevelt Street Kennewick, WA 99336 www.esteem.com
Phone [phone] Fax [phone] Revised: 7 Dec 2020
Edge 900
External Mount Antenna
Serial Port w/Surge Protection
Omni-Directional Antenna
(with 16 in. pigtail)
(AA20Es900)
Serial Interface Cable
(AA09.1 - 50 ft. maximum)
Cable RS-232, RJ-45/DB9F
(AA0621.1)
RS-232C
Serial Interface Cable
RS-232
Programming
Interface Cable
(AA0621.1)
In Building
100-250 VAC
50-60 Hz
LAN
Interface
PoE+ Power Supply
(AA173)
Earth Ground
Ethernet Surge
Protection
(AA166)
Ethernet Cable
(AA09.2)
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 20 cm
must be maintained
between the antenna and
all persons.
Weatherproof
Front Cover*
Weatherproof Boot*
Pole Mounting Brackets*
(For 1.25” to 2.25” poles)
PoE Ethernet Cable
(AA09.1 - 300 ft. maximum)
Weatherproof Boot*
Fully Assembled
Pole Mount Kit
With included
Solar Shield
Direct Pole Mount
Pole Mounting Kit (AA195PM)
* Parts Included in Pole M ount Kit
Individual components not sold separately
Directional Panel
Antenna
(with 16 in. pigtail)
(AA206Es900)
Weatherproof
Boot
