ETC CS-808 User manual

CS-808/812
Administration & Setup Guide
188 Norwich Ave, Colchester, CT 06415
[phone]
www.essentialtradingsystems.com

CS-812 Administration and Set Up Guide Page 2Essential Trading Systems Corp.
Table of Contents
1.0 Product Overview ........................................................................................................................................4
1.1 Product Description .................................................................................................................................4
1.2 Product features.......................................................................................................................................4
2.0 Administration...............................................................................................................................................5
2.1 Login ..........................................................................................................................................................5
2.2 System Settings .......................................................................................................................................6
2.4 System Information Page ......................................................................................................................8
2.5 Networking Page.....................................................................................................................................9
2.6 SIP Configuration Page .......................................................................................................................10
2.7 DTMF Steering Page................................................................................Error! Bookmark not defined.
2.8 LMR / EIA Tone Settings .....................................................................................................................15
2.9 Audio Settings Page..............................................................................................................................16
2.10 Management page.................................................................................. Error! Bookmark not defined.
2.11 Update Firmware ...................................................................................................................................17
2.12 Diagnostics Page..................................................................................................................................19
3.0 Frequently Asked Questions....................................................................................................................20
4.0 Appendix .....................................................................................................................................................21
4.1 Specifications .........................................................................................................................................21
4.2 Syslog Messages......................................................................................Error! Bookmark not defined.
5.0 CS-812 Limited Warranty .........................................................................................................................22
Revised – May 2023, for firmware version 1.0.16, release date – 5/23/2022
AG

CS-812 Administration and Set Up Guide Page 3Essential Trading Systems Corp.
Release notes:
5/23/2022 Ver 1.0.16 Incoming Audio Indication Delay introduced
4/25/2022 Ver 1.0.12 Headset Only mode introduced
2/1/2022 Ver 1.0.7 Initial release firmware
REMAINDER OF THIS PAGE LEFT BLANK INTENTIONALLY

CS-812 Administration and Set Up Guide Page 4Essential Trading Systems Corp.
1.0 Product Overview
1.1 Product Description
The CS-812 is a Twelve-channel console capable of simultaneously connecting either SIP, Multicast
or Unicast channels.
1.2 Product features
•Display – Provides information such as date and time, network connectivity, PTT status,
channel information as defined by administrator and other device status indicators.
•Volume Control / PTT button – Each channel has an individual volume control so users can
set levels to their liking. Users can PTT on desired channel by pressing and holding down the
channel’s volume knob.
•Loudspeaker – Each CS-812 is equipped with a built-in loudspeaker. Administrators have
access to master volume control via web page configuration. Users can adjust volume for
each channel with the volume control knob. Audio for all Channels is mixed in the speaker.
•F1-F4 Buttons – These buttons have been added to provide expanded capability of the device.
These buttons can be used for numerous different functions such as DTMF steering, EIA
Tones, Group call etc.
•Handset or Headset – The CS-812 can be equipped with the option to connect either a mono
headset or PTT handset. An RJ-25 (6-wire) jack located on the back of the device can be
universally used for either PTT handset or Mono headset with appropriate adapter cable.See
Specifications in this manual for pinout.
•Footswitch – The CS-812 can be equipped with an optional foot switch for PTT activation.
Footswitch will connect to the handset port on back of unit. Pins 1 & 6 are used for contact
closure input to activate PTT.
•Gooseneck Mic – The CS-812 is typically equipped with a close talking gooseneck
microphone.

CS-812 Administration and Set Up Guide Page 5Essential Trading Systems Corp.
2.0 Administration
2.1 Login
The CS-812 is configured via web portal. CS-812’s ship, default, set to DHCP. Upon connection to
appropriate network the device will automatically acquire an IP address.This address will be
indicated on the device’s display during boot up.
ETC recommends using Chrome or Firefox to ensure best browsing experience. IE9 and above can
be used as well.
Once the IP address has been determined, open a browser, and type the IP address of the CS-812
into the URL bar of the browser and press enter. The CS-812 Login screen is shown in Figure 1.
Default Username is: admin, default password is: admin. Upon logging in, administrative login
credentials can be changed to ensure security of system configuration.
Figure 1

CS-812 Administration and Set Up Guide Page 6Essential Trading Systems Corp.
2.2 System Settings
After logging in, you are brought to the Home page. See Figure 2.
Figure 2
Admin Password Change – The administrator password can be changed from any screen by pressing
the icon highlighted on figure 2b below.
Figure 2b

CS-812 Administration and Set Up Guide Page 7Essential Trading Systems Corp.
2.3 Menu Options
The menu selections are displayed as tabs across the left side of the web page. Each section will
be explained in more detail later in the guide. Figure 3 shows the options available.
Figure 3
•System Information – This page displays device information and administrator definable
fields for device name.
•Networking – This page allows the administrator to configure network settings for the device.
•Channels – This page allows the administrator to configure each of the lines/channels.
•DTMF Steering – This page allows the administrator to multiple names & DTMF codes on a
per channel basis for steering radio systems to use different frequencies/channels for
communication between the CS-812 and mobile radios.
•LMR – This page allows the administrator to enable and set EIA Tones for each channel
•Audio – This page allows the administrator to set master volume & mic gain as well as display
brightness/contrast. Other feature settings are accessible from this page.
•Update Firmware – This page allows the administrator to upgrade device firmware as well as
upload .wav file for the man down function alert.
•Diagnostics – This page allows the administrator access to numerous diagnostic tools such
as logging and network packet capture.
•About – This page displays general information about the device and manufacturer.
•Logout – Lets the administrator log off from the web portal

CS-812 Administration and Set Up Guide Page 8Essential Trading Systems Corp.
2.4 System Information Page
The System Information page displays pertinent information about the device such as IP address,
serial number, firmware version etc.Additionally, there is a Device Name field which the
administrator may use to identify the specific device.See Figure 4 below.
Figure 4
•Device Name – Enter any alpha-numeric sequence to uniquely identify the device.
Upon making changes you must click Save Configuration if making additional changes on other
pages or click Save Configuration & Reload to save & activate the changes. These buttons are
located at the bottom of the page. See figure 4b.
Figure 4b

CS-812 Administration and Set Up Guide Page 9Essential Trading Systems Corp.
2.5 Networking Page
The Network Settings page allows the administrator to configure the device with a static IP address
or configure using DHCP.Device is default DHCP, and IP address will be indicated on the display
during boot up. See Figure 5 below.
Figure 5
•IP Address –Enter static IP address for the gateway.In DHCP mode, device will default to
192.168.0.240 in the event it cannot retrieve an address from a DHCP Server.
•Subnet Mask –Enter the Subnet Mask for the gateway.
•Default Gateway –Enter the Default Gateway for the gateway.
•NTP Server –Enter IP or DNS name of NTP (Network Time Protocol) Server. If left blank device
will not poll for time/date.
•DNS Server 1 –Enter the IP address of the primary DNS server if DNS will be utilized.
•DNS Server 2 –Enter the IP address of the secondary DNS server if DNS will be utilized.
•STUN Server –Enter IP address of STUN Server. Needed for firewall penetration.
•DSCP/QoS –Click drop down to select Default Forwarding or Expedite Forwarding. Expedite
Forwarding tags RTP packets with DSCP bits 46 (EF). Default Forwarding does not tag RTP
packets. CS-812’s are shipped factory set to Default Forwarding.
•Send RTP Keep Alive– Allows administrator to enable or disable RTP keep Alive depending on
requirements of SIP server/conference bridge. - REMOVE
•Send RTCP Keep Alive – Allows administrator to enable or disable RTCP keep Alive depending
on application requirements.
When finished entering IP information click the Save Configuration & Reload button at bottom of screen.
Once finished with the reload, click the Reboot button.
Rebooting is required after making device IP address changes.

CS-812 Administration and Set Up Guide Page 10 Essential Trading Systems Corp.
2.6 Channels
This configuration page allows the administrator to configure the respective multicast/SIP channels
or lines of the device.Lines/channels can be set for different modes of operation, turned on or off,
etc., depending on specific application needs. Each channel (N1-N12) is configured in a separate
channel tab. See Figure 6 below for SIP channel more, Figure 8 for Multicast channel mode and
Figure 9 for Unicast channel mode).
SIP Channel Mode
Figure 6
•Enable RTP Unicast Mode–Allows the administrator to switch between multicast and unicast
channels. Unicast mode is explained further in Unicast Channel mode section on page 14.
•Enabled - Allows the administrator to turn on / off the respective channel/line.
•Channel Name – This field allows the administrator to assign a name to the respective channel.
This name will be displayed on the device. It is recommended that the name does not exceed
10 characters.

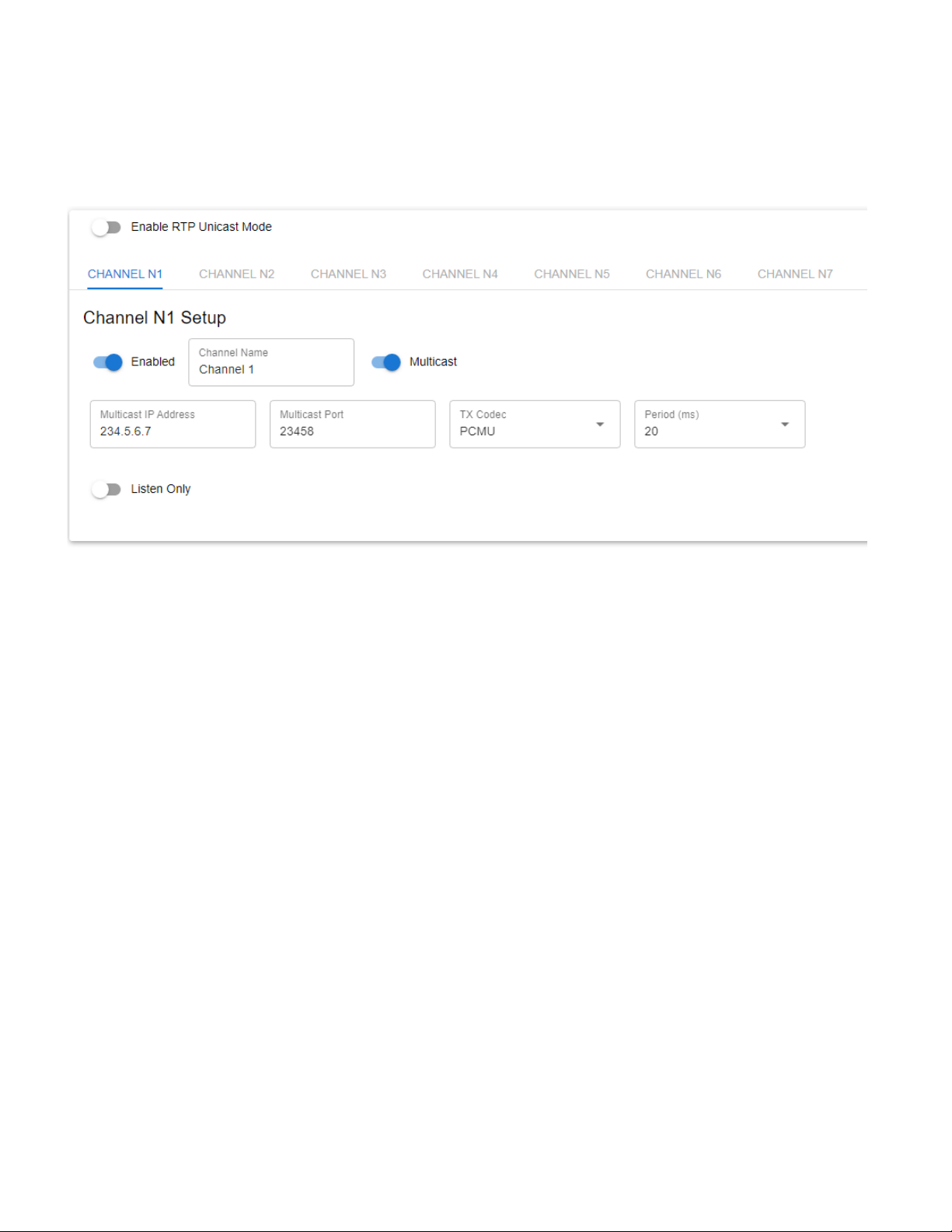

•Multicast – Allows the administrator to switch the channel for Multicast/Unicast
•SIP Server –This field allows the administrator to input the address of the SIP Server to which
the device will register. Can be either DNS name or IP address. Each channel can be configured
to register with a different SIP Server if desired.
•SIP Server 2 –This field allows the administrator to input the IP address of a backup SIP server
in the event the primary is not available.
•SIP User –This field allows the administrator to assign an extension or SIP identifier for
registration.
•SIP Password –This field allows the administrator to assign the SIP Password for registration.
•Number to Dial –This field allows the administrator to assign an extension the device will dial.

CS-812 Administration and Set Up Guide Page 11 Essential Trading Systems Corp.
Channels cont.
•Reg/Fail Timeout –These fields allow the administrator to set the time span, in seconds, for re-
registration and registration fail of the channel to the SIP server.
•RTCP Timeout –This field allows the administrator to set the time span, in seconds, in which the
device will drop an active call after RTCP packets are no longer present.
•Listen Only –Allows administrator to set a specific channel for listen only mode.
•Auto Answer –If checked this option sets the device to automatically answer an incoming call to
the respective channel as assigned in the SIP User field. This option only becomes available
with specific ‘modes.’
•No PBX –Allows for a channel to operate without registering to SIP server/proxy
•Secure – Turns on TLS encryption for SIP handshaking and uses SRTP for audio encryption.
•PTT DTMF * # - Enables device to output, “in-band” DTMF * when PTT button is pressed and
DTMF # upon release of PTT.
•Auto-answer–Selecting this mode instructs the device to automatically answer all incoming calls
on this channel
•Autodial – Selecting this mode instructs the device to automatically connect to the
extension/number, as defined in the Number to Dial field immediately upon boot up.
•RTP Keep Alive –Allows administrator to enable or disable RTP keep Alive depending on
requirements of SIP server/conference bridge. - REMOVE
•RTCP Keep Alive – Allows administrator to enable or disable RTCP keep Alive depending on
application requirements.
•Man Down –Allow administrator to enable/disable the Man Down Alert feature. This feature
provides a visual and audible (alert tone file may be uploaded in the Update Firmware section)
alert upon receiving DTMF “911” code. Two sets of relays on the back of the device provide
contact closure upon receiving the man down code for third party alarming options (ex.
loudspeaker, strobe light etc.). Operator may clear the code by pressing the F4 button. Upon
clearing of the alert by the operator an automatic Answer Tone is transmitted. Once Man Down
feature is enabled an Answer Tone Frequency and Answer Tone Delay may be configured
oAnswer Tone Frequency – Allows the administrator to configure answer tone frequency
(300Hz to 3400Hz range)
oAnswer Tone Delay - Allows the administrator to configure the delay between clearing of
an alarm by the operator and automatic transmission of the Answer Tone (300ms-
1500ms).
Figure 7

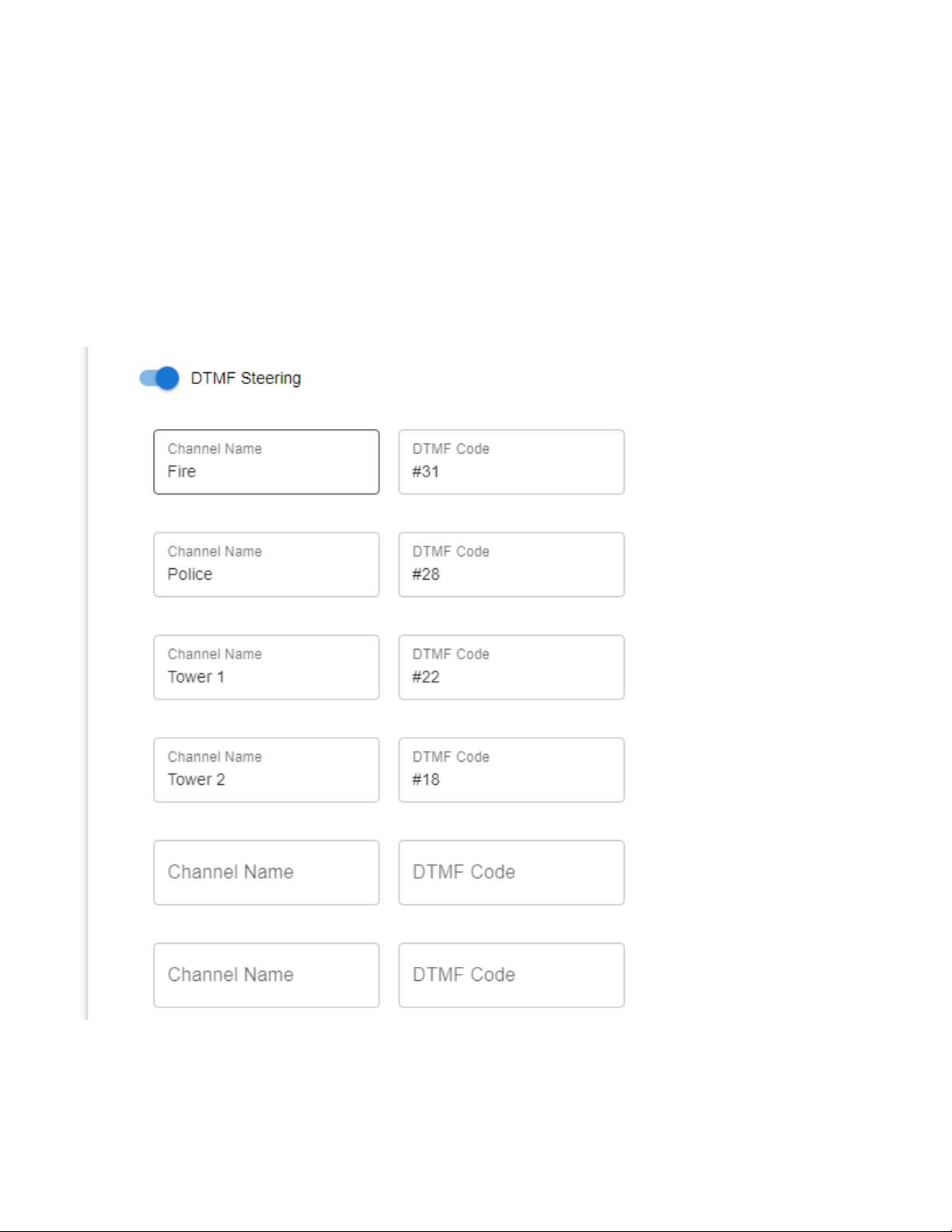

•DTMF Steering Enable – The CS-812 can output DTMF codes on a per channel basis for the
purpose of “steering” radio systems to use different frequencies/channels for communication
with mobile radios. Selecting this option will activate the DTMF Steering tab to allow an
administrator to input the desired Radio ID’s and DTMF for each channel of the CS-812. This
feature is further explained on page 15.

CS-812 Administration and Set Up Guide Page 12 Essential Trading Systems Corp.
Multicast Channel Mode
Figure 8
•Enabled -Allows the administrator to turn on / off the respective channel/line.
•Channel Name – This field allows the administrator to assign a name to the respective channel.
This name will be displayed on the device. It is recommended that the name does not exceed
10 characters.
•Multicast – Allows the administrator to switch the channel for SIP
•Multicast IP Address - Allows the administrator to enter valid multicast addresses for the
respective channels.
•Multicast Port - This field allows the administrator to assign ports associated with each channel
multicast address. Note: ETC highly recommends using different and even number ports for
each of the multicast channels. This ensures compatibility with other 3rd party VoIP applications.
•TX Codec –This field allows the administrator to assign the CODEC to be used by each channel.
Selections are: PCMU (G.711 uLaw), PCMA (G.711 ALaw) & G.729
•Period (ms) – Allows the administrator to choose packet size (10ms, 20ms or 30ms).
•Listen Only –Allows administrator to set a specific channel for listen only mode.

CS-812 Administration and Set Up Guide Page 13 Essential Trading Systems Corp.
Unicast Channel Mode
Figure 9
•Enabled -Allows the administrator to turn on / off the respective channel/line.
•Channel Name – This field allows the administrator to assign a name to the respective channel.
This name will be displayed on the device. It is recommended that the name does not exceed
10 characters.
•Multicast – Allows the administrator to switch the channel for SIP
•Unicast IP Address - Allows the administrator to enter destination IP addresses for the respective
channel. Channels can be configured to use the same IP address if needed.
•Unicast Destination Port - Allows the administrator to enter the destination port of the channel
on which unicast traffic will be sent.
•Unicast Listen Port - Allows the administrator to enter the listen port of the channel on which
unicast traffic will be received.
•TX Codec –This field allows the administrator to assign the CODEC to be used by each channel.
Selections are: PCMU (G.711 uLaw), PCMA (G.711 ALaw) & G.729
•Period (ms) – Allows the administrator to choose packet size (10ms, 20ms or 30ms)
•Listen Only –Allows administrator to set a specific channel for listen only mode.

CS-812 Administration and Set Up Guide Page 14 Essential Trading Systems Corp.
Unicast Channel Mode cont.
DTMF Steering – The DTMF Steering section allows an administrator to configure multiple radio ID’s
and DTMF codes for each channel as indicated in Figure 8 below. These Radio ID’s will be indicated
on the CS-812 display for each channel. The first Radio ID in each channel column will be displayed
upon save and reload.
Users can select a different Radio Channel by pressing the F1 button on front of the CS-812 which
will trigger any channels configured for DTMF Steering to flash, rotate the respective channel volume
knob to scroll through Radio IDs until desired ID is found then press F1 to activate. When PTT is
pressed on a respective channel, DTMF codes will be sent to the called destination as configured.
Depending on application, this also works with DTMF * # option.
Figure 10

CS-812 Administration and Set Up Guide Page 15 Essential Trading Systems Corp.
2.7 LMR / EIA Tone Settings
The LMR Settings page allows the administrator to enable and configure Land Mobile Radio EIA
tones for each channel of the CS-812
Figure 11
•EIA Tone Remote Enable –Checking this box enables the EIA Tone Remote feature within the
CS-812.
•PTT Active 2175 Hz –The user definable filed just to the right allows the administrator to set
the duration, in milliseconds, of the initial PTT tone. Anytime PTT on a CS-812 is pressed the
device will send a 2175Hz HLGT tone at 0dB for the duration specified.
•Function Tones F1-F17 – These fields allows the administrator to set a name for each of the
EIA tone frequencies. These names will be displayed on the respective channels of the CS-
812.The user will press and release the F1 button then press the respective channel PTT
button to scroll through any configured tones then press and release the F1 button again to
set. When the user presses the PTT button the device will send the respective Tone to the
radio system. During the entire PTT transmission, a 2175Hz Hold Tone is transmitted at -30db.
The following table is a quick reference of the respective tones:

CS-812 Administration and Set Up Guide Page 16 Essential Trading Systems Corp.
2.9 Audio Settings Page
The Audio Settings page allows the administrator to adjust specific device properties not covered in
other configuration pages such as master volume settings and other feature settings. See Figure
10.
Figure 12
•Channel VU’s – Allows the administrator to look at channel activity of all 12 channels.
•Audio Settings – Allows the administrator to adjust master speaker volume & microphone gain of
device. Speaker & microphone level meters are provided as simple diagnostic tools to confirm
if the device is working properly. Master volume level and Mic Volume are default to set to 80.
•Test Speaker –Pressing this button plays a test message on the device.
•Start Announcement – If this box is checked the device will play a message indicating it is being
restarted any time the device experiences a reload or reboot.
•Use VAD – If this box is checked the device will stop producing RTP audio packets after 6
seconds of no voice while PTT is pressed. If unchecked, the device will continuously produce
RTP audio packets when PTT is pressed even if the user is still speaking.
•PTT Mutes Speaker – If this box is checked the speaker will be muted when PTT is pressed on
any channel. If unchecked the device is in full duplex mode on respective PTT channel.
•Headset Only – Checking this box enables the use of a headset without a PTT button. All PTT
operation is done with the PTT knobs.
•Footswitch – Checking this box enables use of a foot switch to activate PTT function of a selected
channel. In this mode the buttons on the front panel are used to select a channel for which the
footswitch will activate the PTT.
•Group Call -Enabling this feature allows the user to transmit (“Broadcast”) on 2 or more channels
at the same time. User presses the F1 button then presses each respective channel button to
select channels for ‘simulcast’ which will be indicated by a check mark next to each selected
channel name. When done selecting channels, user simply presses the volume knob/PTT
button of one of the selected channels to transmit on all selected channels. Pressing F1 again
will exit the Group Select mode.
•RX Indication Delay (seconds) – Extends incoming audio indication by the number of configured
seconds.

CS-812 Administration and Set Up Guide Page 17 Essential Trading Systems Corp.
2.10 Handset/Headset Operation
The CS-812 console has the ability to connect either an ETC handset (TH-3) or a Mono headset through a
RJ-25 jack on the back of the device. Once a handset is connected the unit will show a “H” icon in the
status bar to indicate the unit is now in Handset or Headset mode.
To transmit on a specific channel, the operator needs to first select a channel by pressing the respective
Volume Control/PTT button (aka VCB). This channel will have a visual indication in a form of a checkbox.
User can now simply press the PTT button on the ETC Handset or the Headset Belt Pack PTT button to
transmit on the selected channel. The VCB can also be used to transmit on any channel including the
selected on using the gooseneck microphone.
PLEASE NOTE:
Incoming audio of the selected channel will go to the handset only for privacy of the conversation. All
other channels will still be transmitted out of the built-in speaker.
Shall the user want to receive all incoming audio on the built-in speaker the F3 button may be pressed to
disable the privacy function (selected channel incoming audio being routed to the Handset or Mono
Headset only). H->S symbol will be displayed on the status bar to indicate all audio is being routed to the
built-in speaker.
The operator can press the F3 button to reengage/toggle standard ETC Handset or Mono Headset
operation with privacy mode.
2.11 Update Firmware
The Update Firmware page allows an administrator to update firmware easily & quickly on a device.
From time-to-time ETC will send out firmware releases to fix bugs or add features. Simply click the
browse button and navigate to where the firmware file has been saved then click Update Firmware.
A pop-up window will appear indicating status of firmware update. See Figure 12.

CS-812 Administration and Set Up Guide Page 18 Essential Trading Systems Corp.
Figure 12
NOTE: AFTER UPDATING FIRMWARE YOU MUST (Shift F5) REFRESH YOUR BROWSER
WINDOW FOR NEW FEATURES TO BE DISPLAYED. Most browsers will cache previous
pages of the device and therefore a refresh must be performed after a firmware update.
Select Man down WAV File – Allows the administrator to upload a .wav file to be used as the Man
Down Audible Alert Tone.

CS-812 Administration and Set Up Guide Page 19 Essential Trading Systems Corp.
2.12 Diagnostics Page
The Diagnostics page has been provided to allow an administrator access to troubleshooting tools
such as Activity Log. These tools will be useful in providing ETC information specific to the device
to aid in diagnosing problems. See Figure 13.
Figure 13
•Download Configuration – Allows administrator to download the devices configuration
information to a PC or server.File format is .conf and is readable with Notepad or equivalent.
•Upload Configuration – Uploads the selected configuration file
•Browse –Allows administrator to find & select CS-812 configuration file for upload.
•Config File Upload –Uploads the selected configuration file.
•Packet Capture –Clicking this checkbox will start a packet capture on the device. A pop up will
indicate “uncheck box to stop packet capture”. When packet capture is stopped a pop up will
indicate “Press Download PCAP file button” to download the packet capture to your PC.
•Download PCAP File –Press this button to download the PCAP file after packet capture is
complete.
•Log Level –Allows administrator to set the logging level to capture event information for
troubleshooting purposes. Setting range is 1 (Error) to 5 (Trace). ETC recommends leaving
device at level 2-3 unless more in depth logging is requested by ETC Support.
•Download Logs – Click this button to download the log info to file on a PC or server. File format
is .conf which is readable with Notepad or equivalent.
•Status Bar Settings – Allows the administrator to adjust numerous options of the status bar
o24 Hours – Switches Time shown on the CS-812 between a 12-hour and 24-hour format.
oShow Date –Allows for the date to be shown/not shown
oShow Seconds -Allows for seconds to be shown/not shown
oTime Zone –Allows for setting the proper time zone

CS-812 Administration and Set Up Guide Page 20 Essential Trading Systems Corp.
3.0 Frequently Asked Questions
Q: What is the IP address of device?
A: When the device boots up the IP, Mask , Gateway, and MAC address are presented briefly on the
display. You can also press button 1 & 4 at the same time and IP address will be displayed on the device.
This also performs a soft reset of the device.
Q: How do I change the device IP?
A: Once the device has booted up and you have identified its IP address, open up a browser and browse to
the device’s IP address, Login and go to Network settings page to change the network settings.
Q: Channel is not registering?
A: Via device web page, check to make sure the respective channel is enabled and has the correct SIP
connection information i.e., SIP server IP, extension, password, etc.
Q: How do I change channel’s label?
A: Labels can be changed on each channel tab.
Q: IP address of device does not change?
A: The device requires a reboot after changing the IP address. A ‘Save & Reload’ does not activate IP
address changes.
Q: User reports unable to transmit?
A: Is user pressing PTT button for respective channel?
A: On the ‘Audio Settings’ web page is there any activity on the ‘Mic Energy’ meter, if yes, the physical
microphone is working.
A: Check Mic volume on device ‘Audio Settings’ webpage, should be at 50% or higher depending on the
user.
A: Is channel connected? Check status of the channel
Q: Audio received on device is choppy/garbled
A: Please check if the codec chosen by the SIP server is compatible with the CS-812 device. The list of
compatible codecs is in Specifications section of the CS-812 Admin Guide.
A: Please check with the network administrator to ensure a proper QOS policy is in place.
Q: Reports of single user transmitting louder/quieter than other users
A: Once you have identified the IP address of that user’s device, open a browser and browse to the device’s
IP address, Login and go to Audio settings to adjust the master microphone and speaker levels as needed.
