Yamaha M7CL-32 User manual

M7CL-32/M7CL-48
1
SERVICE MANUAL
DIGITAL MIXING CONSOLE
CONTENTS
SPECIFICATIONS ................................... 5
CONNECTOR PIN ASSIGNMENTS
................................ 10
PANEL LAYOUT ................... 11
DIMENSIONS ......................................... 17
CIRCUIT BOARD LAYOUT
........................................... 19
DISASSEMBLY PROCEDURE ............ 24
LSI PIN DESCRIPTION .............. 52
IC BLOCK DIAGRAM ................... 62
CIRCUIT BOARDS ........................ 67
INSPECTIONS .................................. 118/122
SERVICE CHECK PROGRAM
......................... 126/140
PROCEDURE TO CAPTURE SCREEN
............................. 154
INSTALLING an OPTION CARD.................. 155/156
USER SETTINGS (SECURITY) ............... 157/173
INITIALIZING THE M7CL’s INTERNAL MEMORY
........ 189/190
CALIBRATION FUNCTION ......................... 191/194
WARNING/ERROR MESSAGES ............... 197/199
MIDI IMPLEMENTATION CHART .......................201
MIDI DATA FORMAT .......................................... 202
PARTS LIST
BLOCK DIAGRAM
OVERALL CONNECTOR CIRCUIT DIAGRAM
CIRCUIT DIAGRAM
MBM7CL PARTS LIST
MBM7CL BLOCK DIAGRAM
MBM7CL CIRCUIT DIAGRAM
PSL360 PARTS LIST
M7CL-32: 20051101-2250000
M7CL-48: 20051101-2750000
MBM7CL: 20051101-130000
PSL360: 20051101-オープンプライス
METER BRIDGE
MBM7CL
POWER SUPPLY LINK CABLE
PSL360
OPTION
PA 011804
Copyright (c) Yamaha Corporation. All rights reserved. PDF ’05.11
HAMAMATSU, JAPAN
•M7CL-32
•M7CL-48
M7CL-48/MBM7CL
（目次）
（ 総合仕様 ）
（コネクターピンアサイン表）
（パネルレイアウト）
（寸法図）
（ユニットレイアウト） （分解手順）
（LSI端子機能表）
（ICブロック図）
（シート基板図）
（検査）
（サービス検査プログラム）
（スクリーンショットの手順）
（オプションカードの取り付け）
（ユーザー設定（セキュリティ））
（M7CLの内蔵メモリーを初期化する）
（キャリブレーション機能）
（ワ−ニング/エラーメッセージ）
（ブロックダイアグラム）
（総コネクタ接続回路図）
（回路図）
（ブロックダイアグラム）
（回路図）
（オプション）

M7CL-32/M7CL-48
2
LITHIUM BATTERY HANDLING
This product uses a lithium battery for memory back-up.
WARNING : Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions
when handling or replacing lithium batteries.
Leave lithium battery replacement to qualified service personnel.
Always replace with batteries of the same type.
When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
Never reverse the battery polarities when installing.
Do not short the batteries.
Do not attempt to recharge these batteries.
Do not disasemble the batteries.
Never heat batteries or throw them into fire.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. levér det brugte batteri tilbage
til leverandren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin.
Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES.
• Please refer to the diassembly procedure for the removal of Back-up Battery.
• Leest u voor het verwijderen van de backup batterij deze beschrijving.
リチウム電池の取り扱い
＜注意＞
リチウム電池を誤って交換すると爆発する危険があります。交換する場合は、サービスマニュアルで指定された部品を使用して
ください。
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic
service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users,
and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise
all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in
specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated
by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause
cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/
flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。

M7CL-32/M7CL-48
3
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
WARNING:THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in this mains lead are coloured in accordance
with the following code:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in your
plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected to
the terminal in the plug which is marked by the letter E or by the safety
earth symbol or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured RED.
Take care not to trap your fingers.
USER LEVEL SETTINGS
User Level settings allow you to restrict the parameters that can be operated by each user, or to change the settings of user-defined keys and
preference settings for each user.Settings for each user can be stored as a “user authentication key” on a USB storage device, allowing users
to be switched easily, simply by connecting this storage device to a USB connector.This is convenient in the following situations.
• Unintended or mistaken operation can be prevented.
• The range of functionality operable by an outside engineer (guest engineer) can be limited.
• In situations in which multiple operators alternate with each other, output settings etc.can be locked to prevent unintended operations.
• Preferences of each operator can easily be switched.
User settings may be stored by users.To service the device, get the USB storage device storing the "user authentic key" from the user.
BACKUP BATTERY
This device has a built-in backup battery. When you unplug the power cord from the AC outlet, the current scene data and
library data is retained.However, if the backup battery fully discharges, this data will be lost.When the backup battery is running
low, the LCD display indicates “Low Battery!” when you start up the system. (The Battery field indicates “LOW” or “NO” in the
SET UP screen.) In this case, immediately save the data to a USB storage device.
Be sure to
p
erform it
（作業中は指を挟まない様に注意してください。）
（ユーザーレベル設定）
ユーザーレベルを設定することにより、操作できるパラメーターをユーザーごとに制限したり、ユーザー定義キーやプリファレンス設定を
ユーザーごとに切り替えたりすることができます。ユーザーごとの設定は「ユーザー認証キー」としてUSB記憶装置にまとめて記憶してお
いて、これを USB端子に挿入することで簡単にユーザーを切り替えることができます。たとえば、以下のような場合に便利です。
･ 不用意な誤操作を防止できます。
･ 外部のエンジニア（ゲストエンジニア）が操作できる範囲を制限できます。
･ 複数のオペレーターが交代で操作する場合などに、出力設定をロックするなどして、誤操作を防止できます。
･ オペレーターごとに好みの設定に簡単に切り替えられます。
ユーザーがユーザーレベルを設定している場合がありますので、サービス実施時には、ユーザーから「ユーザー認証キー」を記憶してある
USB 記憶装置を借りてください。
（バックアップバッテリー）
この機器はバックアップバッテリーが内蔵されていますので、電源プラグがコンセントから外されても、電源を切ったとき
のカレントシーンデータやライブラリーデータは保持されます。ただし、バックアップバッテリーが消耗すると、カレント
シーンデータやライブラリーデータは消えてしまいます。バックアップバッテリーが消耗してくると、起動時にLow
Battery!と表示されます（SETUP画面の Battery欄でもバッテリーが消耗してくると LOWまたは NOと表示されます)。
その場合は、すぐにデータを USB記憶装置に保存してください。

M7CL-32/M7CL-48
4
M7CL-48
M7CL-32
MBM7CL (Option)

M7CL-32/M7CL-48
5
SPECIFICATIONS
1. General Specifications
Sampling Frequency Internal: 44.1 kHz, 48 kHz
External: 44.1 kHz (
- 10%) to 48 kHz (+6%)
Signal Delay Less than 2.5 ms INPUT to STEREO A,B (@Fs = 48 kHz)
Fader 100mm motorized x62 (46)
Fader Resolution +10 to
- 138, - ∞dB (1024 steps/100 mm)
Maximum Voltage Gain 86 dB INPUT1-48 to Each Output
Crosstalk (@1kHz)
- 80 dB Adjacent Input Channels (INPUT1-48,ST IN 1-4 [L,R],OMNI OUT 1-16)
Dimensions 1274 x 286 x 701 mm (W x H x D)
1060 x 286 x 701 mm (W x H x D)
Net Weight M7CL-48: 50 kg
M7CL-32:
M7CL-48:
M7CL-32:
M7CL-48:
M7CL-32:
42 kg
Power Requirements 300W
250W
Operation free-air Temperature Range +10˚C to + 35˚C
Storage Temperature Range
- 20˚C to + 60˚C
Included Accessories
Owner's Manual
3P/2P AC plug adaptpor (J model only)
Warranty Card (J model only)
Dust cover
Optional Accessories
mini YGDAI cards
Gooseneck Lamp LA5000
Power Supply PW800W
Power Supply Link Cable PSL360
2. Inputs/Outputs Characteristics
Input Terminals GAIN Actual Load
Impedance For Use With Nominal
Input Level Connector
Sensitivity *1 Nominal Max. Before
Clip
INPUT 1-48 <M7CL-48>
INPUT 1-32 <M7CL-32> –62 dB 3 kΩ50-600 ΩMics
&
600 ΩLines
–82 dBu
(61.6 µV) –62 dBu (0.616 mV) –42 dBu (6.16 mV) XLR-3-31 type
(Balanced)
*2
+10 dB –10 dBu
(245 mV) +10 dBu (2.45 V) +30 dBu (24.5 V)
ST IN1-4 [L,R] –62 dB 3 kΩ50-600 ΩMics
&
600 ΩLines
–82dBu
(61.6 µV) –62 dBu (0.616 mV) –42 dBu (6.16 mV) XLR-3-31 type
(Balanced)
*2
+10 dB –10 dBu
(245 mV) +10 dBu (2.45 V) +30 dBu (24.5 V)
TALKBACK –60 dB 3 kΩ50-600 ΩMics
&
600 ΩLines
–70 dBu
(0.245 mV) –60 dBu (0.775 mV) –40 dBu (7.75 mV) XLR-3-31 type
(Balanced)
*2
–16 dB –26 dBu
(38.8 mV) –16 dBu (0.123 V) +4 dBu (1.23 V)
• Analog Input Characteristics
*1. Sensitivity is the lowest level that will produce an output of +4 dBu (1.23 V) or the nominal output level when the unit is set to maximum gain. (all
faders and level controls are maximum position.)
*2. XLR-3-3 1 type connectors with latch are balanced. (1=GND, 2=HOT, 3=COLD)
* In these specifications, 0 dBu =0.775 Vrms.
* All input AD converters are 24bit linear,128 times oversampling.
* +48V DC (phantom power) is supplied to INPUT (1-48 or 1-32), ST IN 1-4R and TALKBACK XLR type connectors via each individual
software controlled switches.
• M7CL-32/M7CL-48
（総合仕様）
（一般仕様）
（入出力特性）

M7CL-32/M7CL-48
6
*1. XLR-3-32 type connectors are balanced. (1=GND, 2=HOT, 3=COLD)
*2. PHONES stereo phone jack is unbalanced. (Tip=LEFT, Ring=RIGHT, Sleeve=GND)
*3. There are switches inside the body to preset the maximum output level.
*4. The position of the level control is 10 dB lowered from Max.
* In these specifications, 0 dBu = 0.775 Vrms.
* All output DA converters are 24 bit, 128 times oversampling.
Output Terminals Actual Source
Impedance For Use With Nominal GAIN SW
*3
Output Level Connector
Nominal Max. Before Clip
OMNI OUT 1-16 75 Ω600 ΩLines +24 dB (default) +4 dBu (1.23 V) +24 dBu (12.28 V) XLR-3-32 type
(Balanced)
*1
+18 dB –2 dBu (616 mV) +18 dBu (6.16 V)
PHONES 15 Ω8 ΩPhones —75 mW
*4
150 mW Stereo PhoneJack(TRS)
(Unbalanced)
*2
40 ΩPhones 65 mW
*4
150 mW
• Analog Output Characteristics
• Digital Output Characteristics
*1. The channel status of 2TR OUT DIGITAL is described below.
*2. XLR-3-32 type connectors are balanced. (1=GND, 2=HOT, 3=COLD)
Terminal Format Data Length Level Connector
2TR OUT DIGITAL
*1
AES/EBU AES/EBU
Professional Use
*1
24 bit RS422 XLR-3-32 type (Balanced)
*2
• Channel Status of 2TR OUT DIGITAL
Byte Bit Field Name Fixed/Variable Data Description
0
0 Block Format
fixed
1 professional use
1 Mode 0 audio
2-4 Emphasis 0x4 off
5 Fs Lock 0 lock
6-7 Sampling Frequency variable
0x0 others
0x3 32 kHz
0x2 44.1 kHz
0x1 48 kHz
10-3 Channel Mode fixed 0x1 2ch mode
4-7 Users Bit Management 0x0 —
20-2 Use of AUX fixed 0x1 24 bits Audio Data
3-7 Source 0x00 —
3 0-7 Multi Channel fixed 0x00 —
4
0-1 Digital Audio Reference Signal fixed 0x0 —
2— 0
3-6 Sampling Frequency variable 0x0 others
7 Sampling Frequency Scan Flag fixed 0 —

M7CL-32/M7CL-48
7
• Control I/O Characteristics
*1. 4pin=HOT, 3pin=COLD, Lamp rating 5W, Voltage control by software
Terminal Format Level Connector
ETHERNET ETHERNET —RJ-45
MIDI IN MIDI DIN Connector 5P
OUT
WORD CLOCK IN —TTL/75 ΩBNC Connector
OUT TTL/75 Ω
REMOTE RS422 D-Sub Connector 9P (Male)
LAMP 1(32ch), 2(48ch) — 0 V – 12 V XLR-4-31 type
*1
USB HOST USB 1.1 — A type USB Connector
• SLOT 1-3 Characteristics
Card Name Function Input Output The Number Of
Usable Cards
MY8-AT ADAT 8 IN 8 OUT
3
MY8-TD TASCAM
MY8-AE AES/EBU
MY4-AD ANALOG IN 4 IN —
MY4-DA ANALOG OUT — 4 OUT
MY8-AD24 ANALOG IN 8 IN —
MY8-AD96
MY8-DA96 ANALOG OUT — 8 OUTMY8-AE96S AES/EBU 8 IN
MY8-AE96
MY16-AT ADAT 16 IN 16 OUTMY16-AE AES/EBU
MY16-TD TASCAM
MY16-C CobraNet ™ 16 IN 16 OUT
MY8-ADDA96 ANALOG I/O 8 IN 8 OUT
MY-16mLAN mLAN 16 IN 16 OUT
3. Electrical Characteristics
• Frequency Response
Fs= 44.1 kHz or 48 kHz @ 20 Hz–20 kHz, referenced to the nominal output level @1 kHz
Input Output RL Conditions Min. Typ. Max. Unit
INPUT 1-32 <M7CL-32>
INPUT 1-48 <M7CL-48> OMNI OUT 1-16 600 ΩGAIN: Max. –1.5 0.0 0.5
dB
PHONES 8 Ω–3.0 0.0 0.5
ST IN 1-4 [L, R] OMNI OUT 1-16 600 ΩGAIN: Max. –1.5 0.0 0.5
PHONES 8 Ω–3.0 0.0 0.5
All faders are nominal when measured. Output impedance of signal generator: 150ohms
（電気特性）

M7CL-32/M7CL-48
8
• Gain Error
Fs= 44.1 kHz or 48 kHz @1 kHz
• Total Harmonic Distortion
Fs= 44.1 kHz or 48 kHz
* Total Harmonic Distortion is measured with a 18 dB/octave filter @ 80kHz
• Hum & Noise
Fs= 44.1 kHz or 48 kHz, EIN= Equivalent Input Noise
* Hum & Noise are measured with a 6 dB/octave filter @ 12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave attenuation.
• Dynamic Range
Fs= 44.1 kHz or 48 kHz
* Dynamic range are measured with a 6 dB/octave filter @ 12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave attenuation.
• Sampling Frequency
Input Output RL Conditions Min. Typ. Max. Unit
INPUT 1-48 <M7CL-48>
INPUT 1-32 <M7CL-32> OMNI OUT 1-16 600 ΩInput Level : –62 dBu, GAIN: Max. 2.0 4.0 6.0
dBu
Input Level : +10 dBu, GAIN: Min.
ST IN 1-4 [L, R] OMNI OUT 1-16 600 ΩInput Level : –62 dBu, GAIN: Max. 2.0 4.0 6.0
Input Level : +10 dBu, GAIN: Min.
Internal OSC OMNI OUT 1-16 600 ΩFull Scale Output 23.5 24.0 24.5
PHONES 8 Ω–30 dBFs, PHONES Level Control: Max. –0.5 0 0.5
Input Output RL Conditions Min. Typ. Max. Unit
INPUT 1-48 <M7CL-48>
INPUT 1-32 <M7CL-32> OMNI OUT 1-16 600 Ω+4 dBu @20 Hz–20 kHz, GAIN: Max. 0.1
%
+4 dBu @20 Hz–20 kHz, GAIN: Min. 0.05
ST IN 1-4 [L, R] OMNI OUT 1-16 600 Ω+4 dBu @20 Hz–20 kHz, GAIN: Max. 0.1
+4 dBu @20 Hz–20 kHz, GAIN: Min. 0.05
Internal OSC OMNI OUT 1-16 600 ΩFull Scale Output @1 kHz 0.02
PHONES 8 Ω
Full Scale Output @1 kHz, PHONES Level Control: Max. 0.2
Input Output RL Conditions Min. Typ. Max. Unit
INPUT 1-48 <M7CL-48>
INPUT 1-32 <M7CL-32> OMNI OUT 1-16 600Ω
Rs= 150 , GAIN: Max.
Master fader at nominal level and –128 EIN
dBu
one Ch fader at nominal level. –62
Rs= 150 , GAIN: Min.
Master fader at nominal level and –84 –79
one Ch fader at nominal level.
All INPUTs <M7CL-32> OMNI OUT 1-16 600 ΩRs= 150 , GAIN: Min. Master fader at nominal level and all Ch 1-32 in faders at
nominal level. –62
All INPUTs <M7CL-48> OMNI OUT 1-16 600 ΩRs= 150 , GAIN: Min. Master fader at nominal level and all Ch 1-48 in faders at
nominal level. –64
— OMNI OUT 1-16 600 ΩResidual Output Noise, ST Master Off –86
— PHONES 8 ΩResidual Output Noise, PHONES Level Control Min. –86
Input Output RL Conditions Min. Typ. Max. Unit
INPUT 1-48 <M7CL-48>
INPUT 1-32 <M7CL-32> OMNI OUT 1-16 600 ΩAD + DA, GAIN: Min. 108 dB
ST IN 1-4 [L, R] OMNI OUT 1-16 600 ΩAD + DA, GAIN: Min. 108
— OMNI OUT 1-16 600 ΩDA Converter 110
Parameter Conditions Min. Typ. Max. Unit
External Clock Frequency Range 39.69 50.88 kHz
Internal Clock
Frequency Word Clock : Int 44.1 kHz 44.1
Word Clock : Int 48 kHz 48
Accuracy Word Clock : Int 44.1 kHz 50 ppm
Word Clock : Int 48 kHz
Jitter Word Clock : Int 44.1 kHz 5ns
Word Clock : Int 48 kHz

M7CL-32/M7CL-48
9
4. Other Functions
• Libraries
• Input Function
• Output Function
Output Port
Processor
Name Number Total
Scene Memory Preset 1 + User 300 301
Input EQ Library Preset 40 + User 159 199
Output EQ Library Preset 3 + User 196 199
Dynamics Library Preset 41 + User 158 199
Effect Library User 199 199
GEQ Library Preset 1 + User 199 200
Function Parameter
Phase Normal/Reverse
Attenuator –96 to +24 dB
HPF Slope= 12 dB/Oct
Frequency= 20 Hz to 600 Hz
4 Band Equal-
izer
Frequency= 20 Hz to 20 kHz
Gain= –18 dB to +18 dB
Q= 0.10 to 10.0
Low Shelving (Low Band)
High Shelving, LPF (High Band)
Type I/Type II
Insert Insert Point: Pre EQ/Pre Fader
Direct Out Direct Out Point: Pre HPF/Pre EQ
Dynamics 1
Type: Gate/Ducking/Comp/Expander
Threshold= –54 dB to 0 dB
Ratio= 1:1 to : ∞1
Attack= 0 msec to 120 msec
Hold= 0.02 msec to 1.96 sec
Decay= 5 msec to 42.3 sec (Release)
Releace= 5 msec to 42.3 sec
Range= –70 dB to 0 dB
Gain= –18 dB to 0 dB, 0 dB to +18 dB
Knee= Hard to 5 (soft)
Key In: Self Pre EQ/Self Post EQ/Mix Out 13-16
Ch 1-ST IN 4R (8ch block)
Key In Filter: HPF/LPF/BPF
Dynamics 2
Type: Comp/De-Esser/Compander H/Com-
pander S
Threshold= –54 dB to 0 dB
Ratio= 1:1 to : ∞1
Attack= 0 msec to 120 msec
Release= 5 msec to 42.3 sec
Gain= –18 dB to 0 dB, 0 dB to +18 dB
Knee= Hard to 5 (soft)
Key In: Self Pre EQ/Self Post EQ/Mix Out 13-16
Ch 1-ST IN 4R (8ch block)
Fader Level: 1024 steps, ∞, –138 dB to +10 dB
On On/Off
DCA Group 8 Groups
Mute Group 8 Groups
Mix Send
16 sends
Fix/Variable can be set each two mixes
Mix Send Point: Pre EQ/Pre Fader/Post On
Level: 1024 steps, ∞, –138 dB to +10 dB
Matrix Send 8 Sends Matrix Send Point: Pre EQ/Pre Fader/Post On
Level: 1024 steps, ∞, –138 dB to +10 dB
LCR Pan CSR= 0 % to 100 %
Function Parameter
Attenuator –96 to +24 dB
4 Band Equalizer
Frequency= 20 Hz to 20 kHz
Gain= –18 dB to +18 dB
Q= 0.10 to 10.0
Low Shelving (Low Band)
High Shelving, LPF (High Band)
Type I/Type II
Insert Insert Point: Pre EQ/Post EQ/Pre Fader/Post On
Dynamics 1
Type: Comp/Expander/Compander H/Com-
pander S
Threshold= –54 dB to 0 dB
Ratio= 1:1 to ∞:1
Attack= 0 msec to 120 msec
Release= 5 msec to 42.3 sec
Gain= –18 dB to 0 dB, 0 dB to + 18 dB
Knee= Hard to 5 (soft)
Key In: Self Pre EQ/Self Post EQ/Mix Out 13-16
MIX 1-16/MTRX 1-8/ST IN LR/MONO(C)
(8ch block)
Fader Level: 1024 steps, ∞, –138 dB to +10 dB
On On/Off
Mute Group 8 Groups
Mix to Matrix
Stereo to Matrix Matrix Send Point: Pre Fader/Post On
Level: 1024 steps, ∞, –138 dB to +10 dB
Oscillator Level= 0 to –96dB (1 dB step)
On/Off= Software control
Function Parameter
Out Port Delay 0 msec to 600 msec
Out Port Phase Normal/Reverse
Attenuator –96 to +24 dB
Function Parameter
GEQ 31 bands x 4(8) systems
Effects Stereo In/Stereo Out multi effector x 4 systems
（その他機能）

M7CL-32/M7CL-48
10

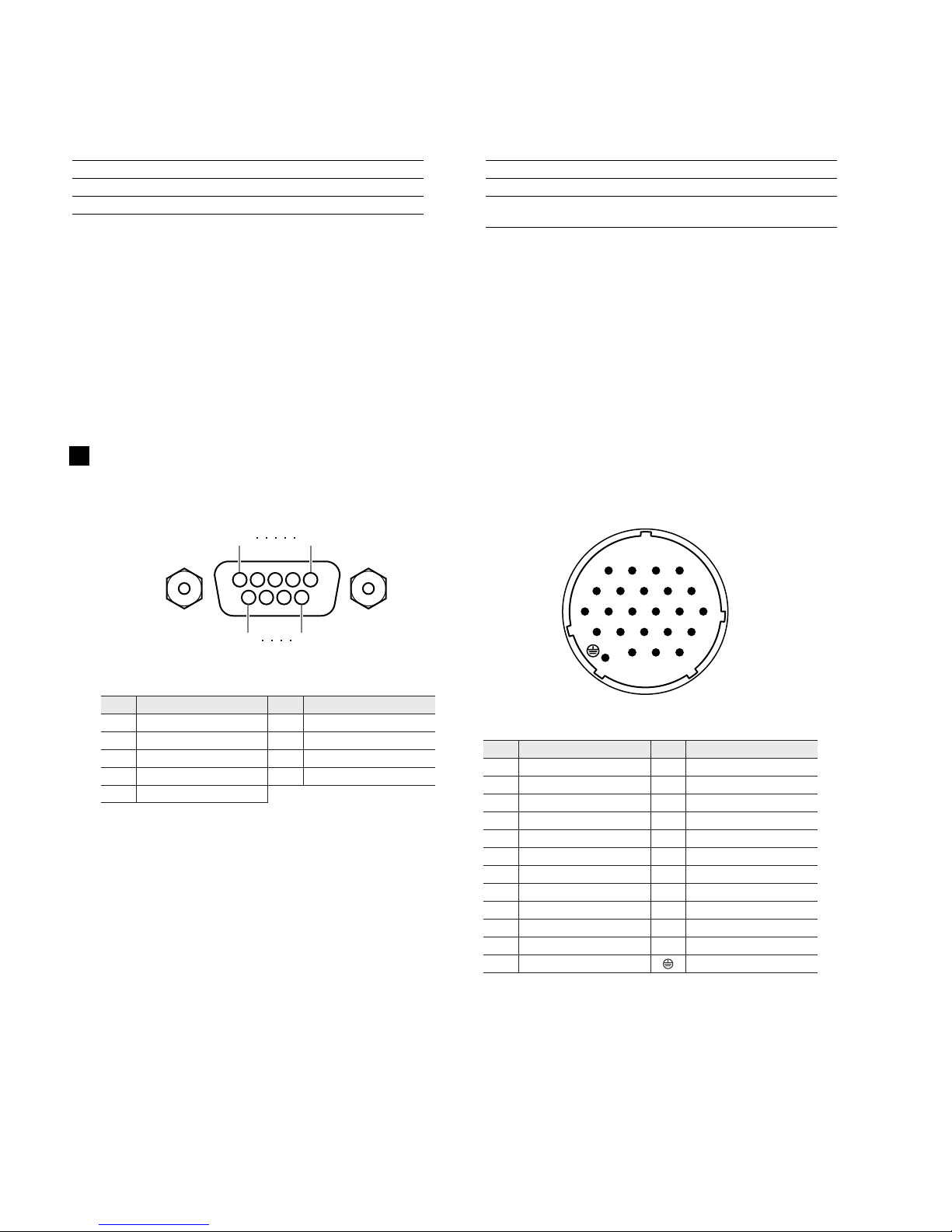

CONNECTOR PIN ASSIGNMENTS
• REMOTE
• DC POWER INPUT
Pin Signal Name Pin Signal Name
1 GND 6 RX+
2 RX– 7 RTS
3 TX– 8 CTS
4 TX+ 9 GND
5 N.C
5
9
1
6
Pin Signal Name Pin Signal Name
1 +24V 13 GND
2 +24V 14 GND
3 +24V 15 GND
4 +24V 16 GND
5 +24V 17 GND
6 +24V 18 GND
7 +24V 19 CAUTION(+)
8 +24V 20 CAUTION(–)
9 +24V 21 DETECT A
10 GND 22 DETECT B
11 GND 23 DETECT GND
12 GND Frame GND
1
2
3
4
5
6789
10111213
14
15
16
17181920
21
22
23
• MBM7CL
Dimensions (W x H x D) 442 x 103 x 36 mm
Weight 1.0 kg
Package Contents Cable cover, Owner's Manual
寸法 (W x H x D) 442 x 103 x 36 mm
質量 1.0 kg
同梱品 ケーブルカバー 1個、
取扱説明書 1部、保証書 1枚

（コネクターピンアサイン表）

M7CL-32/M7CL-48
11
PANEL LAYOUT
q q
w
e
r t
y
u
i
!0
o

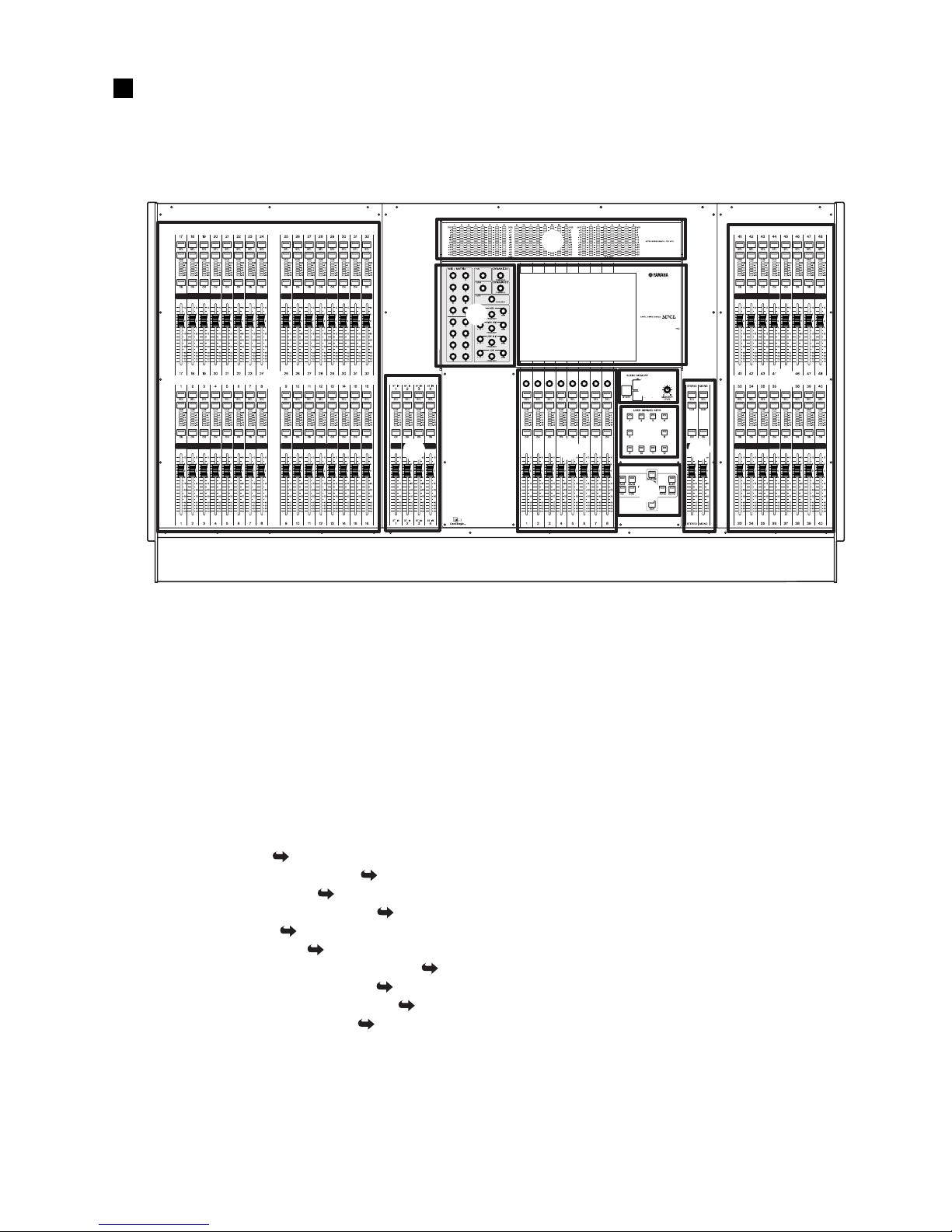

1. Top Panel
qINPUT section: ( P.13)
wST IN (Stereo Input) section: ( P.13)
eMeter bridge (option): ( P.13)
rSELECTED CHANNEL section: ( P.14)
tDisplay section: ( P.14)
yCentralogic section: ( P.15)
uSCENE MEMORY / MONITOR section: ( P.15)

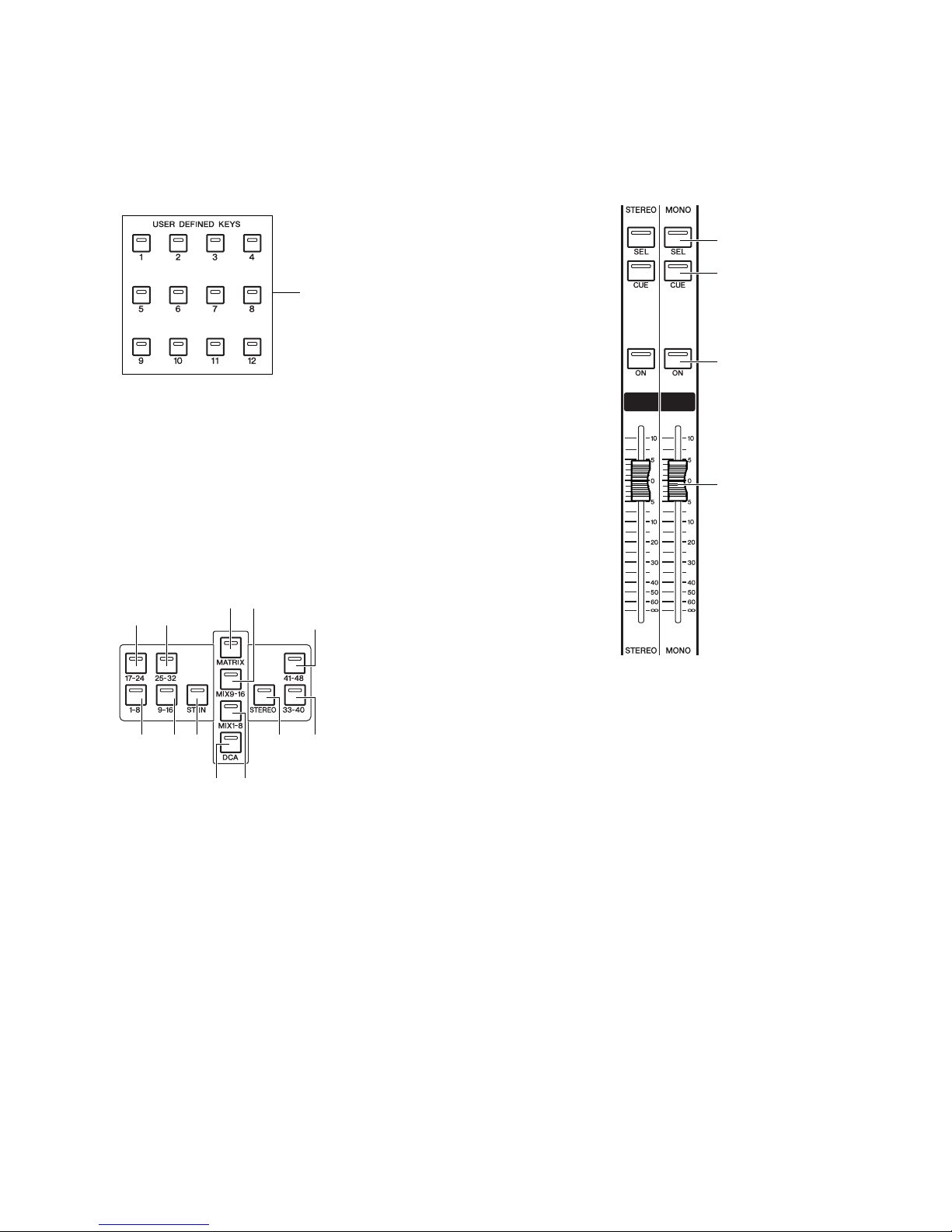

iUSER DEFINED KEYS section: ( P.16)
oSTEREO/MONO MASTER section: ( P.16)
!0 NAVIGATION KEYS section: ( P.16)
* This illustration shows the top panel of the M7CL-48.The M7CL-32
does not have the INPUT section at the right (channels 33–48).
（パネルレイアウト）
（トップパネル）
qインプットセクション
wステレオインプットセクション
eメーターブリッジ（オプション）
rセレクテッドチャンネルセクション
tディスプレイセクション
yセントラロジックセクション
uシーンメモリー / モニターセクション
iユーザー定義キーセクション
oステレオ / モノマスターセクション
!0 ナビゲーションキーセクション
※このイラストは M7CL-48のトップパネルです。M7CL-32には右側の
INPUT セクション（チャンネル 33〜 48）がありません。

M7CL-32/M7CL-48
12

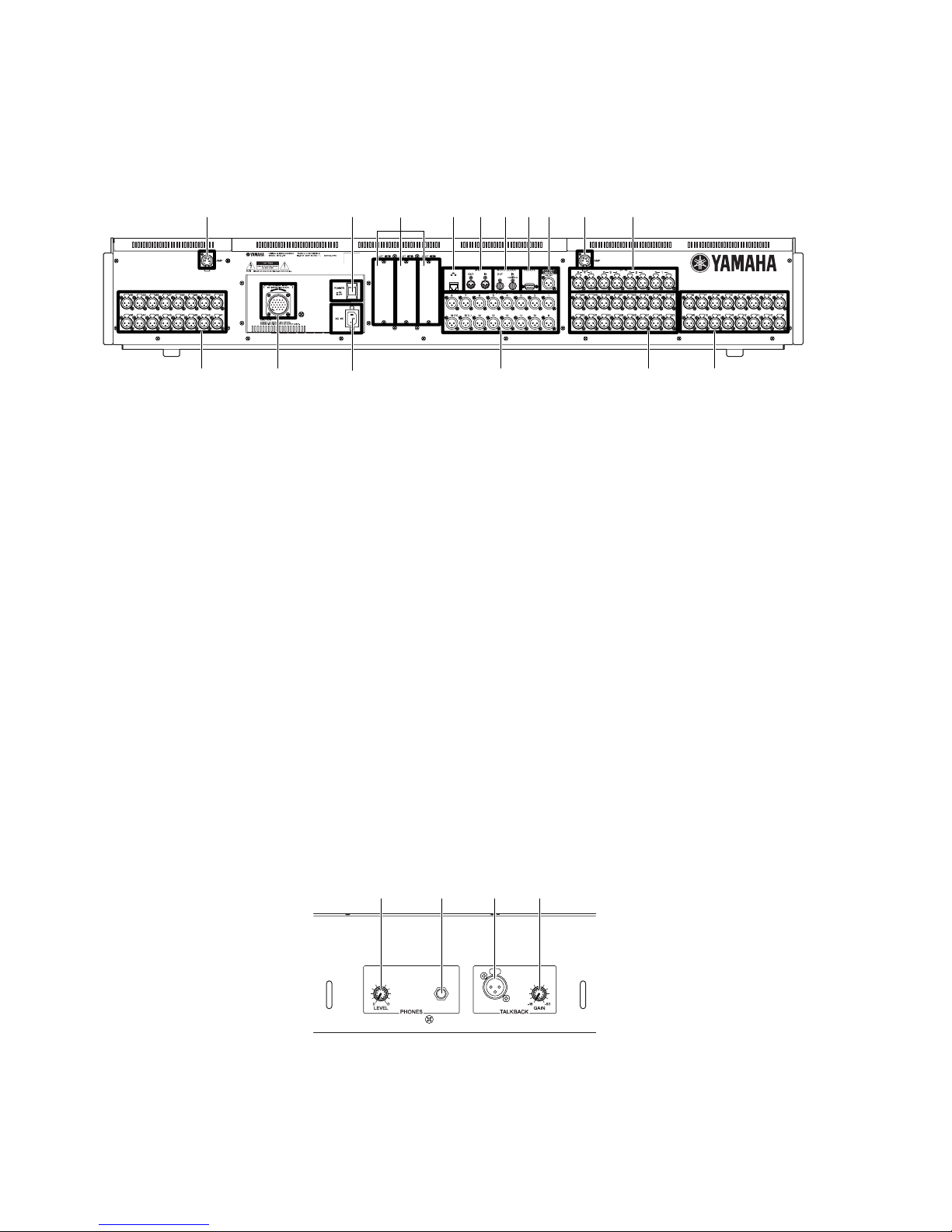

2. Rear Panel
eoiuytew
qr
q
q
!0!1
!2!3
M7CL-48 only
M7CL-48 only
qINPUT jacks 1-32 (M7CL-32)
INPUT jacks 1-48 (M7CL-48)
wST IN jacks 1-4
eLAMP connector
rOMNI OUT jacks 1-16
t2TR OUT DIGITAL jack
yREMOTE connector
uWORD CLOCK IN/OUT connectors
iMIDI IN/OUT connectors
oETHERNET connector
!0 Slots 1-3
!1 AC IN connector
!2 POWER switch
!3 DC POWER INPUT connector
3. Under the front pad
qwer
qPHONES LEVEL knob
wPHONES OUT (headphone output) jack
eTALKBACK jack
rTALKBACK GAIN knob
* This illustration shows the rear panel of the M7CL-48.
（リアパネル）
qINPUT端子 1 〜 32(M7CL-32)
INPUT端子 1 〜 48(M7CL-48)
wSTIN端子 1 〜 4
eLAMP端子
rOMNIOUT端子 1〜 16
t2TROUTDIGITAL端子
yREMOTE端子
uWORDCLOCKIN/OUT端子
iMIDIIN/OUT端子
oETHERNET端子
!0スロット 1 〜 3
!1ACIN端子
!2POWERスイッチ
!3DCPOWERINPUT端子
（フロントパッド下）
qPHONESLEVELノブ
wPHONESOUT（ヘッドフォン出力）端子
eTALKBACK端子
rTALKBACKGAINノブ
※このイラストは M7CL-48のリアパネルです。

M7CL-32/M7CL-48
13
4. Top Panel Details
q
w
e
r
t

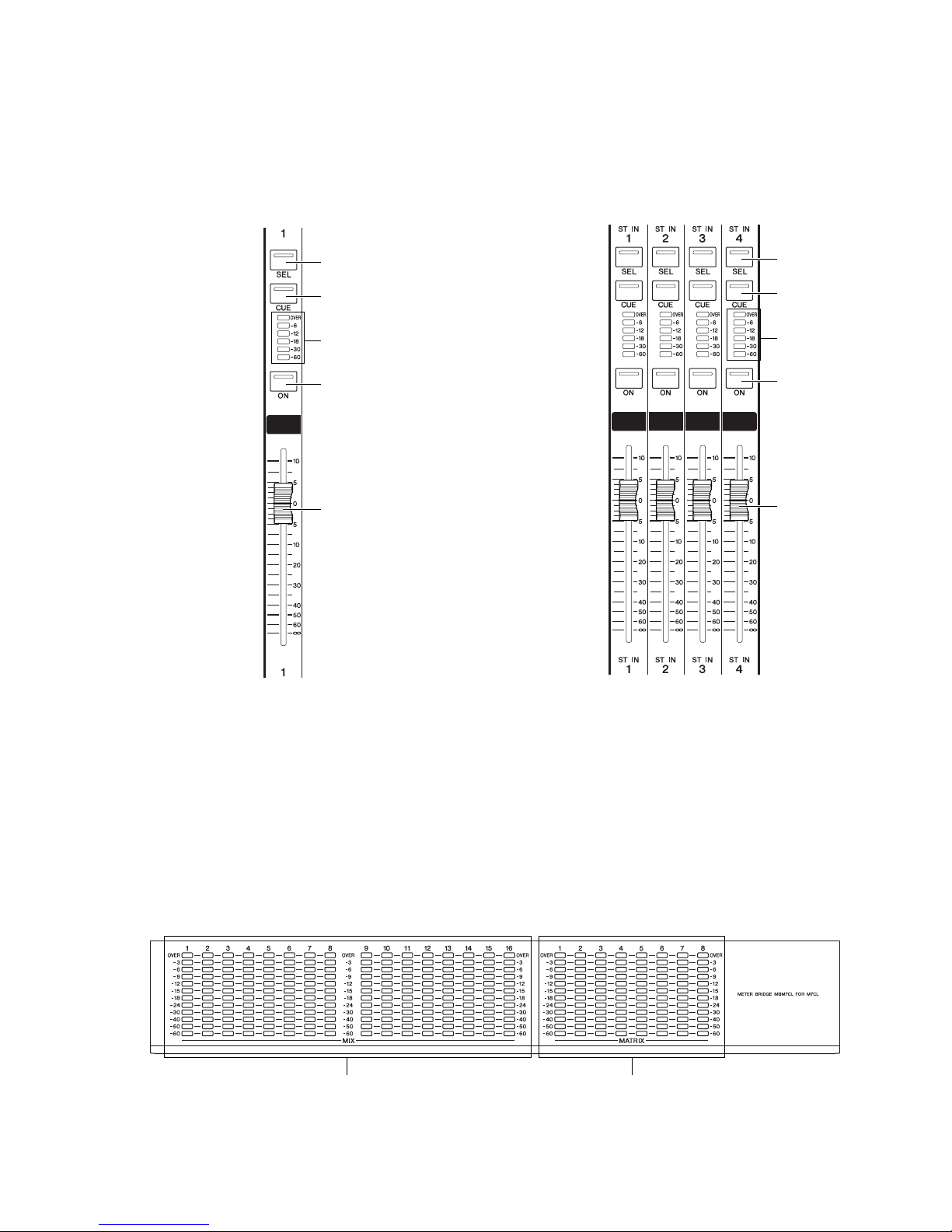

4-1 INPUT section
q[SEL] key
w[CUE] key
eMeter LEDs
r[ON] key
tFader
q
w
e
r
t
4-2 ST IN (Stereo Input) section
qw
4-3 Meter bridge (option)
qMIX meters
wMATRIX meters
（トップパネル詳細）
（インプットセクション）
q[SEL]キー
w[CUE]キー
eメーター LED
r[ON]キー
tフェーダー
（ステレオインプットセクション）
（メーターブリッジ（オプション））
qMIXメーター
wMATRIXメーター

M7CL-32/M7CL-48
14

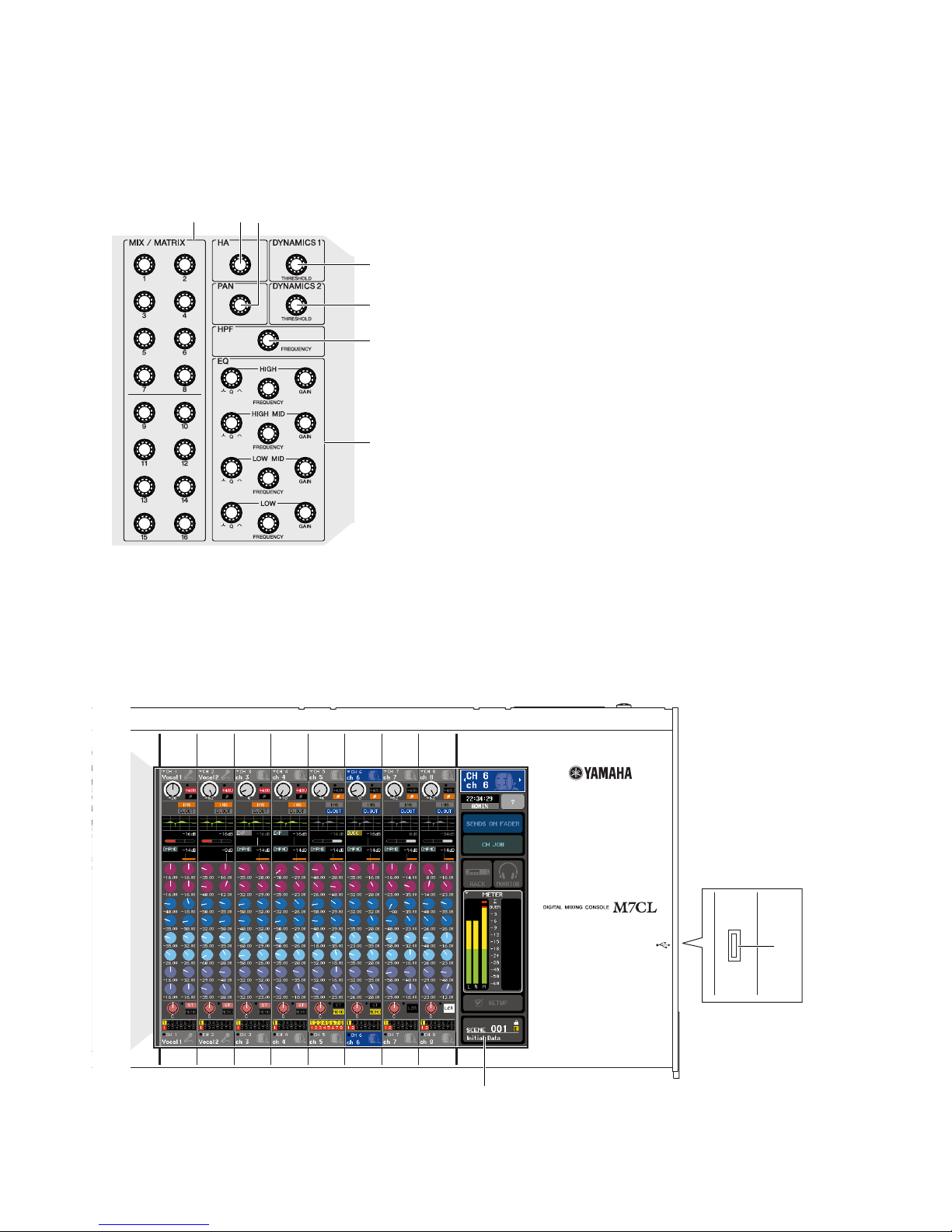

4-4 SELECTED CHANNEL section
qw
e
r
t
y
u
q[MIX/MATRIX] encoders
w[HA] encoder
e[PAN] encoder
r[DYNAMICS 1] encoder
t[DYNAMICS 2] encoder
y[HPF] encoder
uEQ [Q], EQ [FREQUENCY],
EQ [GAIN] encoders
q
w
4-5 Display section
qDisplay (touch screen)
wUSB connector
（セレクテッドチャンネルセクション）
q[MIX/MATRIX]エンコーダー）
w[HA]エンコーダー）
e[PAN]エンコーダー）
r[DYNAMICS1]エンコーダー）
t[DYNAMICS2]エンコーダー）
y[HPF]エンコーダー）
uEQ[Q]、EQ[FREQUENCY]、
EQ[GAIN]エンコーダー）
（ディスプレイセクション）
qディスプレイ（タッチスクリーン）
wUSB端子

M7CL-32/M7CL-48
15

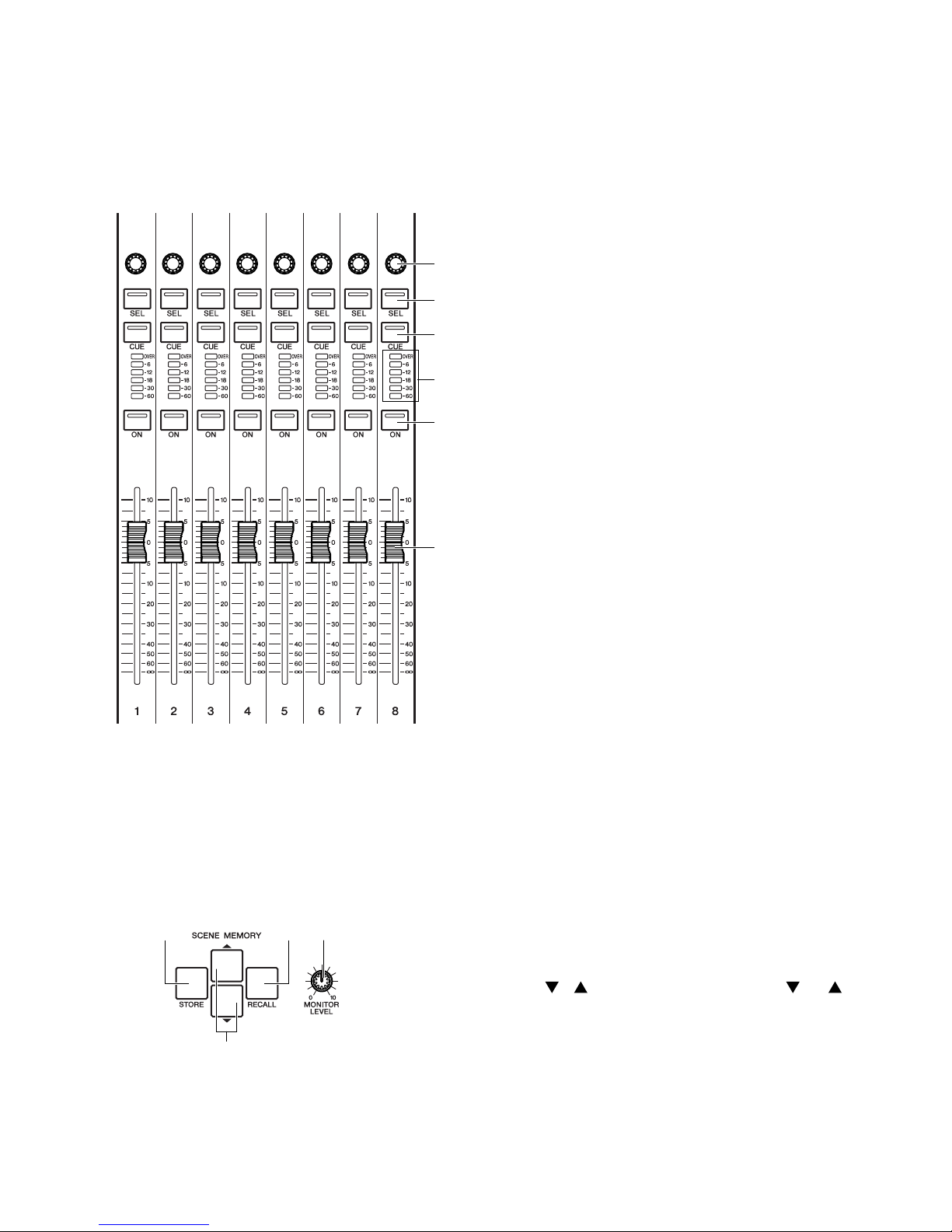

4-6 Centralogic section
q
w
e
r
t
y
qMulti-function encoders
w[SEL] key
e[CUE] key
rMeter LEDs
t[ON] key
yFader
4-7 SCENE MEMORY/MONITOR section
q
w
r
e
qSCENE MEMORY [STORE] key
wSCENE MEMORY [RECALL] key
eSCENE MEMORY [ /] keys
r[MONITOR LEVEL] knob
（セントラロジックセクション）
qマルチファンクションエンコーダー
w[SEL]キー
e[CUE]キー
rメーター LED
t[ON]キー
yフェーダー
（シーンメモリー/ モニターセクション）
qSCENEMEMORY[STORE]キー
wSCENEMEMORY[RECALL]キー
eSCENEMEMORY[]/[]キー
r[MONITORLEVEL]ノブ

M7CL-32/M7CL-48
16
q
4-8 USER DEFINED KEYS section
qUser defined keys [1]-[12]
q
w
e
r
4-9 STEREO/MONO MASTER section
q[SEL] key
w[CUE] key
e[ON] key
rFader
qw
er
t
y
u
i
o
!0 !1
!2
q[IN 1-8] key
w[IN 9-16] key
e[IN 17-24] key
r[IN 25-32] key
t[ST IN] key
y[DCA] key
u[MIX 1-8] key
i[MIX 9-16] key
o[MATRIX] key
!0 [STEREO] key
!1 [IN 33-40] key {M7CL-48 only}
!2 [IN 41-48] key {M7CL-48 only}
（ユーザー定義キーセクション）
qユーザー定義キー[1]〜[12]
（ステレオ / モノマスターセクション）
q[SEL]キー
w[CUE]キー
e[ON]キー
rフェーダー
4-10 NAVIGATION KEYS section
（ナビゲーションキーセクション）
q[IN1‐8]キー
w[IN9‐16]キー
e[IN17‐24]キー
r[IN25‐32]キー
t[STIN]キー
y[DCA]キー
u[MIX1‐8]キー
i[MIX9‐16]キー
o[MATRIX]キー
!0 [STEREO]キー
!1 [IN33‐40]キー(M7CL‐48のみ)
!2 [IN41‐48]キー(M7CL‐48のみ)

M7CL-32/M7CL-48
17

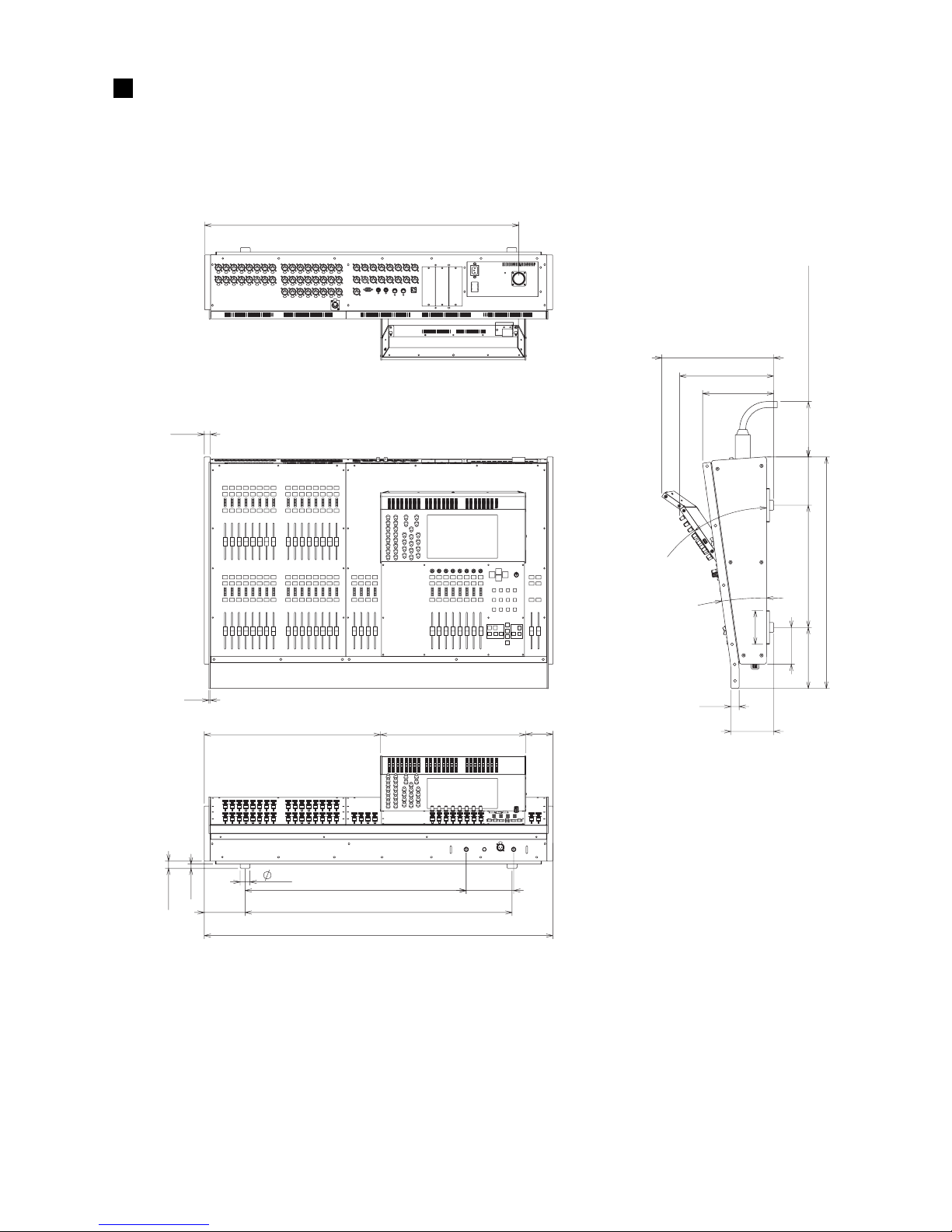

DIMENSIONS
955: PSL360 (option)
18
4
535 442 83
30 672
8121060
144
13
22
124
340:MBM7CL (option)
286
216
35˚
8˚
102
111
185 370
701 146 168: PSL360 (option)
25
130
Units: mm
• M7CL-32
（寸法図）
（単位）

M7CL-32/M7CL-48
18
955: PSL360 (option)
18
4
535 442 297
30 672 1026
1274
144
13
22
124
340:MBM7CL (option)
286
216
35˚
8˚
102
111
185 370
701 146 168: PSL360 (option)
25
130
• M7CL-48
Units: mm
（単位）

M7CL-32/M7CL-48
19

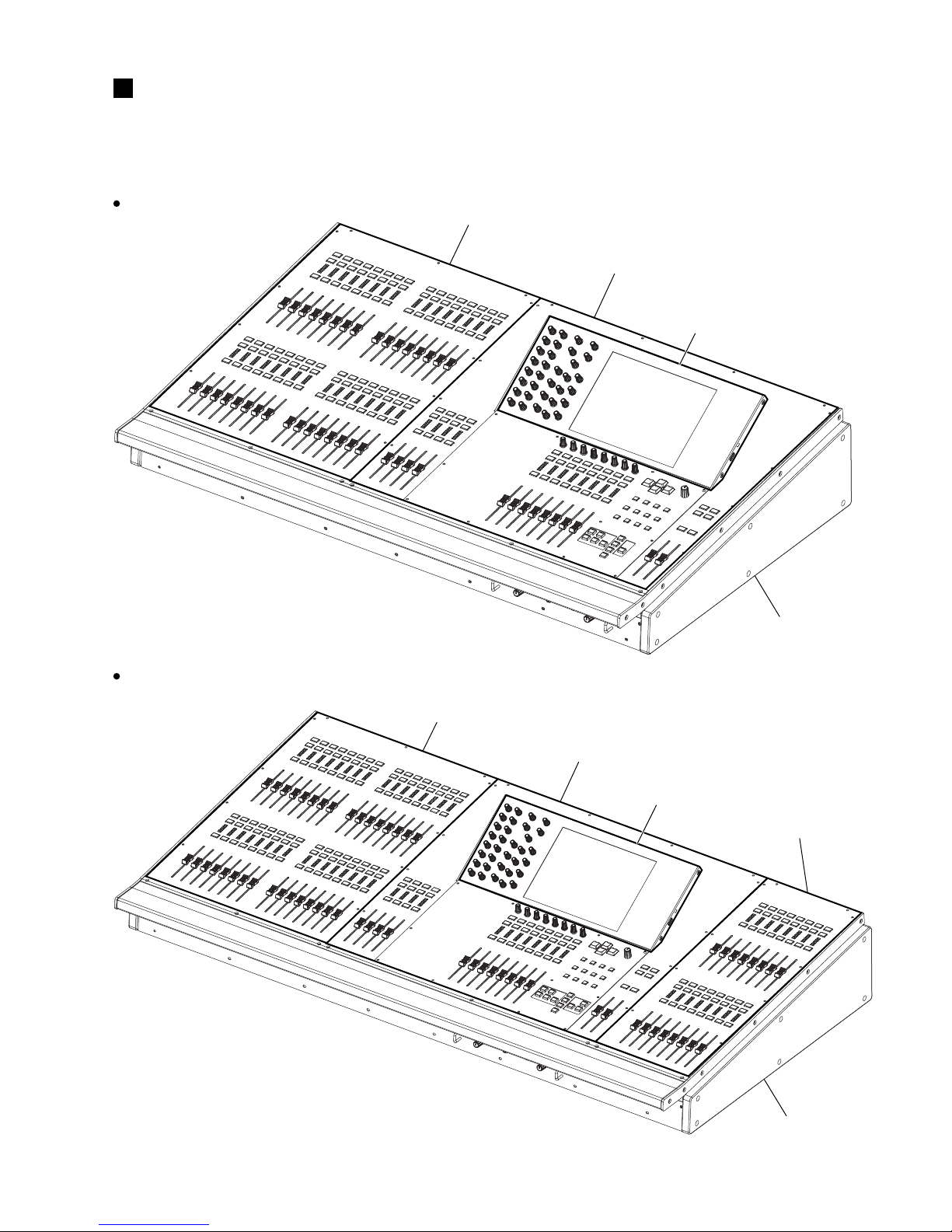

CIRCUIT BOARD LAYOUT
M7CL-48
M7CL-32
Bottom assembly 32:
See page 20.
Control panel 2 assembly:
See page 22. Control panel 1 assembly 32:
See page 22.
LCD assembly 32:
See page 23.
（コンパネ2Ass'y）
（コンパネ1Ass'y32）
（LCDAss'y32）
（ボトムAss'y32）
Bottom assembly 48:
See page 21.
Control panel 2 assembly:
See page 22. Control panel 1 assembly 48:
See page 22.
Control panel 3 assembly :
See page 23.
LCD assembly 48:
See page 23.
（コンパネ2Ass'y）
（コンパネ1Ass'y48）
（コンパネ3Ass'y）
（LCDAss'y48）
（ボトムAss'y48）
（ユニットレイアウト）

M7CL-32/M7CL-48
20
M7CL-32
Bottom assembly 32（ボトムAssy32）
（ACインレット）
AC
AC inlet
CPUM
DSP32
DCMS
INPUT
CH 1-8
HAAD
INPUT
CH 9-16
HAAD
ST IN
CH 1-4
INPUT CH 17-24
HAAD
INPUT CH 25-32
DA
OMNI OUT
CH 1-8
DA
OMNI OUT
CH 9-16
OPT
DC
JK
Cannon connector
（キャノンコネクタ）
Power supply unit
（電源ユニット）
Power supply assembly
（電源Ass'y）
DC fan motor
（DCファンモーター）

Receptacle assembly
（レセプタクルAss'y）
HAAD
HAAD
DCIN
CH 17-24
CH 25-32
DCIN
CH 1-8
CH 9-16
