ETNA VW245ZIL User manual

INSTRUCTIONS FOR USE
BEDIENUNGSANLEITUNG
DISHWASHER
GESCHIRRSPÜLER
VW245ZIL

EN Instructions for use EN 3 - EN 26
DE Bedienungsanleitung DE 3 - DE 26
Pictograms used - Benutzte Piktogramme
Important information - Wissenswertes
Tip - Tipp

SAFETY REGULATIONS
Note!
Contact a registered installer to fit
your appliance (see “Installation
instructions”). Do not connect the
appliance to the electrical mains until the
installation is complete.
• Connect up the appliance according to local installation
regulations.
• This appliance can be used by children aged 8 years
and over, as well as by people with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge, provided they are supervised and instructed
in the safe use of the appliance and understand the
hazards involved. Do not allow children to play with the
appliance. Do not allow children to clean or maintain the
appliance unless supervised.
• This appliance is for indoor use only. To protect against
the risk of electrical shock, do not immerse the unit,
cord or plug in water or other liquid.
• This appliance is intended to be used in household and
similar applications such as:
▷staff kitchen areas in shops, offices and other working
environments;
▷by clients in hotels, motels and other residential type
environments;
▷farm houses;
▷bedand breakfast type environments
• In order to prevent hazardous situations, a damaged
connection cable may only be replaced by the
manufacturer, the manufacturer’s service department, or
by similarly qualified persons.
Original instruction
NO
GBNL BE DK ES
FI
SE
FR BE
DE DEATLU
IE
NO
GB
NL BE DK ES
FI
SE
FR BE
DE DEATLUIE

SAFETY REGULATIONS
• This appliance must be earthed! Earthing reduces
the risk of an electric shock in the event of errors and
faults. This appliance is fitted with an earthed power
lead and plug. Only insert the plug into an earthed wall
socket that has been fitted in compliance with the local
electrical code!
• Incorrect connection of the power lead can result in a
life-threatening situation. In case of doubt, contact a
qualified electrician or service technician. Do not make
any changes to the plug.
If the plug does not fit into the wall socket, contact a
qualified electrician to change it.
• Improper use of the door and basket of the dishwasher
is not recommended. Do not sit or stand on the door or
basket.
• Do not clean unsuitable plastic dishes in the appliance,
unless they bear a mark indicating that they are
dishwasher-safe. Where dishes do not bear any such
marking, always follow the manufacturer’s instructions.
• Only use detergent, rinse agent and salt that is intended
for use in a dishwasher. Under no circumstances should
professional or catering detergents be used. Under
no circumstances should normal washing-up liquid or
fabric detergents be used.
• Keep detergents out of the reach of children.

SAFETY REGULATIONS
Note!
• Keep detergents and rinse agents out of the reach of
children. Keep children out of reach of the dishwasher
when open. There may still be some cleaning agent
present in the appliance. If swallowed, consult a doctor
immediately and take the packaging with you.
• Keep the door closed. You can trip over an open door.
• Do not bend the intake and drainage hoses or
connection lead excessively during installation. Take
care to ensure they do not become trapped.
• The appliance is not intended for use by young children.
• Dishwasher detergents are highly alkaline and are
particularly harmful if swallowed. If swallowed, consult a
doctor immediately and take the packaging with you.
• Avoid contact with the skin and eyes. Keep children
away from the dishwasher when the door is open.
• Make sure that all loose components in the dishwasher
have been fitted correctly. Do not open the door during
the cycle.
• Do not place heavy objects on the opened door. Do not
stand on the door. The appliance may tip over, which
can result in damage to the appliance.
• When loading the baskets, place sharp objects so that
they cannot damage the rubber seal on the door.
• Packaging materials should be disposed of in a
responsible manner and in accordance with government
regulations.
• The dishwasher must only be used for its intended
purpose. The appliance should only be used in a frost-
free room!

SAFETY REGULATIONS
• Remove the door or deactivate the lock when disposing
of the appliance.
• Do not allow children to play with the appliance.
• Check whether the detergent reservoir is empty
following the end of the wash cycle.
• Fill the salt and rinse agent reservoirs prior to first
use and when the indicators light up. Set the salt
consumption before use.
• Disconnect the appliance from the power supply when
cleaning or performing repairs. Remove the plug from
the socket or turn off the switch in the fuse box.
• Close the water tap after use!

EN 3
CONTENTS
Your dishwasher
Introduction 4
Description
Control panel 5
Interior 6
Operation
Switching on 7
Cycle selection table 10
Regeneration salt (water softener) 11
Rinse agent reservoir 12
Dishwasher detergents 14
Loading
Loading the baskets 16
Damage to glassware and other crockery 19
Filter system 20
Maintenance
Cleaning the spray arms 21
Cleaning the door 21
Errors
What should I do, if... 22
Interference table 22
Error codes 24
Technical data
25
Appendix
Disposal 26

EN 4
Introduction
You have opted to purchase an Etna dishwasher.
Optimum user comfort and easy operation were paramount during
the development of this product.
This manual describes how you can get the most out of your dishwasher.
It provides you with information on how to operate the appliance, as well
as background information about how it works. You will furthermore also
find maintenance tips.
The safety instructions that are relevant during the installation are included
in the installation guide. This is intended for the installation technician.
Read this manual before using the appliance.
Keep this manual in a safe place so that the next possible user can also
benefit from it.
Before use, read the separate safety
instructions first!
YOUR DISHWASHER

EN 5
DESCRIPTION
Control panel
1. On/Off button
2. Program display
3. Program button
4. Delayed start time button
5. 3-in-1 detergent button
6. ‘Pre-rinse’ button
7. ‘Half load’ button
8. Water softener / rinse agent / end program indication
1
2 3 4 5 6 7 8

EN 6
DESCRIPTION

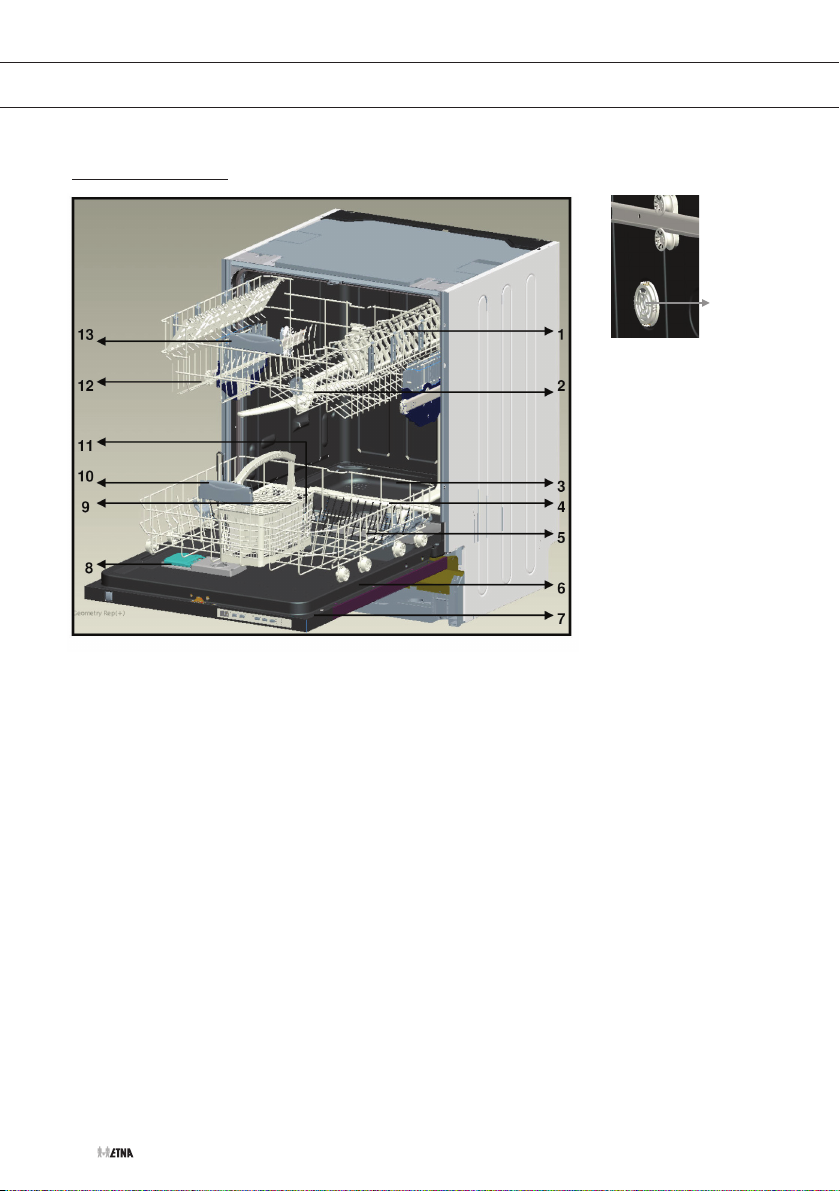

Interior
1. upper basket
2. upper spray arm
3. lower basket
4. lower spray arm
5. filters
6. type plate
7. control panel
8. washing and rinse agent reservoir
9. cutlery basket
10. handle lower basket
11. salt reservoir
12. guide rail upper basket
13. handle upper basket
14. active drying unit
14

EN 7
OPERATION
Switching on
1. Open the door to the dishwasher.
2. Press the ‘on-off’ button to switch on the device.
The check light End Program is on |
3. Select the desired program (see ‘program selection table’). Select a
cycle using the programming button.
The check light that belongs to the selected program is on.
4. Close the door to the dishwasher.
The dishwasher will automatically start running the selected cycle.
The remaining program time appears on the display.
Delayed start time
If you want the dishwasher to switch on at a later time, you can used
the ‘delayed start’ button. You can choose between a delay time of 1,
2... 19 hours. Each press of the button changes the delay time.
The display shows the delayed start time.
Then select the desired program and close the door of the dishwasher.
Selecting a half load

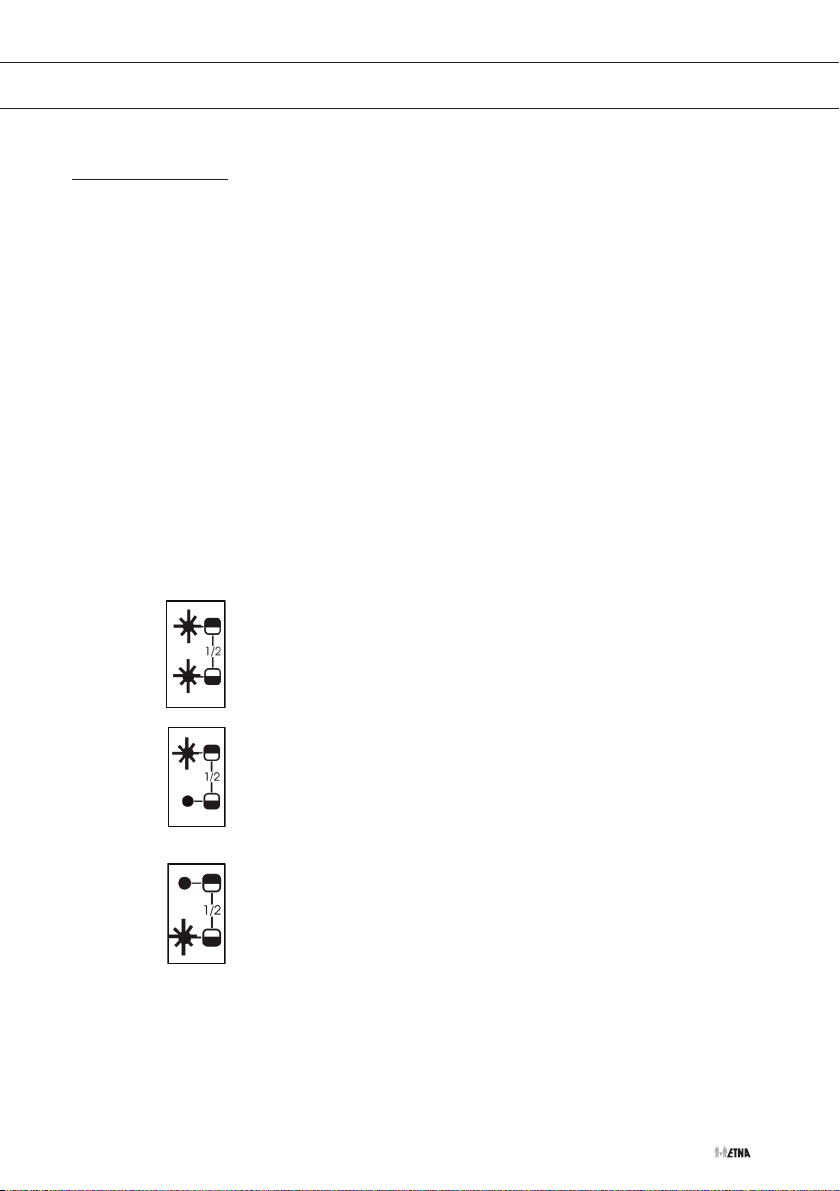

Press the ‘half load’ button to activate the half load cycle. In the half
loading program, you can use both the upper and lower basket and
both baskets simultaneously.
For a small quantity of dirty dishes, in both the upper and lower basket,
repeatedly press the ‘half load’ button until the indicators of upper and
lower basket light up.
For a small quantity of dirty dishes in the upper basket, repeatedly
press the ‘half load’ button until the indicator of the upper basket
lights up.
For a small quantity of dirty dishes in the lower basket, repeatedly press
the ‘half load’ button until the indicator of the lower basket lights up.

EN 8
Selecting the ‘3-in-1’ cycle
The dishwasher features a 3-in-1 cycle. If you select this cycle
(button 5), the dishwasher does not need to be filled with salt and rinse
agent, but rather you use so-called 3-in-1 dishwasher tablets in their
place.
Pre-rinse
The pre-rinse program allows you to improve the cleaning result for
extra dirty dishes. You can set this program both independently from
and in combination with another program.
Indicators
• Water softener.
The indicator shows that you have to fill the salt container with
regeneration salt.
• Detergent.
The indicator shows that you have to fill the detergent reservoir.
• End program.
The indicator shows that the washing program has finished.
In addition, a sound signal will be heard five times.
Stopping or changing a wash cycle
1. Open the door.
The last selected program appears on the display.
2. Press and hold the programming button for more than 3 seconds.
The ‘End program’ indicator is blinking. ‘1’ appears on the display.
3. Close the door of the dishwasher.
The machine pumps out for about 30 seconds. Following the end
of this, an alarm signal will sound and the indicator shows that the
program has finished.
4. You can again select the desired program (see program selection
table).
5. Now close the door.
Note! A cycle that has already begun can only be changed in the start-
up phase. After this, the detergent will be sprayed all over the dishes or
the machine may have already pumped out the water. In that instance,
you must refill the detergent compartment (see section on Dishwasher
detergent).
OPERATION

EN 9
Warning!
Opening the door fully during the wash cycle is dangerous. You may be
splashed with hot water from the machine.
Following the end of the wash cycle
After the washing program has finished, the ‘End program’ indicator
flashes and an alarm signal sounds 5 times. Open the door of the
dishwasher. Switch off the device with the on/off button. Wait a few
minutes before unloading the dishwasher. The dishes and cutlery will still
be very hot immediately following the end of the cycle. There is a chance
that dishes may break as a result of the heat. Moreover, the dishes dry
better when allowed to stand for a few minutes.
Flood protection switch
Your dishwasher is fitted with a safety switch that prevents too much
water from running into the appliance. The safety switch closes the
inlet valve and instructs the dishwasher to pump out the surplus
water. If there is water in machine (due to too much water being fed in
previously, or as a result of a leak), this must first be removed before the
appliance is switched on again.
OPERATION

EN 10
OPERATION
Cycle selection table
Program Cycle selection information Description of
cycle
Detergent
pre/main
Time
(min.)
Energy
(KWh)
Water
(L)
Auto intensive Automatically adjust the washing
time with temperature and
amount of water by determining
the soil level of dishes.
5/25 gr. 111-183 1.22-1.8 13.3-24.6
Auto normal Automatically adjust the washing
time with temperature and
amount of water by determining
the soil level of dishes.
5/25 gr. 100-127 1.12-1.3 10.9-18.5
Auto delicate Automatically adjust the washing
time with temperature and
amount of water by determining
the soil level of dishes.
15 gr. 64-92 0.81-0.96 10.6-17.7
Hygiene Dishes with dense dirt waiting
for a long time or requiring
hygienic washing.
Prewash
Main wash (50 °C)
Cold Rinse
Hot rinse
Dry
5/25 gr. 123 1.55 15
55 minutes Daily dishes in 55 minutes. For
day-to-day dishes, such as
lightly soiled or normal plates
and pans.
Prewash
Main wash (60 °C)
koud spoelen
Heet spoelen
Dry
5/25gr. 55 1.07 11
Eco* This is standard programme, it is
suitable to clean normally soiled
tableware and it is the most
efficient programme in terms of
its combined energy and water
consumption for that type of
tableware.
Prewash
Main wash (60 °C)
Cold Rinse
Hot rinse
Dry
5/25 gr. 162 0.94 9
Quick Lightly soiled dishes, such as
glasses, crystal and fragile
porcelain. No drying.
Prewash
Main wash (40 °C)
Cold Rinse
Hot rinse
Dry
15 gr. 30 0.88 11
Rinse To rinse dishes that you plan to
wash later that day.
Prewash 15 0.02 4.2
Extra hygiene Dishes with dense dirt waiting
for a long time or requiring
hygienic washing.
Prewash
Main wash (50 °C)
Wash (70 °C)
Cold Rinse
Warmish Rinse
Hot rinse
Dry
5/25 gr. 161 1.75 22.7
*EN 50242: This is a test cycle. The information for a comparison test in
accordance with EN 50242 is as follows:
• capacity: 13 place settings
• position upper basket: wheels on guides / rinsing condition: 6

EN 11
Regeneration salt (water softener)
This machine is equipped with a water softener. To use the water
softener, fill the dishwasher with salt.
• After first having removed the lower basket, loosen the cap of the
reservoir (1 and 2).
• Prior to filling up the reservoir for the first time, pour one litre of
water in it.
• Place the funnel in the reservoir opening. Pour about 2 kg of salt
in it. It is normal for a little water to flow out of the opening when
doing this. Note! Clear up any spilled salt and always run a full
cycle immediately afterwards to prevent damage to the bottom.
• Carefully tighten the cap of the reservoir.
Note! Always fill the salt reservoir and adjust the water hardness setting
before using the dishwasher. Refill the salt reservoir when the water
softener indicator lights up. It is possible that the light will remain lit for
a short while after the salt reservoir is filled. It will go out automatically
when enough salt has been dissolved in the water.
Setting the salt consumption
Adjust the salt consumption according to the table below:
Water
hardness
level
German
hardness
dH
French
hardness
dF
English
hardness
dE
Water hardness indicator
1 0-5 0-9 0-6 L1 appears on the display
2 6-11 10-20 7-14 L2 appears on the display
3 12-17 21-30 15-21 L3 appears on the display
4 18-22 31-40 22-28 L4 appears on the display
5 23-31 41-55 29-39 L5 appears on the display
6 32-50 56-90 40-64 L6 appears on the display
Your local water authority can inform you how hard your mains water is.
Adjustments can then be made according to the above table.
The standard water hardness level is set at level 3.
OPERATION
SALT
SALT

EN 12
OPERATION
Reset
Open the door of the dishwasher
The indicator of the program selected last is flashing.
Press and hold the programming button for more than 3 seconds.
The ‘End Program’ indicator is flashing. The indicator of the program
selected last turns off
Close the door of the dishwasher.
The machine pumps out for about 30 seconds. Following the end of
this, a sound signal will click 5 times and the indicator shows that the
program has finished.
Switch off the dishwasher with the on/off button.
Setting the water hardness
Press the program button and keep it pressed.
Switch on the dishwasher simultaneously with the on/off button.
Keep the program selection button pressed until “SL” disappears from
the display.
Your machine displays the latest entered water hardness setting.
Water hardness can be adjusted by the program selection button
according to Table of Water Hardness Level Settings.
After selecting the desired setting, press the on/off button.
The set value is stored in the memory.
Rinse agent reservoir
Rinse agent is added during the final rinse. Rinse agent prevents traces of
water droplets being left behind on the clean dishes. Moreover, it ensures
that the dishes dry quicker, since the water drains off more easily.
The dishwasher is designed for use with liquid rinse agent. The rinse
agent reservoir is located on the inside of the door, alongside the
detergent compartment.

EN 13
OPERATION
Attention: fill up the rinse agent reservoir when the check light of the
rinse agent turns on. The reservoir has a capacity of approximately
100 ml. Do not overfill the rinse agent reservoir, this will cause the rinse
agent reservoir to overflow. Rinse agent spillages must be cleaned up,
otherwise they may lead to leakages as a result of extreme foaming.

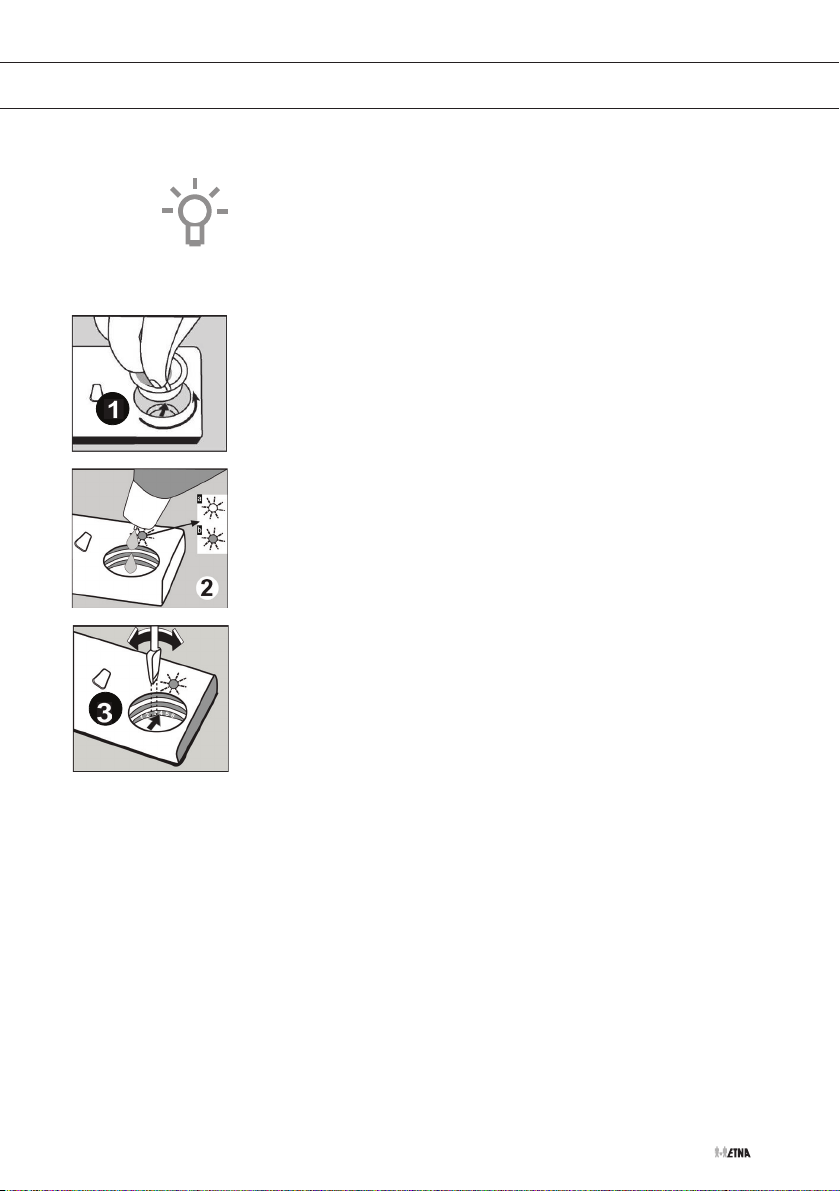

1. Unscrew the cap from the rinse agent reservoir (to the left, toward
the arrow with “open”).
2. Pour the rinse agent into the reservoir, taking care not to overfill
it. The reservoir has a capacity of approximately 100 ml. If the
indicator is dark (b), this means that there is enough rinse agent
present. If the indicator is light-coloured (a), this means that you
have to add the rinse agent.
3. Replace the cap.
Setting the quantity of rinse agent
A fixed amount of rinse agent is added during the final rinse. As is the
case with detergent, the amount of rinse agent needed is dependent on
the hardness of the water in your area. Too much rinse agent can lead
to streaks on the dishes.
The rinse agent reservoir has 6 settings. The standard setting of the
reservoir is setting 3. To begin with, set the reservoir to setting 2. If this still
causes spotting on the dishes, you can increase the amount of rinse agent
added by turning the selector knob on the reservoir to setting 3. If there
is still no improvement, turn the selector knob to a higher setting. Repeat
this action until the dishes are streak-free when they emerge from the
dishwasher.

EN 14
Dishwasher detergents
The chemicals in dishwashing detergents remove the dirt, break it
down and make sure that the dirt is drained from the dishwasher.
Most dishwashing detergents available in the store are suitable for this
purpose.
Warning!
Dishwasher detergent is a corrosive product. It should therefore be kept
out of the reach of children. If swallowed, consult a doctor immediately
and take the packaging with you.
Concentrated detergent
Based on their chemical composition, 2 different types of concentrated
detergent can be distinguished:
• Conventional alkaline detergents with corrosive ingredients.
• Low-alkaline concentrated detergents with natural enzymes.
The use of concentrated dishwashing detergent in combination with
“normal” washing programs produces less contamination and is good
for your dishes: these washing programs are specifically intended for
dirt-dissolving characteristics of the enzymes in concentrated dishwashing
detergents. This means that “normal” wash cycles with concentrated
detergent achieve the same results as an intensive wash cycle.
Dishwasher tablets
Dishwasher tablets from different manufacturers dissolve at different
rates. This means that, during short wash cycles, certain types of
dishwasher tablet do not fully dissolve, as a result of which their
cleaning action is reduced. Dishwasher tablets should therefore chiefly
be used in combination with long wash cycles, so that the dish washer
tablet has time to fully dissolve.
When you switch from dishwashing tablets to a traditional dishwashing
detergent, you have to make sure that the salt conttainer and the rinse
agent reservoir are filled.
OPERATION

EN 15
OPERATION
Detergent compartment
Your dishwasher uses less detergent and rinse agent than conventional
dishwashers. Generally speaking, just one measuring spoon of detergent
powder is needed for a normal wash cycle. Use more detergent if your
dishes are more heavily soiled. Fill the soap compartment immediately
prior to starting the cycle. Filling it prior to this may result in the detergent
becoming damp and therefore not fully dissolving.
Note! The table on page 10 shows the amount of detergent required
for the different cycles. These are averages. A different dosage may be
necessary, depending on the hardness of the water and how soiled the
dishes are.
Filling
1. Press the release catch if the lid is closed.
The lid will spring open.
2. Fill the detergent compartment immediately prior to starting a wash cycle.
The markings in the detergent compartment indicate the dosage.
• Container for the main detergent (b). The container has a capacity
of maximum 40 cm3.
Fill up the container with 25 cm3of the detergent for very dirty
dishes and 15 cm3for normal dishes.
• Container for the pre-wash detergent (a). The container has
a capacity of 5 cm3. Use the container in case of caked on dirt or
if the dishwasher is packed.
Use only detergents that are specifically designed for dishwashers.
Store the detergent in a cool and dry place. Only fill the detergent
compartment with detergent when you are running a wash cycle
immediately afterwards.

EN 16
LOADING
Loading the baskets
Using the upper basket
The upper basket is designed for fragile, light dishes, such as glasses,
cups and saucers, plates, small bowls and shallow (not particularly
dirty) pans.
Place the dishes in the basket in such a way as to ensure they cannot
move when sprayed. The height of the upper basket can be adjusted.
Height adjustment upper basket
Top basket of your machine is in upper position. When it is in this
position, you can place big items such as pans, etc. on lower basket.
When you take top basket to lower position, you can place and wash
big sized plates on the top basket.
1. In order to raise your basket, hold it from both sides and pull it
upwards.
2. In order to lower it, hold it from both sides again, and leave it.
In loaded basket adjustment mechanism, make sure that both sides
are in the same position (up or down).
12
Using the lower basket
We advise you to place large objects that are hardest to clean in the
lower basket: pots, pans, pan lids, oven dishes and bowls. Casserole
dishes and pan lids should preferably be placed at the side of the basket.
This will ensure that they do not obstruct the spray arm when it is turning.
• Saucepans, serving dishes etc. must always be placed upside
down in the basket.
• Deep bowls should be tilted, with the opening facing downwards to
allow water to escape.
• The lower basket can be adjusted to allow for larger, or more, pots
and pans.
