Euresys 1669-DR Picolo.net HD1 User manual

Picolo.net
1669-DR Picolo.net HD1 (DIN rail)
1669-DW Picolo.net HD1 (Desktop/Wall)
HANDBOOK
© EURESYS s.a. 2017 - Document version 1.0.3002 built on 2017-10-03

2
Terms of Use
EURESYS s.a. shall retain all property rights, title and interest of the documentation of the hardware and the
software, and of the trademarks of EURESYS s.a.
All the names of companies and products mentioned in the documentation may be the trademarks of their
respective owners.
The licensing, use, leasing, loaning, translation, reproduction, copying or modification of the hardware or the
software, brands or documentation of EURESYS s.a. contained in this book, is not allowed without prior notice.
EURESYS s.a. may modify the product specification or change the information given in this documentation at any
time, at its discretion, and without prior notice.
EURESYS s.a. shall not be liable for any loss of or damage to revenues, profits, goodwill, data, information systems or
other special, incidental, indirect, consequential or punitive damages of any kind arising in connection with the use
of the hardware or the software of EURESYS s.a. or resulting of omissions or errors in this documentation.
This documentation is provided with Picolo.net 1.0 (doc build 2017-10-03).
© 2017 EURESYS s.a.
Picolo.net Handbook

3
Contents
About This Document 6
Document Scope 6
Document Revision History 7
Short Description 8
Mechanical Specification 11
Product Pictures 12
Dimensions and Weight 13
Mounting Methods 14
Connectors Location and Markings 15
Connectors 18
SDI AUDIO/VIDEO IN Connector 19
HDMI AUDIO/VIDEO IN Connector 20
HDMI AUDIO/VIDEO OUT Connector 22
AUDIO IN Connector 24
AUDIO OUT Connector 25
LAN Connector 26
USB 1 Connector 27
USB 2 Connector 28
COM Connector 29
GPIO Connector 30
POWER IN Connector 31
LED Indicators 32
Switches 34
Electrical Specifications 35
Power Input 36
SDI Input Port 37
HDMI Input Port 38
HDMI Output Port 39
Analog Audio Input Port 40
Analog Audio Output Port 41
Alarm Input Port 42
Relay Output Port 43
Picolo.net Handbook

4
RS-232 COM Port 45
RS-422/RS-485 COM Port 46
USB Port 47
Environmental Specifications 48
Operating Conditions 49
Storage Conditions 50
Compliance 51
Functional Specifications 52
Video Specifications 53
Video Source Specification 56
Video Encoders Specification 58
Audio Specifications 61
Streaming Specifications 64
Network Specifications 67
System Integration Specifications 69
Temperature Monitor 70
Auto Setup Profiles 71
Time and Date 72
Access Control 74
Software Specifications 76
Software Components 77
Client Interfaces 80
Web Services 81
ONVIF Device Service 82
Proprietary Device Service 83
ONVIF Media Service 84
Proprietary Media Service 85
ONVIF Event Service 87
ONVIF PTZ Service 88
Proprietary PTZ Service 89
ONVIF Device IO Service 91
Proprietary Device IO Service 92
Web Pages 94
Home Page 95
Login Page 99
Media Profiles Page 100
Media Profile Page 101
Picolo.net Handbook

5
Configurations Page 106
Edit Video Encoder Configuration Page 114
Edit Audio Encoder Configuration Page 117
Edit Metadata Configuration Page 120
Digital Inputs & Relay Outputs Page 121
Audio Outputs Page 124
PTZ Page 125
Device Management Page 127
Network Tab 127
Time Tab 130
Discovery Tab 133
Maintenance Tab 134
Users Management Page 136
Hidden Pages 138
Check Status Page 138
Product Maintenance 139
Firmware Upgrade 139
Configuration Backup and Restore 139
Application Notes 140
Encrypted Media Storage 141
Purpose 141
eCryptfs Encryption Layer 142
eCryptfs Header Extent 143
Web Services 145
References 146
Appendix 147
Appendix 148
About ONVIF 148
Open Source Software 149
Precautions of Use 149
Firmware Naming Conventions 150
Picolo.net Handbook

6
About This Document
Document Scope
This document describes and explains how to use the functions of the following Picolo.net
products, product options and accessories when operated with firmware version 1.0
Picolo.net Products
Product S/N Prefix Icon
1669-DW Picolo.net HD1 (Desktop/Wall) HD1
1669-DR Picolo.net HD1 (DIN rail) HD1
Related Accessories
Product S/N Prefix Icon
1675 Power Supply for Picolo.net HD1
Picolo.net Handbook About This Document

7
Document Revision History
Date Version Description
2017-10-03 1.0.3002 1669 Picolo.net HD1 Handbook initial release
About This Document Picolo.net Handbook

8
Short Description
KEY FEATURES
1669 Picolo.net HD1 provides the following key features:
nHigh-quality HEVC (H.265) / AVC (H.264) encoder, up to 9 encoded streams
nVideo streaming from one full HD (up to 1080p60/1080i60) HDMI or SDI source
nONVIF Profile S and Profile T interface
nVideo encryption
nHi-Fi AAC or uncompressed audio
nUSB edge storage / USB GPS support
nSerial connection for PTZ cameras
nPoE+ Power over Ethernet
nFanless aluminum housing
VIDEO FEATURES
1669 Picolo.net HD1 acquires high-definition video from one of HDMI or SDI video sources.
It supports progressive-scan formats up to 1080p60 and interlaced formats up to 1080i60 with a
large set of frame rates for both 50Hz and 60Hz regions. The source selection and the format
selection are automatic.
Interlaced-scan video streams are converted to progressive-scan with motion-compensation.
Two scalers provide two additional video stream sources at lower (or higher) resolutions :
nThe scaler #1 scales the source resolution to 1280 x 720 (720p) (or lower).
nThe scaler #2 scales the source resolution to 640 x 360 (360p) (or lower).
The three streams can be encoded concurrently with any of the following encoding methods:
nHEVC (H.265) main profile,
nAVC (H.264) baseline, main, or high profiles,
nMJPEG.
The high-quality HEVC (H.265) / AVC (H.264) hardware encoder engine is capable of encoding
multiple streams with an aggregate pixel rate up to 160,000,000 pixels per second (equivalent to
1080p77).
The MJPEG encoder is capable of encoding multiple streams with an aggregate pixel rate up to
62,208,000 pixels per second (equivalent to 1080p30).
Picolo.net Handbook Short Description

9
AUDIO FEATURES
1669 Picolo.net HD1 acquires 2-channel audio from one of HDMI, SDI or analog audio sources.
The source selector provides three options:
nHDMI: two digital audio channels embedded in the HDMI audio/video signal,
nSDI: two digital audio channels are embedded in the SDI audio/video signal,
nAnalog: two digital audio channels delivered by the 48 kHz 16-bit analog-to-digital converter
in the analog audio input interface.
The sample rate converter allows to change the sample rate of the selected audio stream. The
resulting audio stream can be delivered in the uncompressed format (e.g. 16-bit LPCM), in the
AAC-LC compressed format or in the G.711 format.
IO FEATURES
1669 Picolo.net HD1 provides the following I/O features:
n2 USB2.0 ports for external storage device and GPS receiver,
n2 serial COM ports for the control of PTZ cameras: one with a full-duplex RS-422/half-duplex
RS-485 interface using the Pelco-D protocol and one with a full-duplex RS-232 interface using
the VISTA protocol.
n1 alarm input port,
n1 relay output port.
NETWORK FEATURES
1669 Picolo.net HD1 provides a gigabit capable RJ-45 Ethernet port for connection to an IP
network.
STREAMING FEATURES
1669 Picolo.net HD1 uses the Real-time Transport Protocol - RTP - to stream audio, video and
metadata over the IP network. The following RTP transport modalities are supported:
nRTP over UDP Unicast
nRTP over UDP Multicast
nRTP interleaved in RTSP over HTTP or HTTPS
The streaming is controlled by means of the RTSP protocol. Each RTSP session may include:
nOne encoded video stream
nOne encoded audio stream
nOne metadata stream
Short Description Picolo.net Handbook

10
USER AUTHENTICATION AND ACCESS POLICY
1669 Picolo.net HD1 implements the following user authentication mechanisms to control the
access to its resources:
nHTTP and RTSP authentication using the "HTTP Digest Authentication" mechanism
nWS authentication using the WS-Security “Username Token” mechanism, with the “Password
Digest” password type.
nWeb Pages through login/password dialog box.
ENCRYPTION
1669 Picolo.net HD1 implements the following encryption mechanisms:
nWeb Service messages encryption using TLS 1.0
nHTTPS Web Pages encrypted access using TLS 1.0
COMPLIANCE
1669 Picolo.net HD1 is an encoder device complying with the version 1.0 of the ONVIF Profile S
Specification.
PHYSICAL
1669-DR Picolo.net HD1 (DIN rail) is packaged in an aluminum enclosure that can be fitted on a
DIN-rail.
1669-DW Picolo.net HD1 (Desktop/Wall) is packaged in an aluminum enclosure that can be
installed on a desktop or attached to any flat surface such as a wall.
1669 Picolo.net HD1 products are:
nintended for indoor use exclusively,
nfan-less devices that support ambient temperatures up to 50°C or 122°F,
npowered from an external 12V DC power source or from a PoE+ network device.
Picolo.net Handbook Short Description

11
Mechanical Specification
Product Pictures 12
Dimensions and Weight 13
Mounting Methods 14
Connectors Location and Markings 15
Connectors 18
LED Indicators 32
Switches 34
Mechanical Specification Picolo.net Handbook

12

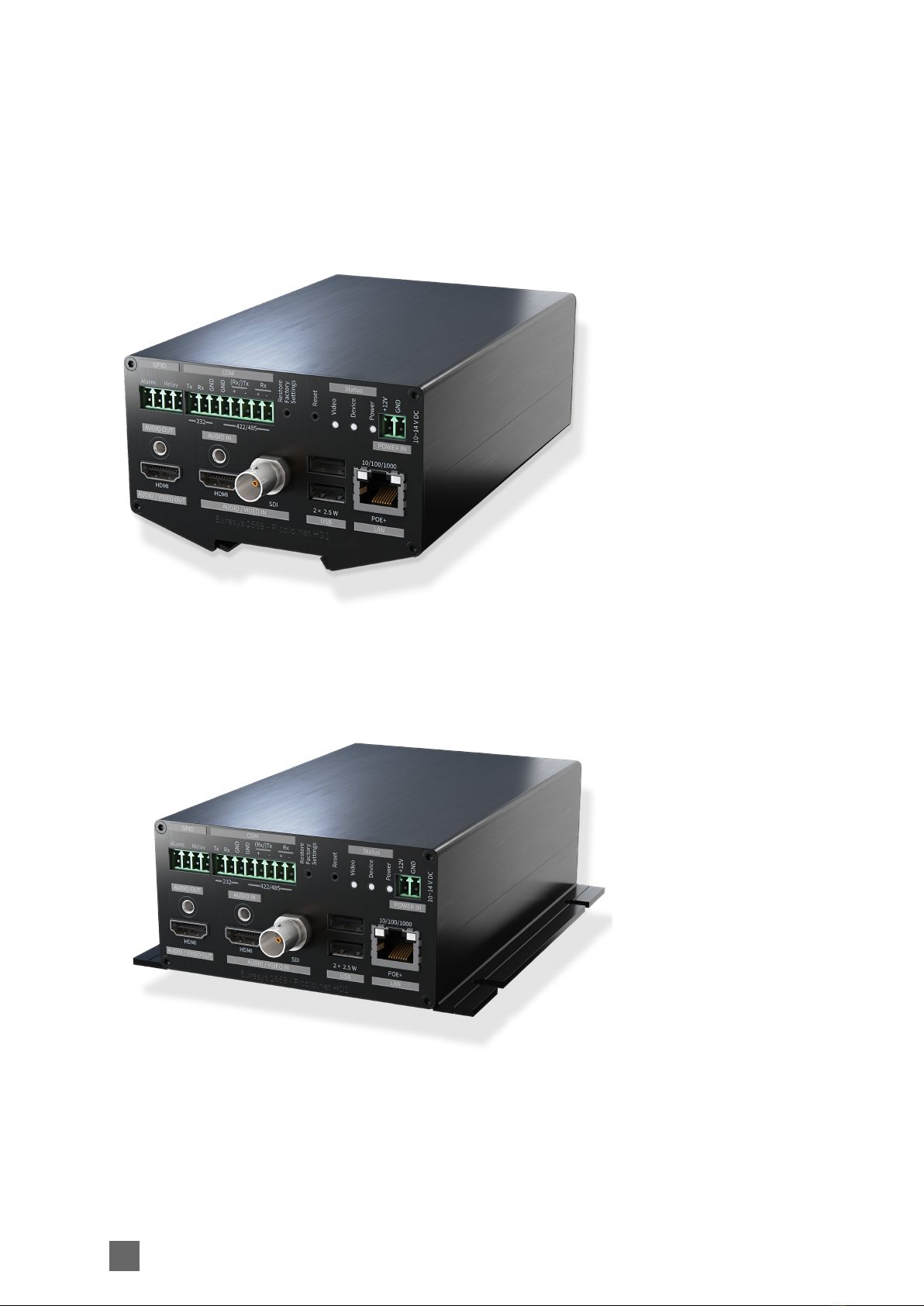

Product Pictures
1669-DR PICOLO.NET HD1 (DIN RAIL)
Front panel perspective view
1669-DW PICOLO.NET HD1 (DESKTOP/WALL)
Front panel perspective view
Picolo.net Handbook Mechanical Specification

13
Dimensions and Weight
1669-DR PICOLO.NET HD1 (DIN RAIL)
Characteristic Value [mm] Value [inch]
Width 105 4.13
Height 63.9 2.52
Depth 185 7.28
Dimensions
Characteristic Value [g] Value [lb]
Weight 760 1.68
Weight
1669-DW PICOLO.NET HD1 (DESKTOP/WALL)
Characteristic Value [mm] Value [inch]
Width 130.4 5.13
Height 55.3 2.18
Depth 185 7.28
Dimensions
Characteristic Value [g] Value [lb]
Weight 800 1.76
Weight
Mechanical Specification Picolo.net Handbook

14
Mounting Methods
1669-DR PICOLO.NET HD1 (DIN RAIL)
The out-of-the box product is ready for installation on a DIN rail.
DIN-Rail Mount
The DIN rail must be horizontal. Two possible orientations are allowed: left facing connectors or
right facing connectors.

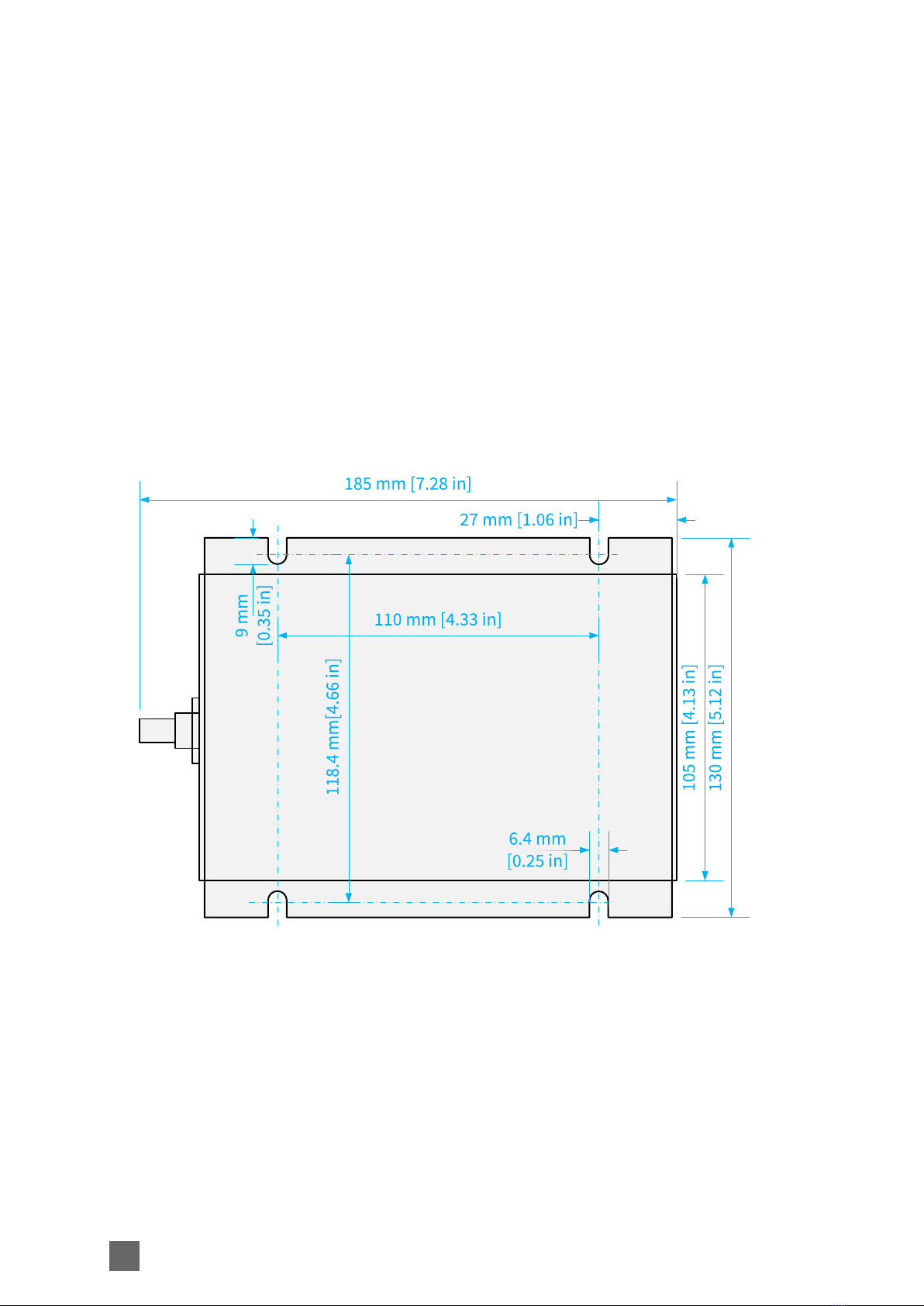

1669-DW PICOLO.NET HD1 (DESKTOP/WALL)
The out-of-the box product is ready for a desktop or a wall-mount usage. The enclosure is fitted
with 4 oblong holes, 2 on each side, that can be used to attach the product on any flat surface.
Picolo.net Handbook Mechanical Specification

15
Connectors Location and Markings
Mechanical Specification Picolo.net Handbook

16
1669-DR PICOLO.NET HD1 (DIN RAIL)
Front panel
Rear panel
Picolo.net Handbook Mechanical Specification

17
1669-DW PICOLO.NET HD1 (DESKTOP/WALL)
Front panel
Rear panel
Mechanical Specification Picolo.net Handbook

18
Connectors
SDI AUDIO/VIDEO IN Connector 19
HDMI AUDIO/VIDEO IN Connector 20
HDMI AUDIO/VIDEO OUT Connector 22
AUDIO IN Connector 24
AUDIO OUT Connector 25
LAN Connector 26
USB 1 Connector 27
USB 2 Connector 28
COM Connector 29
GPIO Connector 30
POWER IN Connector 31
Picolo.net Handbook Mechanical Specification

19

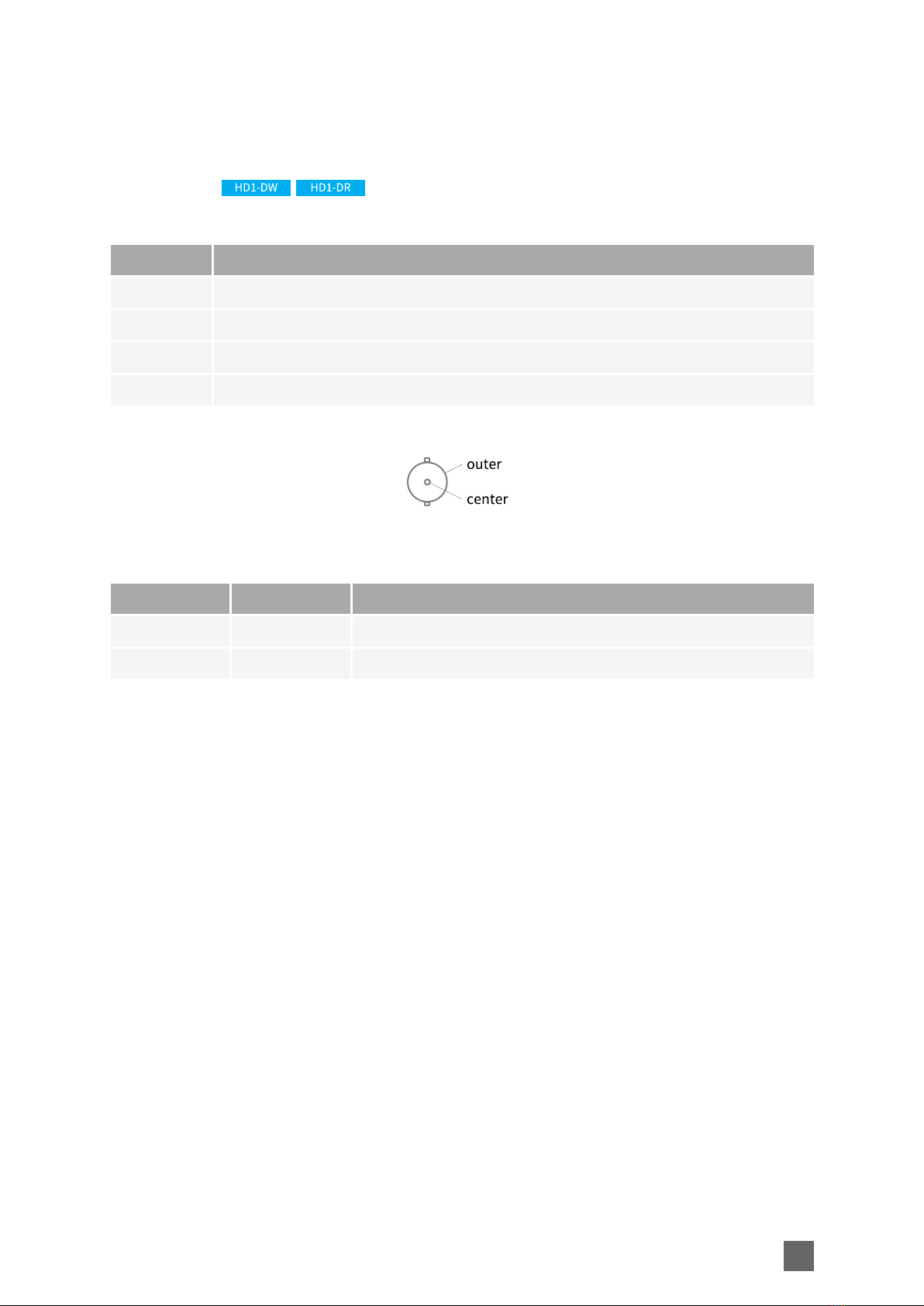

SDI AUDIO/VIDEO IN Connector
Applies to:
Property Value
Name SDI AUDIO/VIDEO IN
Type 2-pin female receptacle, right-angled PCB-mount, BNC connector
Location Front panel
Usage HD/3G-SDI audio/video input
Connector description
Pin Signal Usage
Center SDI IN SD/HD/3G-SDI Audio/Video Input
Outer GND Ground
Pin assignments
Mechanical Specification Picolo.net Handbook

20

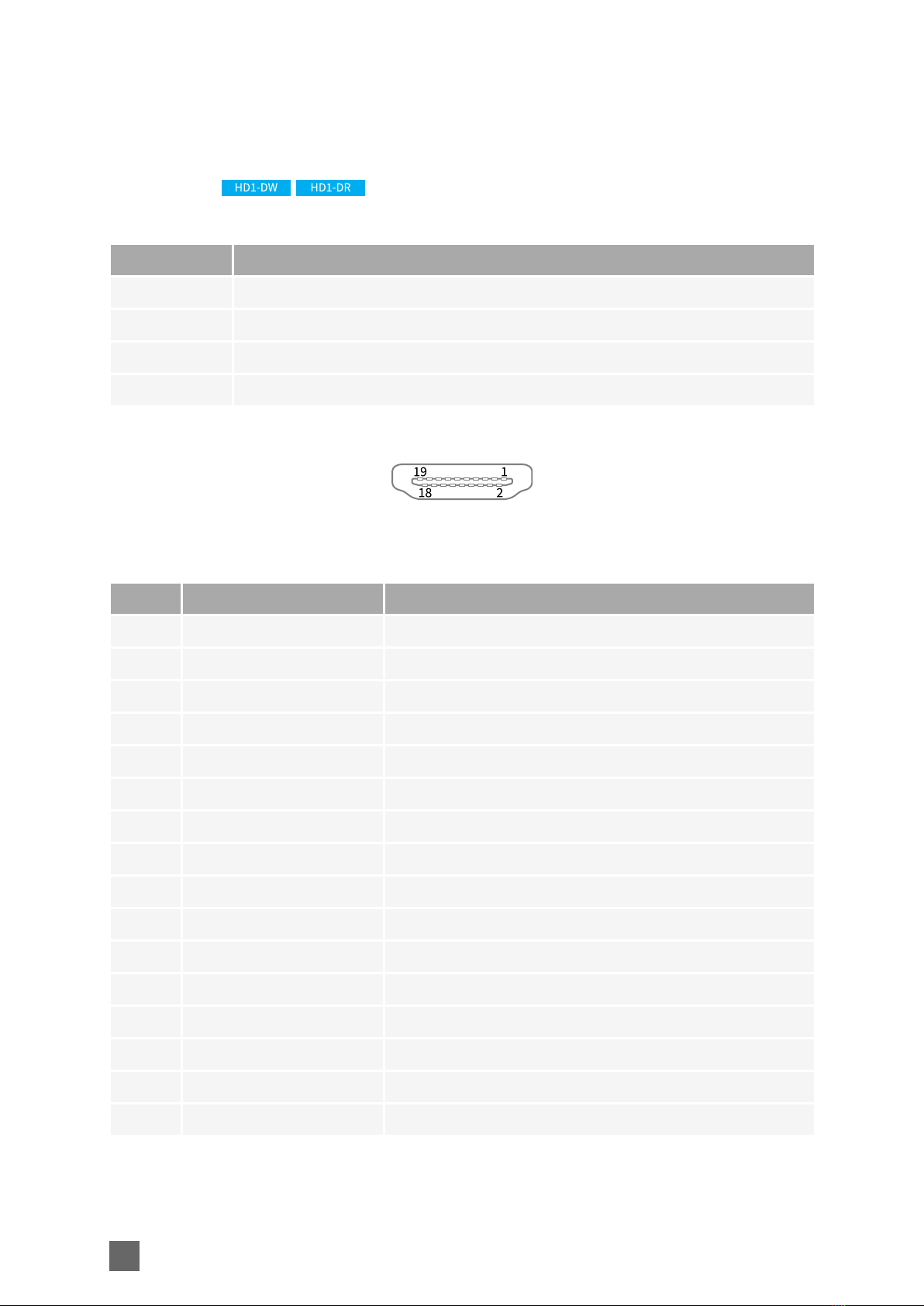

HDMI AUDIO/VIDEO IN Connector
Applies to:
Property Value
Name HDMI AUDIO/VIDEO IN
Type HDMI type A (full size) receptacle (female) connector
Location Front panel
Usage HDMI audio/video input
Connector description
Pin Signal Usage
1 TMDS Data2 + Digital audio/video input TMDS data lane 2
2 TMDS Data2 Shield Shield
3 TMDS Data2- Digital audio/video input TMDS data lane 2
4 TMDS Data1+ Digital audio/video input TMDS data lane 1
5 TMDS Data1 Shield Shield
6 TMDS Data1- Digital audio/video input TMDS data lane 1
7 TMDS Data0+ Digital audio/video input TMDS data lane 0
8 TMDS Data0 Shield Shield
9 TMDS Data0- Digital audio/video input TMDS data lane 0
10 TMDS Clock+ Digital audio/video input TMDS clock lane
11 TMDS Clock Shield Shield
12 TMDS Clock- Digital audio/video input TMDS clock lane
13 -
14 -
15 SCL DDC serial clock
16 SDA DDC serial data
Pin assignments
Picolo.net Handbook Mechanical Specification
