Euresys 1630 Coaxlink Mono User manual

Coaxlink
1630 Coaxlink Mono
1631 Coaxlink Duo
1632 Coaxlink Quad
1633 Coaxlink Quad G3
1635 Coaxlink Quad G3 DF
1637 Coaxlink Quad 3D-LLE
1638 Coaxlink Quad CXP-3
HARDWARE MANUAL
© EURESYS s.a. 2017 - Document version 9.1.0.2006 built on 2017-10-30

2
Terms of Use
EURESYS s.a. shall retain all property rights, title and interest of the documentation of the hardware and the
software, and of the trademarks of EURESYS s.a.
All the names of companies and products mentioned in the documentation may be the trademarks of their
respective owners.
The licensing, use, leasing, loaning, translation, reproduction, copying or modification of the hardware or the
software, brands or documentation of EURESYS s.a. contained in this book, is not allowed without prior notice.
EURESYS s.a. may modify the product specification or change the information given in this documentation at any
time, at its discretion, and without prior notice.
EURESYS s.a. shall not be liable for any loss of or damage to revenues, profits, goodwill, data, information systems or
other special, incidental, indirect, consequential or punitive damages of any kind arising in connection with the use
of the hardware or the software of EURESYS s.a. or resulting of omissions or errors in this documentation.
This documentation is provided with Coaxlink 9.3 (doc build 2017-10-30).
© 2017 EURESYS s.a.
Coaxlink Hardware Manual

3
Contents
About This Document 5
Document Scope 5
Document Revision History 6
Document Structure 7
Mechanical Specification 8
Product Pictures 9
Physical Characteristics 13
Components Location 14
Connectors 18
CoaXPress Host Connector 19
CoaXPress Host Connector 20
CoaXPress Host Connector 21
CoaXPress Data Forwarding Connector 22
External I/O Connector 23
Internal I/O 1 Connector 25
Internal I/O 2 Connector 27
C2C-Link Connector 29
Auxiliary Power Input Connector 30
CoaXPress Lamps 31
Board Status Lamp 32
FPGA Status Lamp 33
Firmware Recovery Switch 34
Electrical Specification 35
CoaXPress Host Interface 36
PCI Express Interface 39
Power Distribution 42
PCI Express Power 47
Auxiliary Power 50
I/O Power Output 51
Differential Input 52
TTL Input/Output 54
Isolated Input 56
Isolated Output 58
Coaxlink Hardware Manual

4
Environmental Specification 60
Environmental Conditions 61
Thermal Data 62
Compliances 63
Related Products & Accessories 65
1636 InterPC C2C-Link Adapter 66
Product Pictures 66
Hardware Description 67
C2C-Link Extender 68
Adapter Powering 68
InterPC Interconnect 69
Lamps 70
HD26F I/O Adapter 72
3303 C2C-Link Ribbon Cable 73
Custom C2C-Link Ribbon Cable Assembly 74
3304 HD26F I/O Adapter Cable 75
1625 DB25F I/O Adapter Cable 80
Coaxlink Hardware Manual

5
About This Document
Document Scope 5
Document Revision History 6
Document Structure 7
Document Scope
This document describes the hardware specifications of all the PCI Express products of the
Coaxlink series together with their related products.
Coaxlink Products
Product S/N Prefix Icon
1630 Coaxlink Mono KMO
1631 Coaxlink Duo KDU
1632 Coaxlink Quad KQU
1633 Coaxlink Quad G3 KQG
1635 Coaxlink Quad G3 DF KDF
1637 Coaxlink Quad 3D-LLE KQE
1638 Coaxlink Quad CXP-3 KQL
RELATED ACCESSORIES
Product S/N Prefix Icon
1625 DB25F I/O Adapter Cable
1636 InterPC C2C-Link Adapter KCC
3303 C2C-Link Ribbon Cable
3304 HD26F I/O Adapter Cable
The S/N prefix is a 3-letter string at the beginning of the card serial number.
Icons are used in this document for tagging titles of card-specific content.
About This Document Coaxlink Hardware Manual

6
Document Revision History
Date Document
Version Description
2015-01-08 4.0
New product:
▶Coaxlink Quad G3
For delivery with Coaxlink Driver version 4.0 (or
higher)
2015-04-02 4.1 Add "Custom C2C-Link Ribbon Cable Assembly"
on page74
2015-08-14 4.2 Add "1625 DB25F I/O Adapter Cable" on
page80
2016-06-09 5.0
New products:
▶1635 Coaxlink Quad G3 DF
▶3303 C2C-Link Ribbon Cable
▶3304 HD26F I/O Adapter Cable
For delivery with Coaxlink Driver version 5.0 (or
higher)
2016-07-13 5.1
Specification update:
▶"PCI Express Power" on page47: Add power
specification to 1635 Coaxlink Quad G3 DF.
▶"Auxiliary Power" on page50: Add min/max
voltage output specification for 12V to 24V
Power Converter.
2016-08-12 6.1 New product:
▶"1636 InterPC C2C-Link Adapter" on page66
2016-09-26 6.2 "Lamps" on page70: Swap LED lamps of 1636
InterPC C2C-Link Adapter
2017-02-17 7.0 Add 1629 Coaxlink Duo PCIe/104-EMB and 1634
Coaxlink Duo PCIe/104-MIL
2017-05-24 8.0 Add 1638 Coaxlink Quad CXP-3
Coaxlink Hardware Manual About This Document

7
Date Document
Version Description
2017-06-08 9.0 Add 1637 Coaxlink Quad 3D-LLE
2017-10-27 9.1.0
Specification updates:
▶"TTL Input/Output" on page54: revised
DCand AC electrical specifications of TTL
I/O ports
▶"Environmental Conditions" on page61:
extend the operating temperature range to
+ 55 °C
Document Structure
This document is composed of 4 main sections:
▶"Mechanical Specification" on the next page provides the product pictures, the physical
dimensions, the connectors description and the pin assignments, the lamps description, etc.
▶"Electrical Specification" on page35 provides the electrical characteristics of all
input/output ports, a description of the power distribution, power requirements, etc.
▶"Environmental Specification" on page60 provides the climatic requirements and
CE/FCC/RoHS/WEEE compliance statements.
▶"Related Products & Accessories" on page65 provides a description of related products and
accessories such as adapters, cables …
About This Document Coaxlink Hardware Manual

8
Mechanical Specification
Mechanical specifications of the product(s) including: product pictures, physical dimensions,
connectors description and pin assignments, lamps description, switches description, etc.
Product Pictures 9
Physical Characteristics 13
Components Location 14
Connectors 18
CoaXPress Host Connector 19
CoaXPress Host Connector 20
CoaXPress Host Connector 21
CoaXPress Data Forwarding Connector 22
External I/O Connector 23
Internal I/O 1 Connector 25
Internal I/O 2 Connector 27
C2C-Link Connector 29
Auxiliary Power Input Connector 30
CoaXPress Lamps 31
Board Status Lamp 32
FPGA Status Lamp 33
Firmware Recovery Switch 34
Coaxlink Hardware Manual Mechanical Specification

9

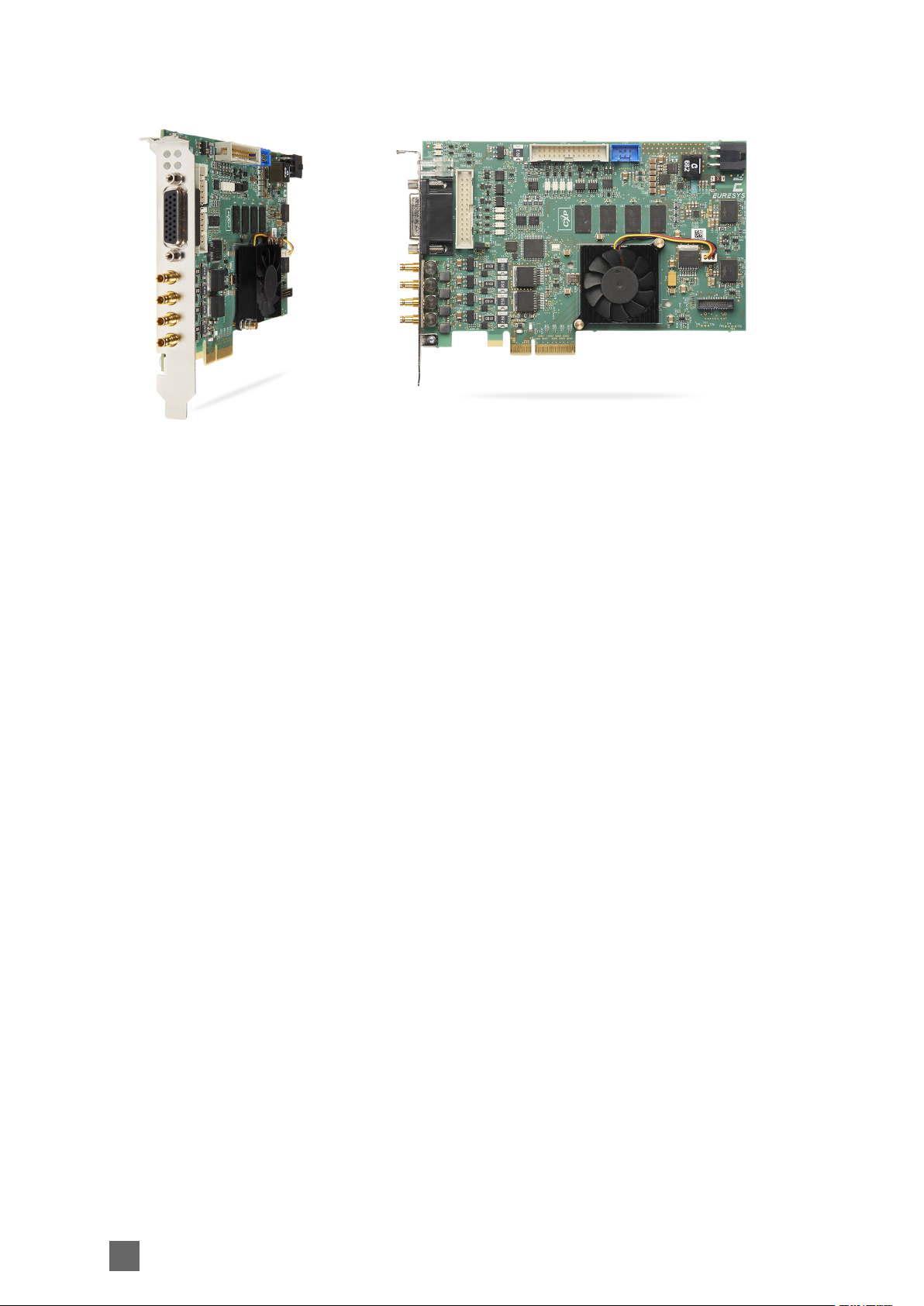

Product Pictures
1630 Coaxlink Mono
1631 Coaxlink Duo
Mechanical Specification Coaxlink Hardware Manual

10

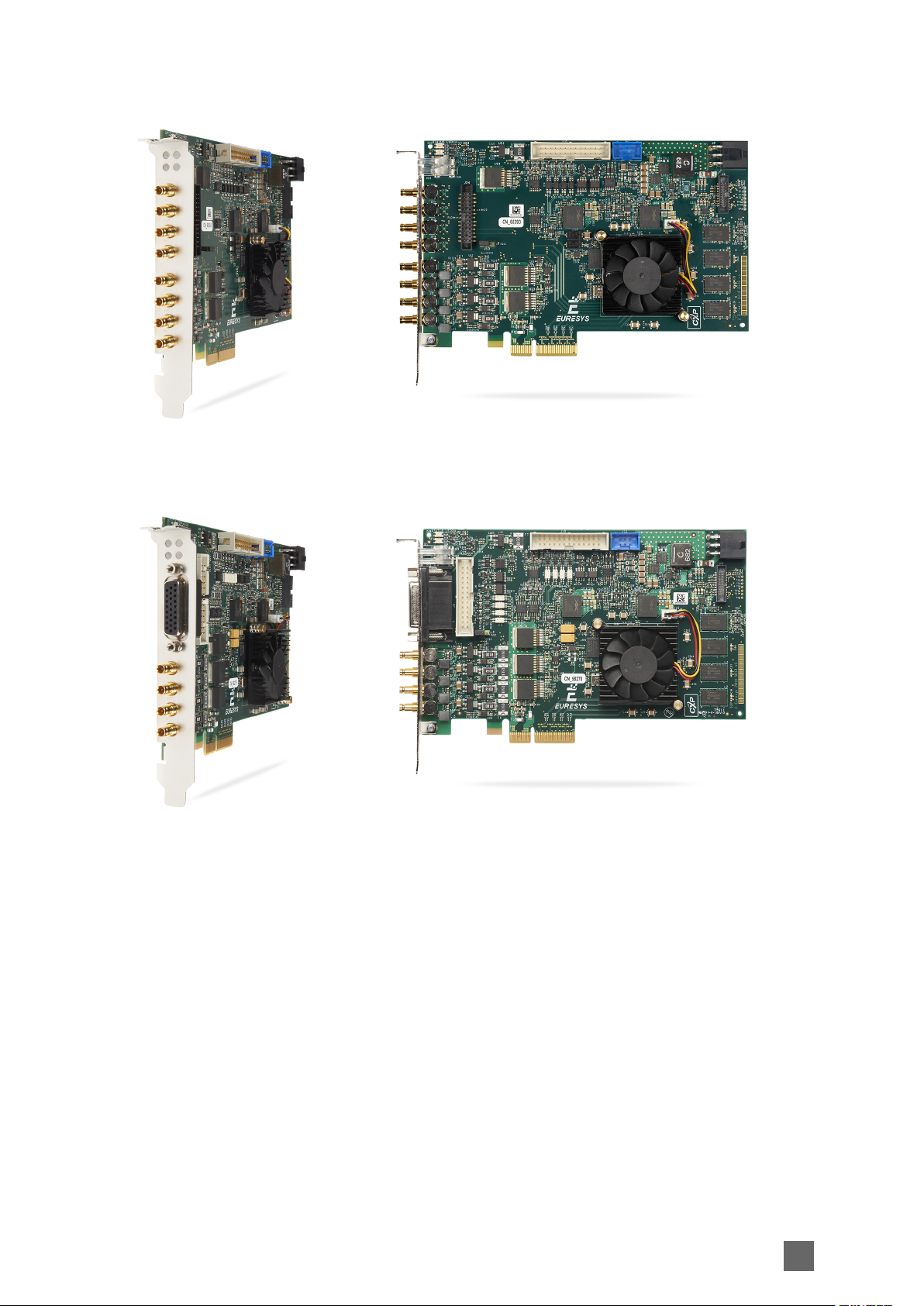

1632 Coaxlink Quad
1633 Coaxlink Quad G3
Coaxlink Hardware Manual Mechanical Specification

11
1635 Coaxlink Quad G3 DF
1637 Coaxlink Quad 3D-LLE
Mechanical Specification Coaxlink Hardware Manual

12
1638 Coaxlink Quad CXP-3
Coaxlink Hardware Manual Mechanical Specification

13
Physical Characteristics
Dimensions and weight
Product Length Height Weight
1630 Coaxlink Mono 167.65 mm, 6.6 in 111.15 mm, 4.38 in 150 g, 5.29 oz
1631 Coaxlink Duo 167.65 mm, 6.6 in 111.15 mm, 4.38 in 160 g, 5.64 oz
1632 Coaxlink Quad 167.65 mm, 6.6 in 111.15 mm, 4.38 in 170 g, 6.00 oz
1633 Coaxlink Quad G3 167.65 mm, 6.6 in 111.15 mm, 4.38 in 180 g, 6.35 oz
1635 Coaxlink Quad G3 DF 167.65 mm, 6.6 in 111.15 mm, 4.38 in 186 g, 6.56 oz
1637 Coaxlink Quad 3D-LLE 167.65 mm, 6.6 in 111.15 mm, 4.38 in 180 g, 6.35 oz
1638 Coaxlink Quad CXP-3 167.65 mm, 6.6 in 111.15 mm, 4.38 in 170 g, 6.00 oz
Mechanical Specification Coaxlink Hardware Manual

14

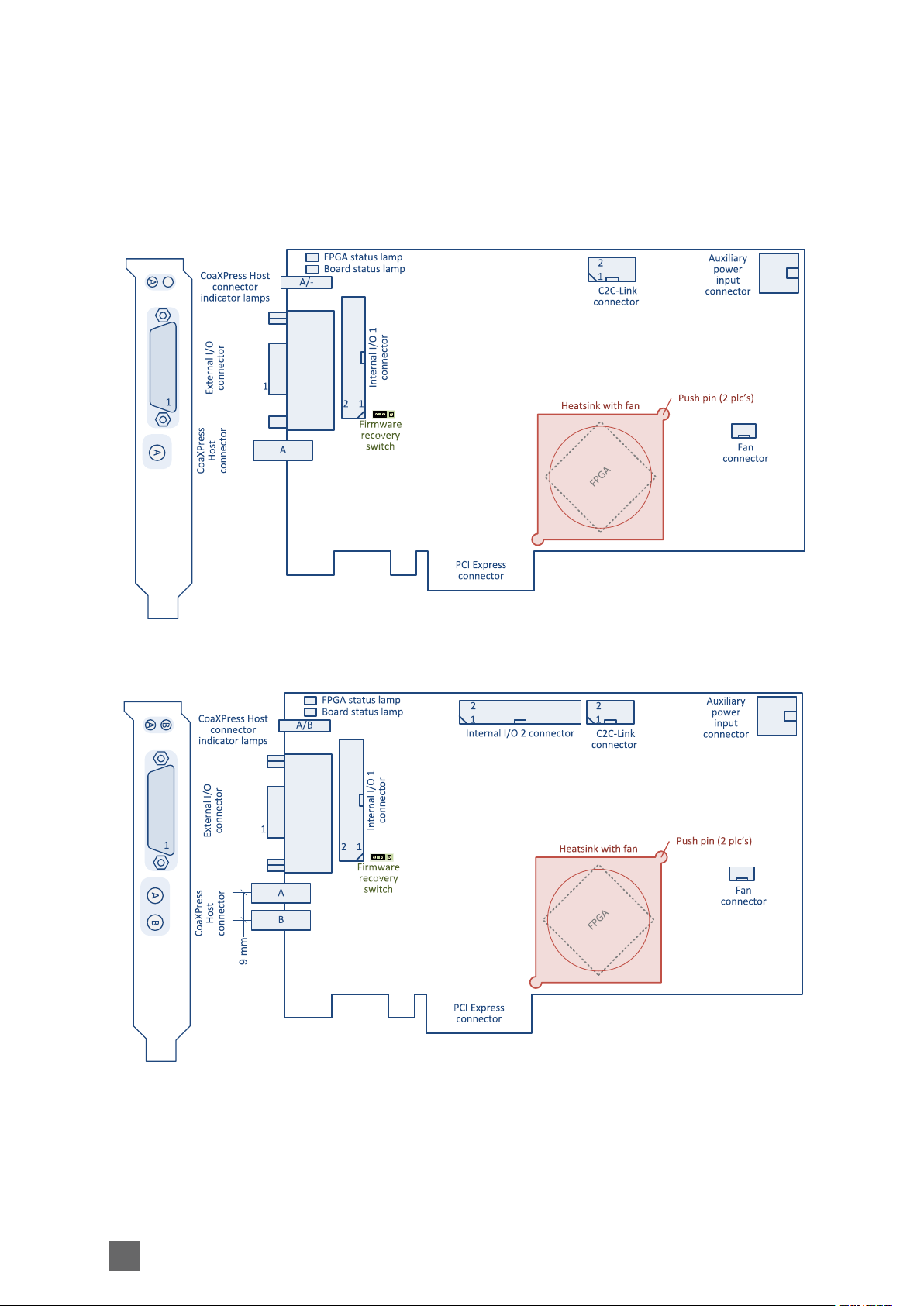

Components Location
Location drawings of connectors, lamps, switches and main components
1630 Coaxlink Mono
1631 Coaxlink Duo
Coaxlink Hardware Manual Mechanical Specification

15

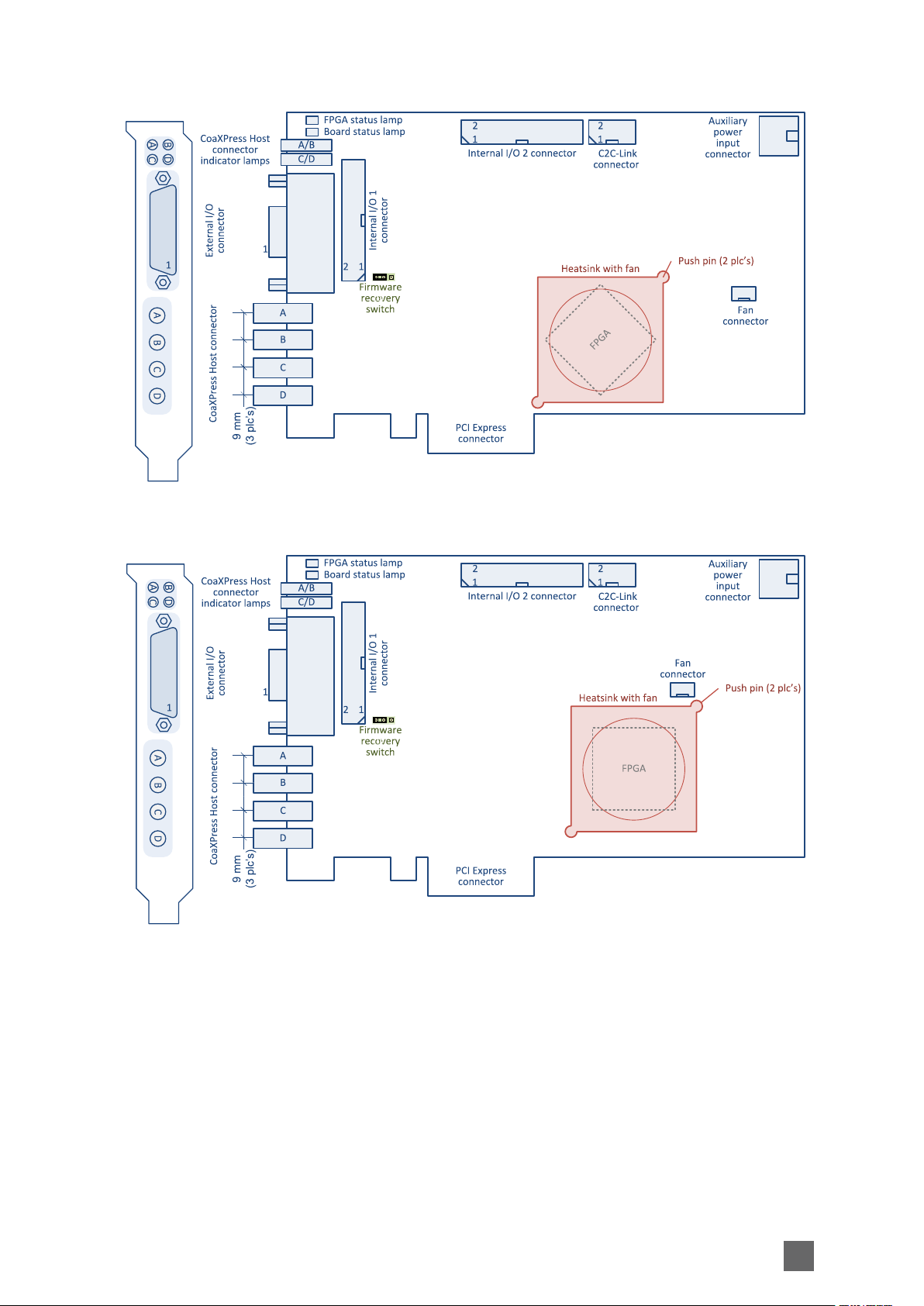

1632 Coaxlink Quad
1633 Coaxlink Quad G3
Mechanical Specification Coaxlink Hardware Manual

16

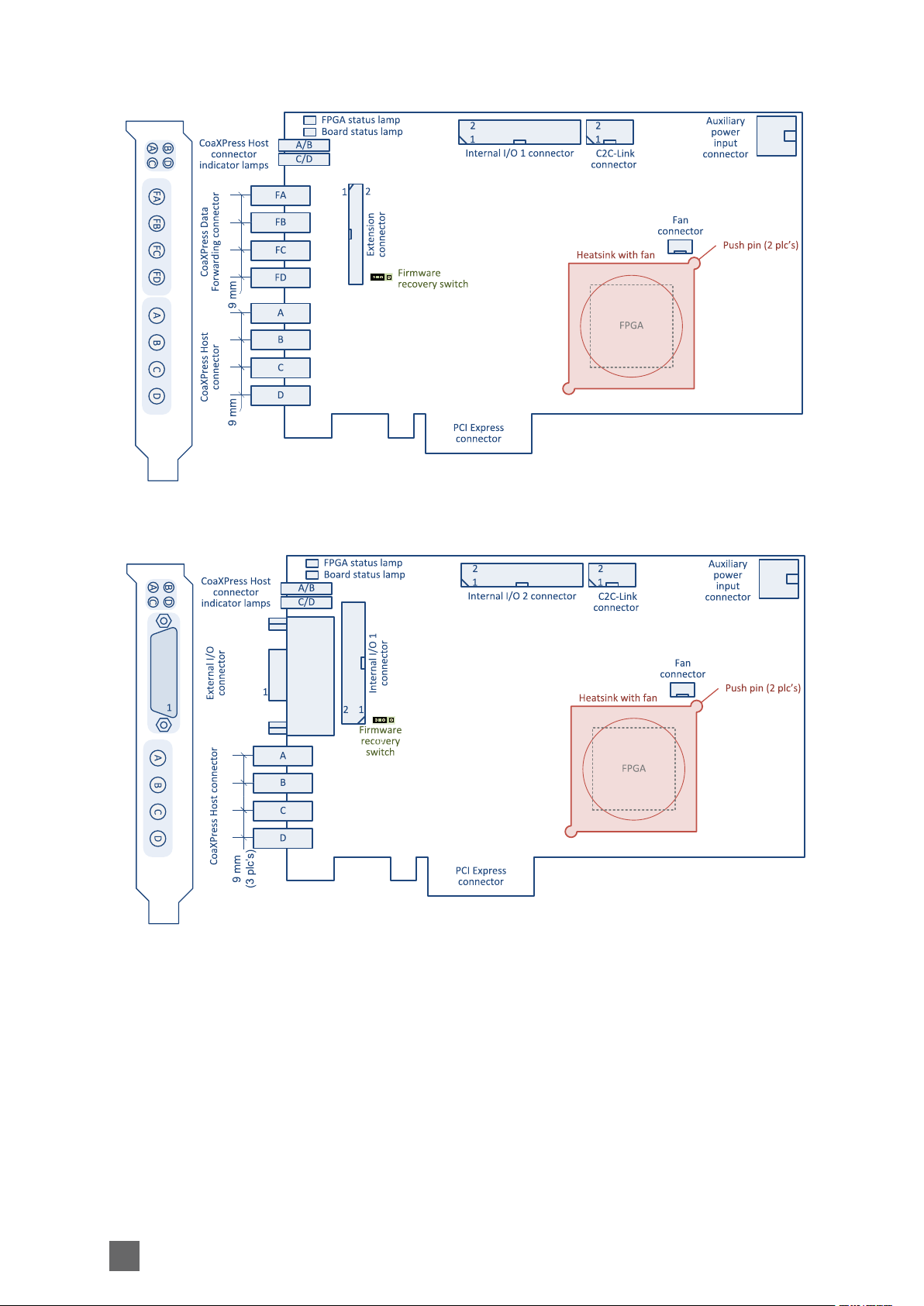

1635 Coaxlink Quad G3 DF
1637 Coaxlink Quad 3D-LLE
Coaxlink Hardware Manual Mechanical Specification

17
1638 Coaxlink Quad CXP-3
Mechanical Specification Coaxlink Hardware Manual

18
Connectors
CoaXPress Host Connector 19
CoaXPress Host Connector 20
CoaXPress Host Connector 21
CoaXPress Data Forwarding Connector 22
External I/O Connector 23
Internal I/O 1 Connector 25
Internal I/O 2 Connector 27
C2C-Link Connector 29
Auxiliary Power Input Connector 30
Coaxlink Hardware Manual Mechanical Specification

19
CoaXPress Host Connector
Applies to:
Property Value
Name CoaXPress Host
Type DIN 1.0/2.3 75 Ohms coaxial female receptacle
Location Card bracket
Usage CoaXPress Host Interface CoaXPress Data Forwarding Interface
Connector description
Pin Signal Usage
Inner CXP_A CoaXPress Host Connection A
Outer GND Ground
Pin assignments
Mechanical Specification Coaxlink Hardware Manual

20
CoaXPress Host Connector
Applies to:
Property Value
Name CoaXPress Host
Type 2 x DIN 1.0/2.3 75 Ohms coaxial receptacles
Location Card bracket
Usage CoaXPress Host Interface CoaXPress Data Forwarding Interface
Connector description
Pin Signal Usage
Inner1 CXP_A CoaXPress Host Connection A
Outer1 GND Ground
Inner2 CXP_B CoaXPress Host Connection B
Outer2 GND Ground
Pin assignments
