Euro Appliances ES602SS2 User manual

USAGE AND
CARE GUIDE
PRODUCT
CODE:
ES602SS2
rangehoods

Contents
Safety instructions 3
Installation 5
Start using your cooker hood 8
Troubleshooting 8
Maintenance and cleaning 9
Environment protection 12

3
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood, please
read it carefully before using even if you are familiar with the product. The manual
should be kept in a safe place for future reference.
Never to do:
•Do not try to use the cooker hood
without the grease filters or if the
filters are excessively greasy!
•Do not install above a cooker with
a high level grill.
•Do not leave frying pans unattended
during use because overheated fats
or oils might catch fire.
•Never leave naked flames under the
cooker hood.
•If the cooker hood is damaged,
do not attempt to use.
•Do not flambé under the cooker
hood.
CAUTION: Accessible parts may
become hot when used with cooking
appliances.
The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels. Range hoods and other cooking
fume extractors may adversely affect
the safe operation of appliances burning
gas or other fuels (including those in
other rooms) due to back flow of
combustion gases.
These gases can potentially result in
carbon monoxide poisoning.
After installation of a range hood or
other cooking fume extractor, the
operation of open flued gas appliances
should be tested by a competent
person to ensure that back flow of
combustion gases does not occur.
It is necessary to allow disconnection
of the appliance from the supply after
installation.
The disconnection can be achieved by
having the plug accessible or by
incorporating a switch in the fixed wiring
in accordance with the wiring rules.
Always to do:
•Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
•The cooker hood must be installed
in accordance with the installation
instructions and all measurements
followed.
•All installation work must be carried
out by a competent person or
qualified electrician.

4
•Please dispose of the packing
material carefully. Children are
vulnerable to it.
•Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
•Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
•Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
•Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
•Always put lids on pots and pans
when cooking on a gas cooker.
•When in extraction mode, air in the
room is being removed by the
cooker hood. Please make sure
that proper ventilation measures
are being observed. The cooker
hood removes odours from room
but not steam.
•There shall be adequate ventilation
of the room when the cooker hood
is used at the same time as
appliances burning gas or other
fuels.
•Cooker hood is for domestic use
only.
•If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
•This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety. Children should be
supervised to ensure that they do not
play with the appliance. Cleaning and
user maintenance shall not be made
by children.
Always to do:
•Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children should stay away unless
they are under permanent
supervision.
•There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
•Regulations concerning the
discharge of air have to be fulfilled.
•Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
•For safety reason, please use only
the same size of fixing or mounting
screw which are recommended in
this instruction manual.
•Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
•Cleaning and user maintenance
shall not be made by children
without supervision.

5
•When the cooker hood and
appliances supplied with energy
other than electricity are
simultaneously in
•operation, the negative pressure
in the room must not exceed
4 Pa (4 x 10-5 bar).
•WARNING: Danger of Fire, do not
store items on the cooking surfaces.
•A steam cleaner is not to be used.
•NEVER try to extinguish a fire with
water, but switch off the appliance
and then cover flame e.g. with a lid
or a fire blanket.
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the
half-parts to its body. The images only show an example of how to mount the
V-flap, because the outlet may vary according to different models and configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.
INSTALLATION (Wall Mounting)
1. The cooker hood should be placed at a distance of 65-75cm from the cooking
surface for the best effect.

6
2. Decide the location of the holes for fixing the cooker hood.

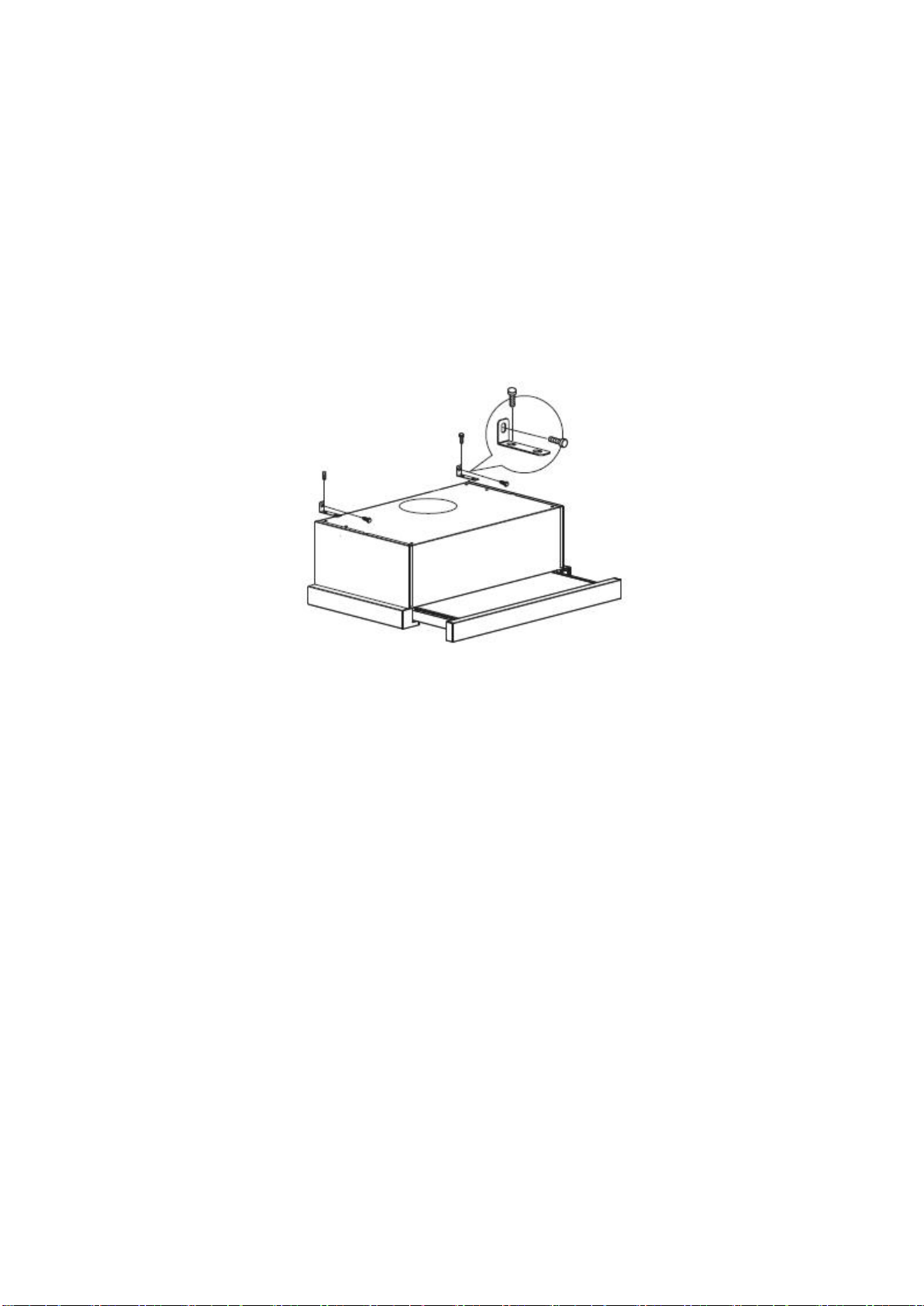

3. Install the L-shaped bracket on the top of the hood with two screws (4 x 10mm).
4. The cooker hood is wall mounted with 4 screws (4 x 30mm) and wall plugs. Mount
the cooker hood on the wall on the back of the cooker hood with 2 screws
(4 x 30mm) and wall plugs. Then fix the cooker hood on the wall with 2 screws
(4 x 30mm) and wall plugs through the small L-shaped bracket.
5. Install the outlet to the cooker hood. Then fix the expansion pipe on the outlet, and
lead it to outdoors.

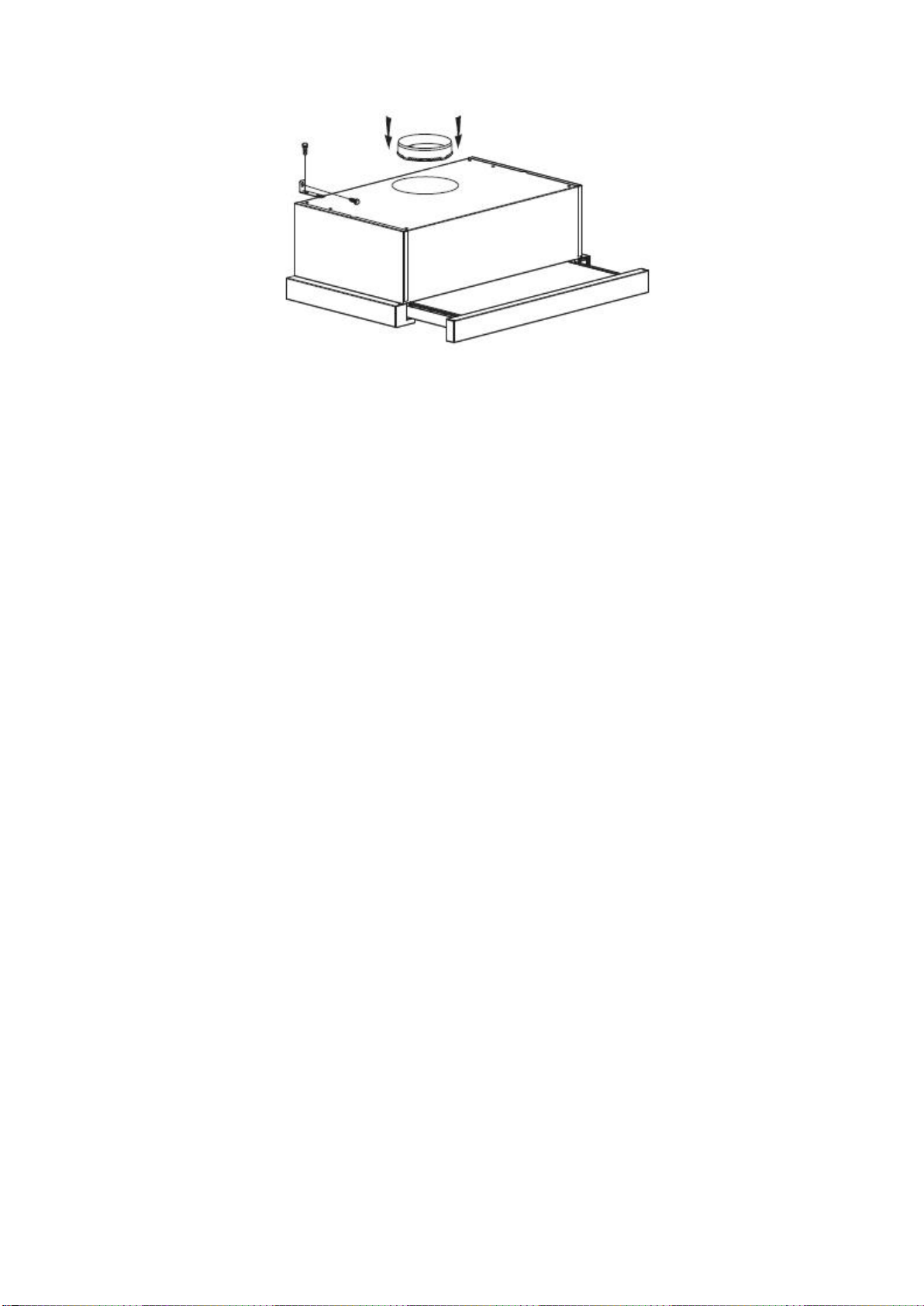

INSTALLATION (Cabinet Mounting)
1. Install the outlet to the cooker hood.

7
2. Drill 6 φ5mm holes in the plywood of the cabinet.
3. Mount the cooker hood on the cabinet with 6 screws (4 x 35mm) and flat washers.
4. Fix the expansion pipe on the outlet, and lead it to outdoors.
If there is gap between the wall and the cooker hood, you may install the L-shaped
bracket on the bottom of the hood with two screws (3 x 12mm).
The installation of the L-shaped bracket is optional.
Note: The expansion pipe mentioned in all installation is not included in the product.

8
WARNING: •For safety reason, please use only the same size
of fixing or mounting screws which are
recommended in this instruction manual.
•Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.
Start Using Your Cooker Hood
Rocker switch
Rocker switch
1. Insert the power plug into the socket.
2. Push switch ①to , the lamp will be on; push switch ①to “0”, the lamp will be
off.
3. Push the switch ②into “I、II”, the motor will be on “low、high” two speeds, push
into “0”, the motor will be off.
4. The power will be connected when pull out the front panel. Conversely, the power
will be automatically disconnected.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed
Contact service center.
Light does not
House fuses blown
Reset/Replace fuses.

9
work, motor does
not work
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet. Switch power
outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover
Take chimney down and seal.
Lights not working
Broken or faulty bulbs
Replace bulbs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw is not tight
enough
Tighten the hanging screw and
make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and federal
laws. Please contact the service centre if in any doubt before undertaking any of the
above. Always disconnect the unit from the power source when opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker
hood should be disconnected from the mains power supply.
Ensure that the cooker hood is switched off at the wall
socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions to ensure
the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.)
on the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid
may be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent
any unsightly crisscross scratching patterns from appearing.

10
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives, as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with
a mild detergent and then brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. It is advisable
not to use rinse aid.
INSTALLING GREASE MESH FILTERS
To install filters for the following four steps:
•Angle the filter into the slots at the back of the hood
•Push the button on the handle of the filter
•Release the handle once the filter fits into a resting position
•Repeat to install all filters
CARBON FILTER - not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit.
The installation procedure of activated carbon filter is as below.
(1) Slide the front part of the cooker hood.
(2) The al filter should be detached first. Press the lock and pull it downward.
(3) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(4) Replace the new carbon filter.

11
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
•When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :
•The bulb must be replaced by the manufacturer,
its service agent or similarly qualified persons.
•Always switch off the electricity supply before
carrying out any operations on the appliance.
When handling bulb, make sure it has completely
cooled down before any direct contact with hands.
•When handling bulbs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the bulb as this can reduce the life of the bulb.
Note:
•Before changing the lights, make sure that the appliance is turned off and
unplugged.
•Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
(1) Switch off the appliance and unplug it.
(2) Slide the front part of the cooker hood.
(3) The al filter should be detached first. Press the lock and pull it downward.
(4) Replace with same type of light.
ILCOS D code for this lamp is: DBS-1.5/65-H-201/39.5
•Max wattage: 1×1.5 W
•Voltage range: AC 220-240V

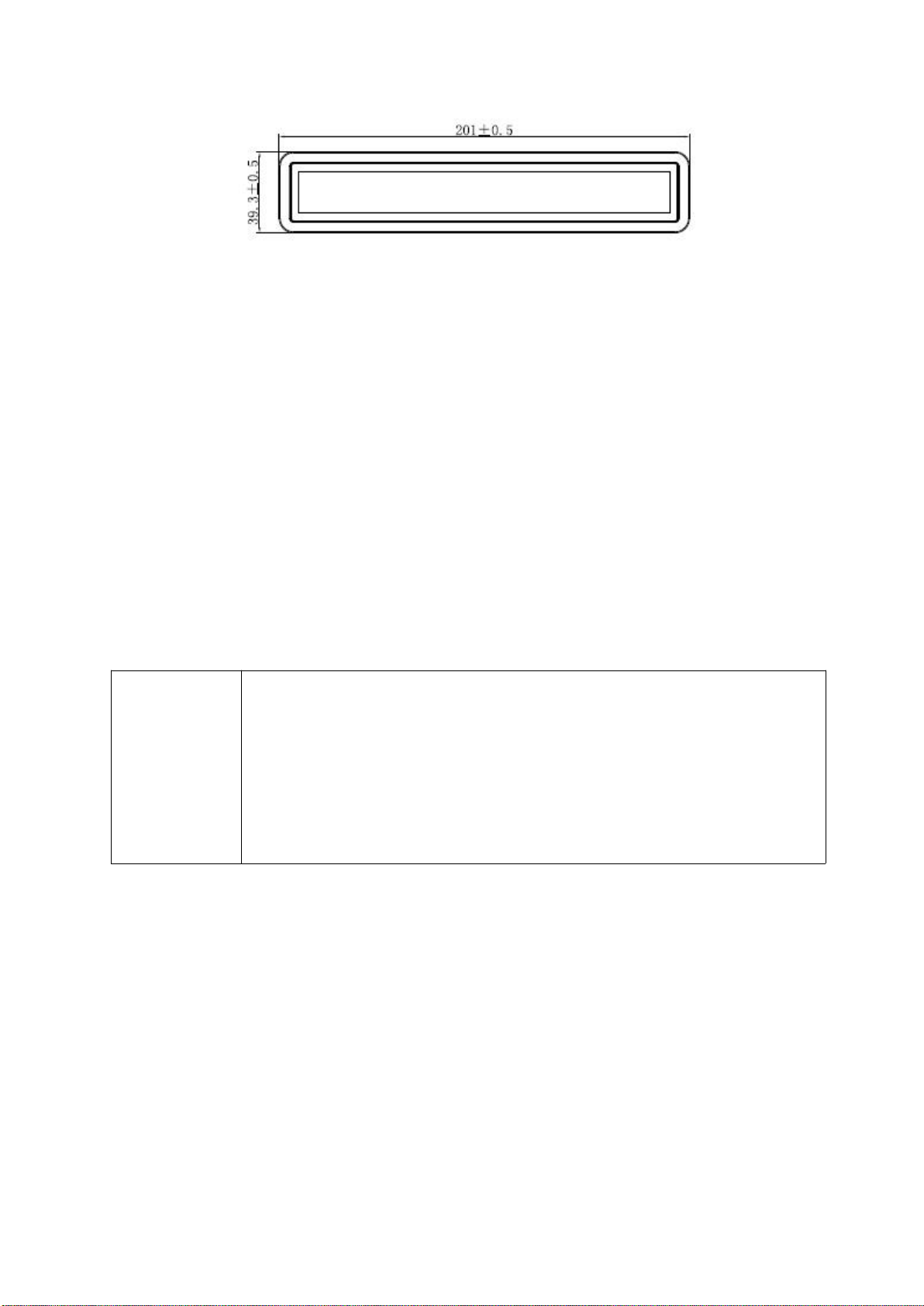

•Dimensions:

12
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of waste electronic
equipment. This means that this product must not be disposed of with household
waste but must be supported by a system of selective collection in accordance
with Directive 2012/19/EU.
It will then be recycled or dismantled to minimize impacts on the environment,
electrical and electronic products are potentially dangerous for the environment
and human health due to the presence of hazardous substances.
For more information, please contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of
the cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual.
The appliance could not be dismantled by user. At the end of life, the appliance
should not be disposed of with household waste. Check with your Local Authority
or retainer for recycling advice.

Pronto Service + Support: 1800 440 335
Email: [email protected]
HEAD OFFICE
65 Glynburn Road, Glynde SA 5070
Ph: 08 8165 1012
www.euroappliances.com.au
