Contents
Safety Instructions
Installation
Start using your cooker hood
Troubleshooting
Maintenance and Cleaning
Environment Protection 11

3
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood, please
read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
•Do not try to use the cooker hood
without the grease filters or if the
filters are excessively greasy!
•Do not install above a cooker with
a high level grill.
•Do not leave frying pans
unattended during use because
overheated fats or oils might catch
fire.
•Never leave naked flames under
the cooker hood.
•If the cooker hood is damaged,
do not attempt to use.
•Do not flambé under the cooker
hood.
•CAUTION: Accessible parts may
become hot when used with cooking
appliances.
•The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest
part of the cooker hood. (When the
cooker hood is located above a gas
appliance, this distance shall be at
least 65 cm)
•The air must not be discharged into
a flue that is used for exhausting
fumes from appliances burning gas
or other fuels.
Always to do:
•Important! Always switch off the
electricity supply at the mains during
installation and maintenance such
as light bulb replacement.
•The cooker hood must be installed
in accordance with the installation
instructions and all measurements
followed.
•All installation work must be carried
out by a competent person or
qualified electrician.
•Please dispose of the packing
material carefully. Children are
vulnerable to it.
•Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
•Make sure the ducting has no
bends sharper than 90 degrees as
this will reduce the efficiency of the
cooker hood.
•Warning: Failure to install the
screws or fixing device in
accordance with these instructions
may result in electrical hazards
•Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

4
Always to do:
•Always put lids on pots and pans
when cooking on a gas cooker.
•When in extraction mode, air in the
room is being removed by the
cooker hood. Please make sure
that proper ventilation measures
are being observed. The cooker
hood removes odours from room
but not steam.
•Cooker hood is for domestic use
only.
•If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
•This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
•Children should be supervised to
ensure that they do not play with
the appliance. Cleaning and user
mantenance shall not be made by
children.
•Warning: Before obtaining access
to terminals, all supply circuits
must be disconnected.
Always to do:
•Caution: The appliance and its
accessible parts can become hot
during operation. Children should
stay away unless they are under
permanent supervision.
•There shall be adequate ventilation
of the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
•There is a fire risk if cleaning is not
carried out in accordance with the
instructions.Do not flambe under the
Rangehood.
•Regulations concerning the
discharge of air have to be fulfilled.
•Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
•For safety reasons, please use only
the same size of fixing or mounting
screw which are recommended in
this instruction manual.
•Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
•Cleaning and user maintenance
shall not be made by children.
•When the cooker hood and
appliances supplied with energy
other than electricity are
simultaneously in operation, the
negative pressure in the room must
not exceed 4 Pa (4x10-5 bar)
•WARNING: Danger of fire - do not
store items on the cooking surfaces.
•A steam cleaner is not to be used.
•NEVER try to extinguish a fire with
water, but switch off the appliance
and then cover flame e.g. with a lid
or a fire blanket.

 5
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the
V-flap,the outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect.

6
3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the place of chimney. See
pic 2.
4. Fix the outside chimney bracket on the outside chimney, and be sure that the inside
chimney can be adjusted the height in it freely as well as fixing the expansion pipe.
Afterwards,fix the outlet with screws and put the expansion pipe with the cable tie on
the outlet.Then install the chimneys on the cooker hood. See Pic 3.
5. Put the cooker hood on the hook. See Pic 4.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it by screw, after adjusting the position, fix the body with safety screw. Note:
The two safety vents are positioned on the back housing, with diameter of 6mm.See
Pic 5.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure
loss.

7
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
WARNING: •For safety reason, please use only the same size
of fixing or mounting screw which are
recommended in this instruction manual.
•Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.
Start Using Your Cooker Hood
There are five buttons: (Low), (Mid), (High), (Light), (Power).See
Pic above.
1. After connecting to power, indicator light will lit on, all the output close and the hood
will enter standby mode. The indicator light will be off automatically after reminding
if no operation.
2. Power on: Press power button once, its indicator light will lit on, the hood works
at low speed. Indicator light of low speed will be bright. Press power button

8
again to close it, and its indicator light will be off. All the function operation of the
hood will be closed, the hood enters into standby mode, and run by circle.
The speed buttons and lamp button can work separately and not controlled by the
power button. When a certain function button is pressed, the hood operates at that
function status. Press power button under any status, the cooker hood will be
switched off without any functions.
3. Press lamp button once; lights will be turn on. Indicator light of lamp
button and power button will lit on. Press lamp button again to turn off the
lights. Indicator light of lamp button and power button will be off. And recycle
like this.
4. Press the (High) button once, motor runs on high speed, the indicator light of
high button and power button will beam. Press high button again and the
motor will stop. Indicator light of high button and power button will be off,and run by
circle.
5. Press the (Mid) button once, motor runs on middle speed, the indicator light of
middle button and power button will beam. Press middle button again and
the motor will stop. Indicator light of middle button and power button will be off,and
run by circle.
6. Press the (low) button once, motor runs on low speed, the indicator light of low
button and power button will beam. Press low button again and the
motor will stop. Indicator light of low button and power button will be off,and run by
circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood
is on high speed, press low speed, it will turn to low speed at once; when it is in
low speed, press middle speed, it will turn to middle speed immediately, and so on
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.

Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected Refit cord to power outlet. Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken/Faulty globes Replace globes as per this
instruction.
Insufficient suction The distance between the cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws. Please contact the service centre if in any doubt before undertaking
any of the above. Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood
should be disconnected from the main power supply. Ensure that
the cooker hood is switched off at the wall socket and the plug
removed.
•External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.)
on the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.

9

10
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance
appearance and potentially remove any printing of artwork on the control panel and
will void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
grease-loosening detergent then brush it gently with a soft brush. Please do not apply
too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. it is advisable
not to use rinse aid.

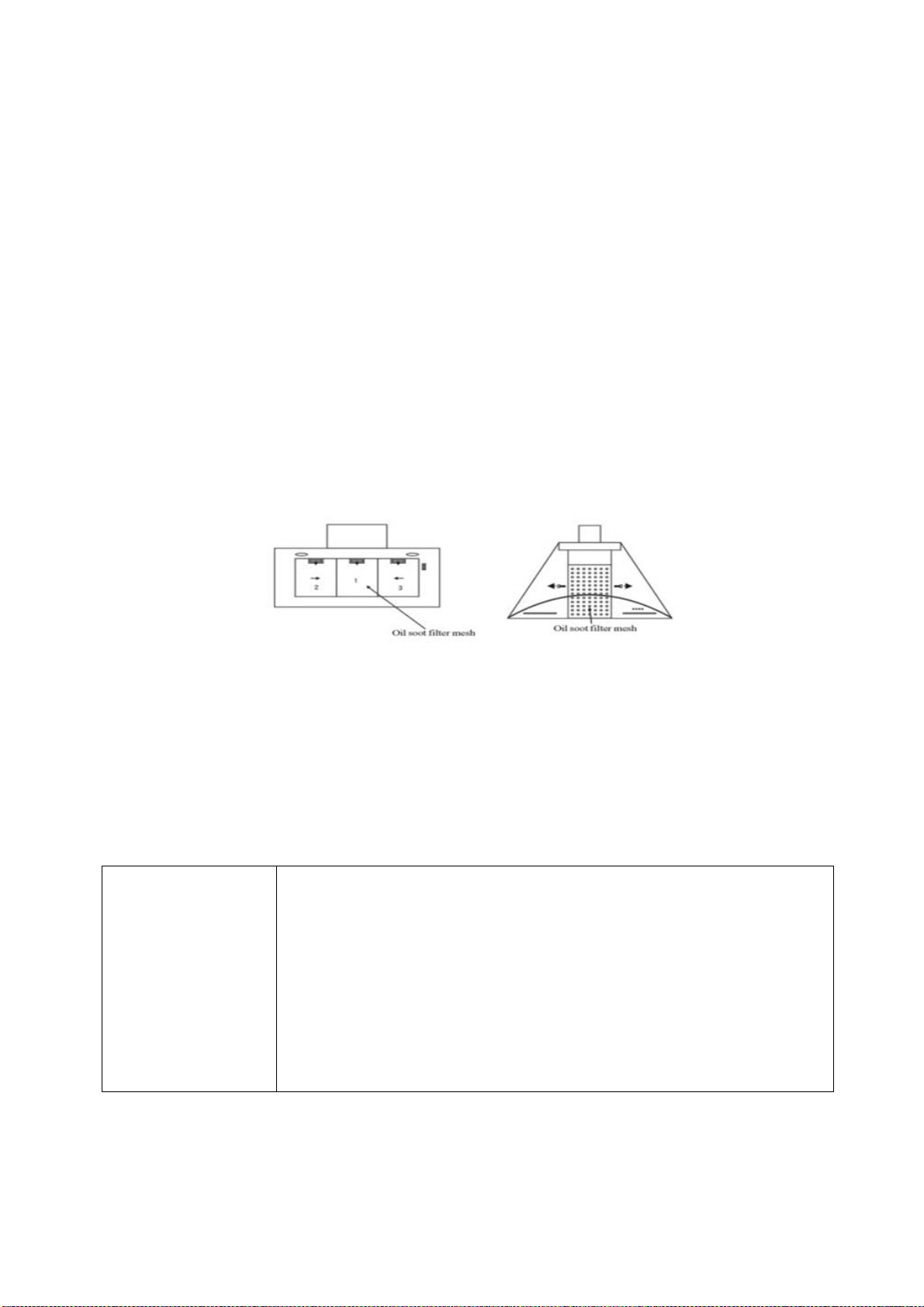

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps (See pic below):
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters
BULB REPLACEMENT
Important : The bulb must be replaced by the manufacturer, its service
agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When handling
bulb, make sure it is completely cool down before any direct
contact to hands.
When handling globes hold with a cloth or gloves to ensure
perspiration does not come in contact with the globe as
this can reduce the life of the globe.
Note:
•Before changing the lights, make sure that the appliance is plugged off.
•Protect against danger when changing lights, such as wearing gloves.

11
Changing the lights:
•Remove the grease filter.
•Use a tool or the hand to press the spring splinter of both sides of LED light to
the inside, until the light is pressed out, see pic 1.Then slightly pull the light
connecting wire out, and dismantle the terminal of the light connecting wire. See
pic 2.
•Apply the reverse procedure to install the light back.
•ILCOS D code for this lamp is: DSR-1.5/65-S-64
– LED modules, self- ballasted – round lamp
– Max wattage: 2×1.5W
– Voltage range: DC 12V
– Dimensions:
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual.
The appliance could not be dismantled by user. Atthe end of life, the appliance
should not be disposed of with household waste. Check with you Local Authority or
retainer for recycling advice.

Pronto Service + Support: 1800 440 335
Email: [email protected]
HEAD OFFICE
65 Glynburn Road, Glynde SA 5070
Ph: 08 8165 1012
www.euroappliances.com.au
