EURO EGZ90LWFCSX Technical manual

MODELS: EGZ900WWFSX - EGZ90LWFCSX
We ask that you carefully read the instructions within this booklet to enable you to abtain quality results from the outset.
The appliance must be installed only by an authorised person in compliance with the instructions provided. The manufacturer
declines all responsability for improper installation which may harm persons and animals and damage property.
The appliance must be used for the purpose for which it was expressly designed. Any other use (eg heating rooms) is considered to
be improper and consequently dangerous. The manufacturer declines all responsability for damage resulting from improper and
irresponsible use.
The manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or transcription errors. The
designs in the figures are purely indicative.
The manufacturer also reserves the right to make any modifications to the products as may be considered necessary, useful or in the
interests of the user, without jeopardizing the main functional and safety features on the products themselves.
If your cooktop requires service, please contact your local customer service centre or your nearest Eurostyle agent listed at the back
of this booklet. COD. 04031H - 11.05.2012
Dear Customer
Thank you for purchasing a Eurostyle Cooktop.
Before we continue telling you about this cooktop, we cordially invite you to become part of the Eurostyle family by
subscribing to ongoing information and invitations.
You will find that the clean lines and modern look of your Eurostyle Cooktop blends perfectly with your kitchen
décor. It is easy to use and performs to a high standard.
There are models to complement your new Eurostyle Cooktop.
Of course we make every effort to ensure that our products meet all your requirements, and our Customer
Relations department is at your disposal, to answer your questions and to listen to all your suggestions (see back
cover of manual).
Please complete the warranty section of this manual and keep your receipt as proof of purchase. Retain all
documents relating to the purchase of this products.
Eurostyle is committed to providing increasingly efficient products that are easy to use, respect the environment
and are attractive and reliable.
Eurostyle
USE, I STALLATIO A D MAI TE A CE
I STRUCTIO S FOR BUILT-I HOT PLATES

2
NATURAL U-LPG
1 Wok burner 14.5.0 J 11.4 J
2 Rapid gas burner 12.0 J 10.4 J
3 Semi rapid gas burner 7.1 J 6.2 J
4 Cast iron pan support 1F
5 Cast iron pan support 2F
6 Burner n° 1 control knob
9 Burner n° 2 control knob
10 Burner n° 3 control knob
Attention: this appliance has been manufactured for domestic use only. Do not modify this
appliance.
DESCRIPTIO OF THE HOT PLATES
MODEL: EGZ90LWFCSX MODEL: EGZ900WWFSX
5
610
10
5
4

3
1) BUR ERS
A diagram is screen-printed above each knob on the
front panel. This diagram indicates to which burner
the knob in question corresponds. After having
opened the gas mains or gas bottle tap, light the
burners as described below:
- manual ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
place a lighted match near the burner.
- Electrical ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress and release the ignition button.
- Automatic electrical ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress the knob.
- Lighting burners equipped with flame failure
device
The knobs of burners equipped with flame failure
device must be turned in an anticlockwise direction
until they reach the full on position (large flame
fig. 1) and come to a stop. Now depress the knob in
question and repeat the previously indicated
operations.
Keep the knob depressed for about 10 seconds
once the burner has ignited.
Note: you are advised not to try and light a
burner if the flame divider (Burner Cap) is not
correctly placed.
HOW TO USE THE BURNERS
Bear in mind the following indications in order to
achieve maximum efficiency with the least possible
gas consumption:
- use adequate pans for each burner (consult the
following table and fig. 2).
- When the pan comes to the boil, set the knob to the
reduced rate position (small flame fig. 1).
- Always place a lid on the pans.
- Use only pan with a flat bottom and in thick metal.
WARN NGS:
- burners with flame failure device may only be
ignited when the relative knob has been set to
the Full on position (large flame fig. 1).
- Matches can be used to ignite the burners in a
blackout situation.
- Never leave the appliance unattended when the
burners are being used. Make sure there are no
children in the near vicinity. Particularly make
sure that the pan handles are correctly
positioned and keep a check on foods requiring
oil and grease to cook since these products can
easily catch fire.
- The machine must not be used by people
(including children) with impaired mental or
physical capacities, or without experience of
using electrical devices, unless supervised or
instructed by an expert adult responsible for
their care and safety. Children should not be
allowed to play with the equipment.
- Never use aerosols in the vicinity of this appliance
while it is in operation.
- f the built-in hot plate has a lid, any spilt food
should be immediately removed from this
before it is opened. f the appliance has a glass
lid, this could shatter when the hot plate
becomes hot. Always switch off all the burners
before closing the lid.
- Do not store or use flammable liquids or items in
the vicinity of the hotplate.
- TH S PRODUCT S NOT FOR USE N MAR NE
CRAFT, CARAVANS OR MOB LE HOMES.
- Containers wider than the unit are not
recommended.
- Do not modify this appliance.
USE

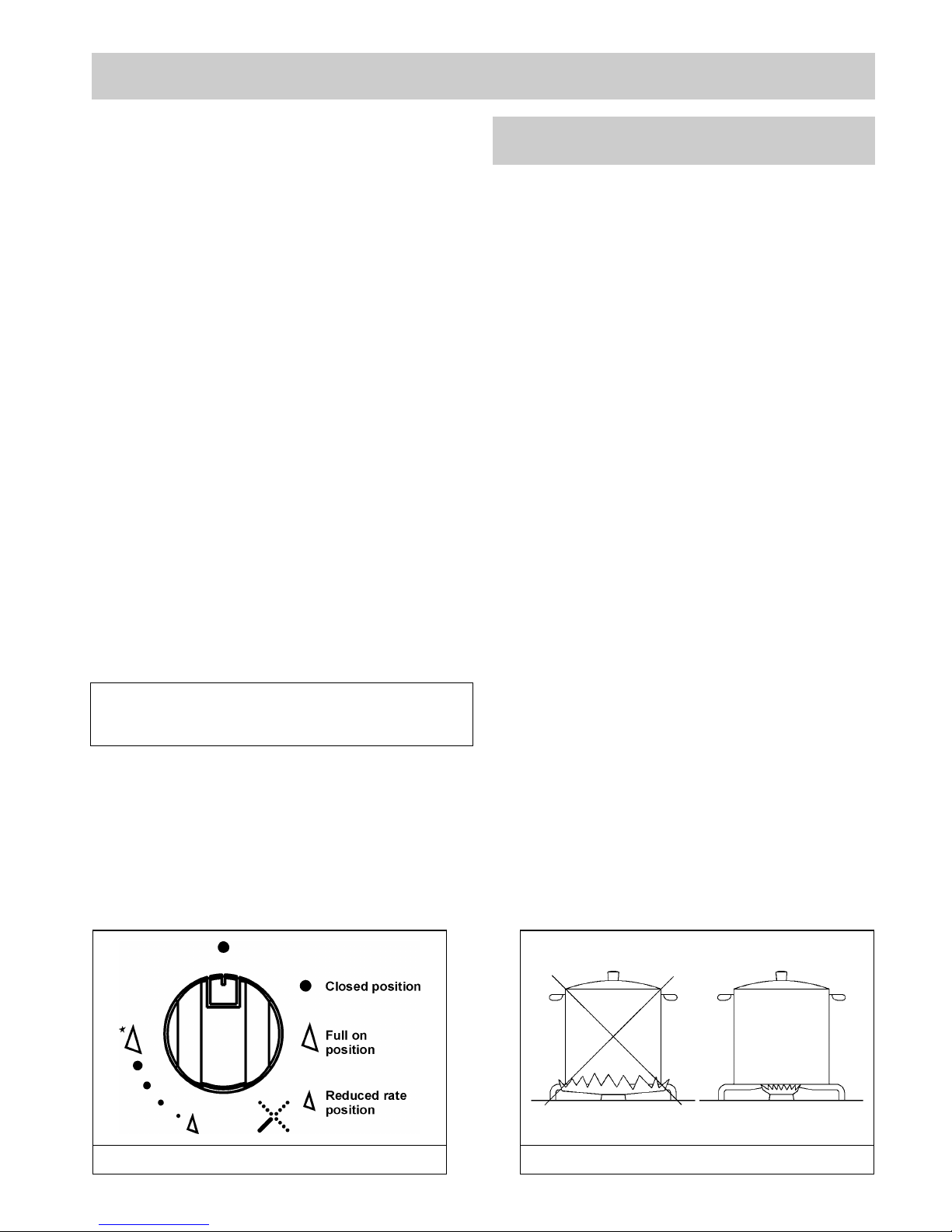

FIG. 1 FIG. 2
n the event of the Burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for a least 1 minute.

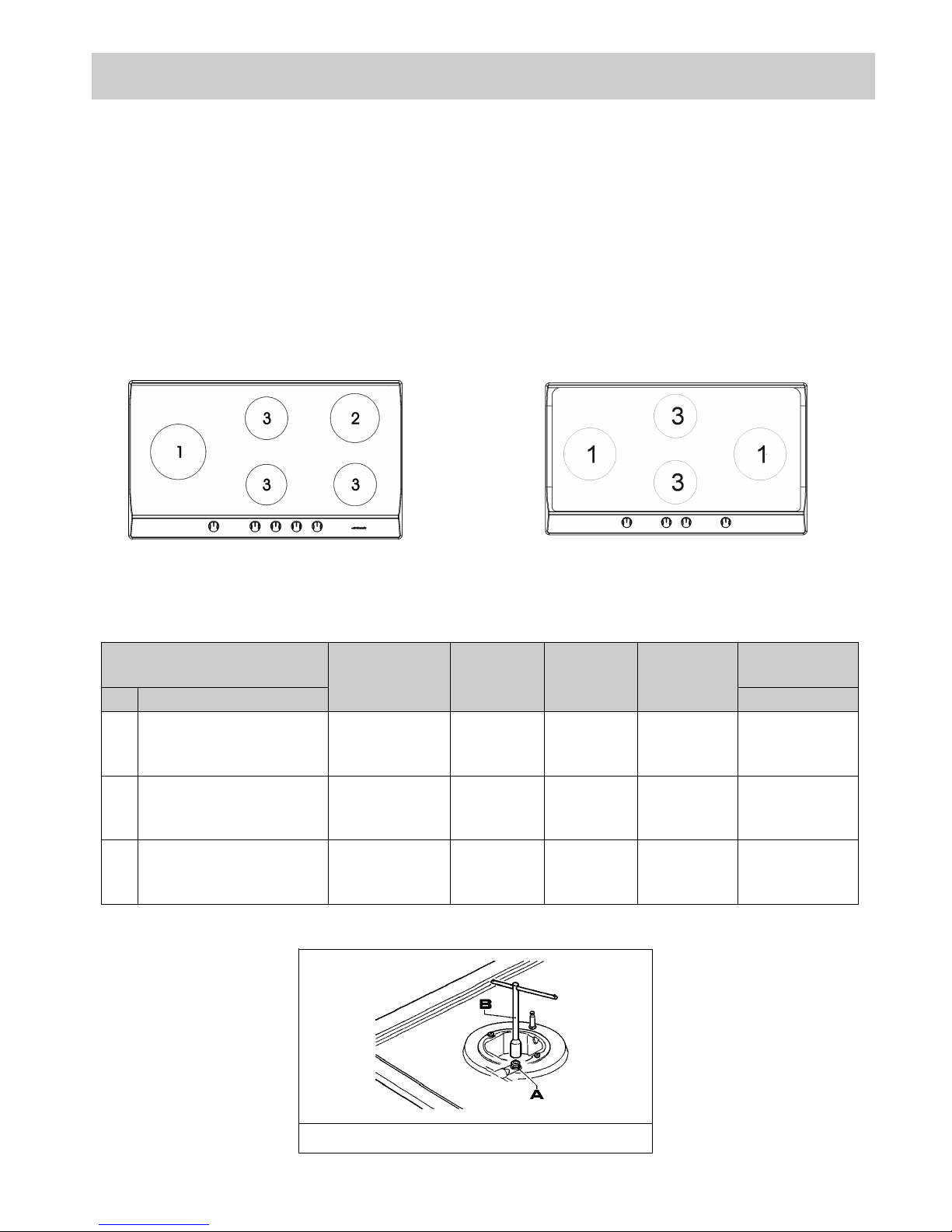

Burners Power ratings Pan Ø in cm
ATURAL U-LPG
Ultra rapid/WOK 14.5 J/h 11.4 J/h 22 ÷ 24
Semirapid 7.1 J/h 6.2 J/h 16 ÷ 18
Rapid 12.0 J/h 10.4 J/h 20 ÷ 22

4
USE
Notes:
use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The
room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating
the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).
ntensive and lengthy use of the appliance may require additional ventilation. This can be achieved by
opening a window or by increasing the power of the mechanical exhausting system if installed.
Do not attempt to change the technical characteristics of the product because it can be dangerous.
- f you should not to use this appliance any more (or replace an old model), before disposing of it,
make it inoperative in conformity with current law on the protection of health and the prevention of
environmental pollution by making its dangerous parts harmless, especially for children who might
play on an abandoned appliance.
- Do not touch the appliance with wet or damp hands or feet.
- Do not use the appliance barefoot.
- The manufacturer will not be liable for any damage resulting from improper, incorrect or
unreasonable use.
- During, and immediately after operation, some parts of the cook top are very hot: avoid touching
them.
- After using the cook top, make sure that the knob is in the closed position and close the main tap of
the gas supply or gas cylinder.
- f the gas taps are not operating correctly, call the Service Department.
Abnormal Operation:
any of the following are considered to be abnormal operation and may require servicing:
- yellow tipping of the hob burner flame.
- Sooting up of cooking utensils.
- Burners not igniting properly.
- Burners failing to remain alight.
- Burners extinguished by cupboard doors.
- Gas valves which are difficult to turn.
-
FIG. 3 FIG. 4 FIG. 5
(*) Air inlet - minimum section 100 cm2
Warning:
during operation the work surfaces of the
cooking area become very hot: keep children
away!

5
CLEA I G
MPORTANT:
always disconnect the appliance from the gas
and electricity mains before carrying out any
cleaning operation.
2) HOT PLATE
Periodically wash the hot plate, the enamelled steel
pan support, the enamelled burner caps “C” and the
burner heads “T” (see fig. 6) with lukewarm soapy
water. Following this, all parts should be thoroughly
rinsed and dried. Never wash them while they are
still warm and never use abrasive powders. Do not
allow vinegar, coffee, milk, salted water, lemon or
tomato juice from remaining in contact with the
enamelled surfaces for long periods of time.
WARN NGS:
comply with the following instructions, before
remounting the parts:
- check that burner head slots “T” (fig. 6) have
not become clogged by foreign bodies.
- Check that enamelled burner cap “C” (fig. 6)
have correctly positioned on the burner head. t
must be steady.
- The exact position of the pan support is
established by the rounded corners, which
should be set towards the side edge of the hot
plate.
- Do not force the taps if they are difficult to open
or close. Contact the technical assistance
service for repairs.
- Don’t use steam jets for cleaning the cooktop.
CARE & MA NTENANCE
To optimize the appearance and up keep of stainless
steel:
1) ALWAYS keep stainless steel out of contact from
acid/acid based solvent (liquid or vapour form).
2) After installation, wipe clean all stainless steel
products with a soft damp cloth to remove any
traces of dirt (e.g. cement dust) or condensation
marks.
n the event where persistent marks appear:
immediately clean affected areas with stainless steel
cleaner, using a clean damp soft cloth.
Ensure surface is rinsed and thoroughly clean of all
marks and stainless steel cleaner.
PREVENTAT VE MA NTENANCE
This cooktop should not require ongoing
maintenance provided you ensure:
- all spillages are cleaned up as soon as they occur.
- Burners are kept clean.
- Burner ports are free of debris, food or anything
else that may cause an obstruction.
- Electrode and thermocouples are kept clean.
- Burners are re-assembled correctly.
- Do not get water in the area where the injectors are
located.

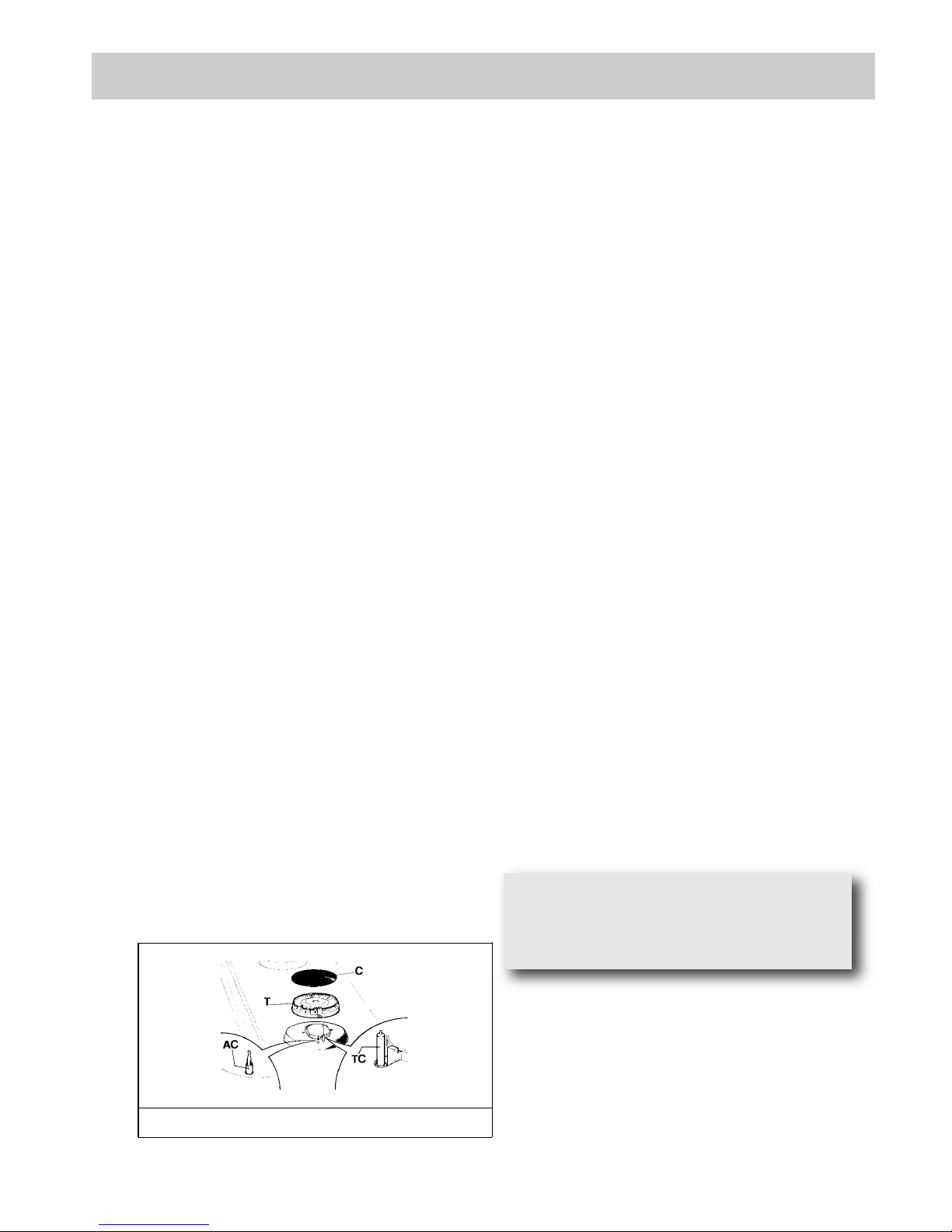

FIG. 6
Note:
continuous use could cause the burners to
change colour due to the high temperature.

6
TECHN CAL NFORMAT ON FOR
NSTALLAT ON PERSONNEL
This appliance shall be installed only by authorised
persons and in accordance with the manufacturer's
installation instructions, local gas fitting regulations,
municipal building codes, electrical wiring
regulations, AS 5601/AG 601 - Gas nstallations and
any other statutory regulations.
The wall and bench surfaces must be capable of
sustaining temperatures of 75 degrees Celsius.
All laminates, fixing adhesive and surfacing materials
should be certified suitable for this temperature.
Any adjoining wall surface situated within 200 mm from
the edge of any hob burner must be a suitable non-
combustible material for a height of 150 mm for the entire
length of the hob. Any combustible construction above the
hotplate must be at least 650 mm above the top of the
burner and no construction shall be within 450 mm above
the top of the burner. A minimum depth of 60 mm from the
top of the worktop surface must be provided for the
appliance.
3) I STALLI G THE HOT PLATE
Check that the appliance is in a good condition after
having removed the outer packaging and internal
wrappings from around the various loose parts. In
case of doubt, do not use the appliance and contact
qualified personnel.
Never leave the packaging materials (cardboard,
bags, polystyrene foam, nails, etc.) within
children’s reach since they could become
potential sources of danger.

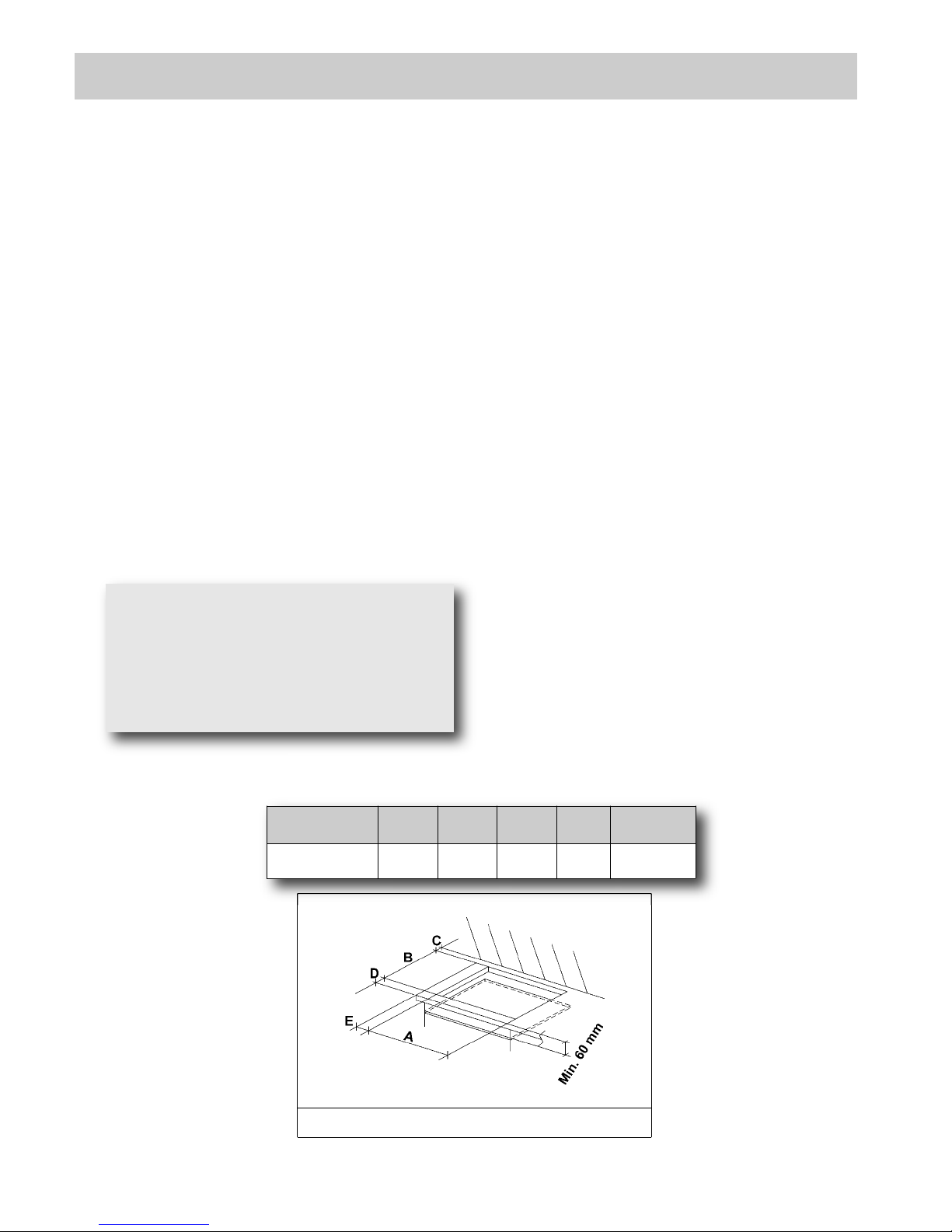

The measurements of the opening made in the top
of the modular cabinet and into which the hot plate
will be installed are indicated in fig. 7.
Always comply with the measurements given for the
hole into wich the appliance will be recessed (see
fig. 7).
The appliance belongs to class 3 and is
therefore subject to all the provisions
established by the provisions governing such
appliances.
I STALLATIO
FIG. 7
COMPLY W TH THE D MENS ONS (mm)
A B C D E
4F- 5F (860) 833 475 62.5 62.5 73.5 min.
MPORTANT:
a perfect installation, adjustment or
transformation of the cook top to use other
gases requires a QUAL F ED NSTALLER: a
failure to follow this rule will void the
warranty.

7
4) FIXI G THE COOKTOP
The hot plate has a special seal which prevents
liquid from infiltrating into the cabinet. Strictly comply
with the following instructions in order to correctly
apply this seal:
- detach the seals from their backing, checking that
the transparent protection still adheres to the seal
itself.
- Overturn the hot plate and correctly position seal
“E” (fig. 8) under the edge of the hot plate itself, so
that the outer side of the seal perfectly matches the
outer perimetral edge of the hot plate. The ends of
the strips must fit together without overlapping.
- Evenly and securely fix the seal to the hot plate,
pressing into place with the fingers and remove the
strip of protective paper from the seal and set the
plate into the hole made in the cabinet.
- Fix the hob with the proper brackets “S” and fit the
prominent part into the porthole “H” on the bottom;
turn the screw “F” until the bracket “S” stick on the
top (fig. 9).
- When the appliance is installed so that the base
can be touched, we recommend fitting a protecting
shield. This shield must be at least 60 mm below
the base of the bench top (fig. 7). Timber or other
suitable material may be used provided it is
capable of withstanding the appliance
temperatures. Ensure that the supply connection
point is accessible with the appliance installed. To
facilitate the shield may need to be removable.
NOTE: do not fix the cooktop into the bench with
sealant (ie silicon) as this may void the warranty.
Use only the seals provided.
I STALLATIO
FIG. 8 FIG. 9

8
5) GAS CO ECTIO
The gas connection is located in the rear and on the
underside of the appliance 118 mm (for 60 cm),
165 mm (for 70 cm), 255 mm (for 90 cm) from the
right hand side.
There are two ways to carry out the connection to the
main gas line:
A. The hotplate can be connected with rigid pipe as
specified in AS5601 table 3.1.
B. The hotplate can be connected with a Flexible
Hose, which complies with AS/ANZ 1869 (AGA
Approved), 10 mm ID, class B or D, no more than
1.2 m long and in accordance with AS5601.
Ensure that the Hose does not contact the hot
surfaces of the hotplate, oven, dishwasher or other
appliance that may be installed underneath or next to
the hotplate. The Hose should not be subjected to
abrasion, kinking or permanent deformation and
should be able to be inspected along its entire length.
Unions compatible with the hose fittings must be
used and connections tested for gas leaks.
Ensure the supply connection point is accessible with
the appliance installed.
Warning: ensure that the hose assembly is restrained
from accidental contact with the flue or flue outlet of
an underbench oven.
Natural Gas
Natural Gas installations require the connection of a
gas regulator at the appliance. This regulator is
supplied with the appliance on purchase.
Assemble the regulator (noting the gas flow
direction) and transition pieces (supplied with the
appliance), in accordance with figure 10.
The transition piece on the supply side of the
regulator must be provided by the installer.
Liquified Petroleum Gas
In a U-LPG installation the gas regulation is made
at the gas cylinder and regulation at the appliance
is not required. To connect supply to the appliance
use transition pieces as shown in
figure 11. These pieces are supplied with the
appliance on purchase.
WARN NG:
THE BURNER FLAME MUST BE ADJUSTED BY
THE NSTALLER.
FAULTY NSTALLAT ON W LL NOT BE
COVERED UNDER WARRANTY.
THE APPL ANCE S FACTORY SET FOR NATURAL
GAS. THE TEST PO NT PRESSURE SHOULD BE
ADJUSTED TO 1.00kPa W TH THE WOK BURNER
OPERAT NG AT MAX MUM.
I STALLATIO
FIG. 10 FIG. 11

9
I STALLATIO

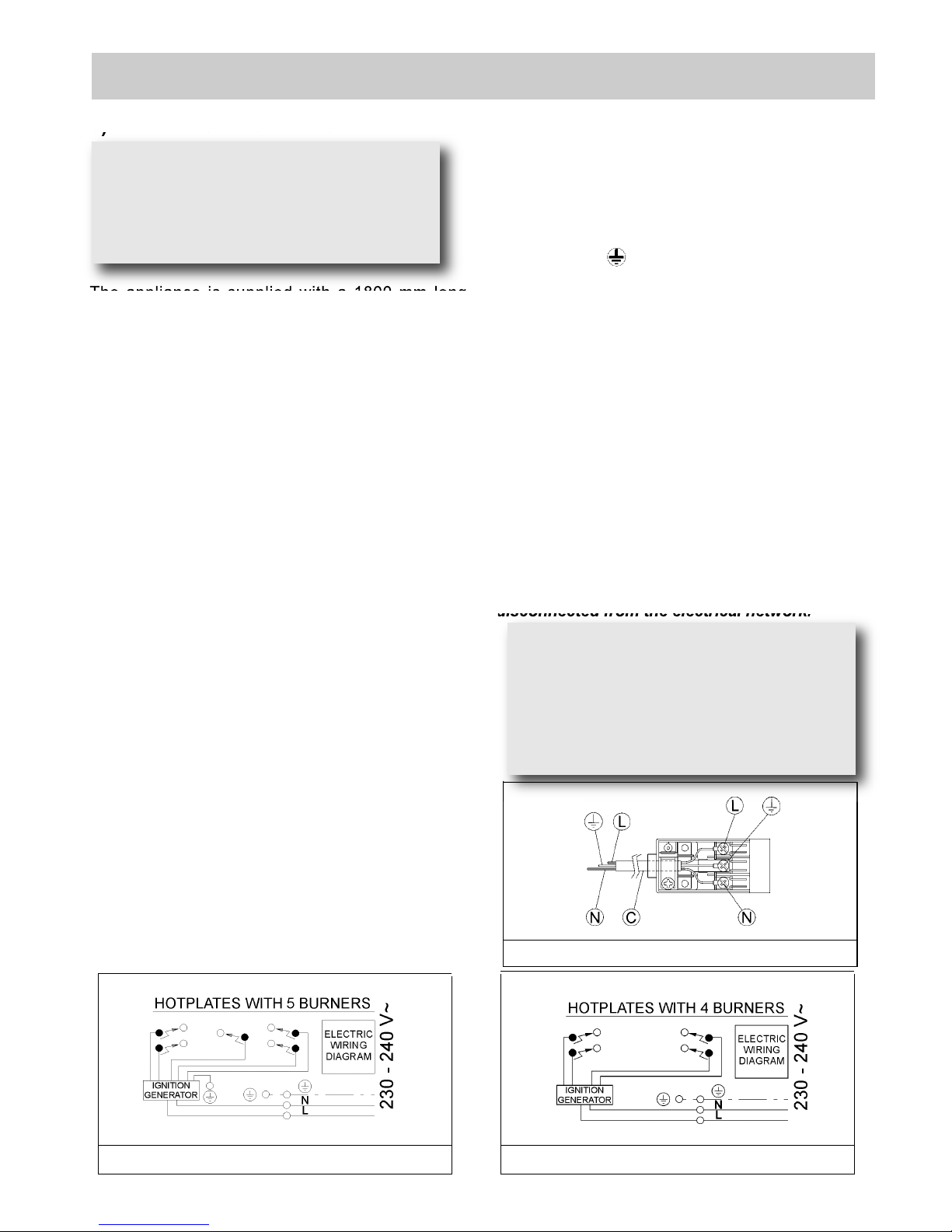

6) ELECTRICAL CO ECTIO
The appliance is supplied with a 1800 mm long
flexible supply lead.
The point of attachment for this lead is located at the
rear and on the underside of the appliance
380 mm from the right hand side.
The voltage and power consumption are detailed on
the underside of the appliance. Ensure that the
appliance is correctly rated to the supply.
Connect appliance by way of a switched power point.
THE APPL ANCE MUST BE EARTHED
Ensure that this power point is properly earthed.
Look at the connection wiring diagrams
(fig. 12-12/A-B).
Warning: in order to avoid any hazard, any
electrical work performed on this equipment or
its associated wiring, should only be done by
persons authorised by the supplier or similarly
qualified persons.
The socket outlet for this hotplate shall be
installed near the hotplate and shall be easily
accessible.
The electrical connections of the appliance must
be carried out in compliance with the provisions
and standards in force.
Before connecting the appliance, check that:
- the voltage matches the value shown on the
specification plate and the section of the wires of
the electrical system can support the load, which is
also indicated on the specification plate.
- The electrical capacity of the mains supply and
current sockets suit the maximum power rating of
the appliance (consult the data label applied to the
underside of the hot plate).
- The socket or system has an efficient earth
connection in compliance with the provisions and
standards in force. The manufacturer declines all
responsibility for failing to comply with these
provisions.
When the appliance is connected to the
electricity main by a socket:
- Fit a standard plug suited to the load indicated on
the data label to the cable.
- Fit the wires following figure n.12/B, taking care of
respecting the following correspondences:
Letter L (live) = brown wire;
Letter N (neutral) = blue wire;
Earth symbol = green - yellow wire.
- The power supply cable must be positioned so that
no part of it is able to reach an overtemperature of
75 K.
- Never use reductions, adapters of shunts for
connection since these could create false contacts
and lead to dangerous overheating.
When the appliance is connected straight to the
electricity main:
- Install an omnipolar circuit-breaker between the
appliance and the electricity main. This circuit-
breaker should be sized according to the load
rating of the appliance and possess a minimum 3
mm gap between its contacts.
- Remember that the earth wire must not be
interrupted by the circuit-breaker.
-The electrical connection may also be protected by
a high sensitivity differential circuit- breaker.
You are strongly advised to fix the relative yellow-
green earth wire to an efficient earthing system.
Before performing any service on the electrical
part of the appliance, it must absolutely be
disconnected from the electrical network.
FIG. 12/AFIG. 12
MPORTANT: the appliance must be
installed following the manufacturer's
instructions. The manufacturer will not be
liable for injury to persons or animals or
property damage caused by an incorrect
installation.
FIG. 12/B
f the installation requires modifications to
the home's electrical system or if the
socket is incompatible with the appliance's
plug, have changes or replacements
performed by professionally-qualified
person. n particular, this person must also
make sure that the section of the wires of
the socket is suitable for the power
absorbed by the appliance.

10
Always disconnect the appliance from the
electricity main before making any adjustments.
All seals must be replaced by the technician at
the end of any adjustments or regulations.
Our burners do not require primary air
adjustment.
a) Data Label
The Data Label is located on the underside of the
hotplate. A duplicate Data Label is supplied to adhere
in an accessible area next to the hotplate. This
hotplate is suitable for Natural Gas and U-LPG;
ensure that the available gas supply matches the
Data Label.
b) Before Leaving
Check that there are no gas leaks, but do not use a
naked flame to detect gas leaks. Ignite all burners to
ensure correct operation of gas valves, burners,
ignition and if fitted, flame failure valves. Turn gas
taps to low flame position and observe stability of the
flame. When satisfied with the hotplate, please
instruct the user on the correct method of operation.
In case the appliance fails to operate correctly after
all checks have been carried out, refer to the
authorised service provider in your area.

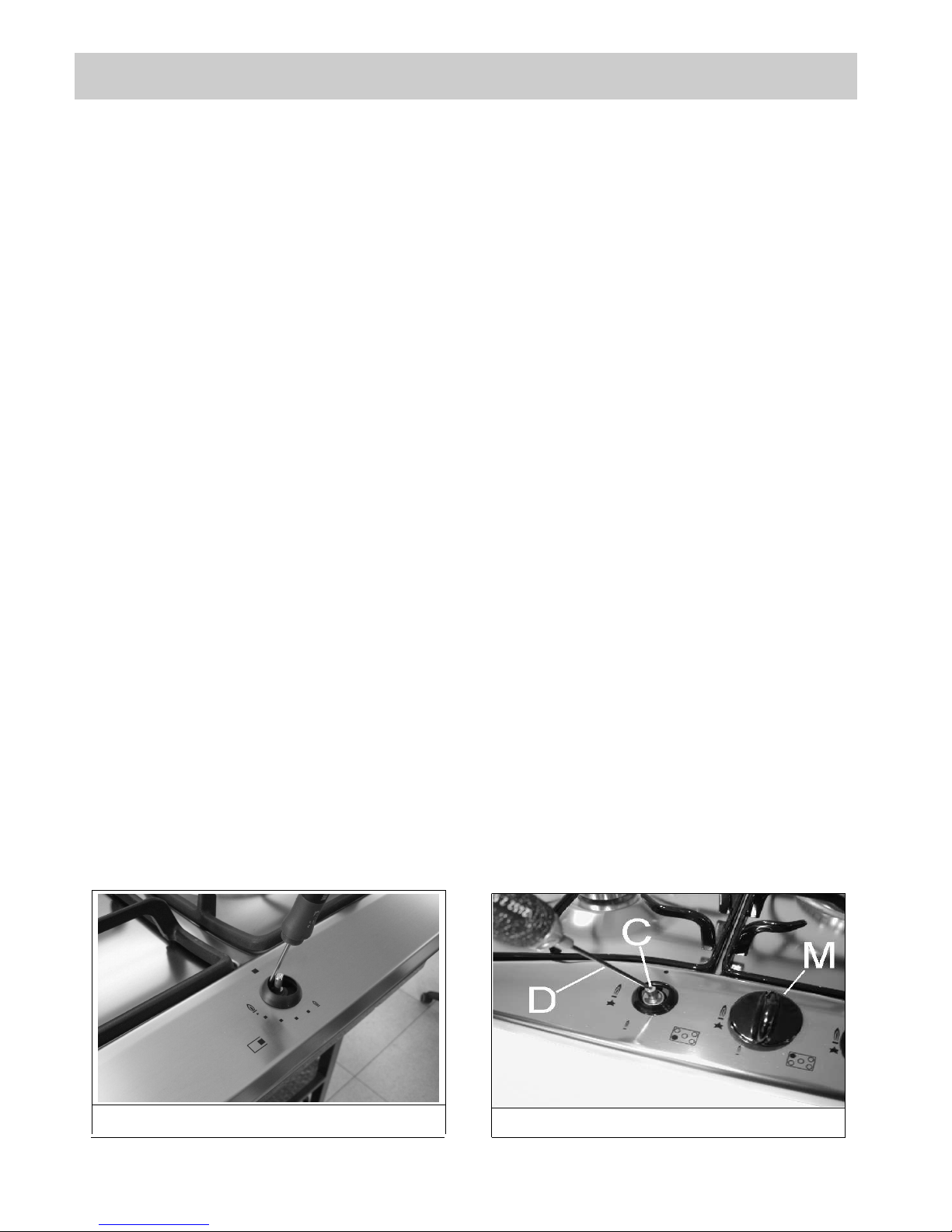

7) TAPS
Our taps are suitable for all the gas, they are male
conical type at one way.
“Reduced rate” adjustment
- Switch on the burner and turn the relative knob to
the “Reduced rate” position (small flame fig. 1).
- Remove knob “ ” (fig. 13 and 13/A) of the tap,
which is simply pressed on to its rod. The by-pass
for minimal rate regulation can be: beside the tap
(fig. 13) or inside the shaft. In any case, to access
to regulation, it can be done trought the insertion of
a small screwdriver ‘’D’’ beside the tap (fig. 13) or in
the hole ‘’C’’ inside the shaft of the tap
(fig 13/A). Turn the throttle screw to the right or left
until the burner flame has been adequately
regulated to the “Reduced rate” position.
The flame should not be too low: the lowest small
flame should be continuous and steady. Re-assemble
the several components.
t is understood that only burners operating with
Natural gas should be subjected to the above
mentioned adjustments. The screw must be fully
locked when the burners operate with U-LPG.
ADJUSTME TS
FIG. 13/A
FIG. 13

11

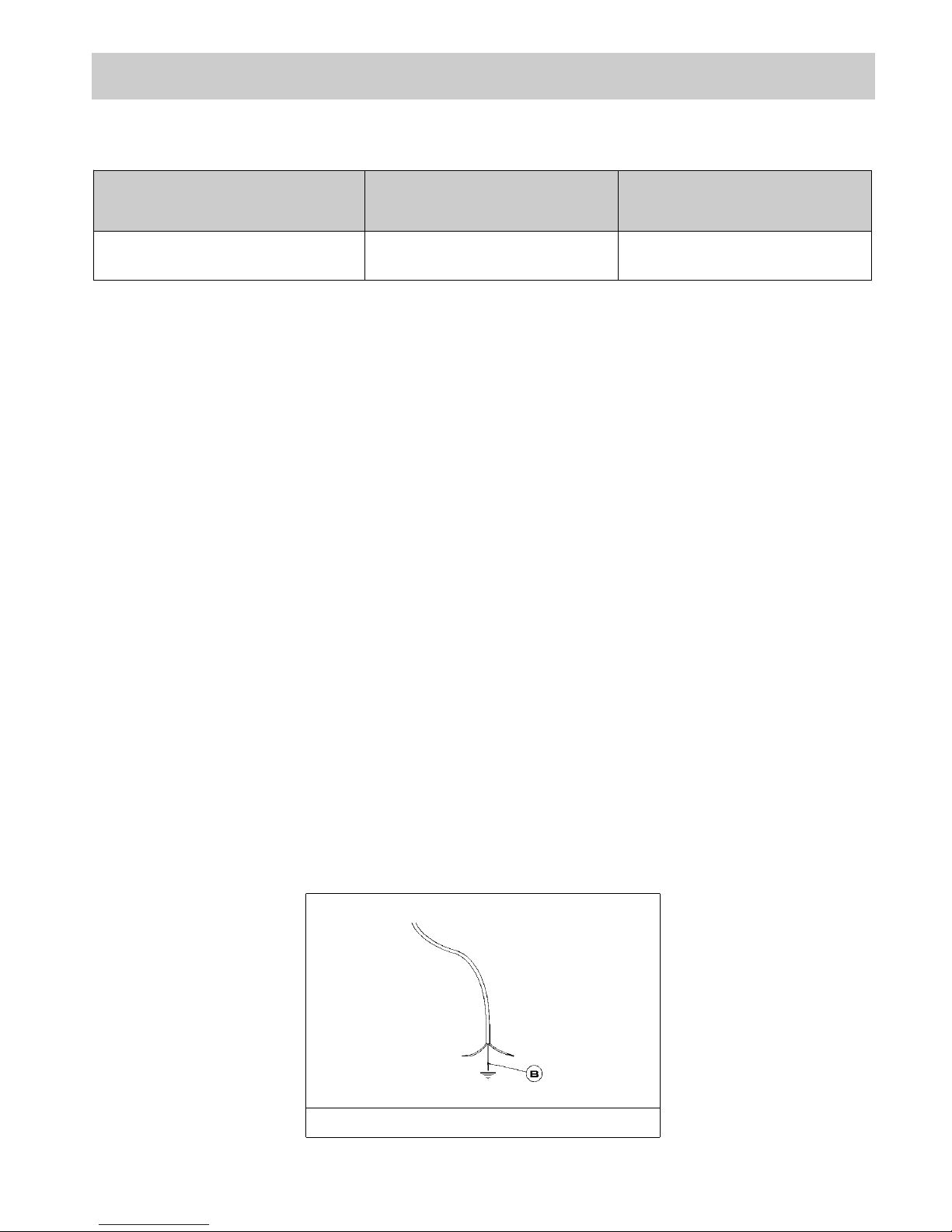

8) U-LPG TO ATURAL GAS
CO VERSIO PROCEDURE
1. Remove each burner cap and burner skirt.
2. Remove the U-LPG main injector with a
7 mm/VF tube spanner and replace with the
appropriate size Natural Gas main injector for each
burner. The following injector sizes are required for
Natural Gas:
Burner Main injector
Wok 1.76 mm
Semi Rapid 1.20 mm
Rapid 1.55 mm
3. Shut off gas supply to the appliance.
4. Disconnect gas inlet pipe from the U-LPG test
point inlet fitting.
5. Remove the U-LPG test point inlet fitting from
the appliance.
6. Fit the Natural Gas Regulator supplied in the
conversion kit.
7. Connect the gas supply to the Regulator.
8. Check for gas leaks. Do not use a naked flame
to check for gas leaks.
9. Adjust the gas pressure to 1.00 kPa.
10. Remove the control knob, with a thin shaft blade
screwdriver down the centre of each gas valve
shaft, screw the by-pass injector anti-clockwise.
Test the appliance on both high and low flame for
each burner. If the burner fails to remain alight or
the flame is not stable on the simmer setting, adjust
the by-pass screw, until flame is stable.
11. If not already removed, remove the “Only for
use with U-LPG” label adhered to the bottom panel
near the gas connection.
12. Fit the new data label included in the gas
conversion kit.
9) ATURAL GAS TO U-LPG
CO VERSIO PROCEDURE
1. Remove each burner cap and burner skirt.
2. Remove the Natural Gas main injector with a
7 mm/VF tube spanner and replace with the
appropriate size U-LPG main injector for each
burner. The following injector sizes are required for
U-LPG:
Burner Main injector
Wok 0.94 mm
Semi Rapid 0.70 mm
Rapid 0.91 mm
3. Remove the control knob, with a thin shaft blade
screwdriver down the centre of each gas valve
shaft, screw the by-pass injector fully clockwise.
4. Shut off gas supply to the appliance.
5. Disconnect gas inlet pipe from the Natural Gas
Regulator.
6. Remove the Natural Gas Regulator from the
appliance.
7. Fit the U-LPG test point inlet fitting supplied in
the conversion kit.
8. Connect the gas supply to the inlet fitting.
9. Check for gas leaks. Do not use a naked flame
to check for gas leaks.
10. Adjust the gas pressure to 2.75 kPa.
11. Test the appliance on both high and low flame
for each burner and check the gas pressure. If the
burner fails to remain alight or the flame is not
stable on the simmer setting, adjust the by-pass
screw until flame is stable.
12. If not already removed, remove the “Only for
use with Natural Gas” label adhered to the bottom
panel near the gas connection.
13. Fit the new data label included in the gas
conversion kit.
CO VERSIO S

12
CO VERSIO S
BUR ER ARRA GEME T O THE HOT PLATE
TABLE
FIG. 14
10) REPLACI G THE I JECTORS
The burners can be adapted to different types of
gas by mounting injectors suited to the type of gas
in question. To do this, first remove the burner tops
using a wrench “B”. Now unscrew injector “A” (see
fig. 14) and fit a injector corresponding to the
utilized type of gas in its place.
It is advisable to strongly tighten the injector in
place.
After the injectors have been replaced, the
burners must be regulated as explained in
paragraphs 7. The technician must reset any
seals on the regulating or pre-regulating devices.
The envelope with the injectors and the labels can
be included in the kit, or at disposal to the
authorized customer Service Centre.
For the sake of convenience, the nominal rate table
also lists the heat inputs of the burners, the
diameter of the injectors and the working pressures
of the various types of gas.
BUR ERS
GAS
ORMAL
PRESSURE
(kPa)
I JECTOR
DIAMETER
(1/100 mm)
O M I A L
HEAT
I PUT (MJ/h)
MAX.
BY PASS
°
DESCRIPTIO
1/100 mm
1 ULTRA RAPID/WOK
U-LPG
NATURAL
2.75
1.00
94
176
11.4
14.5 85
1/2
2
RAPID
U-LPG
NATURAL
2.75
1.00
91
155 10.4
12.0
45
1/4
3SE IRAPID U-LPG
NATURAL
2.75
1.00
70
120
6.2
7.1 35
1/4

13
SERVICI G
WARN NG:
servicing should be carried out only by
authorised personnel.
11) COMPO E TS REPLACEME T
NOTE:
BEFORE ANY MA NTENANCE REQU R NG
REPLACEMENT OF A COMPONENT S
UNDERTAKEN ENSURE THAT THE
ELECTR CAL LEAD HAS BEEN SOLATED AND
REMOVED FROM THE POWER PO NT.
To replace the components fit inside the hob is
necessary to take off the pan supports and the
burners from the upper part of the working table, then
unscrew the burner fixing screws “V” (fig. 15) and the
control knobs, fixed by a simple pressure, in order to
take off the working table.
After having carried out the above listed operations,
the burners (fig. 16), taps (fig. 17) and electrical
components can all be replaced (fig. 18).
It is advisable to change seal “D” each time a tap is
changed in order to ensure a perfect tightness.
Greasing the taps (see fig. 19 - 20)
If a tap becomes stiff to operate, it must be
immediately greased in compliance with the
following instructions:
- remove the tap.
- Clean the cone and its housing using a cloth
soaked in solvent.
- Lightly spread the cone with the relative grease.
- Fit the cone back in place, operate it several times
and then remove it again. Eliminate any excess
grease and check that the gas ducts have not
become clogged.
- Fit all parts back in place, complying with the
demounting order in reverse.
- Check the tightness by using soapy water. The use
of the flame is prohibited.
To facilitate the servicing technician’s task, here is a
chart with the types and sections of the powering
cables and the ratings of the electrical components.
FIG. 18 FIG. 19 FIG. 20
FIG. 15 FIG. 16 FIG. 17
WARN NG:
MA NTENANCE MUST ONLY BE PERFORMED
BY AUTHOR SED PERSONS.

14
SERVICI G
TYPE OF TYPE OF SI GLE - PHASE
HOT PLATE CABLE POWER SUPPLY
CABLE TYPES A D SECTIO S
ATTENT ON!!!
f the power supply cable is replaced, the installer should leave the ground wire longer than the phase
conductors (fig. 21) and comply with the recommendations given in paragraph 6.
FIG. 21
H05 RR - F Section 3 X 0.75 mm2
Gas hot plate

15
TECH ICAL ASSISTA CE A D SPARE PARTS
Before leaving the factory, this appliance will have been tested and regulated by expert and specialized
personnel in order to guarantee the best performances.
Any repairs or adjustments which may be subsequently required may only be carried out by qualified
personnel with the utmost care and attention.
For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or
adjustments are required, specifying the type of fault and the model of the appliance in your possession.
Please also note that genuine spare parts are only available from our After Sales Service Centers and
authorized retail outlets.
The above data are printed on the data label put on the inferior part of the appliance and on the packing
label.
The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-sent
intervention. We suggest to fill the table below.
MARK: ........................................................
MODEL: .....................................................
SER ES: .....................................................

16
