EURO EV90BGCSX User manual

EV90BGCSX

Preface
Thank you for choosing our gas cooktop.
To use this appliance correctly and prevent any potential risk, read these instructions before
using the appliance.
.HHSWKHVHLQVWUXFWLRQVLQDSODFHZKHUH\RXFDQ¿QGWKHPHDVLO\.
If you are unsure of any of the information contained in these instructions, please contact our
customer care centre
The manufacturer shall not be responsible for any damages to persons or property caused by
incorrect installation or use of the appliance.
7KHDSSOLDQFHKDVEHHQFHUWL¿HGIRUXVHLQFRXQWULHVRWKHUWKDQWKRVHPDUNHGRQWKH
appliance.
7KHPDQXIDFWXUHUDOVRUHVHUYHVWKHULJKWWRPDNHDQ\PRGL¿FDWLRQVWRWKHSURGXFWVDVPD\
be considered necessary or useful, also in the interests of the user, without jeopardising the
main functional and safety features of the products themselves.
The appliance is designed for a domestic environment and not a commercial one.
.

contents
Preface
Safety Warning Safety Instructions
3
Installation
4
Child and People Safety
5
During Use
Cleaning and Service
9
Environmental Information
Instructions for use and maintenance
Description of the appliance
10
How to Use the appliance
11
Safety and Energy saving advice
13
Cleaning and Maintenance
Trouble shooting
14
Technical instructions
Using instructions
Positioning
Installing the appliance
Gas Connection
Electrical Connection
Gas
6
9
16
17
19
21
18
Gas Specifition
22
23
24
Conversion

safety instructions
Ŷ7KLVLQVWUXFWLRQERRNOHWPXVWEHNHSWZLWKWKHDSSOLDQFHIRUDQ\IXWXUHUHIHUHQFH
If the appliance is sold or transferred to another person, ensure the booklet is passed on to
the new user.
Ŷ7KHPDQXIDFWXUHUGHFOLQHVDQ\OLDELOLW\VKRXOGWKHVHVDIHW\PHDVXUHVQRWEHREVHUYHG
Ŷ7KHIROORZLQJPDUNVDUHPDGHWREHHDVLO\XQGHUVWRRGVRWKDW\RXFDQSUHYHQWDQ\
accident caused by misuse in advance, and use the appliance more conveniently.
Ŷ
Danger/Warning Neglect of this mark may result in severe personal injury or
death.
Caution Neglect of this mark may result in minor personal injury or
property damage.
ʄ7KHIROORZLQJPDUNV DVIROORZ 
Caution No Access
No Fire Tool Must Do
Danger
ʄ,IJDVVHHPVWROHDNWDNHWKHDFWLRQVDVIROORZ
- Do not turn on the light.
- Do not switch on/off any electrical appliance and do not touch any electric plug.
- Do not use a telephone.
1Stop using the product and close the middle valve.
2Open the window to ventilate.
3Contact our service centre by using a phone outside.
* The fuel gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic
or egg) even where only 1/1000 of the gas is in the air.
are u in the Instruction Manual
Please take the time to read this Instruction Manual before installing or
using the appliance.
Ŷ5HDGWKHIROORZLQJFRQWHQWVWKRURXJKO\DQGHQVXUH\RXXQGHUVWDQGWKHP
sed
V
.
3

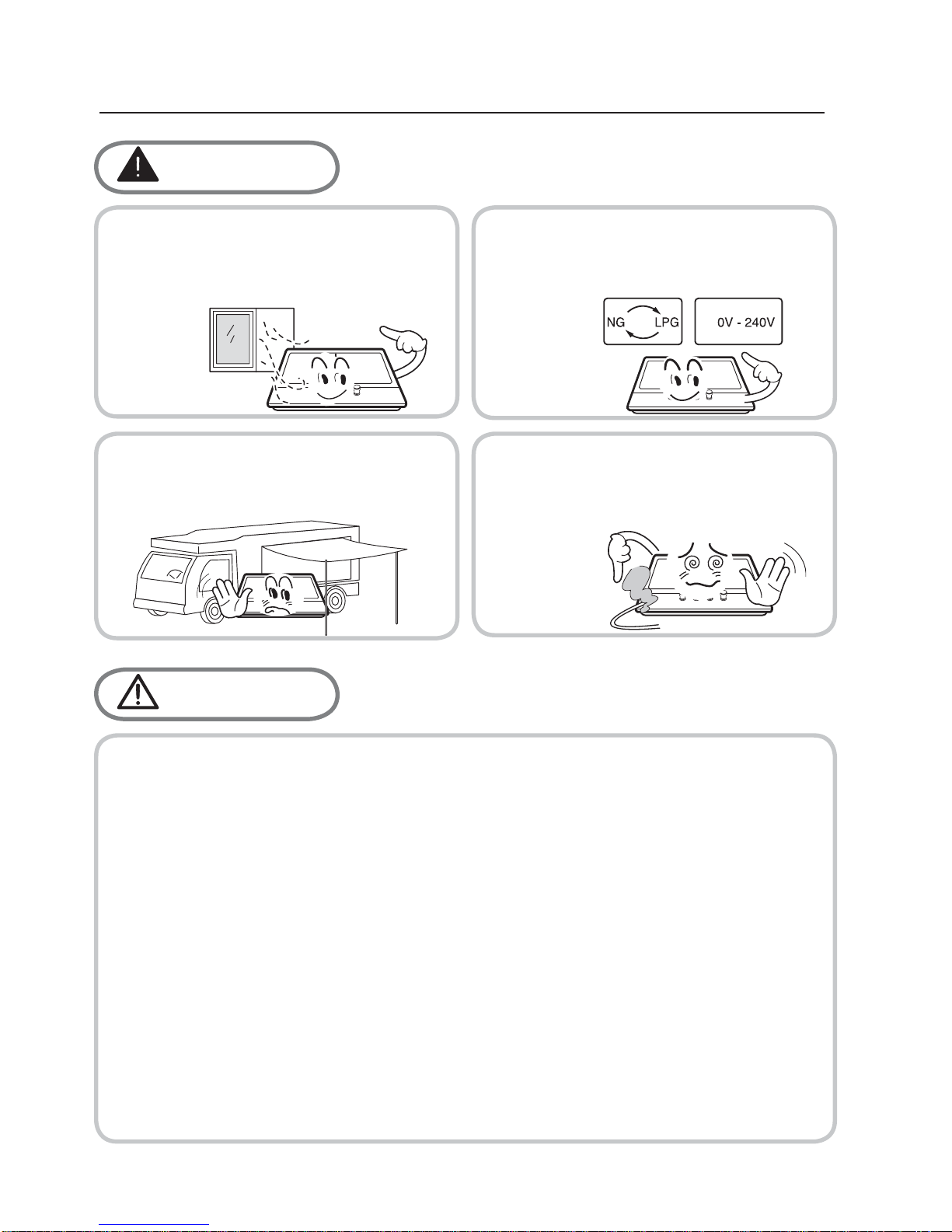

installation
Warning
Ŷ7KLVDSSOLDQFHVKDOOEHLQVWDOOHGLQ
accordance with regulations in force
and only used in a well ventilated
space.
Ŷ3ULRUWRLQVWDOODWLRQHQVXUHWKDWWKH
gas and electrical supply complies
with the type stated on the rating
plate.
Ŷ:KHUHWKLVDSSOLDQFHLVLQVWDOOHGLQ
marine craft or in caravans, it should not
be used as a space heater.
Ŷ7KHJDVSLSHDQGHOHFWULFDOFDEOH
must be installed in such a way that
they do not touch any parts or the
appliance.
Ŷ7KLVDSSOLDQFHVKRXOGEHLQVWDOOHGE\DTXDOL¿HGWHFKQLFLDQRULQVWDOOHU
Ŷ7KHDGMXVWPHQWFRQGLWLRQVIRUWKLVDSSOLDQFHDUHVWDWHGRQWKHODEHORUGDWDSODWH
Ŷ5HPRYHDOOSDFNDJLQJEHIRUHXVLQJWKHDSSOLDQFH
Ŷ$IWHUXQSDFNLQJWKHDSSOLDQFHPDNHVXUHWKHSURGXFWLVQRWGDPDJHGDQGWKDWWKH
connection cord is in perfect condition. Otherwise, contact the dealer before installing
the appliance.
Ŷ7KHDGMDFHQWIXUQLWXUHDQGDOOPDWHULDOVXVHGLQWKHLQVWDOODWLRQPXVWEHDEOHWR
ZLWKVWDQGDPLQLPXPWHPSHUDWXUHRIÛ&DERYHWKHDPELHQWWHPSHUDWXUHRIWKH
room it is located in, whilst in use.
Ŷ,QWKHHYHQWRIEXUQHUÀDPHVEHLQJDFFLGHQWDOO\H[WLQJXLVKHGWXUQRIIWKHEXUQHU
control and do not attempt to re-ignite the burner for at least one minute.
Ŷ
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
YHQWLODWLRQKROHVRSHQRULQVWDOODPHFKDQLFDOYHQWLODWLRQGHYLFHPHFKDQLFDOH[WUDFWRUKRRG
Ŷ3URORQJHGLQWHQVLYHXVHRIWKHDSSOLDQFHPD\FDOOIRUDGGLWLRQDOYHQWLODWLRQIRU
H[DPSOHRSHQLQJRIDZLQGRZRUPRUHHIIHFWLYHYHQWLODWLRQIRUH[DPSOHLQFUHDVLQJ
the level of mechanical ventilation where present.
Caution
22
4

child and people safety
Ŷ'RQRWDOORZFKLOGUHQWRSOD\QHDURUZLWKWKHDSSOLDQFH
The appliance gets hot when it is in use.
Children should be kept away until it has cooled.
Warning
Caution
Ŷ7KLVDSSOLDQFHLVGHVLJQHGWREHRSHUDWHGE\DGXOWV
Ŷ&KLOGUHQFDQDOVRLQMXUHWKHPVHOYHVE\SXOOLQJSDQVRUSRWVRIIWKHDSSOLDQFH
Ŷ
This appliance is not intended for use by persons(including children) with reduced physical,
sensory or mental capabilities, or lack ofexperience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. they do not play with the appliance.Children should be supervised to ensure that
Ŷ
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE APPLIANCE STORAGE
DRAWER OR NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
DO NOT MODIFY THIS APPLIANCE.
5

during use
Ŷ2QO\XVHWKHDSSOLDQFHIRUSUHSDULQJ
food.
Warning
Ŷ The use of a gas cooking appliance results
in the production of heat and moisture in
the room in which it is installed. Ensure
that the kitchen is well ventilated : keep
natural ventilation holes open or install a
mechanical ventilation device
(mechanical
H[WUDFWRUKRRG
Ŷ7KHKHDWLQJDQGFRRNLQJVXUIDFHVRI
the appliance become hot when they
are in use, take all due precautions.
ŶNever leave the appliance unattended
when cooking.
Ŷ'RQRWPRGLI\WKLVDSSOLDQFH
Ŷ'RQRWXVHWKLVDSSOLDQFHLILW
LQcontact with water. Do not operate
this appliance with wet hands.
Ŷ'RQRWXVHODUJHFORWKVWHDWRZHOVRU
similar as the ends could touch the
ÀDPHVDQGFDWFK¿UH
Ŷ8QVWDEOHRUPLVVKDSHQSDQVVKRXOG
not be used on the appliance as they
can cause an accident by tipping or
spillage.
comes
Burner
panel is not designed to operate
from an external timer or separate
remote control system.
6

during use
Ŷ'RQRWXVHRUVWRUHÀDPPDEOH
materials in the storage drawer
near this appliance.
Ŷ'RQRWVSUD\DHURVROVLQWKHYLFLQLW\RI
this appliance while it is in operaiton.
Ŷ3HULVKDEOHIRRGSODVWLFLWHPVDQG
aerosols may be affected by heat and
should not stored above or below the
appliance.
Ŷ(QVXUHWKHFRQWURONQREVDUHLQWKH
‘ ’ position when not in use.
Warning
Danger of fire: Do not store items on the cooking surface
CAUTION: The cooking process has to be supervised. A short term cooking process has
to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result
in a fire.
Ŷ
Ŷ
Ŷ
7

during use
Ŷ7KLVDSSOLDQFHLVLQWHQGHGIRUGRPHVWLFFRRNLQJRQO\,WLVQRWGHVLJQHGIRUFRPPHUFLDORU
industrial purposes.
Ŷ
3URORQJHGLQWHQVLYHXVHRIWKHDSSOLDQFHPD\FDOOIRUDGGLWLRQDOYHQWLODWLRQIRUH[DPSOH
opening of a window, or increasing the level of mechanical ventilation where present.
Ŷ8VHKHDWUHVLVWDQWSRWKROGHUVRUJORYHVZKHQKDQGOLQJKRWSRWVDQGSDQV
Ŷ'RQRWOHWSRWKROGHUVFRPHQHDURSHQÀDPHVZKHQOLIWLQJFRRNZDUH
Ŷ7DNHFDUHQRWWROHWSRWKROGHUVRUJORYHVJHWGDPSRUZHWDVWKLVFDXVHVKHDWWRWUDQVIHU
WKURXJKWKHPDWHULDOTXLFNHUZLWKWKHULVNRIEXUQLQJ\RXUVHOI
Ŷ2QO\HYHUXVHWKHEXUQHUVDIWHUSODFLQJSRWVDQGSDQVRQWKHP'RQRWKHDWXSDQ\HPSW\
pots or pans.
Ŷ1HYHUXVHSODVWLFRUDOXPLQLXPIRLOGLVKHVRQWKHDSSOLDQFH
Ŷ:KHQXVLQJRWKHUHOHFWULFDODSSOLDQFHVHQVXUHWKHFDEOHGRHVQRWFRPHLQWRFRQWDFWZLWK
the appliance surfaces of the cooking appliance.
Ŷ,I\RXKDYHDQ\PHFKDQLFDOSDUWVHJDQDUWL¿FDOKHDUWLQ\RXUERG\FRQVXOWDGRFWRUEHIRUH
using the appliance.
Ŷ        6XFKFORWKVFDQFDWFK¿UH
on a hot burner.
Ŷ:KHQXVLQJJODVVFRRNZDUHPDNHVXUHLWLVGHVLJQHGIRUWRSSODWHFRRNLQJ
Ŷ7RPLQLPLVHWKHSRVVLELOLW\RIEXUQVLJQLWLRQRIÀDPPDEOHPDWHULDOVDQGVSLOODJHWXUQ
FRRNZDUHKDQGOHVWRZDUGWKHVLGHRUFHQWHURIWKHWRSSODWHZLWKRXWH[WHQGLQJRYHU
adjacent burners.
Ŷ$OZD\VWXUQEXUQHUFRQWUROVRIIEHIRUHUHPRYLQJFRRNZDUH
Ŷ&DUHIXOO\ZDWFKIRRGVEHLQJIULHGDWDKLJKÀDPHVHWWLQJ
Ŷ$OZD\VKHDWIDWVORZO\DQGZDWFKDVLWKHDWV
Ŷ)RRGVIRUIU\LQJVKRXOGEHDVGU\DVSRVVLEOH)URVWRQIUR]HQIRRGVRUPRLVWXUHRQIUHVK
foods can cause hot fat to bubble up and over the sides of the pan.
Ŷ
1HYHU WU\ WR PRYHDSDQRIKRW IDW HVSHFLDOO\DGHHSIDW IU\HU:DLW XQWLOWKHIDWLV
FRRO
Caution
Donotuseateatowelorsimilarmaterialsinplaceofapotholder
completely
Do not use a tea towel or similar materials in place of a pot holder
Ŷ
If the surface
is made of glass-cracked, switch off the appliance to avoid defeat electr cutiono.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Ŷ
8

cleaning and service
environmental information
Ŷ$IWHULQVWDOODWLRQSOHDVHGLVSRVHRIWKHSDFNDJLQJ
with due regard to safety and the environment.
Ŷ:KHQGLVSRVLQJRIDQROGDSSOLDQFHPDNHLW
unusable, by cutting off the cable.
&RUUHFW'LVSRVDORI7KLV3URGXFW
:DVWH(OHFWULFDO(OHFWURQLF(TXLSPHQW
Ŷ7KLVPDUNLQJVKRZQRQWKHSURGXFWRULWVOLWHUDWXUHLQGLFDWHVWKDWLWVKRXOGQRWEH
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Ŷ+RXVHKROGXVHUVVKRXOGFRQWDFWHLWKHUWKHUHWDLOHUZKHUHWKH\SXUFKDVHGWKLVSURGXFW
RUWKHLUORFDOJRYHUQPHQWRI¿FHIRUGHWDLOVRIZKHUHDQGKRZWKH\FDQWDNHWKLVLWHP
for environmentally safe recycling.
Ŷ%XVLQHVVXVHUVVKRXOGFRQWDFWWKHLUVXSSOLHUDQGFKHFNWKHWHUPVDQGFRQGLWLRQVRI
WKHSXUFKDVHFRQWUDFW7KLVSURGXFWVKRXOGQRWEHPL[HGZLWKRWKHUFRPPHUFLDO
wastes for disposal.
Ŷ1HYHUXVHDEUDVLYHRUFDXVWLF
cleaning agents.
Warning
Ŷ%HIRUHDWWHPSWLQJWRFOHDQWKHDSSOLDQFHLWVKRXOGEHGLVFRQQHFWHGIURPWKHPDLQV
and cooled.
Ŷ<RXVKRXOGQRWXVHDVWHDPMHWRUDQ\RWKHUKLJKSUHVVXUHFOHDQLQJHTXLSPHQWWR
clean the appliance.
Ŷ7KLVDSSOLDQFHVKRXOGRQO\EH
repaired or serviced by an authorised
Service Engineer and only genuine
approved spare parts should
be used.
Caution
9

description of the appliance
M
Pan S
Wok pa
Top
Dimensio
Ignitio
Gas Co
Electr
Burne
Σ
odel
upport
n Support
Plate
n(W*D*H)
n device
nnection
ic supply
r Feature
Qn
Triple-Cr
C
Stai
860
Continuo
G1
220~240Vac,50Hz/60Hz, 2W
own(1),Rapid(1
Cast Iron
N/A
nless Steel
*510*90
us Ignition Type
/2 thread
), Semi-rapid ( 2), Auxiliary (1)
11.3 kW
EV90BGCSX
10
Location of gas inlet

how to use the appliance
Accessories
description of the appliance
7KHIROORZLQJV\PEROVZLOODSSHDURQWKHFRQWUROSDQHOQH[WWRHDFKFRQWUROKDQGOH
Ŷ7KHPLQLPXPVHWWLQJLVDWWKHHQGRIWKHDQWLFORFNZLVHURWDWLRQRIWKHFRQWUROKDQGOH
Ŷ$OORSHUDWLRQSRVLWLRQVPXVWEHVHOHFWHGEHWZHHQWKHPD[LPXPDQGPLQLPXPSRVLWLRQ
Ŷ7KHV\PERORQWKHFRQWUROSDQHOQH[WWRWKHFRQWUROKDQGOHZLOOLQGLFDWHZKLFKEXUQHULWRSHUDWHV
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each burner, which is
designed to stop the flow of gas to the burner head in the event of the flame
going out.

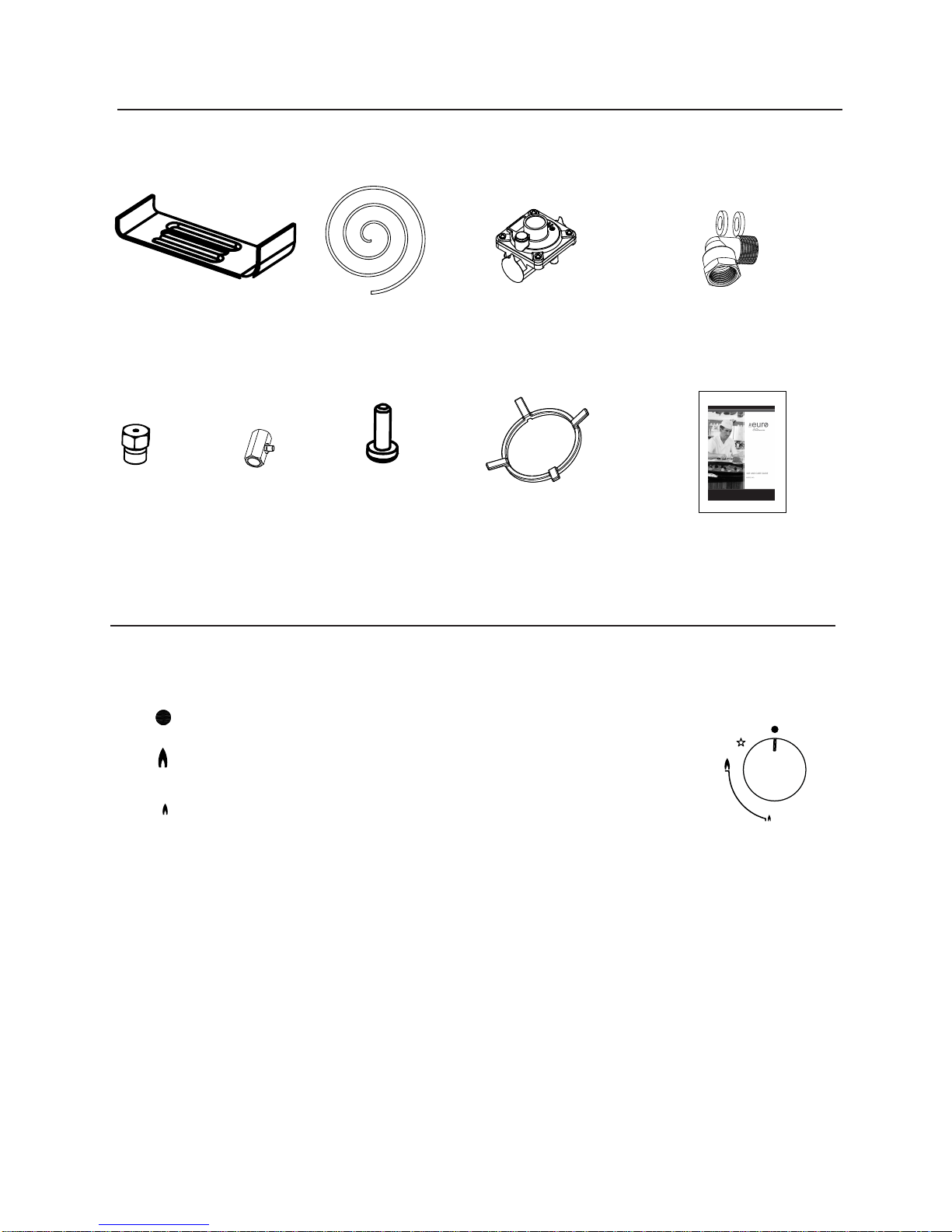

Bracket (4) Sponge (4)
Injector (5) Instruction Manual(1)
Screw (4)
EV90BGCSX
Gas-pipe bend (1)
Auxiliary pan supporter(1)
Natural Gas Regulator (1 )
LPG Test Point
Assembly (1 )
11

how to use the appliance
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each burner, which is
designed to stop the flow of gas to the burner head in the event of the flame
going out.
To ignite a burner:
oPress in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
oIf you keep the control knob depressed, the automatic ignition for the
burner will operate.
oYou should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15s the burner has not lit, stop operating the
device and open the compartment door and/or wait at least 1 min before
attempting a further ignition of the burner.
oAfter this 15-second interval, to regulate the flame you should continue
turning the control knob anti-clockwise until the flame is at a suitable level.
The operating position MUST be at a position between the maximum and
minimum position.
oTo switch the burner off, turn the control knob fully clockwise to the gas off
position.
oIn case of power failure, the burners can be lit by carefully using a match.
12

safety and energy saving advice

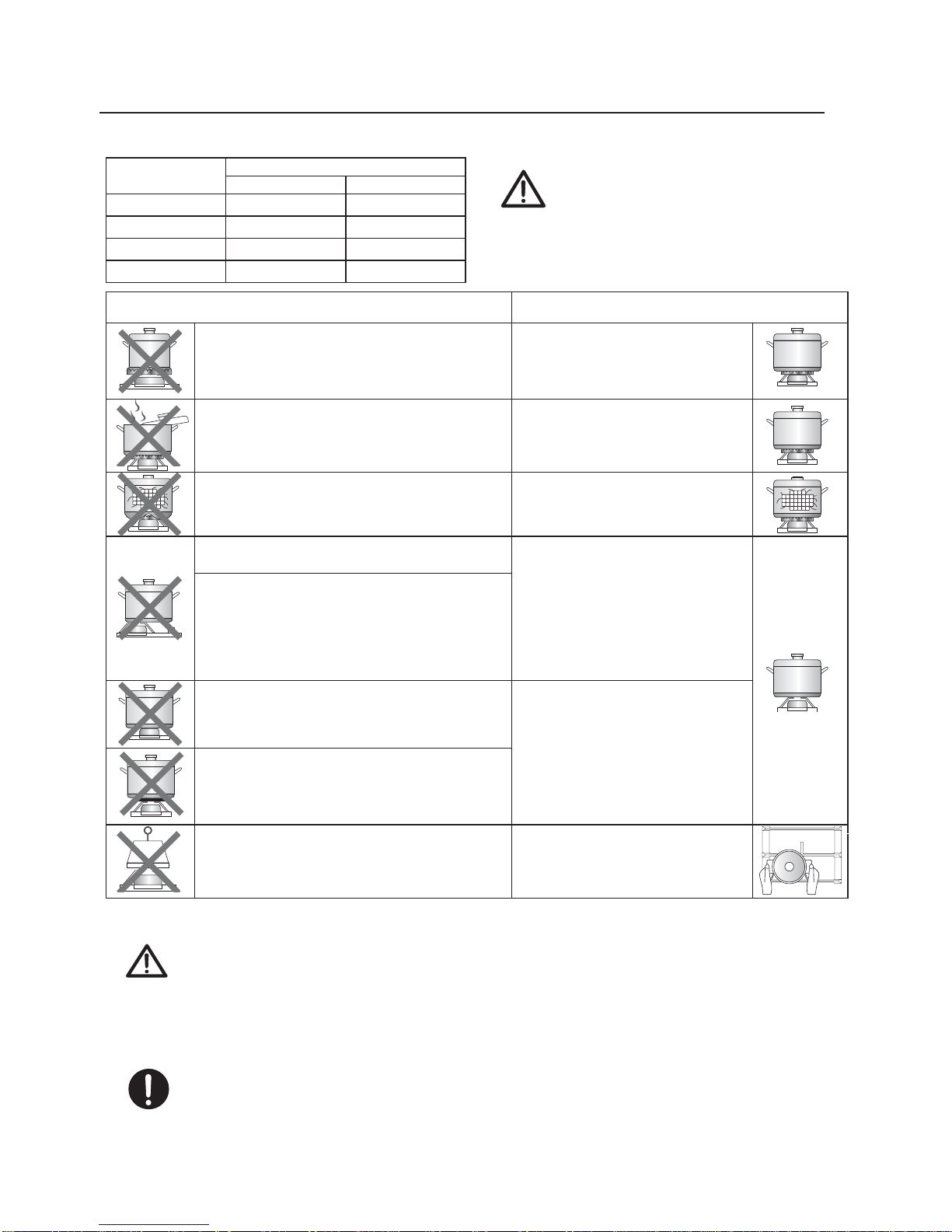

- The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS 3$16
PLQ PD[
7ULSOH&URZQ 220mm 260mm
Rapid 180mm 220mm
Semi-Rapid 180mm PP
$X[LOLDU\
NO YES
'RQRWXVHVPDOOGLDPHWHUFRRNZDUHRQ
ODUJHEXUQHUV
7KHÀDPHVKRXOGQHYHUFRPHXSWKH
VLGHVRIWKHFRRNZDUH
$OZD\VXVHFRRNZDUHWKDW 
VXLWDEOHIRUHDFKEXUQHU 
WR
DYRLGZDVWLQJJDVDQG
GLVFRORXULQJWKHFRRNZDUH
$YRLGFRRNLQJZLWKRXWDOLGRUZLWKWKH
lid half off
DVWKLVZDVWHVHQHUJ\
 ODFH OLGRQWKHFRRNZDUH
'RQRWXVHDSDQZLWKDFRQYH[RU
FRQFDYHERWWRP
2QO\XVHSRWVVDXFHSDQVDQG
IU\LQJSDQVZLWKDWKLFNÀDW
ERWWRP
'RQRWSODFHFRRNZDUHRQRQHVLGHRID
EXUQHUDVLWFRXOGWLSRYHU $OZD\VSODFHWKHFRRNZDUH
ULJKWRYHUWKHEXUQHUVQRWWR
one side.
'RQRWXVHFRRNZDUHZLWKDODUJHGLDPHWHU
RQWKHEXUQHUVQHDUWKHFRQWUROVZKLFK
ZKHQSODFHGRQWKHPLGGOHRIWKHEXUQHU
PD\WRXFKWKHFRQWUROVRUEHVRFORVHWR
them that they increase the temperature in
this area and may cause damage.
1HYHUSODFHFRRNZDUHGLUHFWO\RQWRSRI
WKHEXUQHU
3ODFHWKHFRRNZDUHRQWRSRI
the trivet.
'RQRWSODFHDQ\WKLQJHJÀDPHWDPHU
DVEHVWRVPDWEHWZHHQSDQDQGSDQ
support as serious damage to the
appliance may result.
'RQRWXVHH[FHVVLYHZHLJKWDQGGRQRW
KLWWKH  ZLWK KHDY\ REMHFWV
+DQGOHFRRNZDUHFDUHIXOO\
ZKHQWKH\DUHRQWKHEXUQHU
Ŷ'RQRWXVHFRRNZDUH  
WKDW
RYHUODSVWKHHGJH
is
3D
cooktop
Ŷ,WLVQRW  WRXVH URDVWLQJSDQV IU\LQJ SDQVRU JULOO VWRQHV
KHDWHG 
VLPXOWDQHRXVO\  VHYHUDO EXUQHUV EHFDXVH WKH UHVXOWLQJ KHDW 
EXLOGXS PD\ GDPDJHWKH DSSOLDQFH
Ŷ
Ŷ$VVRRQDVDOLTXLGVWDUWVERLOLQJWXUQGRZQWKHÀDPHVRWKDWLWZLOO
EDUHO\NHHSWKHOLTXLGVLPPHULQJ
recommended
on
Do not touch the top plate and trivet whilst in use for a certain period after
use.
of the
burner.
200
120mm 180mm
13

cleaning and maintenance
Ŷ7DNHRIIWKH3DQVXSSRUW
Ŷ&OHDQWKHVHDQGWKHFRQWUROKDQGOHVZLWKDGDPSFORWKZDVKLQJXSOLTXLGDQGZDUP
water. For stubbon soiling, soak beforehand.
Ŷ'U\HYHU\WKLQJZLWKDFOHDQVRIWFORWK
Ŷ&OHDQLQJRSHUDWLRQVPXVWRQO\EHFDUULHGRXWZKHQWKHDSSOLDQFH
LV FRRO
Ŷ7KHDSSOLDQFHVKRXOGEHGLVFRQQHFWHGIURP\RXUPDLQVVXSSO\EHIRUH
FRPPHQFLQJDQ\FOHDQLQJSURFHVV
Ŷ&OHDQWKHDSSOLDQFHUHJXODUO\SUHIHUDEO\DIWHUHDFKXVH
Ŷ$EUDVLYHFOHDQHUVRUVKDUSREMHFWVZLOOGDPDJHWKHDSSOLDQFHVXUIDFH
\RXVKRXOGFOHDQLWXVLQJZDWHUDQGDOLWWOHZDVKLQJXSOLTXLG
3DQVXSSRUW&RQWUROKDQGOHV
Ŷ5HJXODUO\ZLSHRYHUWKHWRSSODWHXVLQJDVRIWFORWKZHOO LQZDUPZDWHUWR
ZKLFKDOLWWOHZDVKLQJXSOLTXLGKDVEHHQDGGHG
Ŷ'U\WKHWRSSODWHWKRURXJKO\DIWHUFOHDQLQJ
Ŷ7KRURXJKO\UHPRYHVDOW\IRRGVRUOLTXLGVIURPWKHKREDVVRRQDVSRVVLEOHWRDYRLG
the risk of corrosion.
Ŷ6WDLQOHVVVWHHOSDUWVRIWKHDSSOLDQFHPD\EHFRPHGLVFRORXUHGRYHUWLPH7KLVLV
normal because of the high temperatures. Each time the appliance is used these
parts should be cleaned with a product that is suitable for stainless steel.
7RSSODWH
8VDEOH 8QXVDEOH
Metal Brush
(GLEOH2LO $FLGLF$ONDOL
Detergent
$EUDVLYH 7KLQQHU%HQ]HQH
7K
M
UDVLYH
Soft cloth
Neutral Detergent
Nylon Brush
wrung-out
completely
14

cleaning and maintenance
ʄ5HDVVHPEOHWKH$X[LOLDU\6HPL5DSLG5DSLGDQG
7ULSOH&URZQEXUQHUVDVIROORZV
3ODFHWKHÀDPHVSUHDGHU RQWRWKHEXUQHUFXS VRWKDWWKHLJQLWLRQGHYLFHDQGWKHÀDPH
VXSHUYLVLRQGHYLFHH[WHQGWKURXJKWKHLUUHVSHFWLYHKROHVLQWKHÀDPHVSUHDGHU
7KHÀDPHVSUHDGHUPXVWFOLFNLQWRSODFHFRUUHFWO\
3RVLWLRQWKHEXUQHUOLG  RQWR WKH ÀDPH VSHDGHU VR WKDW WKH UHWDLQLQJ SLQV¿Winto
their respective recesses.
Ŷ5HPRYHWKHEXUQHUOLGVDQG)ODPH6SUHDGHUVE\SXOOLQJWKHPXSZDUGVDQGDZD\
from the top plate.
Ŷ6RDNWKHPLQKRWZDWHUDQGDOLWWOH
Ŷ$IWHUFOHDQLQJDQGZDVKLQJWKHPZLSHDQGGU\WKHPFDUHIXOO\0DNHVXUHWKDWWKH
ÀDPHKROHVDUHFOHDQDQGFRPSOHWHO\GU\
Ŷ:LSHWKH¿[HGSDUWVRIWKHEXUQHUFXSZLWKDGDPSFORWKDQGGU\DIWHUZDUGV
Ŷ*HQWO\ZLSHWKH JQLWLRQGHYLFHDQGÀDPHVXSHUYLVLRQGHYLFHZLWKDZHOOZUXQJRXW
cloth and wipe dry with a clean cloth.
Ŷ%HIRUHSODFLQJWKHEXUQHUVEDFNRQWKHWRSSODWHPDNHVXUHWKDWWKHLQMHFWRULVQRW
blocked.
%851(56
5HSODFHSDUWVLQWKHFRUUHFWRUGHUDIWHUFOHDQLQJ
'RQRWPL[XSWKHWRSDQGERWWRP
7KHORFDWLQJSLQVPXVW¿WH[DFWO\LQWRWKHQRWFKHV
L
45
1234
1
2
3
4
5
6
7
washing up liquiddetergent or
2
3
4
5
6
7
15

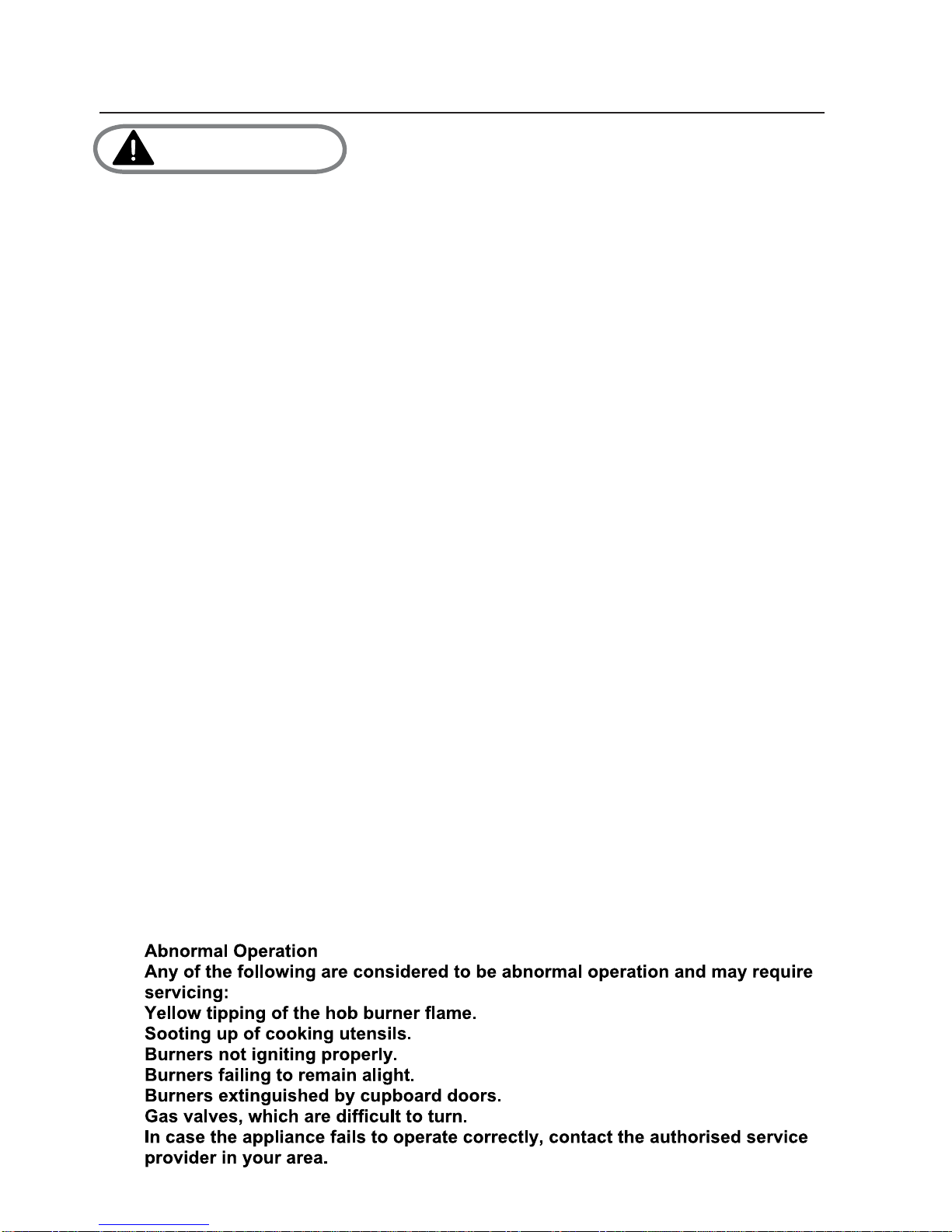

using instructions
Warnings
Ŷ'RQRWPRGLI\WKLVDSSOLDQFH
Ŷ7KLVDSSOLDQFHPXVWEHLQVWDOOHGE\DQDXWKRULVHGWHFKQLFLDQRULQVWDOOHU
Ŷ3ULRUWRLQVWDOODWLRQHQVXUHWKDWWKHORFDOGLVWULEXWLRQFRQGLWLRQV
QDWXUHRIWKHJDVDQGJDVSUHVVXUHDQGWKHDGMXVWPHQWRIWKH
DSSOLDQFHDUHFRPSDWLEOH
Ŷ7KHDGMXVWPHQWFRQGLWLRQVIRUWKLVDSSOLDQFHDUHVWDWHGRQWKHODEHORUGDWDSODWH
Ŷ7KLVDSSOLDQFHLVQRWFRQQHFWHGWRDFRPEXVWLRQSURGXFWVHYDFXDWLRQ
GHYLFH,W 
EHLQVWDOOHGDQGFRQQHFWHGLQDFFRUGDQFHZLWKFXUUHQW
LQVWDOODWLRQUHJXODWLRQV3DUWLFXODUDWWHQWLRQ  EH JLYHQ WRWKH
UHOHYDQWUHTXLUHPHQWVUHJDUGLQJYHQWLODWRQ
Ŷ%HIRUHLQVWDOOLQJWXUQRIIWKHJDVDQGHOHFWULFLW\VXSSO\WRWKH
DSSOLDQFH
Ŷ$OODSSOLDQFHVFRQWDLQLQJDQ\HOHFWULFDOFRPSRQHQWVPXVWEHHDUWKHG
Ŷ(QVXUHWKDWWKHJDVSLSHDQGHOHFWULFDOFDEOHDUHLQVWDOOHGLQVXFKD
ZD\WKDWWKH\GRQRWWRXFKDQ\SDUWVRIWKHDSSOLD FQ HZKLFK EHFRPH KRW
Ŷ*DVSLSHRUFRQQHFWRUVKRXOGQ¶WEHEHQWRUEORFNHGE\DQ\RWKHU DSSOLDQFHV
Ŷ&KHFNWKHGLPHQVLRQVRIWKHDSSOLDQFHDVZHOODVWKHGLPHQVLRQVRI
WKHJDSWREHFXWLQWKHNLWFKHQXQLW
Ŷ7KHSDQHOVORFDWHGDERYHWKHZRUNVXUIDFHGLUHFWO\QH[WWRWKH
DSSOLDQFHPXVWEHPDGHRIQRQÀDPPDEOHPDWHULDO%RWKWKHVWUDWL
¿HGVXUIDFLQJDQGWKHJOXHXVHGWRVHFXUHLWVKRXOGEHKHDWUHVLVWDQW
WRSUHYHQWGHWHULRUDWLRQ
Ŷ7XUQRQDSSOLDQFHWDSDQGOLJKWHDFKEXUQHUV
&KHFNIRUDFOHDUEOXHÀDPHZLWKRXW\HOORZWLSSLQJ
,IEXUQHUVVKRZVDQ\DEQRUPDO WLHVFKHFNWKHIROORZLQJ
%XUQHUOLGRQFRUUHFWO\
)ODPHVSUHDGHUSRVLWLRQHGFRUUHFWO\
%XUQHUYHUWLFDOO\DOLJQHGZLWKLQMHFWRUQLSSOH
Ŷ$IXOORSHUDWLRQDOWHVWDQGDWHVWIRUSRVVLEOHOHDNDJHVPXVWEHFDUULHG
RXWE\WKH¿WWHUDIWHULQVWDOOD LRQ
Ŷ7KHÀH[LEOHKRVHVKDOOEH¿WWHGLQVXFKDZD\WKDWLWFDQQRWFRPHLQWR
FRQWDFWZLWKDPRYHDEOHSDUWRIWKHKRXVLQJXQLWDQGGRHVQRWSDVV
WKURXJKDQ\VSDFHVXVFHSWLEOHRIEHFRPLQJFRQJHVWHG
VKRXOG
VKRXOG
may
L
Grease cranes produced at the factory to meet the requirement of all life hob.
Ŷ
Ŷ
16
W

positioning

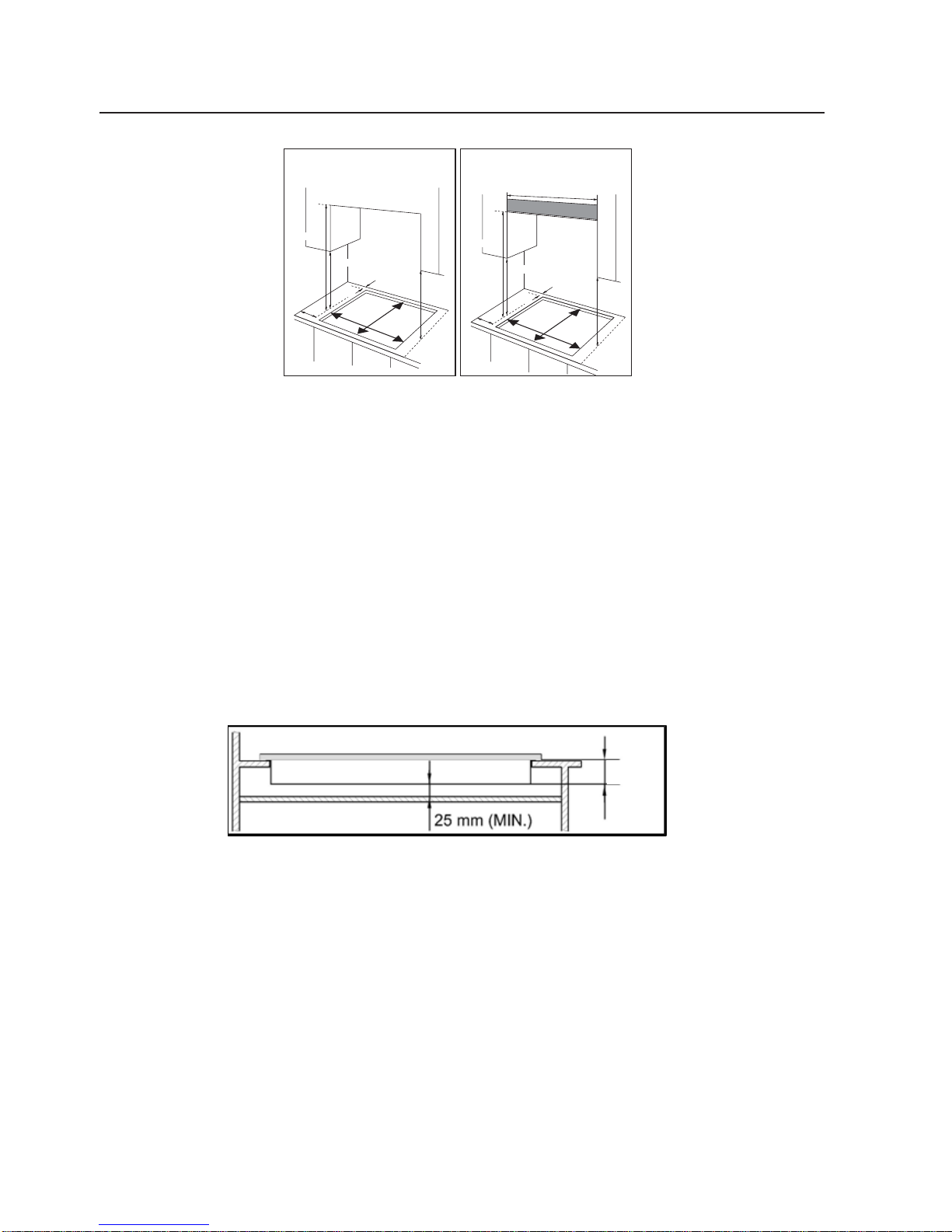

Ŷ7KLVDSSOLDQFHLVWREHEXLOWLQWRDNLWFKHQXQLWRU PPZRUNWRSSURYLGLQJWKH
IROORZLQJPLQLPXPGLVWDQFHVDUHDOORZHG
600
- An oven must have forced ventilation to install a hob above it.
- Check the dimensions of the oven in the installation manual.
- The cut out size must obey the indication.
oThe edges of the hob must be a minimum distance of mm from a side or
rear wall.
o700 mm between the highest point of the hob surface (including the burners)
and the underside of any horizontal surface directly above it.
o400 mm between the hob surfaces, providing that the underside of the
horizontal surface is in line with the outer edge of the hob. If the underside of
the horizontal surface is lower than 400 mm, then it must be at least 50 mm
away from the outer edges of the hob.
o50 mm clearance around the appliance and between the hob surface and any
combustible materials.
45 mm
400mm
mm
490mm
400mm
700mm
Min.
FO 0812
&/($5$1&(65(48,5('
:+(1),77,1*7+(+2%
:,7+287$&22.(5+22'$%29(
FO 0813
400mm
490mm
400mm
700mm
0mm
Min.
&/($5$1&(65(48,5('
:+(1),77,1*7+(+2%
:,7+$&22.(5+22'$%29(
60mm
60mm
200mm
20
900mm
815mm
815
5HPRYHWKHSDQVXSSRUWVWKHEXUQHUOLGDQG ÀDPHVSUHDGHUDQGFDUHIXOO\WXUQWKH
appliance upside down and place it on a cushioned mat.
7DNHFDUHWKDWWKH,JQLWLRQGHYLFHVDQGÀDPHsupervision devices are not damaged in this
operation.
2. Apply the sponge provided around the edge of the appliance.
3. Do not leave a gap in the sealing agent or overlap the thickness.
60
oYou must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
17

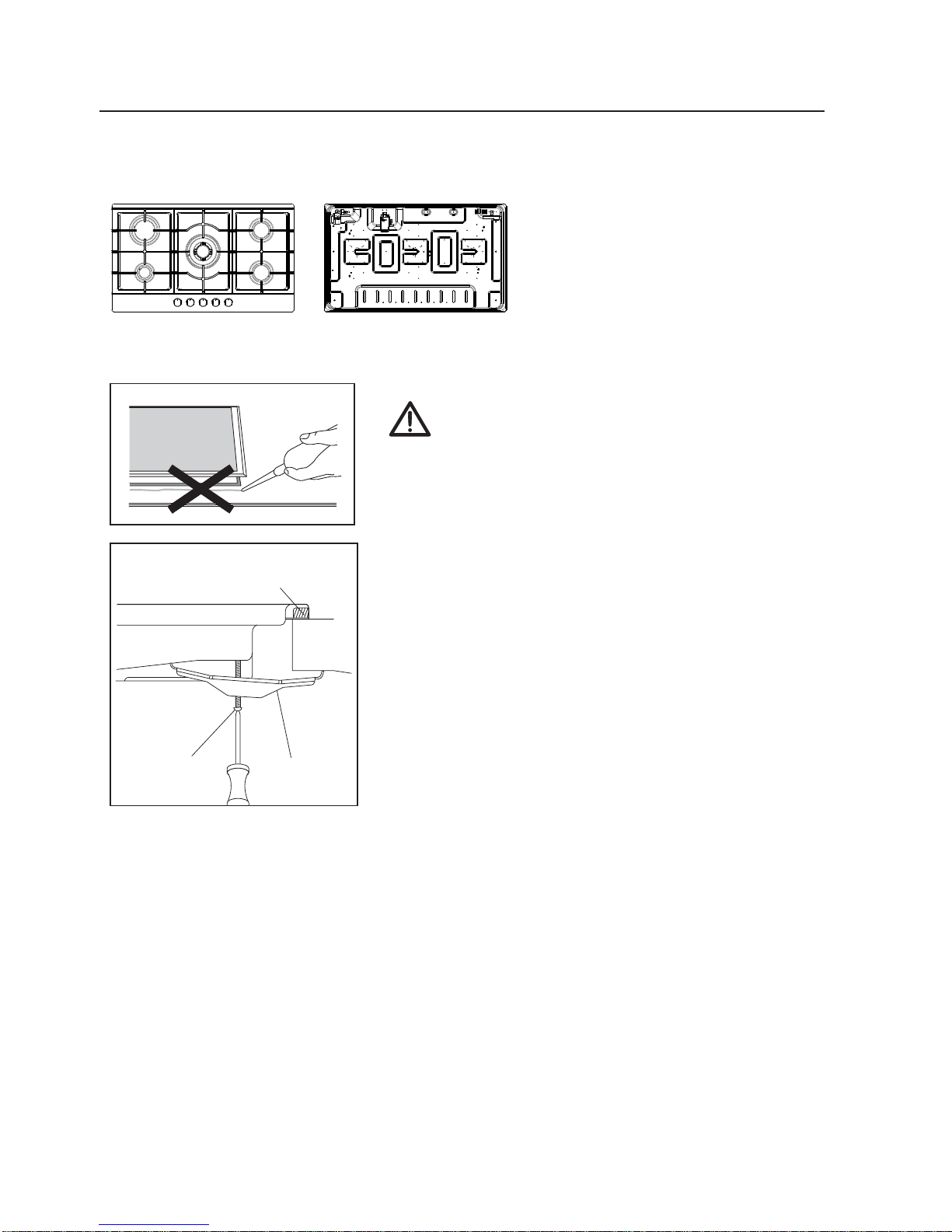

installing the appliance
Sponge
Bottom view
90G50ME005
The thickness of the sponge is 1.5 mm.
The width of the sponge is 10 mm.
'RQRWXVHDVLOLFRQVHDODQWWRVHDOWKH
DSSOLDQFHDJDLQVWWKHDSHUWXUH
7KLVZLOOPDNHLWGLI¿FXOWWRUHPRYHWKH
DSSOLDQFHIURPWKHDSHUWXUHLQIXWXUH
SDUWLFXODUO\LILWQHHGVWREHVHUYLFHG
3ODFHWKHEUDFNHW%RYHUWKHKROHVWKDWPDWFKWKHVL]H
of the screws.There are one set of screw holes in each
corner of the hob(H).
Slightly tighten a screw(C) through the bracket(B) so
that the bracket is attached to the hob, but so that you
can still adjust the position
.
2. Carefully turn the hob back over and then gently lower it
into the aperture hole that you have cut out.
3. On the underneath of the hob, adjust the brackets into a
position that is suitable for your worktop.
Then fully tighten the screws(C) to secure the hob into
position.
(A) SEALING STRIP
(C) SCREW (B) BRACKET
18

gas connection
Ŷ7KLVDSSOLDQFHPXVWEHLQVWDOOHGDQGFRQQHFWHGLQDFFRUGDQFHZLWKLQVWDOOD
WLRQUHJXODWLRQVLQIRUFHLQWKHFRXQWU\LQZKLFKWKHDSSOLDQFHLVWREHXVHG
Ŷ7KLVDSSOLDQFHLVVXSSOLHGWRUXQRQQDWXUDOJDVRQO\DQGFDQQRWEHXVHGRQ
DQ\RWKHUW\SHRIJDVZLWKRXWPRGL¿FDWLRQ&RQYHUVLRQIRUXVHRQ/3*DQG
RWKHUJDVHVPXVWRQO\EHXQGHUWDNHQE\DTXDOL¿HGSHUVRQ
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ S.A.A. Wiring Code
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These built-in cooktops are intended to
be inserted in a benchtop cutout. Only an officially authorised technician should connect
the appliance. Before you begin, turn off the gas and electricity supply .
Bef
o
o
reLeaving-
Natural gas connection Propane gas connection
19
