EURO ER420WH User manual

ER420WH
ER420SS
User's Manual for Refrigerator-Freezer

1
1
2
3
4
5
8
9
11
12
13
14
Safety Precaution
Parts
Placement
Operation check
Food storage
Maintenance
Trouble Shooting
Parts
Technical parameters and electrical diagrams
Packing List
Attention
Thank you for purchasing our refrigerator-freezer.
Handle installation instructions
Please be subject to the actual products if anything different or updated.
Please pardon us for not informing in advance.
Cover Plate of
Fruit&Vegetable Box
Freezer
Glass Shelf
Freezer temperature
Control Knob
Refrigerator
temperature
Control Knob
Refrigerator
Glass Shelf
Power Plug
Adjustable Feet
Freezer Door Rack
Refrigerator
Door Rack
Fruit&Vegetable Box
Chill compartment
(Optional)

2

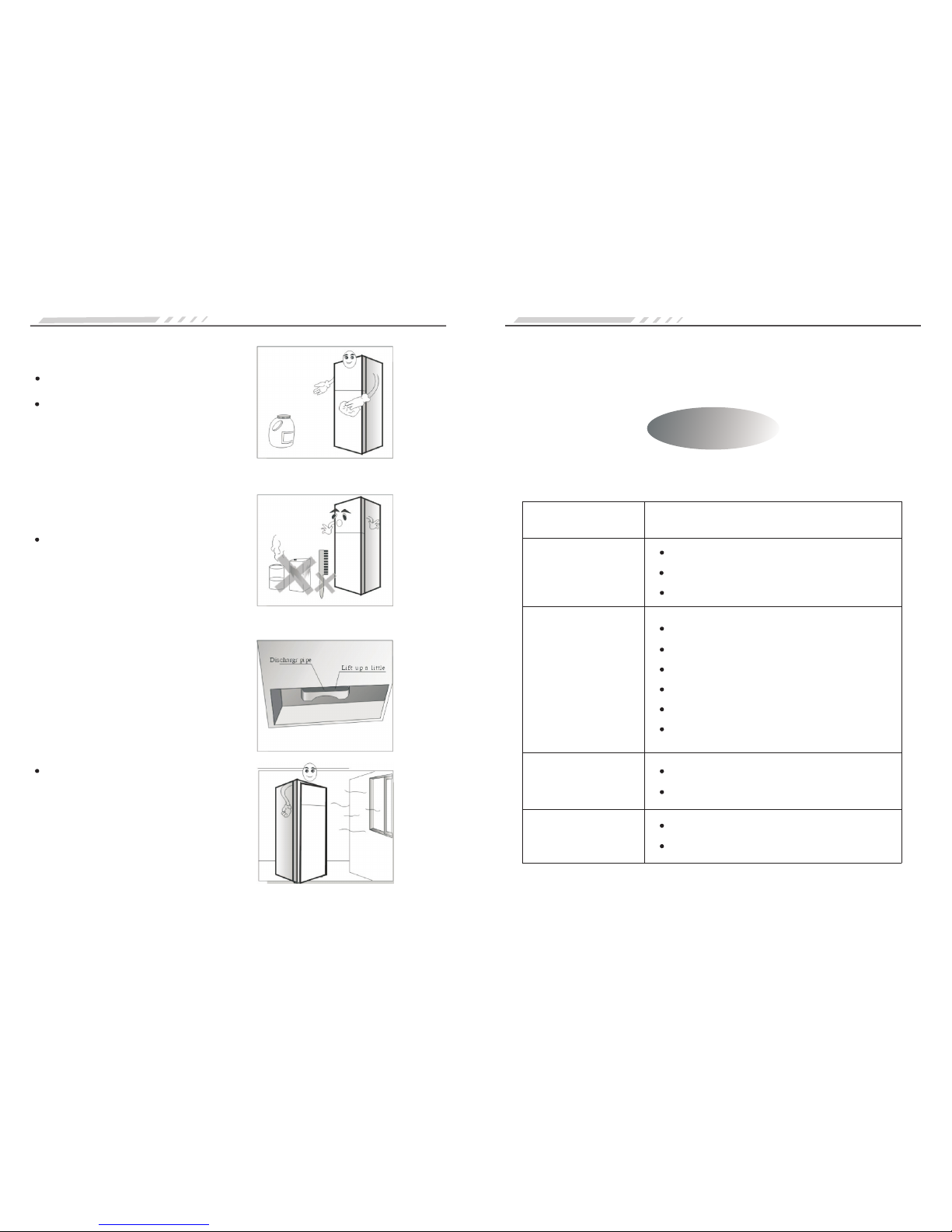

Safety Precaution
Please always follow the safety hint listed below:
The power supply for the unit should be
exactly the same as described on the data
sheet , and use the standard tri-pong socket.
The unit should be operated in the absence
of flammable or explosive fumes. It is prohibited
to put the flammable, acid or volatile goods in
cabinet.
Please unplug the unit immediately if you find
any abnormal smell or smoke , and contact
your local service center.
Please don't allow water on the cabinet, or put
a vessel full of water on the refrigerator. If the
refrigerator is wet , the electrical insulation
capability may be weakened.
Hanging or sitting on the door is very dangerous,
it may overturn the unit and subvert the goods in
(or on) the refrigerator.
This appliance is not intended for use by persons
(including children ) with reduced physical , sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
If the supply cord is damaged, it must be replaced
by the manufacturer ,its service agent or similarly
qualified persons in order to avoid hazards.
OK!
Ak o h o l
Ae tl er
B e i c e d
3
Placement
The unit should be placed in a ventilated and
dry environment. Do not put the unit in direct
sunshine, and keep it as far as possible from
heat sources.
The unit should be placed on flat and steady
ground. Keep the un it level by adjusting the
front leg levelers.
Don't put the unit in cold area. The appliance
shall not be exposed to rain.
There should be enough spare space around
the unit as shown, to allow proper ventilation.
>10cm
>10cm
>10cm
The back panel
to the wall also
shall no less
than 10cm.

4
Make sure the unit has been placed properly
and all instructions have been observed.
Operation Check
Adjust the control knob to the middle position,
and then plug in the unit. After closing the door
for several minutes, both side of cabinet becomes
warm.
30 minutes later, open the freezer compartment
door, feel the cold air, that means the unit works
properly. After a period of time the thermostat
will switch off & on automatically and set the
compartments at the desired temperature.
5
Food Storage
The temperature in the fresh compartment
is between 0～10℃, for the optional chill
compartment, the temperature will be lower
3~4 although
this lower temperature can limit the
bacteria propagation,it is not suitable
for a long period of food storage.
℃ than fresh compartment,
Fresh Food Storage
Cooked food should be cooled down to
room temperature before putting into the
refrigerator.
It is better to put the food in a sealed bag
before placing into the refrigerator.
In order to keep vegetables fresh in the
crisper, any water should be removed
first, otherwise the vegetables may spoil.
If you put the vegetables in a bag, they
may be stored for a longer period.
The su rf ace tem pe ratur e
will r is e to a stea dy v alue
at las t
Use th e ap plian ce safely
Hot

6
Food Storage
Is used to adjust the temperature of different compartment. User can
adjust for desired temperature.
The temperature of the freezer is colder than
-15℃. It is to store food to be kept for a long
period.
Control Knob
Attention:
Frozen Food Storage
After buying frozen food ,please put it into the
freezer compartment as soon as possible.
7
Food Storage
Any hot food must be cooled down to room
temperature before it is put into the freezer.
Door Rack
The ice tray is to make ice cubes.
Please don't put glass containers filled with
liquid into the freezer compartment as the
glass may break.
It is better to presort the foods before putting
them into the freezer. put the same kinds of
food together to help to minimize the time of
the freezer door opening when you take the
food out, and helps to save energy.
The food should not be put too close to the
outlet or inlet of the airflow. It may affect
the air circulation.
There are some ventilation holes on the bottom
of the door rack, please try not to block all of
them when you put the food in.
Ice Tray
Fill with cold drinkable water to a height of
four-fifth of the ice tray ,and place it in the
freezer for about 2 hours.
When the cubes are fully frozen,take the ice
tray out and twist it back and forth to separate
the ice cubes.Don't over-bend the ice tray to
avoid breaking it.
This product is of SN/N/ST/T climate. In case of ambient temperature lower than 10°C, storage
temperature inside fridge will be affected somewhat. In order to achieve favorable storage
temperature, it is recommended to set the thermostats of both fridge and freezer compartments
at COLDER and MAX level.
Changing either control will have some effect on the temperature of the other compartment.
-15 ℃
The be st s torag e te mpera tu re
is bel ow - 15℃
Water line
VENT HOLE
User can adjust the temperature by turning
control knob located on the air duct.
Temperature shall get lower if turning the
knobs by clockwise, and get higher by
anticlockwise.
freezer
User can adjust the temperature by turning
control knob located on the air
duct. Temperature shall get lower if turning
the knobs by clockwise, and get higher by
anticlockwise. If
refrigerator
turn the knob to the OFF,
the refrigerator will stop working.
Freezer
Refrigerator
WARM
COLD
COLD ER
OFF

8
Always unplug the unit before cleaning.
Maintenance
Cleaning
The unit should be cleaned frequently both
inside and outside using water and a little
neutral detergent. Never use boiling water,
harsh cleaning agents, acid, alkali or benzene
etc.
If the unit will be switched off for a long time,
the plug should be pulled out, then clean the
unit thoroughly. Ensure that the door cannot
be fully closed (leave a suitable gap),and
place the unit in a well-ventilated area to
avoid any door.
9
Trouble Shooting
Water Pan Cleaning
The water pan is located in the back of
cabinet. Its function is to collect and
evaporate the defrost water. Usually it
doesn't need special care, but if you find
some water overflow or odd smell, it may
need to be checked and cleaned. Pull out
the power cord first. Lift the water pan up
a little ,and then pull it straight out carefully.
(Caution: make sure the discharge pipe is
not too hot). After cleaning, refix the water
pan into the original position. Make sure that
the pipe is on top of the water pan before
you push it into the original position.
Leaving The Unit Switched Off
Before calling for service, please check the following issues first:
The reason of the trouble
Trouble
The unit
doesn’t
work
The inside
temperature
is higher
Noise
Food frozen
Possibility
Power is not on.
Low voltage.
The control knob is set at “OFF”.
The control knob is set at the min or warm position.
Too much food in the unit.
Hot food in the unit.
Door opened & closed too frequently.
There is a heat source nearby.
The unit is exposed to direct sunlight.
Floor is not flat, and the unit is not placed steadily.
Contents are not placed in the right position.
Is the control knob set at proper position? Too high?
Is the food near the outlet of cold draught.

11
Technical parameters and electrical diagrams
Model N o ER420 WH/ER420SS
Group
Total S torage (L)Volum e
Freez er (L )Vo lume
Prote ction Against Electric S hock
Refri gerating Mode
Rated V oltage/Frequency
Rated C urrent(A)
Energ y Consumption(kW h/2 4h)·
Lamp Ra ted Power(W)
Energ y Efficiency Class
Refri gerant, Amount
Foami ng Agent
Noise (dB(A))
Weigh t(kg)
Dimen sions(W*D*H)
Fresh -food (L)Volume
388
95
I
No Fros t
220-2 40V ~50Hz
0.8
1.12
3
3
R600a (60g)
Cyclo pentane
≤44
80
696X7 60X1756
260
Rated P ower(W) 135
Overa il Space Required In Use(W *D*H)(m m) 1215X 1330X1756
5T, Ref rigerator-Freezer
Total G ross Volume(L) 420
Freez er Volum e Gross (L)
Fresh -food Gross (L )Vo lume
110
270
Chill G ross (L)Volume 40
Chill (L)Volu me 33
L
Plug
N
M
3
M
1~
~
1
4
1
2
R. lamp Freezer
fan motor
Thermostat
Defrost timer
Defrost
heater
Defrost
fuse
Defrost
thermostat
Door
switch θ
Compressor
E
10
The sound like a rivulet is caused by the refrigerant flowing inside of the system pipe.
Trouble Shooting
Following Phenomenon Is Normal
While the unit runs, heat is emitted from both sides of the cabinet.
When the environment is too humid ,the edges around door may have a little moisture ,wipe it with
a dry cloth.
Warning
● This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
● This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure they do not play with the appliance.
● The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
● Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
● WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
● WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
● WARNING: Do not damage the refrigerant circuit.
● WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
● WARNING: The lamp is not replaceable by anyone other than an authorised service person.
● It is hazardous for anyone other than an Authorised Service Person to service this appliance. In
Queensland – the authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon
refrigerants, to carry out Servicing or repairs which involve the removal of covers.
IMPORTANT DISPOSAL INSTRUCTIONS
As a responsible retailer we care about the environment. As such we urge you to follow
the correct disposal procedure for your product and packaging materials. This will help
conserve natural resources and ensure that it is recycled in a manner that protects the
health and the environment.
You must dispose of this product and its packaging according to local laws and
regulations. Because this product contains electronic components and sometimes
batteries, the product and its accessories must be disposed of separately from
household waste when the product reaches its end of life. Contact your local authority
to learn about disposal and recycling. The product should be taken to your local
collection point for recycling. Some collection points accept free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these
instructions, which may occur as a result of product improvement and development.

13
12
For household refrigerating appliances
Try not to open the door too often , especially when the weather is wet and hot. Once you open the
door , mind to close it as soon as possible.
Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind
the appliance).
For household refrigerating appliances, in normal temperature conditions, please arrange the
thermostat at the middle setting.
Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient
temperature.
If it is the outer condenser , the rear wall should be always clean free of dust or any impurities.
Attention
Always consider instructions stated in sections Positioning and Energy Saving.
Packing List
Accessory Name
User’s Manual
Freezer Glass Shelf
Refrigerator Glass Shelf
Egg Holder
Fruit&Vegetable Box
Cover Plate of Fruit&Vegetable Box
Freezer Door Rack
Refrigerator Door Rack
Rotation Ice-Making Assembly
ER420WH/ER420SS
1
1
2
1
2
1
2
3
1
F Door Handle
R Door Handle
1
1
Chill (Fresh) Box 1
Chill (Fresh) Box Cover 1

14
Handle installation instructions
1. Take the handle set bolts from the plastic bag for manual, use cross recessed screwdriver to set the
bolt in the prepared hole on the door.
2. Take the handle out from the refrigerator. Long handle is used for bottom door and the short handle
is used for upper door. Fix the handle hole with the screw. Use rubber mallet or similar tool to tap the
handle from the top down, and shake the handle, so as to confirm that the handle is well erected.
3. Installation method such as 2.
4. It is OK.
4
2
3
1

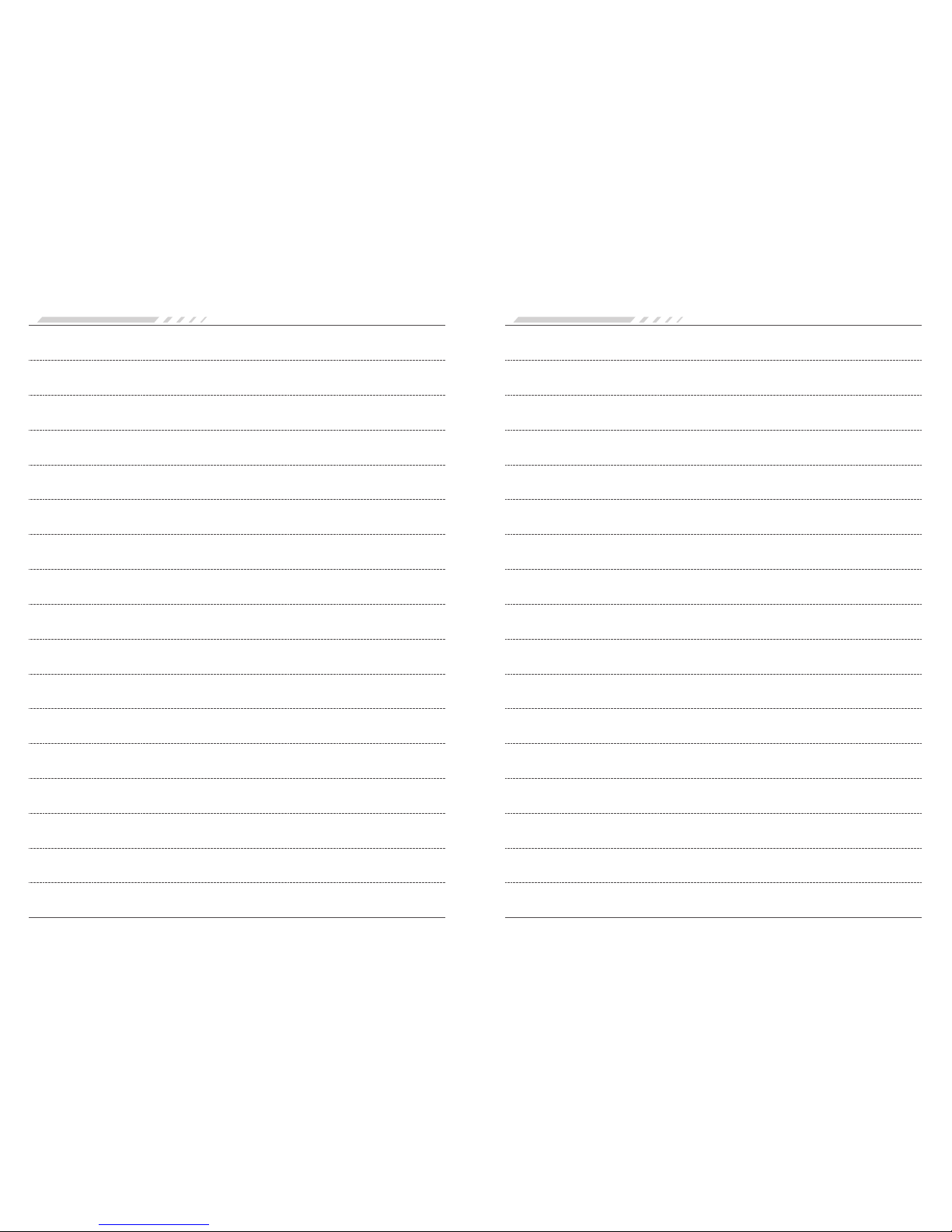

Notes

NotesNotes
