Euroboor BM45AIR User manual

Mini Air Beveling Machine
BM45AIR
Operators manual
V1.0 FEBRUARY 2022 EOV

www.euroboor.com
2
Congratulations on purchasing this Mini Air Beveling Machine BM45AIR. At EUROBOOR
we strive to exceed our customers’ expectations by developing and providing premium
and innovative portable drilling and cutting solutions. We believe that a professional like
you must be able to rely on a professional supplier. Which has led us to become a major
player in the industrial world, with our own factory and several offices worldwide. All
because we have always listened to our customers and to the demands from the market.
Our vision is focused on developing innovative portable tools that add value for our
customers and facilitate them in their daily work. We never lose sight of sustainability,
time savings and cost savings.
Enjoy your new machine!
Before operating your new Mini Air Beveling Machine, please first read all instructions.
You find the instructions in this manual and on the warning label on your machine. With
proper use, care and maintenance your machine will provide you with years of premium
grinding performance.
TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND ALL
INSTRUCTIONS
To view all our offices and their contact information please visit: www.euroboor.com
The original manual has been produced in the English language. If any discrepancies
should occur in translations, reference must be made to the original version for
clarification.

www.euroboor.com
3
Inhoudsopgave
1. Safety ........................................................................................................................... 4
1.1 General safety information .............................................................................................. 4
1.2 Specific safety information............................................................................................... 7
2. Description ................................................................................................................. 10
2.1 Intended use................................................................................................................... 10
2.2 Box contents ................................................................................................................... 10
2.3 Description and features ................................................................................................ 11
2.4 Serial number.................................................................................................................. 12
2.5 Technical data................................................................................................................. 12
2.6 Symbols........................................................................................................................... 13
2.7 Environmental ................................................................................................................ 14
3. Assembly .................................................................................................................... 15
3.1 Fitting the cutting plates................................................................................................. 15
3.2 Adjusting the bevel depth .............................................................................................. 16
4. Using the BM45AIR ..................................................................................................... 17
4.1 Air supply system............................................................................................................ 17
4.2 Operating instructions.................................................................................................... 18
5. Maintenance............................................................................................................... 19
5.1 Normal maintenance routine ......................................................................................... 19
5.1 Oil daily ........................................................................................................................... 20
6. Troubleshooting.......................................................................................................... 20
7. Exploded view & parts list ........................................................................................... 21
7.1 Exploded view................................................................................................................. 21
7.2 Parts list .......................................................................................................................... 21
7.3 Accessories ..................................................................................................................... 22
8. Warranty and service .................................................................................................. 23
9. Certifications............................................................................................................... 24
9.1 CE declaration of conformity.......................................................................................... 24

www.euroboor.com
4
1. Safety
1.1 General safety information
Do not use this Mini Air Beveling Machine before you have thoroughly read and completely
understood this manual, specifically the “General safety instructions” and ‘’Specific safety
information”, including the figures, specifications, safety regulations and the signs indicating
DANGER, WARNING and CAUTION.
Please also observe the relevant national industrial safety regulations. Non-observance of the
safety instructions in the said documentation can lead to an electric shock, burns and/or
severe injuries.
WARNING: When using the Mini Air Beveling Machine, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and personal injury.
READ AND UNDERSTAND ALL SAFETY INFORMATION AND INSTRUCTIONS. Failure to
follow the warnings and instructions may result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
This Operator’s Manual including the “General Safety Instructions” should be kept for later
use and enclosed with the Mini Air Beveling Machine, should it be passed on or sold.

www.euroboor.com
5
WORK AREA SAFETY
1. Keep your work area clean and well lit. Cluttered benches and dark areas increase the
chance of accidents;
2. Do not operate the Mini Air Beveling Machine in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Mini Air Beveling Machines create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a Mini Air Beveling
Machine. Distractions can cause you to lose control.
PERSONAL SAFETY
WARNING: Wear ear and eye protection when using this Mini Air Beveling
Machine.
1. Stay alert, watch what you are doing and use common sense when using the Mini Air
Beveling Machine. Do not use it while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating the Mini Air Beveling Machine
may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in
moving parts.
3. Avoid accidental starting. Be sure that the on-/off- trigger is not pressed when plugging
in the Mini Air Beveling Machine to the air supply. Carrying or plugging in the Mini Air
Beveling Machine with your hands on the trigger increases the chance of accidents.
4. Never place hands, fingers, gloves or clothing near rotating tool parts.
5. Remove adjusting keys or wrench before starting the Mini Air Beveling Machine. A
wrench or a key that is left attached to a rotating part of the Mini Air Beveling Machine
may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the Mini Air Beveling Machine in unexpected situations.
7. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat and hearing protection must be used for optimal safety.
8. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.

www.euroboor.com
6
MINI AIR BEVELING MACHINE USE AND CARE
1. Do not force the Mini Air Beveling Machine. Use the correct machine for your
application. The correct machine will do the job better and safer at the rate for which
it was designed.
2. Do not use the Mini Air Beveling Machine if the switch does not turn it on or off. Any
tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the air supply before making any adjustments, changing accessories, or
storing Mini Air Beveling Machine. Such preventive safety measures reduce the risk of
starting the Mini Air Beveling Machine accidentally.
4. Store the Mini Air Beveling Machine out of the reach of children and do not allow
people who are unfamiliar with the Mini Air Beveling Machine or these instructions to
operate the Mini Air Beveling Machine. Mini Air Beveling Machines are dangerous in
the hands of untrained users.
5. Maintain the Mini Air Beveling Machine with care. Check for misalignment or binding
of moving parts, breakage of parts, and any other condition that may affect the Mini
Air Beveling Machine’s operation. If damaged, have the tool serviced before use. Many
accidents are caused by poorly maintained tools.
6. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the Mini Air Beveling Machine and accessories in accordance with these
instructions, taking into account the working conditions and the work to be performed.
Use of the Mini Air Beveling Machine for operations different from those intended
could result in a hazardous situation.
8. Use only accessories that are recommended by EUROBOOR for your Mini Air Beveling
Machine. Accessories that may be suitable for one machine, may become hazardous
when used on another machine.

www.euroboor.com
7
SERVICE
1. Mini Air Beveling Machine service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified personnel could result in
risk of injury.
2. When servicing a Mini Air Beveling Machine, use only identical replacement parts.
Follow instructions in the maintenance section of this manual. Use of unauthorised
parts or failure to follow maintenance instructions may create a risk of electric shock
or injury.
WARNING: Remove the air supply from the machine before carrying out any
installation, adjustment, servicing or maintenance.
1.2 Specific safety information
1. PERSONAL SAFETY
a) Check the air connector, air hose and machine for damage each time before using
the machine
b) Disconnect the air supply before undertaking an maintenance work on the Mini Air
Beveling Machine
WARNING: Risk of injury from high-temperature chips.
c) Never touch the cutting plates and keep all vulnerable body parts clear while the
machine is running, as high-temperature chips are expelled at high speed during
operation
d) During operation, always guide the machine in a direction away from the body
e) Do not use the machine above your head

www.euroboor.com
8
WARNING: Risk of injury to hands.
f) Do not reach into the processing line with your hands
g) Use both hands to hold and operate the machine
WARNING: Dust created by bevelling may harm your health.
WARNING: Never work on materials that contain asbestos.
h) Some types of dust, such as dust from lead-based paint, is known to cause cancer,
birth defects or other reproductive harm. Risk varies on exposure and should
always be reduced by working in a well-ventilated area and by making use of
approved safety equipment, such as dust masks specifically designed to filter out
microscopic particles
WARNING: Only use accesory’s recommended by Euroboor.
i) Only use recommended “cutting plates”, rated at the machine’s maximum cutting
rate or higher
j) Do not use dull or damaged cutting plates to prevent excessive friction and load,
and thus to prevent damage to and failure of the machine
k) Maintain labels and identification plates, as they carry important information. If
unreadable or missing, obtain replacement
2. TOOL USE AND CARE
WARNING: Not securing the workpiece properly may lead to loss of control.
a) Use clamps or another practical way to secure and support the workpiece to a
stable platform. Holding the work by your hand or against the body leaves it
unstable and may lead to loss of control.

www.euroboor.com
9
3. RESIDUAL RISKS
In spite of the application of the relevant safety regulations and the implementation of safety
devices, certain residual risks cannot be avoided.
These are:
•Impairment of hearing
•Risk of personal injury from flying particles
•Risk of burns due to accessories becoming hot during operation
•Risk of personal injury due to prolonged use.
Always try to reduce these risks as much as possible.

www.euroboor.com
10
2. Description
2.1 Intended use

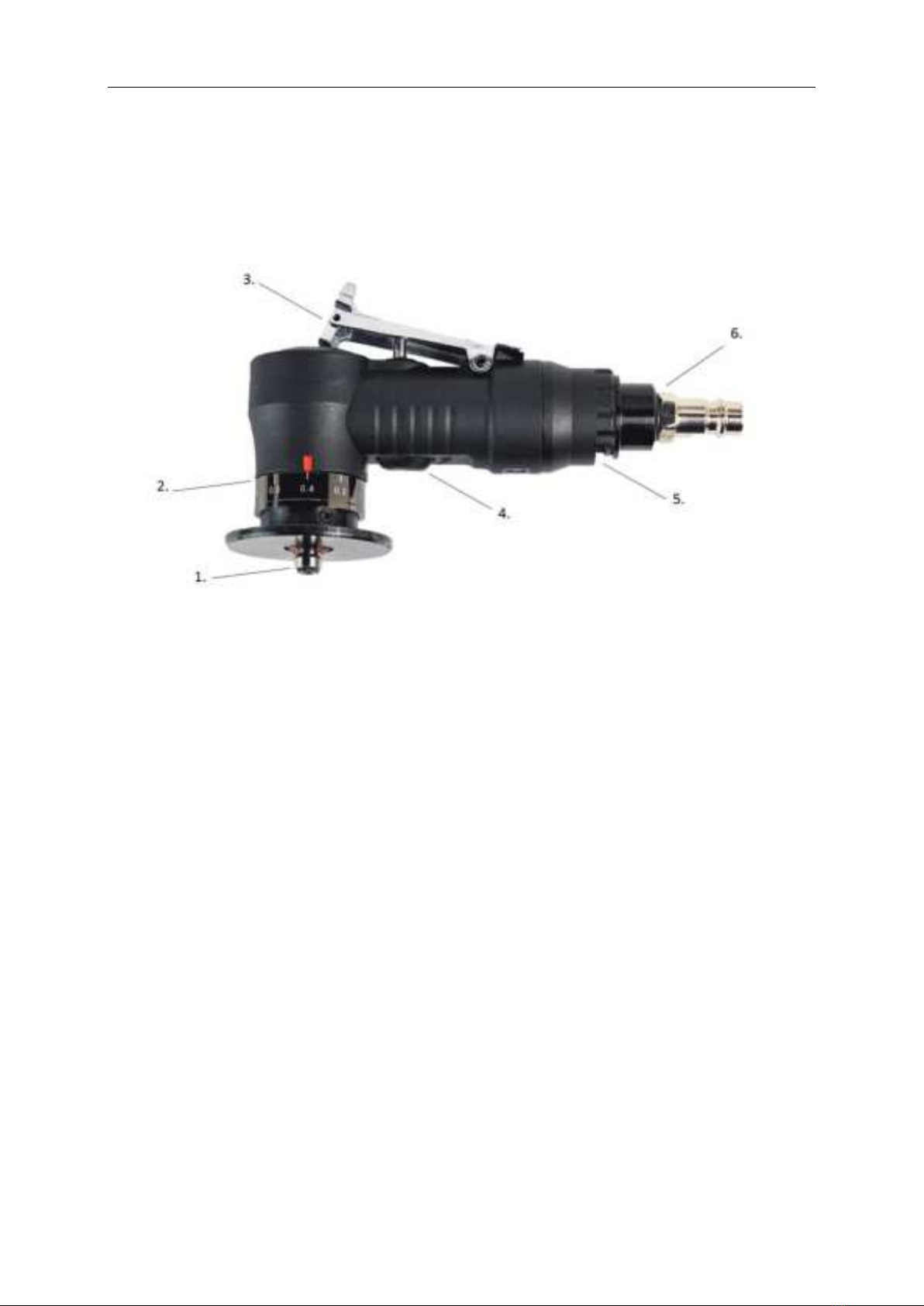

This shape bevelling and deburring tool is an air driven portable machine for machining
workpieces in steel, chrome steel alloys, aluminium, aluminium alloys, brass and plastic. The
machine is designed exclusively for adding bevelled edges, rounding off edges, removing burrs
and removing sharp corners on workpieces. The speed of the machine is variable to suit the
needs of various materials and is equipped with a graduated depth adjustable deck. It comes
standard with 45° cutting plates and R1.5 radius cutting plates.
WARNING: The machine should not be converted or modified, e.g. for any other form
of use, other than as specified in these operating instructions. Warranty will be voided
and the user shall be liable for damages and accidents due to incorrect use.
2.2 Box contents
Note: When unpacking, make sure the parts listed below are included. If missing or broken,
please contact your Euroboor distributor as soon as possible.
1 x BM45AIR Mini air beveling machine
1 x Hex key
1 x Air connector type EURO 1/4"
1 x Torx key
2 x Cutting plates 45°
1 x Oil bottle
2 x Cutting plates R1.5
1 x Instruction manual

www.euroboor.com
11
2.3 Description and features
1. Milling head 4. Air flow regulator
2. Depth adjustment indicator 5. Air exhaust
3. on- / off- trigger 6. Air inlet

www.euroboor.com
12
2.4 Serial number
The serial number is mentioned on the tool once: on the serial no. sticker on the Mini Air
Beveling Machine. The serial number will help you, your dealer and EUROBOOR to validate
and identify the power tool.
The serial number will help you and your sales point validate and identify the machine.
Maintain labels, nameplates and other machine identification. These carry important
information. Obtain replacements when unreadable or missing.
2.5 Technical data
BM45AIR
Metric
Imperial
Air inlet
Ø 6.35 mm
1/4”
Air hose
Ø 9.525 mm
3/8”
Connector type
Euro type 1/4"
Avg. Air consumption
5 SCFM (0.15 M3/min)
Working pressure
6.3 bar
90 PSI
No-load speed
Max. 28.000 rpm
Weight
320 g
0.71 Lbs
Length
150 mm
5 29/32”
Height
45 mm
1 25/32”
Max. working angle
45°

www.euroboor.com
13
2.6 Symbols
Symbol
Term, meaning
Explanation
Read documentation
Be sure to read the documentation in this user
manual and specifically the “General safety
instructions” and ‘’Specific safety information’’.
Wear ear protection
Use ear protection during operation.
Wear eye protection
Use eye protection during operation.
Danger/Warning/Caution
Read and apply the information in the adjacent
text!
European conformity symbol
Confirms the conformity of the machine with
the directives of the European Community.
ISO9001
Certified in accordance with ISO9001:2015
quality management system.
mm
Milimetre
Unit of measure for the dimensions.
“
Inch
Unit of measure for the dimensions.
Kg
Kilogram
Unit of measure for the mass.
Lbs
Pounds
Unit of measure for the mass.
Rpm
Revolutions per minute
Unit of measure for the revolutions.
SCFM
Standard cubic feet per minute
Unit of measure for air consumption.

www.euroboor.com
14
2.7 Environmental
Separate collection. This product must not be disposed of with normal household
waste.
Separate collection of used products and packaging allows materials to be recycled
and used again. Re-use of recycled materials helps prevent environmental pollution
and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the
household, at municipal waste sites or at the retailer when you purchase a new product.

www.euroboor.com
15
3. Assembly
WARNING: Switch off and unplug the Mini Air Beveling Machine from the air supply
before assembling or adjusting the tool.
3.1 Fitting the cutting plates
Note: Use both the hex key and torx key for fitting the cutting plates onto the machine.
Step 1:Loosen the two bolts that lock the guiding plate in place, using the hex key.
Step 2: Remove the guiding plate from the machine by turning it counter-clockwise.
Step 3: After removing the guiding plate, fit the cutting plates into the milling head. Use the
supplied screws and torx key to tighten the cutting plates. Make sure the cutting plates are
tightened properly.
Step 4: Place back the guiding plate onto the machine by rotating it clockwise. Keep rotating
clockwise until the desired beveling depth is reached (3.2 adjusting the bevel depth).
Step 5: When desired beveling depth is reached, tighten the two bolts to lock the guiding plate
in place, using the hex key.
Step 1 step 2 step 3 step 4 step 5

www.euroboor.com
16
3.2 Adjusting the bevel depth
Note: For adjusting the bevel depth, the supplied hex key is required.
Step 1: Loosen the two bolts that lock the guiding plate in place, using the hex key.
Step 2: Turn the guiding plate clockwise or counter-clockwise, the bevel depth can be
adjusted. The depth indicator on the side of the machine shows the set depth of the bevel.
This can be set in-between 0,1 and 1,0 mm.
Step 3: Tighten the two bolts that lock the guiding plate in place, using the hex key.
Step 1 Step 2 Step 3

www.euroboor.com
17
4. Using the BM45AIR
4.1 Air supply system
For using this tool the following air supply system layout is recommended:
Also take note of the following:
-Make sure that the air compressor being used for the air tool operation supplies the
correct output (SCFM).
-Have the tool in the “off” position when connecting the tool to the air supply.
-Use 90 PSI / 6 Bar air pressure while running the tool. Using a different air pressure
may result in reduced performance of the Mini Air Beveling Machine.
-Drain water from the air compressor tank daily together with any condensed water in
the air hoses. Water in the air supply system can result in reduced performance and/or
damage.
-Clean the air inlet filter weekly. Unclean air can result in reduced performance, faster
wear and/or damage.
-The minimum hose diameter should be 1/4” Inner diameter (I.D.) and the fittings
should have the same inside dimensions. But usually a 3/8” l.D. air hose is
recommended for air supply to get the best function of air tool operation.
-Use proper hoses and fittings and check these before each individual use.

www.euroboor.com
18
4.2 Operating instructions
For operating the tool, please follow the steps below.
1. Lubricate the tool before operating. Please refer to “5. Maintenance”.
2. Prepare the tool, inserting the cutting plates as described in “3.1 fitting the cutting
plates”and “3.2 adjusting the bevel depth”
WARNING: Only use accessory’s that are recommended by Euroboor.
3. Insert the supplied air nipple into the machine.
4. Connect the air supply to the tool. Make sure the air coupling is set in place and no air
is leaking.
5. Before working the tool make sure the air flow adjustment lever is
set in the desired position. See [image 4-1]
6. Once the air connection is in place and the correct air flow rate has
been chosen, the tool is ready to be operated. Operating the part
can be done by pressing the trigger-block forward.
KEEP CLEAR THE ROTATING PARTS WITH HANDS, CLOTES, HAIR OR ANY OTHER
LOOSE OBJECTS.
Note: Lubricate the tool before operating. Please refer to “5. Maintenance”. After lubricating
the tool, let it run freely for 30 seconds in order to distribute the oil through the machine.
7. After finishing the workpiece: Disconnect the machine from the air supply.
[image 4-1]

www.euroboor.com
19
5. Maintenance
5.1 Normal maintenance routine
Your EUROBOOR Mini Air Beveling Machine has been designed to operate over a long period
of time. Continuous satisfactory operation depends upon proper tool care and regular
cleaning.
WARNING: To reduce the risk of injury, turn the Mini Air Beveling Machine off and
disconnect machine from the air supply before installing and removing accessories,
before adjusting or changing set-ups or when making repairs. An accidental start-up
can cause injury.
Just as every tool with moving parts, your EUROBOOR Mini Air Beveling Machine also needs
regular maintenance service. A few recommendations follow:
•Oil daily
•Regularly inspect all mountings and screws and ensure they are properly tightened.
Should any of the screws be loose, tighten them immediately. Failure to do so may
result in serious damage.
•Consult the authorised service agent about the event of failure.
•Clean the tool after each use.

www.euroboor.com
20
5.1 Oil daily
The tool should be lubricated daily (or before each use) with air tool oil (included). During
continuous operation, the tool should be oiled every 1 to 2 hours. For lubricating it is
recommended to use 4 to 5 drops of oil in the air inlet. After which 30 seconds of running is
required to distribute the oil through the tool.
6. Troubleshooting
Problem
Possible Cause
Corrective Action
-Tool runs slowly or will not
operate
-No oil in tool.
-Low air pressure.
-Air hose leaks.
-Pressure drops
-Moisture blowing out of tool
exhaust.
-Worn rotor blade.
-Lubricate the tool with EUROBOOR
pneumatic oil IBO.80.
-Adjust the compressor regulator to 90 PSI
and/or Adjust the regulator on the tool to
maximum setting.
-Check the air hose for possible leaks and
repair these. Be sure the hose is the proper
size.
-Do not use a multiple number of hoses
connected together with quick-connect
fittings.
-Water in tank: drain tank. Oil tool and run
until no water is evident. Oil tool again and
run 1-2 seconds.
-Abnormal vibration and/or
excessive heat
-Improper lubrication.
-Lubricate the tool with EUROBOOR
pneumatic oil IBO.80.
For any problems not in this troubleshooting table, contact your EUROBOOR distributor or
sales agent from whom purchased the tool.
