INSTRUCTION MANUAL
Combination Hammer
HR3011FC
HR3012FC
HR3001C
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: HR3011FC HR3012FC HR3001C
Capacities Concrete 30 mm
Core bit 80 mm
Diamond core bit (dry type) 80 mm
Steel 13 mm
Wood 32 mm
No load speed 0 - 840 min-1
Blows per minute 0 - 4,500 min-1
Overall length 369 mm 386 mm 369 mm
Net weight 4.4 - 4.8 kg 4.5 - 4.7 kg 4.1 - 4.5 kg
Safety class /II
Optional accessory
Model: DX10 (For HR3011FC) DX11 (For HR3012FC)
Applicable workpiece and workmode for concrete drilling only
(not for metal or wood, and not for core drilling or chiseling)
Suction performance 0.35 l/min
Operating stroke Up to 190 mm
Suitable drill bit Up to 265 mm
Net weight 1.2 kg
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s). The lightest and heaviest combination, according to
EPTA-Procedure 01/2014, are shown in the table.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
Waste Electric and Electronic Equipment
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for hammer drilling and drilling in
brick, concrete and stone as well as for chiselling work.
It is also suitable for drilling without impact in wood,
metal, ceramic and plastic.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745-2-6:
Model HR3011FC
Sound pressure level (LpA) : 94 dB(A)
Sound power level (LWA) : 105 dB (A)
Uncertainty (K) : 3 dB(A)
Model HR3012FC
Sound pressure level (LpA) : 93 dB(A)
Sound power level (LWA) : 104 dB (A)
Uncertainty (K) : 3 dB(A)
Model HR3001C
Sound pressure level (LpA) : 94 dB(A)
Sound power level (LWA) : 105 dB (A)
Uncertainty (K) : 3 dB(A)
Model HR3011FC with DX10
Sound pressure level (LpA) : 96 dB(A)
Sound power level (LWA) : 107 dB (A)
Uncertainty (K) : 3 dB(A)
Model HR3012FC with DX11
Sound pressure level (LpA) : 94 dB(A)
Sound power level (LWA) : 105 dB (A)
Uncertainty (K) : 3 dB(A)

3ENGLISH
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Vibration
The following table shows the vibration total value
(tri-axial vector sum) determined according to applica-
ble standard.
Model HR3011FC
Work mode Vibration
emission
Uncertainty (K) Applicable
standard
Hammer
drilling into
concrete
(ah, HD)
9.5 m/s21.5 m/s2EN60745-2-6
Hammer
drilling into
concrete with
DX10 (ah, HD)
9.5 m/s21.5 m/s2EN60745-2-6
Chiselling func-
tion with side
grip (ah, Cheq)
6.0 m/s21.5 m/s2EN60745-2-6
Drilling into
metal (ah, D)
5.5 m/s21.5 m/s2EN62841-2-1
Model HR3012FC
Work mode Vibration
emission
Uncertainty (K) Applicable
standard
Hammer
drilling into
concrete
(ah, HD)
9.5 m/s21.5 m/s2EN60745-2-6
Hammer
drilling into
concrete with
DX11 (ah, HD)
8.0 m/s21.5 m/s2EN60745-2-6
Chiselling func-
tion with side
grip (ah, Cheq)
5.5 m/s21.5 m/s2EN60745-2-6
Drilling into
metal (ah, D)
6.0 m/s21.5 m/s2EN62841-2-1
Model HR3001C
Work mode Vibration
emission
Uncertainty (K) Applicable
standard
Hammer
drilling into
concrete
(ah, HD)
13.5 m/s21.5 m/s2EN60745-2-6
Chiselling func-
tion with side
grip (ah, Cheq)
11.0 m/s21.5 m/s2EN60745-2-6
Drilling into
metal (ah, D)
6.0 m/s21.5 m/s2EN62841-2-1
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual
use of the power tool can di󰀨er from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
as the times when the tool is switched o󰀨 and when
it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.

4ENGLISH
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
8. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.

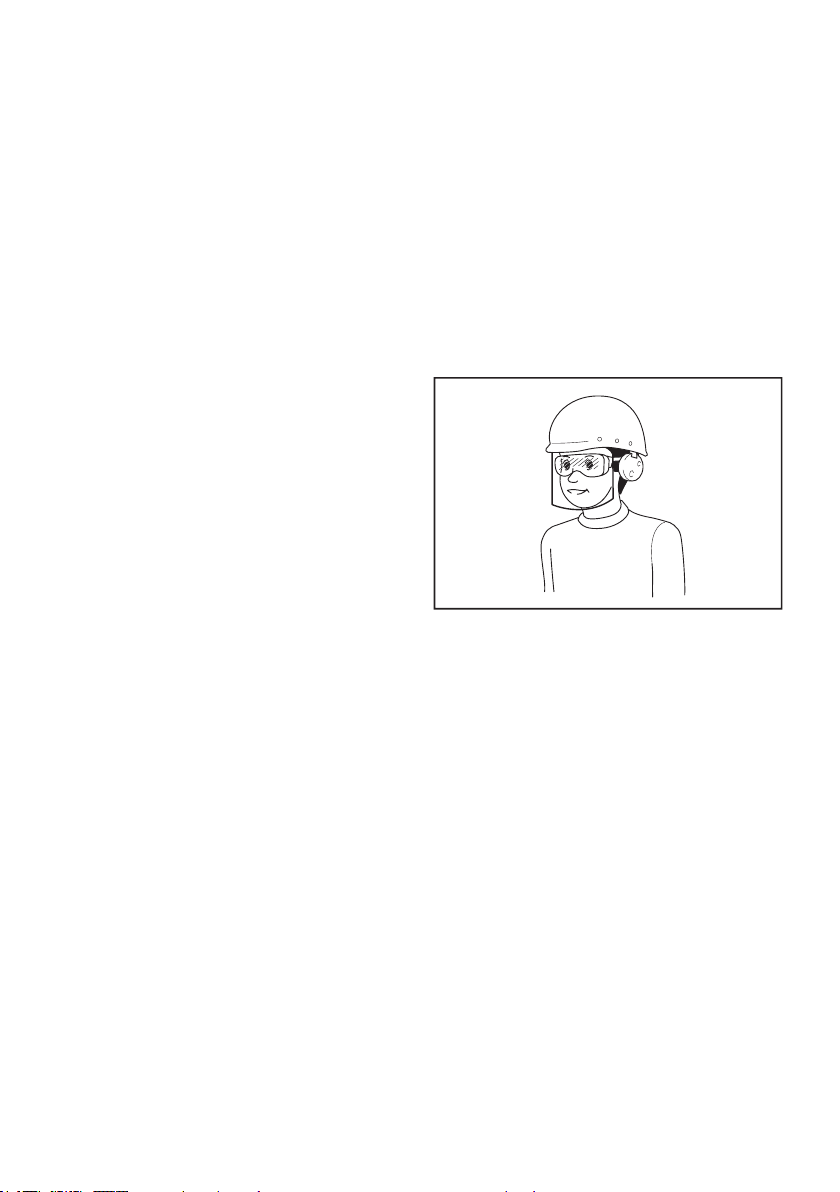

9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.

5ENGLISH
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
ROTARY HAMMER SAFETY
WARNINGS
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden wir-
ing or its own cord. Cutting accessory contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly recom-
mended that you wear a dust mask and thickly
padded gloves.
5. Be sure the bit is secured in place before
operation.
6. Under normal operation, the tool is designed
to produce vibration. The screws can come
loose easily, causing a breakdown or accident.
Check tightness of screws carefully before
operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for
a while by operating it under no load. This
will loosen up the lubrication. Without proper
warm-up, hammering operation is di󰀩cult.
8. Always be sure you have a rm footing. Be
sure no one is below when using the tool in
high locations.
9. Hold the tool rmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Do not point the tool at any one in the area
when operating. The bit could y out and
injure someone seriously.
13. Do not touch the bit, parts close to the bit, or
workpiece immediately after operation; they
may be extremely hot and could burn your
skin.
14. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
15. Do not touch the power plug with wet hands.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before adjusting or
checking function on the tool.

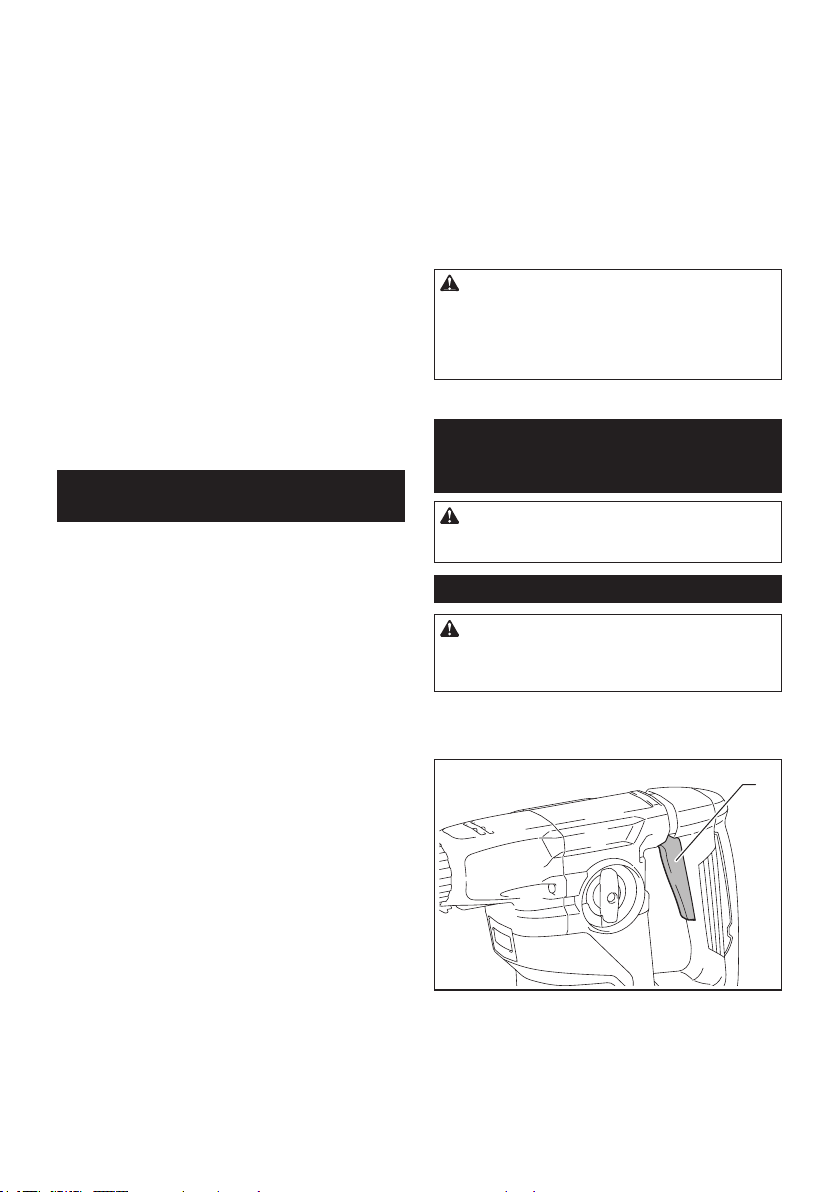

Switch action
CAUTION: Before plugging in the tool, always
check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
1
► 1. Switch trigger

6ENGLISH

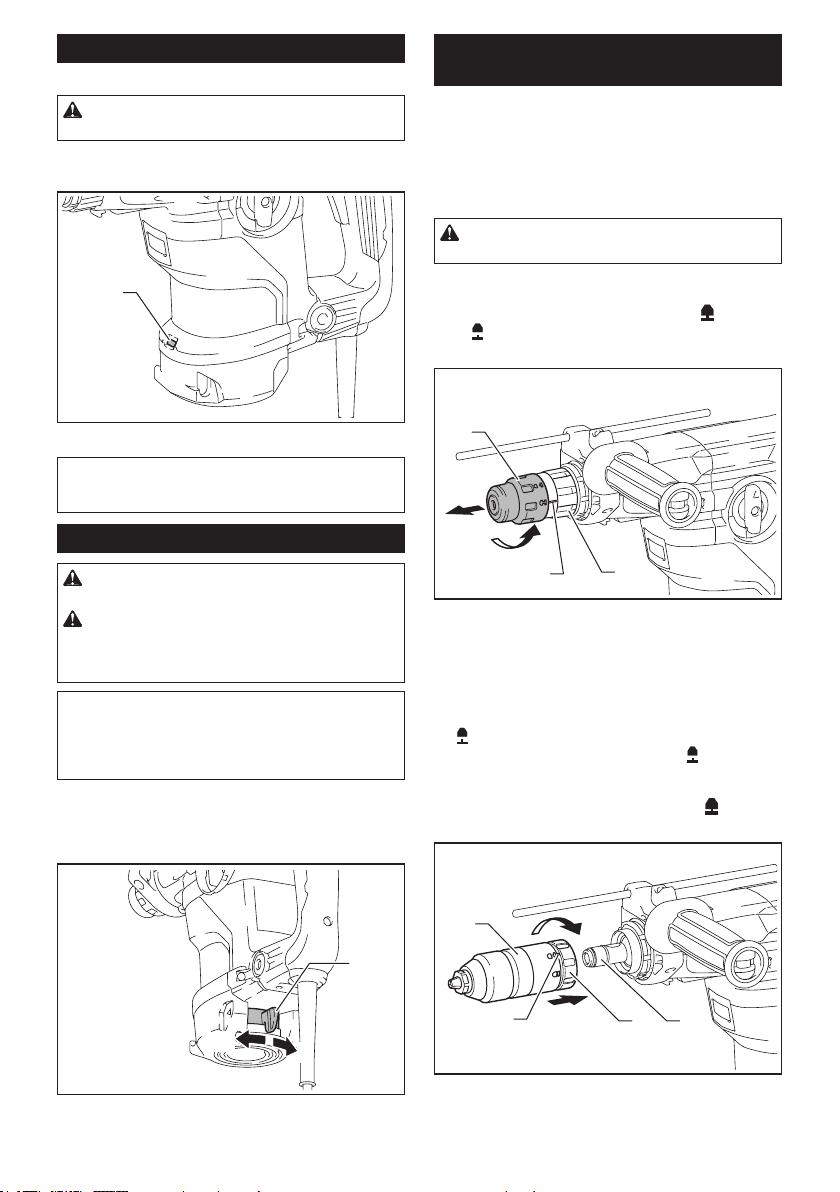

Lighting up the front lamp
For HR3011FC, HR3012FC only
CAUTION: Do not look in the light or see the
source of light directly.
To turn on the lamp, pull the switch trigger. Release the
switch trigger to turn it o󰀨.
1
► 1. Lamp
NOTE: Use a dry cloth to wipe the dirt o󰀨 the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
NOTICE: When changing the direction of rota-
tion, be sure to fully set the reversing switch to A
side or B side. Otherwise, when the switch trigger is
pulled, the motor may not rotate or the tool may not
work properly.
This tool has a reversing switch to change the direc-
tion of rotation. Move the reversing switch lever to the
position A side for clockwise rotation or to the position B
side for counterclockwise rotation.
AB
1
► 1. Reversing switch lever
Changing the quick change chuck
for SDS-plus
For HR3012FC only
The quick change chuck for SDS-plus can be easily
exchanged for the quick change drill chuck.
Removing the quick change chuck
for SDS-plus
CAUTION: Before removing the quick change
chuck for SDS-plus, be sure to remove the bit.
Grasp the change cover of the quick change chuck
for SDS-plus and turn in the direction of the arrow
until the change cover line moves from the symbol
to the symbol. Pull forcefully in the direction of the
arrow.
1
32
► 1. Quick change chuck for SDS-plus 2. Change
cover 3. Change cover line
Installing the quick change drill
chuck
Check the line of the quick change drill chuck shows
the symbol. Grasp the change cover of the quick
change drill chuck and set the line to the symbol.
Place the quick change drill chuck on the spindle of the
tool. Grasp the change cover of the quick change drill
chuck and turn the change cover line to the symbol
until a click can clearly be heard.
2
4
1
3
► 1. Quick change drill chuck 2. Spindle 3. Change
cover line 4. Change cover

7ENGLISH
Selecting the action mode
NOTICE: Do not rotate the action mode chang-
ing knob when the tool is running. The tool will be
damaged.
NOTICE: To avoid rapid wear on the mode
change mechanism, be sure that the action mode
changing knob is always positively located in one
of the three action mode positions.
Rotation with hammering
For drilling in concrete, masonry, etc., rotate the action
mode changing knob to the symbol. Use a tungsten-
carbide tipped bit (optional accessory).
1
2
► 1. Rotation with hammering 2. Action mode chang-
ing knob
Rotation only
For drilling in wood, metal or plastic materials, rotate
the action mode changing knob to the symbol. Use a
twist drill bit or wood drill bit.
1
► 1. Rotation only
Hammering only
For chipping, scaling or demolition operations, rotate
the action mode changing knob to the symbol. Use a
bull point, cold chisel, scaling chisel, etc.
1
► 1. Hammering only
Torque limiter
NOTICE: As soon as the torque limiter actuates,
switch o󰀨 the tool immediately. This will help pre-
vent premature wear of the tool.
NOTICE: Drill bits such as hole saw, which tend
to pinch or catch easily in the hole, are not appro-
priate for this tool. This is because they will cause
the torque limiter to actuate too frequently.
The torque limiter will actuate when a certain torque
level is reached. The motor will disengage from the
output shaft. When this happens, the drill bit will stop
turning.
Electronic function
The tool is equipped with the electronic functions for
easy operation.
• Constant speed control
The speed control function provides the constant
rotation speed regardless of load conditions.
Air duct
For HR3011FC, HR3012FC only
CAUTION: Do not put your nger into the air
duct or do not insert any other object into the air
duct. Otherwise you may get injured or the tool may
get damaged.

8ENGLISH
The air duct is to connect to the dust collection system.
When using the dust collection system, read the section
about the dust collection system.
1
► 1. Air duct
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before carrying out
any work on the tool.
Side grip (auxiliary handle)
CAUTION: Always use the side grip to ensure
safe operation.
CAUTION: After installing or adjusting the
side grip, make sure that the side grip is rmly
secured.
To install the side grip, follow the steps below.
1. Loosen the thumb screw on the side grip.
1
► 1. Thumb screw
2. Attach the side grip while pressing the thumb
screw so that the grooves on the grip t in the protru-
sions on the tool barrel.
1
► 1. Thumb screw
3. Tighten the thumb screw to secure the grip. The
grip can be xed at desired angle.
Grease
Coat the shank end of the drill bit beforehand with a
small amount of grease (about 0.5 - 1 g).
This chuck lubrication assures smooth action and lon-
ger service life.
Installing or removing drill bit
Clean the shank end of the drill bit and apply grease
before installing the drill bit.
1
2
► 1. Shank end 2. Grease

9ENGLISH

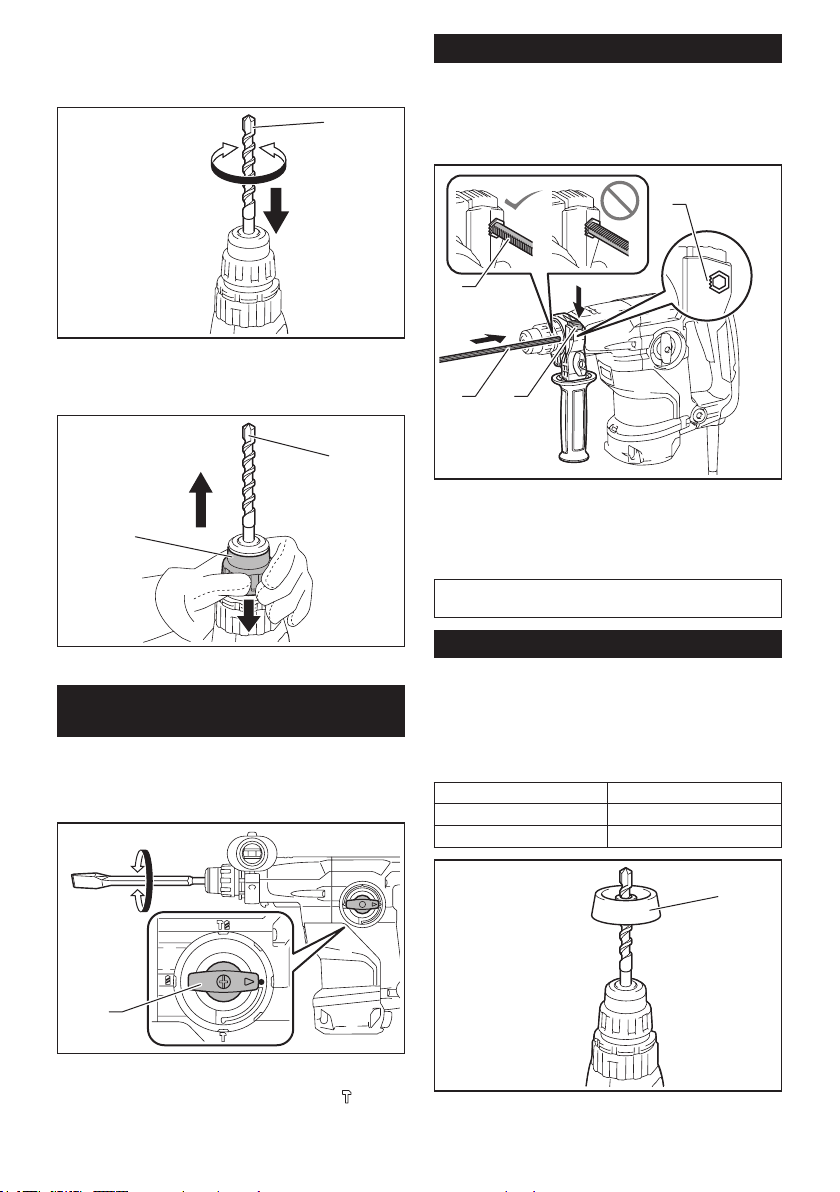

Insert the drill bit into the tool. Turn the drill bit and push
it in until it engages.
After installing the drill bit, always make sure that the
drill bit is securely held in place by trying to pull it out.
1
► 1. Drill bit
To remove the drill bit, pull the chuck cover down all the
way and pull the drill bit out.
1
2
► 1. Drill bit 2. Chuck cover
Chisel angle (when chipping,
scaling or demolishing)
The chisel can be secured at the desired angle. To
change the chisel angle, rotate the action mode chang-
ing knob to the O symbol. Turn the chisel to the desired
angle.
1
► 1. Action mode changing knob
Rotate the action mode changing knob to the sym-
bol. Then make sure that the chisel is securely held in
place by turning it slightly.
Depth gauge
The depth gauge is convenient for drilling holes of
uniform depth.
Press and hold the lock button, and then insert the
depth gauge into the hex hole. Make sure that the
toothed side of the depth gauge faces the marking.
1 2
4
3
► 1. Depth gauge 2. Lock button 3. Marking
4. Toothed side
Adjust the depth gauge by moving it back and forth
while pressing the lock button. After the adjustment,
release the lock button to lock the depth gauge.
NOTE: Make sure that the depth gauge does not
touch the main body of the tool when attaching it.
Dust cup
Optional accessory
Use the dust cup to prevent dust from falling over the
tool and on yourself when performing overhead drilling
operations. Attach the dust cup to the bit as shown in
the gure. The size of bits which the dust cup can be
attached to is as follows.
Model Bit diameter
Dust cup 5 6 mm - 14.5 mm
Dust cup 9 12 mm - 16 mm
1
► 1. Dust cup

10 ENGLISH
Dust cup set
Optional accessory
For Models HR3011FC, HR3001C
NOTICE: When using the dust cup set in
HR3011FC, HR3001C, the spacer is also requied.
Before installing the dust cup set, remove the bit from
the tool if installed.
Attach the spacer to the dust cup set. symbol on the
dust cup is aligned with the groove in the spacer.
2
3
1
► 1. Spacer 2. symbol 3. Groove
Install the dust cup set with the spacer on the tool so
that the symbol on the dust cup is aligned with the
groove in the tool.
2
111
► 1. symbol 2. Groove

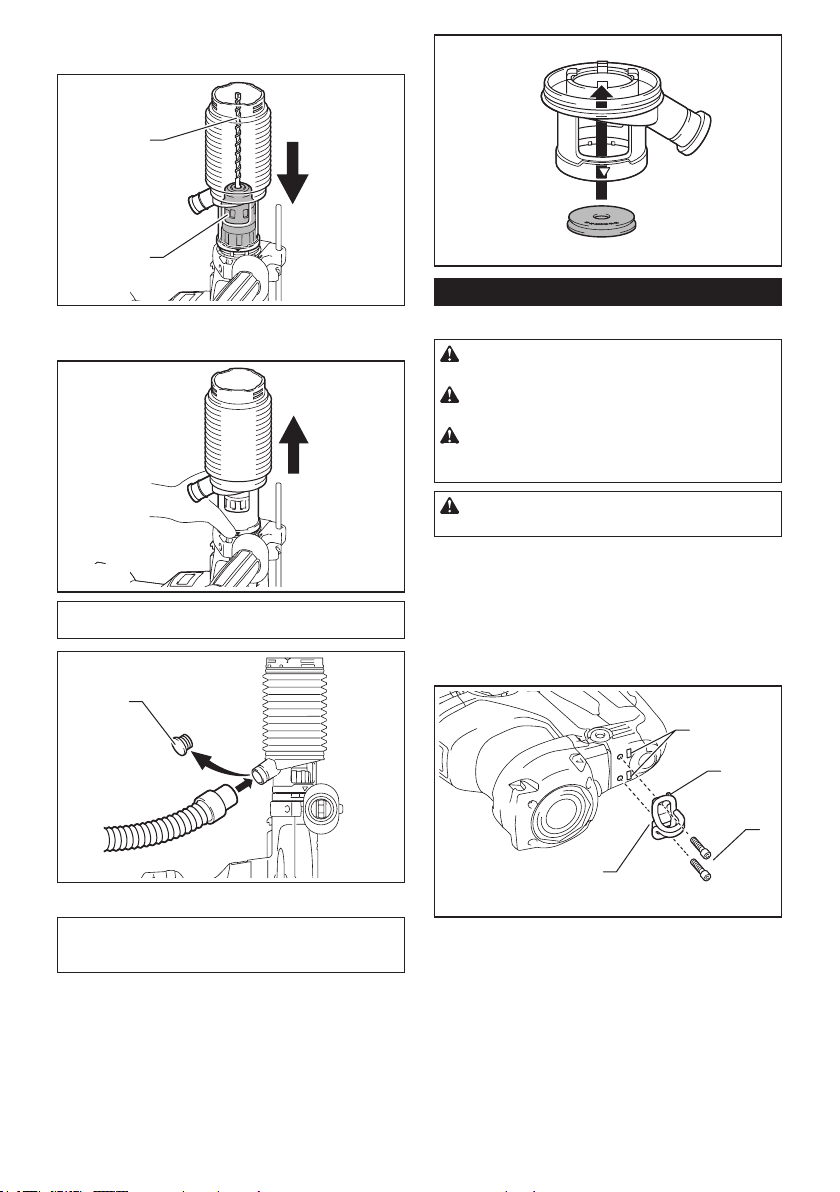

To remove the dust cup set, remove the bit while pulling
the chuck cover in the direction of the arrow.
1
2
► 1. Bit 2. Chuck cover
Hold the spacer and pull it out.
For Model HR3012FC
Before installing the dust cup set, remove the bit from
the tool if installed.
Install the dust cup set on the tool so that the sym-
bol on the dust cup is aligned with the groove in the tool.
2
111
► 1. symbol 2. Groove

11 ENGLISH
To remove the dust cup set, remove the bit while pulling
the chuck cover in the direction of the arrow.
1
2
► 1. Bit 2. Chuck cover
Hold the root of dust cup and pull it out.
NOTE: If you connect a vacuum cleaner to the dust
cup set, remove the dust cap before connecting it.
1
► 1. Dust cap
NOTE: If the cap comes o󰀨 from the dust cup, attach
it with its printed side facing up so that groove on the
cap ts in the inside periphery of the attachment.
Tool hanger
Optional accessory
WARNING: Do not use damaged tool hanger
and screw.
WARNING: Use the screw provided with the
tool hanger only.
WARNING: Before using the tool hanger,
check for damages, cracks or deformations, and
make sure that the screw is tightened.
CAUTION: Install or remove the tool hanger
on a stable table or surface.
The tool hanger is intended for connecting the lanyard
(tether strap). To install the tool hanger to the tool,
follow the steps below.
1. Disconnect the plug from the power source.
2. Insert the projections of the tool hanger into the
holes on the tool.
3. Tighten the screws rmly.
2
1
4
3
► 1. Tool hanger 2. Hole 3. Projection 4. Screw

12 ENGLISH
DUST COLLECTION
SYSTEM
For HR3011FC, HR3012FC only
Optional accessory
The dust collection system is designed to collect dusts
e󰀨ectively when the concrete drilling operation.
1
► 1. Dust collection system
CAUTION: Make sure that the tool is switched
o󰀨 and unplugged before carrying out any work
on the tool. Failure to do so may result in personal
injury from accidental start-up.
CAUTION: Always attach the lter to the
dust collection system. Failure to do so cause dust
inhalation.
CAUTION: Check that the lter is not dam-
aged. Failure to do so may cause dust inhalation.
NOTICE: Do not use the dust collection system
for core drilling or chiseling. The dust collection
system is intended for drilling only.
NOTICE: Do not use the dust collection system
for metal or wood. The dust collection system is
intended for concrete only.
NOTICE: Do not use the dust collection system
for drilling in wet concrete or use this system
in wet environment. Failure to do so may cause
malfunction.
NOTE: The dust collection system collects the gener-
ated dust at a considerable rate, but not all dust can
be collected.
Installing or removing the dust
collection system
NOTICE: Before installing the dust collection
system, clean the joint parts of the tool and the
dust collection system.
Foreign matters on the joint parts may cause it di󰀩cult to
install the dust collection system. Particularly the foreign
matters on the electrical interface may cause malfunction.
If any dust remains on the air duct, the dust comes into the
tool and causes jam in the airow or breakage of the tool.
Hook the dust collection system on the tool, and then
insert the dust collection system all the way, until it locks
in place with a little double click.
After that, make sure that the dust collection system is
securely installed.
1
► 1. Air duct
When removing the dust collection system, press the lock-o󰀨
button.
1
► 1. Lock-o󰀨 button

13 ENGLISH
Adjusting the nozzle position of the
dust collection system
CAUTION: Do not point the nozzle at yourself
or others when releasing the nozzle by pushing
the guide adjustment button.
Push in the guide while pushing the guide adjustment
button, and then release the guide adjustment button at
the desired position.
2
1
► 1. Guide 2. Guide adjustment button
Adjusting the drilling depth of the
dust collection system
Slide the depth adjustment button to the desired posi-
tion while pushing it. The distance (A) is the drilling
depth.
1
A
► 1. Depth adjustment button
Beating dust on the lter
CAUTION: Do not turn the dial on the dust
case while the dust case is removed from the
dust collection system. Doing so may cause dust
inhalation.
CAUTION: Always switch o󰀨 the tool when
turning the dial on the dust case. Turning the dial
while the tool is running may result in the loss of
control of the tool.
By beating the dust on the lter inside the dust case,
you can keep the vacuum e󰀩ciency and also reduce
the number of times to dispose of the dust.
Turn the dial on the dust case three times after col-
lecting every 50,000 mm3of dust or when you feel the
vacuum performance declined.
NOTE: 50,000 mm3of dust equivalents to drilling 10
holes of ø10 mm and 14 mm depth (2 holes of ø65″
and 3/8″ depth).
1
2
► 1. Dust case 2. Dial
Disposing of dust
CAUTION: Wear dust mask when disposing
of dust.
CAUTION: Empty the dust case regularly
before the dust case becomes full. Failure to do so
may decrease the dust collection performance, and
then cause dust inhalation.
CAUTION: Replace the lter with new one
after approximately 200 times of dust fulllment
as a guide. A clogged lter decreases dust collection
performance, and then cause dust inhalation.
NOTICE: When cleaning the lter, tap the case
of the lter gently by hand to remove dust. Do not
tap the lter directly; touch the lter with brush
or similar; or blow compressed air on the lter.
Doing so may damage the lter.

14 ENGLISH
1. Remove the dust case while pressing down the
lever of the dust case.
1
► 1. Lever
2. Open the cover of the dust case.
1
► 1. Cover
3. Dispose of the dust, and then clean the lter.
Replacing lter of dust case
1. Remove the dust case while pressing down the
lever of the dust case. (Refer to the section for dispos-
ing of dust.)
2. Open the lter cover of the dust case.
1
► 1. Filter cover
3. Remove the lter from the lter case.
1
2
► 1. Filter 2. Filter case
4. Attach a new lter to the lter case, and then
attach the lter cover.
5. Close the cover of the dust case, and then attach
the dust case to the dust collection system.

15 ENGLISH
Replacing sealing cap
If the sealing cap is worn out, the performance of the
dust collection decreases. Replace it if it is worn out.
Remove the sealing cap, and then attach a new one
with its protrusion facing upward.
2
1
► 1. Protrusion 2. Sealing cap
OPERATION
CAUTION: Always use the side grip (auxiliary
handle) and rmly hold the tool by both side grip
and switch handle during operations.
CAUTION: Always make sure that the work-
piece is secured before operation.
CAUTION: Do not pull the tool out forcibly
even the bit gets stuck. Loss of control may
cause injury.
CAUTION: For HR3011FC, HR3012FC only
Before using the dust collection system with the
tool, read the section about the dust collection
system.
Hammer drilling operation
CAUTION: There is tremendous and sudden
twisting force exerted on the tool/drill bit at the time of
hole break-through, when the hole becomes clogged
with chips and particles, or when striking reinforcing
rods embedded in the concrete. Always use the side
grip (auxiliary handle) and rmly hold the tool by
both side grip and switch handle during opera-
tions. Failure to do so may result in the loss of control
of the tool and potentially severe injury.
Set the action mode changing knob to the symbol.
Position the drill bit at the desired location for the hole,
then pull the switch trigger. Do not force the tool. Light
pressure gives best results. Keep the tool in position
and prevent it from slipping away from the hole.
Do not apply more pressure when the hole becomes
clogged with chips or particles. Instead, run the tool at
an idle, then remove the drill bit partially from the hole.
By repeating this several times, the hole will be cleaned
out and normal drilling may be resumed.
NOTE: Eccentricity in the drill bit rotation may occur
while operating the tool with no load. The tool auto-
matically centers itself during operation. This does not
a󰀨ect the drilling precision.
Chipping/Scaling/Demolition
Set the action mode changing knob to the symbol.
Hold the tool rmly with both hands. Turn the tool on
and apply slight pressure on the tool so that the tool will
not bounce around, uncontrolled.
Pressing very hard on the tool will not increase the
e󰀩ciency.
Drilling in wood or metal
CAUTION: Hold the tool rmly and exert care
when the drill bit begins to break through the
workpiece. There is a tremendous force exerted on
the tool/drill bit at the time of hole break through.
CAUTION: A stuck drill bit can be removed
simply by setting the reversing switch to reverse
rotation in order to back out. However, the tool
may back out abruptly if you do not hold it rmly.
CAUTION: Always secure workpieces in a
vise or similar hold-down device.

16 ENGLISH
NOTICE: Never use “rotation with hammering”
when the drill chuck is installed on the tool. The
drill chuck may be damaged.
Also, the drill chuck will come o󰀨 when reversing the
tool.
NOTICE: Pressing excessively on the tool will
not speed up the drilling. In fact, this excessive
pressure will only serve to damage the tip of your drill
bit, decrease the tool performance and shorten the
service life of the tool.
Set the action mode changing knob to the symbol.
For Models HR3011FC, HR3001C
Optional accessory

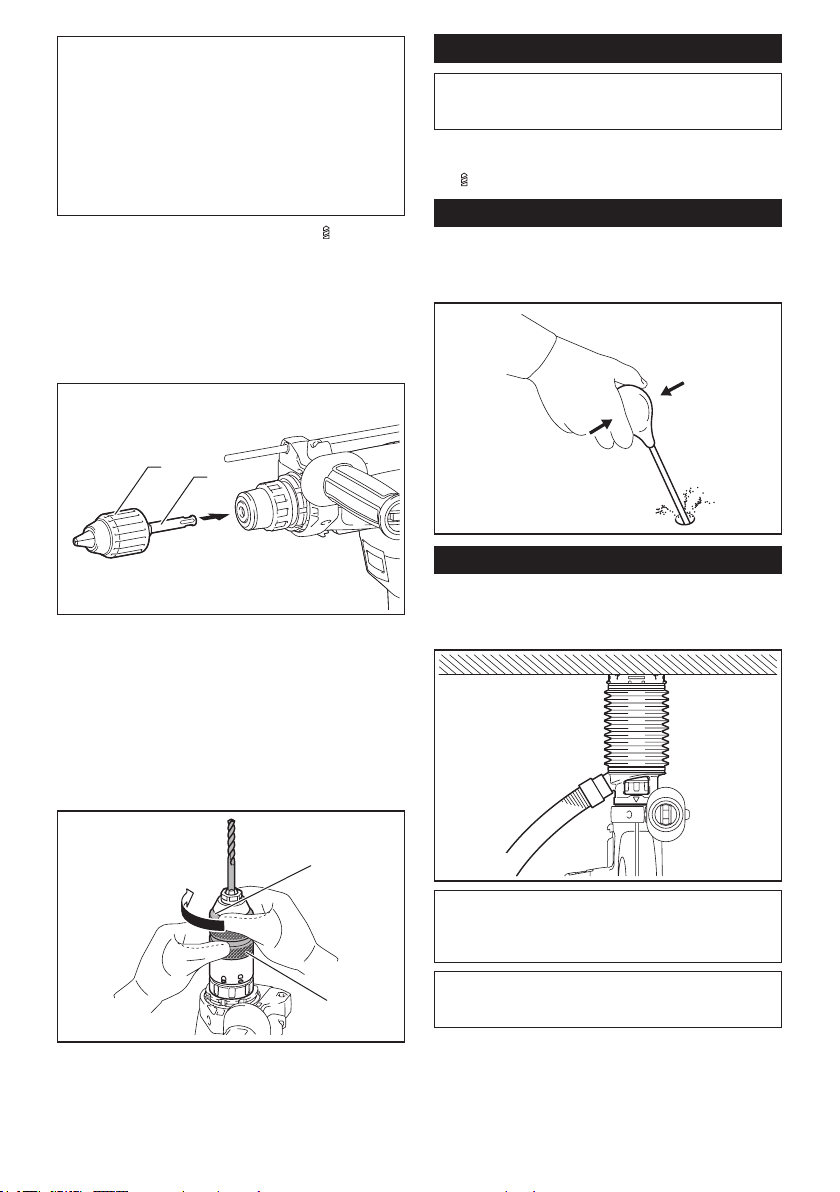

Attach the chuck adapter to a keyless drill chuck to
which 1/2"-20 size screw can be installed, and then
install them to the tool. When installing it, refer to the
section “Installing or removing drill bit”.
2
1
► 1. Keyless drill chuck 2. Chuck adapter
For Model HR3012FC
Use the quick change drill chuck as standard equip-
ment. When installing it, refer to "changing the quick
change chuck for SDS-plus".
Hold the ring and turn the sleeve counterclockwise to
open the chuck jaws. Place the bit in the chuck as far as
it will go. Hold the ring rmly and turn the sleeve clock-
wise to tighten the chuck.
1
2
► 1. Sleeve 2. Ring
To remove the bit, hold the ring and turn the sleeve
counterclockwise.
Diamond core drilling
NOTICE: If performing diamond core drilling
operations using “rotation with hammering”
action, the diamond core bit may be damaged.
When performing diamond core drilling opera-
tions, always set the action mode changing knob to
the position to use "rotation only" action.
Blow-out bulb
Optional accessory
After drilling the hole, use the blow-out bulb to clean the
dust out of the hole.
Using dust cup set
Optional accessory
Fit the dust cup set against the ceiling when operating
the tool.
NOTICE: Do not use the dust cup set when drill-
ing in metal or similar. It may damage the dust
cup set due to the heat produced by small metal
dust or similar.
NOTICE: Do not install or remove the dust cup
set with the drill bit installed in the tool. It may
damage the dust cup set and cause dust leak.

17 ENGLISH
Connecting lanyard (tether strap) to
tool hanger
Safety warnings specic for use at height
Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in serious injury.
1. Always keep the tool tethered when working
"at height". Maximum lanyard length is 2 m.
The maximum permissible fall height for lan-
yard (tether strap) must not exceed 2 m.
2. Use only with lanyards appropriate for this tool
type and rated for at least 7.5 kg.
3. Do not anchor the tool lanyard to anything on
your body or on movable components. Anchor
the tool lanyard to a rigid structure that can
withstand the forces of a dropped tool.
4. Make sure the lanyard is properly secured at
each end prior to use.
5. Inspect the tool and lanyard before each use
for damage and proper function (including
fabric and stitching). Do not use if damaged or
not functioning properly.
6. Do not wrap lanyards around or allow them to
come in contact with sharp or rough edges.
7.
Fasten the other end of the lanyard outside the
working area so that a falling tool is held securely.
8. Attach the lanyard so that the tool will move
away from the operator if it falls. Dropped tools
will swing on the lanyard, which could cause injury
or loss of balance.
9. Do not use near moving parts or running
machinery. Failure to do so may result in a crush
or entanglement hazard.
10. Do not carry the tool by the attachment device
or the lanyard.
11. Only transfer the tool between your hands
while you are properly balanced.
12. Do not attach lanyards to the tool in a way that
keeps switches or trigger-lock (if supplied)
from operating properly.
13. Avoid getting tangled in the lanyard.
14.
Keep lanyard away from the drilling area of the tool.
15. Use multi-action and screw gate type carabineers.
Do not use single action spring clip carabineers.
16. In the event the tool is dropped, it must be tagged
and removed from service, and should be inspected
by a Makita Factory or Authorized Service Center.
1
2
► 1. Tool hanger 2. Lanyard (tether strap)
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Carbide-tipped drill bits (SDS-Plus carbide-tipped
bits)
• Core bit
• Bull point
• Diamond core bit
• Cold chisel
• Scaling chisel
• Grooving chisel
• Chuck adapter
• Keyless drill chuck
• Bit grease
• Depth gauge
• Blow-out bulb
• Dust cup
• Dust cup set
• Spacer (for HR3011FC, HR3001C)
• Dust collection system (for HR3011FC,
HR3012FC)
• Safety goggles
• Tool hanger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨er from country to country.

18

19

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885772A222
EN
20200627
