INSTRUCTION MANUAL
Models: USF-328S/USF-328D

2
Dear User,
Thank you for choosing our wine cellars.
This operation manual applies to USF-328S & USF-328D wine cellar models and
is intended to help you learn more about our products and their usage. Please
read the manual carefully before use and follow all safety information and
instructions.
We trust that you will be satisfied with our product and we sincerely hope that you
enjoy your wine cellar.
Table of Contents
1. Important Safety Notes .....................................................3
2. Product Structure..............................................................5
3. Installation.........................................................................7
4. Operation Instructions.......................................................9
5. Care and Maintenance....................................................16
6. Troubleshooting..............................................................18
7. USF-328S&USF-328D Electrical diagram.......................20
8. Data Parameters.............................................................22

3
1. Important Safety Notes
WARNING
To reduce the risk of fire, electrical shock, or injury
when using the appliance, follow these basic
precautions:
Read all instructions before using the wine cellar.
Keep children away from the wine cellar. Never allow children to operate,
play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. Fumes may create a
fire hazard or explosion.
If the wine cellar stops working, please call our after-sale service
department or another qualified technician to check it. Do not attempt to
repair it by yourself; this is dangerous and could cause damage to the
cellar or injury.
If the power cord is damaged, stop using the appliance. Get the power
cord replaced by the manufacturer, or a qualified technician or
electrician. Do not attempt to repair it by yourself; this is dangerous and
could cause damage to the cellar or injury.
Make sure that the appliance is unplugged while cleaning, moving, or
repairing.
- Keep these instructions -
Notes
To avoid damaging the door seal, please make sure the door is fully
opened when pulling out the movable shelves.
Place the wine cellar close to the power socket.
Once the wine cellar is filled with wine bottles, please do not move it.

4
Make sure the wine cellar is positioned in a manner to avoid easy
access to the compressor located at the back of the unit.
Before disposing of your old cellar, remove the door and leave the
shelves in their original place so that children cannot easily climb inside.
If the wine cellar contains R600a refrigerant, flammable and explosive
items should not be put in or near the cellar to avoid the risk of fire or
explosions.
This appliance is not intended for use by persons (including children)
whose physical, sensory or mental capabilities, or lack of experience and
knowledge, prevents them from using the appliance safely without
supervision or instruction. Keep children away from the appliance.
If the power cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons in order to avoid damage
or injury.
This appliance is intended for household and similar purposes such as:
Staff kitchen areas in shops, offices, and other working
environments;
Residential environments;
Hotels, motels, bed and breakfast type environments;
Catering and similar non-retail applications.

5
2. Product Structure
(1) USF-328S:
(1) control panel
(2) carbon filter
(3) fan
(4) sensor
(5) sliding guide roll
(6) big beech shelf
(7) small beech shelf
(8) front vent
(9) feet
(10) lock hook
(11) upper hinge
(12) glass door
(13) door gasket
(14) handle

6
(2) USF-328D:
(1) upper zone fan
(2) carbon filter
(3) upper zone sensor
(4) control panel
(5) middle board
(6) lower zone fan
(7) lower zone sensor
(8) big beech shelf
(9) sliding guide roll
(10) small beech
(11) shelf front vent
(12) feet
(13) lock hook
(14) upper hinge
(15) glass door
(16) door gasket
(17) handle

7
3. Installation
Before Using your Wine Cellar
Remove the exterior and interior packaging.
Before connecting the wine cellar to the power source, let it stand upright for
approximately two hours. This will reduce the possibility of a malfunction in
the cooling system.
Clean the inside of the cellar with lukewarm water and a soft cloth.
The wine cellar is designed specifically for storing wine, please do not use it
to store other goods.
Installation
The wine cellar should stand independently to ensure that there is good
heat dissipation. The back of the cellar should be at least 10 cm away
from the wall.
Place the wine cellar on a floor strong enough to support it when fully
loaded. To level the wine cellar, adjust the levelling legs at the bottom of
the cellar.
Place the wine cellar away from direct sunlight and sources of heat
(stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and proximity to heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the
unit to perform improperly.
Avoid placing the unit in a high-humidity area.
Make sure that the unit is plugged into the proper power socket. Make
sure that the shape and voltage of the socket is consistent with the
nameplate on the back of the wine cellar.

8
NOTICE
Installation diagram for built-in models:
USF-328 series:
Units: Inches

9
4. Operation Instructions

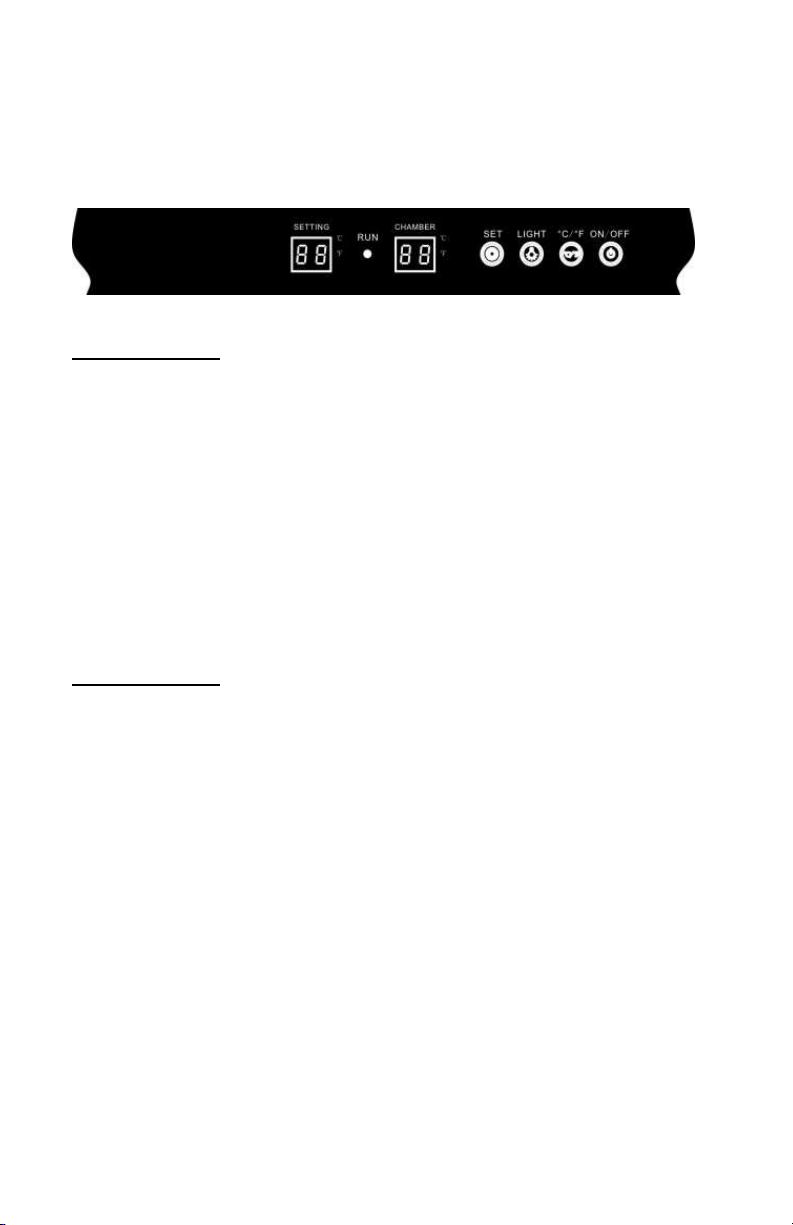

4.1 Control Panel Below (Single Zone)
Display Windows
RUN light: Compressor Indicator light. When the compressor is operating, the red
light is on. If it stops operating, the red light will turn off.
SETTING: Displays the set temperature. The range is between 5°C~18°C or
41°F~64°F.
CHAMBER: Displays actual temperature inside the cellar. The range is 0°C~37°C
or 32°F~99°F.
°C/°F light：When the °C light is on, temperature is indicated in Celsius; when
the °F light is on, temperature is indicated in Fahrenheit.
Button Operation
SET Button: Temperature setting button. When button is pressed, the
temperature increases by 1°C or 1°F. The temperature range is between
5°C~18°C or 41°F~64°F.
LIGHT Button: Cabinet light control button. The light will automatically turn off 10
minutes after it was turned on in order to protect the wines.
°C/°F Button: Celsius and Fahrenheit conversion button
ON/OFF button: Power on and off button; press the button to turn on; press it
again to turn off.

10
4.2 Control Panel Below (dual zone)
Display Windows
RUN light: Compressor Indicator light. When the compressor is operating, the red
light is on. If it stops operating, the red light will turn off.
UPPER CHAMBER: Displays the actual temperature of the upper chamber. The
range is 0°C~37°C or 32°F~99°F.
LOWER CHAMBER: Displays the actual temperature of the lower chamber. The
range is 0°C ~37°C or 32°F ~99°F.
°C/°F light: When the °C light is on, temperature is indicated in Celsius; when
the °F light is on, temperature is indicated in Fahrenheit.
Button Operation
Upper chamber SET Button（“SET” Button on right）:Temperature setting
button. When button is pressed, the temperature increases 1°C or 1°F. Setting
range is between 5°C~10°C or 41°F~50°F.
Lower chamber SET Button (“SET” Button on left): Temperature setting
button. When button is pressed, the temperature increases 1°C or 1°F. Setting
range is between 10°C~18°C or 50°F~64°F.
LIGHT Button: Cabinet light control button. The light will automatically turn off 10
minutes after it was turned on in order to protect the wines.
°C /°F Button: Celsius and Fahrenheit conversion button;
ON/OFF button: Power on and off button; press the button to turn on; press it
again to turn off.
Note: This series of wine cellars has a delay protection function. The compressor
will start to work about 3 to 5 minutes after the power is connected or powered off.

11
The cellar is intended for use under N (Normal) or ST (Subtropical) climates. The
temperature inside the cellar will fluctuate and influence the refrigerating effect if
the surrounding temperature is too high or too cold.
Shelves
Follow the sequence below if you need to pull out or replace the shelves.
First, remove all the wine bottles from the shelf and pull the shelf out to the
limit. Then, press the left side down, while pressing the right side up, and pull
the shelf out. It should come out easily when the three steps are performed
simultaneously (press left side down, press right side up, pull out).

12
Layout and Storage of Wine Bottles
Bottle loading sketch –large shelf:
Bottle loading sketch –small shelf:
The cabinet was designed to safely store a maximum number of bottles. Please
ensure that you lay out the wine bottles evenly.
The best temperature for red wine is 11-18°C and for white wine, 6-12°C.

13
Reversing the door swing
The unit is delivered to you with the door opening from the left side (hinge on right
side). The door is capable of opening from either the left or the right side. To
reverse the door swing of your cellar so it opens from the right side, please follow
the instructions and diagram as follows.

14
NOTE: All parts removed must be saved to allow the door swing to be reversed.

15
1Use a sharp tool to carefully pry open the decoration nail on the top of the
cabinet and the cap of door spindle (Fig 1).
2Open the door, unscrew the door hinge cover screw, remove the upper door
hinge cover; and then, unscrew all of the upper door hinge screws. Be careful
to hold the glass door firmly after removing the screws and take off the door
(Fig 2).
3Remove the lower door hinge screws and the screw on the left side of the
front vent (Fig 3). Then, install the lower door hinge in the designated position
on the opposite side (Fig 4).
4Remove the door handle screw. Then, remove the bottom screw of the left
side of the door and remove the lower door support (Fig 5). Install the lower
door support on the opposite side (Fig 6).
5Pull open the middle section of the door gasket, the screw will then come out
of the handle screw hole (Fig 7). Remove the handle and install it on the
opposite side (Fig 8).
6Install the upper door hinge to the opposite side and tighten the screws
(Fig 9).
7Align glass door shaft to the shaft of lower door hinge (Fig 10). Then, aim the
upper door hinge (Fig 11). Adjust the door and ensure the cabinet is aligned
and level, then tighten all the lock screws.
You can also call customer service for reversal instructions.

16
5. Care and Maintenance
Cleaning the Wine Cellar
Turn off the power, unplug the appliance, and remove all items including
bottles, shelves and racks.
Wash inside surfaces with a warm water and baking soda solution. The
solution should be about two tablespoons of baking soda with a quart of
water.
Wash shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning controls or any
electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours and will not affect the
temperature inside of the appliance if the frequency of door openings is kept to a
minimum. If the power will be off for a longer period of time, proper steps will need
to be taken to protect the contents of the cellar.
Storage
If the appliance will not be used for several months, remove all items from the unit
and turn it off. Clean and dry the interior thoroughly to minimize odours and mold.
Leave the door slightly open at all times.
Moving the Wine Cellar
Remove all items.
Securely tape down loose shelves inside the appliance.
Put the adjustable legs up to the lowest level to avoid damage.
Shut the door.

17
Ensure that the appliance stays in an upright position during transport.
Protect the outside of the appliance with a blanket.
Energy Saving Tip
The wine cellar should be located in the coolest area of the room, away from
heat-producing appliances and out of direct sunlight.

18
6. Troubleshooting
You can solve many common issues easily without a service call. Try the
suggestions below before you call.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSES
Wine cellar does not operate
The appliance is not plugged in.
The appliance is turned off.
The circuit breaker tripped or a fuse has
blown.
Wine cellar is not cold enough
Check the temperature control setting.
The door is opened too often.
The door is not completely closed.
The door gasket does not seal properly.
Turns ON and OFF frequently
The room temperature is warmer than normal.
A large amount of contents has been added to
the wine cellar.
The door is opened too often.
The door is not completely closed.
The temperature control is not set correctly.
The door gasket does not seal properly.
Light does not work
The appliance is not plugged in.
The circuit breaker tripped or a fuse has
blown.
The bulb has burned out.
The light button is “OFF”.
Vibrations
The wine cellar is not level.

19
PROBLEM
POSSIBLE CAUSES
Wine cellar seems to make too
much noise
The rattling noise may come from the flow of
the refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of the refrigerant in
the wine cellar. Contraction and expansion of
the inside walls may cause popping and
crackling noises.
The wine cellar is not level.
The door will not close properly
The wine cellar is not level.
The door was improperly reversed.
The gasket is dirty.
The shelves are out of position.
Note: The replacement of the LED light must be done by a qualified technician.
First the 2 screws on the light cover must be unscrewed; then, the screw on the
LED panel must be removed and the LED light replaced with one of the same
specifications.

20
7. USF-328S&USF-328D Electrical diagram
