Eurofours Pierre ELEC Operating instructions

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 1/10
PROGRAMMING
PROGRAMMING INSTRUCTIONS : Ref PSE1-000M004-GB
577, rue Célestin Hennion
59144 Gommegnies
Tel : [phone]
Fax : [phone]
http://www.eurofours.com
email:[email protected]
PRESENTATION OF THE CONTROL PANEL - - - - - - - - - - - - - - - - - - - - p.2
Explanation of the symbols showing the condition of the oven - - - - - - - - - p.3
ACCESS LEVEL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - p.4
ACCESS TO THE VARIOUS MENUS- - - - - - - - - - - - - - - - - - - - - - - - - p.5
USER MENU : ACCESS TO THE PARAMETERS - - - - - - - - - - - - - - - - - - p.5
Adjustment of recipes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - p.6
Date and Time adjustments - - - - - - - - - - - - - - - - - - - - - - - - - - - p.8
Setting of control board parameters - - - - - - - - - - - - - - - - - - - - - - - p.9
The company reserves the right to change specifications without notice - Copying forbidden
TOUCHSCREEN REGULATOR

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 2/10

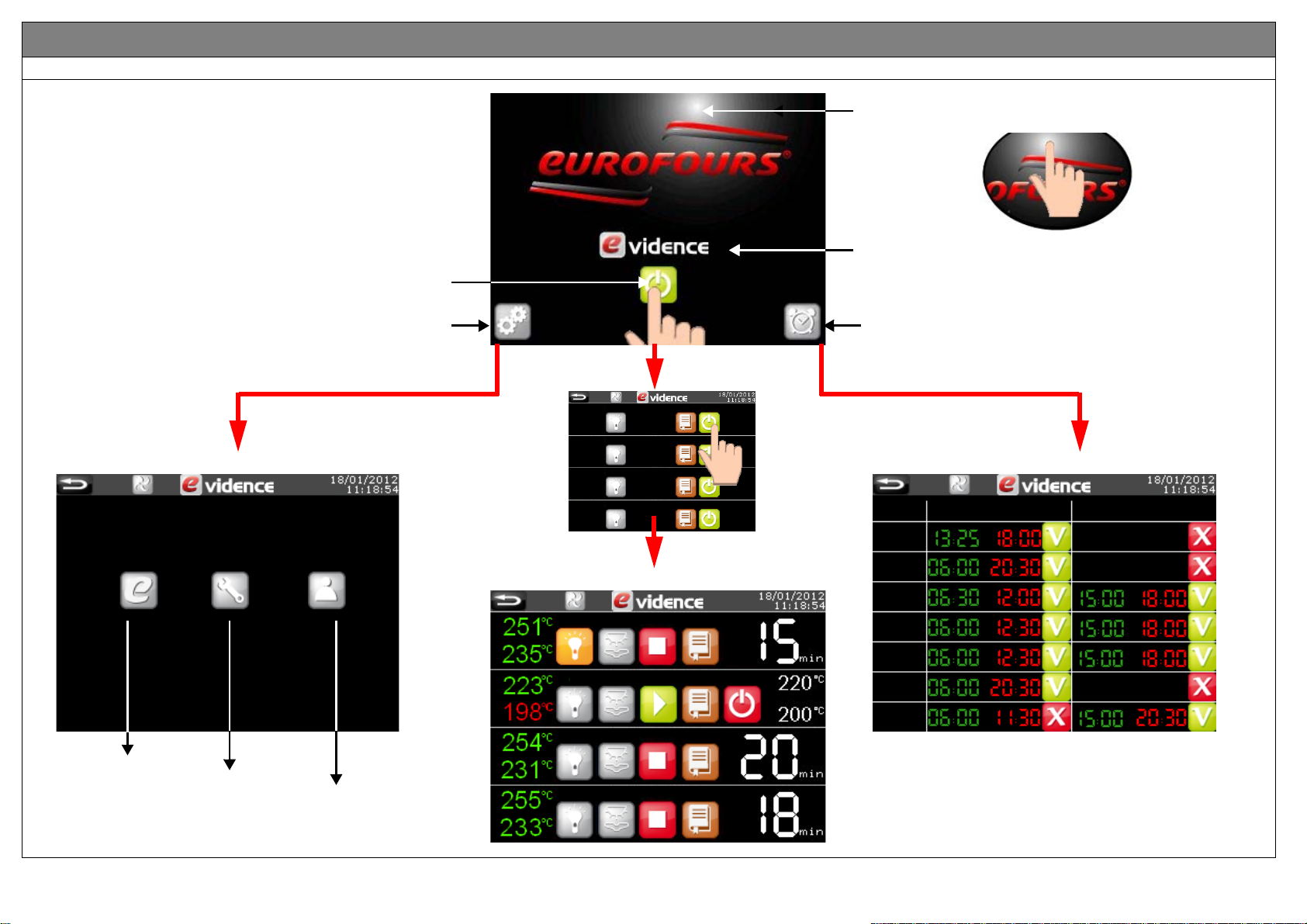

PRESENTATION OF THE CONTROL PANEL
Take time to read the manual to familiarize yourself with the use of the appliance.
Regulator Name
Regulator Start / Stop
Manufacturer menu
Installer menuUser menu
Access to the parameters according
to the authorization level
Menus secured with access codes
Weekly programming
Displaying of the condition of the oven
Program 1 Program 2
Mon
Tue
Wed
Thu
Fri
Sat
Sun
Hood lighting ON/OFF

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 3/10
Explanation of the symbols showing the condition of the oven
• Horizontal :The number lines represents the number of levels of the oven. A line shows the condition of the corresponding level.
• Vertical : Each column shows the condition of the following parameters (from left to right on the picture).
 Level real temperatures (crown/deck): Displaying (no action possible). A level is ready for baking when both real temperatures (crown and deck) become green.
 Lighting : Push the icon to switch on/switch off the level light
 When baking starts, the icon becomes blue during the automatic steam injection programmed in the recipe and reverts to grey as soon as steam injection stops
. During cycle, press to obtain steam . Release to stop steam injection.
 Level with baking in progress or out of baking.
 Baking in progress. Press to stop the baking.
 No baking in progress. Press to start the baking.
Selection of the recipes : Access to the recipes list
 Level status :
 Level off.
 Level energized + Displaying of the name and T° of the last recipe used.
Baking time countdown : Access to the fast modification of the cycle in progress
Select the desired recipe
Increase/Decrease the baking duration
Increase/Decrease the baking T°:
- Ceiling
- Floor
2 reading direction on this screen :
French loaf
Farmhouse bread
French loaf Go back to the previous page
Date
Current hour
Hood Start / Stop
Print screen
Current error : access to
the errors list

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 4/10
ACCESS LEVEL
The ability to modify the settings is governed by the authorization level :
Authorization « 0 » : No single setting can be modified. The only active keys are :
 Control board starting-up
 Regulator stop .
 Baking starting
 Stop of the baking .
 Selection of the recipes
Authorization « 1 » = The MODIFICATION of a recipe during the baking is POSSIBLE, but SAVING of the modified recipe is NOT POSSIBLE.
 Manual steam injection .
+ Authorization « 0 »
Authorization « 2 » = Access to the recipes programming
+ Authorization « 0 »
+ Authorization « 1 »

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 5/10
ACCESS TO THE VARIOUS MENUS
USER MENU : ACCESS TO THE PARAMETERS
Manufacturer menu
(Restricted access for after-sales service)
Installer menu
(Restricted access for after-sales service)
User menu
Menus secured with access codes
Enter code :
Settings
1/ Key in the code : 3210
2/ Validation
During the baking, the programming access is locked

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 6/10
Adjustment of recipes
Capture of the recipe name
------------------------
Baking duration
Deck temperature
Deck temperature
Steam injection duration
Exhaust vent opening duration
Adjustment of recipes Farmho |
Validation
The recipe name can be composed with letters, numbers and special characters. Number of characters available :
25 (when you enter more than 25 characters, the text becomes red)

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 7/10
Setting of parameters
French loaf
Parisian bread
Farmhouse bread
Farmhouse bread
Baking duration
Crown temperature
Deck temperature
Steam injection duration
Farmhouse bread
Baking duration
Crown temperature
Deck temperature
Steam injection duration
Farmhouse bread
Baking duration
Crown temperature
Deck temperature
Steam injection duration
Press the right boxes to adjust : the baking
duration, the temperatures, the steam injection
duration and the delay for exhaust vent opening
before the end of baking (this last field appears
only when an electric exhaust vent is present).
Exhaust vent opening duration Exhaust vent opening duration
Exhaust vent opening duration
Press the floppy disk icon to register the
recipe
To modify an existing recipe, select the recipe and then proceed as describe here above
Adjustment of recipes Adjustment of recipes
Adjustment of recipes Adjustment of recipes
Do not forget to press the floppy disk icon to register the
modification(s) done in the recipe(s)

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 8/10

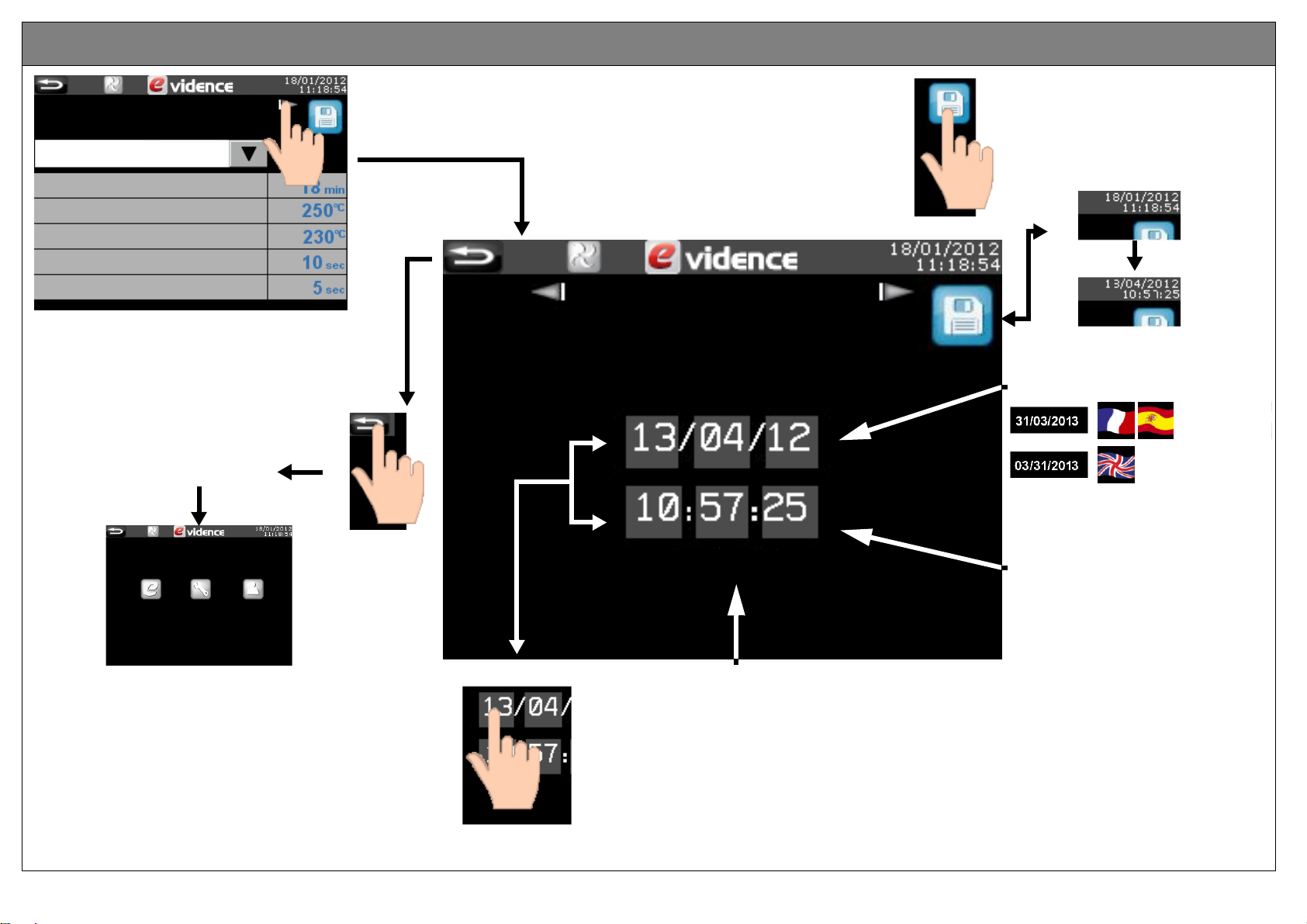

Date and Time adjustments
Date
Settings
Date & Hour
Friday Hour
Day (Automatically calculated in function of the
date)
Press the floppy disk icon to
register.
After 3 to 5 seconds, the date and
time are updated in the gray band
EXIT
Press on each zone to be modified
Adjustment of recipes

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 9/10

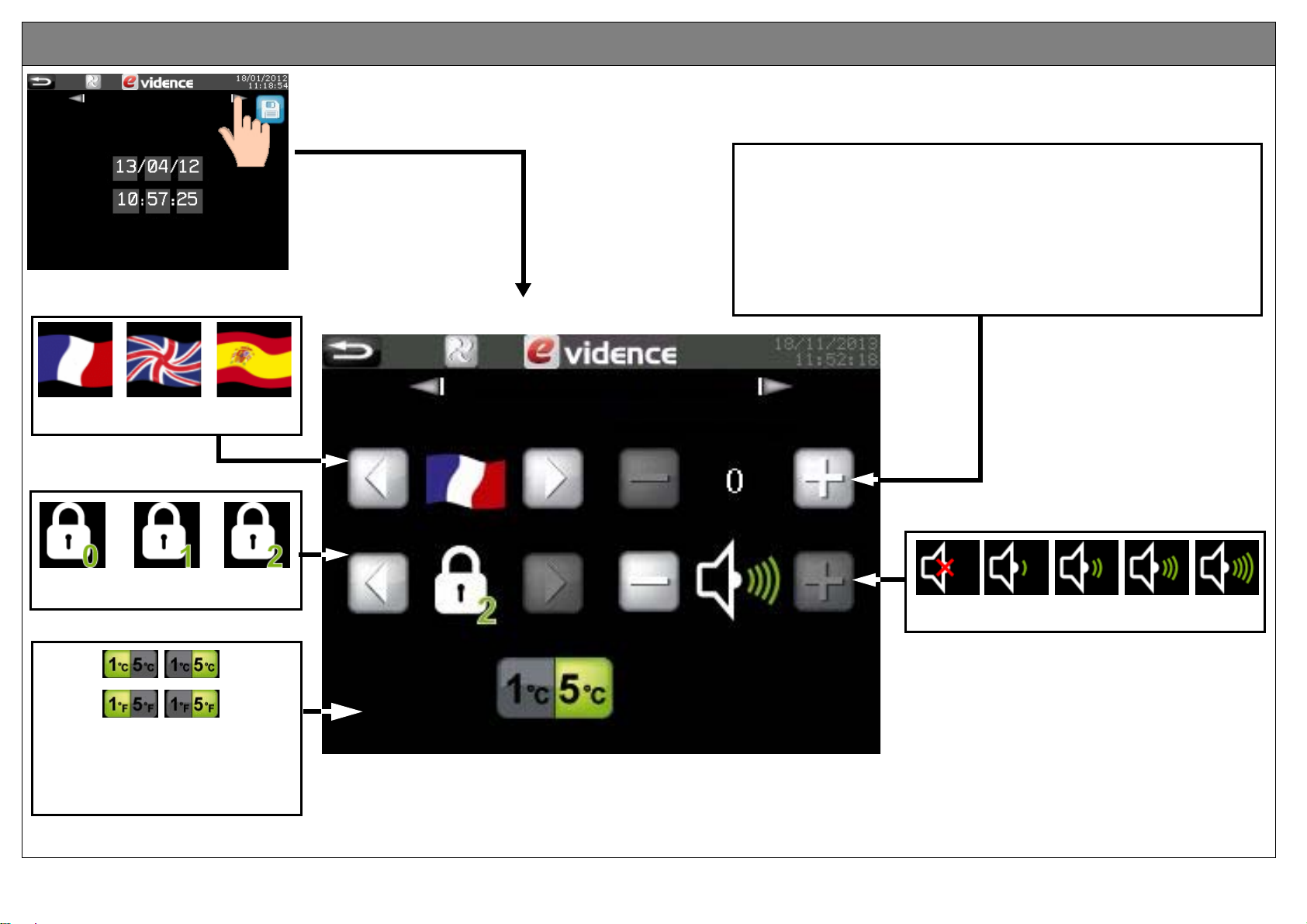

Setting of control board parameters
User 1/2
Access level
Buzzer Volume
Language Delay before standby (mn)
Delay before standby (mn) :
0 : The screen remains always light on.
>0 : The value mentioned represent the number of minutes without any
operation. After this delay, the screen turns off. Setting range : 1, 2, 5, 10, 15
and 30
Touch the screen to light it on.
T°Increment :
Whatever the measuring unit (° C
or ° F), the increment for setting
the temperature is 1 or 5

Programmation Evidence pour Pierre ELEC en Anglais PSE1-000M004-GB F.M:03/12-Rev 11/13 Modifications plusieurs écrans p : 10/10

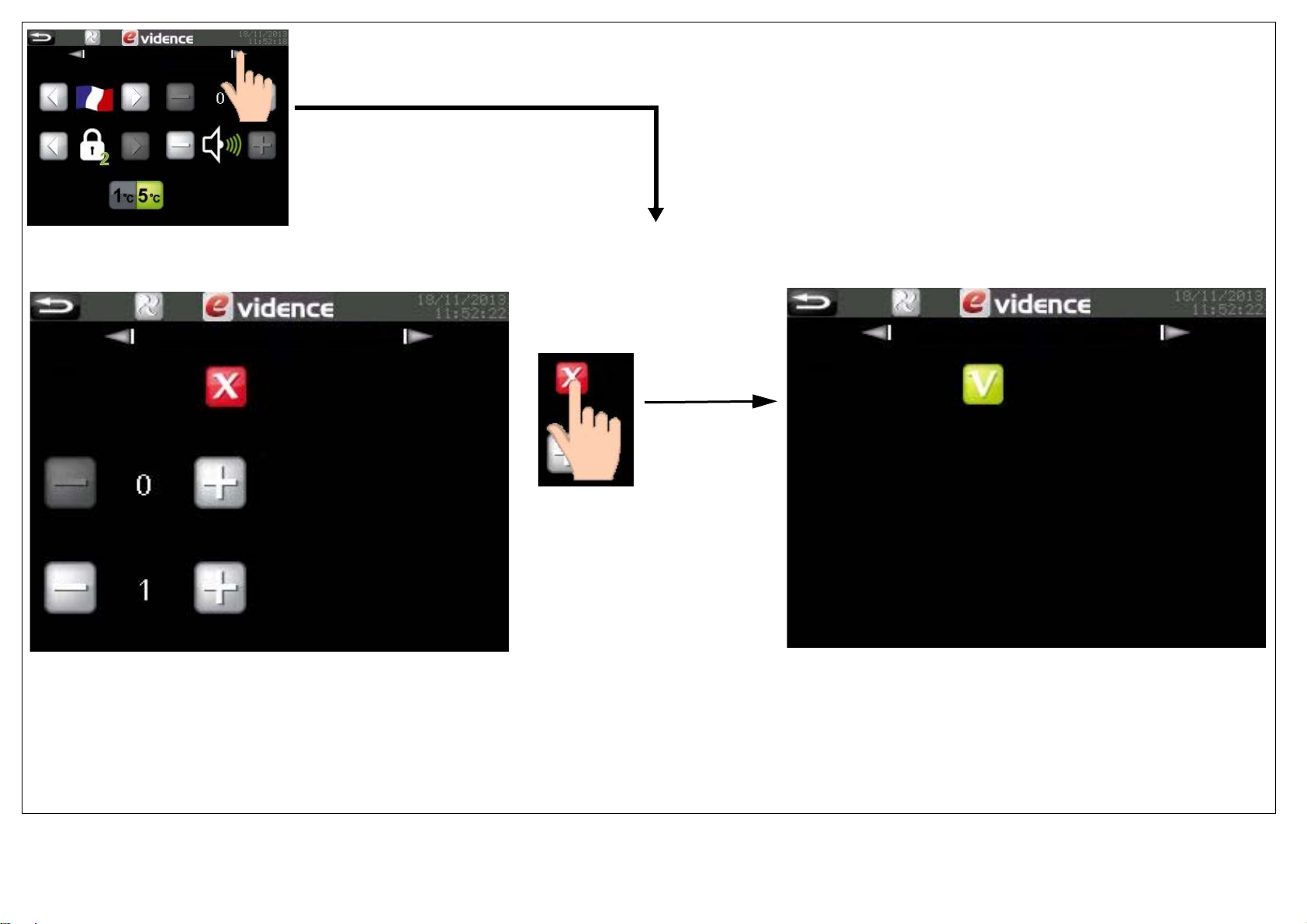

User 2/2
Permanent hood
when baking :
Hood time when baking starts (mn) :
Hood time before baking ends (mn) :
User 2/2
Permanent hood
when baking :
The «Hood runs permanently during baking» function is not
activated. In that case, an operating time of the hood at the
beginning of baking and a delay for starting of the hood before
the end of baking can be set. The adjustment range of these
both durations is from 0 to 5 minutes.
Activation
The «Hood runs permanently during baking» function is
activated. In that case, both operating time of the hood during
baking disappear.
