Euromaid CF6BLS User manual

User Manual
CF6BLS FPF lat6WDLQOHVV6teel :DOO&anopy
&)%/6FP)ODW6WDLQOHVV6WHHO:DOO&DQRS\
&*%/6FP&XUYHG*ODVV:DOO&DQRS\
&*%/6FP&XUYHG*ODVV:DOO&DQRS\

For Your Safety
Safety Precautions . . . ....... .........................3
Before Connecting . . . ....... .........................3
Warnings . . ............... .........................4
Use and Care
Use and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 6
CF6/CF9BLS Controls .. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .7
Cleaning your Rangehood . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Instructions for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contents
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Installing / Changing the carbon filter . . . . . . . .. . . . . . . . . . . . . . 9
Fixing the Decorative Telescopic Flue. . . . . . . . . . . . . . . . . . . . . 15
CG6/CG9BLS Controls .. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 8
Fixing to the wall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2

For Your Safety
Carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet
accessible for future reference.
This appliance has been designed for use in a Ducted or
Recirculating installation.
Optional Accessories
Models: CF6BLS / CF9BLS / CG6BLS / CG9BLS
Carbon Filter: CF260
Recirculating Kit: IA150BRK (Includes Carbon Filter)
Safety Precautions
Take care when the Range Hood is operating simultaneously with
an open fireplace or burner that depend on natural ventilation as
the Range Hood removes air from the room, which a burner or
fireplace may need for combustion.
Provide adequate ventilation for safe operation of the Range Hood.
Follow any local laws that apply to external air evacuation.
Before connecting to the electricity network:
Look at the data plate (located inside the appliance) to ascertain
that the voltage and power correspond to the available power
supply and the power outlet is suitable. If in doubt ask a qualified electrician.
If the appliance is used intensively for a long period of time, you
may need to opening a window to improve airflow.
3

For Your Safety
WARNINGS!
·Do not check the status of the filters while the Range Hood
is operating.
·Do not touch bulbs or adjacent areas, during or straight
after use.
·CAUTION: Accessible parts may become hot when used
with cooking appliances.
·Do not flambé under the Range Hood.
·Avoid free flame, as it is damaging to the filters and can
cause fire hazard.
·Constantly check food frying, overheated oil may become a
fire hazard.
·Disconnect the electrical plug prior to any maintenance.
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
·Children should be supervised to ensure that they do not
play with the appliance.
·There shall be adequate ventilation in the room when the
Range Hood is used at the same time as appliances
burning gas or other fuels.
·There is a fire risk if cleaning is not carried out in
accordance with the instructions.
·WARNING: DO NOT penetrate any screws into the range
hood as this may result in electrical hazards.
·WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
4

WARNINGS!
·If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
·The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.

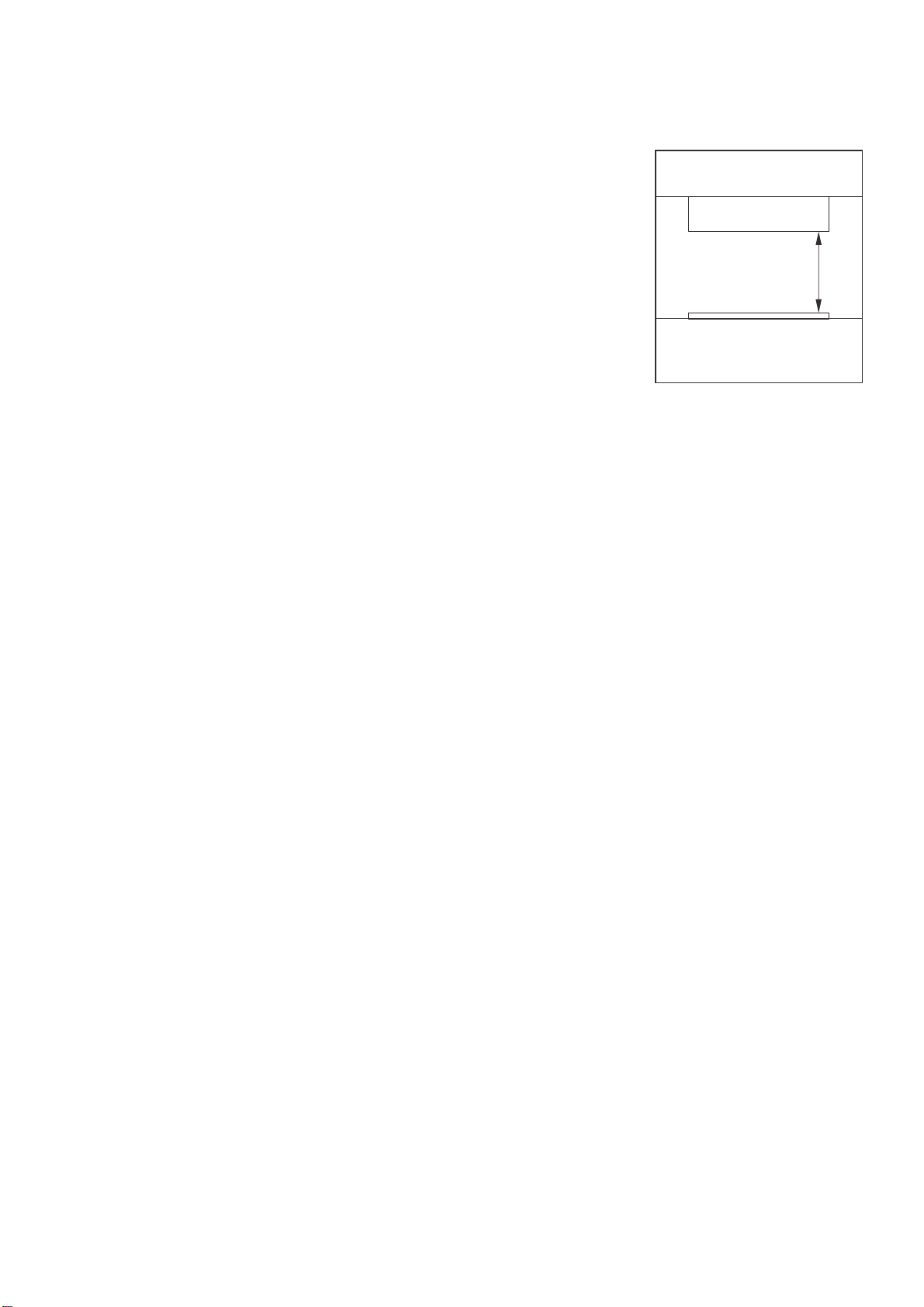

·The minimum distance between the cooktop hob and the
lowest part of the range hood shall be at least 60cm. If the
instructions for installation of the gas hob specify a
greater distance, this has to be taken into account.
·Regulation concerning the discharge of air has to be
fulfilled.
For Your Safety
·60cm rangehoods can only be installed above hobs with
4 or less burners / elements.
·90cm rangehoods can only be installed above hobs with
6 or less burners / elements.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
LED Lamps
LED lamp assemblies are a spare part and are not repairable or
replaceable by the customer.
If an LED lamp fails, it must be replaced by a suitably qualified
technician.
Please call Glen Dimplex after sales service.
5

Cleaning your rangehood
The proper function of the rangehood requires regular
maintenance operations.
The anti-grease filters capture the grease particles suspended in
the air, and are therefore subject to clogging according to the
frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the
filter at a minimum of every 2 months by carrying out the following
instructions:
- Remove the filters from the cooker hood and wash them in a
solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This
is not cause for customer complaint nor replacement of panels.
Clean the fan and other surfaces of the cooker hood regularly
using a cloth moistened with denatured alcohol or non abrasive
liquid detergent.
Keep motor and other parts free from water as this will cause
damage to the appliance.
Use and Care
6

CF6BLS / CF9BLS Operating Instructions
Note: The first time the rangehood is plugged in, the LCD display will light up and then turn off after
30 seconds of inactivity.
SETTING THE TIME
1. Turn the rangehood on by pushing the POWER button.
2. Whilst the rangehood is not operating push the and hold the COUNTDOWN TIMER button for 2-3
seconds. The display will show 12:00 and the number 12 will be flashing.
3. Adjust the hours by pushing the LIGHT and SPEED SELECT buttons and set accordingly.
4. Push the TIMER button to then set the minutes.
5. Adjust the minutes by pushing the LIGHT and SPEED SELECT buttons and set accordingly.
6. Push the COUNTDOWN TIMER button to confirm.
OPERATING THE RANGEHOOD
1. Turn the rangehood on by pushing the POWER button.
2. Push the SPEED SELECT button and the motor will run at low speed.
3. To change the speed, push the SPEED SELECT button to cycle between low, medium and high
extraction levels.
4. The rangehood can be switched off at any time by firstly pushing the POWER button once to turn
the motor off, and then once again to power down the rangehood.
5. When the rangehood is turned back on, the previously set speed will resume.
6. The lights can be switched on or off at any time by pushing the LIGHT button.
SETTING THE COUNTDOWN TIMER
The rangehood features a countdown timer that will automatically turn off the motor after a set
period of time. The timer can be set to any interval between 5 and 60 minutes.
1. Whilst the rangehood is switched on and the motor is running, push the COUNTDOWN TIMER
button. The default time that appears is 5minutes.
2. To set the countdown time, push the LIGHT and SPEED SELECT buttons to adjust until the desired
time is displayed. The display will adjust in increments of 1minute.
3. To finalize the countdown time, push the COUNTDOWN TIMER button. The timer will then be
activated and display the remaining minutes and seconds as it countdowns.
4. To cancel the timer operation at any point, push the COUNTDOWN TIMER button.
5. The next time the countdown timer is selected, the previously used time will be set.
Note: The countdown timer will not turn off the light
00:00
SPEED SELECT
(CLOCK ADJUSTMENT)
POWER
LIGHT
(CLOCK ADJUSTMENT)
LCD SCREEN
COUNTDOWN
TIMER
7

CG6BLS / CG9BLS Operating Instructions
Note: The first time the rangehood is plugged in, the LCD display will light up and then turn off after
30 seconds of inactivity.
SETTING THE TIME
1. Turn the rangehood on by pushing the POWER button.
2. Whilst the rangehood is not operating push the and hold the COUNTDOWN TIMER button for 2-3
seconds. The display will show 00:00 and the hour indicator will be flashing.
3. Adjust the hours by pushing the INCREASE and DECREASE SPEED buttons and set accordingly.
4. Push the TIMER button to then set the minutes
5. Adjust the minutes by pushing the INCREASE and DECREASE SPEED buttons and set accordingly.
6. Push the COUNTDOWN TIMER button to confirm.
OPERATING THE RANGEHOOD
1. Turn the rangehood on by pushing the POWER button.
2. Push the INCREASE SPEED button and the motor will run at low speed, indicated by one
increment bar showing on the LCD screen.
3. To change the speed, push the INCREASE and DECREASE SPEED buttons to cycle between low,
medium and high extraction levels.
4. To switch off the rangehood, adjust the speed back down to low and then push the DECREASE
SPEED button to turn the motor off.
5. The lighting can be switched on or off at any time by pushing the LIGHT button.
SETTING THE COUNTDOWN TIMER
The rangehood features a countdown timer that will automatically turn off the motor after a set
period of time. The timer can be set to an interval of 5, 15 or 30 minutes
1. Whilst the rangehood is switched on and the motor is running, push the COUNTDOWN TIMER
button to set the default time of 5minutes.
2. Press the COUNTDOWN TIMER button again to increase to 15 minutes and a third time for 30
minutes.
3. After 5 seconds of inactivity the timer will begin to countdown.
4. To cancel the timer operation at any point, push the COUNTDOWN TIMER button.
Note: The countdown timer will not turn off the light
00:00
LCD SCREEN
COUNTDOWN
TIMER
LIGHT
DECREASE
SPEED
INCREASE
SPEED
8

INSTALLING AND CHANGING THE CARBON FILTER (PART NO.CF260)
This rangehood can befitted with anoptional carbon filter that will aid in the removal of grease,
smoke and cooking odours from the air before it is recirculated into the room.
The square carbon filter attaches tothe base of the motor housing above thealuminum mesh
filters. Detailed instructions for fitting and replacing the carbon filter can befound below.
We recommend replacing the carbon filter every 3-4months or sooner, depending onhow
frequently the rangehood is used, otherwise the performance of the rangehood can beimpeded.
1. If the rangehood has a perimeter panel,
then pull down to reveal the mesh filters,
otherwise proceed directly to Step 2.
2. Push the handle of the aluminum mesh
filters towards the rear of the rangehood
until they’re released from the housing
and then remove them and set aside.
3. If replacing a carbon filter, release the
old one from the housing and pull down.
4. Insert the new carbon filter and snap into
the housing.
5. Re-insert aluminum mesh filters (set aside
in step 2) into the housing ensuring they
click into place.
6. Close the perimeter panel (if applicable)
3
4
2
1
9

Use and Care

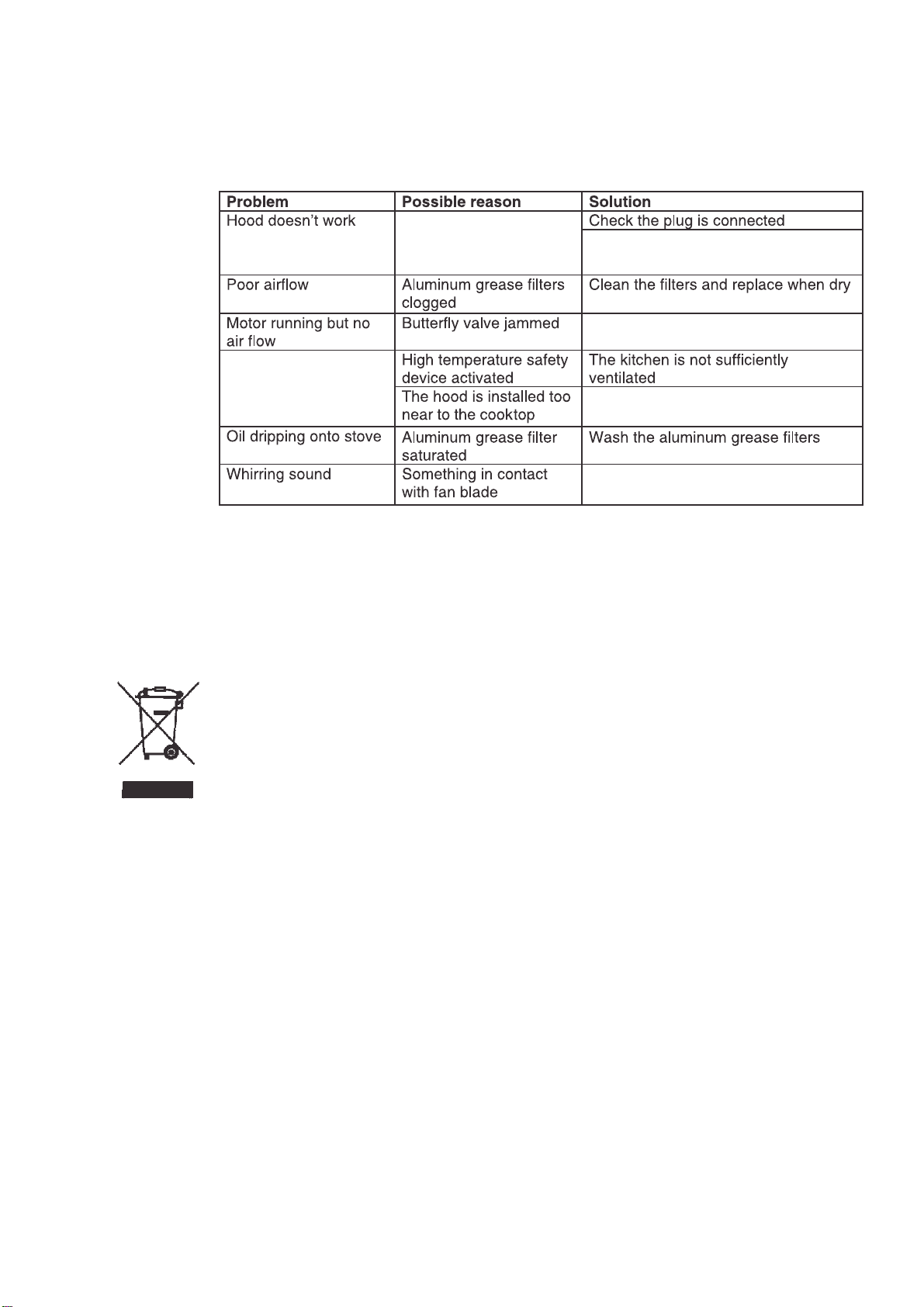

Troubleshooting
Contact service department
No electricity supply
Motor turns off after
a few minutes
Contact service department
Check that the main switch/circuit
breaker/safety switch is turned on
The hood must be at least 600mm
from the top of the cooktop
Disposal
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city council
office.
10

Installation
Assembly and electrical connections must be carried out by
authorised personnel.
Electrical Connection
The Range Hood is fitted with a power cord and 3 pin plug. Install
the Range Hood so that the plug is easily accessible. Plug the 3-
pin plug into a properly earthed, 10A general purpose power
outlet.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
The appliance has been manufactured as a class I, therefore
earth cable is necessary.
The connection to the mains is carried out as follow:
If not provided, connect a plug for the electrical load indicated on
the description label. Where a plug is provided, the cooker hood
must be installed so that the plug is easily accessible after
installation.
An omnipolar switch with a minimum aperture of 3mm between
contacts, in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.
IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green
11

Instructions for Installation
WARNING: DO NOT penetrate any screws into the range hood
as this may result in electrical hazards.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
If a connection flue composed of two parts is used, the upper part
must be placed outside the lower part.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
Installation must comply with any local regulations concerning the
discharge of exhaust air.
Before proceeding with the assembly, remove the anti-grease filter
so that the unit is easier to handle. Prepare the hole in the ceiling
or wall for the evacuation of the air.
Installation
650-750
Rangehood
Cooking Surface
Recommended Clearances
Install Range Hoods in accordance
with the manufacturer’s instructions.
For optimum performance, we
recommend that all Range Hood
clearances be a minimum of 650mm
to a maximum of 750mm between
the top of the cooking surface to the
underside of the Range Hood. The
distance may be reduced to 600mm
to align with AS/NZS 5601.
Fixing to theWall
Ensure the fixings used for this range hood are suitable.
Check the area where the range hood is to be fitted, to ensure
that it is structurally sound and will support the weight of the
appliance. Do not install direct onto plaster board using 'Wall
mates' or other similar anchors.
Range hood must be fixed into studs or noggins in the wall to
ensure it is secure and minimize vibration in the wall.
Mark the position and height and attach the rangehood hook
bracket to the wall.
12

Installation
Hang the rangehood on the hook bracket.
Once the rangehood is adjusted to the correct position, install
other screws where necessary to ensure rangehood is properly
secured against the wall.
For various installation types, use screws and screw anchors
suited to the type of wall (e.g. reinforced concrete, plasterboard,
etc.). If the screws and screw anchors are provided with the
product, check that they are suitable for the type of wall on which
the hood is to be fixed.
Fixing to theWall
13

Installation
14

Installation
Fixing the DecorativeTelescopic Flue
Arrange the electrical power supply within the dimensions of the
decorative flue.
Prepare the hole in the ceiling or wall for the evacuation of the air.
Fix the upper flue cover to the support bracket with screws (B)
(Fig.4)
Install butterfly flaps into the outlet on the top of the range hood
(C) (Fig.5).
D
Ducted installation
-Connect the ductwork to the outlet with a
cable tie or suitable tape. Do not use screws.
Recirculated installation
- The air will vent out through the vents
in the top of the telescopic flue. NOTE: A recirculating kit
including carbon filters must be installed for recirculated
installation.
Slide the lower flue cover down into the top of the rangehood.
Some models will require the lower flue cover to be fixed from
underneath using the provided screws (Fig.5)
Fig. 4 Fig. 5
(A)
(B)
(C)
(D)
15

MANUFACTURER GUARANTEE
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN
9429000069823 (Phone number 09 274 8265) in respect of the Euromaid product. 
1. Euromaid Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a) In the case of Euromaid products used for personal, domestic or household purposes, a
period of 2 years from the date the product is purchased as a brand-new product from a
retailer located in Australia / New Zealand.
b) In the case of Euromaid products used for purposes other than personal, domestic or
household purposes (including business or commercial use), a period of 90 days from the
date the product is purchased as a brand-new product from a retailer located in Australia /
New Zealand. Euromaid products are designed and intended for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail and
builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
16

c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any
other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line
or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of
this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first become
aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a
store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at
which the product is located at times nominated by us (so that we can inspect the product).
17

5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply,
we will, at our election, either repair the product or replace the product with a product of identical
specification (or where the product is superseded or no longer in stock, with a product of as close a
specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this
warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
[email protected] [email protected]
18

NOTES
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
19

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the
relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the use of
ductwork, by a licenced installer with adherence to the relevant state and national building codes
and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Distributed by:
Glen Dimplex New Zealand LtdGlen Dimplex Australia Pty Ltd
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 09 274 8265Ph: 1300 556 816
[email protected] [email protected]
VERSION1REVISION 20200928 
