EuropAce ETW 7800T User manual

Thank You For Purchasing EuropAce Top Load Washing Machine
8KG TOP LOAD WASHING MACHINE
ETW 7800T

Contents

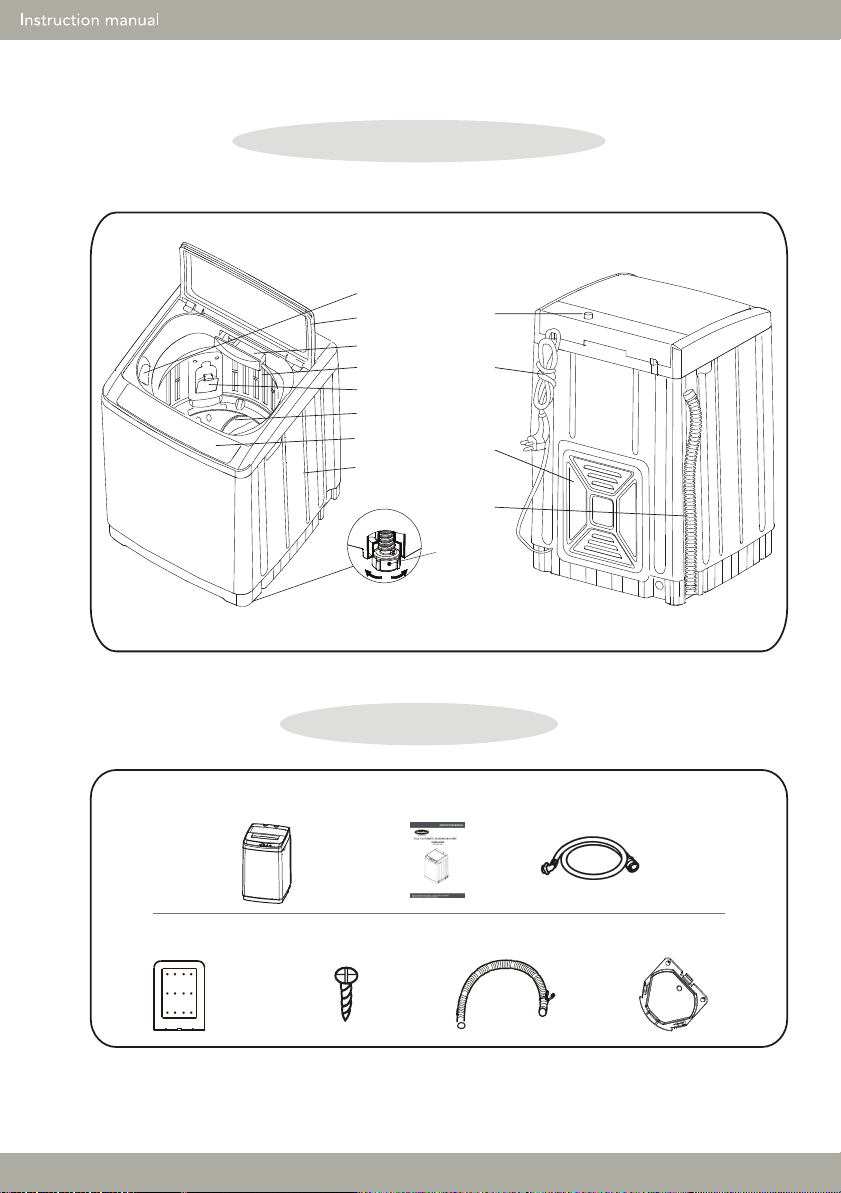

Name of all components
Accessories
Suggestions
Installation
Connection of the power cord
Preparation
Safety warning
Maintenance
Trouble shooting
Wiring diagram
2
2
3
Control panel 4
5
Connection of the inlet/drain hose 6
7
8
12
14
15
17
Specifications 17
Name of all components
Installation instructions
Operating instructions
Maintenance
Wiring diagram

-2-
Name of all components
Accessories
UP
Instruction manual (1) Inlet hose (1) Washing machine (1)
Self screw (2)
Drain hose (1)
Installed for some modes Not exist for some modes
Cover for drain hose (1) Noise and mice- proof
plate (1)
AUTOMATIC WASHING MACHINE
XQB5 2-16 99J
Drain hose
Water
inlet valve
Back cover
Power cord
Control panel
Body
Adjustable foot
Filter
Pulsator
Top lid
Detergent box
Inner tub
Bleach injection

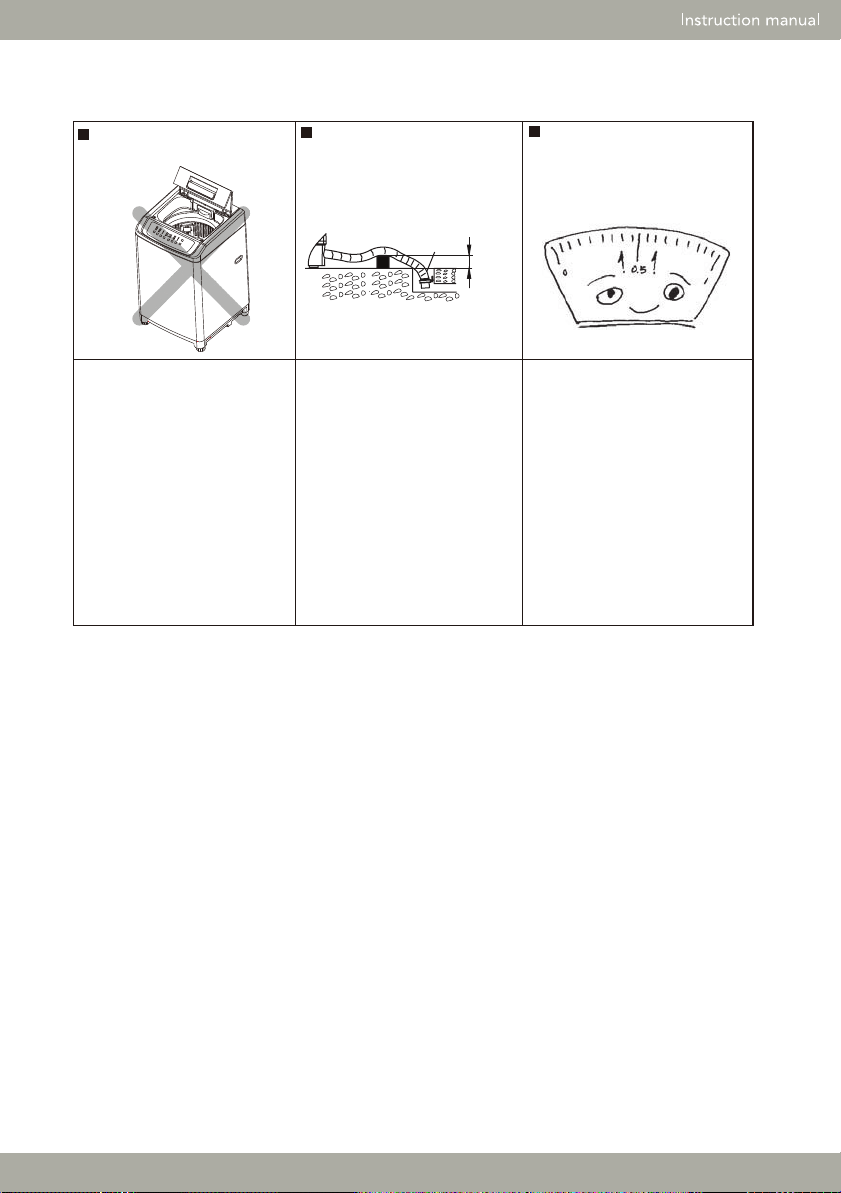

Suggestions
-3-
1 Low foam detergent is recommended.
2 . Please operate it under 0℃~40℃, as extra-high or extra-low ambient temperature
may cause malfunction.
3 . If the washing machine has been stored under 0 , it can be used after being placed
under room temperature for about 4 hours to avoid machine damage due to residual
ice in the washing machine.
4 . The washing and spinning capacity refers to the maximum weight of standard
laundry during two operating fashions, which is different from that of the actual
laundries. The cloth thickness, size and category of the laundries will impact the
washing capacity. The volume of washing items should be appropriate for the normal
turning of washing items within the washing machine.
5 . High water level should not be selected for washing volume below1.0kg to avoid
water splashing during washing.

Control panel
-4-
Press power button to turn on or turn off the washing
machine. If it is turned on beyond 5 minutes, and
does not start the washing machine, or not to turn
off, the power On/Off switch will be auto turned off.
Power On/Off button
1
Press this button to start program, however press
the button when machine running, the program will
be paused.
Start/Pause button
2
Press this button to choose the program Fuzzy,
Use this button to program a delay start to the
wash cycle.Each pressing can increase 1 hour for
presetting time,and hold this button, time will
increase rapidly.
Normal,Heavy,Gentle, Speedy, Single spin,Tub
clean and Air dry.
Fuzzy : set the water level automatically according
to the load of laundry.
Normal : to wash normal quality clothes.
Heavy: to wash the coverlet, jeans and other
big clothes.
Gentle: to wash all kinds of woolens, silks and
fine quality clothes.
Tub clean: to clean the tub when it is idled.
Air dry: to dry the tub or clothes.
ECO Save
: to save water(to wash mild dirt clothes).
Spin: only for spin to dry the clothes faster.
3 Program selection
4
5
Preset selection
After setting program or pausing the program,
press“DIY” button tochoose:
soak wash rinse water recycle spin
Adjust selection
A
button
fter setting one process, you can press “Adjust”
to set according to your desire.
With Soak process, press“Adjust” to choose the
time for soak (min)
DIY selection
6
0 10 20 30 40 50
The function of Speedy,Single spin and Air dry are
without soak process.
﹡
﹡The soak time for Tub clean cannot be changed.
With Wash process, press “Adjust” button to choose
time for wash (min).
With spin process, press “Adjust” to adjust the time
for spin (min).
With
not be adjusted.
Speedy or Tub clean,the time for spin can
With Speedy or Tub clean, the times for rinse
can not adjust.
With water recycle, press “Adjust” to choose yes
or no.
After starting that funtion, it will remind user to
keep water at last drain.
With Single spin process, press “Adjust” to select
spin time (min).
15 16 ...40 0 5 6 ...14
4 5 6 0 2 3
n (no recycle) y (recycle)
2 3 0 1
Please select relevent water level according to
actural laundry volum. Machine will adjust water
level automatically under Fuzzy program.
Water level selection
7
With Air dry process,press “Adjust” to select
spin time(min).
﹡
﹡
﹡
﹡
﹡The wash time for Tub clean and Speedy is
prescriptive. Air dry and Single spin are without
wash process.
Air dry and Single spin are without rinse process.
With rinse process, press “Adjust” to adjust the
times for rinse.
67 5 43 2 1
8 12 4 6
40 60
Water
level DIY Adjust Preset
Program
Child lock
POWER
/ OFFON
START/PAUSE
Fuzzy
Normal
Heavy
Gentle
Soak
Wash
Rinse
Spin
Spin
Air Dry
Tub Clean
ECO Save
Preset Time
Remaining
Time
（H）
（Min）
Water
Recycle

Installation
-5-
Place the washing machine at
least 5cm away from the wall.
Alteration of adjustable foot
In order to prevent vibration during wash
operation, you can loosen level adjustment
knob and change the height of adjustable
foot until the washing machine is stable, and
then tighten it.
Place washing machine on a firm and level surface, use level adjustable
knob to adjust washing machine to be stable.
1. Remove the plastic accessory
as below picture from the bottom
of washing machine before using.
Insert the mice-proof plate into the washing machine base
adjustable foot
downward upward
2. Take out mice-proof plate
at the top of the machine.
3. Lay down washing machine
gently on the soft object. And
insert the noise-proof plate into
the base.
soft object
at least
5cm
4. Fasten up the noise-proof
plate with two screws.
plate
screws

-6-

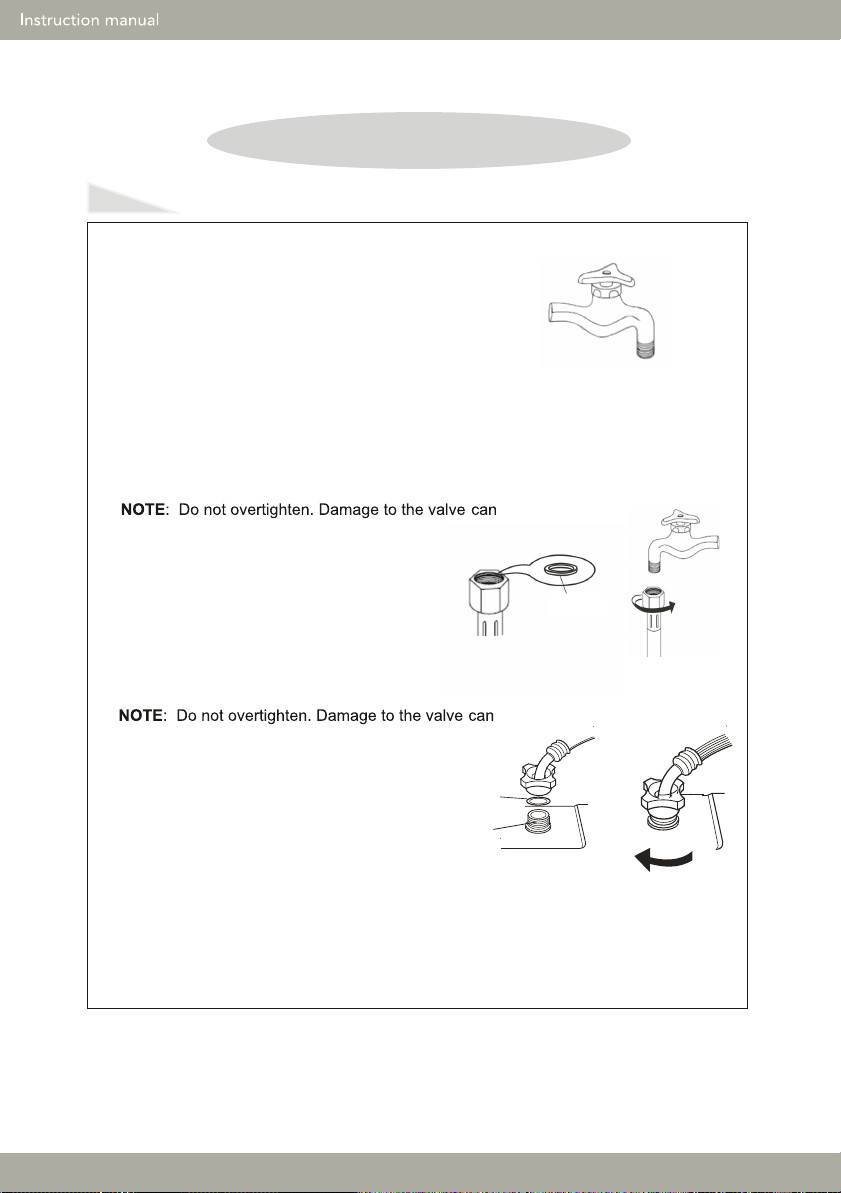

Connection of the inlet/drain hose
Connection of the inlet hose
1. Select appropriate type of outlet as shown in figure.
5.Check leaking
(1).Swing water inlet hose gently to confirm if it’s suitable.
(2).Turn on the water faucet and check for leak.A small amount of water might
enter the machine.You can drain this later.
2. Before installation, rid of
particles in water line that might clog the inlet valve screen.
3. Make sure that a seal washer is seating at the joint of inlet hose, then connect
the inlet hose to fauct.
seal washer
4. Make sure a seal washer seating at the joint of inlet hose, then connect
the inlet hose to the water inlet valve.
seal washer
joint water inlet valve
running water through both faucet and inlet hose, to get
be resulted.
be resulted.

-7-

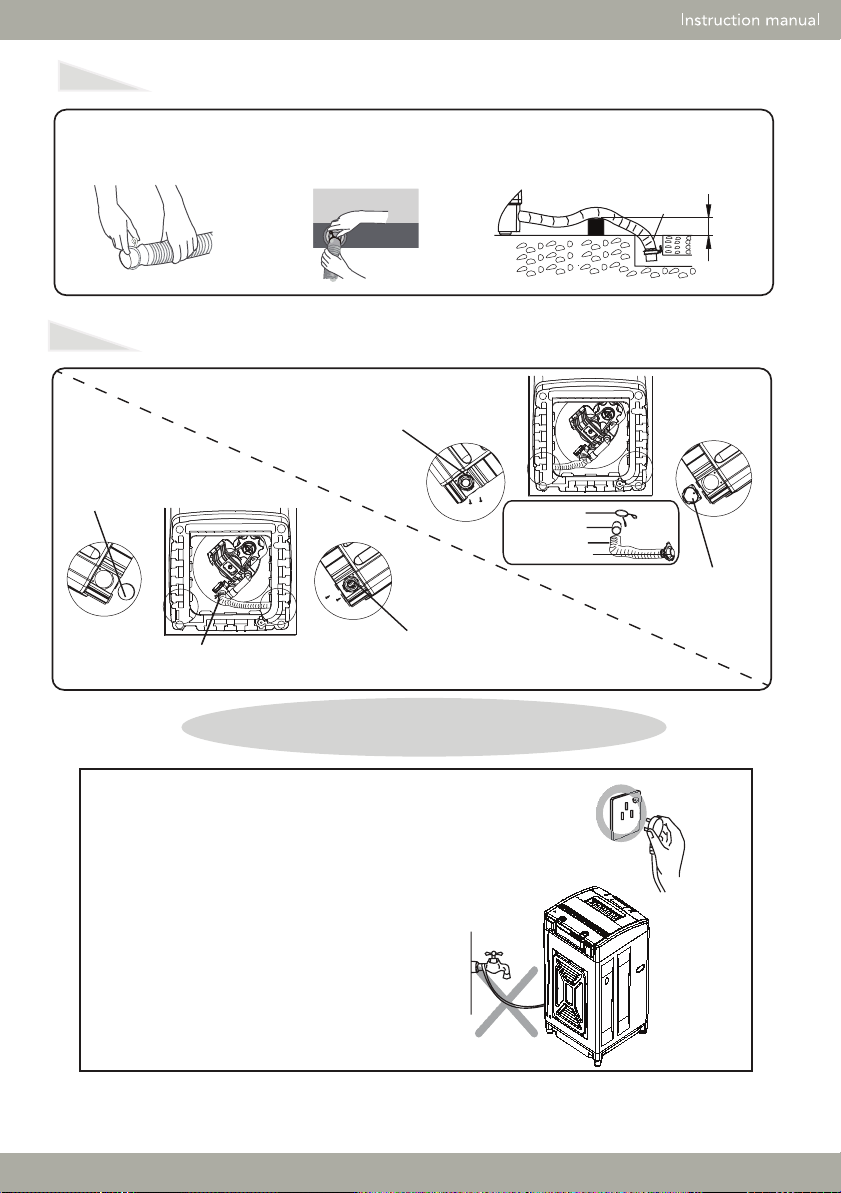

Connection of the power cord
The earthing which is indicated by yellow and green
colour must be firmly connected to a special earthing.
Please call the technician to assemble.
The socket should have assembled the 3A
fuse.
Never try to connect the earthing of the washing
machine together with that gas pipe or water
pipe, telephone cord or lightening rod.
Do not use the damaged cord because it could
cause electricity leakage and fire.
In case cord is damaged, please contact the
local service company , because it is removed
and replaced with special tools.
NOTE:
Change the direction of the drain hose (if necessary)
Connection of the drain hose (some modes have been connected)
outlet less than
6cm
1. Press down the fix ring, 2. Press down the fix ring, and 3. Draw the drain hose to the outlet.
Do not let the height of the drain hose
exceed 6cm from the bottom to machine.
and hitch it over the drain
hose.
then push it to the drain outlet.
Clasping the fix ring to make
sure they are connected well.
1. Knocking-out the drian
cover on the left side with
a hard object.
2. Remove the two screws of drain
joint at the rightward
3. Loosen the fix ring, and pull the drain
joint to left, then hitch the fix ring and
seal sleeve.
4. After placing well
the drain joint, fit it with
two screws.
5. Seal the right drain
opening up by the
drain cover to keep
out the mouse.
Left
Left
fix ring
seal sleeve
drain hose
drain joint
Right
Right

-8-

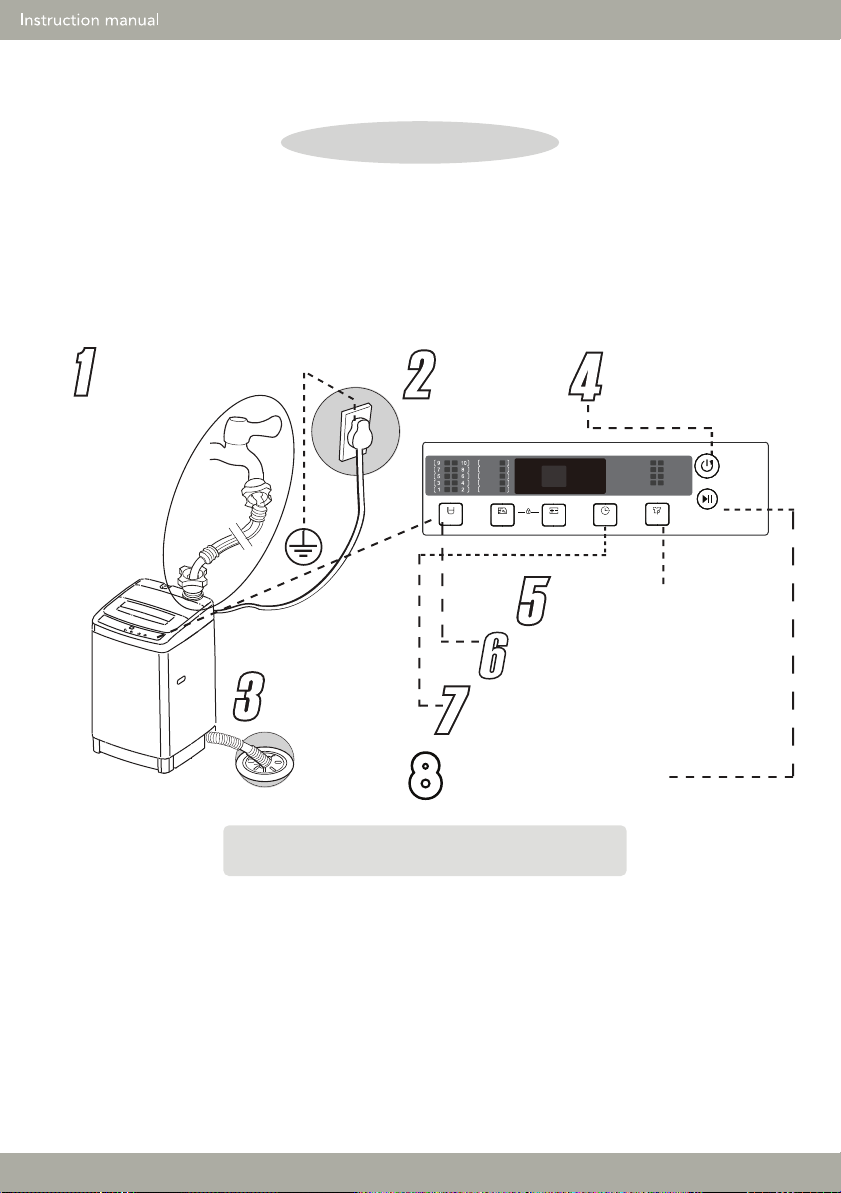

Operation
Install the water inlet hose
and turn on the tap.
When preset operation finishes,
machine will power off automatically.
Plug-in power. Press POWER ON/OFF
to turn on the machine
Press PROGRAM to select
the desired program.
Press WATER LEVEL to set
the water levels.
Press to select preset time to wash.
Press START/PAUSE to start.
Put down the drain
pipe.
Water
level DIY Adjust Preset
Preset
Program
Child lock
POWER
/ OFFON
START/PAUSE
Fuzzy
Normal
Heavy
Gental
Soak
Wash
Rinse
Spin
Spin
Air dry
Tub clean
Water saving
Preset Time
Remaining
Time
（H）
（Min）
Water
recycle

-9-
5.5-8.0kg
4.0-5.5kg
2.5-4.0kg
1.0-2.5kg
Less 1.0kg
Fuzzy
Normal
Heavy
Gentle
Spin
Spin
Air Dry
Tub Clean
Water Saving
Water saving
DIY
DIY Adjust

5.Preset selector
6.Water recycle to save water
8.Wash over
7.Press Start/Pause button,start washing machine
-10-
Select automatic process or edit process by yourself
Press Preset button continously, the indicating window show the needs time for washing (hr) .
(Example: if the preset time is 3 hours, press the Preset button till the window shows 3)
Please close wash lid completely.(otherwise machine will give alarm)
During the process of counting down to preset time, all buttons except power switch and
After pressing Start/Pause button,the washing machine starts to work.
When machine is under Preset function, Start/Pause button cannot be pressed.
If it is needed to change Program,Water level,process,please press Start/Pause button to pause the
washing machine and reset the model.After setting,the washing machine will start according to
new setting.
Stand by Start Pause
Unless user set the water recycle function, the machine will not carry out that function. If need that
The water recycle function only applys to the combination of “wash,rinse,spin”, “soak, wash,rinse,spin”
or “rinse,spin”, the function will be skipped over by other combinations.
function, press DIY until the indicator of water recycle lights on, then press Adjust until it shows “y”.
When it is on,machine will not drain at last wash. It will alarm to remind the user to keep
water untill the DIY button is pressed.
During keeping water,pressing DIY button is available to stop or start draining.
Do not open the lid during the operation, especially in spinning.
Unplug the power cord.
Maintenance as shown page 14 at "maintenance".
Preset button cannot be pressed.
The washing machine works as program you have set and shows the left time as you preset.
The Buzzer will alarm after program finish, and it will power on of automatically.

-11-

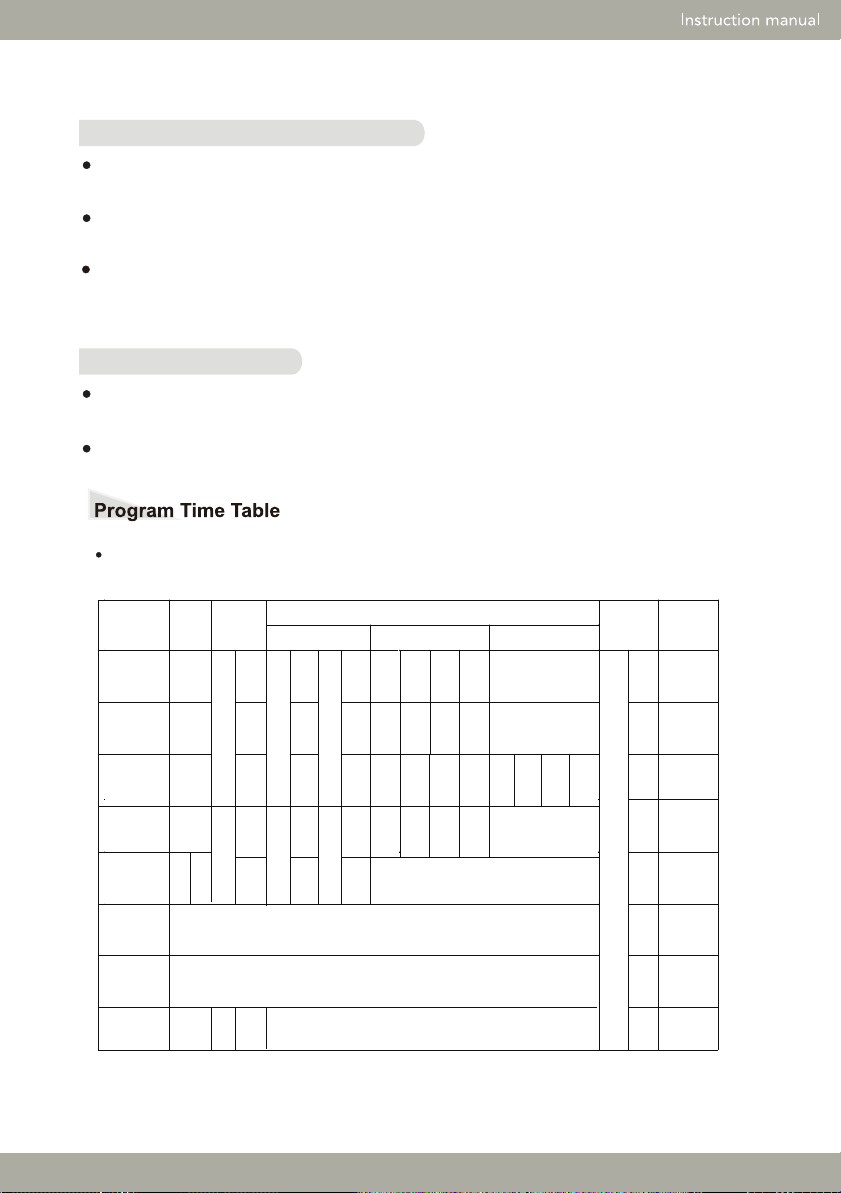

9.Fuzzy function & memory function
10.Child lock
Fuzzy means machine can set the water level automatically according to the loading. If there
is no water in the tub,press Power switch and Start/Pause button, it will start the function.
If some water in the tub before press Start/Pause button, the Fuzzy function will fail to start up.
The washing machine should only be used by adults. The children should not be allowed in area of
machine unsupervised.To keep children from touching the control panel or playing with the appliance,
Child lock function is a perfect design.
Press and hold the two buttons (DIY & Adjust) simultaneously for 1.5 seconds to set the Child lock. If you
want to deactivate this function, just repeat the above step.
Before starting Fuzzy,pressing Program,Adjust or Water level button will result in canceling the Fuzzy
function; Before start the Fuzzy function, putting the laundry into the tub in advance is necessary, or the
water level may be improper.
Memory means if the operation is interrupted by cutting off electricity,and the machine can continue
the unfinished program after re-power on.
16
18
18
18
5
33
4
4
44
33
46
5 57
328
2 2
6 69
6
38
4
8
26
40
Program Soak
(min)
Wash Rinse (min)
(min)
Spin
(min)
Tol
(min)
spin
3
spin
3
spin
wash
3
3 3
wash
3
wash
wash
wash
wash
wash
10
spin
3 3
washspin
spin
spin
spin
4
1st rinse 2nd rinse 3rd rinse
Normal
Water saving
Heavy
Single spin
20 21
Inlet water
Inlet water
Inlet water
Inlet water
Inlet water
Inlet water
Inlet water
Inlet water
Drain water
Drain water
2 2
washspin
Inlet water
Drain water
Drain water
Inlet water
Drain water
3
spin
3
wash
Inlet water
Drain water
Drain water
Drain water
Gentle
Air-dry
Fuzzy
Tub clean
Computer sequencer saves up 8 kinds of washing programs, all kinds of programs are shown
as washing process form.

-12-
Safety warning

-13-
Do not switch on when the
water pressure isn't within
0.03MPa-0.85Mpa, so as to
protect the inlet valve.
Make sure the lid is closed
especially during spin.
The appliance is not intended
to be use by young children or
infirm persons unless they have
been adequately supervised
by a responsible person to
ensure that they can use the
appliance safely. Young
children should be supervised
to ensure that they do not play
with the appliance.
If the appliance is supplied
from a cord extension set or
electrical portable outlet
device, the cord extension set
or electrical portable outlet
device must be positioned so
that it is not subject to
splashing or ingress of moisture.
the power cord must be
unplugged after using.
Please use low foam powder
detergent.
The appliance is to be
connected to the water
mains using new hose-sets
and that old hose-sets
should not be reused.
The highest point of the drain
hose must be within 6cm.
outlet less than
6cm

-14-
Clean the Machine
Clean the lint filter
Clean filter of inlet velve
Note:
Clean the surface and tub of the washing machine with a soft
cloth regularly, keep the up cover open about one hour and
then
1. Pully upward to remove
the filter assy's.
2. Take the filter from
the filter cover.
3. Clean and rinse
it thoroughly.
4. Reinstall the filter.
Maintenance
close the door cover.
Do not pour the water to machine, or wipe with thinner,
cleaner, kerosene, the essential oil, alcohol ect.
Wipe the dirty place with soft cloth soaking neutral soap water.
Inlet valve filter is liable to block, clean it in time(about two months).

Malfunction phenomenon
Start the washing machine from
Rinse Process, the washing
machine does not input the water
The wash process changes
from Spin to Rinse
The control button is useless to touch
Spin delay
The washing machine will start from the spin process
in order to spin out the water and detergent from the
clothes, then input the water (if there is water in the tub
it will drain out the water first)
When the clothes are not even or are on a single side
of the tub, the washing machine will input the water and
make the clothes balance and even.
If want to change the program after the washing machine
started, please touch the Start/
reset.
Pause button to pause and
Trouble Shooting
Reason
Before maintenance
Problem Checklist
Does not work
Is electricity present?
Is the tap opened?
Is the plug loose, or fuse broken?
Turn on the power or start button?
Fail to fill water
Is the tap opened?
Is the drain hose frozen?
Is the water supply cut?
Is the water inlet valve blocked?
-15-
The washing machine will delay 15 to 60 seconds to enter
spin process after drain or at single spin
Trouble shooting

-16-
Trouble Shooting Method
For some troubles, the machine buzzer will ring and alarm, and the indicator will flash.
Troubles Indicator Light
No indicator
No indicator
No indicator
Possible Cause Solution
Breakdown
The plug is badly connected
to the socket or the switch is
not activated.
The socket is dead or the fuse
is broken.
The current process is lost
for power failure
The voltage is too low or too
high
Connect the plug properly or
activate the switch
Contact the authorized technician
Reuse only when power failure
is eliminated
Remove the plug and reuse it when
the voltage comes to normality.
E2
E3
E1
E5
E4
Standing
drain
Spin
malfunction
A conflict
between the
tub and the
cabinet
during
spinning
Insufficient
water supply
Unavailable
preset
function
E6
The drain hose is blocked or
put down,and the water cannot
drain within 5 min
Check the drain hose,open the
lid and then close it to continue
drain process.
The lid is unclosed during wash
or spin process. Close the lid.
The clothes are not laid evenly
in the tub.The machine will try
to make a automatic check
and ajustment for 2 times,or if
nothing available ,an alarm
will be given.
Open the lid,distribute the clothes
evenly in the tub and then close
the lid to continue.
The tap is closed,water supply
is cut off or water pressure is
too low,so the water fails to
reach to the desired level within
16 minutes.
Open the tap or use the machine
after the water pressure comes
to normal.Open the wash lid,
close it and restart to input water.
The lid is unclosed during
preset process(the process
will pause and an alarm will
be given)
Close the lid.
Abnormal
water level
sensor
The sensor fails for short or
open current,etc.and an alarm
will be given.
Contact the authorized technician.
E7
E9
Unstoppable
Memory chips
break down The chip cannot be accessed.
inlet or
automatic
drain
Abormalities occur in PCB,
inlet valve or water level
sensor
Cut off the power after draining ,
and try to contact with the
authorized technician.
Fail to power
off or power
on
Unending process
or no indicator PCB is broken. Contact the authorized technician.
Turn off the machine.
Low voltage--no display
High voltage--fuse broken

-17-
Wiring diagram
Specifications
595mm
600mm
mm079
Rated voltage
Wash/spin capacity
Rated frequency
220-240V~
8.5kg
50Hz
Net weight
600mm*595mm*970mm
33.5kg
Dimension
YG=Yellow Green
BR
Softener valve
Water inlet valve
W O Y R B B
B/ B/ B/
W
R
Y/G
LB
LYG
BR
W B B
BL RW
W/W/
BL R WLB
Water level
sensor Safety
switch Door cover
switch
Plug
Microcomputer Programmer
Motor
Drain Motor
Junction box
5A/250V

一、 注意事项：
1、本产品属于 I类电器，请您使用时注意用电安全：本机使用单相两极带
接
地的电源插座，插座必须可靠接地，而且接地端不应与煤气管道、自来
水
管道等公用设施连接。
2、如果洗衣机通过插座板（接线板）或便携式电源装置连接电源，插座
板
（接线板）或便携式电源装置必须放置在不潮湿且不易被水溅到的位置。
3、不要与其它电器合用一个插座，插头与插座配合松动时不要使用。
4、电源插头的插片及插片的安装面上若有灰尘，请仔细用干布擦净。
5、洗衣机正常使用时，电源线插头应便于用手插拔。停电、移动、不用或
清
理时，一定要把电源插头拔下并关掉水龙头。注意：请不要用湿手去插
、
拔电源线插头。
6、不要过度弯曲、拉伸、扭转、捆扎或让重物重压电源线。
7、本机电源线连接方式为 Y连接，如果电源线或电源插头损坏，为避免危
险，
必须由我司特约维修点或我司售后服务部门专职人员更换。
8、洗衣机不能安装在浴室等潮湿的地方，绝对不能用水冲洗，也不要将湿
衣
物等放在洗衣机的控制板上。
9、请避免阳光直接照射洗衣机，也不要靠近暖气等热源。
10、本机请勿放置在地毯上使用，无上排水功能的机型也不要放置在无地漏
的
地方使用。
11、此产品需要与水连接，必须尽可能使用新的水管，旧的水管是不可以再
利
用的。
12、本机适用水压 0.03MPa~0.85MPa，并不要使用 50℃以上的热水。
13、请确保水龙头与进水管接头的可靠安装，并确保进水管接头与进水管切
实
