Meiko M-iClean User manual

Professional dishwashing technology
Operating instructions
M-iClean
Glass-, Dish- and Utensilwashing machine
Translation of the "Original operating instructions"
9712938 / Valid from: 2013-10-01 / Update: 2016-11-24
Typ: US
UM
UM+
UL
EN

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 2of 48
Contents
1INTRODUCTION AND GENERAL INSTRUCTIONS ....................................................................5
1.1 Safe keeping 6
1.2 Name and address of manufacturer 6
1.3 Authorization for service technicians of our service partners 6
1.4 Designation of machine type 6
2EXPLANATION OF THE SAFETY SYMBOLS USED ....................................................................7
2.1 Graphic reference symbols 7
3GENERAL DESCRIPTION AND USE FOR THE PURPOSE INTENDED...........................................8
3.1 General description 8
3.1.1 Detergent dosing 8
3.1.2 Rinse aid dosing 8
3.2 Intended use 9
3.3 Foreseeable use 9
4EC DECLARATION OF CONFORMITY....................................................................................10
5GENERAL SAFETY INSTRUCTIONS ....................................................................................... 11
5.1 Operator’s duty of care 11
5.2 Measures to ensure safe machine operation 11
5.3 Basic safety measures 12
5.3.1 Working on the electric fittings 14
6DELIVERY, TRANSPORT, INSTALLATION AND ASSEMBLY.....................................................15
6.1 Delivery 15
6.2 Transport and installation 15
6.2.1 Installation and assembly 15
6.3 Instructions for disposal of packing material 16
6.4 Operating conditions 16
6.4.1 Requirements for the installation area 16
6.5 Requirements for the electrical connection 17
6.6 Requirements for the fresh water connection 18
6.7 Requirements for the waste water connection 19
6.8 Emergency-off 19
6.9 Chemicals for the operating the machine 19
7ADJUSTMENT OF THE MACHINES EFFECTED BY AUTHORISED SERVICE TECHNICIAN DURING
THE FIRST SETTING IN OPERATION............................................................................................20
7.1 Commissioning 20
8WASHING DISHES WITH THE DISH-WASHER.......................................................................21

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 3of 48
8.1 Operation panel 21
8.2 Preparation for washing 22
8.3 Automatic dosing 23
8.4 Refilling of detergent 23
8.5 Refilling with rinse aid 24
8.6 Refill of internal containers 25
8.7 Operation during washing cycle 26
8.7.1 Select wash program 27
8.7.2 Start the wash cycle 27
8.7.3 Remove the cleaned items 27
9SHUTTING DOWN THE MACHINE .......................................................................................27
10 CONFIGURATION LEVEL / SERVICE LEVEL ...........................................................................28
10.1 User - Configuration level 28
10.2 Service level dosing system 29
11 CLEANING INSTRUCTIONS –DAILY .....................................................................................30
12 MAINTENANCE AND CARE .................................................................................................31
12.1 Care, general 31
12.2 Care of stainless steel surfaces 31
12.3 Descaling 31
12.4 Dimensions, technical data, installation instructions 31
12.5 Machine weight 32
13 STAFF TRAINING................................................................................................................32
14 OPERATING ERRORS..........................................................................................................33
14.1 Self-help in case of faults 33
15 M-ICLEAN REPORTING LIST FOR OPERATORS .....................................................................34
16 WASH PROGRAMS ............................................................................................................38
17 ALLOCATION TABLE OF WASH PROGRAMS ........................................................................41
18 MAINTENANCE, SERVICING ...............................................................................................41
18.1 Basic safety measures during normal operation 42
18.1.1 Before setting in operation - after maintenance and repair works 42
18.2 Dosing equipment 42
18.2.1 Change of products 43
19 MAINTENANCE MANUAL...................................................................................................43
20 DISPOSAL OF THE MACHINE .............................................................................................. 45

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 4of 48
21 NOISE EMISSION ...............................................................................................................45
22 NON-IONISING RADIATION................................................................................................46
23 ABBREVIATIONS ................................................................................................................46
24 INDEX................................................................................................................................46
25 NOTES...............................................................................................................................47

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 5of 48
1 Introduction and general instructions
Dear customer,
Thank you for your confidence in our products.
MEIKO, we are sure that they make your work a great deal easier and are of great
service to you.
If you follow the instructions in this document carefully, your dishwashing machine
will always give you total satisfaction and will have a long service life.
The dishwashing machine was installed in our factory and completely checked.
This helps us make sure, and gives you the guarantee that you always receive a
mature product.
Therefore we ask you to study these operating instructions carefully at first.
Any further related operating instructions for accessories and incorporated
third-party products must be strictly observed!
These operating instructions are designed to familiarise the owner/operator of this
plant with its installation, modes of operation, use, safety instructions and servicing.
In the event of any damage caused by non-observance of these operating instruc-
tions, any guarantee claims are invalid. We accept no liability for any additional
damage caused as a result.
MEIKO operates a policy of continuous development on all its appliances.
As a result of this, please understand that we thus reserve the right to make
changes to the scope of supply concerning the design, equipment and technical
features at any time.
No claims may therefore be based on the details, the images or the descriptions
contained in these operating instructions.
Should you require any further information, or in case any particular problems not
dealt with in great detail in the operating instructions should arise, you may contact
the relevant MEIKO branch to obtain the information you require.
Further, we draw your attention to the fact that the content of these instructions
makes not part of a former or existing agreement, promise or legal relationship and
does not modify such a point.
All obligations of MEIKO result out of the resp. sales contract, which also contains
the complete and only valid warranty regulation. The contractual warranty regula-
tions are neither extended nor limited through these instructions.
The operating instructions must exist in the local language for each EU country. If
this is not the case, the dishwashing machine must not be commissioned.
The original operating instructions in Germany, and all operating instructions in all
languages for EU countries can be downloaded from the following address:
https://partnernet.meiko.de
The complete technical documentation is issued to you free of charge. Additional
copies will be charged at cost.
MEIKO wishes you much pleasure and success!
© 2013 MEIKO Maschinenbau GmbH & Co.KG
All rights (including photo-mechanical reproduction and storage on electronic me-
dia) reserved to MEIKO Maschinenbau GmbH & Co KG. Any commercial use or
distribution of texts, illustrated models, drawings and photographs within this prod-
uct is not permitted. It is not permitted to reproduce, save, transfer, reflect or trans-
late the operating manual, either in parts or on a whole, using any medium.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 6of 48
1.1 Safe keeping
Keep this operating manual in the vicinity of the dishwashing machine in a location
that is easily accessible to all users.
1.2 Name and address of manufacturer
In case of further questions or technical problems, contact directly:
MEIKO Maschinenbau GmbH & Co. KG
Englerstraße 3
D - 77652 OFFENBURG
Phone + 49 (0)781 / 203-0
http://www.meiko.de
[e-mail]
or:
Name and address of the MEIKO branch, manufacturer’s agent or
from MEIKO authorised service partners.
(Enter company’s stamp or address)
1.3 Authorization for service technicians of our service part-
ners
MEIKO exclusively authorises authorised service partners for commissioning, in-
ductions, repairs, maintenance, assembly and installation of the corresponding
product groups within MEIKO devices.
1.4 Designation of machine type
Please provide the following information on any query and/or when ordering spare
parts:
Type: …………………………………………….
SN : …………………………………………….
: …………………………………………….
This information can be found on the plate.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 7of 48

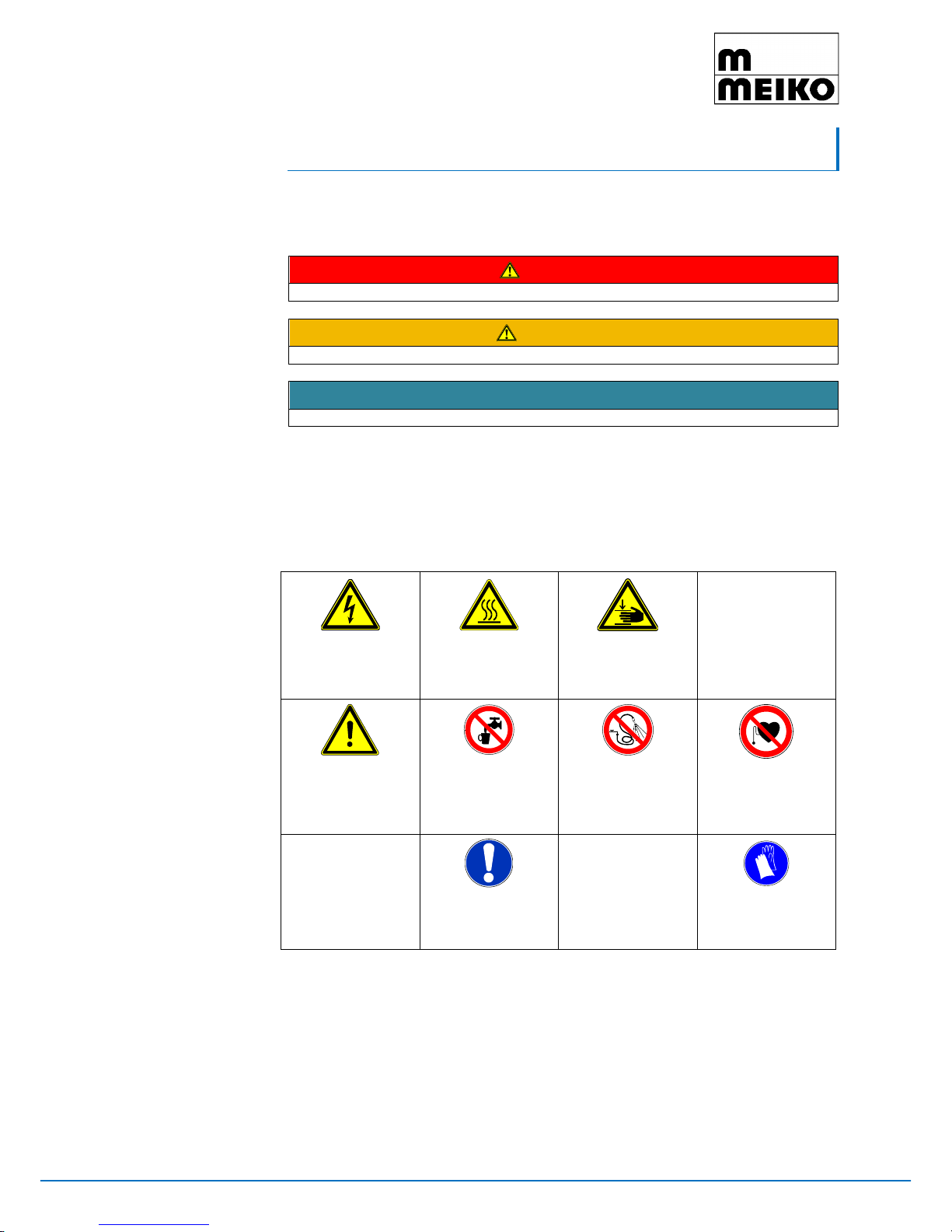

2 Explanation of the safety symbols used
The following safety symbols will appear throughout these operating instructions.
These symbols are designed to draw the reader's attention to the text next to the
safety instructions.
DANGER
Refers to a dangerous situation which results in death or serious bodily injury.
WARNING
Refers to a dangerous situation which can result in death or serious bodily injury.
NOTE
Refers to a situation which can result in damage to property.
2.1 Graphic reference symbols
The following notes and risk symbols can occur wholly or in part in the operating
manual and on the machine. These symbols (or symbols on the machine) must be
observed without fail!
The symbols have the following functions:
Caution!
Electric shock!
Danger of
scalding/burning!
Hot surfaces!
Caution!
Hand injuries!
Caution!
Heavy loads!
Danger!
For installation, materi-
al, environment, life
and health of persons!
Non-potable water!
No splashing water!
Access prohibited for
persons with pace-
makers!
Application information
and other useful infor-
mation
Information! For a
better understanding!
Use safety glasses!
Wear protective gloves!

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 8of 48
3 General description and use for the purpose in-
tended
3.1 General description
Dishwasher with a square basket.
The Dishwasher has one wash and one final rinse cycle.
The temperature regulator maintains the wash temperature of 58-60 °C. A centrifu-
gal pump circulates the water out of the cleaning tank into the clean nozzles. The
water jets reach the items to be cleaned out of differing directions. Therefore an
even cleaning result can be guaranteed.
The cleaning cycle is followed by the fresh water final rinse. The items are rinsed
via a separate nozzle system with hot fresh water at 80 - 83° C (for glass pro-
gramme 65 °C). Thus heating up the items for the following drying process.
At the same time the final rinse water serves for the regeneration of the wash wa-
ter, the level of soil of the wash water thus being reduced.
3.1.1 Detergent dosing
The detergent dosing unit (option) is designed for the automatic adding of liquid,
alkaline detergent into the wash water (manually adding of detergents is not re-
commended).
The detergent is transported out of the container into the clean tank by means of a
hose line. The dosing equipment is self-priming. Dosing occurs during each filling
cycle and at the beginning of each program cycle via timer control.
Normally, a dosing of approx. 2 ml of detergent per liter of tank water is the correct
concentration. This can be increased/reduced acc. to the water quality, items to be
washed and degree of soiling to 5 ml/l or to1 ml/l.
3.1.2 Rinse aid dosing
The rinse aid dosing unit is designed to automatically add liquid final rinse aid into
the fresh water.
The rinse aid is pumped out of the storage container into the fresh water supply
line through a hose. The dosing equipment is self-priming. Dosing takes place dur-
ing each filling cycle.
The correct dosing results in a smooth, even water film.
In case of overdosing, there are bubble and stripe formations - reduce dosing.
In case of under-dosing, water drops remain on the washed items - increase do-
sing.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 9of 48
3.2 Intended use
The dishwashing machine must be used according to it’s purposes only.
This dishwashing machine is for cleaning dishes, cutlery, glassware, kitchen uten-
sils, baking trays and containers only.
Where applicable, other special dishware are described in the order confirmation.
The items to be washed must be suitable for industrial dishwashing.
In case of doubt, an agreement (size, version, basic suitability of dishwashers) can
be made with MEIKO concerning the suitability ([email protected]).
Any other use is not considered intended.
This dishwashing machine is intended solely for use in a commercial environment.
The intended use of the dishwashing machine specifies that qualified and instruct-
ed personnel operate the machine only!
Qualified personnel must be older than 14 years of age. Personnel must have been
adequately qualified, instructed and authorised by the operator!
3.3 Foreseeable use
The dishwashing machine must not be used for the following foreseeable uses:
Kitchen utensils that are equipped with electric components.
Textiles, oven cloths or steel sponges.
Utensils that must not come into contact with foodstuff, such as ashtrays,
candlesticks, etc.
Living creatures
Foodstuff intended for consumption
Iron utensils
Support grids of cooking hobs / gas hobs
Wash ware that is not dishwasher-proof

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 10 of 48
4 EC declaration of conformity
Muster / Example / Exemple / Esempio / Ejemplo / Voorbeeld
EG-Konformitätserklärung
EC Declaration of Conformity / Déclaration de conformité CE / Dichiarazione di conformità CE / Declaración de conformidad CE / CE-conformiteitsverklaring
Firma / Company / Société / Ditta / Empresa / Fabrikant
Adresse / Address / Adresse / Indirizzo / Dirección / Adres
MEIKO Maschinenbau GmbH & Co. KG
Englerstraße 3
77652 Offenburg
Germany
Kontakt
Contact / Contact / Contatto / Contacto / Contact
Internet: www.meiko.de
E-mail: [email protected]
Telefon: [phone]
Auftrag Nr.
Order no. / No. de commande / No. d’ordine / No. de pedido / Opdracht nr.
Spülmaschine Typ
Dishwasher model / Lave-vaiselle modèle / Lavastoviglie modello / Lavavajillas modelo / Vaatwasmachine model
M-iClean US
M-iClean UM
M-iClean UM+
M-iClean UL
Konformitätserklärung
Declaration of Conformity / Déclaration de conformité / Dichiarazione di conformità / Declaración de conformidad / Conformitetsverklaring
Hiermit bescheinigen wir in alleiniger Verantwortung die Konformität des Erzeugnisses mit den grundlegenden Anforderun-
gen der folgenden EG-Richtlinien, harmonisierten Normen, nationalen Normen.
We hereby declare at our sole responsibility that the product conforms to the essential requirements of the following EC Directives, harmonized stand-
ards, national standards.
Par la présente nous certifions sous notre seule responsabilité la conformité du produit avec les exigences fondamentales des directives CE,
normes harmonisées et normes nationales suivantes.
Con la presente dichiariamo sotto la nostra responsabilità la conformità del prodotto con i regolamenti basilari delle seguenti direttive CE,
normative armonizzate e normative nazionali.
Por la presente declaramos bajo nuestra sola responsabilidad que nuestros productos están en conformidad con las exigencias básicas de las siguientes
directivas de la CE, normas homologadas y normas nacionales.
Hiermee verklaren wij onder geheel eigen verantwoordelijkheid de conformiteit van het product met de fundamentele en gestelde eisen volgens
EG-richtlijnen, geharmoniseerde normen en nationale normen.
EG-Richtlinie / EC Directive / Directive CE / Regolamento CE / Directiva CE / EG-richtlijn
2006/42/EG / 2014/30/EU
Dokumentationsbevollmächtigter
Viktor Maier
Responsible for documentation / Responsable de la documentation / Responsabile della docu-
mentazione/ Responsable de la documentación / Voor deze documentatie verantwoordelijk
MEIKO Maschinenbau GmbH & Co. KG
Englerstr. 3 - 77652 Offenburg - Germany
MEIKO Maschinenbau GmbH & Co. KG
ppa.
(per procura)
Dr. Thomas Peukert
Leiter Entwicklung und Konstruktion
Head of Development-Design / Responsable Développement-Construction / Direttore Sviluppo-
Costruzione / Jefe de la sección de desarrollo y diseño / Chef Ontwikkeling-Constructie

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 11 of 48
5 General safety instructions
HINWEIS
The following safety instructions are for your protection as well as the protection of
others and the dishwasher. Compliance with them is therefore absolutely necessa-
ry.
5.1 Operator’s duty of care
This machine has been constructed and designed based on a risk assessment and
careful selection of the applicable harmonised standards, as well as additional
technical specifications.
It is therefore state of the art and guaranteed to provide maximum safety. Safety
can only be guaranteed during operation if all necessary measures are taken.
The operator’s duty of care comprises the planning of these measures and the su-
pervision of their observance.
5.2 Measures to ensure safe machine operation
The operator must especially make sure that...
the dishwashing machine is only used in accordance with the regulations.
in case of other use or operation, damage or risks may arise for which we ac-
cept no liability (cf. chapter "Intended use").
in order to preserve the operational and safety guarantees, whenever re-
quired, only original parts supplied by the manufacturer are used. The user
loses all evtl. claims if the system was altered with others than original spare
parts.
the safety of the dishwasher is not impaired by the subsequent installation of a
dosage facility.
only appropriately qualified and authorized personnel use, maintain, and re-
pair the installation.
no one sits or stands on the open door.
the relevant personnel is regularly trained in all questions relating to safety at
work and environmental protection and, in particular, that they are familiar with
the operating instructions as well as with the safety information provided in
them.
the dishwasher is only operated in a perfect, operationally efficient condition
and, in particular, that the safety systems and switch elements are checked on
a regular basis for their operational efficiency.
machines accessible only from behind may be operated only with rear panel
cladding.
the required personal protective equipment is made available to maintenance
and repair personnel, and is worn by them.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 12 of 48
a functional test on all safety systems of the dishwashing machine is carried
out during every regular maintenance.
all the safety, warning and operating instructions provided are not removed
and are legible.
any necessary regular checks on supply parts are carried out. More detailed
information, if required, can be found in the relevant operating instructions.
after the installation, setting in operation and handing-over of dishwashing
machine to the customer/operator further modifications are not allowed (f. ex.
electrical changements or changements reg. location). Any modifications to
the dishwashing machine without the written approval of MEIKO or undertak-
en by unauthorized persons will invalidate any right to claim and product liabil-
ity.
equipment for optimising energy consumption must not be used to reduce es-
sential operating temperatures, as set out in DIN 10510, 10511 and 10512. If
you, the client, install equipment for optimising energy consumption, any pos-
sible reduction in the quality of the wash and hygiene is your responsibility.
5.3 Basic safety measures
DANGER
Risk of injury due to electric shock, damage to property.
Parts carrying electric current as well as moving or rotating parts can cause
dangers to the user’s life and limb and material damage.
Danger can arise from the improper use of the machine or if it is used for pur-
poses for which it was not intended.
The machine may only be operated by adequately qualified staff who have been
trained by the operating company and who have been trained about the Hazard
and Safety Instructions.
When electrical equipment is in operation, it is inevitable that certain parts carry
a dangerous current.
The entire washing machine must be de-energised and locked against switching
back on before opening washing machine cover panels or electrical equipment.
PLACE THE MAIN SWITCH IN THE “OFF“ POSITION and install suita-
ble security measures to prevent the switch from being switched on.
Works or repairs on electrical parts of the machine are to be performed only by
specialists. Observe accident prevention rules.
The machine may be used again only after all cover panels have been installed
by the user of the machine.
Qualified staff, as defined by the operating instructions, are persons:
–who are over 14 years of age,
–who have read and who observe the safety instructions and the operating
instruction,

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 13 of 48
WARNING
Danger of scalding/burning!
Avoid all contact with the rinse water The machine is working with hot water.
Danger of scalding as a result, the dishes etc being washed are at high temperature.
Please observe appropriate protective measures.
NOTE
Damage to property
The machine, switch cabinets and other electrical components must NOT be sprayed
with a hose or a high pressure cleaner!
Avoid flooding the base of the machine to prevent damage to components from pen-
etrating water!
The water in the wash-up area is non-potable and must not be used for food prepara-
tion!
The Dishwasher must not be used to transfer waste water from other sources into
the drain.
Observe all the instructions posted on the machine.
The dish-washer may only be operated under the supervision of trained personnel.
If you are unsure about the operation of the dishwashing machine, the machine
must not be used.
Doors and flaps must always be close.
NOTE
Wear suitable work clothing
Loose clothing and jewellery increases the risk of being caught on protruding parts.
Wear closely fitting work clothing.
Do not wear rings, necklaces, or other pieces of jewellery.
Wear secure, suitable shoes.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 14 of 48
WARNING
Danger of scalding/burning!
The tank heating element may still be hot after the tank has been emptied. There is
therefore a risk of burning or scalding when the machine is cleaned manually!
Please observe appropriate protective measures.
Only detergents and rinse agents that are specifically designed for commercial
dishwashers are to be used.
Ask the product vendors for details, if in doubt.
Detergents and rinse agents can be injurious to health.
Observe the manufacturers' safety rules on the original packing and safety data
sheets.
On completing operation, switch off the machine completely using the local circuit
breaker.
WE ACCEPT NO LIABILITY FOR DAMAGE OR INJURY ARISING
FROM FAILURE TO OBSERVE AND ABIDE BY THESE SAFETY
INSTRUCTIONS!!!
5.3.1 Working on the electric fittings
DANGER
Risk of injury due to electric shock
Any work or repairs to the electrical equipment on the dishwasher should only be
conducted by a qualified electrician!
Electric fittings must be regularly checked!
Fix loose connections!
Damaged lines/cables must be immediately replaced!

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 15 of 48
6 Delivery, transport, installation and assembly
6.1 Delivery
NOTE
Check that the delivery is complete immediately after receiving it by comparing it to
MEIKO’s contract confirmation and/or the delivery note.
If necessary, complain about any missing parts immediately to the shipping company
and notify MEIKO.
Check the entire installation for any damage that may have occurred during shipping.
In the event of any transport damage, please inform MEIKO immediately in writing,
and also send a photo of the damaged parts to us.
6.2 Transport and installation
WARNING
Risk of injury caused by heavy loads!
In order to avoid damaging the dishwashing machine and causing serious injury dur-
ing transport, the transport procedures should only be carried out by qualified per-
sonnel in accordance with the safety instructions.
Read the chapter "General safety instructions".
The machine must only be trans-
ported on the supplied wooden
frame. The packing is specifically
designed to allow the appliances
to be moved safely and securely
using a pallet jack or a sack truck.
For safe transport, the machine is supported by a special square-timber
frame.
Observe transport instructions on the packing.
Handle with care.
Unpack the machine.
6.2.1 Installation and assembly
MEIKO created a standard drawing that features machine dimensions as well as
connection and consumption values.
The system must be installed as per the information in the installation drawing. It
m u s t be installed by a licensed and authorised technician.
We decline any responsibility for damages caused by incompetent connections.
Dishwashing machine installation steps:
The complete unit must be levelled in both directions using a water level.
Compensate for an uneven floor by adjusting the feet.
Table joints must be sealed with detergent-resistant sealing compound (e.g. sili-
cone).

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 16 of 48
Small quantities of steam may escape through the machine's door. For this reason,
furniture and equipment situated near the door must be protected.
6.3 Instructions for disposal of packing material
•The four-sided wooden frame consists of untreated, raw pine / spruce. Special
country-specific import regulations may also stipulate the use of wood which
has been treated against pests.
•The plastic sheeting (PE sheeting) may be recycled.
•The cardboard packaging material used to protect the edges can also be re-
cycled.
•The hoop-casing strip made of steel can be recycled together with the steel
scrap.
•The plastic tensioning strap of plastic (PP) can be recycled.
6.4 Operating conditions
It is assumed that the planning of the system, as well as installation, setting in op-
eration and maintenance works are executed by sufficiently instructed staff and
that these works are checked by responsible specialists. The details on the ma-
chine's type plate must match those of the standard drawing and the local connec-
tion conditions.
Conditions to be provided by the customer:
Frost free storage and installation area
Electrical connection in accordance with the technical sheet
Fresh water connection in accordance with the technical sheet
Waste water connection in accordance with the technical sheet
Anti-slip floor coverings should be provided around the dish-washing appli-
ance.
6.4.1 Requirements for the installation area
Ensure that the storage and installation area is permanently frost free.
The machine is only frost-proof in as-delivered state or if equipped with special fea-
tures (option: frost drainage).
If the machine is installed in an area where the surrounding temperatures are be-
low 0° C, water freezing inside the machine damage the internal water circuit com-
ponents (pump, solenoid valve, boiler, etc.).

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 17 of 48
6.5 Requirements for the electrical connection
DANGER
Risk of injury due to electric shock!
Work on the electrical machine components may be undertaken by specialist electri-
cians only.
When connecting the power supply line to the machine, observe the general electri-
cal regulations
The relevant wiring diagram is available behind the front panel of the dishwashing
machine. This wiring diagram must remain in the dishwashing machine!
The type plate featuring electrical connected loads is available twice, 1 x visible from
the outside and 1 x behind the front cover panel.
The customer must guarantee the following points relating to the connection:
The correct voltage and type of current must be available
The power supply must be fused according to regulations with a mains separator in
the permanently wired electrical installation.
If an unearthed neutral (N) is used with alternating current, the power disconnection
device must have 4-poles (with alternating current 2-poles).
The machine must be connected to a potential equalisation system!
If the neutral line (N) is not earthed, you must use a 4-pin master switch. Mains con-
necting leads must be oil-resistant, shielded cables no lighter than an H 07 RN-F ca-
ble.
For connection to three-phase current a 5-pole terminal strip (L1, L2, L3, N, PE)
must be used.
Electricity supply without neutral conductor (N): when connecting to three-phase cur-
rent, use a 4-pole clamping strip (L1, L2, L3, PE).
Conductor colours: live conductor L1 = black/1, L2 = brown/2, L3 = gray/3, neutral
conductor N = blue/4, ground wire conductor PE = green-yellow.
The potential equalisation connection must be carried out in accordance with the
requirements of the local electricity supply company and all applicable local regula-
tions (in Germany VDE 0100 Part 540 must be observed).
The products are intended for permanent connection to the on-site power supply and
have been tested for the market accordingly. Any other form of electrical connection
is to be established by a licensed electrician.
Do not connect any additional consumers to the fuse protecting the machine.
Re-tighten all terminal fixing screws before the setting in operation.
Note for frequency converter
Where VDE 0160 / EN 50178 applies, there is a requirement that in areas of electri-
cal equipment where line-side residual current protective circuit breakers (FI) are
planned or installed, an FI type B device sensitive to all types of currents must be in-
stalled before/instead the FI type A.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 18 of 48
Note to customers/
Dishwashing machines, bedpan rinsing units and systems are intended for fixed,
electrical power supply installation as well as connection to the locally available
equipotential bonding and have been equipped with a corresponding connection
option.
Operators may decide at their own discretion and responsibility to implement per-
sonal protection in locally available services in collaboration with a specialist elec-
trician registered at the corresponding energy supplier using the following:
AC/DC sensitive fault current protection switch with at max. 30mA EN 62423
or
Automatic shutdown of the supply in the event of loss of protective earth
conductor conductivity (EN 60204-1, Section 8.2.8.c)
Only for USA & Canada
The dishwasher shall be installed in accordance with local codes. In absence of
local codes, the dishwasher shall be installed in accordance with the applicable
requirements in the National Electrical Code, NFPA 70, Canadian Electrical
Code (CEC), Part1, CSA C22.1, and Standard for ventilation Control and Fire
Protection Cooking Operations, NFPA 96.
6.6 Requirements for the fresh water connection
The fresh water connection must be effected as per EN 1717 or local regu-
lations.
The basic model of the dishwashing machine features a freely available outlet
(type AB as per EN 1717) and does not require any other safety equipment in
the water supply.
The safety equipment in the water supply must be implemented according to
EN 1717 for dishwashing machines featuring water treatment.
The requirements of the clean water supply in the accompanying GiO module op-
erating instructions must be observed for machines equipped with the GiO module.
The minimum flow pressure of the fresh water supply upstream of the solenoid
valve must be 0.6 bar, and 1 bar on machines with a GiO module. The maximum
pressure must not exceed 5 bar.
If the minimum flow pressure is not reached, increase the flow pressure
with a booster pump; if the maximum pressure is exceeded, limit it with a
pressure reducer.
A water stop is integrated into the machine's fresh water line. This, togeth-
er with the leakage detector in the base tub, ensures that the fresh water
inlet within the machine is shut off in the event of a leak.
Suitable protective measures must be taken to ensure that no iron particles
can enter the appliance via the mains water supply. Similarly, precautions
must be taken to prevent the entry of other metal particles, for example
copper turnings. Corresponding instructions are contained in the installa-
tion drawing. Appropriate measures must be taken.
A dirt trap must be fitted into the fresh water supply to protect the solenoid valve.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 19 of 48
6.7 Requirements for the waste water connection
A waste water pump is integrated in the waste water line (further infor-
mation about this is in the technical sheet).
The drain hose must be connected to the waste water pipe in the building.
A grease trap may be needed, depending on the machine application.
The requirements of the waste water supply in the accompanying GiO
module operating and service manual must be observed for machines
equipped with a GiO module.
6.8 Emergency-off
Switch the machine off completely via the on-site circuit breaker.
6.9 Chemicals for the operating the machine
Only alkali detergents and acid rinse agents suitable for use in commercial dish-
washers may be used. Relevant information is provided by the manufacturers of
these products.
MEIKO recommends brand cleaning products from leading manufacturers.
cleaning and hygiene products are an excellent choice.
Using unsuitable products can considerably reduce the service life of the dosing
units and other machine components. Observe the manufacturers' dosing instruc-
tions.
Detergents and rinse aids can present a health hazard if they are not correctly
used. Please observe the manufacturers’ instructions on the original packing and
on the safety data sheets.
"Items for rinsing are tribologically influenced in particular by chemicals and in-
creased temperatures during the process, as well as mechanical stresses caused
by handling and transporting."
If a descaling agent is used, please strictly observe the manufacturer’s handling
and safety instructions. After such an agent has been used, the product must be
completely removed from the machine, as even small residues are capable of
destroying plastic parts and sealing materials.
Chemical product settings
The correct settings for the quantity of detergent and rinse agent depend on the
product used. The relevant chemical supplier can install the correct setting.

Operating instructions Glass-, Dish- and Utensilwashing machine
M-iClean
9712938 We reserve the right to change execution and construction!
Page 20 of 48
7 Adjustment of the machines effected by author-
ised service technician during the first setting in
operation
7.1 Commissioning
Commissioning and training will be handled and provided by MEIKO- authorised
service technician. The operator must not use the machine before completing train-
ing.
To avoid damages or dangerous injuries during the setting in operation of the
dishwashing machine, please observe the following points:
Any required initial inspections on supplied parts, such as external water treatment
units are mandatory. More detailed information, if required, can be found in the rel-
evant operating instructions.
WARNING
Risk of injury, damage to property!
Due to inappropriate working with the dishwashing machine.
The chapter "General safety instructions" must be read and understood by all per-
sons who will operate or make service, resp. repair works on the machine.
Before the first start, check if all tools and foreign parts are removed out of the in-
stallation.
Make sure that any liquid spills have been removed.
Activate all the safety systems and door switches before commissioning.
Check that all screw connections are tight.
If the machine display does not light up on initial commissioning (no boot, icon
such as the MEIKO logo is not lit) check circuit breaker F1 (line circuit breaker).
Read the chapter "General safety instructions".
The "Commissioning certificate for GiO modules" must be observed for machines
equipped with a GiO module and the instructions adhered to accordingly.
