INSTRUCTIONS FOR USE
This parts manual describes the configuration of the part components of the product and is intended only to assist to
order spare parts for maintenance work
This manual contains no safety information for operating the product or maintenance work. Please observe the
safety instructions described in the relevant operation manual.
The illustrations shown in this manual is not appropriate for workshop instructions, so they should not be used for
assembling or disassembling the product. Please refer to the workshop manual for that purpose.
Use Everdigm genuine parts only.
Warranties do not cover damages that have been caused or aggravated by use of non-genuine parts.
For product warranty, please refer to the warranty conditions provided separately.
The illustrations in this manual show only the overall shapes and positions of the part components so they may not
be identical with the actual parts.
For the purpose of continued product improvement, some information in this manual could be changed without prior
notice, and might be differ from your product which was not covered by this publication.
If you found the information that is unclear or not corresponding with the actual product, contact Everdigm or
Everdigm distributor.
How to use this parts manual:
<Example>
RX-20 –CYLINDER UNIT
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+
X123-9001
Cylinder Unit
2
1
X123-1001
Cylinder Housing
1
2
X123-9002
Rod Cover Ass’y
1
3
X123-1002
-Rod Cover
-1
~199
[R X123-1002A]
X123-1002A
-Rod Cover
-1
200~
4
A456-2001
-Slide Seal
-2
[K1]
4-1
A456-2002
--Seal Ring
--1
[K1] [D]
4-2
A456-2003
--O-Ring
--1
[K1] [D]
5
A456-2004
-Dust Wiper
-1
[K1]
6
X123-1003
Rod
1
7
X124-1005
Piston
1









1. Model name: Identification name of the product
2. Title: Title name of the assembly shown in the page
2
1
3
4
5
6
7
8

- 3 -
3. Item: Key number which shows the referring number of the part in corresponding illustration.
For a revised part which replaces the old one with same item number, the item is not shown.
Item numbers are not always in sequence.
+..... Represent the title assembly containing the entire part in the illustration.
* with the same item number..... Represent selectable parts depending on product version.
4. Part No.: Identification number of the part or assembly.
The part number might be omitted when the part cannot be supplied separately.
5. Part Name: Part name of the part.
The parts without a prefix in front of the part name are independent component parts or
subassemblies belong to the title assembly in corresponding list.
Prefix ‘-‘…. The parts marked with the prefix ‘-‘in front of the part name are component parts
belong to the subassembly shown above of the rows of these parts.
Prefix ‘--‘… The parts marked with the prefix ‘--‘are component parts of the ‘-‘marked
subassembly containing these parts.
6. Qty: Quantity used for one unit of their parent assembly containing the parts.
When the quantity of the title assembly is blank, refer to the page shown with ‘►’, but when it is
not blank, it represents the quantity used for one unit of the product.
For the parts with the prefix ‘-‘or ‘--‘in front of their part name, the quantity is expressed with that
prefix.
AR…As many as required (variable quantity depending on the product)
7. S/N: Serial number of the product which those parts are applied
Parts without serial no. indications are used in every product regardless of serial number.
8. Remarks: Supplementary comment. Refer to the following for the code within [ ].
A….. The parts with this code can be used interchangeably with each other.
R….. The part with this code is no longer manufactured as a result of a revision and replaced by
the new part whose part number follows this code.
K….. The part with this code is contained in the service kit whose item number follows this code.
D….. The part with this code cannot be supplied separately. The assembly part containing this
part should be ordered.
S….. Non-standard part which can be supplied by separate order
How to order parts:
Please note the full model name and serial number of your product. This code can be found on the nameplate of your
product. Compare the parts to order with the corresponding parts in the drawings in this parts manual and note the part
numbers to order.
When ordering parts, please specify detail part names as shown in the following example,
Model name of product: RX-20
Serial number: 135
Part No.: A123-4567
Part name: Pin
Quantity: 2
Purchaser’s name & address: . . . .

EHP22A (E)-r0/200925
- 4 -
TABLE OF CONTENTS
INSTRUCTIONS FOR USE.....................................................................................................................................2
Pulverizer Ass’y........................................................................................................................................................6
Main Ass’y................................................................................................................................................................7
Speed-up Valve...................................................................................................................................................... 11
Cylinder Ass’y ........................................................................................................................................................13
Parts for Mounting..................................................................................................................................................15
Seal Kit...................................................................................................................................................................17
Shims.....................................................................................................................................................................18
Maintenance Tool Kit..............................................................................................................................................19
Notes .....................................................................................................................................................................21
© 2020 Everdigm Corp. All rights reserved.
This manual is copyrighted by Everdigm Corp. with all rights reserved in accordance with prevailing law. It is positively
prohibited to use or reproduce its contents in whole or in part without prior written permission.

EHP22A (E)-r0/200925
- 5 -
BLANK PAGE

EHP22A (E)-r0/200925
- 6 -

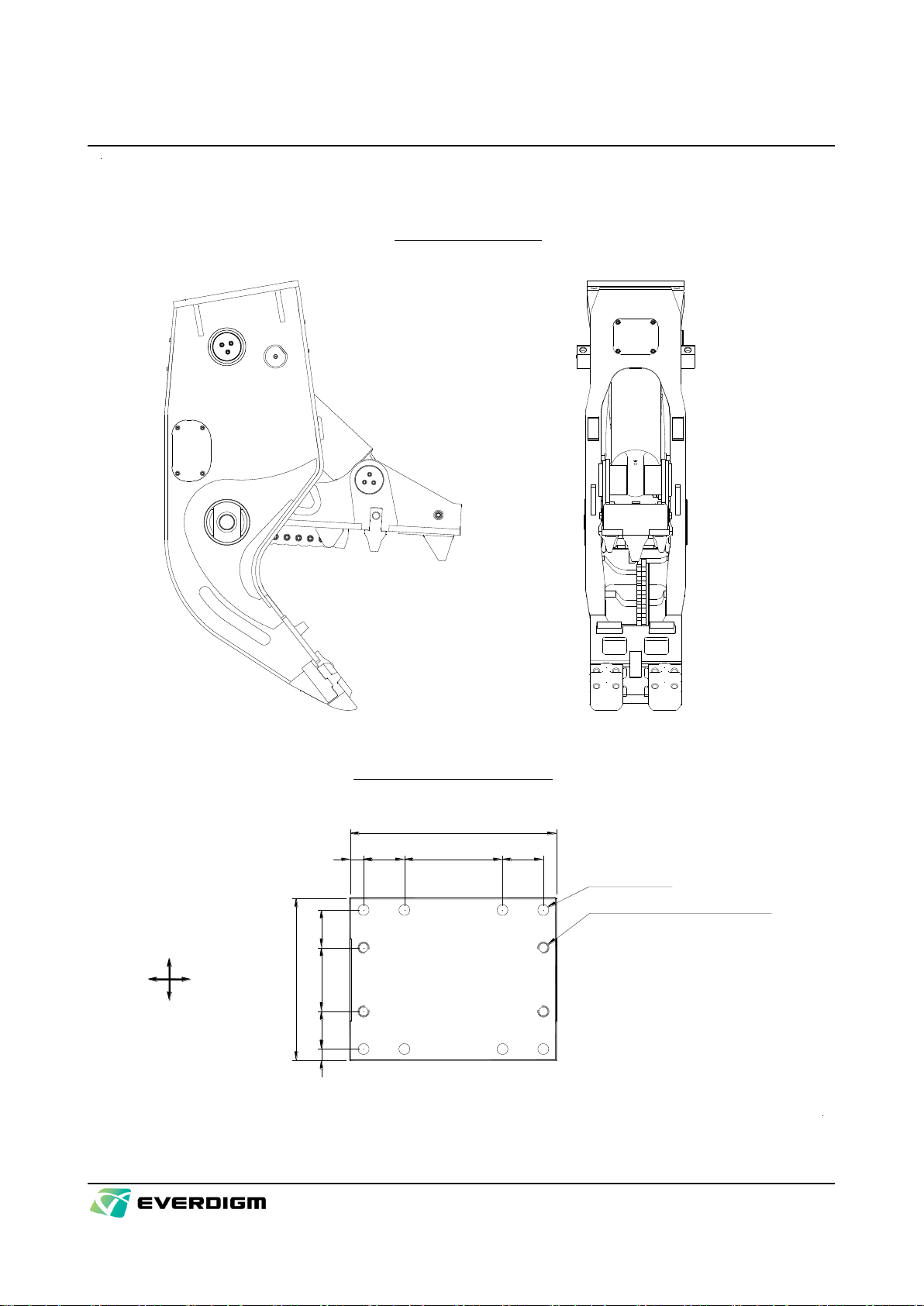

EHP22A –Pulverizer Ass’y
22A-MTG1-1
4-M30x3.5 Threaded Holes
8-33 Holes
Mounting Dimensions
650
50 125 300 125
495
35 115 195 115
Direction of
carrier stick
(arm)
Direction of
mounting pins
Unit: mm
Pulverizer Ass'y

EHP22A (E)-r0/200925
- 7 -
EHP22A –Main Ass’y (1/2)

EHP22A (E)-r0/200925
- 8 -
EHP22A –Main Ass’y (1/2)
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
+
AP202-0001
MAIN ASS’Y
1
[R AP202-0001A]
+
AP202-0001A
MAIN ASS’Y
1
1
AP202-0002
BODY
1
[R AP202-0002A]
AP202-0002A
BODY
1
2
P202-5020
PIN COVER
1
3
AP202-0069
COVER PLATE
2
[R AP202-0069A]
AP202-0069A
COVER PLATE
2
4
AC202-0006
PIN ASS’Y
1
5
AP202-0068
BUSH
2
6
C300-4602
CUTTER BLADE
3
7
C300-4711Do
SHIM
AR
8
P202-5043
LOCK PIN
2
9
P202-4013B
TOOTH; Front
2
[R P202-4013C]
P202-4013C
TOOTH; Front
2
10
S5010713
PLAIN WASHER
16
11
S5100711
SPRING WASHER
24
12
S2215261
SOCKET BOLT
22
13
AP202-0070
PIN
1
14
A015-0003D30
DISK LOCK WASHER
4
15
S2239371
SOCKET BOLT
4
16
A015-0003D016
DISK LOCK WASHER
6
17
S2221461
SOCKET BOLT
6
18
AC202-0007
COVER
1
[R AC202-0007A]
AC202-0007A
COVER
1
19
S5110911
SPRING WASHER
9
20
S2221563
SOCKET BOLT
9
21
AP202-0072
COVER PLATE
2
[R AP202-0072A]
AP202-0072A
COVER PLATE
2
22
AP202-0071
PIN
1
23
S6710042
GREASE NIPPLE
1
24
2124-1509D002
CLIP
2
25
S5100513
SPRING WASHER
2
26
S0108663
HEX BOLT
2
27
H001-0016D453
HOSE
1
28
H002-0014D001
ELBOW
2
29
S8000111
O-RING
2
[K1]
30
S221527D
SOCKET BOLT
4
31
AP202-0075
PLATE
2

EHP22A (E)-r0/200925
- 9 -

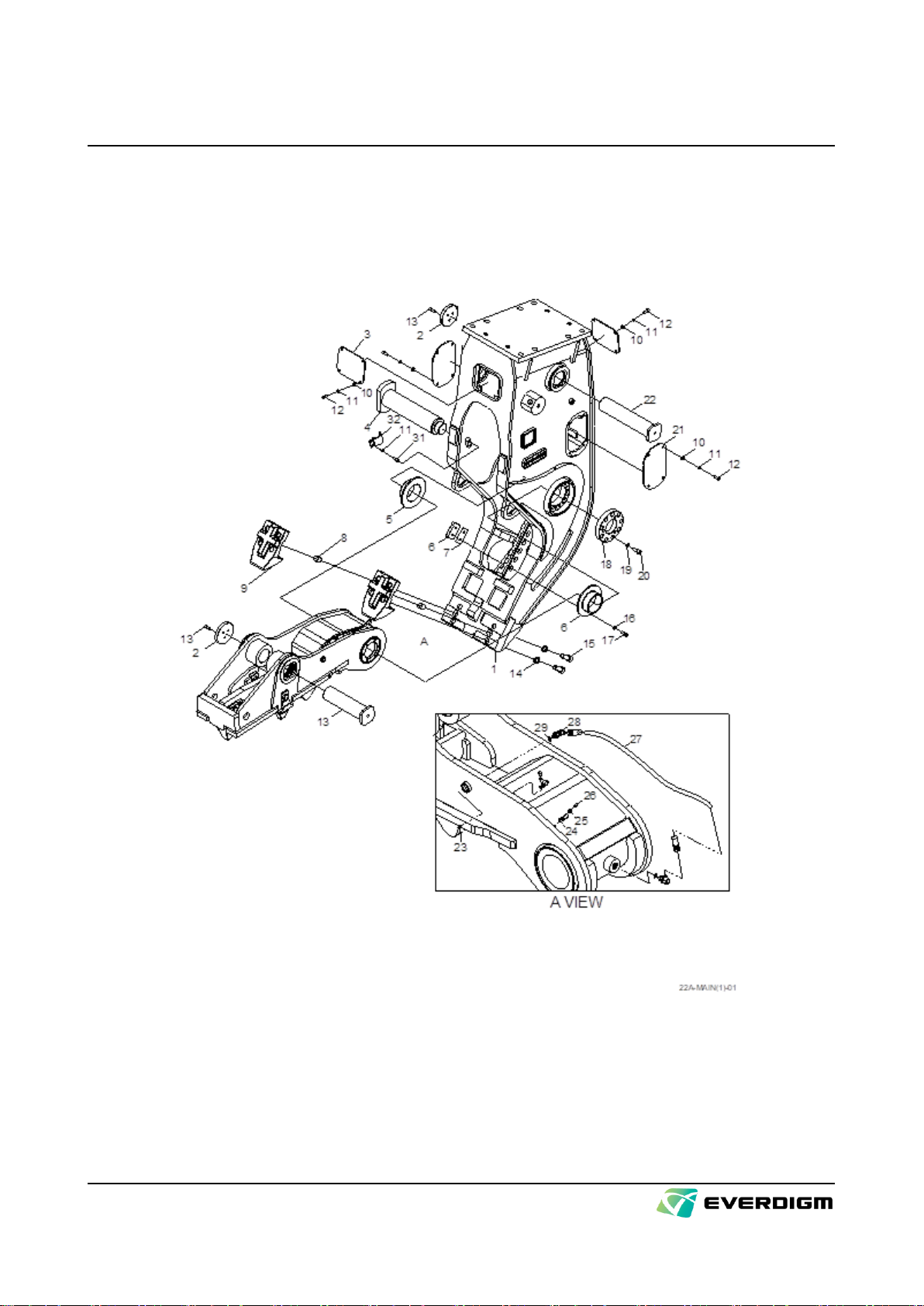

EHP22A –Main Ass’y (2/2)
16
27
26
2829
2
3
4
5
5
4
3
2
7
6
8
9
10 11
12
13
14 15
12
13
24
17 19 18 17
23 22
22
20
21
1
22A-MAIN(2)-01
25

EHP22A (E)-r0/200925
- 10 -
EHP22A –Main Ass’y (2/2)
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
+
AP202-0001
MAIN ASS’Y
1
[R AP202-0001A]
+
AP202-0001A
MAIN ASS’Y
1
1
AP202-0043
JAW ASS’Y
1
2
P202-5037
BUSH
2
3
2180-1106D022
DUST SEAL
2
[K1]
4
A035-0004Do
SHIM
AR
5
P202-5036
BUSH
2
6
C300-4711Do
SHIM
AR
7
C300-4602
CUTTER BLADE
3
8
A015-0003D016
DISK LOCK WASHER
6
9
S2221461
SOCKET BOLT
6
10
P202-4009B
TOOTH; Small
2
11
S0173171
HEX BOLT
2
12
S5101211
SPRING WASHER
3
13
S4013241
HEX NUT
3
14
P202-4011B
TOOTH; Large
1
15
S0173571
HEX BOLT
1
16
H001-0031D049
HOSE
1
[R H001-0031D050]
H001-0031D050
HOSE
1
17
A051-2192
O-RING
8
[K1]
18
S2215461
SOCKET BOLT
32
19
2181-9081
SPLIT FLANGE
16
20
H001-0031D049
HOSE
1
[R H001-0031D050]
H001-0031D050
HOSE
1
21
AP205-0061
CYLINDER ASS’Y
1
[R AP205-0061A]
AP205-0061A
CYLINDER ASS’Y
1
[R AP205-0061B]
AP205-0061B
CYLINDER ASS’Y
1
22
H001-0030D062
HOSE
2
[R H001-0030D066]
H001-0030D066
HOSE
2
23
AP302-0038
SPEED UP VALVE
1
24
S222277D
SOCKET BOLT
3
25
S5110911
SPRING WASHER
3
26
S8000111
O-RING
2
[K1]
27
H002-0012D006
ADAPTER
2
28
H001-0016D483
HOSE
1
[R H001-0016D484]
H001-0016D484
HOSE
1
29
S6710042
GREASE NIPPLE
1

EHP22A (E)-r0/200925
- 11 -

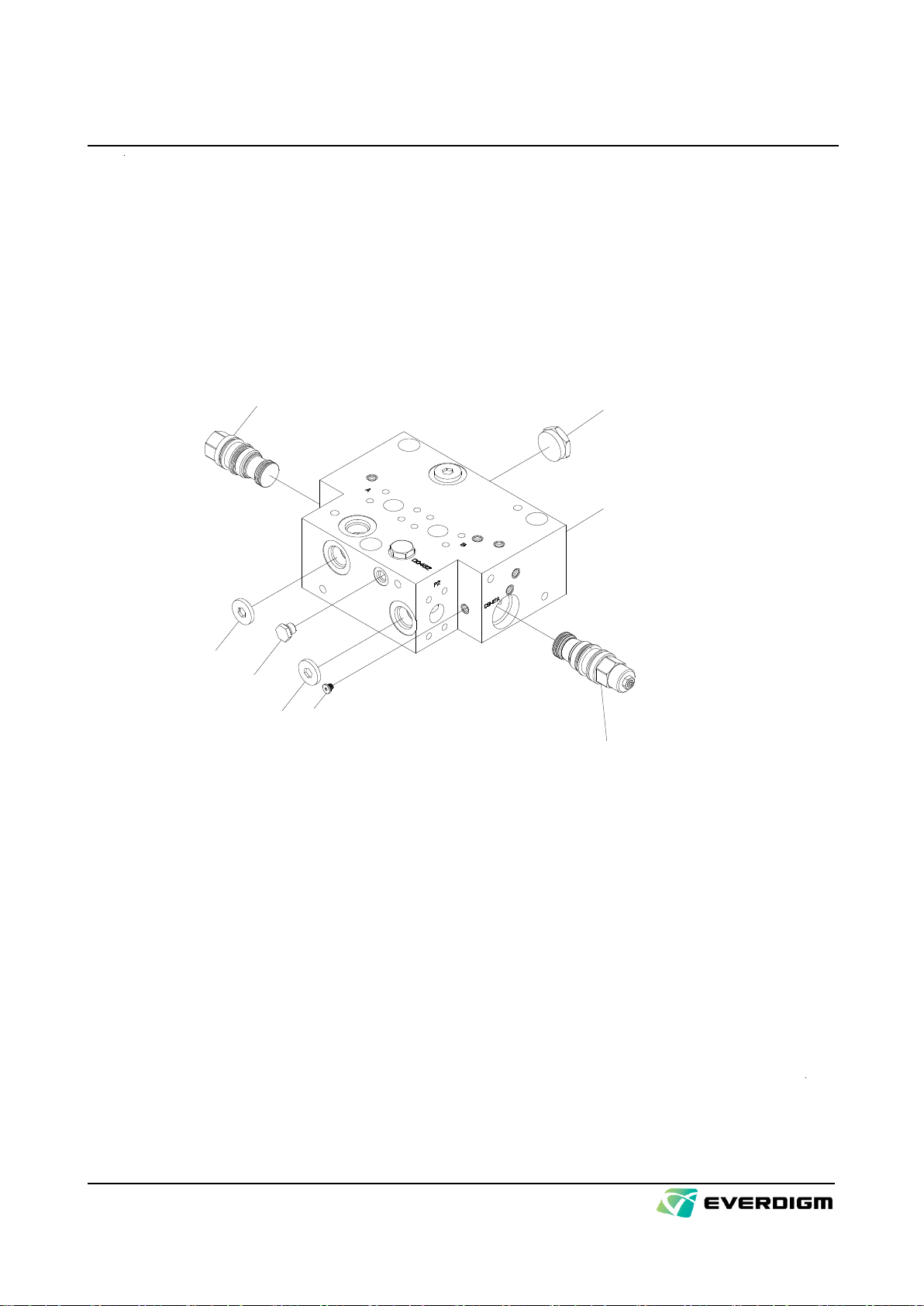

EHP22A –Speed-up Valve
22A-SPVV-1_01
1
2
4
5
68
7
6

EHP22A (E)-r0/200925
- 12 -
EHP22A –Speed-up Valve
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
+
AP302-0038
SPEED-UP VALVE
1
1
AP302-0039
VALVE BLOCK
1
2
AC202-0029
COUNTER BALANCE VALVE
1
3
AX000-1747
CAVITY PLUG
1
4
AC130-0087
CHECK VALVE
1
5
AC430-0080
PILOT CHECK VALVE
1
6
AC300-0216
PLUG
4
7
AC130-0130
PLUG
4

EHP22A (E)-r0/200925
- 13 -

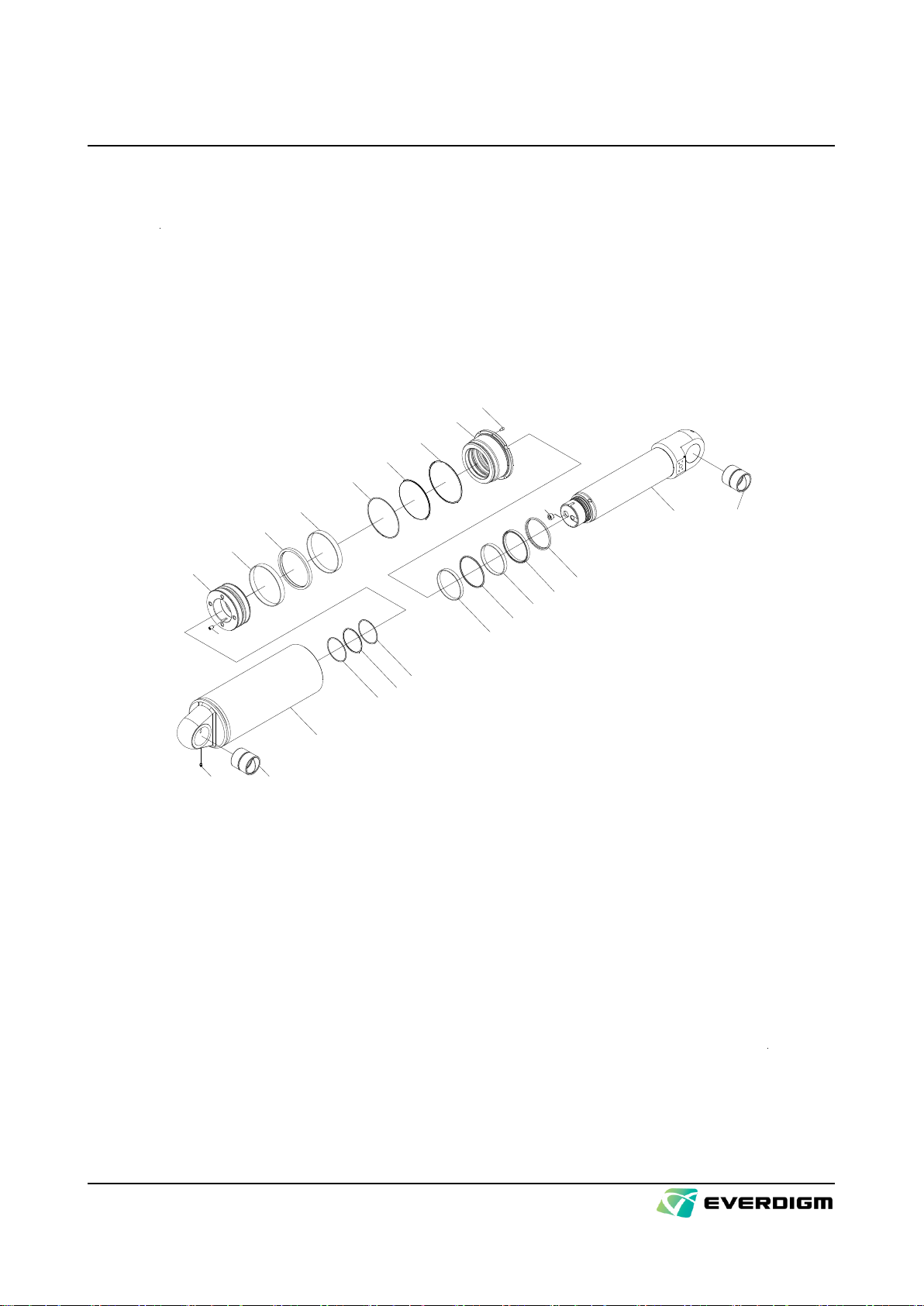

EHP22A–Cylinder Ass’y
4
33-CYLA-1_01
34
16 171615 14
1
29
9
5676
13 12 19 11
10
18
8
20

EHP22A (E)-r0/200925
- 14 -
EHP22A–Cylinder Ass’y
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
+
AP205-0061
CYLINDER ASS’Y
1
H101~H102
[R AP205-0061A]
+
AP205-0061A
CYLINDER ASS’Y
1
H103~H104
[R AP205-0061B]
+
AP205-0061B
CYLINDER ASS’Y
1
1
AP205-0062
TUBE ASS’Y
1
H101~H102
[R AP205-0062A]
AP205-0062A
TUBE ASS’Y
1
2
AP205-0066
ROD
1
H101~H102
[R AP205-0066A]
AP205-0066A
ROD
1
H103~H104
[R AP205-0066B]
AP205-0066B
ROD
2
3
S8001201
O-RING
1
[K2]
4
S8061200
BACK UP-RING
2
[K2]
5
AP205-0068
PISTON
1
6
A0590005
WEAR-RING
2
[K2]
7
A056-0025
PISTON SEAL
1
[K2]
8
2181-1116D005
PLUG
1
9
AP205-0067
BUSH
2
H101~H102
[R AP205-0067A]
AP205-0067A
BUSH
2
10
S3527707
STE SCREW
2
11
AP205-0065
ROD BUSH
1
12
S8012001
O-RING
1
[K2]
13
S8092000
BACK UP- RING
1
[K2]
14
A054-0015
WIPER
1
[K2]
15
A053-0024
U-RING
1
[K2]
16
A059-2014
WEAR-RING
2
[K2]
17
A053-0075
BUFFER SEAL
1
[K2]
18
C300-3111
SCREW SEAT
2
19
S8012101
O-RING
1
[K2]
20
S6710042
GREASE NIPPLE(A Type)
1

EHP22A (E)-r0/200925
- 15 -

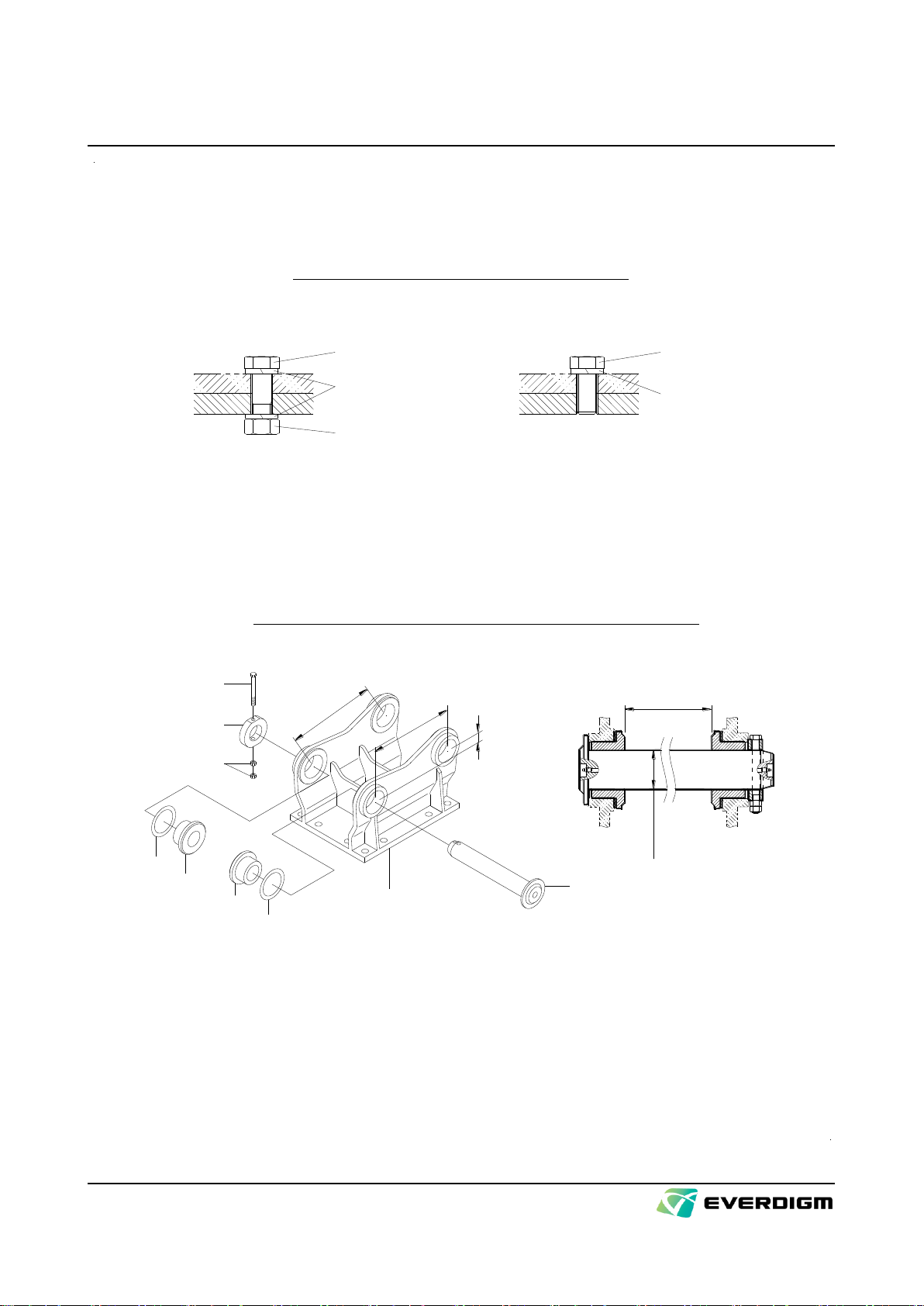

EHP22A–Parts for Mounting
1
Mounting Adapter
5
6
4
2
32
3
50 ~ 120
Max. 350
483
55
480
20T-PFMT-2A-1
Standard Mounting Adapter & Mounting Pin Set
Fasteners Set for Mounting Adapter
For M30x3.5 threaded holes
3
2
4
For 33 mm holes 1
3
Unit: mm

EHP22A (E)-r0/200925
- 16 -
EHP22A–Parts for Mounting
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
Fasteners Set for Mounting Adapter
C300-0606
ADAPTER FASTENERS SET
1
1
S0179863
HEX BOLT
8
M30x3.5xL120-10.9
2
S0139763
HEX BOLT
4
M30x3.5xL80-10.9
3
S5101513
SPRING WASHER
20
M30
4
S4013543
HEX NUT
8
M30x3.5-10-Style1
Standard Mounting Adapter
B250-7046
MOUNTING ADAPTER
1
Mounting Pin Set
B220-9950Do
MOUNTING PIN SET
2
2 sets / unit
1
B220-9952Do
BRACKET PIN
1
2
B220-9957Do
SPACER
2
3
B220-9955Do
SHIM
AR
4
B220-9956Do
STOP RING
1
5
S0167261
HEX BOLT
1
M16x2xL170-10.9
6
S4012942
HEX NUT
2
M16x2-10-Style2
Notes
The parts with ‘Do’at the end of their parts numbers are should be selected properly according to your carrier.
Please contact Everdigm or our distributor before ordering parts of the mounting pin set.
Hoses for Adapter-Mount Type
1
H001-0004D050
HOSE
2
FH1-ORFS16-P350-L2000
1
H001-0041D004
HOSE
2
FH1-JIC16-P350-L2000
2
A051-0212
O-RING
2
AS568-021-HsA90
3
A051-2192
O-RING
2
AS568-219-HsA90
4
H002-0004D002
CAP
2
ORFS16
5
A061-0026D003
HOSE PLUG
1
ORFS16
Notes
When ordering hoses, check the type of hose connection of carrier and proper length of hoses before choosing the hoses.
Special hoses with other connection types or other hose lengths are also available on request.

EHP22A (E)-r0/200925
- 17 -
EHP22A–Seal Kit
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
K1
AP205-0069
SEAL KIT (MAIN ASS'Y)
1
Seal Kit for Main Ass’y
1
A051-2192
-O-RING
-8
2
2180-1106D022
-DUST SEAL
-2
3
S8000111
-O-RING
-4
K2
AP205-0070
SEAL KIT (CYLINDER)
-1
Seal Kit for Cylinder
1
S8001201
-O-RING
-1
2
S8061200
-BACK UP-RING
-2
3
A059-0005
-WEAR-RING
-2
4
A056-0025
-PISTON SEAL
-1
5
S8012001
-O-RING
-1
6
S8092000
-BACK UP- RING
-1
7
A054-0015
-WIPER
-1
8
A053-0024
-U-RING
-1
9
A059-2014
-WEAR-RING
-2
10
A053-0075
-BUFFER SEAL
-1
11
S8012101
O-RING
-1

EHP22A (E)-r0/200925
- 18 -
EHP22A–Shims
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
Shims for Jaw
A035-0004D001
SHIM (0.5)
Thickness: 0.5 mm
A035-0004D002
SHIM (1.0)
Thickness: 1.0 mm
Shims for Cutter Blades
+
C300-4711
SHIM
Do
001
SHIM (0.1)
Thickness: 0.1 mm
002
SHIM (0.2)
Thickness: 0.2 mm
003
SHIM (0.3)
Thickness: 0.3 mm
004
SHIM (0.5)
Thickness: 0.5 mm
005
SHIM (1.0)
Thickness: 1.0 mm

EHP22A (E)-r0/200925
- 19 -
EHP22A–Maintenance Tool Kit
1
Option Tools
Standard Tools
18
2, 3, 4, 5, 6, 7, 8
16
9, 10, 11, 12
2
19 20
13, 14, 15
17
EHP(R)-TOOL-1
1

EHP22A (E)-r0/200925
- 20 -
EHP22A–Maintenance Tool Kit
ITEM
PART NO.
PART NAME
QTY
S / N
R E M A R K S
Standard Tool Kit
+
P202-0609A
EHP22A TOOL KIT
1
1
2199-9004
TOOL BOX
1
2
T6550006
L-WRENCH 5
1
3
T6550007
L-WRENCH 6
1
4
T6550009
L-WRENCH 8
1
5
T6550011
L-WRENCH 10
1
6
T6550013
L-WRENCH 12
1
7
T6550015
L-WRENCH 14
1
8
T6550022
L-WRENCH 22
1
9
T6510071
SPANNER 14x17
1
10
T6510075
SPANNER 19x22
1
11
T6510081
SPANNER 24x27
1
12
T6510087
SPANNER 30x32
2
13
T6510025
SPANNER 36
1
14
T6510028
SPANNER 46
1
17
A090-0031
RING WRENGH 55
1
18
2199-1005
PIPE
1
19
2199-9008
GREASE GUN
1
20
P201-8002A
ADJUST NUT JIG (PCD145)
1
Option Tools
1
A090-0034D002
PISTON JIG
AR
for cylinder maintenance
2
A090-0033D004
HOOK WRENCH
AR
for cylinder maintenance
