Evergreen Irrigation SI-RR+ User manual

25 cm
GB
A/ INSTALLATION AND GENERAL INFORMATION
1/ Installation
Locate the controller near a 230 V, 50 Hz power source. The
controller must be connected to an electrical installation that
conforms to standards and is protected by a fuse in the
electrical panel. Select a sheltered location where the controller
will not be spattered by water.
Remove the "knock out" disk(s) in the bottom of the
controller cabinet.
SI-RR+
OUTDOOR WALL MOUNT
25 cm
2
13
4
6
7
Not included
230 V
5
ø 4 mm
6 mm
ø 4 mm
2
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 1

3
GB
• Two-color indicator status light provides
the following in-formation :
• No light :No 230V input. Any power
outage is indicated by a blinking icon in
the form of a plug which appears in
the lower left corner of the LCD display
• Steady green light : Controller is operating
normally
• Blinking green light : Controller is
operating normally,but a sensor has
prevented watering.This occurs when an
RSD-BEx Rain Sensor or a Rain Check
automatic rain shutoff device is used.
• Steady red light : Overload or system
shutdown mode
• Built-in standby watering schedule :
each station operates once a day for 10
minutes beginning 8 hours after power
resumes in case a program is lost due to
extended power failure.
The default schedule assigns all stations to program A. An icon appears on the LCD
and remains displayed until a key is pressed. The controller must be reprogrammed.
• Diagnostic automatic circuit breaker : the SI-RR+ controller has an electrical overload/
short circuit protection system which only shuts down the station with the electrical
problem.Example :station 3 has a problem.The number “3 ” will appear on the LCD along
with this blinking icon . The controller will continue to water with all other operable
stations and bypass the problem one.The icon will disappear if you press the key .
Locate and fix the problem and the controller will return to normal operation of that
station at the next cycle.
• Sensor status indicator : there is a 2-color lamp (LED)on the front panel of the control-
ler. If your system includes a sensor device such as an RSD-BEx Rain Sensor or a RAIN
CHECK automatic rain shutoff, the LED indicates whether or not unnecessary irrigation
has been prevented. Steady green light : the program is operating normally. Blinking
greeen light : the program is operating normally but the sensor has prevented irrigation.
Note : if you do not use a sensor, make sure that the two terminals marked “S ” are
cross-connected (jumpered).
!
9V Ni-MH
VARTA IEC 6F22
(Not included)
2/ General information
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 2

4
GB
1- Disconnect the 230VAC power
supply wires
3/ Adding an extension module
2-Unscrew the panel mounting
screws. Remove panel
3 - Insert the 4-station extension module.
Connect it to the front panel by slightly
inclining the module and then use the
screw provided to secure it.
4-Replace the front panel
and screw it into place
5-Reconnect the 230VAC
power supply wires
Note : the controller takes into account the presence of a new module as soon as the
230VAC power supply is reconnected.
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 3

5
GB
4/ Wiring to the electric valves
Multi-valve station capacity :up to 2 RAIN BIRD valves per station plus a master valve or
pump start relay. Make sure all wire from the controller to the valves is code-approved
for underground low voltage use.
Select the suitable wire size.All connections to the valve leads and any wire splices in the
field must be water-tight.Use Rain Bird Quick Connect connectors : DBY,DBR.
See wiring diagrams.
Wire in same conduit
Wire in same
conduit
Wire in same
conduit
A =VALVE BOX
B =PUMP START RELAY
C =POWER RELAY
D =PUMP
E =TRANSFORMER
F =MASTER VALVE
A
AA
S
S
S
S
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 4

GB
Pump Start or Master Valve
The terminal marked "P"is used to automatically start a pump with a relay or to open a
master valve.The "P"terminal provides power only when one of the stations is operating.
Recommended relays :
FINDER 55 32 80 24, TELEMECANIQUE RXN 21 E11 B7 or HAGER
ES-224
or equivalent.
CAUTION
If all the stations are not used and a pump start relay has been connected, the unused
stations must be jumpered (cross-connected) to a station being used. If unused
stations are not jumpered and the controller reverts to the default program after a
lengthy power outage, the pump will operate with no flow (deadhead). Serious pump
damage will accur.
6
5/ Modem connection (option for operation in the satellite mode with Tele
Manager, see §C)
1- Disconnect the 230VAC
power supply wires
2-Unscrew the panel
mounting screws.
Remove panel.
Disconnect
the transformer wires.
3 - Install and secure the modem using the 2 screws
supplied. Connect the wire bundle between the mother
board and the modem as shown in diagram 3.
Wire in same
conduit
Wire in
same
conduit
C
D
B
F
A
S
S
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 5

6/ Radio Remote Control (Option)
RR-ANT (option)
SI-RR+
Interface
99-RT
4- Connect the phone line to the modem
as shown in diagram 4
5 - Connect the transformer
wires to the mother board
as shown in diagram 5
6-Replace the front
panel and screw it
into place
7-Reconnect the 230VAC power supply wires
Note: the controller takes into account the presence
of the modem as soon as the 230VAC power supply
is reconnected.
7
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 6

8
GB

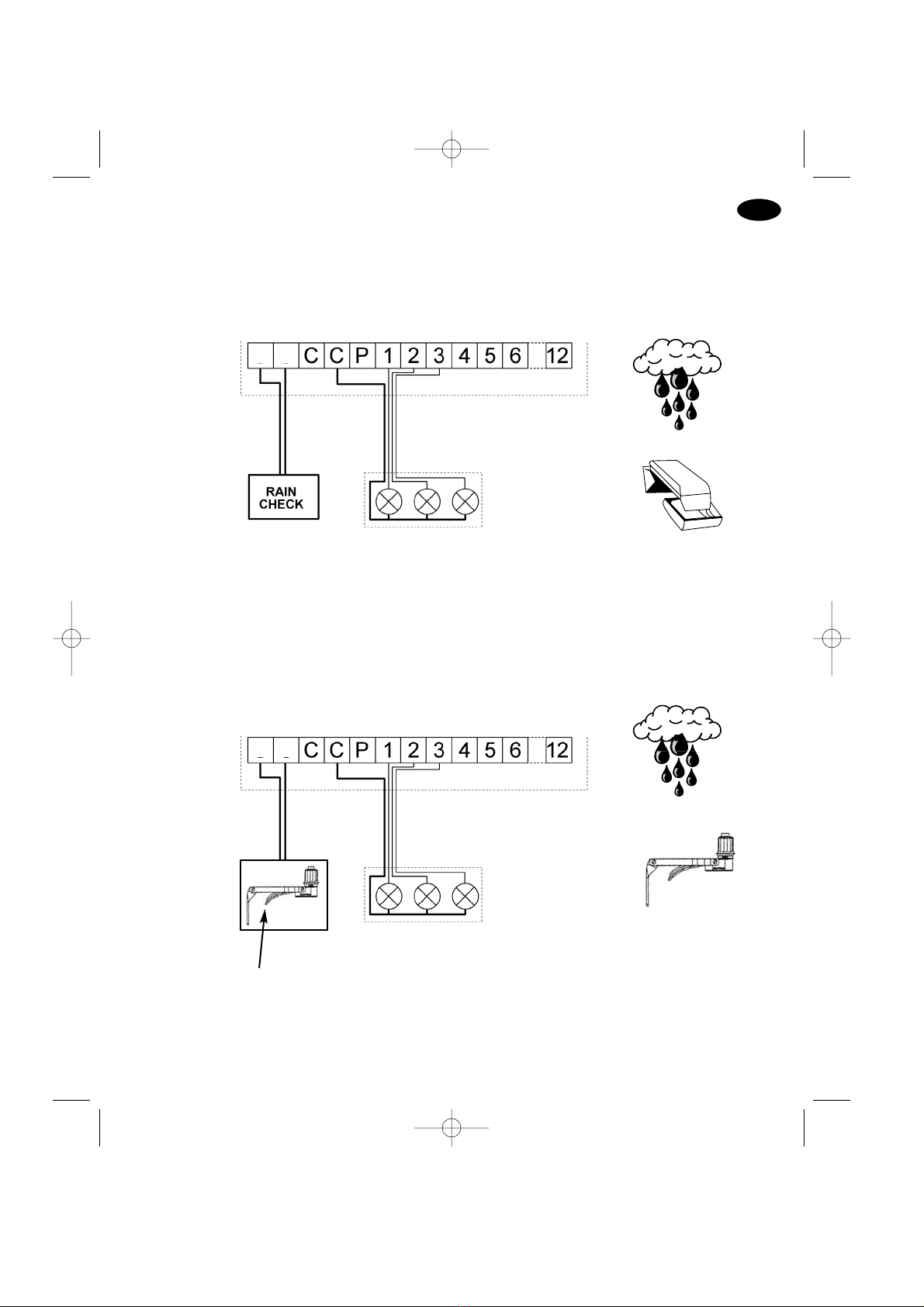

7/ Rain Check TM (Option)
8/ RSD-BEx (Option)
Wire in same
conduit
Wire in same
conduit
A
Wire in same
conduit
Wire in same
conduit
Blue wire not used
A
S
S
S
S
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 7

9
GB
9/ LPVK-12E (Option)
10/ Declaration of " CE " conformity
I declare that the SI-RR+ type device conforms to the contents of the following Council
directives :
- N°73/23/CEE of 19/02/73 modified by directive N°93/68/CEE of 22/07/93
- N°89/336/CEE of 03/05/89 modified by directives N°92/31/CEE of 28/04/92 and
N°93/68/CEE of 22/07/93 and conforms to the following standards :
EN 60065-ed 93 for electrical safety
EN 55022 and EN 55024 concerning electromagnetic compatibility
Aix-en-Provence
August 27, 2001
Signature
A
F
B
D
C
E
Wire in same conduit
Wire in same conduit
S
S
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 8

10
GB
11/ Glossary
• CONTROLLER
Device used to automatically open and close electric irrigation valves
• STATION
A numbered terminal on the controller terminal strip. 1 or 2 electric valves are wired to the
terminal. If 2 valves are connected to the same terminal, they will operate simultaneously
• ELECTRIC VALVE
A device which opens or closes the water passage to the sprinklers based on what has been
programmed
• PROGRAM
A weekly watering plan including watering days and watering start times
• WATERING DAYS
The days of the week on which you choose to water
• CYCLE
A group of stations operating sequentially (one after the other)
• START TIME
The time of day when you want an irrigation cycle to start. If you enter several start times,
the cycle will start several times
• TRIPLE PROGRAM (A/B/C)
Used to manage 3 different irrigation frequencies. Example : Program A for lawns watering every
Monday, Thursday and Saturday at 22:00. Program B for flowers watering every day at 9:00.
Program C for low volume irrigation every day. Each station is assigned to either program A,
or program B or program C.
• DELAY BETWEEN STATIONS : dL
You can program a delay from 0 to 99 seconds between the stations assigned to the salme
program.
B) CONVENTIONNAL
PROGRAMMING : Standalone mode
• A circular menu. Repeatedly pressing the key
will return you to the initial display. It is adviseable to
run through the 8 displays in order to familiarize
yourself with the screen sequence.
• During the programming, the data you enter is auto-
matically stored when you move from one screen
display to the next by pressing . Icons help you
program and indicate which part of the sequence is
being programmed.To call up a specific function,
repeatedly press until the desired function icon
appears in the display.
Set current time and day
Set watering days
Set start times
Delay between stations : dL
Manual cycle
(program) start)
C
%
Manual single station
start
System on / shutdown
CYC
STA
dL Set Water Budget
Set run times and assign stations
to A, B or C
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 9

1/ Set Clock
Icon : clock
A- Set the current time of day
Repeatedly press the key until this display appears.
Now use the +/ON and -/OFF keys.
The time of day will appear in hours and minutes. The +/ON
key increases the setting. Holding down the key will cause the
numbers to increase more rapidly.The -/OFF key decreases
the setting.
Note : 2 blinking dots separate the hours from the minutes.
B- Set current day
Press the key to move the square through the days of the
week numbered 1 to 7 : Monday = 1, Tuesday = 2,..... Place the square on the current day of the week .
Example : if "today" is Wednesday, place the square on "3".
2/ Set days of the week to water
Icon : calendar
Repeatedly press the key until this display appears.
First select the A, B or C program by pressing the ABC key.
“Prog A” or “Prog B” will appear in the upper left corner of the
display. Use the key to move the square through the days
of the week (1 = Monday). Note that the numbers blink.
The controller is factory pre-set to water every day.
The +/ON and -/OFF keys are used to set the water days. Press
the -/OFF key if you do not wish to water that day.
The square will disappear. If you change your mind, press the
+/ON key and the square returns.
Example : you want to water every Monday, Tuesday and Thursday. You must therefore cancel the
days you do not wish to water. Use the key to move the square to day 3. Now press the -/OFF key.
The square around the number 3 = Wednesday will disappear. Repeat the procedure for Friday,
Saturday and Sunday (numbers 5, 6 and 7). In this example, only numbers 1, 2 and 4 should appear
within a square.
11
GB
Prog A
1 2 3 4 5 6 7
1 2 3 4 5 6 7
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 10

3/ Set start times
Icon : alarm clock
You may operate the same program up to 8 times a day.
At each “start time”, all stations on a program will operate in
sequence for the duration you have selected. See chapter IV.
Now you set the start times for each of the programs.
Repeatedly press the key until this display appears. Use
the ABC key to select program A, B or C. The program selected
is indicated on the display by“Prog” followed by A, B or C. Now
set the first start time. Use the +/ON and -/OFF keys to increase
or decrease the setting. After setting the first start time, press
to set the next start time. Use the +/ON and -/OFF keys.
To set the start times for the other program, press the ABC key.
Then use the +/ON and -/OFF keys. To store the starts and
move to the next function, press the key.
Note : it is not necessary to use all 8 start times for each program. The controller will automatically
file your start times in chronological order (from 00.00 to 23.59). To cancel a start time : repeatedly
press the key slowly to display the start times. When you see the start time you want to cancel, hold
down the key for at least 2 seconds.
Note : There is only 1 dot between hours and minutes for start times.
4/ Set the length of watering time
(run time) per station
Icon : hour-glass
Repeatedly press the key until this display appears.
The station number appears at the left.
To set the station watering time, use the +/ON and -/OFF
keys. The duration is set in 1-minute increments from 0
minutes to 12 hours. Holding down the +/ON or -/OFF keys
will speed up the setting. Each station must be assigned to a
program. Use the ABC key to assign the station to program A,
B or C. The letter A, B or C will appear at the right of the screen
to indicate which program you have selected. Press the key
to move to the next station.
Note : Be careful not to schedule programs that will overlap. If you do not leave enough time for all
the stations to water, the controller will simply delay the second start time until the previous
program(cycle) is completed.
12
GB
Prog A
A
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 11

5/Set water budget
(Modify the water application).
Icon : percentage sign
The controller has a Water Budget function used to adjust
watering times for each program from 0 to 200 % without
re-setting the watering time for each station.
Repeatedly press the key until this display appears.
Use the ABC key to select the program you wish to water budget.
In this example, it is program A.
Use the +/ON and -/OFF keys to set the Water Budget in
increments of 10 %. 100 % is the starting point. The duration
in this case will be what you have already programmed. To
reduce the watering time, use the -/OFF key. Example :
“80” in the display means you have reduced the watering
time by 20 % on all stations. An initial duration of 10 minutes
which you previously programmed will now be cut to 8 minutes. Use the +/ON key to increase the
watering time.
Note : make sure that the increase in watering time does not result in program overlap.
6/ Set the delay between stations
Icon : dL
The SI-RR+ has a function to allow the programming of a start delay between each station assigned
to the same program. During the delay, no station will operate. The delay can be set from 0 to 99
seconds.You can set a different delay between stations assigned to the A, B and C programs. Note that
the delay does not affect the pump start or the opening of a master valve (Terminal P). and the start
time of the first station in a program. Also note that the pump or the master valve will remain
activated during the delay between two stations.
Repeatedly press the key until this screen is displayed. Use the
ABC key to select the program for which you wish a delay between
each station. Set the delay by pressing the +/ON or the -/OFF keys.
The setting is in 1-second increments from 0 to 99 seconds.
The default setting is “0” which means that there is no delay phase
between stations. The maximum setting is 99 seconds.
13
GB
%
Prog A
%
During the delay phase a screen similar to this is displayed. In this
example, the next station scheduled to operate is station 5 assigned
to program C. The remaining time delay is counted down second by
second until “0”.
If this function is not programmed, there is no delay between
stations.
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 12

8/Manual program (cycle) start
Icon : hand + CYC
Remember that a program (cycle) consists of the sequential
operation of all stations assigned to the same program.
Repeatedly press the key until this display appears. Use
the ABC key to select the cycle you wish to start. You may
select either program A, B or C.
The program you select appears in the upper lefthand corner
of the display. To start the program (cycle) press the +/ON key.
The blinking sprinkler stream appears in the display. The
number of the first station in the program appears and the
watering time is counted down. Then the number of the
second station in the program appears and its watering time
is counted down. The rest of the stations in the program
appear in sequence until the program (cycle) is completed.
Note that only those stations with a programmed watering time will appear. If you wish to shut off a
manual program (cycle) start, press the -/OFF key. The display will now show the time of day.
Note : If a cross appears on the sprinkler, (see following paragraph) no manual start is possible.
Even if the display shows the sprinkler with the blinking stream, no irrigation can take place.
Important : if the water budget is set higher or lower than 100%, the % icon will appear on the LCD
and the increased or decreased run time will be displayed.
7/Manual single station start
Icon : hand + STA
Repeatedly press the key until this display appears.
The station number appears at the left of the display
(example: station 1).
Repeatedly press the key until the desired station number
appears. In our example, now press the +/ON key to manually
start station 1. The sprinkler in the display begins to “water”.
Blinking stream
The watering time appears in the
display. The remaining watering time
is counted down. If you press the
key while a station is watering, the
controller will move to the next station and begin watering. If you wish to stop watering before the
scheduled duration is up, press the -/OFF key. The stream disappears. Only the station number
appears.
Note : water budgeting does not operate in the manual single station mode.
STA
STA
GB
14
CYC
CYC
Prog A
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 13

9/System ON / Shutdown
Icon : cross
The controller has a function which either allows or prevents irrigation. The default mode is ON
which allows the programmed watering to take place.
You can prevent watering (rainy weather shutdown) without changing the scheduled watering
program. Repeatedly press the key until this display appears. Note that the cross on the sprinkler
blinks. To prevent watering press the -/OFF key and the cross
stops blinking. If you move through the menu by repeatedly
pressing the key, you will see that the non-blinking cross
appears on all the displays except this one. No watering,
either automatic or manual, will take place. To return to the
watering mode, repeatedly press the key until the
display with the blinking cross appears. Now press the +/ON
key. The cross disappears.
Note : In the shutdown mode, the LED lamp on the front
panel is red
C/ SATELLITE MODE
Your controller can operate as a satellite in the Tele Manager central control system.
To operate in the satellite mode, a modem must be installed. See §A-5
IMPORTANT :
• In the Satellite mode, you can always manually start stations or programs even if the
satellite is « OFF » (see B/ CONVENTIONNAL PROGRAMMING §7, §8)
• In the Satellite mode, you cannot modify the program currently in operation. However,
you can always display the stored program by pressing the key
• In the Satellite mode, it is always possible to shut down the SI-RR+ on the site if necessary.
Repeatedly press to display the ON/OFF screen. Then press the -/OFF key.
A cross will appear on the sprinkler.
• During any communication for whatever reason between the SI-RR+ and the Tele
Manager, the program stored in the SI-RR+ is automatically replaced by the program
selected in the Tele Manager.
GB
15
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 14

16
GB
Additional screens in Satellite Mode :
a) Automatic watering mode (ON) b) Automatic watering is prevented (OFF)
2 - ON-OFF Screen. Repeatedly press the key until one of these displays appears.
There are 3 possibilities :
a)There is no cross. Automatic watering
will occur.
You can prevent it by pressing -/OFF
b) There is a blinking cross. You can press
+/ON to allow scheduled automatic
watering or press -/OFF to prevent it.
c) There is a non-blinking cross. You cannot
make an On-Site modification.
No automatic watering will occur but
you can manually start a station or cycle.
Only Tele Manager Software can modify
the status.
1 - Standby Screen. 2 possibilities :
3-Rain Delay
This function can only be programmed from a PC
equipped with Tele Manager. You cannot modify
the Rain Delay on site. However, manual station
and program starts are still possible .
4-Communication Screen
This screen indicates that your Satellite
is in communication with the Tele Manager software.
DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 15
