MODEL 9384
MULTI-PURPOSE
SCOREBOARD
Instruction Manual
Address: 34 Main Street, Whitesboro, NY 13492
Phone: [phone] • Toll Free: 800-383-6060 • Fax: [phone]
SCOREBOARDS • TIMERS • MESSAGE SIGNS • VIDEO DISPLAYS • WIRELESS
EVERSAN INC.
SYNERGY
TM
resources

EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Table of Contents
Check List .........................................................................................1
Installation Instructions......................................................................2
Instructions for Wiring ......................................................................2
Wireless Operation ...........................................................................3
Installation Diagram ..........................................................................4
Operating Instructions ......................................................................5
Maintenance of Outdoor Scoreboards .............................................6
Removal and Replacement Procedures ..........................................7
Cabled Console ...............................................................................8
Wireless Console .............................................................................9

Page 1
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
MODEL 9384
MUTIPURPOSE SCOREBOARD
These instructions must be followed to ensure correct operation. The warranty will be violated and
considered null if inspection and operating procedures are disregarded.
Should you require assistance or have any questions, please call 800-383-6060.
Check List
 Model 9384 Scoreboard
 Control Console with LCD readout
 Two Conductor Control Cable (Cabled Systems Only)
 Mounting Brackets (4)
 Antenna (2) (Wireless Systems Only)
NOTE: Please check that these items are available prior to initial test of the scoreboard. If you are
missing any items, please call [phone] for assistance.
Customer Shipping Inspection
A. Unpack scoreboard.
B. Unpack cable and control console. Plug the console cable and console into the console

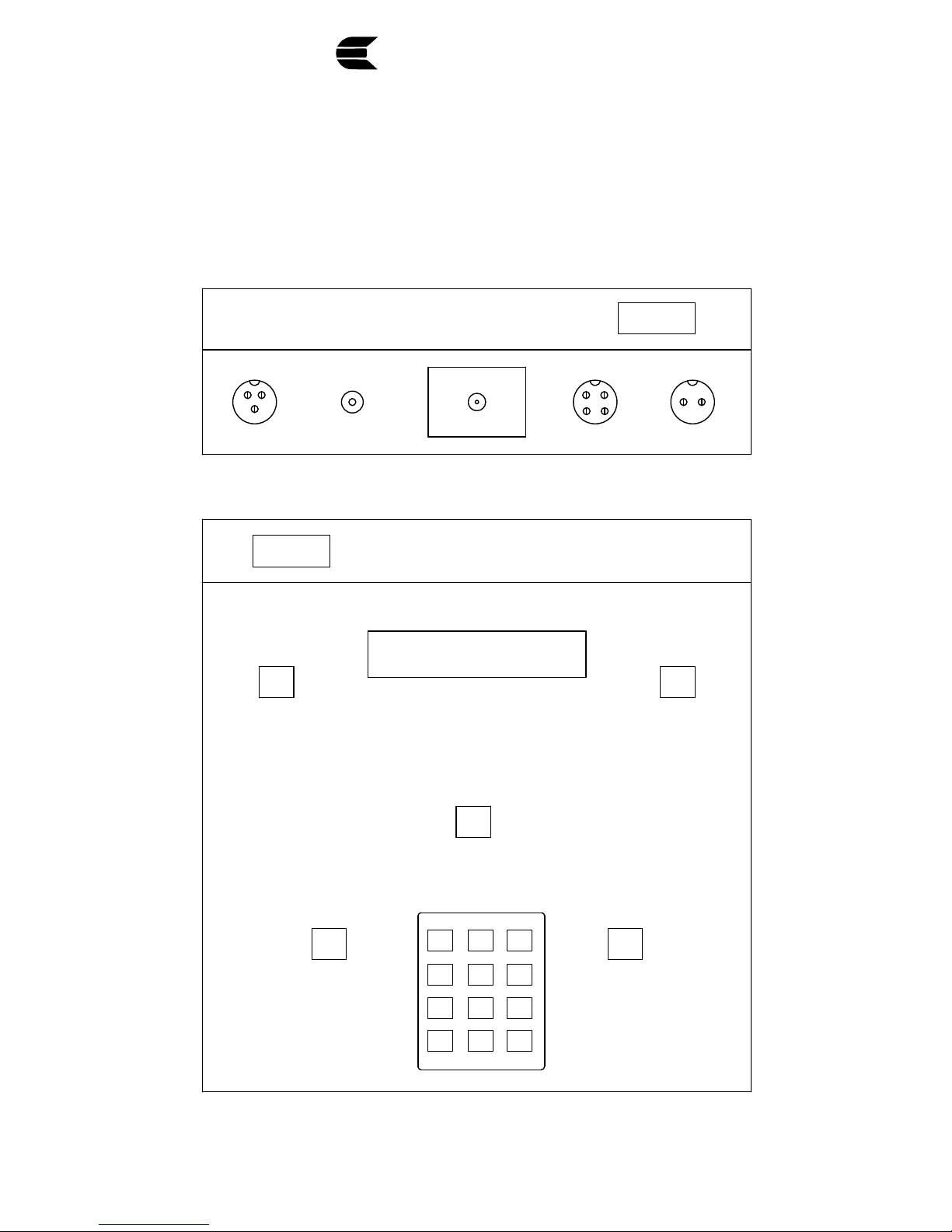

connector on back (see diagram).
C. Testing - Remove four screws holding the panel on the 120VAC access box on the back of the
scoreboard. There is a standard 120VAC plug for testing. After testing cut connector provided.
Match colors on power cable provided to three wires on 120V box. This board operates on
120VAC at approximately 4 AMP.
NOTE: FAILURE TO TEST SCOREBOARD PRIOR TO INSTALLATION
WILL VOID ALL WARRANTIES.
Power scoreboard using 120VAC and test scoreboard using the operating instructions provided.
SHOULD THERE BE A MALFUNCTION OR SHIPPING DAMAGE,
NOTIFY THE SHIPPER AND EVERSAN IMMEDIATELY.
INSTALLATION

Page 2
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
1. It is recommended that a professional sign company be hired to install the scoreboard (see
drawings). Eversan recommends a minimum depth of 6 ft. and a minimum diameter of 2 ½- ft.
pylon for each I-beam.
2. Calculate the wind loading by standard formula for height and dimension of sign. Dimension of the
sign is 4.5FT. High x 16FT. Wide. Approximate weight is 200lbs.
NOTE: Check local codes for your area.
3. Prepare and sink 2Ea. I-beams 10FT apart. Minimum I-Beam recommendation W 10 x 15
conforming to ASTM A36, align with plumb line and careful measurements.
4. Determine height of lowest point for scoreboard, minimum recommendation 8FT. Mark and align
on all mounting beams parallel to visual ground sighting.

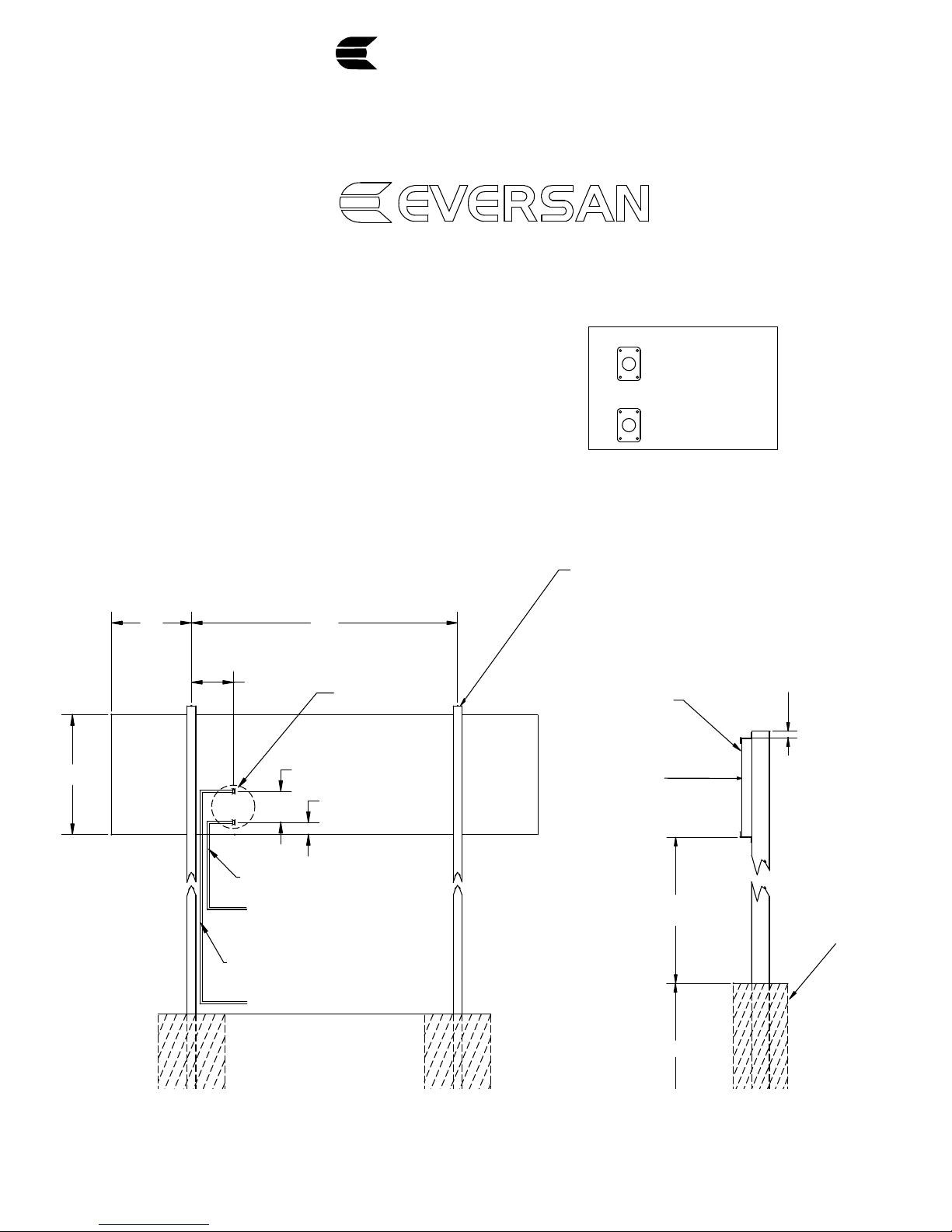

5. Drill and bolt (5/16 bolts) or weld provided bottom Z-brackets to the posts as shown in the
installation diagram.
6. Lift scoreboard set onto Z bracket. Secure temporarily with a clamp.
7. Place the top Z-brackets on the board and install in the same manner as the lower.
8. The board is now ready to be wired. Wireless systems must have the antenna installed to the
right of Power Supply cover, on the front of the scoreboard. Just screw antenna into connector
provided.
INSTRUCTIONS FOR WIRING
1. Determine 120VAC entrance and run conduit to pre-installed electric box on back of scoreboard
(see diagram).
2. The scoreboard draws 2 amp, 240 watts, but requires its own circuit breaker. Eversan, Inc.
recommends using a 10-amp, GFCI breaker.
CAUTION: Cabled System Only
The data cable is a pre-wired, 2 conductor shielded, 22GA stranded cable. Any cable
splicing should be color-coded or failure of the computer power supply will result.
Continuity of the shield is essential in reducing possible damage due to lightening.
Electrical Specications:
Electric outlets for scoreboards are always on a “clean” unused, switched breaker box. Pay close
attention to the power source and connections. It is recommended that a key-switch or switched

Page 3
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
breaker box be used to turn off the system at the end of use each day. The scoreboard should
always be powered down when not in use.
Power up Sequence:
120VAC Operation (Cabled System)
1. Plug the control console into the scoreboard using the cable provided. Any of the 2-pin
connectors on the control console can be used. The connector for the scoreboard is located
on the back (see diagram).
2. Power up the scoreboard using 120VAC,connection on back of scoreboard (see diagram).
3. The scoreboard will now go through diagnostics. Each digit will show a dash and then
starting at the minutes each digit will show an 8 and then go blank. The scoreboard will
then stay blank until the control console is turned on.
4. Turn the control console on using the rocker switch located on the upper left side. The
control console will display “WIRELESS NETWORK SYSTEM ID = NO” for approx. 5
seconds. The display will then show, ”EVERSAN, INC. DISPLAY SYSTEMS”, and then
“TIME=00:00.0 9, H=00 PER.=0 G=00”. You are now ready to use the operating
instructions to test all the functions.
Note: If the control console will not power up or shows “BATTERY LOW” replace the
battery with a 9V alkaline battery or use the 9-volt adapter provided.
WIRELESS OPERATION
Eversan, Inc.’s 2.4GHZ frequency hopping wireless control system allows for multiple scoreboards to
be controlled separately or together within feet of each other.
Initializing the wireless system:
The following steps must be used to ensure proper communication from the 9384 wireless control
console and each scoreboard you want to control.
1. Turn the power on to each 9384 scoreboard that you want to control. The scoreboards will show a
dash in each digit location.
2. Connect the antenna, 9VDC adapter provided or optional 12-volt battery, to the 9384 wireless
control console (see diagram for proper placement).
Turn the control console on using the rocker switch located on the upper left side. The control console
will display “WIRELESS NETWORK SYSTEM ID = XX” for approx. 5 seconds. The display will then
show, ”EVERSAN, INC. DISPLAY SYSTEMS”, and then “TIME=00:00.0 9, H=00 PER.=0 G=00”.
You are now ready to use the operating instructions to test all the functions.
Operating instructions:
