evertz MAGNUM-HW-B User manual

MAGNUM-HW-B
1RU Enterprise Class Server for MAGNUM
User Manual
© Copyright 2014
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario,
Canada L7L 5Z9
Phone: [phone]
Sales: [e-mail] Fax: [phone]
Tech Support: [e-mail] Fax: [phone]
Web Page: http://www.evertz.com
Version 1.0, July 2014
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of MAGNUM seris products. Evertz Microsystems expressly prohibits the
use of this manual for any purpose other than the operation of the device.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz
Microsystems Ltd. Copies of this manual can be ordered from your Evertz dealer or from Evertz Microsystems.

This page left intentionally blank

MAGNUM-HW-B User Manual
Revision 1.0 Page - i
TABLE OF CONTENTS
1. OVERVIEW ....................................................................................................................................1-1
2. SPECIFICATION............................................................................................................................1-3
3. CONNECTIONS .............................................................................................................................3-5
4. INSTALLATION..............................................................................................................................4-7
4.1. MAGNUM INSTALLATION....................................................................................................4-7
5. MAGNUM SERVER CONFIGURATION SHELL ............................................................................5-9
5.1. SYSTEM CONFIGURATION ...............................................................................................5-10
5.1.1. Setting the Host Name..............................................................................................5-10
5.1.2. Setting the Server Date.............................................................................................5-11
5.1.3. Setting the Server Time............................................................................................5-11
5.1.4. Setting the Server Time Zone...................................................................................5-12
5.2. NETWORKING CONFIGURATION .....................................................................................5-12
5.2.1. Assigning an IP Address for eth0..............................................................................5-13
5.2.2. Assigning a Subnet Mask for eth0 ............................................................................5-13
5.2.3. Assigning a Gateway Address for eth0.....................................................................5-13
5.2.4. Assigning a Broadcast Address for eth0...................................................................5-14
5.3. CLUSTER CONFIGURATION .............................................................................................5-15
5.3.1. Multicast Address 1 ..................................................................................................5-15
5.3.2. Multicast Interface 1..................................................................................................5-16
5.3.3. Change Database IP ................................................................................................5-16
6. APPENDIX ...................................................................................................................................6-17
6.1. FAQ .....................................................................................................................................
6-17
6.2. IPMI......................................................................................................................................6-17
6.2.1. IPMI Remote Access................................................................................................6-17
6.3. DRIVE SWAPPING – REPLACING A FAILED DRIVE........................................................6-20
6.3.1. Overview...................................................................................................................6-20
6.3.2. Replacing a Failed Drive Notes:................................................................................6-20

MAGNUM-HW-B User Manual
Page - ii Revision 1.0
Figures
Figure 1-1: MAGNUM-HW-B Front and Rear View............................................................................................1-1
Figure 3-1: MAGNUM-HW-B Connections - Front View....................................................................................3-5
Figure 3-2: MAGNUM-HW-B Connections - Rear View.....................................................................................3-6
Figure 4-1: BIOS SuperMicro Logo....................................................................................................................4-7
Figure 4-2: Boot Device Selection......................................................................................................................4-7
Figure 4-3: Magnum Boot Menu.........................................................................................................................4-8
Figure 4-4: Installation Confirmation ..................................................................................................................4-8
Figure 4-5: Installation Complete .......................................................................................................................4-8
Figure 5-1: Main Server Control Menu...............................................................................................................5-9
Figure 5-2: System Configuration Menu ..........................................................................................................5-10
Figure 5-3: Change Host Name .......................................................................................................................5-10
Figure 5-4: Change Date..................................................................................................................................5-11
Figure 5-5: Change Time .................................................................................................................................5-11
Figure 5-6: Change Time Zone........................................................................................................................5-12
Figure 5-7: Network Configuration Menu .........................................................................................................5-12
Figure 5-8: Enter New IP Address for eth0 ......................................................................................................5-13
Figure 5-9: Enter New Subnet Mask for eth0...................................................................................................5-13
Figure 5-10: Enter New Gateway Address for eth0 .........................................................................................5-14
Figure 5-11: Enter New Broadcast Address for eth0 .......................................................................................5-14
Figure 5-12: Cluster Configuration...................................................................................................................5-15
Figure 5-13: Change Multicast Address 1........................................................................................................5-15
Figure 5-14: Multicast Interface........................................................................................................................5-16
Figure 5-16: Database IP.................................................................................................................................5-16
Figure 7-1: BIOS SuperMicro Logo..................................................................................................................6-17
Figure 7-2: IPMI Configuration.........................................................................................................................6-18
Figure 7-3: Save BIOS Settings.......................................................................................................................6-18
Figure 7-4: IPMI Ethernet Port .........................................................................................................................6-18
Figure 7-5: IPMI Web Page..............................................................................................................................6-19

MAGNUM-HW-B User Manual
Revision 1.0 Page - iii
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release July 2014
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance either express or implied. The only warranty offered by
Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

MAGNUM-HW-B User Manual
Page - iv Revision 1.0
This page left intentionally blank

MAGNUM-HW-B User Manual
OVERVIEW Revision 1.0 Page - 1
1. OVERVIEW
MAGNUM-HW-B is the dedicated 1RU Enterprise Class Server hardware that runs the Magnum Control
System for large scale system environments.
Software Pre-installed:
•MAGNUM, requiring only license purchase to activate the MAGNUM modules
Key Features and Benefits:
•1RU Enterprise Class Server
•Redundant power supplies
•Linux Operating System
•Six Ethernet ports
•RAID 10 Drive Configuration
Figure 1-1: MAGNUM-HW-B Front and Rear View

MAGNUM-HW-B User Manual
Page - 2 Revision 1.0 OVERVIEW
This page left intentionally blank

MAGNUM-HW-B User Manual
SPECIFICATION Revision 1.0 Page - 3
2. SPECIFICATION
Chassis:
•Form Factor
•1U Rackmount
Dimensions:
•Height 1.7" (43mm)
•Width 17.2" (437mm)
•Depth 26.6" (676mm)
•Gross Weight 43 lbs (19.45 kg)
Front Panel:
•Buttons
oPower On/Off Button
oSystem Reset Button
oUID Button
LEDs:
•Power LED
•Hard drive activity LED
•2x Network activity LEDs
•System Overheat LED
•Universal Information (UID) LED
System Cooling:
•5x Cooling Fans
•1x Air Shroud
Power Supply:
•700W AC-DC high-efficiency power supply with PMBus and I2C
•AC Input: 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
•DC Output +5V standby: 3 Amp
•DC Output +12V: 58 Amp @ 100-140V
Environmental:
•Operating Temperature: 10° to 35°C (50° to 95°F)
•Non-operating Temperature: -40° to 70°C (-40° to 158°F)
•Operating Relative Humidity: 8% to 90% (non-condensing)
•Non-operating Relative Humidity: 5 to 95% (non-condensing)
LAN:
•6x RJ45 LAN ports
•2x SFP+ LAN port
•1x RJ45 Dedicated IPMI LAN port
USB:
•2x USB rear ports

MAGNUM-HW-B User Manual
Page - 4 Revision 1.0 SPECIFICATION
VGA:
•1x VGA Port
Keyboard / Mouse:
•PS/2 keyboard and mouse ports

MAGNUM-HW-B User Manual
CONNECTIONS Revision 1.0 Page - 5
3. CONNECTIONS
Figure 3-1: MAGNUM-HW-B Connections - Front View
Front:
•Drive Bay 1 – Drive 1 RAID 10
•Drive Bay 2 – Drive 2 RAID 10
•Drive Bay 3 – Drive 3 RAID 10
•Drive Bay 4 – Drive 4 RAID 10
•Drive Bay 5 – Not populated
•Drive Bay 6 – Not populated
•Drive Bay 7 – RAID Battery Backup
•Drive Bay 8 – Not populated
•Optical Drive
Front Panel Buttons:
•Power On/Off Button
•System Reset Button
•UID Button
Front Panel Status:
•Power LED
•Hard drive activity LED
•2x Network activity LEDs
•System Overheat LED
•Universal Information (UID) LED

MAGNUM-HW-B User Manual
Page - 6 Revision 1.0 CONNECTIONS

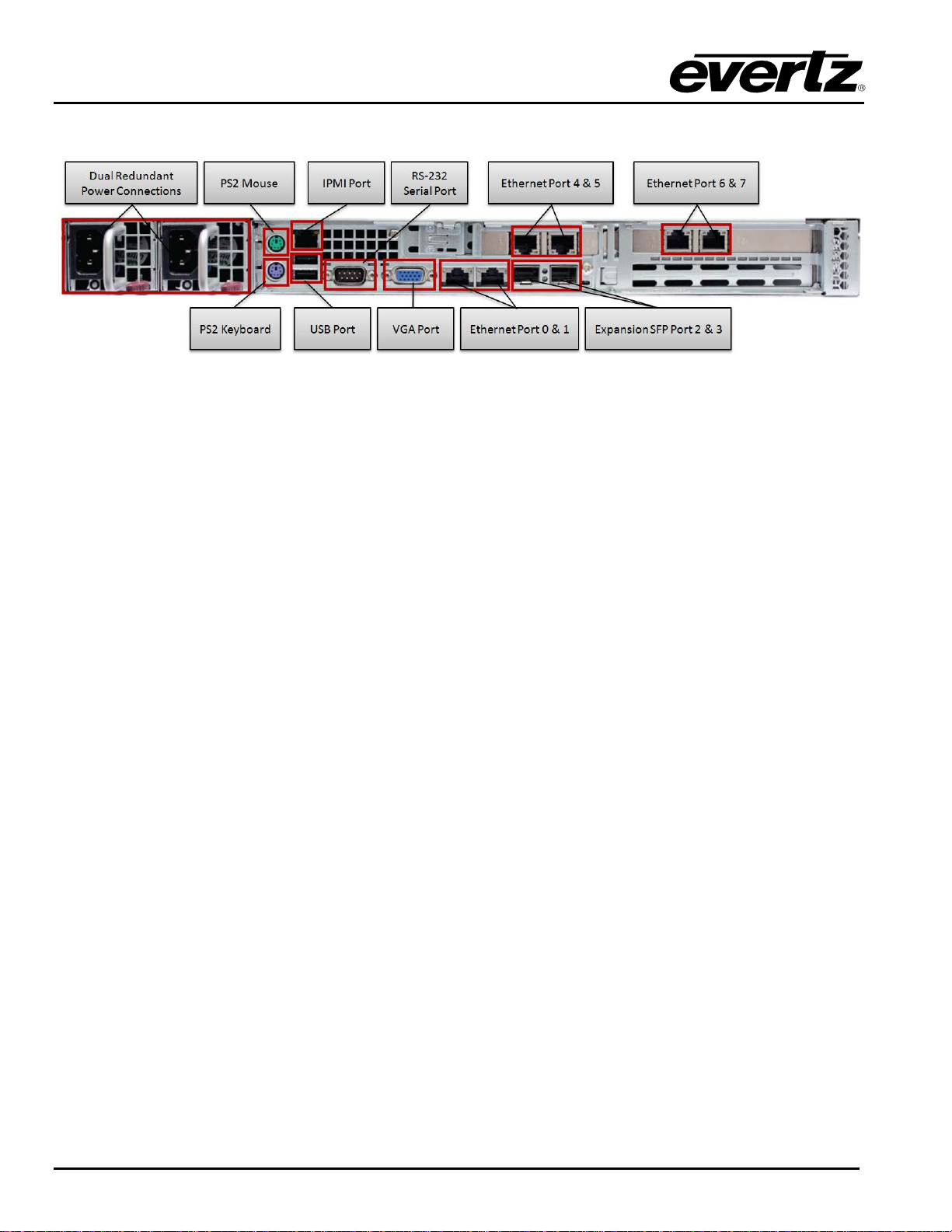

Figure 3-2: MAGNUM-HW-B Connections - Rear View
Rear:
•Dual Redundant Power Connections
•PS2 Mouse
•PS2 Keyboard
•IPMI Port
•USB Port
•USB Port
•RS-232 Serial Port
•VGA Port
•Ethernet Port 0
•Ethernet Port 1
•Ethernet Port 4
•Ethernet Port 5
•Ethernet Port 6
•Ethernet Port 7
•Expansion SFP Port 1
•Expansion SFP Port 2

MAGNUM-HW-B User Manual
INSTALLATION Revision 1.0 Page - 7
4. INSTALLATION
4.1. MAGNUM INSTALLATION
MAGNUM-HW is shipped with the Operating system and MAGNUM software pre-installed. If for any
reason the server needs to be re-installed following the steps below.
1) Insert the latest released version of the Magnum Installation CD/DVD into the DVD-ROM drive.
Reboot the server by pressing the Reset Button.

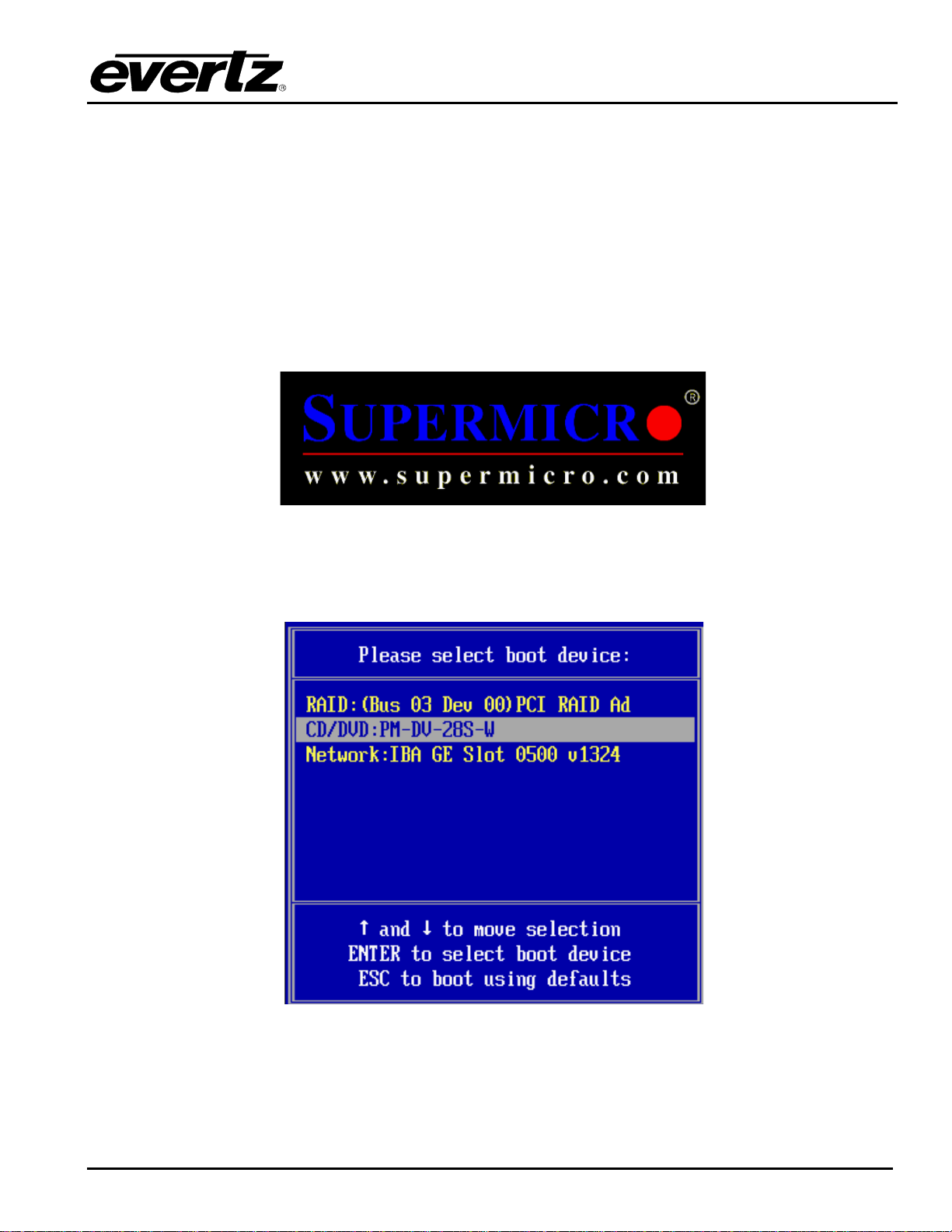

2) Press <F11> repeatedly while the BIOS displays the SuperMicro logo in Figure 4-1.
Figure 4-1: BIOS SuperMicro Logo
3) Wait for the boot device selection screen shown in Figure 4-2. Select the device called CD/DVD
and press <Enter> to continue.
Figure 4-2: Boot Device Selection

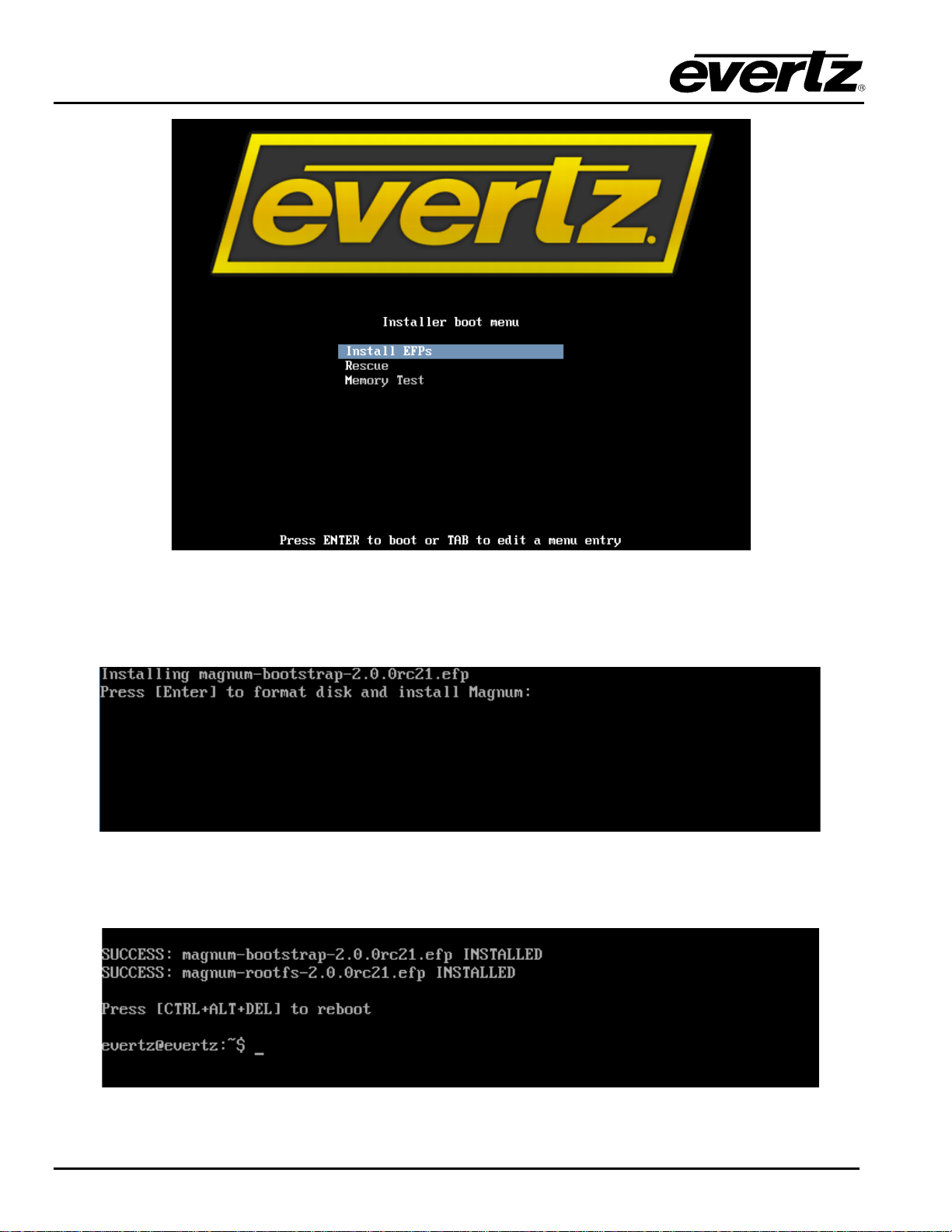

4) Wait for the Magnum boot menu shown in Figure 4-3. Select Install and press <Enter> to
continue.

MAGNUM-HW-B User Manual
Page - 8 Revision 1.0 INSTALLATION
Figure 4-3: Magnum Boot Menu
5) Wait for the Installation confirmation screen to appear as shown in Figure 4-4. Press Enter, to
continue.
Figure 4-4: Installation Confirmation
6) Once installation is complete press CRTL+ALT+DEL to reboot as shown in Figure 4-5.
Figure 4-5: Installation Complete

MAGNUM-HW-B User Manual
CONFIGURATION Revision 1.0 Page - 9
5. MAGNUM SERVER CONFIGURATION SHELL
The server control tool enables the user to set up the MAGNUM server parameters. Launching the
MAGNUM Server Configuration tool will reveal a number of operations that can be performed in order to
properly set up your server. For more detailed information on the MAGNUM Server Configuration Shell
please refer to the MAGNUM manual. This section outlines the minimum configuration required.

Tip: Changes that affect the operation of the MAGNUM Server or admin level actions
will cause an authentication prompt to be displayed.
To login to the MAGNUM Server Configuration Shell, the user will have to enter the following information
at the login screen. The login screen is accessed by hitting “ctrl+alt+F2” to switch terminals. At the login
prompt use the following default credentials.
•Enter admin as the username and then press <enter>
•Enter admin as the password and then press <enter>
Figure 5-1 displays the main setup menu. Section 5.1 to 5.3 will guide you through the process of setting
up your server and identifying the function of each configuration tool.
You will use the arrow keys, tab, and enter keys to navigate through the MAGNUM Server Configuration
Shell.
Figure 5-1: Main Server Control Menu

MAGNUM-HW-B User Manual
Page - 10 Revision 1.0 CONFIGURATION
5.1. SYSTEM CONFIGURATION
Selecting the System Configuration option will reveal the screen displayed in Figure 5-2. The main
function of the system configuration menu is to complete the set up of the server configuration. The
System Configuration Menu allows the user to verify or change system level configuration, such as
Date/Time, Hostname, etc; or to perform system level operations such as changing the admin password,
upgrading, rebooting, etc.
Figure 5-2: System Configuration Menu
5.1.1. Setting the Host Name
Selecting the Hostname option from the System Configuration menu will enable the user to set the host
name for the server. The dialog box in Figure 5-3 will appear when this option is selected. The user will be
prompted to enter the desired name for the host into the “Set current host name:” field. This name was set
during initial installation but can be changed using this menu option.
Figure 5-3: Change Host Name

MAGNUM-HW-B User Manual
CONFIGURATION Revision 1.0 Page - 11
5.1.2. Setting the Server Date
Selecting Date from the System Configuration menu will enable the user to set the date for which the
server will reference. Select the current day, month and year from the calendar identified in Figure 5-4.
Figure 5-4: Change Date
5.1.3. Setting the Server Time
Selecting Time from the System Configuration menu will enable you to set the current time for which the
server will reference. Select the hour, minute and second identified in the Change Time dialog box as
shown in Figure 5-5. Use the up and down arrow keys to set the values and tab to switch boxes.
Figure 5-5: Change Time

MAGNUM-HW-B User Manual
Page - 12 Revision 1.0 CONFIGURATION
5.1.4. Setting the Server Time Zone
Selecting Time Zone from the System Configuration menu will enable you to set the current time zone for
the region you are in. Toggle through the list of countries and zones to select your region. Refer to Figure
5-6.
Figure 5-6: Change Time Zone
5.2. NETWORKING CONFIGURATION
The Networking Configuration menu will enable the user to set the network information (IP, Netmask,
Gateway, and Broadcast).
Figure 5-7: Network Configuration Menu

MAGNUM-HW-B User Manual
CONFIGURATION Revision 1.0 Page - 13
5.2.1. Assigning an IP Address for eth0
To assign an IP Address, select the (eth0) IP Address option from the Networking Configuration menu.
The dialog box in Figure 5-8 will appear when this option is selected. The user will be prompted to enter
the desired IP address into the “New IP address for eth1” field and then select the OK button. Please note
that the settings must be saved using the Save and Apply option from the Networking Configuration
menu. Please note that DHCP is NOT recommended at any time.
Figure 5-8: Enter New IP Address for eth0
5.2.2. Assigning a Subnet Mask for eth0
To assign a subnet mask for eth0, select the (eth0) Netmask option from the Networking Configuration
menu. The dialog box in Figure 5-9 will appear when this option is selected. The user will be prompted to
enter the desired subnet mask into the “New subnet mask for eth1” field and then select the OK button.
Please note that the settings must be saved using the Save and Apply option from the Networking
Configuration menu.
Figure 5-9: Enter New Subnet Mask for eth0
5.2.3. Assigning a Gateway Address for eth0
To assign a gateway for eth0, select the (eth0) Gateway option from the Networking Configuration menu.
The dialog box in Figure 5-10 will appear when this option is selected. The user will be prompted to enter
the desired gateway into the “New gateway address for eth1” field and then select the OK button. Please
note that the settings must be saved using the Save and Apply option from the Networking Configuration
menu.

MAGNUM-HW-B User Manual
Page - 14 Revision 1.0 CONFIGURATION
Figure 5-10: Enter New Gateway Address for eth0
5.2.4. Assigning a Broadcast Address for eth0
To assign a broadcast address for eth0, select the (eth0) Broadcast option from the Networking
Configuration menu. The dialog box in Figure 5-11 will appear when this option is selected. The user will
be prompted to enter the desired subnet mask into the “New broadcast address for eth1” field and then
select the OK button. Please note that the settings must be saved using the Save and Apply option from
the Networking Configuration menu.
Figure 5-11: Enter New Broadcast Address for eth0
